Emax MT2204II 2600KV Brushless Motor with CW & CCW M5 Thread Options, 16x19mm 4xM3 Mount

Emax MT2204II 2600KV Brushless Motor with CW & CCW M5 Thread Options, 16x19mm 4xM3 Mount

Emax

$31.56 USD
$31.56 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Style
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The Emax MT2204II 2600KV brushless motor is designed for RC multirotor and FPV drone builds, offering CW and CCW M5 thread options for secure prop mounting. The drawing reference includes key installation dimensions in mm for frame fitment and hardware selection.

Key Features

  • 2600KV MT2204II brushless motor model
  • M5 threaded shaft with CW and CCW thread options
  • 4 x M3 mounting holes with 16 mm and 19 mm hole spacing
  • Black finish notes: top and bottom covers anodized black; bell black

For build compatibility questions (frames, props, ESC pairing), contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Brand / Model Emax MT2204II
KV 2600KV
Units (drawing) mm
Motor diameter Ø27.9
Overall height 29.2
Shaft thread M5 (CW or CCW)
Top shaft protrusion 12.5
Threaded section length 7.5
Bottom shaft diameter Ø3
Shaft diameter (top view) Ø5
Center boss diameter Ø8
Mounting holes 4 x M3
Mounting hole spacing 16 and 19
Motor wire length 77
Part No. 0101005025 / 0101005026

Applications

  • FPV quadcopter and multirotor builds requiring 2204-class brushless motors
  • Projects needing CW/CCW threaded prop mounting with M5 hardware

Details

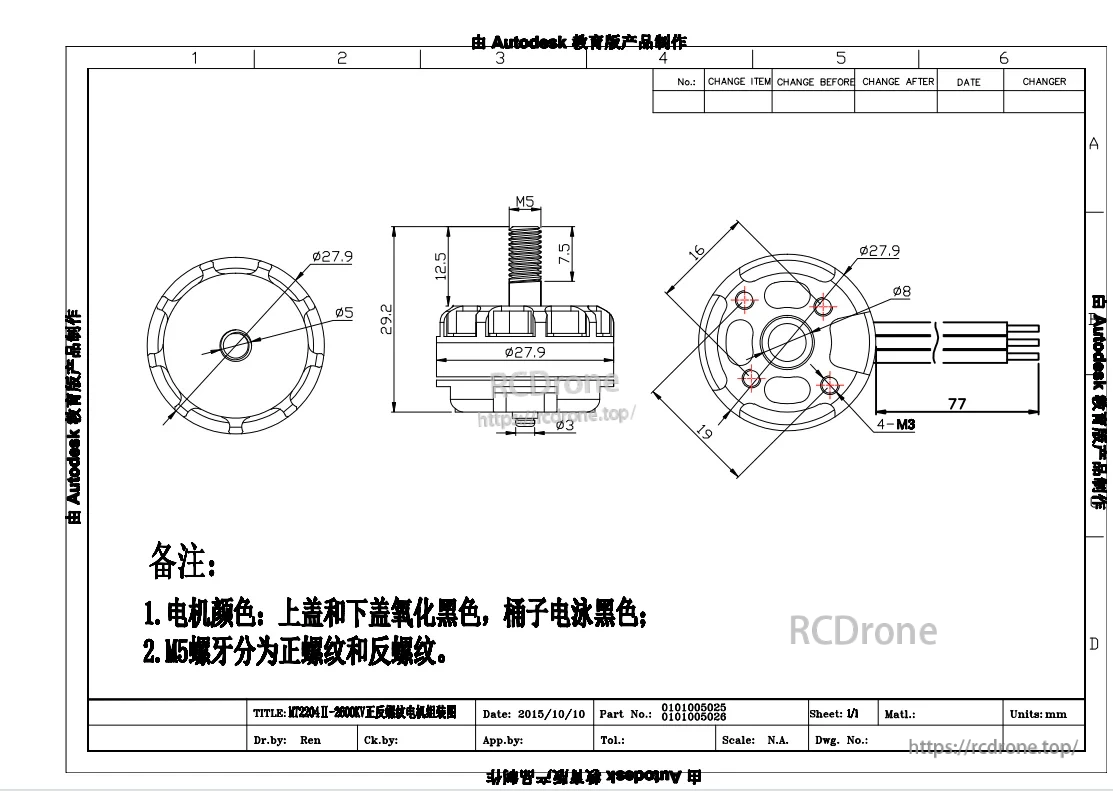

Emax MT2204II 2600KV brushless motor dimension drawing with M5 shaft thread and 16/19 mm mounting pattern

Reference dimensions help confirm frame fitment, M3 mounting hole spacing, and M5 threaded prop hardware for CW/CCW builds.
