Feetech Multi Function Serial Port Signal Converter USB/URT-1 SMS RS485 Servo SCS TTL Compatible Feetech SCServo and SM servo

Feetech Multi Function Serial Port Signal Converter USB/URT-1 SMS RS485 Servo SCS TTL Compatible Feetech SCServo and SM servo

Feetech

Regular price $15.44 USD
Regular price $23.17 USD Sale price $15.44 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

157 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Brand Name: Feetech

Origin: Mainland China

Material: Plastic

Plastic Type: PC

RC Parts & Accs: Batteries - LiPo

Size: 10*10*10

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Lithium Battery

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Battery

Quantity: 1 pcs

Technical parameters: KV1100

Model Number: URT-1

Four-wheel Drive Attributes: Motors

Wheelbase: Screws

Model Number: URT-1

Size: 52*38.4*16mm

The Baud Rate: 50bps-1Mbps

The Power supply Voltage: 4.8-25V

The USB interface: Micro USB

The UART connector: 2.54 Pitch pin

Protocol Type: Half Duplex Asynchronous Serial Communication

  • FE-URT-1 USE MANUAL

    Multi function serial port signal converterUSB/URAT TO SMS(RS485)&SCS(TTL)》

    1. Overview of 1. functions
    URT-1 multifunction serial signal converter, in order to facilitate the user to debug and use SMS and SCS composite Feite series serial servo design.
    URT-1 integrated USB serial port chip, combined with linear low-voltage differential voltage regulator circuit, USB signal can be easily converted to 5V or 3V3 serial signal level.
    In the URT-1 board, serial signal conversion circuit respectively into two different levels of signal, which A road - asynchronous half duplex RS485 level port can be connected to the SMS series servo; B - asynchronous half duplex TTL level single bus port can be connected to the SCS series of steering gear.
    In the URT-1 board in the input and output signal by using asynchronous serial time-sharing using hardware circuit, hardware automatic diversion, without the use of additional IO enable to control, reduce the occupation of MCU port burden and code simple.
    USB port using USB MINI interface; UART interface with 2.54 row spacing general; SMS series servo interface using 5264-4AW interface can be directly connected to the steering gear; SCS series servo interface using 5264-3AW interface can be directly connected to the steering gear.
    The working voltage of SMS and SCS series servo fit is not the same, reuse requires a different working voltage, power supply port and can also access the SCS from the SMS section of the step-down power supply high voltage after making the system with a power supply to provide power.
    Because the power port has overcurrent limit, the maximum is 6A, so it is necessary to do additional power distribution processing in the actual application of the serial connection of more servos. URT-1 is only used for signal conversion.

    2. functional features
    Full speed USB device interface, compatible with USB V2.0
    Support baud rate 50bps~1Mbps
    5V and 3V3 UART serial port signal level can be switched freely
    Supports 32/64 bit Windows 10/8.1/8/7/VISTA/XP, SERVER 2016/2012/2008/20032000/ME/98
    Microsoft digital signature authentication
    SMS and SCS series servos can be shared by one serial port for control
    The serial port signal is asynchronous half duplex communication mode, and the hardware automatic diversion needs no additional enable IO
    The interface of servo system adopts error proofing connection to ensure proper connection
    UART interface is general pin way, can be used as USB to serial port output, also can connect MCU UART to control the steering gear
    With signal level power indicator (D1), TX (D2) and RX (D3) indicator, convenient to view data status
    The 5V voltage is supplied from the USB, otherwise the external voltage is supplied to the 5V
    500mA overcurrent protection and overvoltage protection for USB power supply belt


    3. specification parameters

    Weight: 12.5 grams

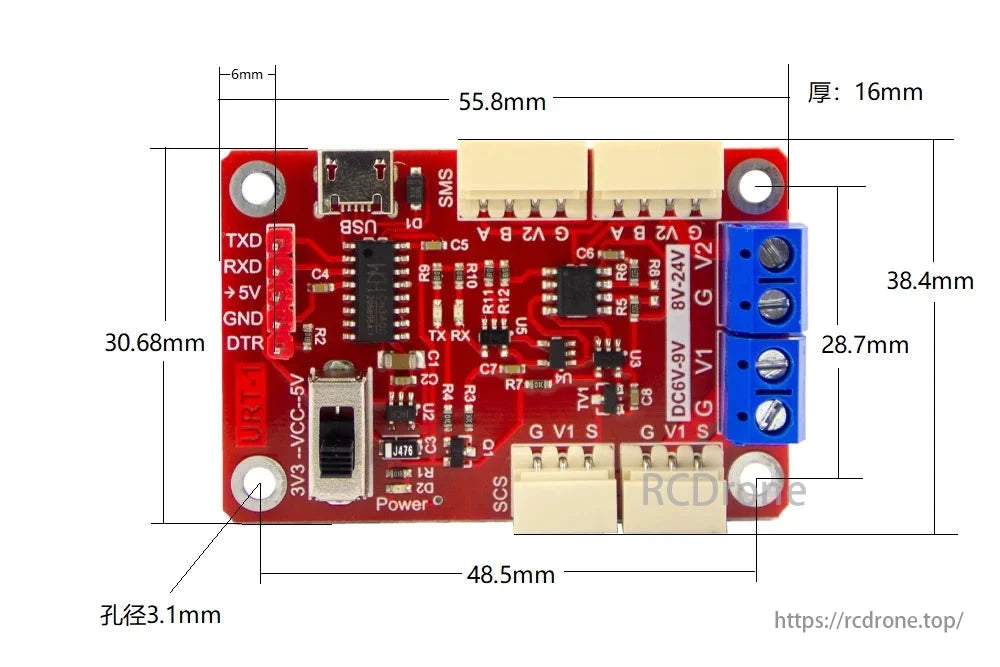

    Size (L*W*H):55.8 * 36.6 * 11.5 mm
    Mounting size: 48.8 * 28.8 mm
    USB interface: MINI USB
    UART interface: 2.54 pin spacing
    SCS servo interface: 3PIN 5264-3AW
    SMS servo interface: 4PIN 5264-4AW
    Actuator power interface: 5.08 terminal


    4.motherboard port:
    Overview of 1. functions URT-1 multifunction serial signal converter, in order to facilitate the user

    5. need matching list
    MINI USB connection line
    Power supply and line of rudder
    Connecting line between steering gear and steering engine
    Du Bangxian (optional)

    6. drive installation
    CH340C driver download address:
    Http://www.wch.cn/download/CH341SER_EXE.html
    Run the installer driver after download

    USB port using USB MINI interface; UART interface with 2.54 row spacing general . SMShardware automatic diversion, without the use of additional IO enable to control . in theFE-URT-1 USE MANUAL Multi function serial port signal converter

    Click Install to wait for a period of time, do not close the installer before prompt for successful installation.
    Successfully installed or installed successfully before the driver, in the URT-1 connection to the computer USB port, in the computer device manager can see the corresponding port number.


    7. hardware connection
    Access the corresponding servos to the corresponding servos interface
    The correct power supply is connected to the servo power supply port, in particular, the positive and negative pole of the power supply can not be connected
    Connecting URT-1 and PC with MINI USB line

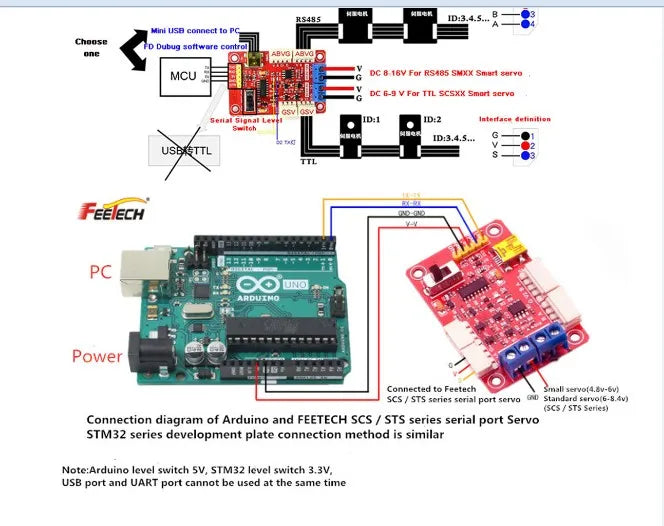

    The following is a physical connection between the SMS series and the SCS series servos, as shown below:
    Feetech Smart Servo Debug Connectlon URT-1 USB to RS4

    8. software testing
    Test with FD software
    Debugging assistant test with serial port
