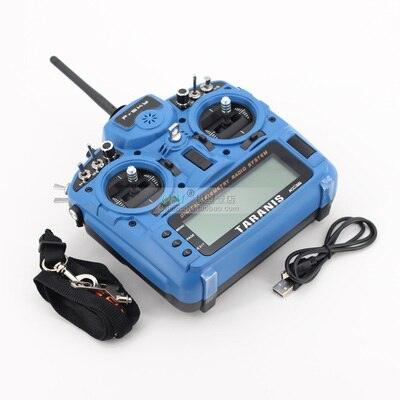

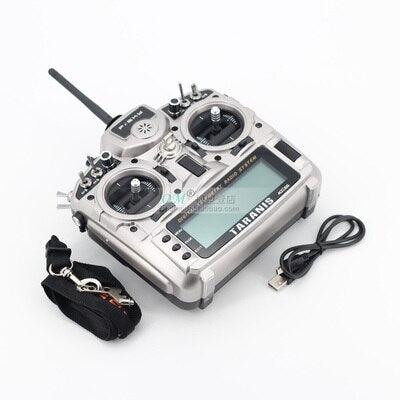

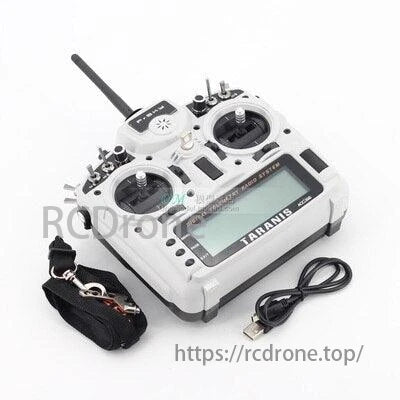

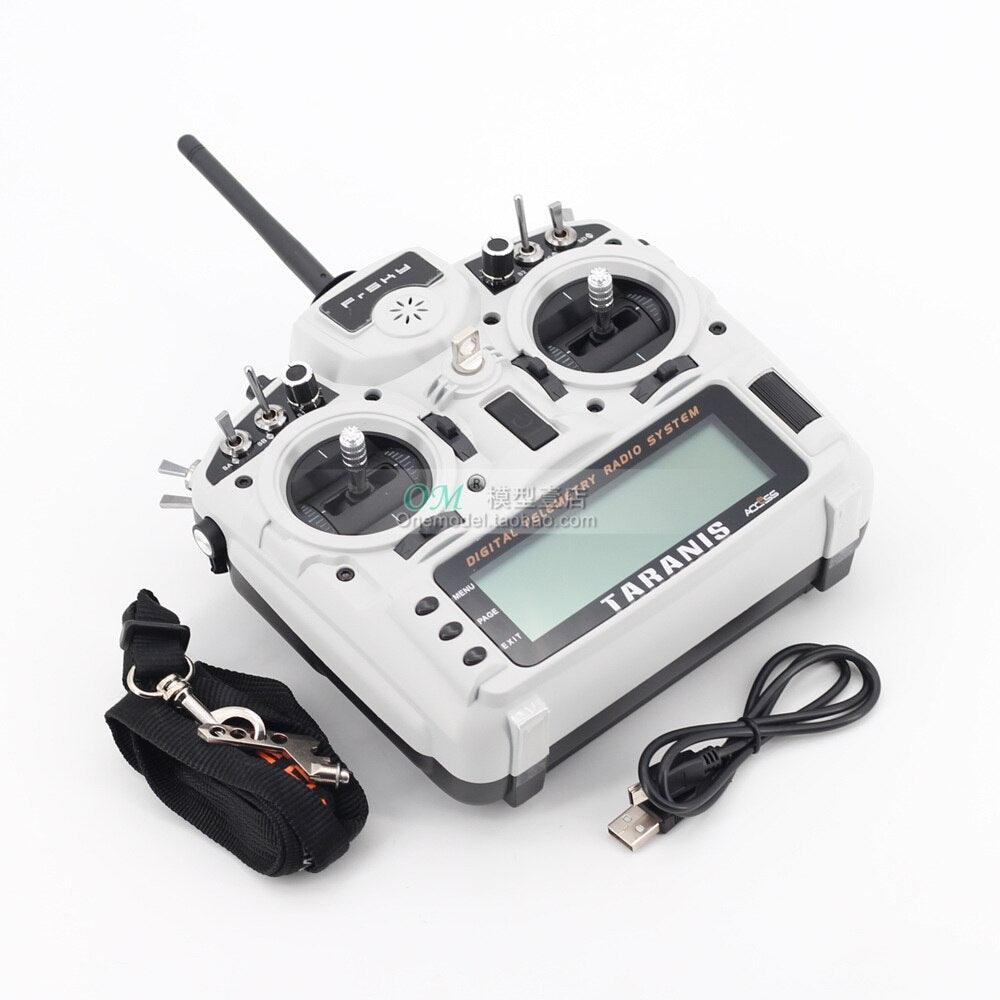

FrSky Taranis X9D PLUS remote control, new and improved in 2019.
Equipped with "OPEN TX" open source system, multiple functions, free programming. It can meet the functional requirements of different players and different models.
FrSky X9D Plus 2019 has been improved and redesigned, adding a momentary rebound switch and placing it in the starting position that DLG pilots are used to when launching the model. The improved scroll wheel button adds convenience to users when navigating the system menu.
The newly upgraded MCU chip and the redesigned motherboard further enhance the computing power and expand the data storage space, which not only improves the running environment of LUA scripts, but also optimizes the overall performance including voice broadcast.
The Taranis X9D Plus 2019 remote control device uses the ACCESS communication protocol, which is used in conjunction with the high-speed digital interface of the RF module, enabling the device to obtain 24 transmission channels with high speed and low latency.
In addition, users can detect radio frequency interference caused by radio waves by using the newly added spectrum analyzer function in the OpenTX operating system.
With the application of the ACCESS protocol, the 2019 model device will bring more outstanding experience based on the classic Taranis remote control device.
· Classic Taranis shape design
· ACCESS communication protocol equipped with high-speed module digital interface
· Easy start rebound switch
· Menu navigation wheel button
· Support spectrum analyzer function
· Support SWR alarm function
· G9D potentiometer rocker
· Haptic vibration alerts and voice playback
· Support wired coach function
· PARA wireless trainer system
-High-speed and low-latency coaching system
- Can be used wirelessly with FreeLink App and AirLink S module devices
Support 2S lithium battery balance charging function (Mini USB charging interface)
The product performance is stable, the remote control distance is long, and the response speed is fast. It is suitable for all mid-air models.
The function settings are rich, and each channel can be refined according to the model requirements.
There are various types of receivers, various functions, and receivers of different sizes can be selected.
Rich and practical functions such as low voltage vibration alarm and signal strength return are all matched.
The joystick operation is smooth, the pointing is accurate, and the virtual position is small.
The system supports online update and can be upgraded.


Product Information/PRODUCT INFO
■Product name:
FrSky Taranis X9D Plus 2019
■Product Specifications:
· Size: 200*194*110mm (L*W*H)
Weight (X9DP 2019): 670g (without battery)
Operating system: OpenTX
· Built-in RF module: ISRM-S-X9
Number of channels: 24 channels
· Operating voltage range: 6.5~8.4V
· Working current: 130mA@8.2V (Typ)
· Operating temperature: -10℃ ~ 60℃ (14℉ ~ 140℉)
LCD screen resolution: 212*64
· Smart Port, Micro SD memory card slot, Mini USB charging port and DSC trainer port
Model storage quantity: 60 groups (expandable via MicroSD card)
Compatible with: ACCST D16 and ACCESS series receivers
