RadioMaster TX12 MKII ELRS EdgeTX SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Size: 170*159*108mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

Origin: Mainland China

Model Number: RadioMaster TX12 MKII

Material: Composite Material

Description:

Note：Mode 1-Right-hand throttle

Mode 2-Left hand throttle

New to TX12 MKII
★ Updated rear case with comfortable grips
★ Improve S1 / S2 Grips
★ Improved USB-C QC 3.0 Charging
★ Updated main board design
★ Updated MCU to STM32F407
★ EdgeTX factory installed
★ SD Card included
★ Internal ExpressLRS RF Module

Specs:
Size: 170*159*108mm
Weight: 363g
Frequency: 2.400GHZ-2.480GHZ
RF Chip option: ExpressLRS (ELRS)
Transmitting Power: 20dbm
Antenna Gain: 2db
Working Current: 320mA@8.4V
Voltage Range: 6.6-8.4v DC
Range: > 2km (depending on receiver)
Radio Firmware: EdgeTX (Transmitter) /  ExpressLRS (RF module)
Channels: Up to 16 (depending on receiver)
Display: 128*64 Monochrome LCD display
Gimbal: High precision hall gimbals
External module: JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
USB Charging: QC3 USB-C
SD Card: Included

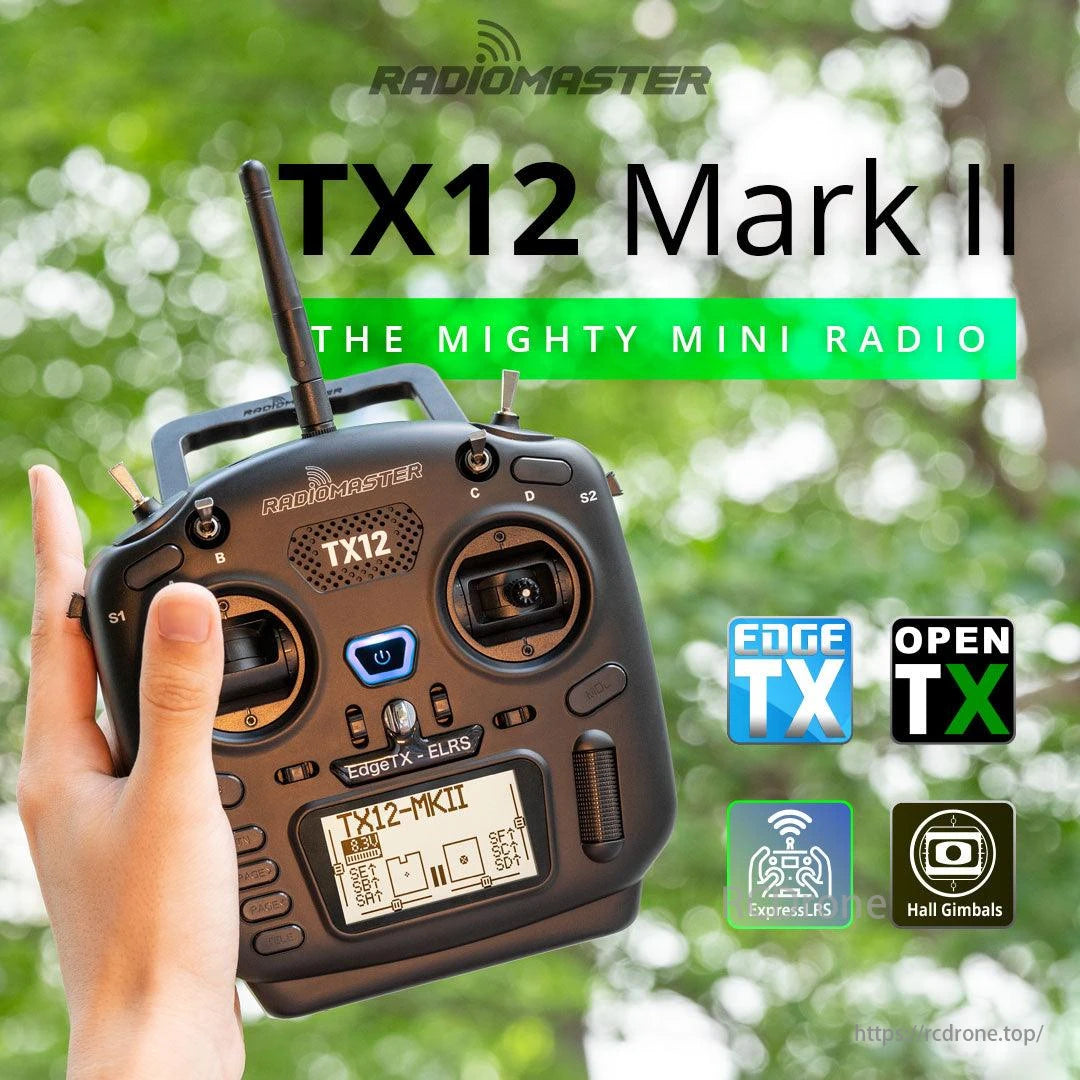

RadioMaster TX12 MKII Details

The new RadioMaster TX12 MKII ELRS EdgeTX digital radio transmitter features a main processor upgraded from STM32F407 to STM33F408, offering adjustable hall sensors without disassembly. The ergonomic grips have been improved with a S1/52 slider grip. Additionally, the device comes with a TRS 3.5mm USB port and trainer socket.

Mocule CC2500 e-chip Multi-protocol ExpressLRS (ELRS) 2.4GHz . working curren: 130- 8OmA 310-350mA Working voltage 6.6-8.4v DC Upgrace method USBISD card EdgeTX Companion Battery 21700 5ooOmAh maximum (Not incluced) Charging ac3 USB-C SD 256MB by cefault, 8GB maximum Singl card
