RadioMaster TX12 MKII MK2 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Size: 287*129*184mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Remote Control

Origin: Mainland China

Model Number: TX12 MKII

Material: Composite Material

For Vehicle Type: Airplanes

Brand Name: abay

Item: Radiomaster TX12 2.4g ELRS Remote Control
Parameters:
New to TX12 MKII
Updated rear case with comfortable grips
Improve S1 / S2 Grips
Improved USB-C QC 3.0 Charging
Updated main board design
Updated MCU to STM32F407
EdgeTX factory installed
SD Card included
Internal ExpressLRS RF Module

Specs:
Size: 170*159*108mm
Weight: 363g
Frequency: 2.400GHZ-2.480GHZ
RF Chip option: ExpressLRS (ELRS)
Transmitting Power: 20dbm
Antenna Gain: 2db
Working Current: 320mA@8.4V
Voltage Range: 6.6-8.4v DC
Range: > 2km (depending on receiver)
Radio Firmware: EdgeTX (Transmitter) /  ExpressLRS (RF module)
Channels: Up to 16 (depending on receiver)
Display: 128*64 Monochrome LCD display

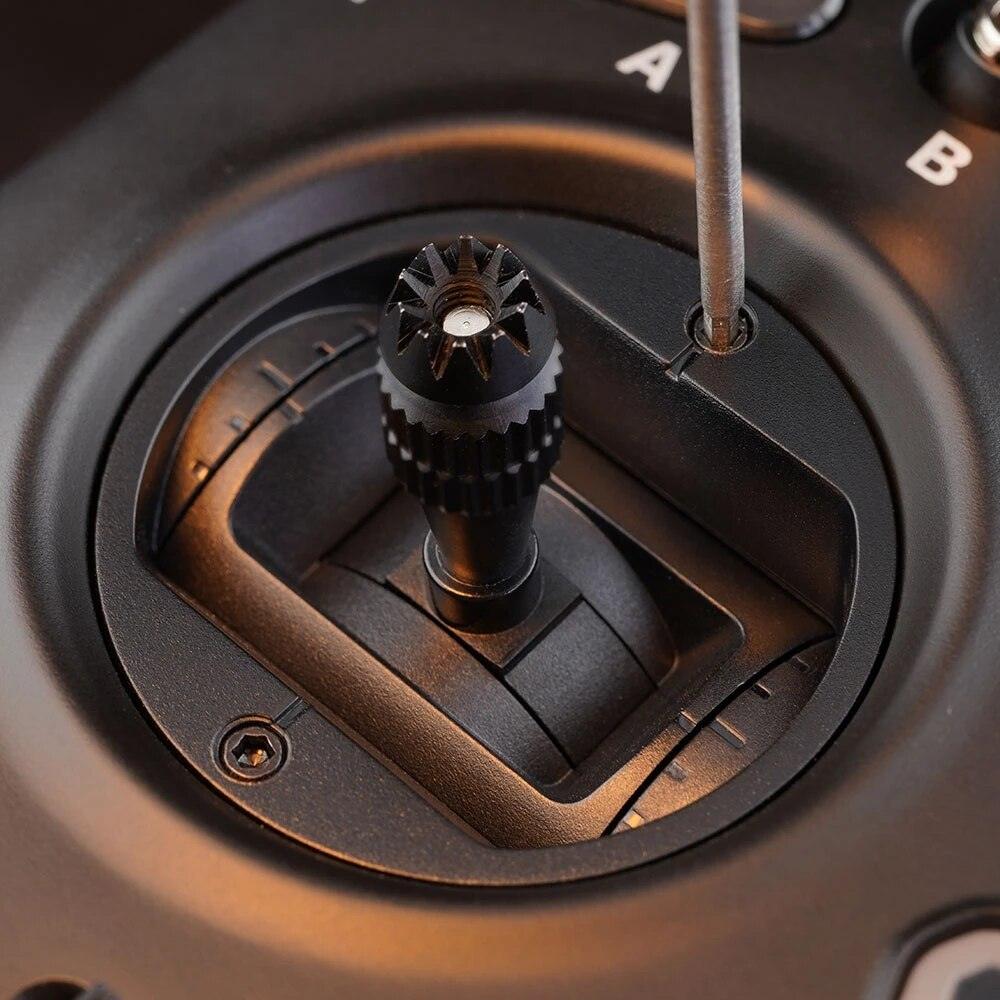

Gimbal: High precision hall gimbals
External module: JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
USB Charging: QC3 USB-C
SD Card: Included

• Package Included:

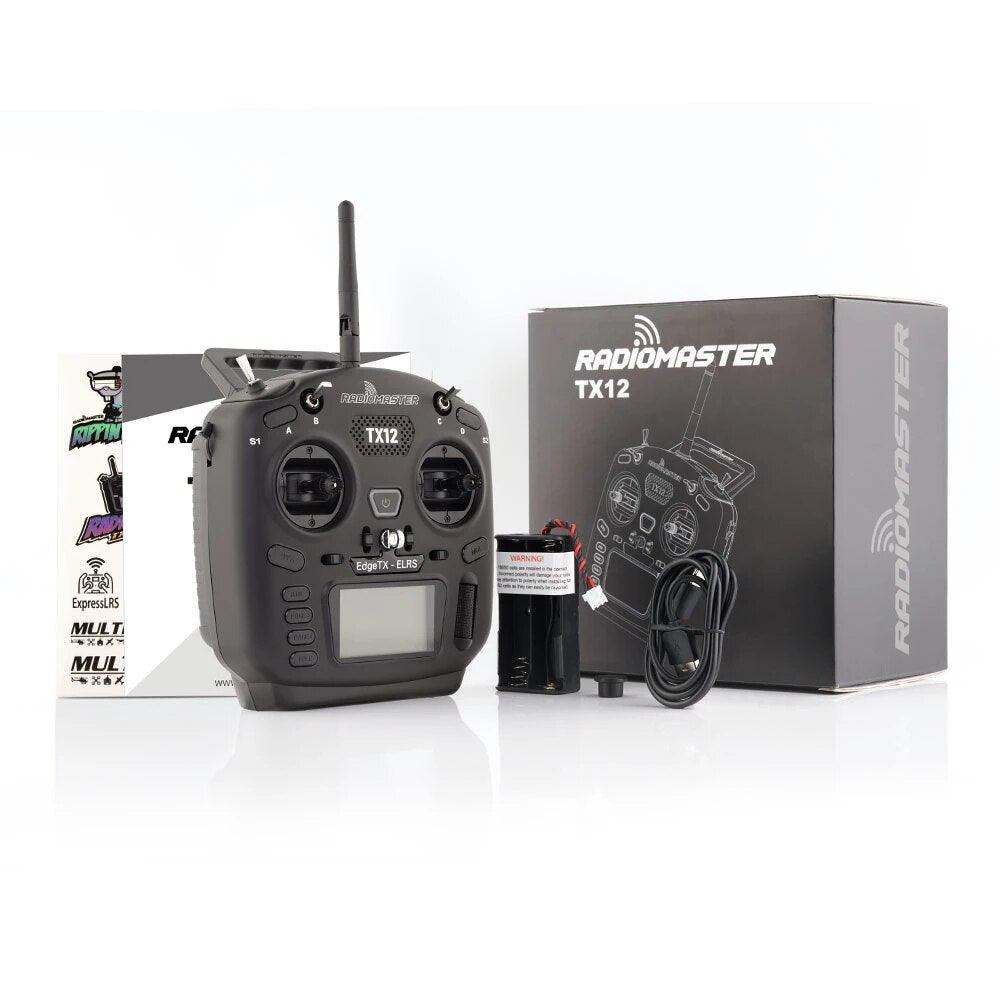

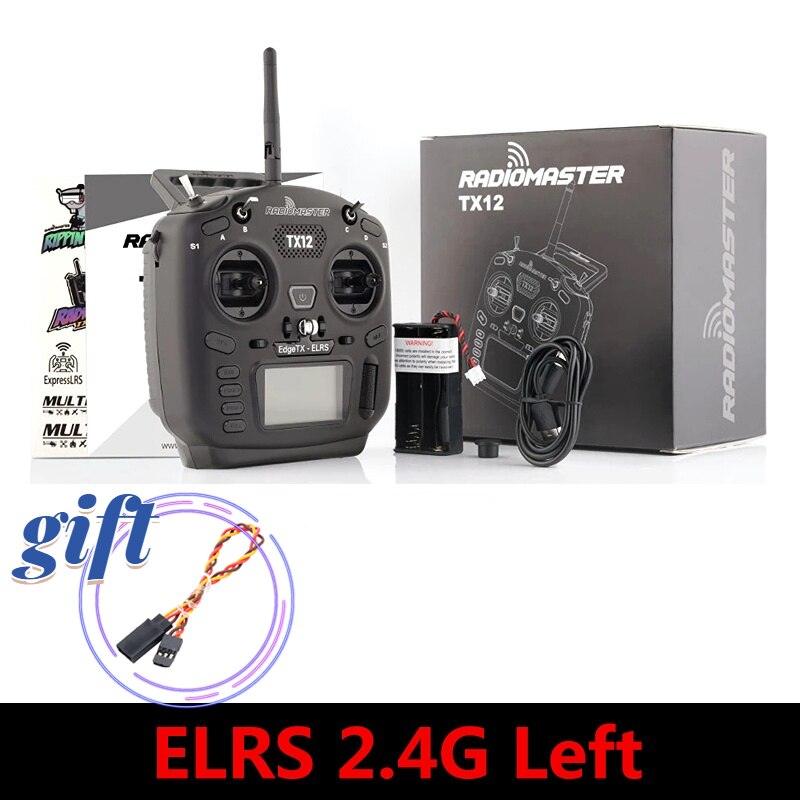

• Radiomaster TX12 MKII ELRS Remote Control x 1

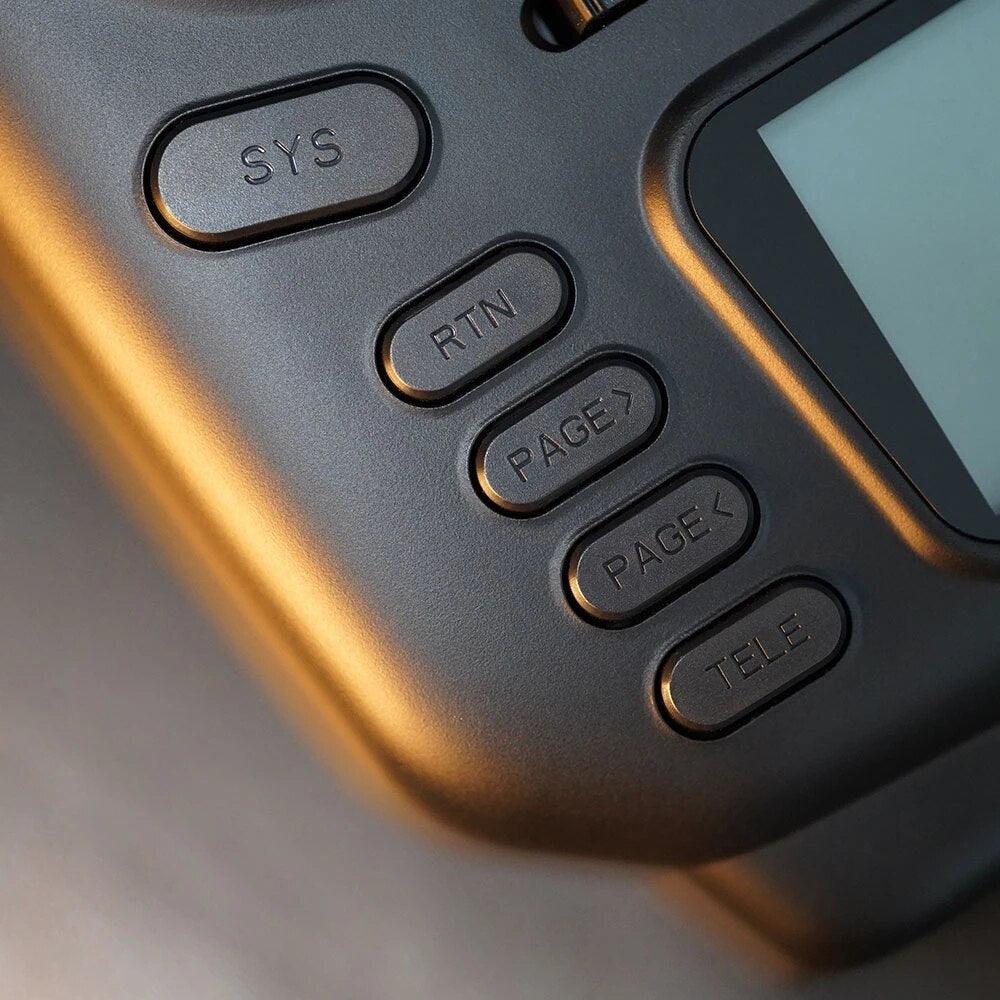

Antenna Handel Trainer Pont TYPE-C USB Position Position 159mm 108mm Position Ran JaRfR Position SA Button SD Button VTannnam Leit Right Gimbal Pover Button 170mm SYS Button MDL Button Tnm Buttons RTN Button PAGE> Button Menu Wheel PAGEButton TELE Button LCD Screen

Introducing the RadioMaster TX12 MKII, featuring EDGETX and OPENTX support. This upgraded main processor is powered by an STM32F407 chip, providing improved performance and stability. The transmitter also boasts HALL GIMBALS for precise control, adjustable without disassembly. The ergonomic grips have been improved, with a 1/52 slider grip for comfortable handling. Additional features include a USB port, trainer socket, and data transmission via 3Smm cable.
