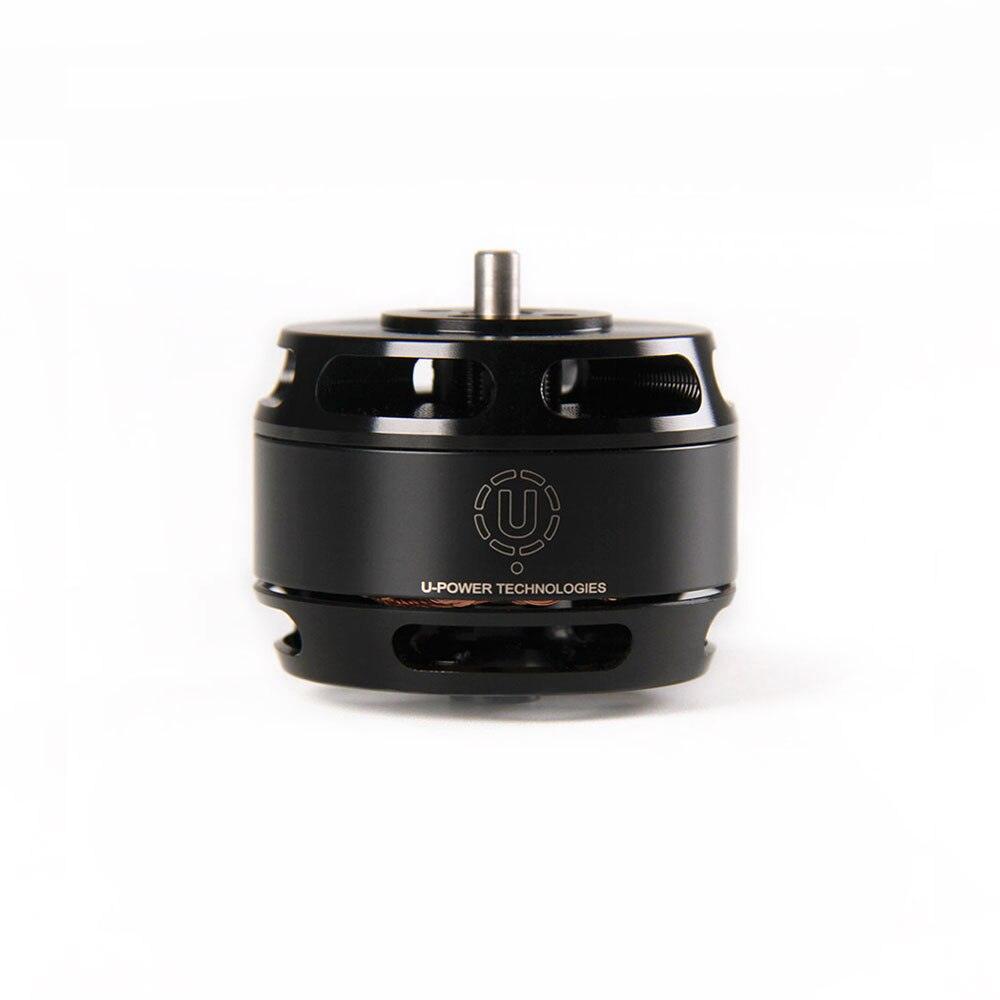

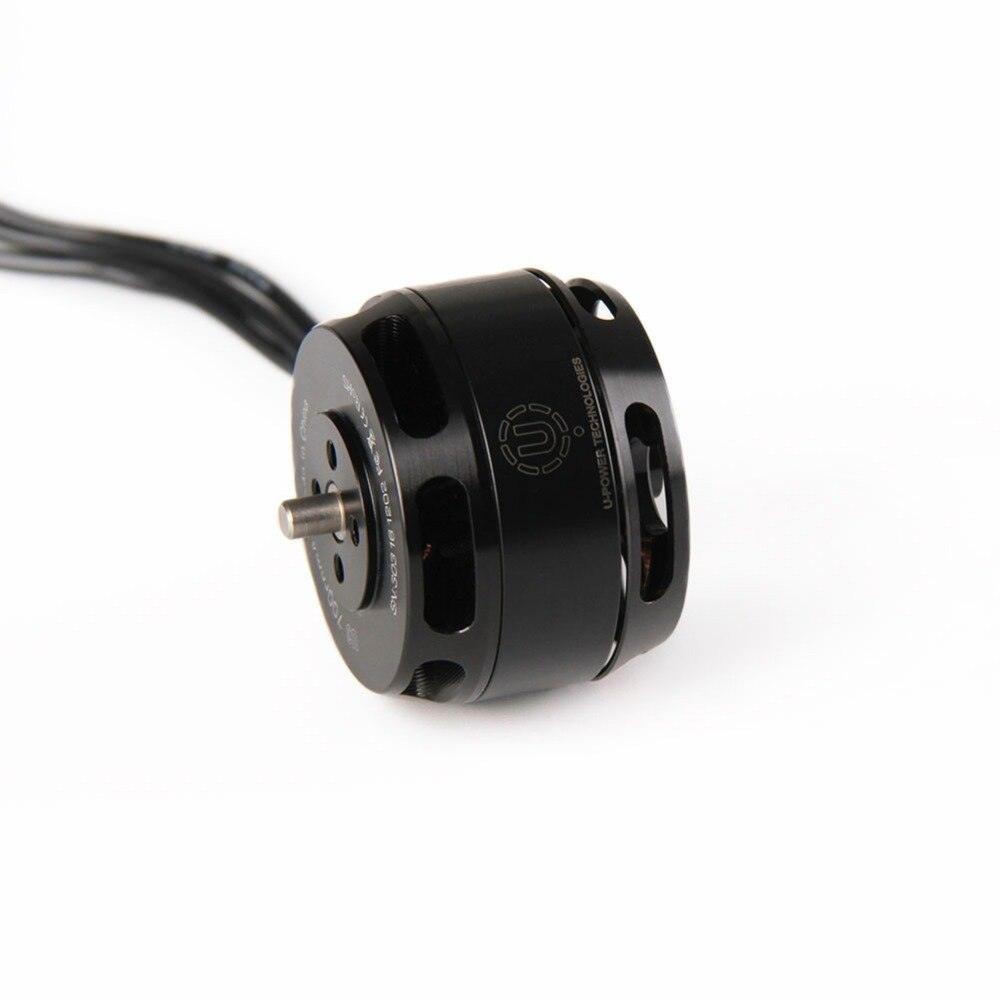

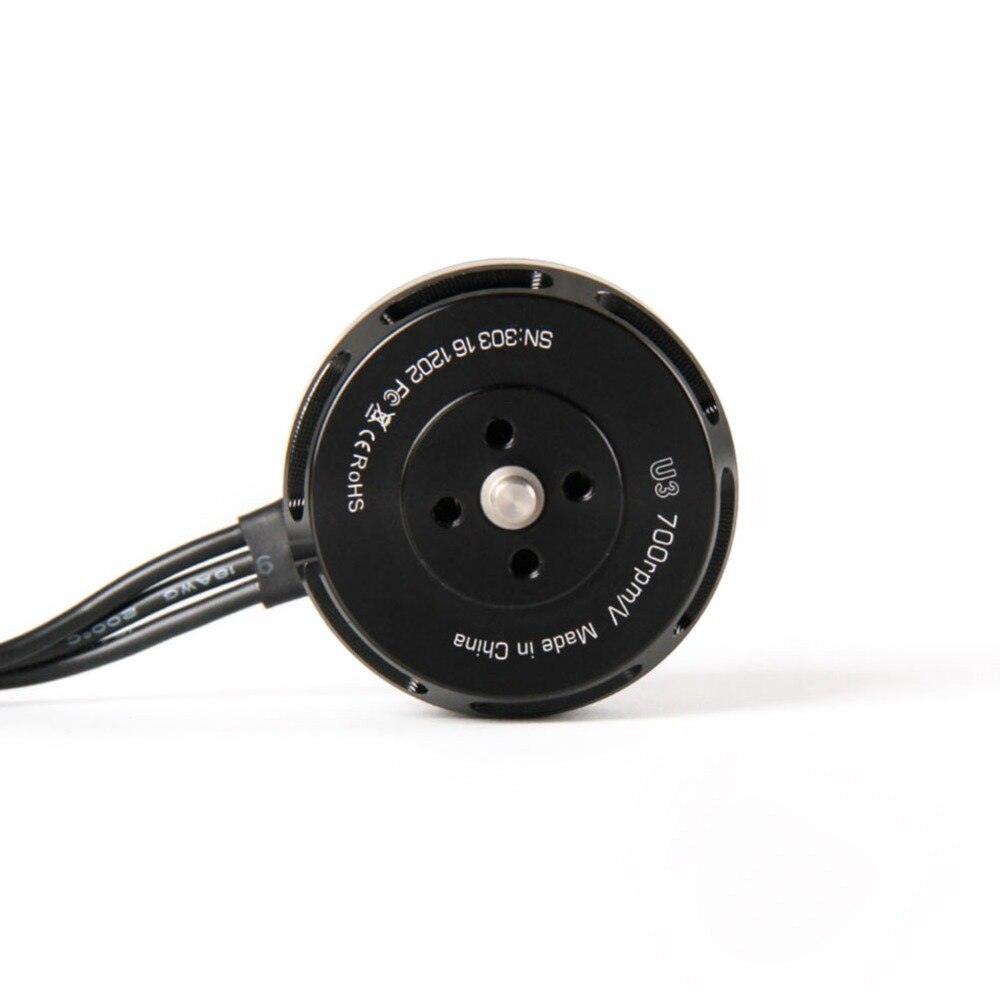

T-MOTOR U3 KV700 Outrunner Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: U3 KV700

Material: Metal

For Vehicle Type: Helicopters

Brand Name: T-MOTOR

special design ensures swift airflow: motor cools 2.5 times faster than others . ABNORMAL SHAFT A special screw is used for stator and rotor installation; avoiding looseness of circlip .

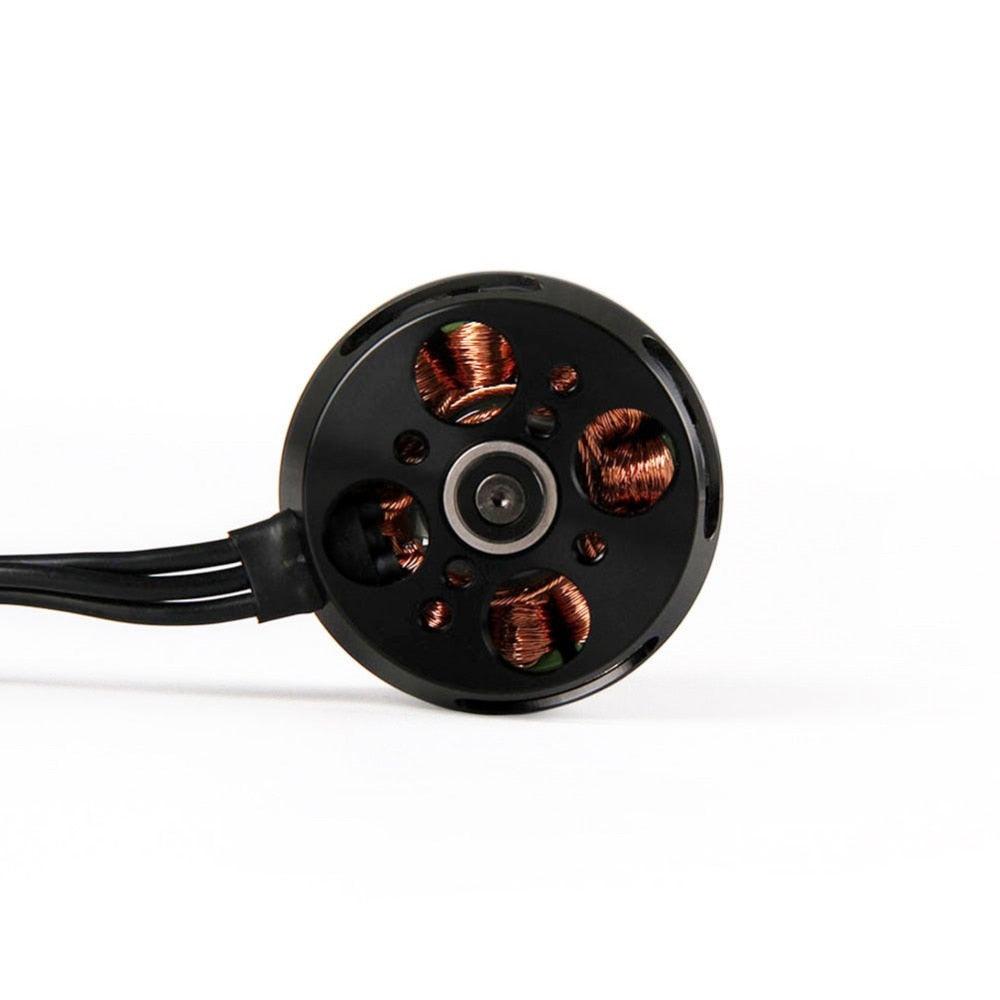

Featuring high-standard precision winding on advanced 0.2mm-thick silicon steel sheets, this motor design minimizes heat generation and eddy currents.

By adopting high-quality EZO bearings, which are renowned for their reliability, we have successfully reduced noise levels and extended the motor's lifespan to an impressive 1,600 hours or more.

Recommended Propeller: T-MOTOR CF12*4, Suitable for Quads up to 4kg, Hexacopters up to 6kg, and Octocopters up to 8kg.

Test Report: U3 KV700 Motor Report No. 00001. Specifications: Internal Resistance - 50mOhms, Configuration - 12N14P, Shaft Diameter - 4mm, Motor Dimensions - 41.8 x 30.75 mm, AWG Cable - 18#, Cable Length - 600mm, Weight (including cables) - 128g, Weight (excluding cables) - 97g, Number of Cells (Lipo) - 3.45V, Idle Current at 10V - 0.5A, Max Continuous Power - 180S @ 50W, Max Continuous Current - 180S @ 25mA.
