XXD A2217 2217 950KV 1250KV 1500KV 2300KV Outrunner Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: motors

Tool Supplies: Cutting

Technical parameters: Value 2

Size: A2217

Remote Control Peripherals/Devices: Motor

Recommend Age: 18+

RC Parts & Accs: Motors

Origin: Mainland China

Model Number: A2217

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

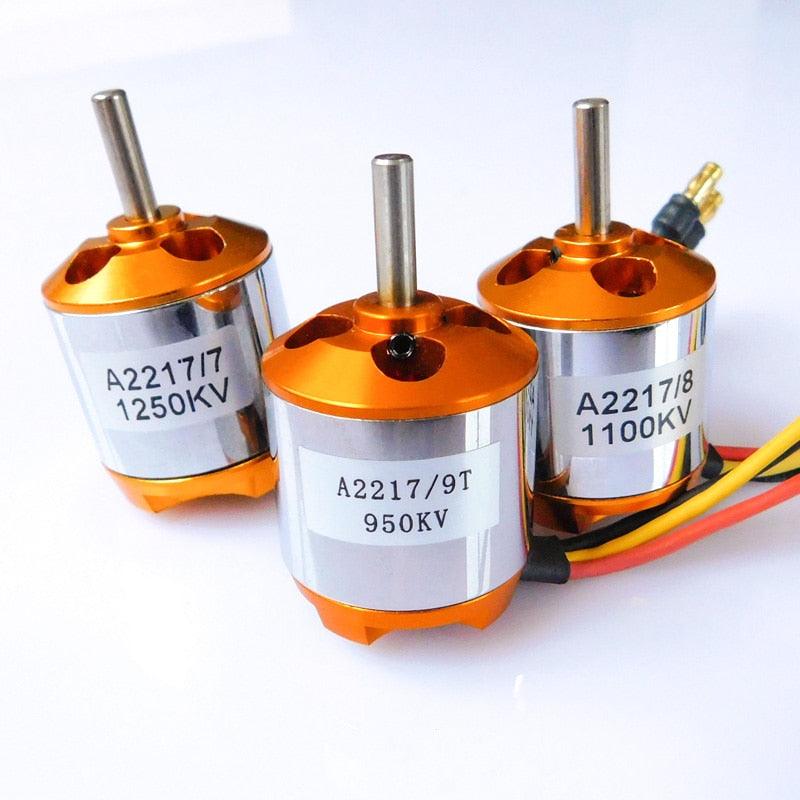

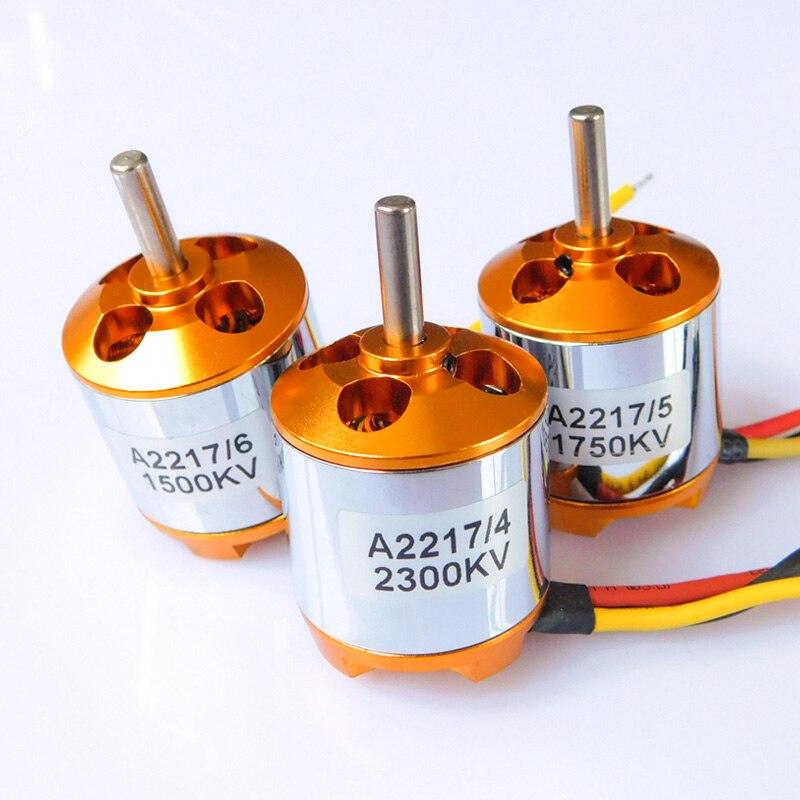

New Sida XXD A2217 brushless motor



It is recommended that 950kv be equipped with 11-inch or 10-inch propellers, such as 1155 1070 1050 1060, etc.



It is recommended that 1100kv be equipped with 9-inch propellers, such as 9070 9050 9060, etc.



It is recommended that 1250kv be equipped with 9-inch propellers, such as 9050 9045 9060, etc.



It is recommended that 1500kv be equipped with 8-inch or 9-inch propellers, such as 8040 8060 9045, etc.



It is recommended that 1750kv be equipped with 7-inch propellers, such as 7050 7035, etc.



It is recommended that 2300kv be equipped with 6-inch propellers, such as 6040, etc.

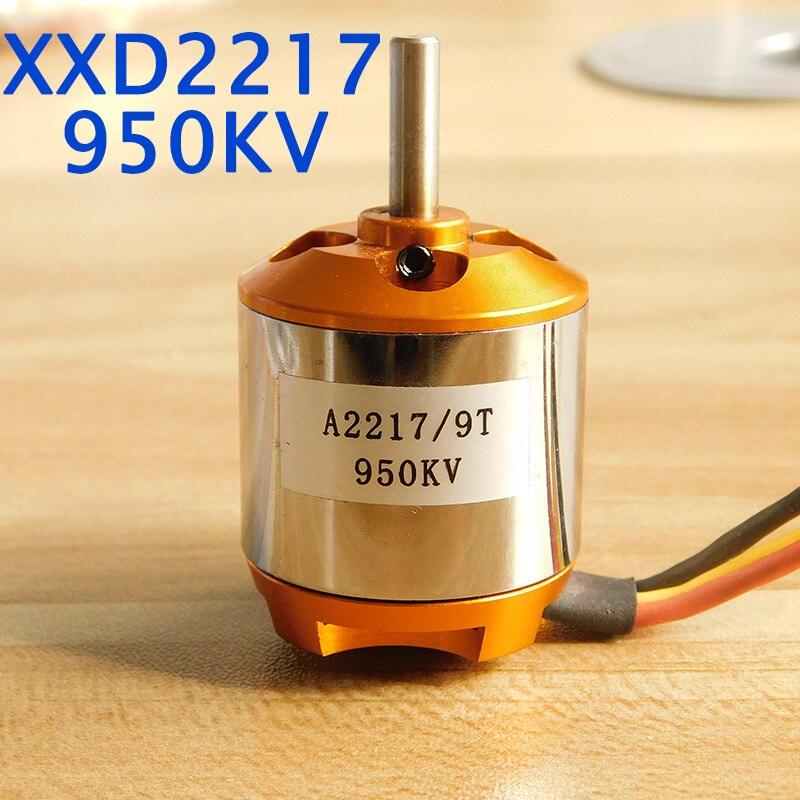

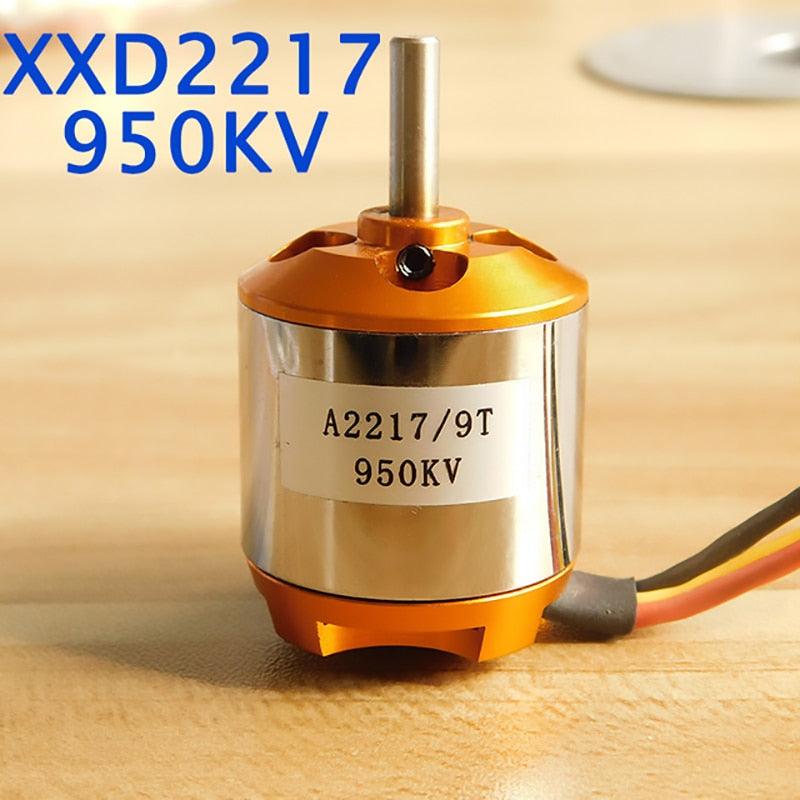

Product name: New Sida A2217 KV950 Outward Rotating Brushless Motor



Dimensions: 27.8*32mm

Weight: 68 grams

Output shaft diameter: 4.0mm

KV value: 950KV





Test Data:



GWS1047RS:

11V 16.9A 7130 revolutions, thrust 955 grams

10.5V 15.8A 6980 revolutions, thrust 897g

10V 14.9A 6760 revolutions, thrust 853 grams



9.5V 13.9A 6580 revolutions, thrust 792g

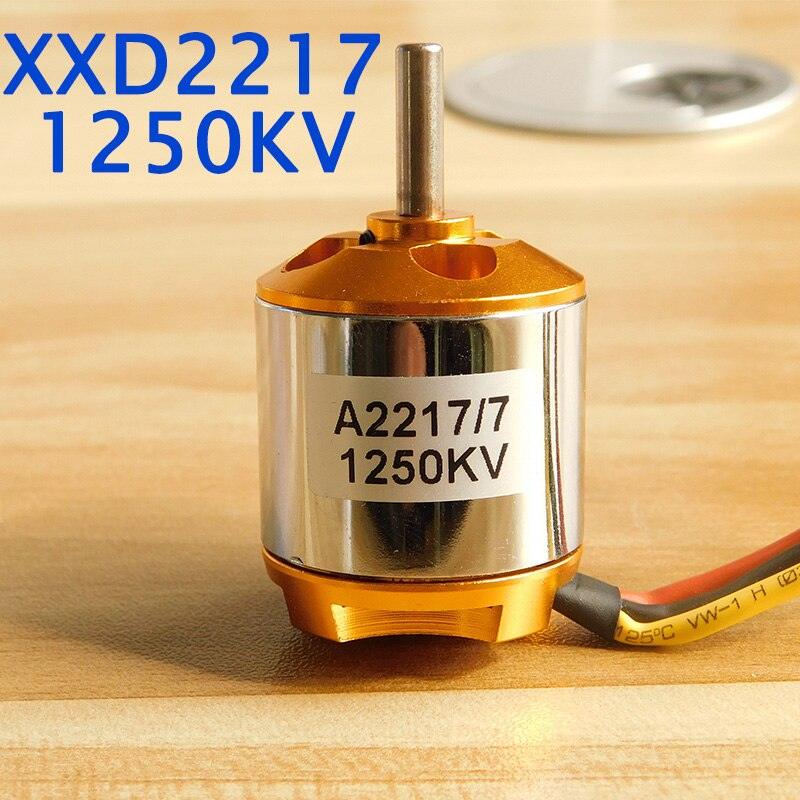

Product name: New Sida A2217 KV1250 Outward Rotating Brushless Motor



Dimensions: 27.8*32mm

Weight: 68 grams

Output shaft diameter: 4.0mm

KV value: 1250KV



Test Data:



GWS9050HD:

11V 20.4A 10280 revolutions, thrust 1075g

10.5V 18.9A 9990 rpm, thrust 995g

10V 17.8A 9620 revolutions, thrust 933 grams

9.5V 16.1A 9320 rpm, thrust 855g

Product name: New Sida A2217 KV1500 Outward Rotating Brushless Motor



Dimensions: 27.8*32mm

Weight: 68 grams

Output shaft diameter: 4.0mm

KV value: 1500KV



Test Data:



GWS8040HD:

11V 19.5A 13210 revolutions, thrust 963 grams

10.5V 17.9A 12730 revolutions, thrust 894 grams

10V 16.6A 12280 revolutions, thrust 816 grams

9.5V 15.2A 11820 revolutions, thrust 748 grams



GWS9050HD:

8V 18.6A 9030 rpm, 816 grams

7.5V 16.9A 8560 rpm, 739

7V 15.1A 8080 rpm, 653

6.5V 13.6A 7680 rpm, 578

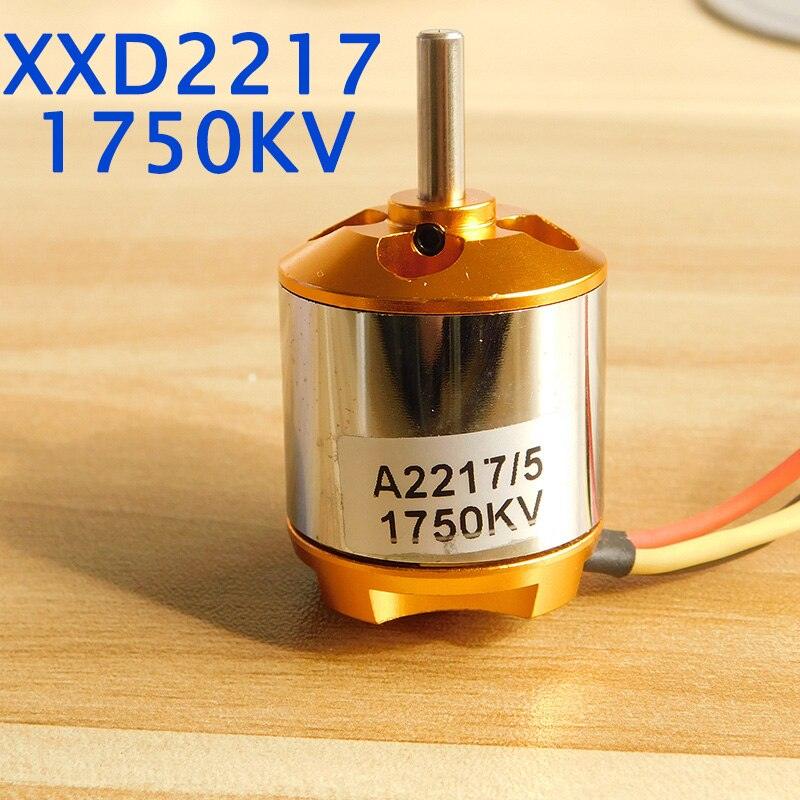

Product name: New Sida A2217 KV1750 Outward Rotating Brushless Motor



Dimensions: 27.8*32mm

Weight: 68 grams

Output shaft diameter: 4.0mm

KV value: 1750KV



A2217K/1750: 9050 propeller:

       Voltage       current         thrust



       11.1 V           30A            1000g

         8V             18.6A            816g

       7.5V             16.9A           739g

       7V               15.1A           653g

      6.5V              13.6A          578g

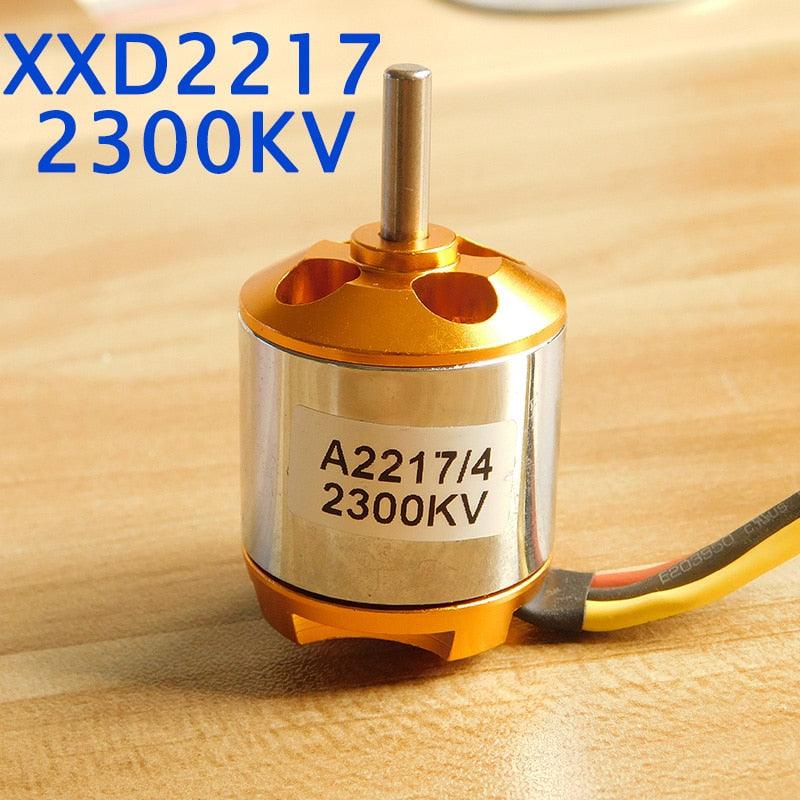

Product name: New Sida A2217KV2300 Outward Rotating Brushless Motor



Dimensions: 27.8*32mm



Weight: 68 grams



Output shaft diameter: 4.0mm



KV value: 2300

Efficiency: 78%

No load current/10V: 1.7A

Current: 30A/60S

Efficiency current: 8-28A (>70%)
