NewBeeDrone FLOW 1102 19000KV / 10000KV 1S 2S Brushless Micro FPV Motor for 2.0 to 2.5 Inch Freestyle Racing Drones

Overview

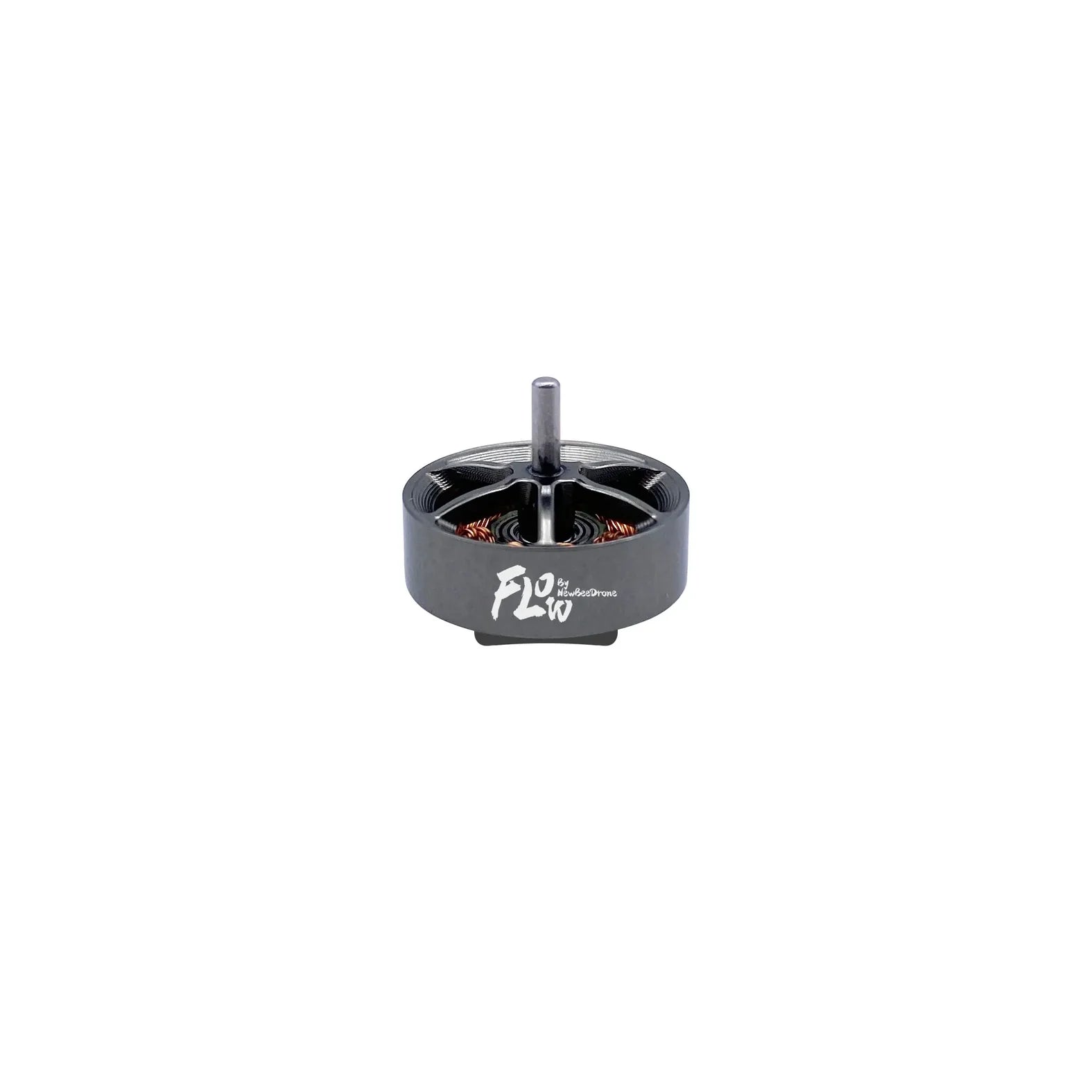

The NewBeeDrone FLOW 1102 Brushless Motor bridges the power gap between 0802 and 1202 sizes, offering the ideal solution for lightweight HD-capable micro drones. Designed specifically for Acrobee75 and MosquitoXL frames, this motor provides the thrust, response, and durability needed for 2.0 to 2.5 inch propeller builds.

Available in 19000KV (for 1S) and 10000KV (for 2S) versions, the FLOW 1102 supports both analog and HD setups, giving pilots smooth acceleration and consistent performance for freestyle or racing flights.

Key Features

• Lightweight design: only 3.47g including wire

• 19000KV for 1S / 10000KV for 2S, optimized for versatile build options

• Built with Titanium Alloy TC4 shaft and 7075 aluminum bell for maximum strength

• NSK ball bearings and 0.2mm silicon steel core for smooth, efficient power delivery

• 50mm cable length with JST1.0 plug, compatible with BeeBrainBL Flight Controllers

• Fits standard whoop motor mounts, compatible with all Cockroach and Mosquito frames

• Includes 3mm mounting screws

Recommended Applications

• 1S (19000KV): analog or lightweight HD whoops on AcroBee75

• 2S (10000KV): MosquitoXL with HDZero or Walksnail nano systems

• Compatible with 2.0 to 2.5 inch 3-blade props

Specifications

Package Includes

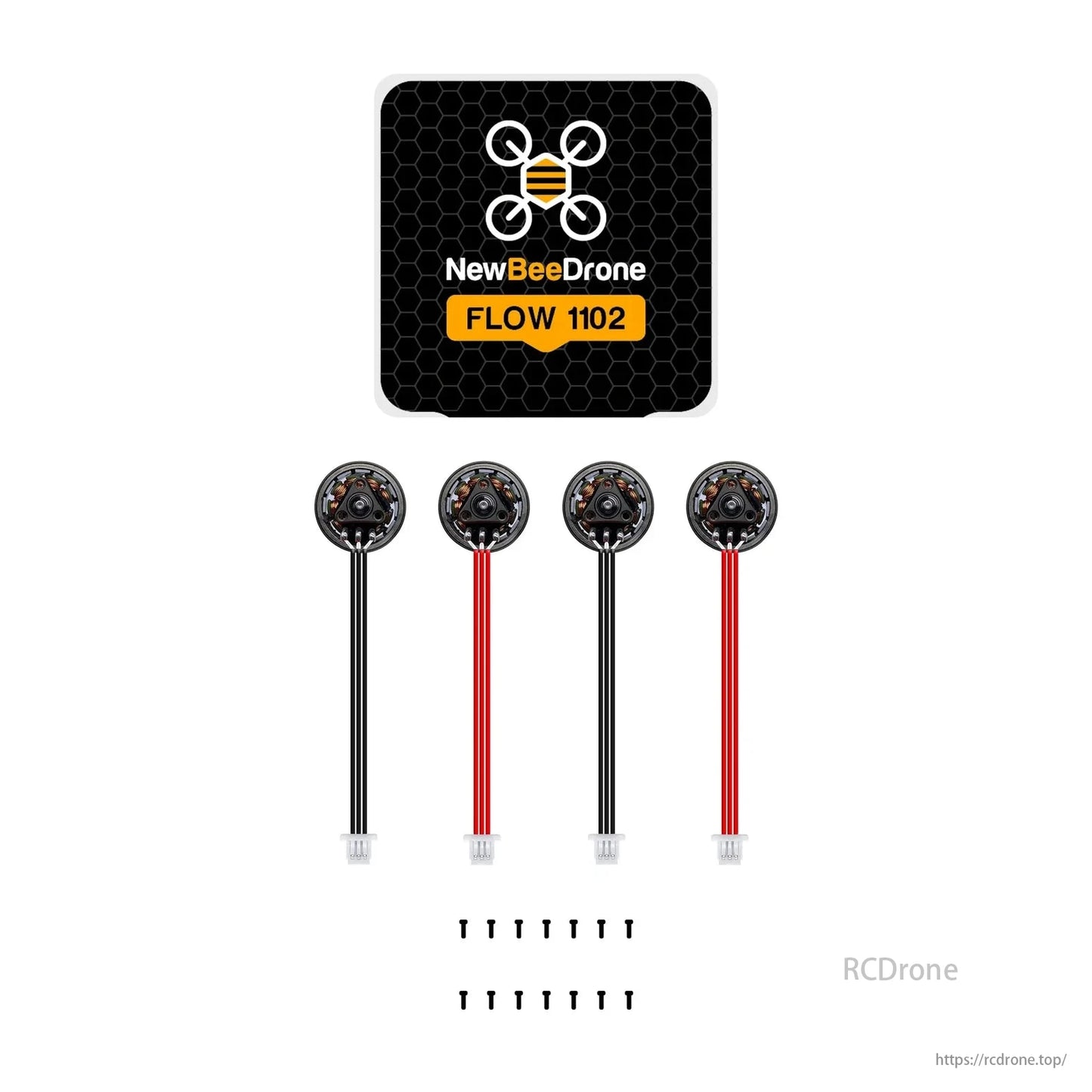

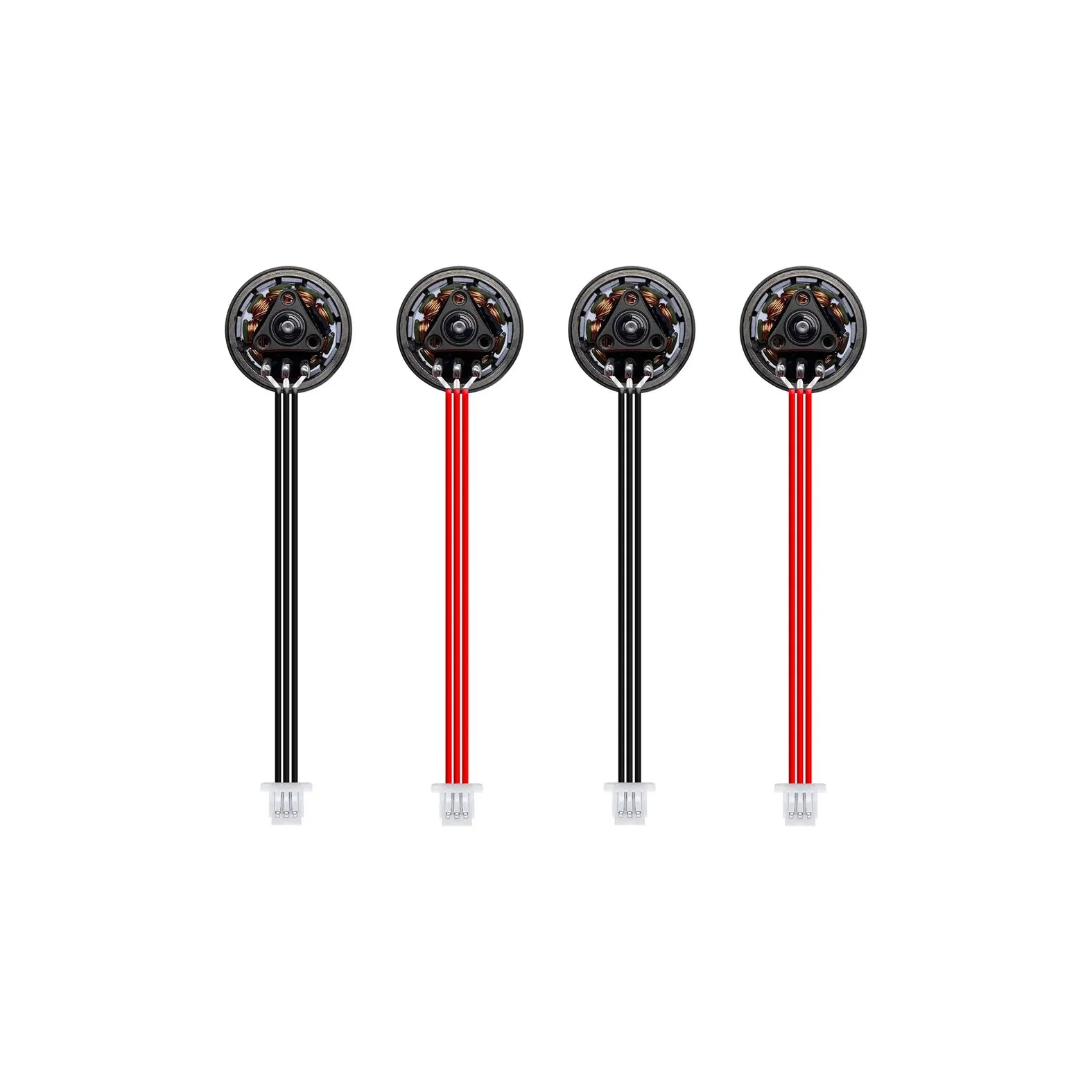

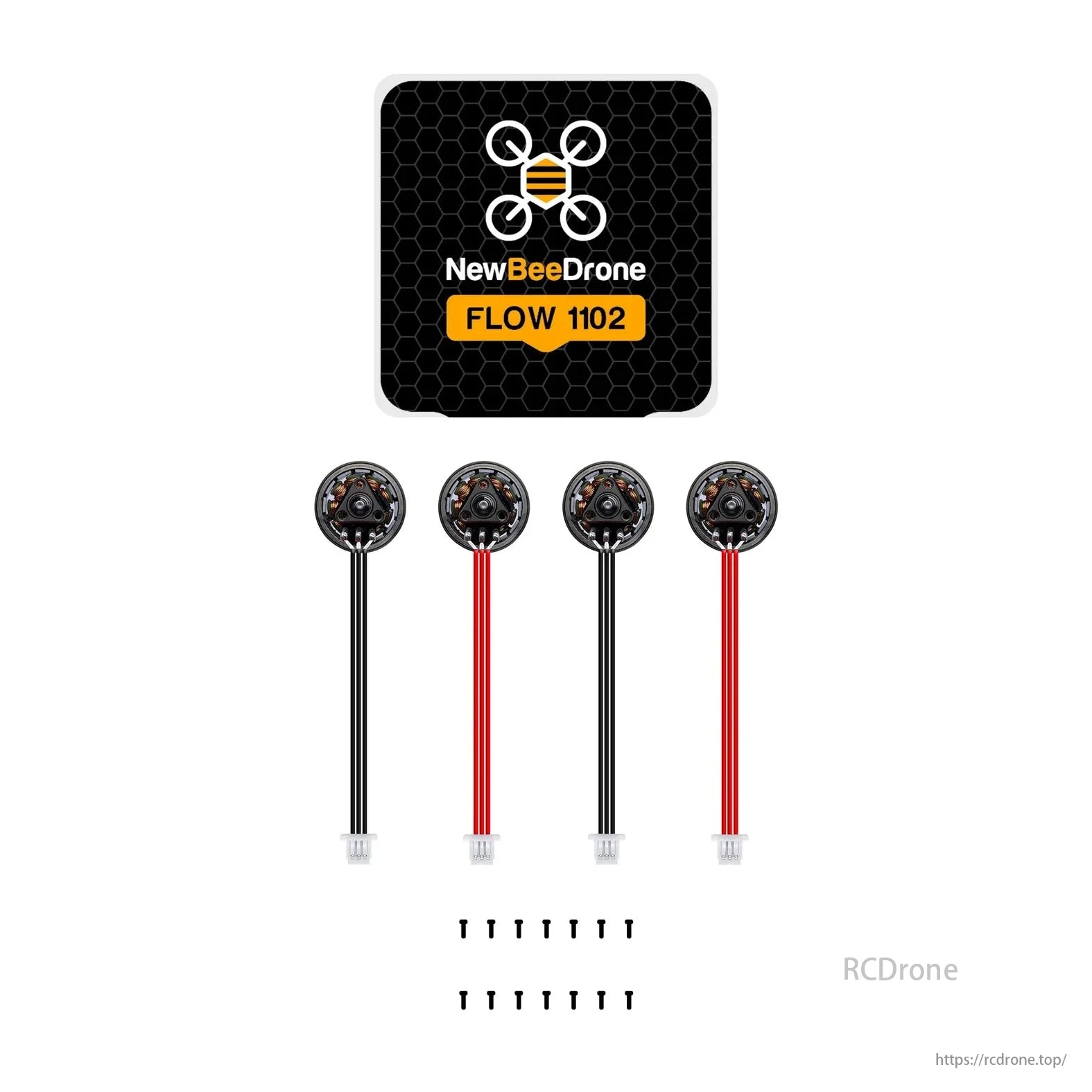

• 4 × FLOW 1102 Brushless Motors (Choose KV)

• 4 × M1.4 × 3mm Mounting Screws

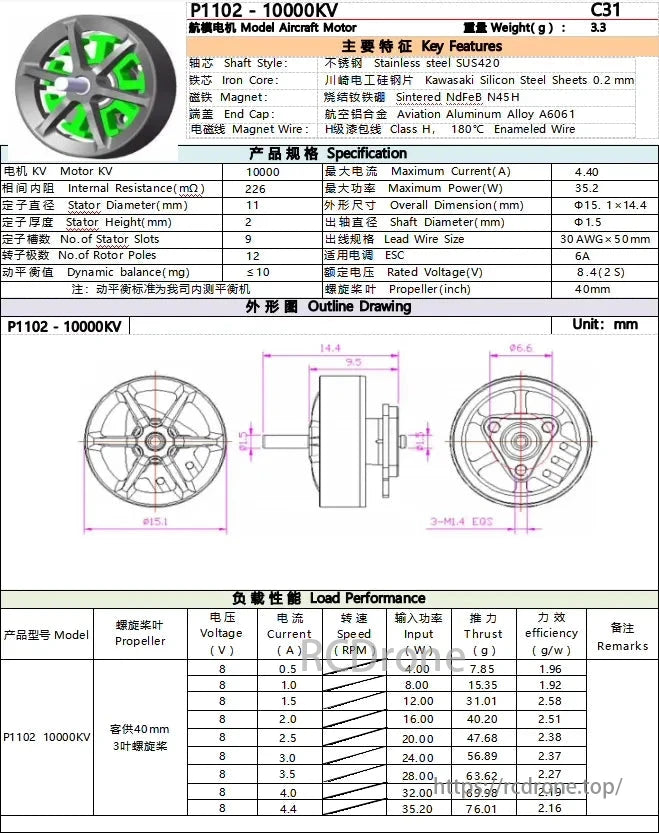

P1102-10000KV brushless motor, 3.3g weight, stainless steel shaft, Kawasaki silicon steel sheets, NdFeB magnets, aviation aluminum end caps. Specs include 10000KV, 4.4A max current, 35.2W power, and 40mm propeller compatibility.

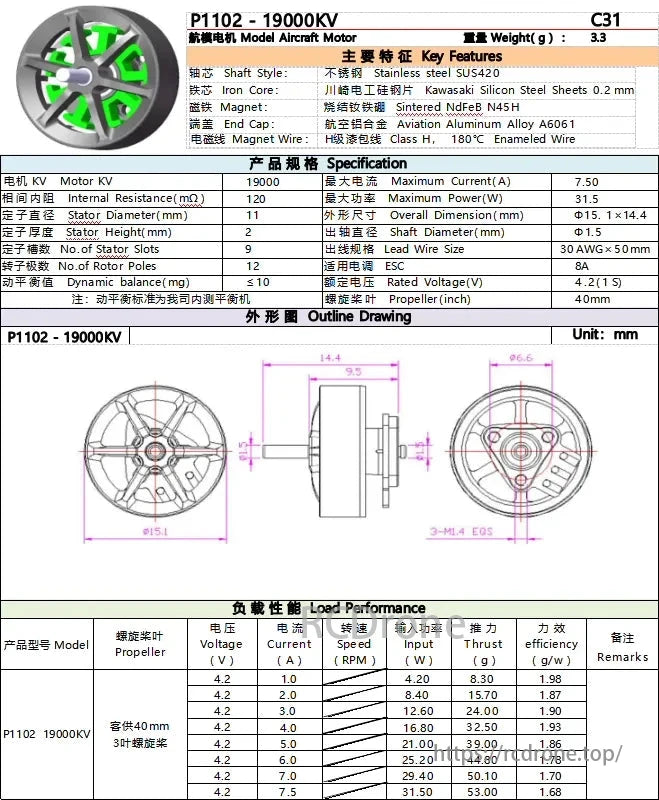

P1102-19000KV brushless motor, 3.3g weight, 4.2V voltage, up to 7.5A current. Features stainless steel shaft, sintered NdFeB magnet, aviation aluminum end cap, and H-grade enamel wire. Max power 31.5W, max thrust 53g.
