SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Cutting
Technical parameters: Value 2
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 7-12y,12+y,18+
RC Parts & Accs: Radio Systems
Origin: Mainland China
Model Number: FlySky FS-i6
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: abay

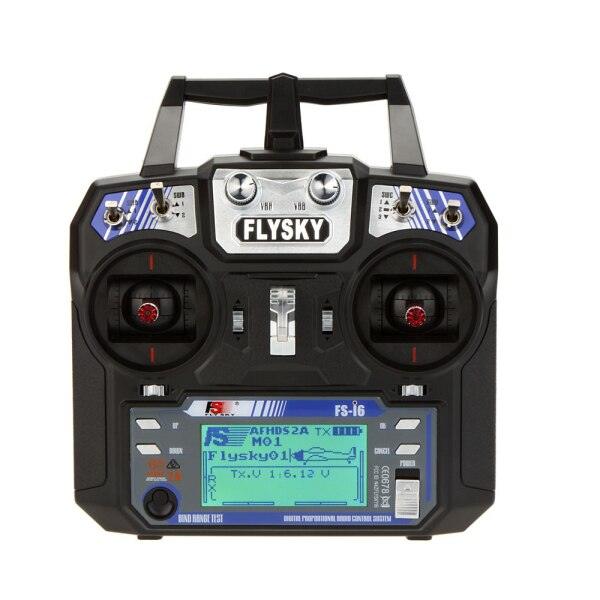

Newest FlySky FS-i6 Remote Controller 2.4G 6CH AFHDS RC Transmitter With FS-iA6 or IA6B Receiver For RC Helicopter Plane drone
Notice about Color box: FS-I6 with IA6 only has green box as picture showed. FS-I6 with IA6B has two packing, green one or white color box. We send the color box randomly, please kindly notice in advance.

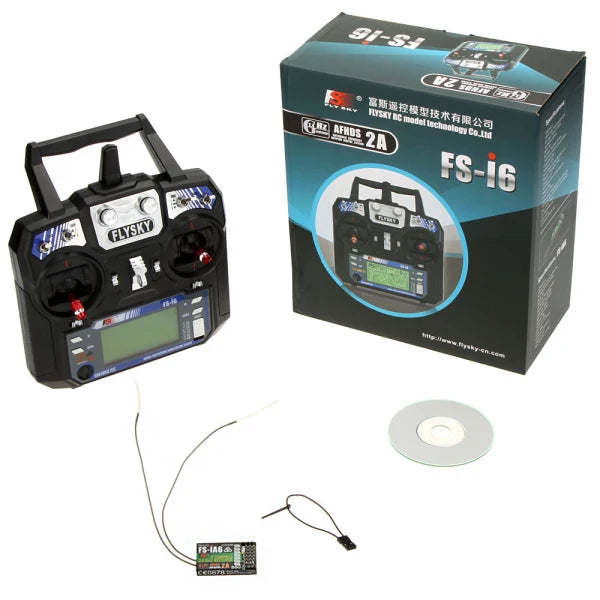

1 x FS-i6 transmitter( color box)
1 x FS-iA6 Receiver or FS-iA6B Receiver
1 x Manual
Mode 1-- Throttle stick on right
Mode 2-- Throttle stick on left
English Manual,Please connect with us
Description:
Brand Name:Flysky
FS-i6 Specifications:Channels: 6 Channels
Model Type: Glider/Heli/Airplane
RF Range: 2.40-2.48GHz
Bandwidth: 500KHz
Band: 142
RF Power: Less Than 20dBm
2.4ghz System: AFHDS 2A and AFHDS
Code Type: GFSK
Sensitivity: 1024
Low Voltage Warning: less than 4.2V
DSC Port: PS2;Output:PPM
Charger Port: No
ANT length: 26mm*2(dual antenna)
Weight:392g

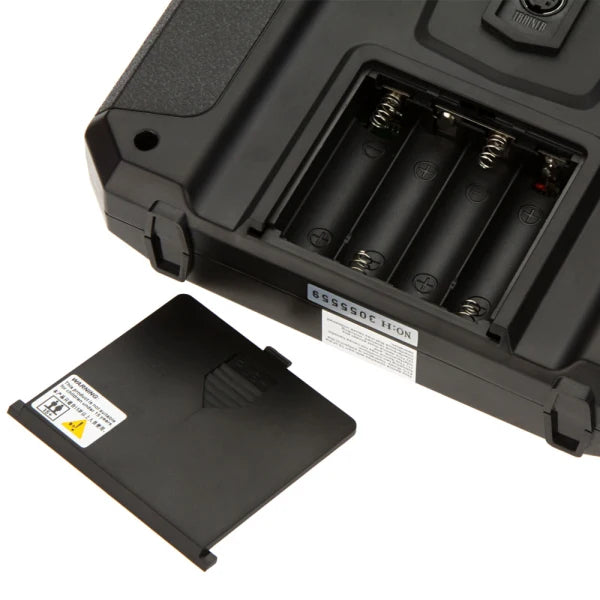

Power: 6V 1.5AA*4
Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
Size: 174x89x190mm
On-line update:yes
Color: Black
Certificate: CE0678,FCCModel Memories: 20
Channel Order: Aileron-CH1, Elevator-CH2, Throttle-CH3, Rudder-CH4,Ch 5 & 6 open to assignment to other functions.
Brand Name: FlySky
Item Name: FS-i6 transmitter
Channel: 6
Model Type: fixed wing/helicopter/glider
Channel resolution: 1024 steps
Low voltage warning: less than 4.2v
ANT length: 26 x 2mm( dual antenna)
Weight: 392g
Battery: 6v 1.5AA x 4(not included)e
Size: 174 x 89 x 190 mm
Color: black
Certificate: CE ,FCC
RF specification:
RF Range: 2.405 - 2.475GHz
Bandwidth: 500khz
RF Power: less than 20dBm
RF mode: AFHDS 2A
Modulation type: GFSK
RX Sensibility: -105dBm

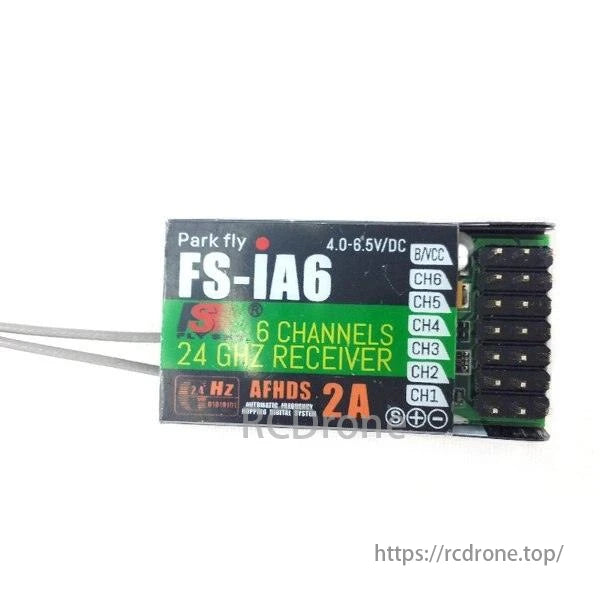

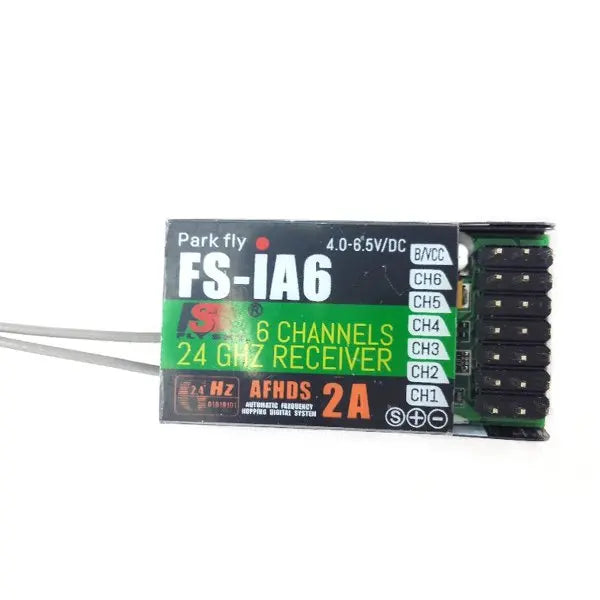

Receiver specification:
Channel: 6
Model type: fixed wing/helicopter/glider
RF receiver sensitivity: -105dBm
Modulation: GFSK
System type: AFHDS2A/AFHDS
Channel resolution: 1024 steps
Bind port: yes
Power port: yes( VCC)
Power: 4V -6.5V DC
Weight: 6.4g
Antenna lenght: 26mm
Size: 40.4 x 21.1 x 7.35 mm
Certificate: CE ,FCC
Features:
Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.
This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission
Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

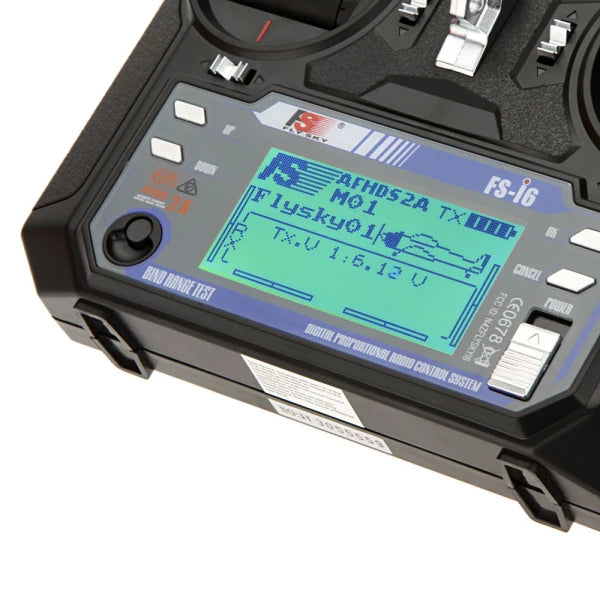

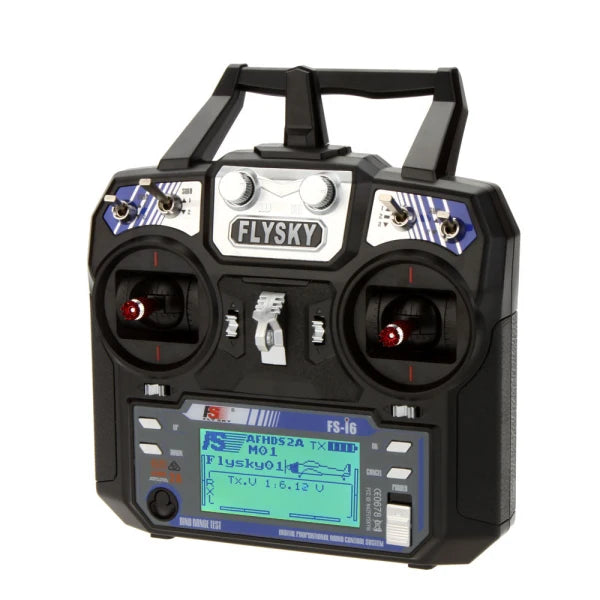

FLYSKY FS-I6 aFhdSZa Ho1 Iyskye1A TX U 1.6.12 U K5uRENG Itit mnin tumuiittci mcdmitn Thru
1S-66 2 TAFHDS24 Mo1 'Iyskyo1k TXm Tx-V 41.6.12 Eal 'BIMDRANCETEST L 8 DciIn Thoroatohnt VOCOLTRO LSusI

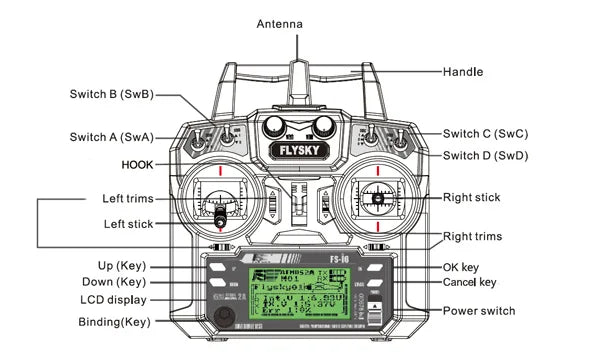

FYSKY Switch (SwD) - FS-In OK key Down (Key) Cancel key LCD display Power switch Binding(Key)
