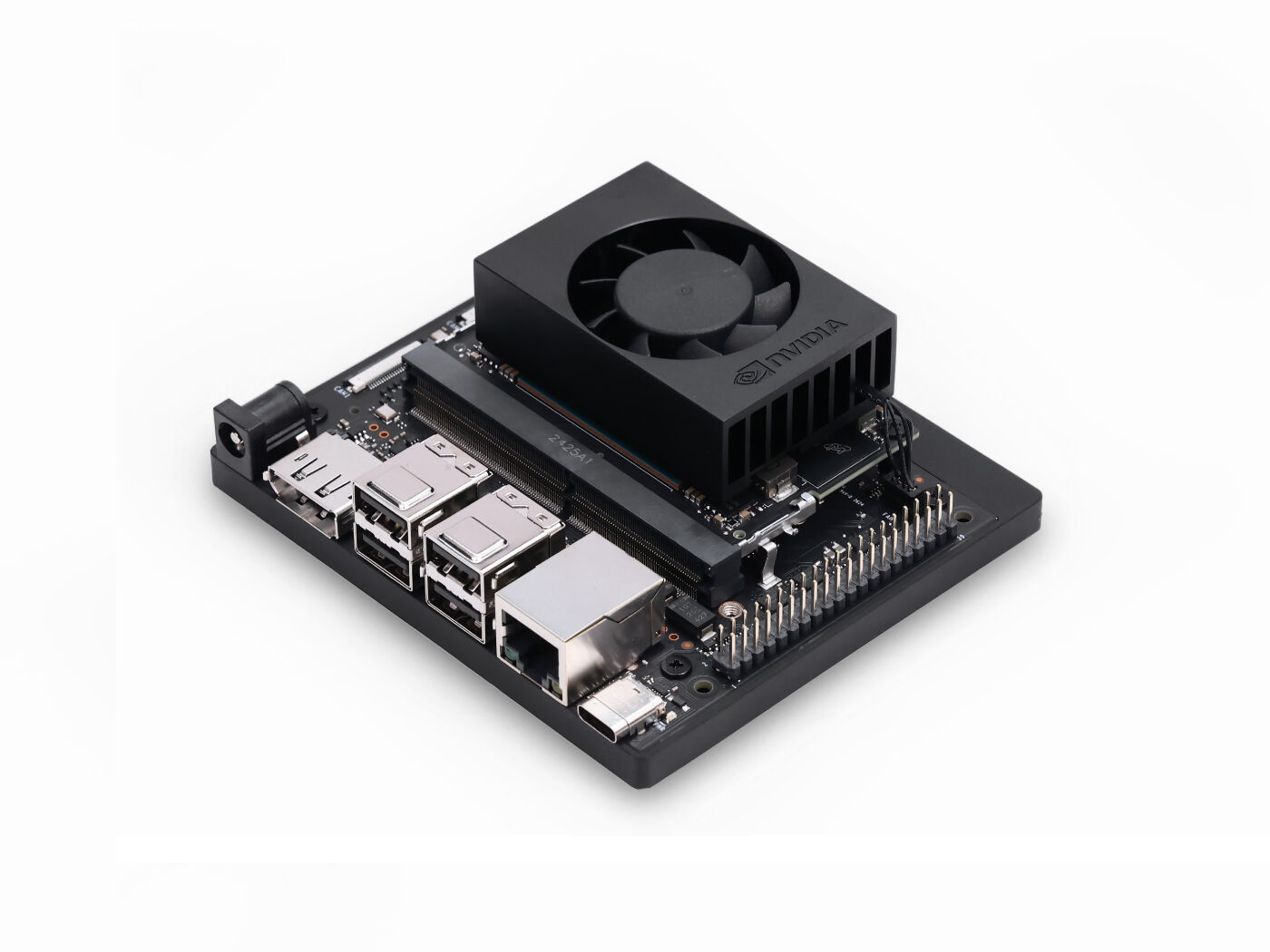

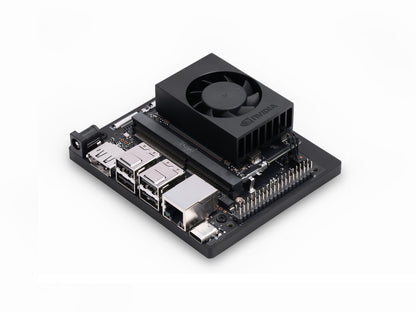

• NVIDIA Jetson Orin Nano Super Developer Kit Carrier Board, 67 TOPS, USB 3.2 Gen2, 2x M.2 Key M, Wi‑Fi, DP 1.2
  • NVIDIA Jetson Orin Nano Super Developer Kit Carrier Board, 67 TOPS, USB 3.2 Gen2, 2x M.2 Key M, Wi‑Fi, DP 1.2

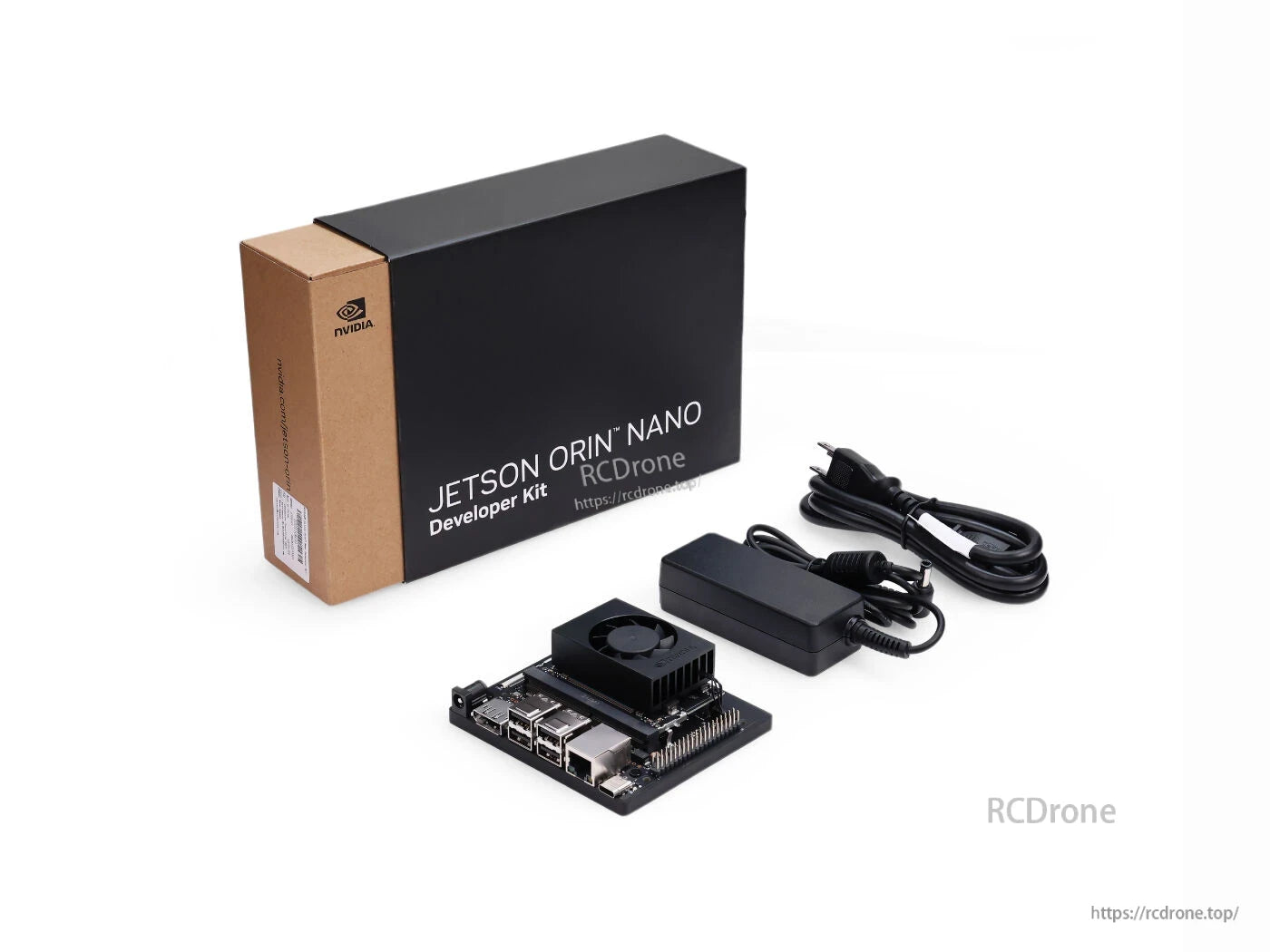

  • NVIDIA Jetson Orin Nano Developer Kit with power adapter and board

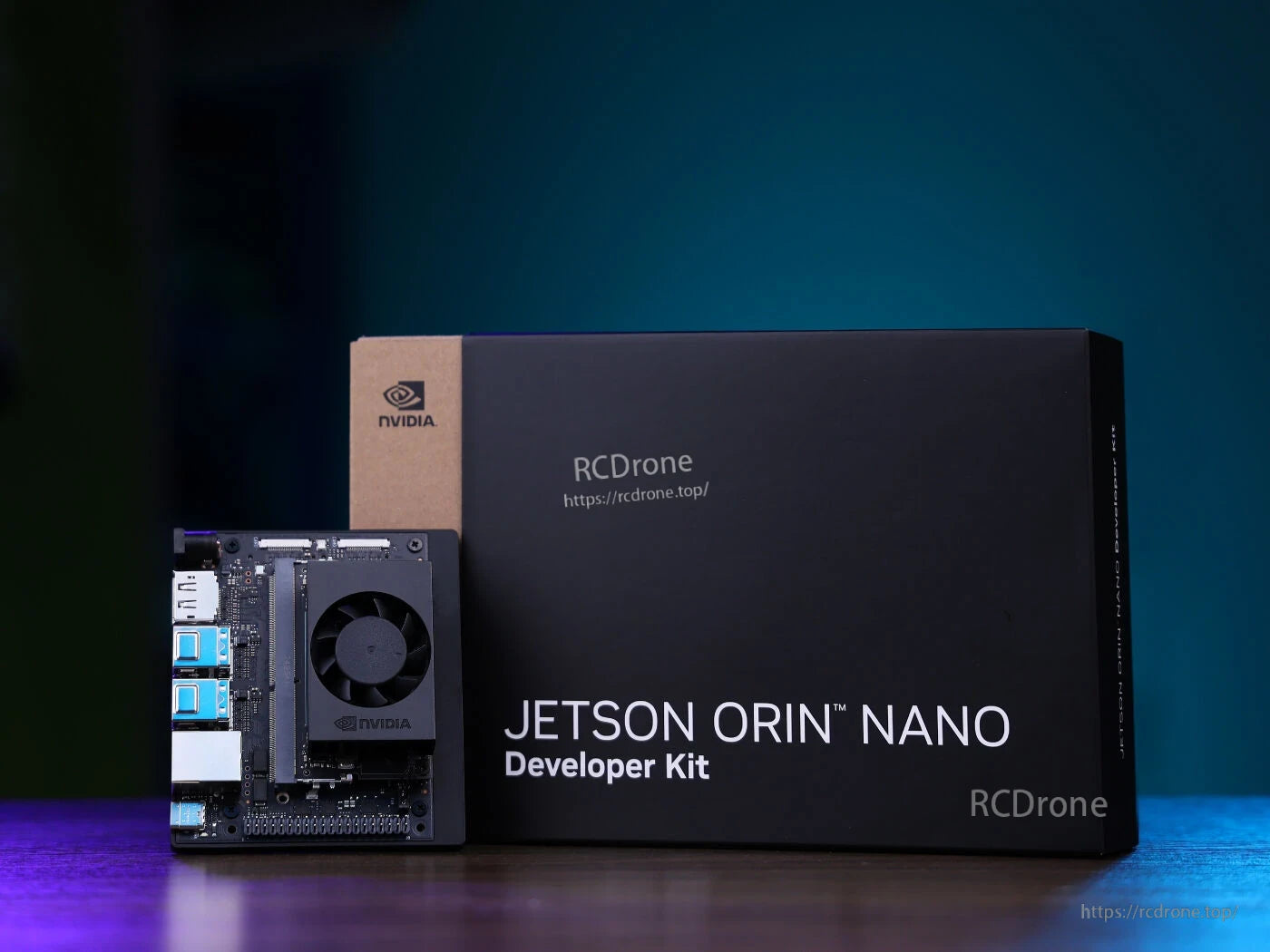

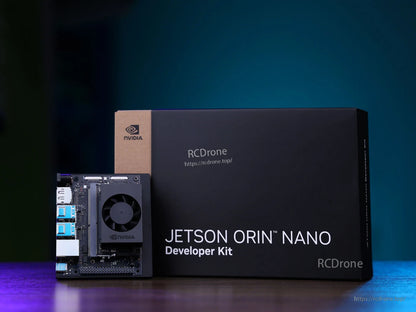

  • NVIDIA Jetson Orin Nano Developer Kit features USB 3.2 Gen2 and M.2 slots for high-performance AI and edge computing applications in compact, power-efficient design.

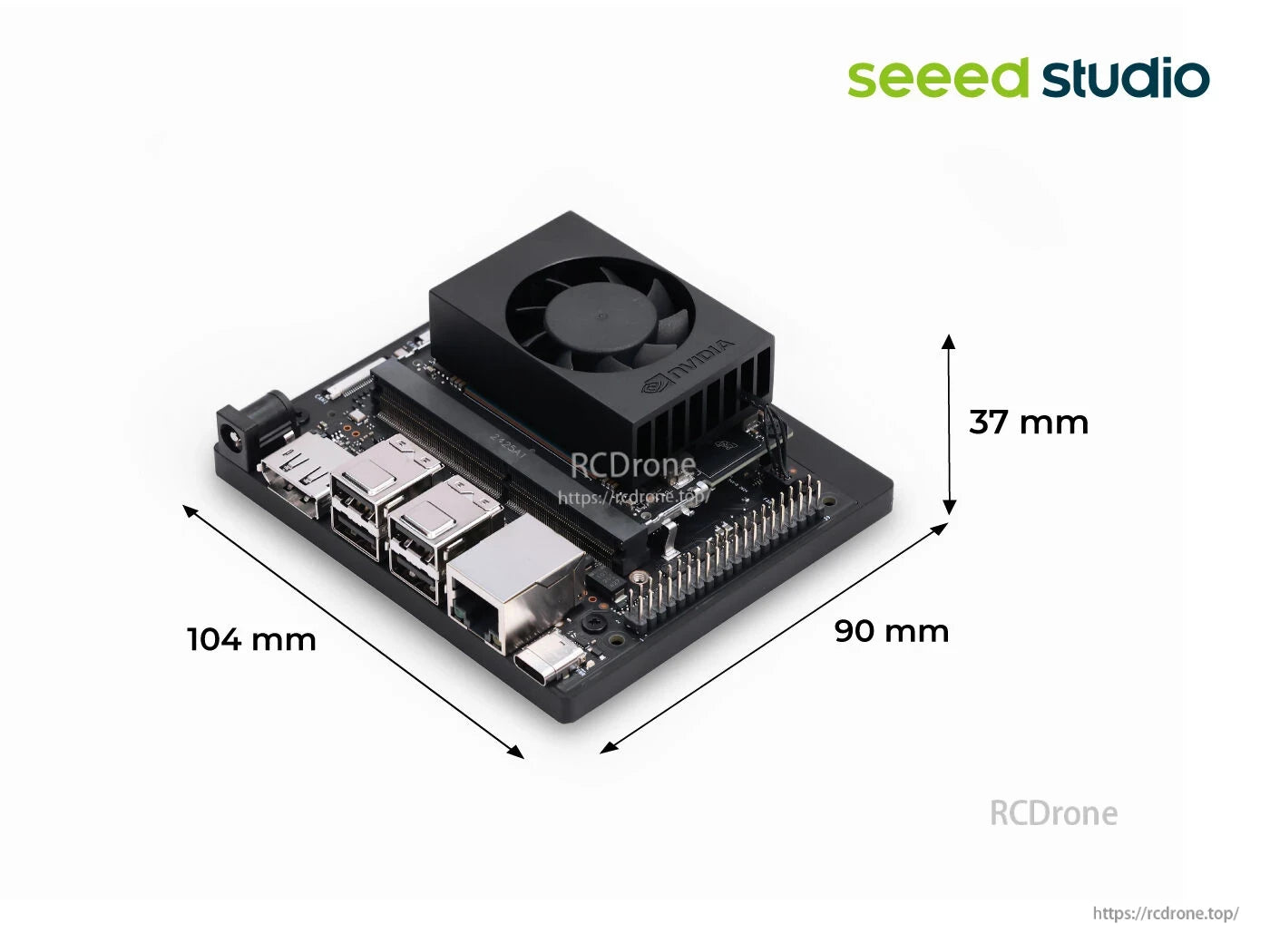

  • NVIDIA Jetson Orin Nano Carrier Board offers 67 TOPS, USB 3.2 Gen2, M.2, Wi-Fi, and DisplayPort 1.2 for high-performance edge AI and robotics applications.
1 5

NVIDIA Jetson Orin Nano Super Developer Kit , 67 TOPS, USB 3.2 Gen2, 2x M.2 Key M, Wi‑Fi, DP 1.2

NVIDIA Jetson Orin Nano Super Developer Kit , 67 TOPS, USB 3.2 Gen2, 2x M.2 Key M, Wi‑Fi, DP 1.2

Seeed Studio

$349.00 USD
$349.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The NVIDIA Jetson Orin Nano Super Developer Kit is a compact edge AI Kit built around the Jetson Orin Nano 8GB module, delivering up to 67 TOPS AI performance—a 1.7× improvement over the original NVIDIA Jetson Orin Nano Developer Kit. It combines an Ampere architecture GPU (1,024 CUDA cores, 32 Tensor Cores) with a 6‑core Arm Cortex‑A78AE CPU to enable multiple concurrent AI pipelines with low power and low latency. The hand‑size design (100mm x 79mm x 21mm) integrates rich I/O including 4x USB 3.2 Gen2, DP 1.2, 2x M.2 Key M for SSD, an M.2 Key E slot with a pre‑installed Wi‑Fi/Bluetooth module, microSD, 2x MIPI CSI‑2, Gigabit Ethernet, and a 40‑pin expansion header. A heatsink with fan and a power adapter are included.

Key Features

  • Up to 67 TOPS INT8 (Sparse) AI performance on Jetson Orin Nano 8GB; Ampere GPU and 6‑core Arm CPU for high‑throughput inference.
  • Compact footprint: 100mm x 79mm x 21mm; includes heatsink with fan and power adapter.
  • Rich I/O for expansion: 4x USB 3.2 Gen2, 1x USB Type‑C (UFP), DP 1.2 (+MST), 2x MIPI CSI‑2 (22‑pin), 1x Gigabit Ethernet, 1x 40‑pin expansion header, 1x 12‑pin control/UART header, 1x CAN, 1x 4‑pin fan (5V PWM).
  • Storage and wireless: 1x microSD slot; 2x M.2 Key M for SSD (PCIe Gen3); 1x M.2 Key E with a pre‑installed Wi‑Fi/Bluetooth combo module.

Notes

  • Firmware: Units ship with older factory firmware that is NOT compatible with JetPack 6.x. Update to the latest firmware before using a microSD card flashed with a JetPack 6.x image. Download software and updates at this link.
  • Related reference: reComputer Super J4012 uses a Jetson Orin NX 16GB module and delivers up to 157 TOPS in MAXN Super Mode.

Specifications

Configuration Comparison

NVIDIA Jetson Orin Nano Developer Kit (original) NVIDIA Jetson Orin Nano Super Developer Kit
GPU NVIDIA Ampere architecture; 1,024 CUDA Cores; 32 Tensor Cores; 635 MHz NVIDIA Ampere architecture; 1,024 CUDA Cores; 32 Tensor Cores; 1,020MHz
AI Performance 40 INT8 TOPS (Sparse); 20 INT8 TOPS (Dense); 10 FP16 TFLOPs 67 TOPS (Sparse); 33 TOPS (Dense); 17 FP16 TFLOPs
CPU 6‑core Arm Cortex‑A78AE v8.2 64‑bit CPU; 1.5 GHz 6‑core Arm Cortex‑A78AE v8.2 64‑bit CPU; 1.7 GHz
Memory 8GB 128‑bit LPDDR5; 68GB/s 8GB 128‑bit LPDDR5; 102GB/s
Module Power 7W | 15W 7W | 15W | 25W

Jetson Orin Nano System on Module

AI Performance Jetson Orin Nano 8GB with SD card slot on module – 67 TOPS
GPU NVIDIA Ampere architecture with 1,024 NVIDIA® CUDA® cores and 32 Tensor Cores
CPU 6‑core Arm® Cortex®‑A78AE v8.2 64‑bit CPU; 1.5MB L2 + 4MB L3
Memory 8GB 128‑bit LPDDR5; 102 GB/s
Video Encoder 1080p30 supported by 1–2 CPU cores
Video Decoder 1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265)
Power 7W–25W

Carrier Board

Storage 1x microSD slot (UHS‑1 cards up to SDR104 mode)
Networking 1x Gigabit Ethernet (10/100/1000M)
PCIe M.2 Key M: 4x PCIe GEN3; 2x PCIe GEN3
M.2 Key E 1x M.2 Key E (pre‑installed 1x Wi‑Fi/Bluetooth combo module); PCIe (x1), USB 2.0, UART, I2S, and I2C
USB 4x Type‑A USB 3.2 Gen2; 1x Type‑C for UFP
CSI Camera 2x MIPI CSI‑2 (22‑pin)
Display 1x DP 1.2 (+MST) connector
Fan 1x 4‑pin Fan Connector (5V PWM)
CAN 1x CAN
Expansion 1x 40‑Pin Expansion header; 1x 12‑Pin Control and UART header; RTC 2‑pin (supports CR1220, not included)
Power Supply 9V–19V DC
Mechanical (W x D x H) 100mm x 79mm x 21mm
Product Weight 0.176 kg
Warranty 1‑year warranty for development use only

What’s Included

NVIDIA Jetson Orin Nano Super Developer Kit x1
19V Power Adapter x1
Type B (US, JP, CA, PH) Power Cable x1
Type I (CN) Power Cable x1
UPC Label x1
Quick Start and Support Guide x1

Items not included

  • microSD card (64GB UHS‑1 or bigger recommended)
  • USB keyboard and mouse
  • Computer display
  • USB cable
  • NVMe SSD card

Applications

  • AI Video Analytics
  • Machine Vision
  • Autonomous Mobile Robot (AMR)
  • Generative AI

Documents

Details

NVIDIA Jetson Orin Nano Dev Kit, The design integrates rich I/O including USB, DP, M.2, microSD, MIPI CSI-2, Ethernet, and an expansion header.
