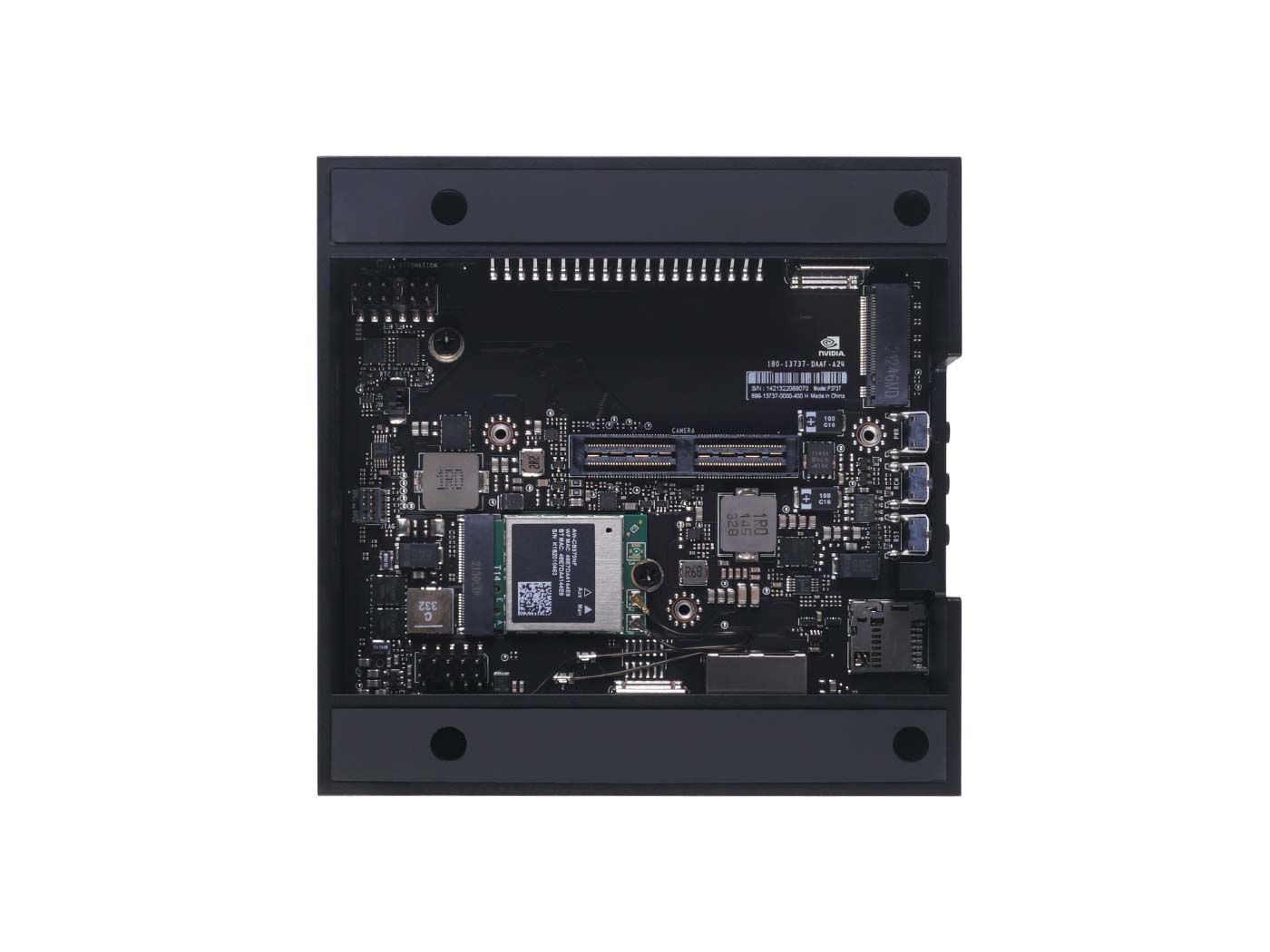

  • NVIDIA Jetson AGX Orin 64GB Developer Kit: 275 TOPS AI, 12-core CPU, LPDDR5, eMMC, PCIe Gen4, 10GbE—high-performance computing for advanced robotics and AI applications.

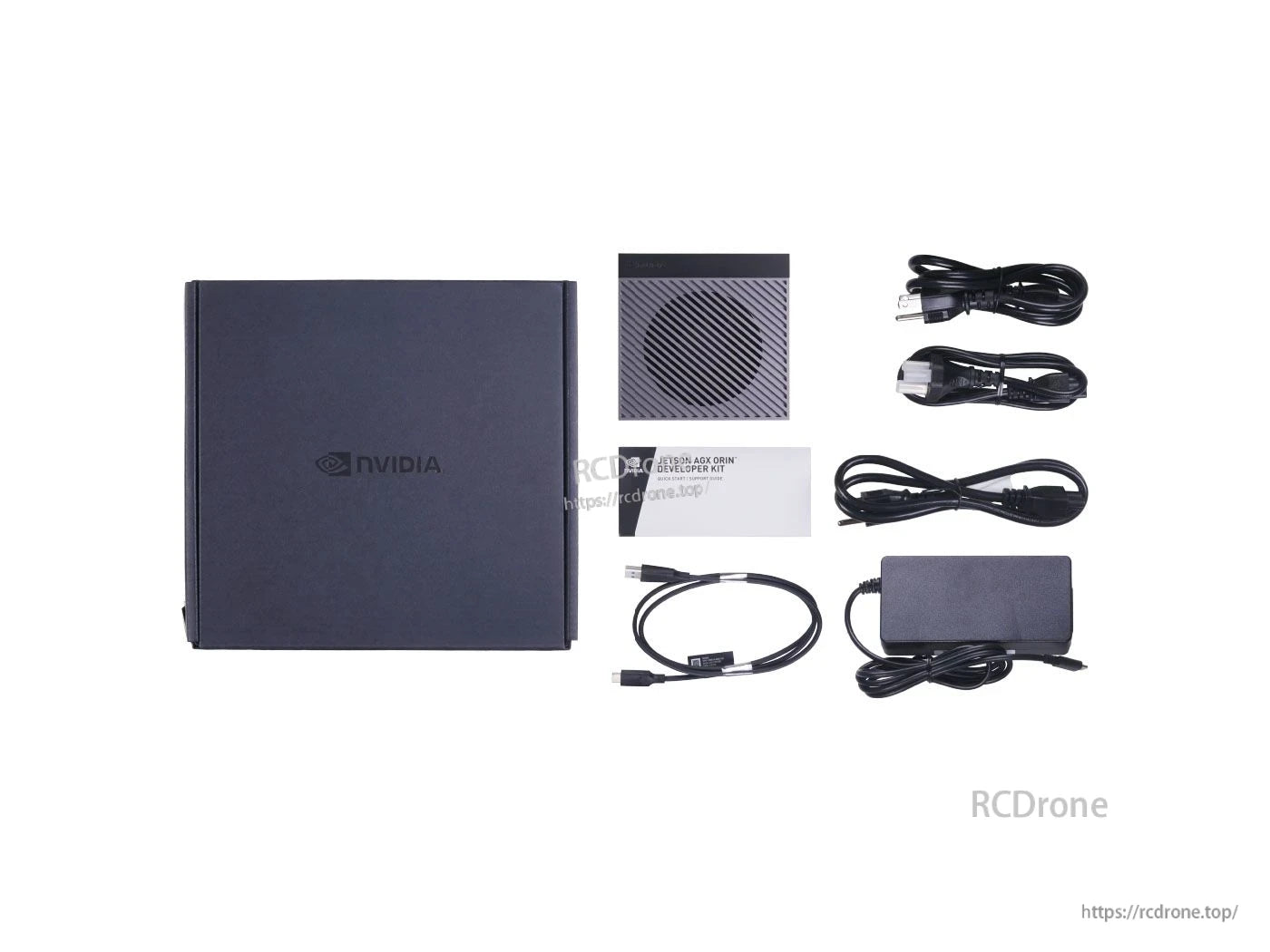

  • NVIDIA Jetson AGX Orin Developer Kit includes power adapter, cables, and documentation for AI and robotics development.

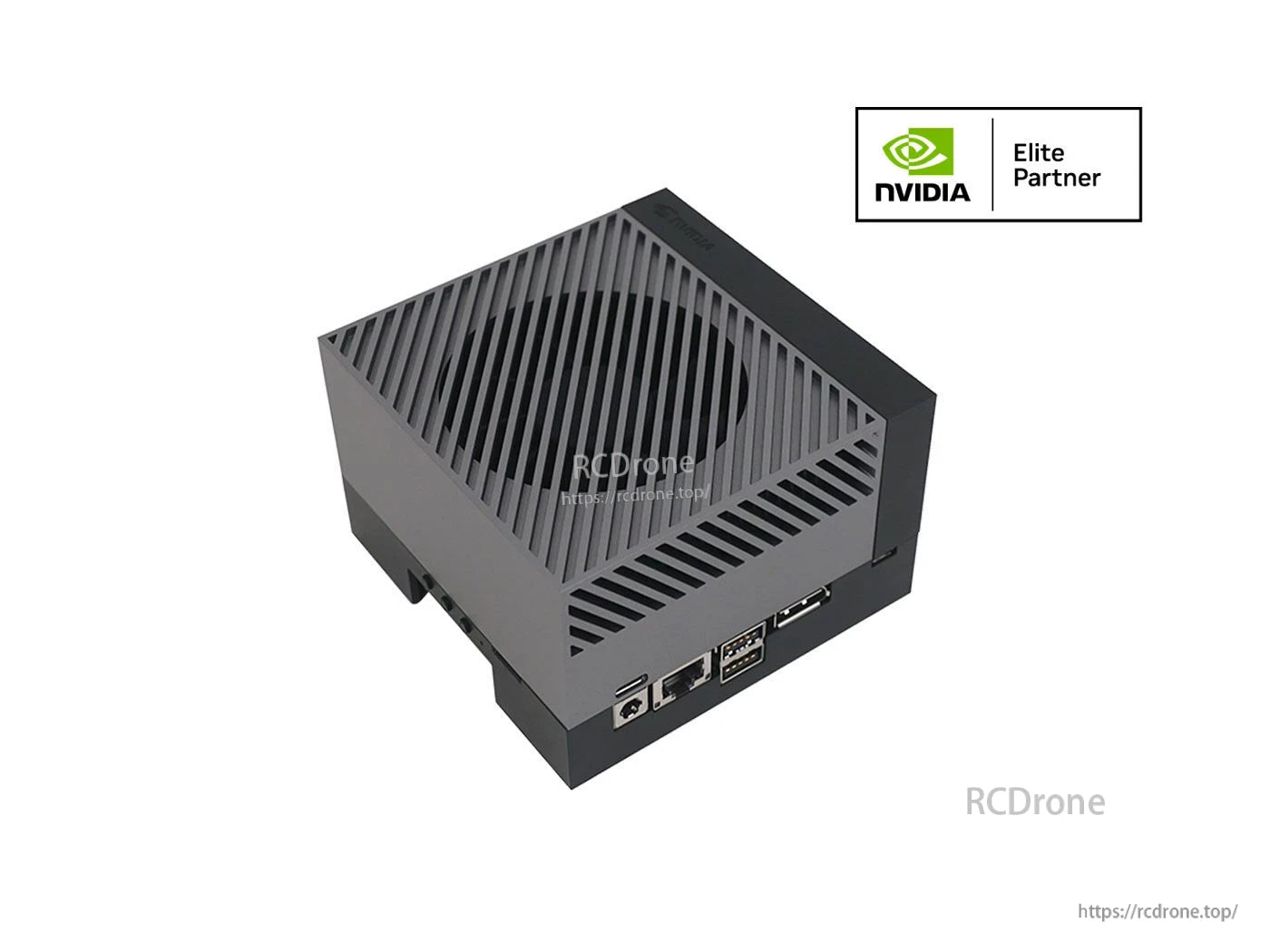

  • NVIDIA Jetson AGX Orin 64GB Developer Kit features 275 TOPS AI performance, 12-core CPU, and 64GB memory for advanced robotics and AI development.

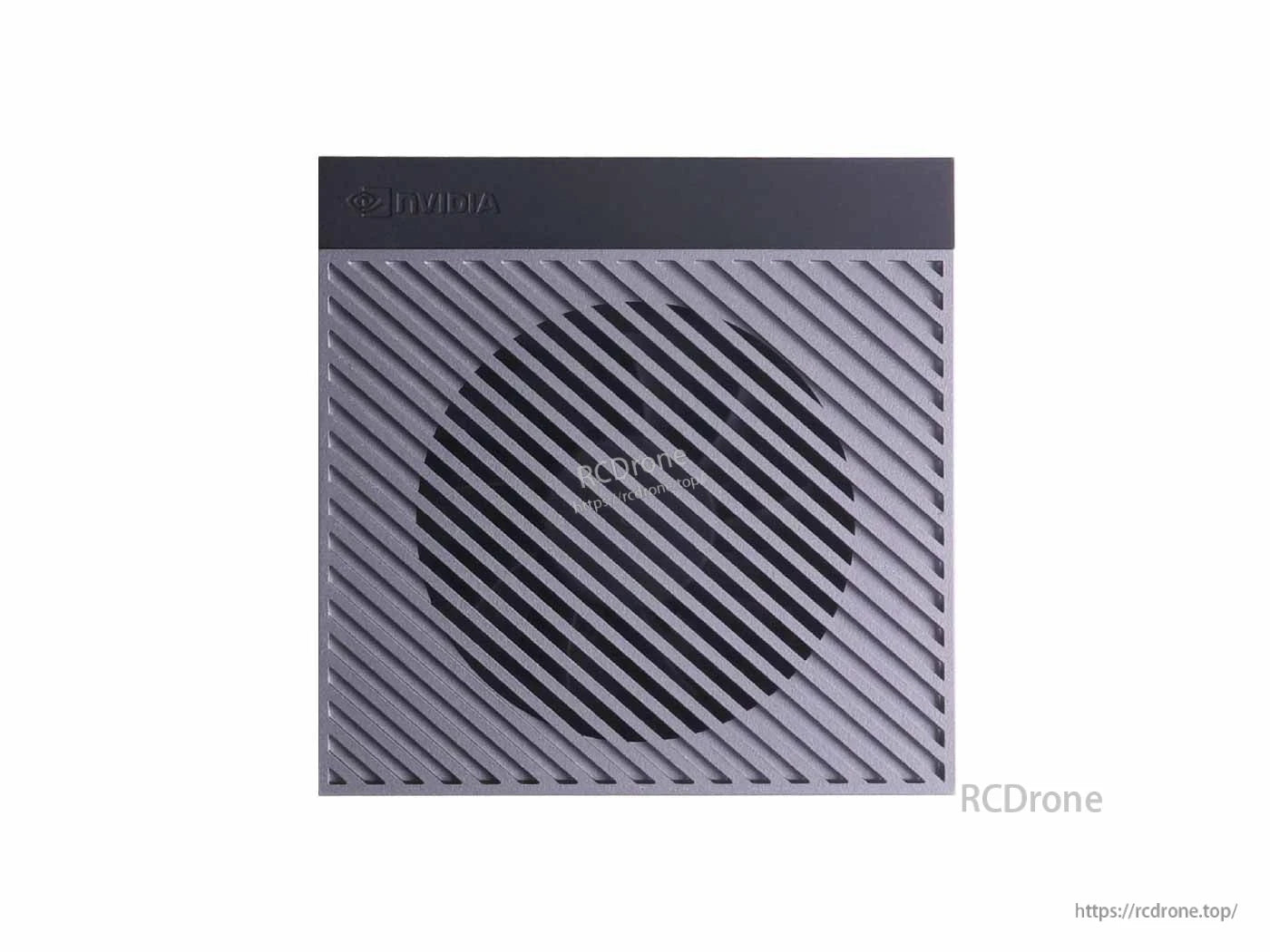

  • NVIDIA Jetson AGX Orin 64GB Developer Kit – 275 TOPS Edge AI, 12-core CPU, 64GB LPDDR5, 64GB eMMC, PCIe Gen4, 10GbE

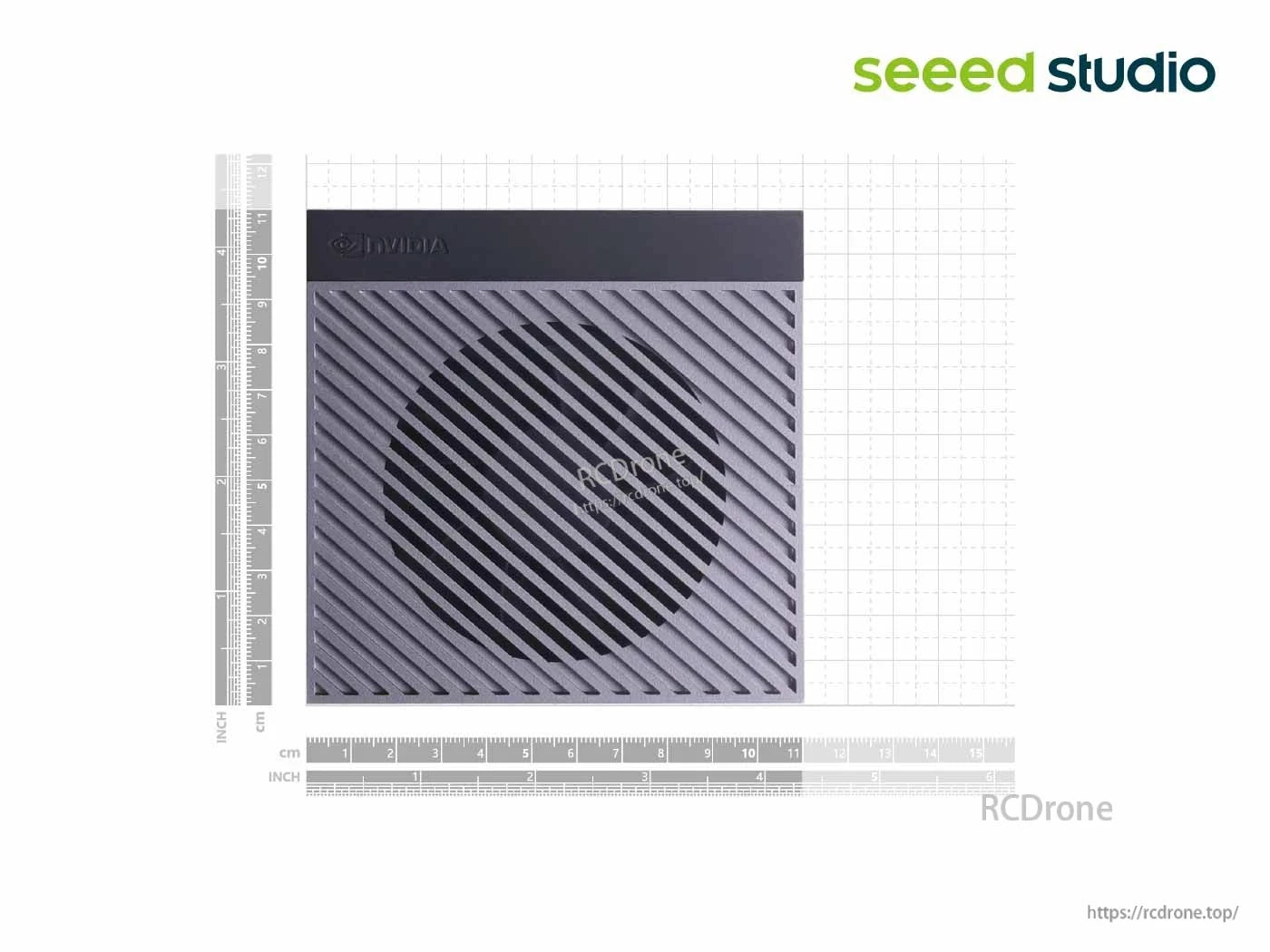

  • NVIDIA Jetson AGX Orin 64GB Developer Kit: 275 TOPS AI performance, 12-core CPU, 64GB LPDDR5, 64GB eMMC, PCIe Gen4, and 10GbE for advanced edge computing.
1 6

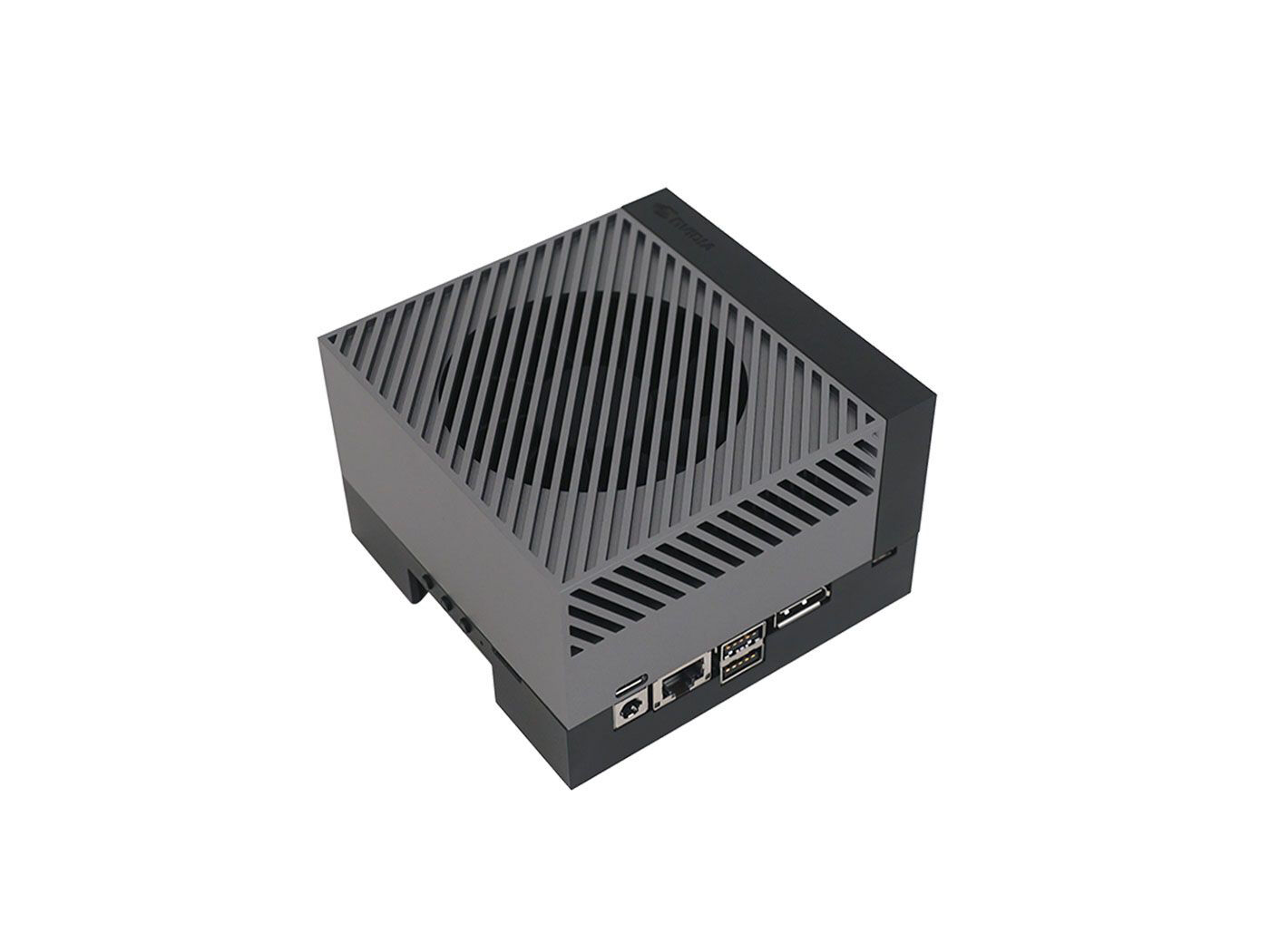

NVIDIA Jetson AGX Orin 64GB Developer Kit – 275 TOPS Edge AI, 12-core CPU, 64GB LPDDR5, 64GB eMMC, PCIe Gen4, 10GbE

NVIDIA Jetson AGX Orin 64GB Developer Kit – 275 TOPS Edge AI, 12-core CPU, 64GB LPDDR5, 64GB eMMC, PCIe Gen4, 10GbE

Seeed Studio

$2,699.00 USD
$2,699.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The NVIDIA Jetson AGX Orin 64GB Developer Kit delivers a major step forward for robotics and edge AI. This Developer Kit provides up to 275 TOPS of AI performance in a compact form factor with a configurable 15W–60W power envelope—offering more than 8× the AI performance of Jetson AGX Xavier for building advanced robots, autonomous machines, and real-time analytics systems. Developers can deploy large, complex models for natural language understanding, 3D perception, and multi‑sensor fusion on the same platform.

Key Features

  • Edge AI performance: up to 275 TOPS; more than 8× Jetson AGX Xavier performance; 15W–60W configurable power.
  • Onboard storage and memory: 64GB eMMC with 64GB DRAM and 204 GB/s memory bandwidth.
  • High‑speed I/O for multi‑sensor workloads: 22 lanes PCIe Gen4, 1× 10GbE, DisplayPort, 16 lanes MIPI CSI‑2, USB 3.2, and a 40‑pin header.
  • JetPack 6.0 support: based on Linux 36.2 providing Linux Kernel 5.15, UEFI‑based bootloader, Ubuntu 22.04 root file system, NVIDIA drivers, required firmware, toolchain, and more.
  • Note: The Jetson AGX Orin Developer Kit has been upgraded with 64GB of memory. Performance is the same as the original 32GB version, except for the memory capacity.

Specifications

Jetson AGX Orin Module (System on Module)

AI Performance Jetson AGX Orin 64GB – 275 TOPS
GPU NVIDIA Ampere architecture with 2048 NVIDIA CUDA cores and 64 Tensor cores
CPU 12‑core Arm Cortex‑A78AE v8.2 64‑bit CPU; 3MB L2 + 6MB L3
DL Accelerator 2× NVDLA v2.0
Vision Accelerator PVA v2.0
Memory 64GB 256‑bit LPDDR5, 204.8GB/s
Storage 64GB eMMC 5.1
Video Encode (H.265) 2× 4K60 | 4× 4K30 | 8× 1080p60 | 16× 1080p30
Video Decode (H.265) 1× 8K30 | 3× 4K60 | 6× 4K30 | 12× 1080p60 | 24× 1080p30
Module Power 15W–60W

Carrier Board

Storage 1× M.2 Key M (4× PCIe Gen4); SSD module not included
Network – Ethernet 1× RJ45, up to 10GbE
Network – M.2 Key E 1× PCIe Gen4, USB 2.0, UART, I2S (Wireless module included)
USB 2× USB 3.2 Gen2 Type‑C; 2× USB 3.2 Gen2 Type‑A; 2× USB 3.2 Gen1 Type‑A; USB 2.0 Micro‑B
Camera 16‑lane MIPI CSI‑2 connector
Display DisplayPort 1.4a (+MST)
Fan 1× 4‑pin fan header
PCIe Slot 16× PCIe slot supporting 8× PCIe Gen4
RTC 2‑pin RTC battery backup connector
microSD UHS‑I cards up to SDR104 mode
Other I/O 40‑pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC); 12‑pin automation header; 10‑pin audio panel header; 10‑pin JTAG header; DC power jack; Power, Force Recovery, and Reset buttons
Input Power 12–36V
Dimensions 110mm × 110mm × 71.65mm (height includes feet, carrier board, module, and thermal solution)

What’s Included

  • NVIDIA Jetson AGX Orin Developer Kit ×1
  • Power Adapter AC Power Brick 90W ×1
  • USB‑C Cable ×1
  • Type B (US, CA, JP) Power Cable ×1
  • Type I (CN) Power Cable ×1
  • Type B (TW) Power Cable ×1
  • UPC Label ×1
  • Quick Start and Support Guide ×1

Applications

Application Fields

  • AI Video Analytics
  • Machine Vision
  • Autonomous Mobile Robot (AMR)
  • Generative AI

Capable of bringing Generative AI to the edge

Build AI agents that process live or archived video and images using Vision‑Language Models (e.g., LLaVA) to summarize, search, and extract insights via natural language.

Build multi‑stream AI video analytics

Jetson Orin platforms incorporate the NVIDIA Multi‑Standard Video Decoder to accelerate video decode across SD, HD, and UltraHD (8K/4K) content for multi‑stream analytics pipelines.

Fast deployment resources are available via community examples to run generative AI (e.g., Ollama, Llama3) and computer vision (e.g., YOLOv8) with single‑command setup.

Documents

ECCN/HTS

HSCODE 8517180050
USHSCODE 8517180050
EUHSCODE 8471707000
COO CHINA

Details

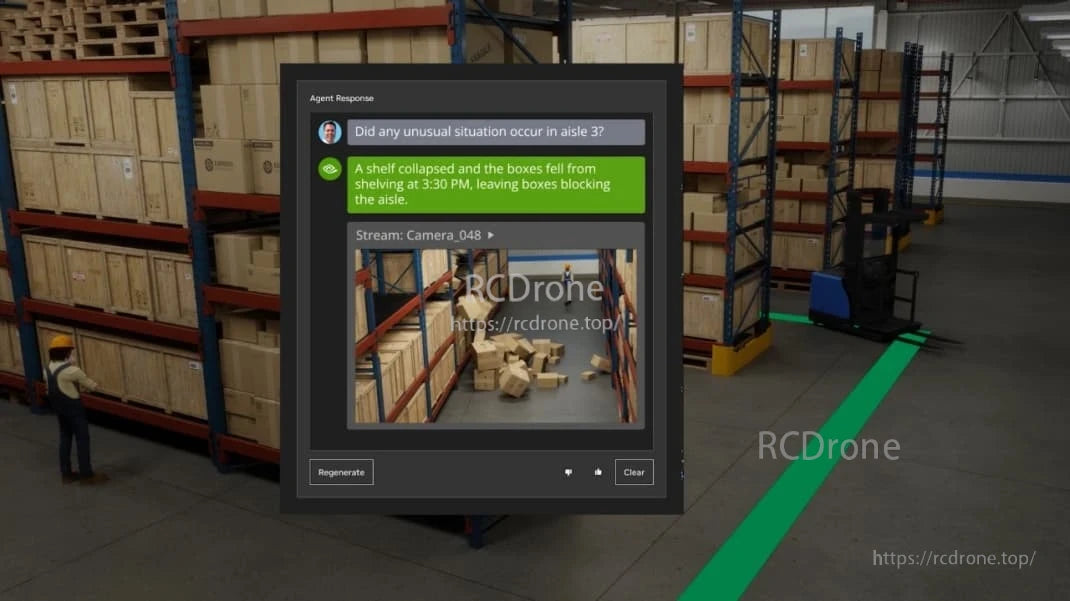

Jetson AGX Orin Developer Kit, Unusual situation occurred in aisle 324 with shelf collapse and box blocking at 3.30 PM

Acount are concerned about an unusual occurrence in aisle 324 where a shelf collapsed at 3:30 pm.

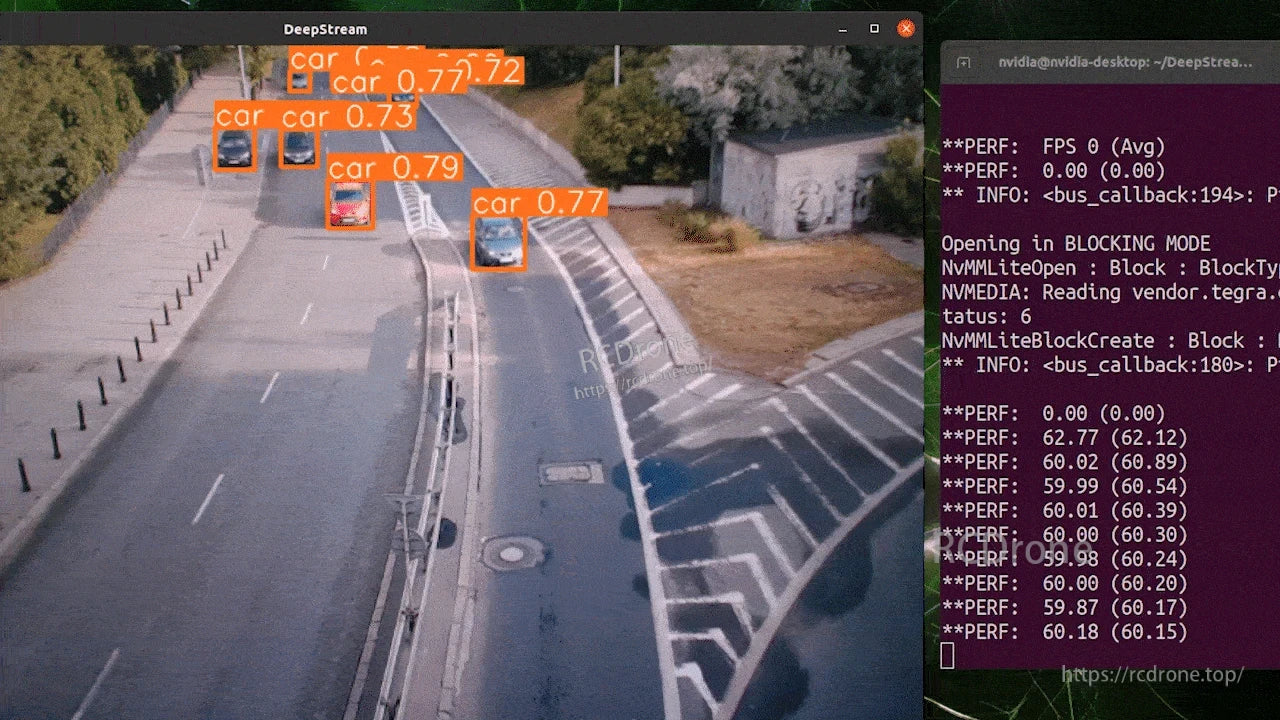

Jetson AGX Orin Developer Kit, DeepStream detects cars in real-time on Jetson AGX Orin, displaying confidence scores, FPS, performance metrics, and system logs in the terminal.

DeepStream application detecting cars with confidence scores. Terminal displays performance metrics, FPS, and system logs. Jetson AGX Orin Developer Kit processing video stream in real-time.

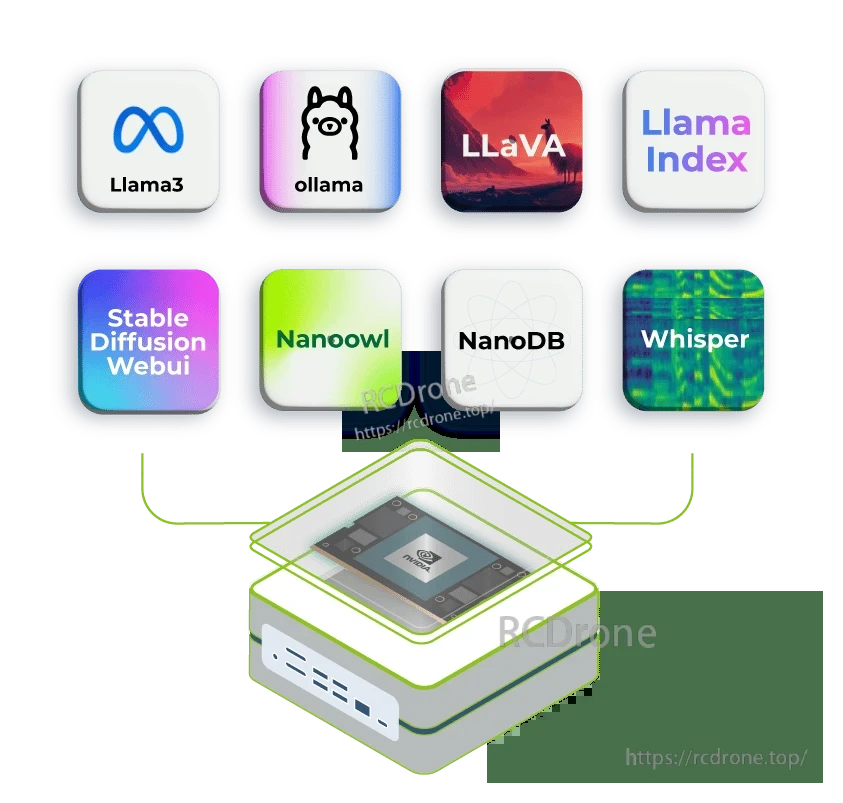

Jetson AGX Orin Developer Kit with AI tools and applications.

Jetson AGX Orin Developer Kit with AI tools and applications.

Jetson AGX Orin Developer Kit, Documents detailing NVIDIA Jetson AGX Orin specification and ECCN/HTS codes for international trade compliance.
