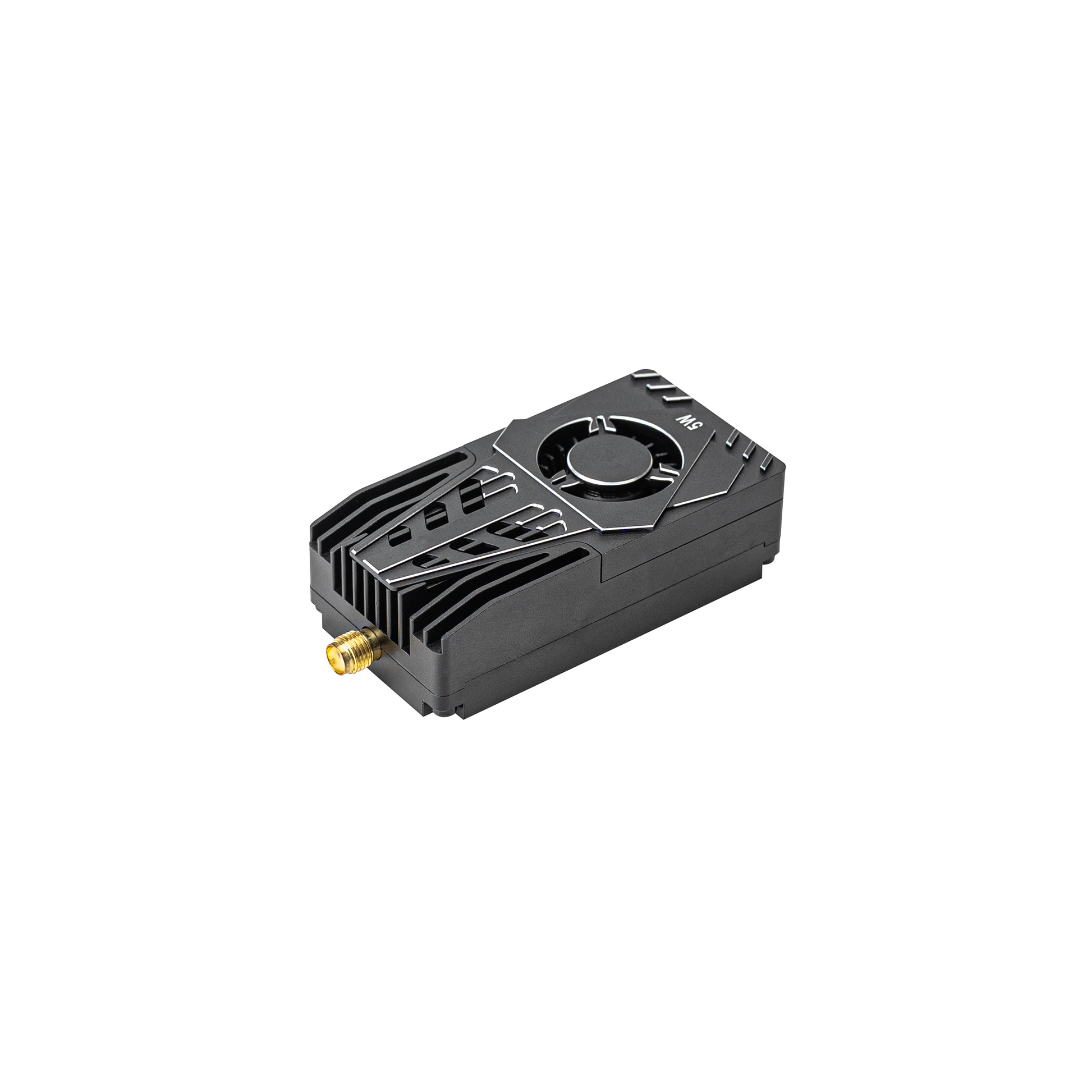

• OddityRC 1.2G 5W VTX transmitter module with cooling fan and SMA antenna connector

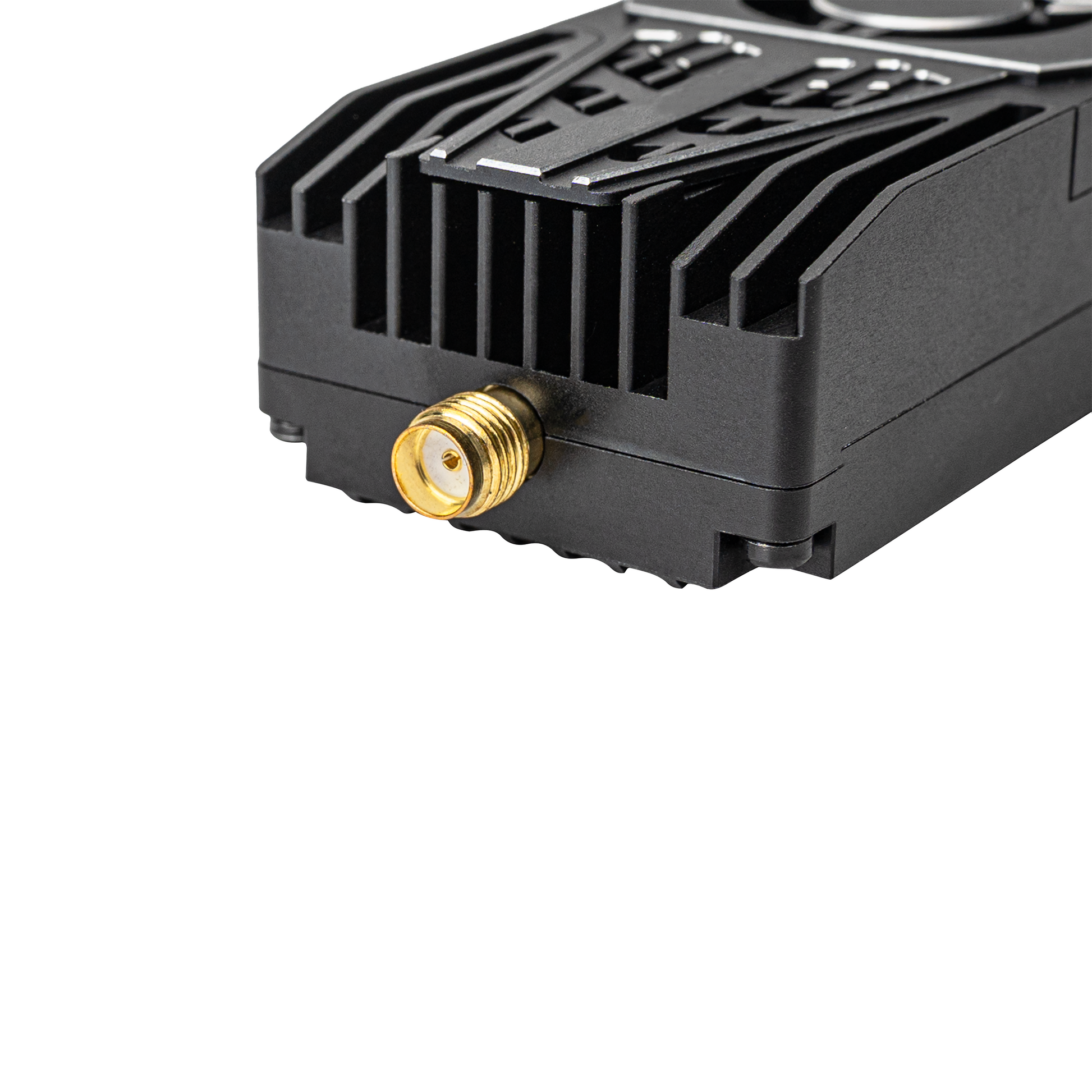

  • VTX SMA RF connector close-up on aluminum heat-sink housing

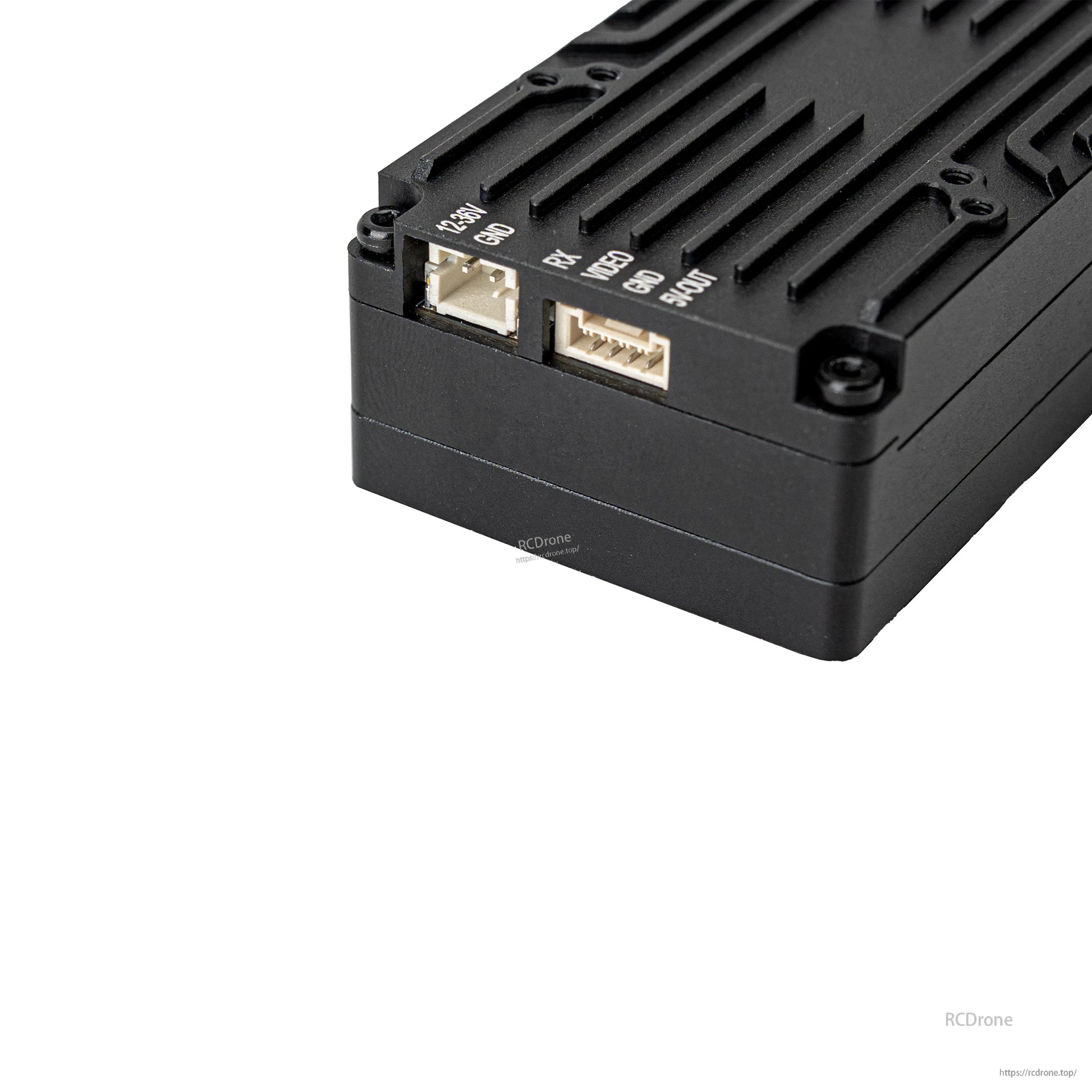

  • VTX wiring ports close-up showing power and signal connectors on the rear panel

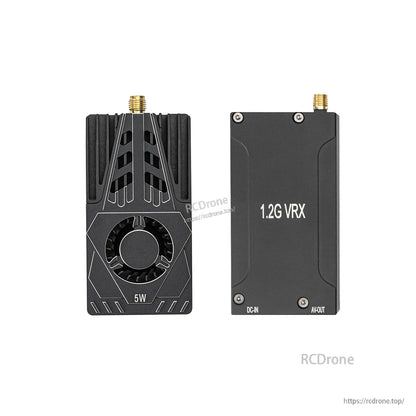

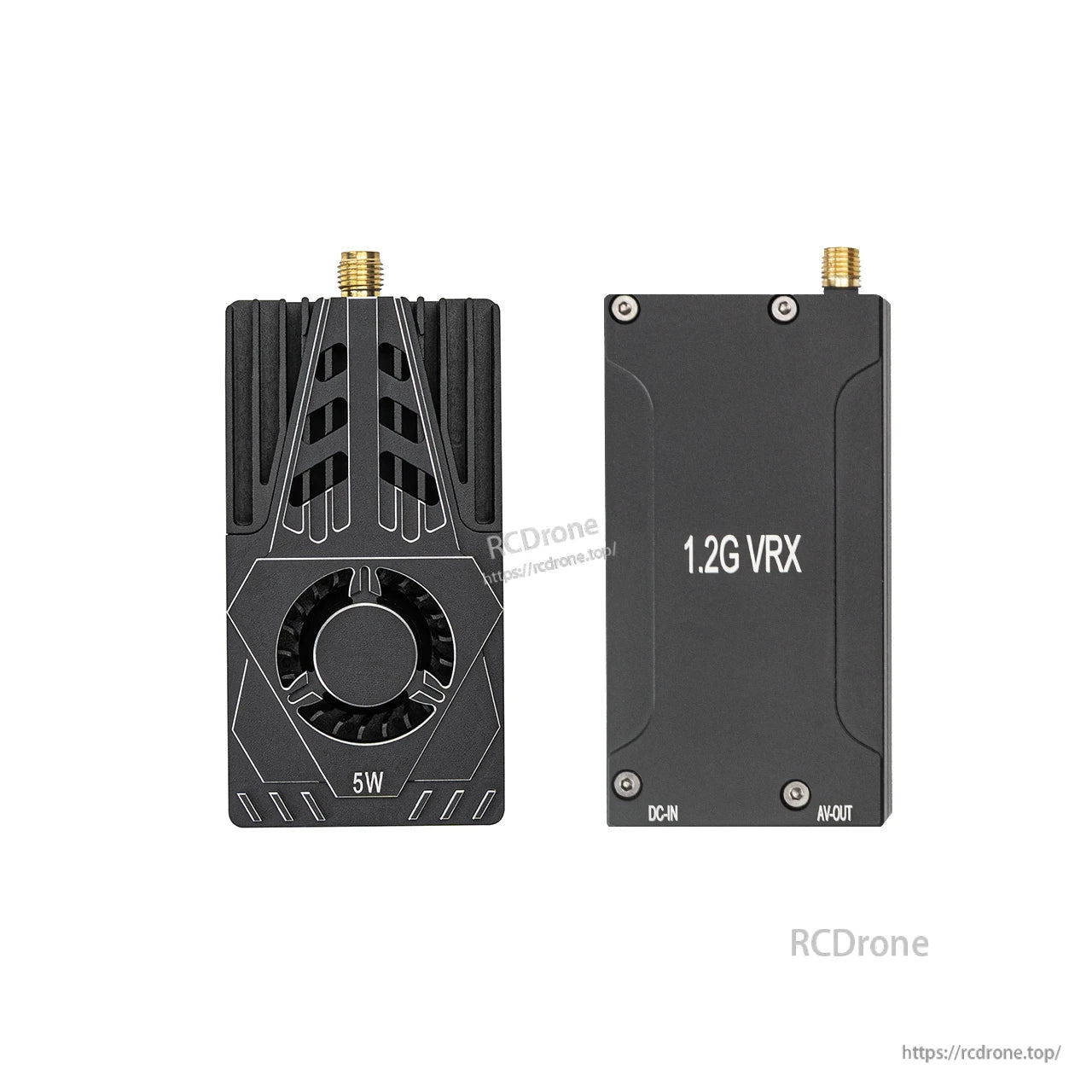

  • OddityRC 1.2G 5W VTX and 1.2G VRX receiver top view comparison

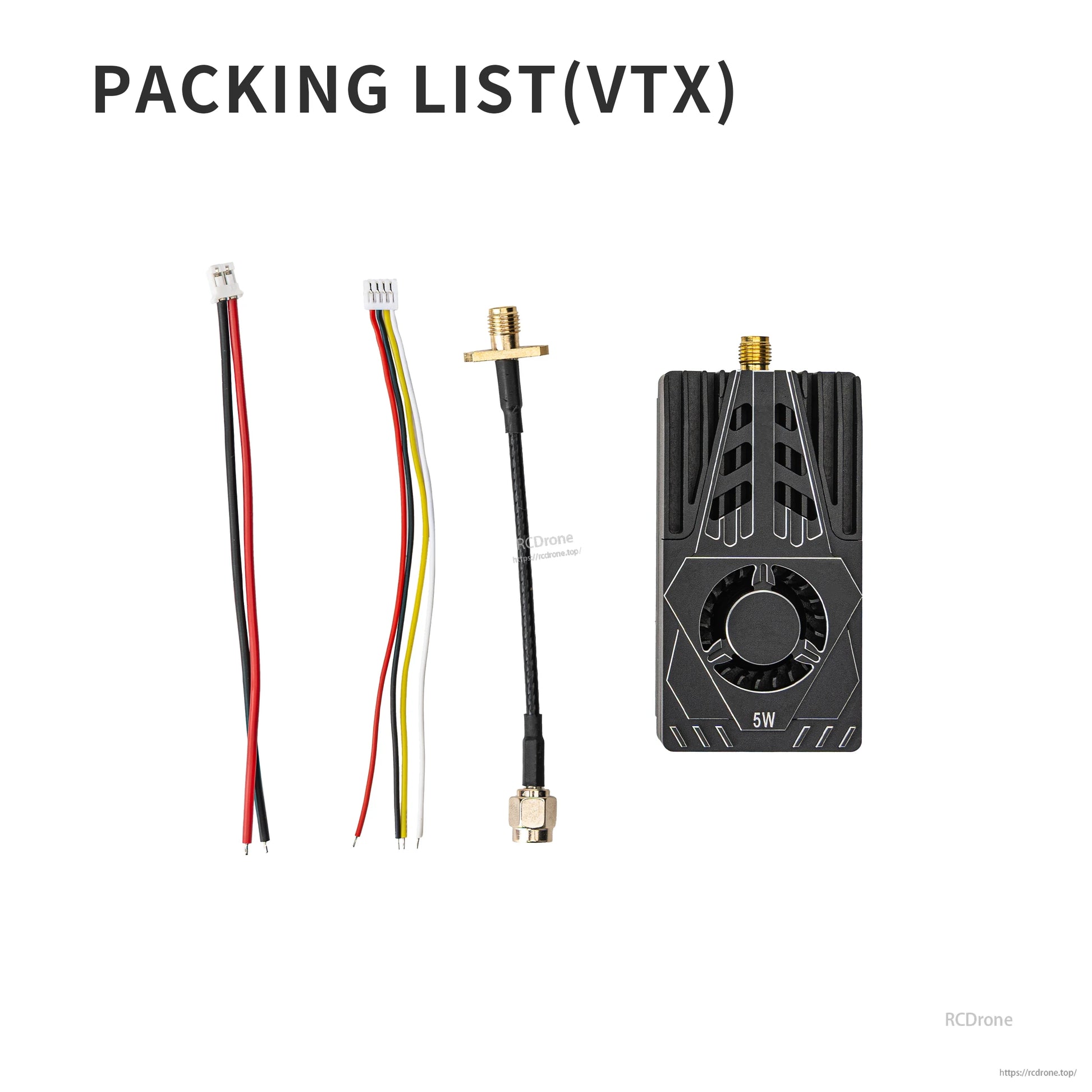

  • VTX packing list: 5W transmitter, wiring harnesses, and SMA pigtail cable

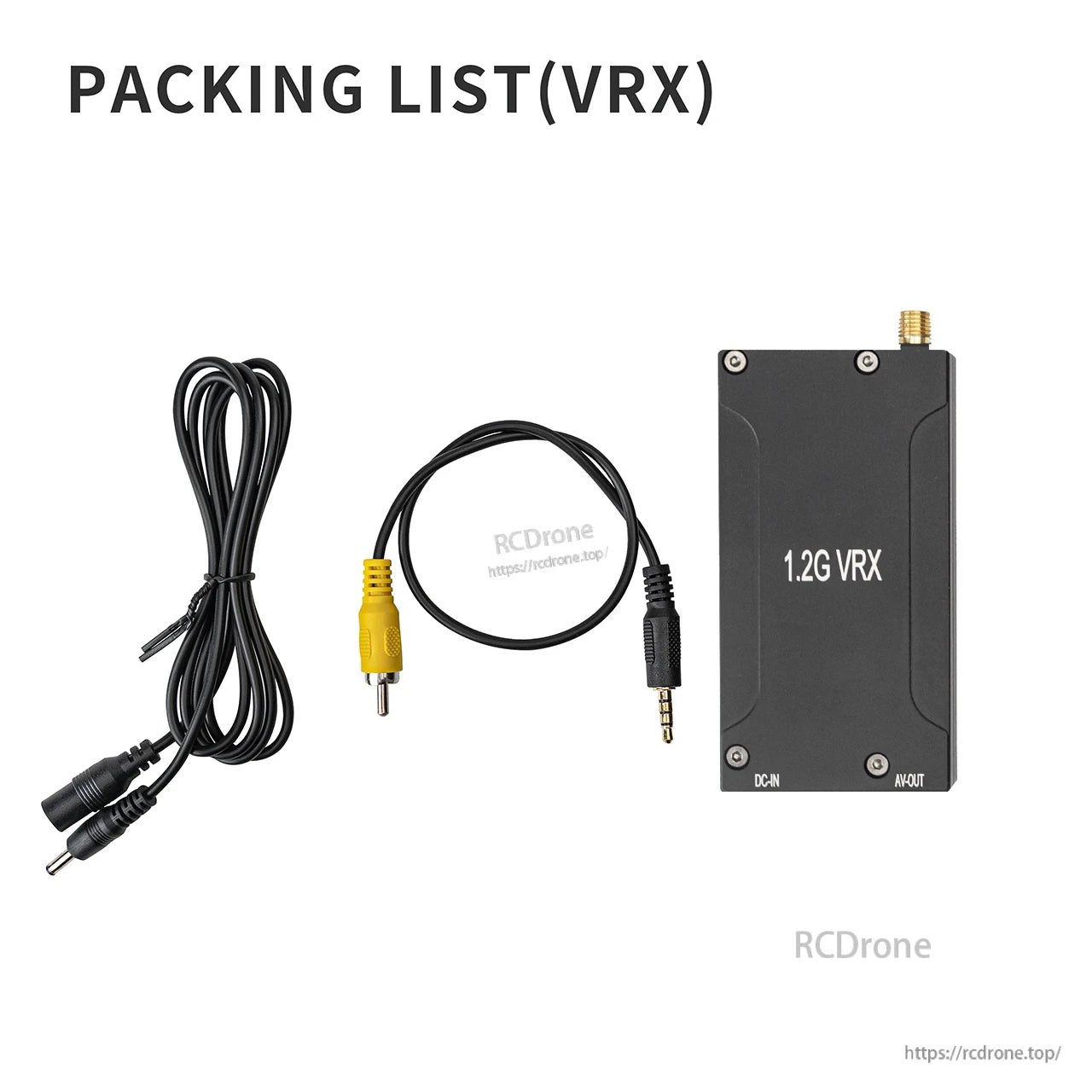

  • VRX packing list: 1.2G receiver, AV cable, and DC power lead

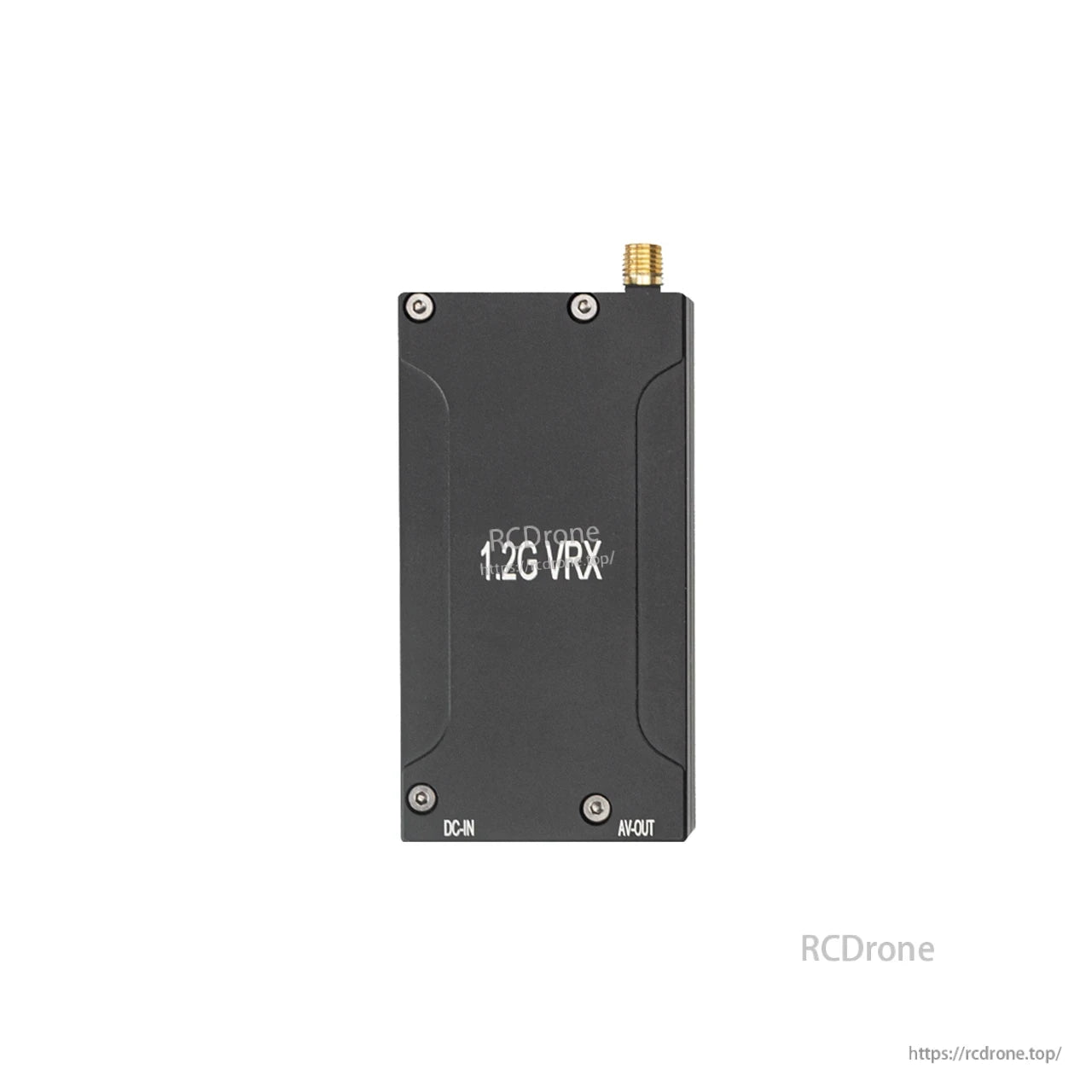

  • 1.2G VRX receiver front view with labeled DC-IN and AV-OUT ports

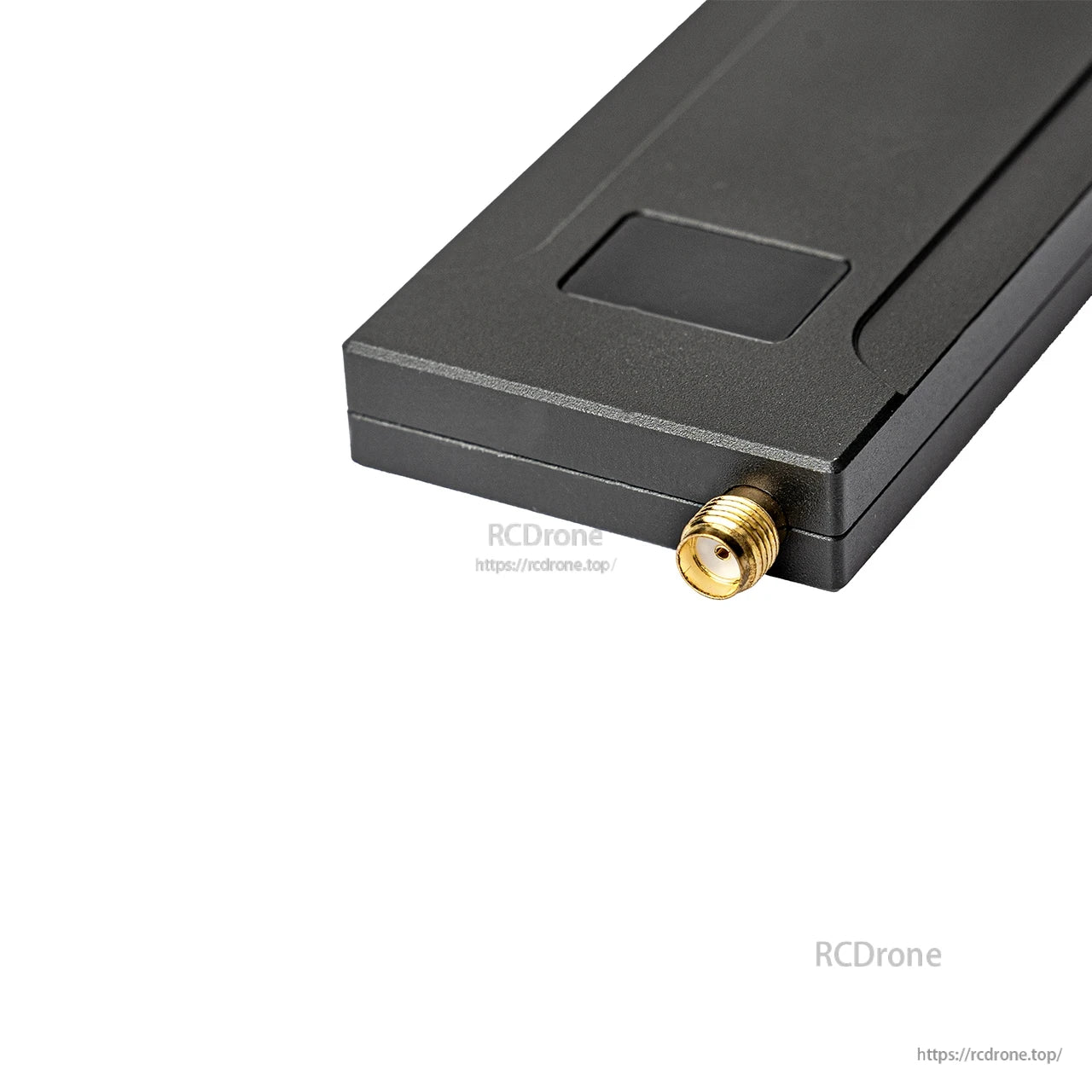

  • VRX SMA antenna connector close-up on receiver housing

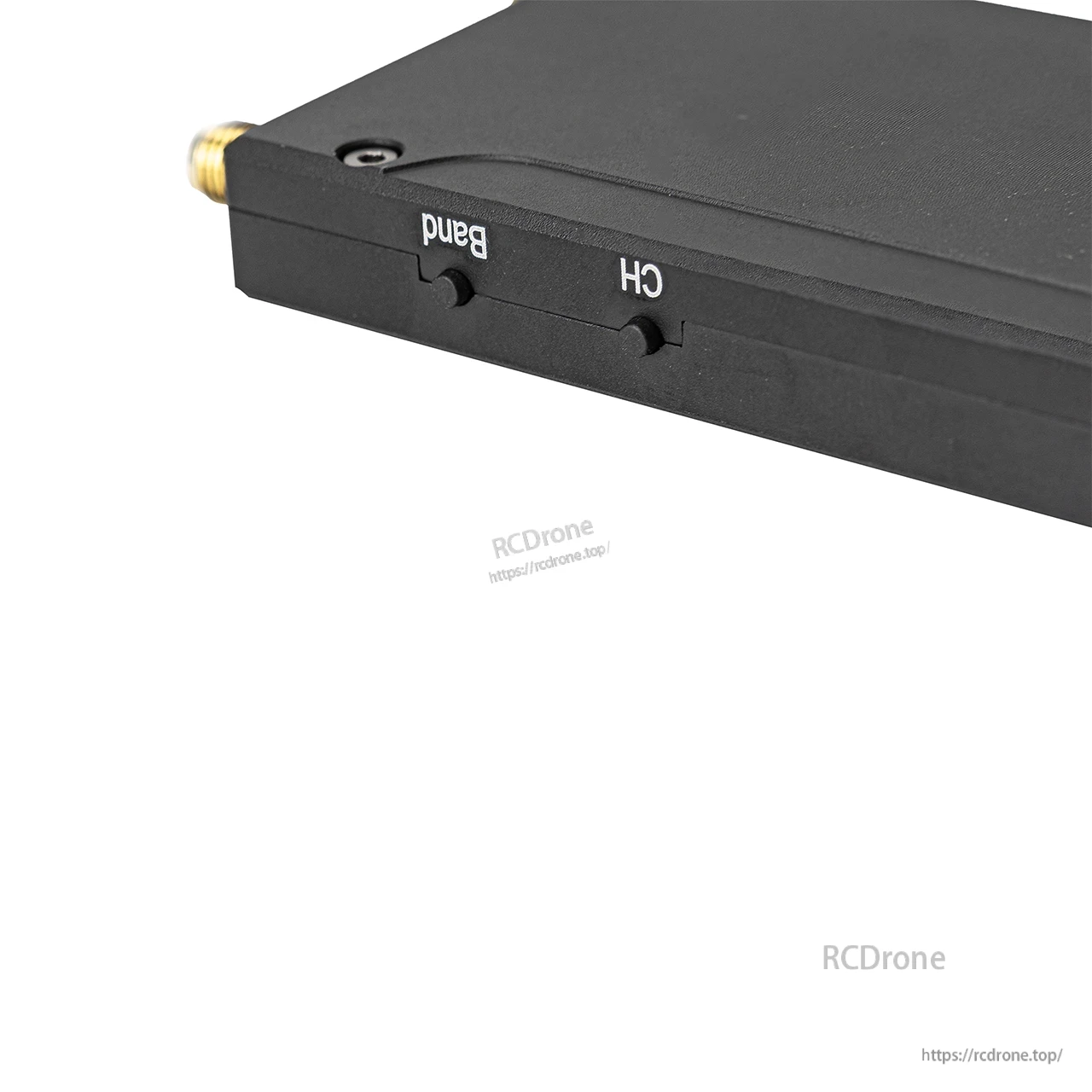

  • VRX side view close-up showing Band and CH buttons

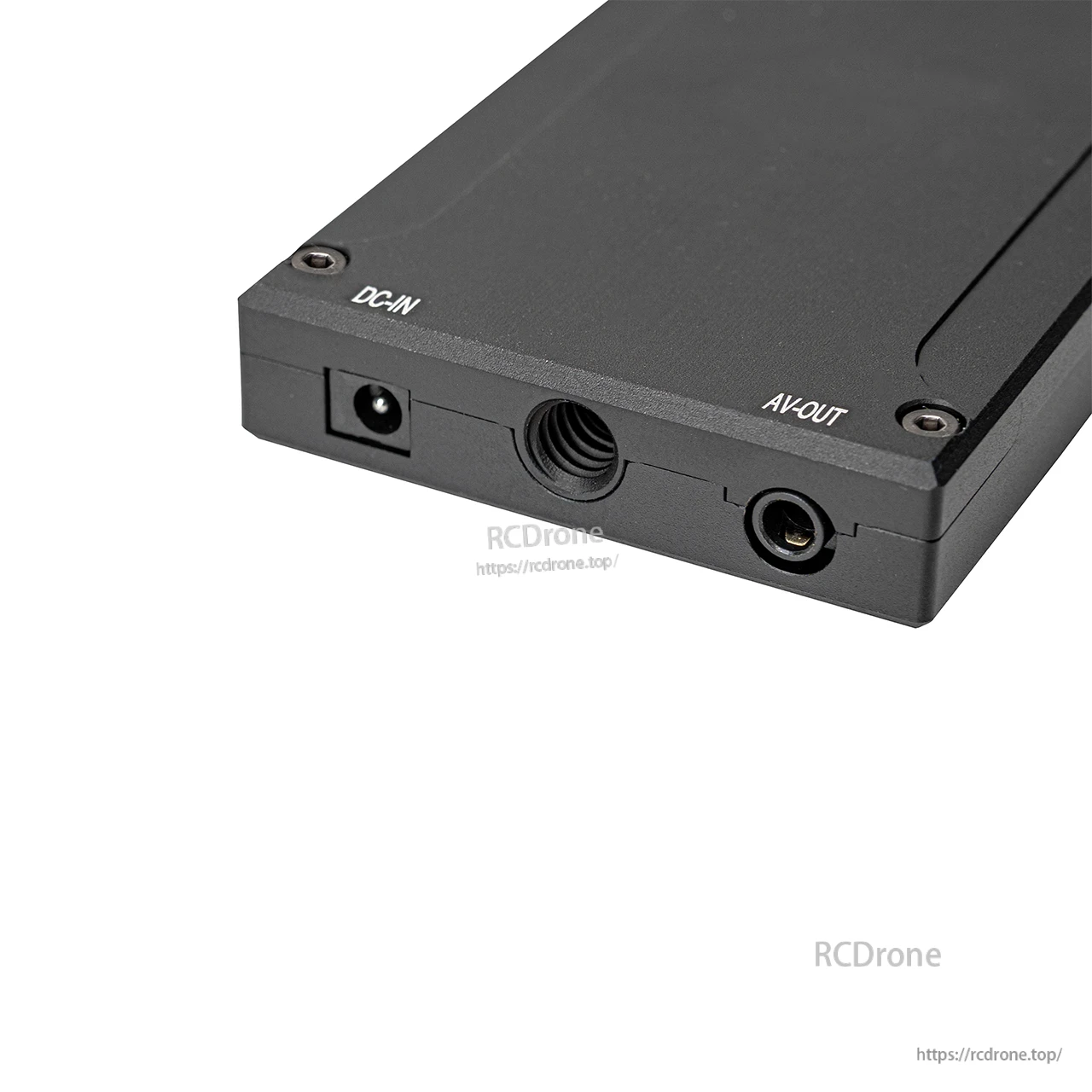

  • VRX port close-up showing DC-IN and AV-OUT jacks
1 10

OddityRC 1.2G 5W VTX/VRX Set, Tramp, 25mW-5W, 16CH 1080-1360MHz, SMA, 2S-7S

OddityRC 1.2G 5W VTX/VRX Set, Tramp, 25mW-5W, 16CH 1080-1360MHz, SMA, 2S-7S

OddityRC

$81.99 USD
$81.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Type
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

OddityRC 1.2G 5W VTX/VRX is a 1.2GHz analog video transmission (VTX) and receiver (VRX) set with push-button band/channel control, multi-level output power selection, and Tramp support for VTX configuration.

Key Features

  • VTX power levels selectable by button: 25mW / 600mW / 2W / 5W (5W@12V 2000mA)
  • VTX PIT mode (enter/exit via long press)
  • VTX band/channel indication via LEDs (Band A/B; CH1–CH8)
  • VRX: 1.2G band, A frequency group, 16 channels (1080MHz–1360MHz)
  • VRX standard SMA antenna interface, 50Ω RF impedance
  • VRX supports NTSC/PAL video formats and CVBS output

Specifications

1.2G 5W VTX

Button operation (POWER) Green light indicates power status; short press switches power levels (flashes: 1=25mW, 2=600mW, 3=2W, 4=5W); long press 2 seconds enters PIT mode (steady light)
Button operation (Band/CH) Red light indicates band; long press 2 seconds switches band (flashes: 1=Band A, 2=Band B). Blue light indicates channel; short press cycles CH1–CH8
Terms of use Tramp
Frequency meter (A) 1080 / 1120 / 1160 / 1200 / 1240 / 1280 / 1320 / 1360
Power meter 25mW / 600mW / 2W / 5W@12V 2000mA
Size 69*36*22.5mm
Weight 68g

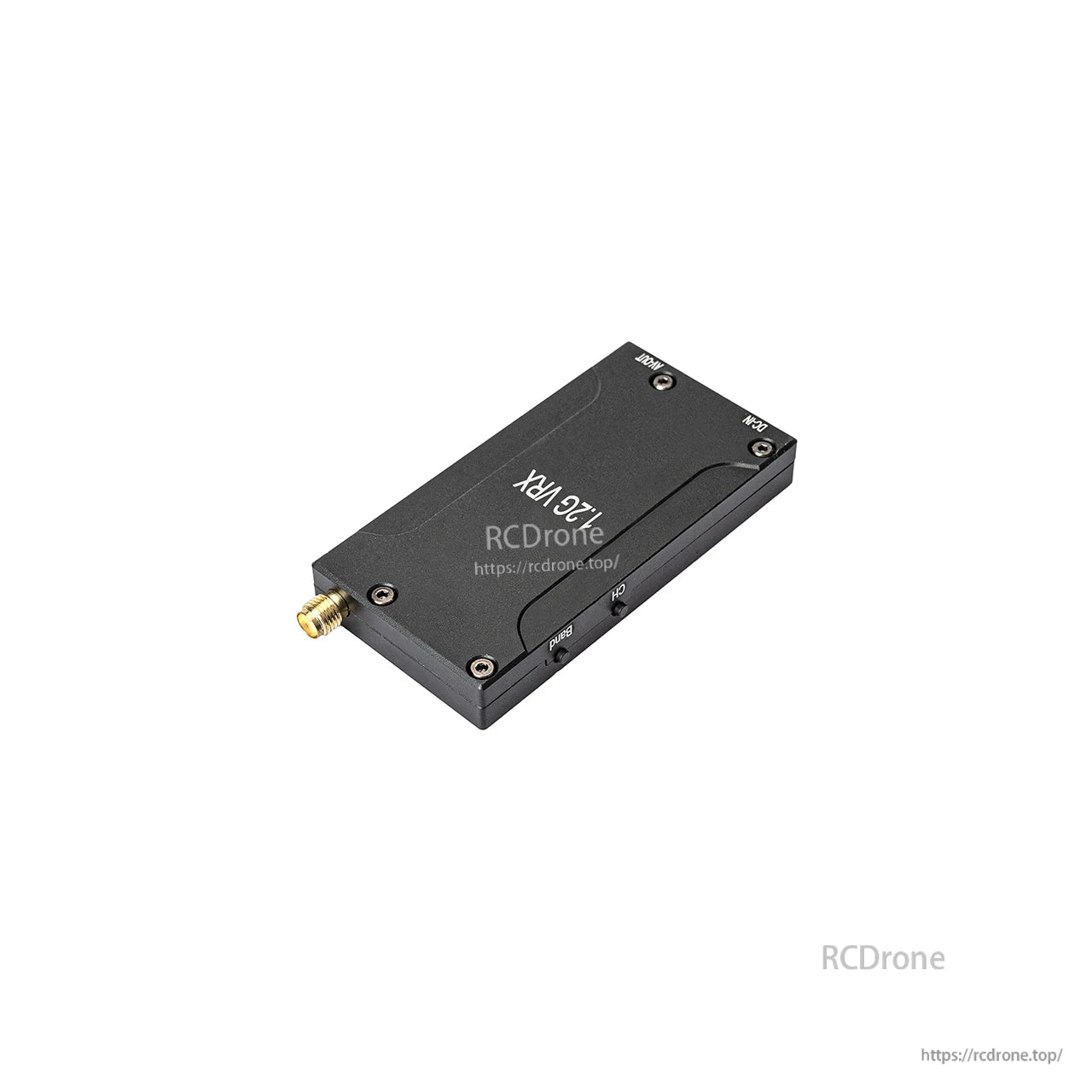

1.2G VRX

Number of channels 1.2G band; A Frequency Groups, 16channels (A:1080MHz-1360MHz)
Antenna interface Standard SMA
RF impedance 50Ω
Input voltage 2S-7S
Current consumption 150mA/12VDC
Receiving sensitivity -95dBm
Video output impedance 75Ω
Video format NTSC/PAL
Video output level CVBS 1.0~1.4VP-P
Power cable DC3.5*1.35mm to DC5.5*2.1mm
Video cable 4-pin 2.5mm headphone jack to RCA adapter
Working temp -10 to 60°C
Mounting hole M6
Dimensions (L*W*H) 85mm*40mm*11mm
Weight 36g

Applications

  • Analog FPV video links where 1.2GHz (1080–1360MHz) channels are required
  • RC aircraft, drones, or ground robotics projects using CVBS video (NTSC/PAL)

For wiring, configuration, or compatibility questions, contact support@rcdrone.top or visit https://rcdrone.top/.
