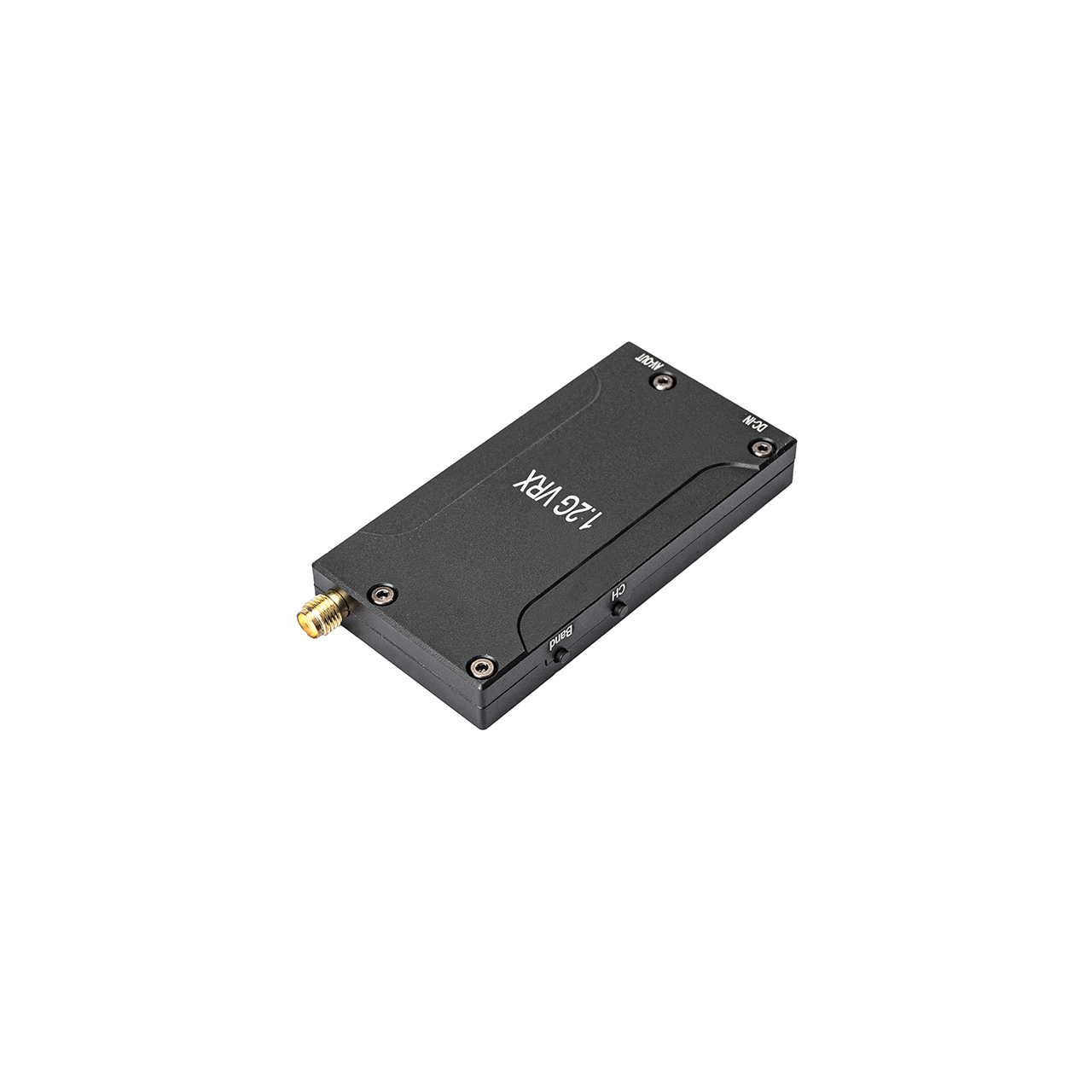

• OddityRC 1.2G VRX video receiver angled view showing metal case and antenna connector

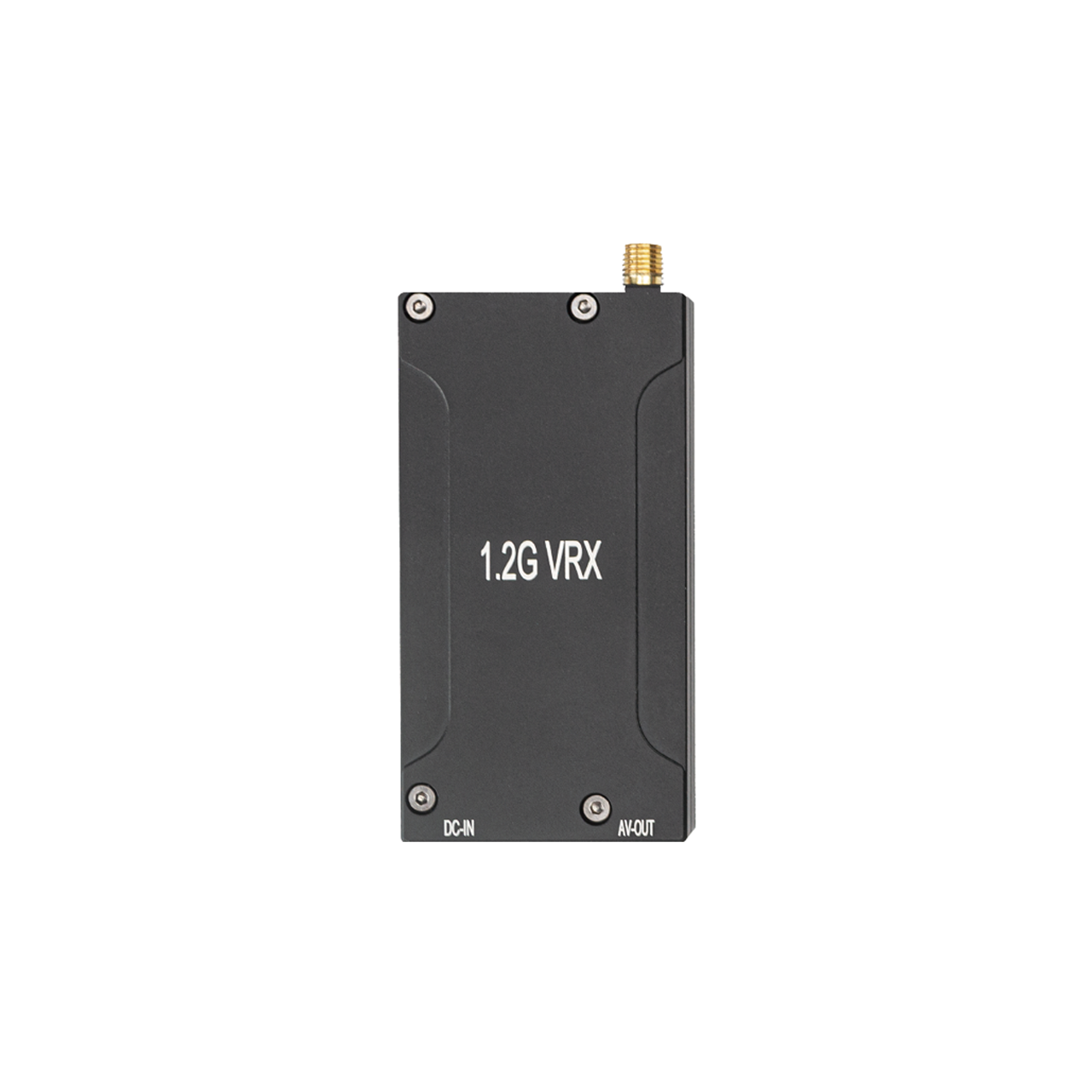

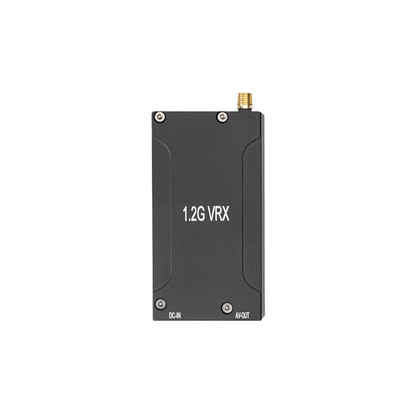

  • OddityRC 1.2G VRX top view with labeled housing and side SMA antenna port
  • Close-up of SMA antenna connector on corner of VRX receiver metal enclosure

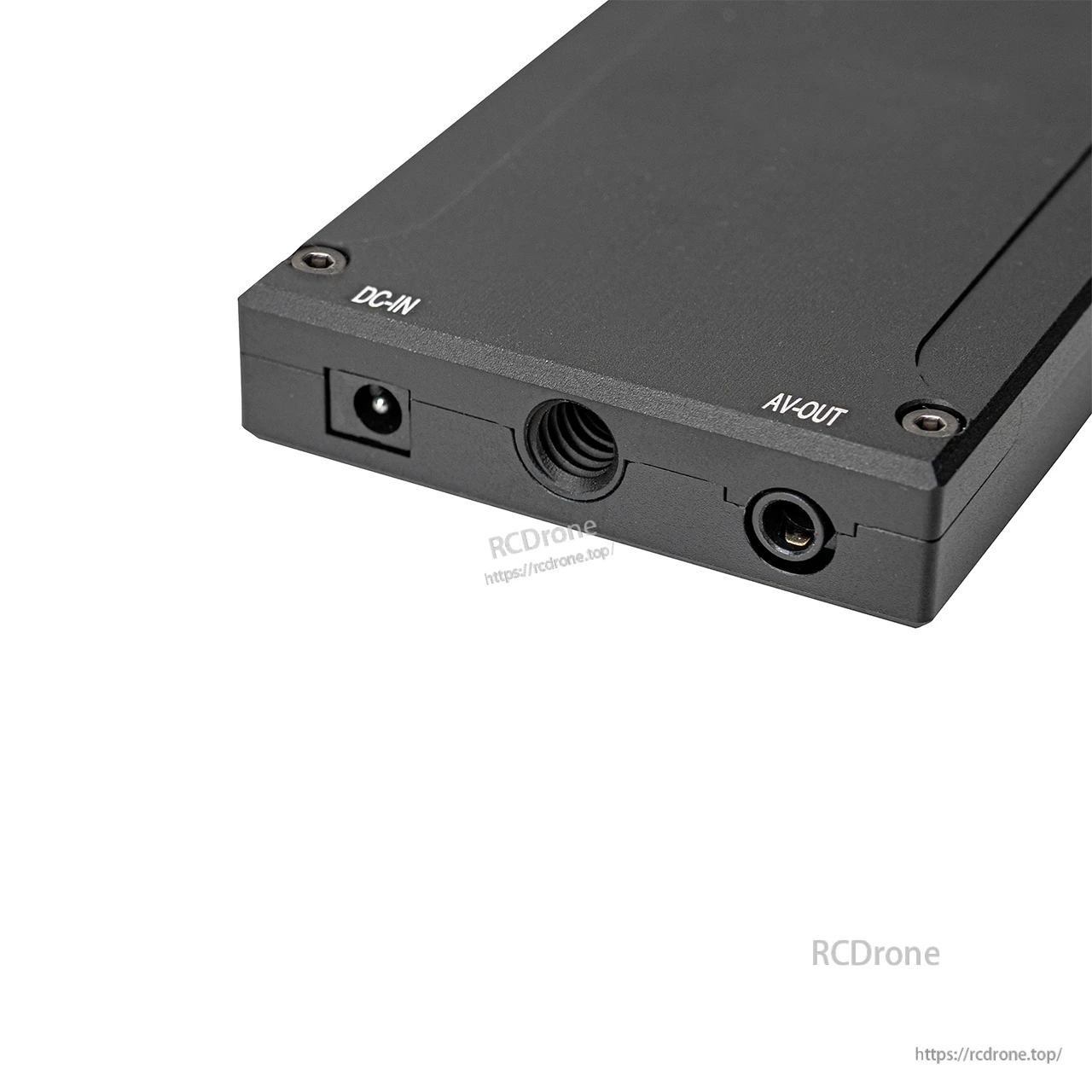

  • Rear edge close-up showing DC-IN power jack and AV-OUT port on the receiver

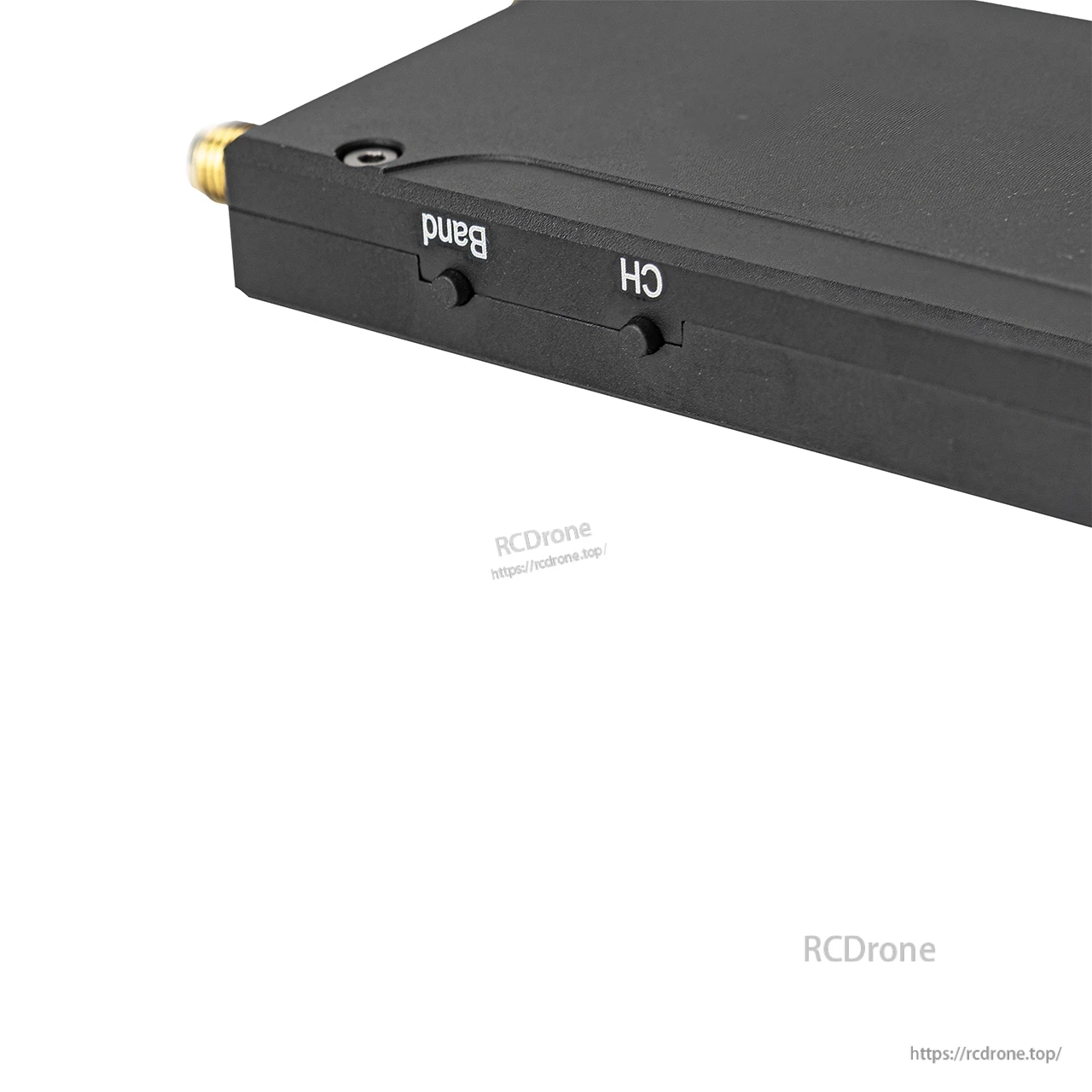

  • Side view with CH and Band buttons for channel and band selection

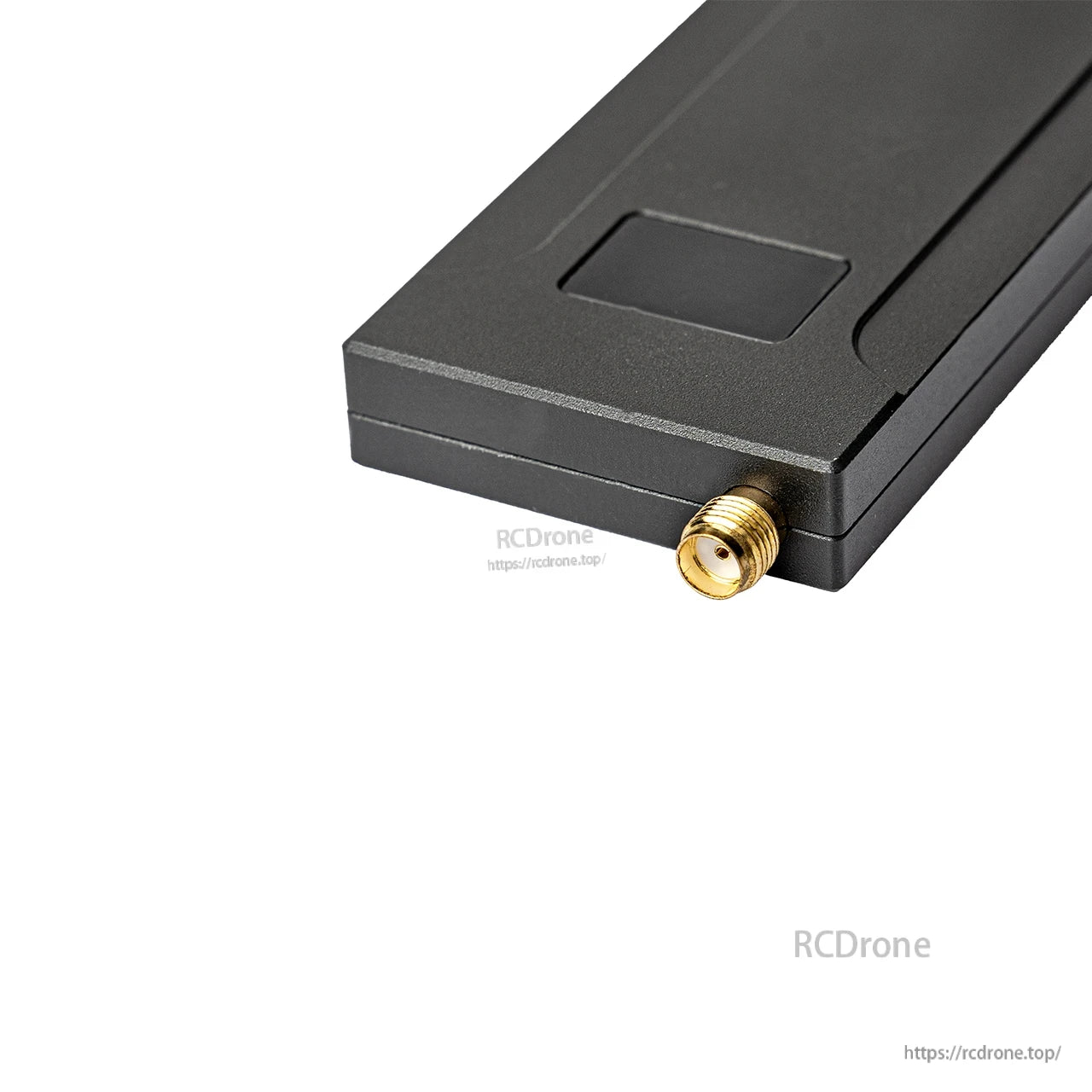

  • Detail view of antenna input connector with textured metal housing around the port

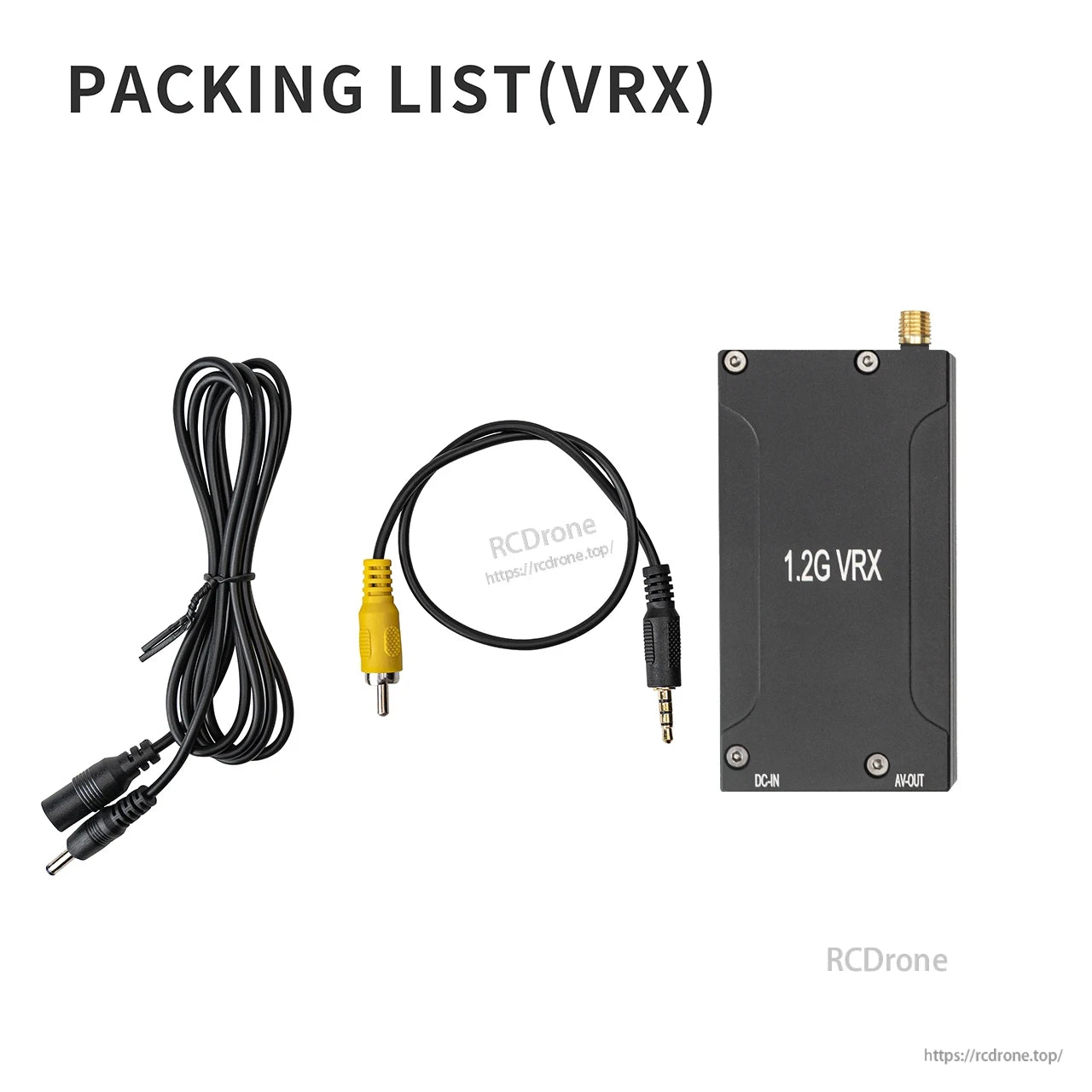

  • OddityRC 1.2G VRX packing list with receiver, power lead, and AV cable included
1 7

OddityRC 1.2G VRX 16CH FPV Video Receiver (1080–1360MHz) SMA, CVBS NTSC/PAL, 2S–7S

OddityRC 1.2G VRX 16CH FPV Video Receiver (1080–1360MHz) SMA, CVBS NTSC/PAL, 2S–7S

OddityRC

$101.59 USD
$101.59 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Type
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

OddityRC 1.2G VRX is a 1.2GHz band FPV video receiver (VRX) designed for CVBS analog video output, supporting NTSC/PAL formats and a wide 2S–7S input range.

Key Features

  • 1.2G band A frequency group with 16 channels (1080MHz–1360MHz)
  • Standard SMA antenna interface, 50Ω RF impedance
  • CVBS video output (1.0–1.4Vp-p), 75Ω output impedance
  • NTSC/PAL video format support
  • Low current consumption: 150mA at 12VDC
  • Receiving sensitivity: -95dBm

Specifications

Number of channels 1.2G band; A Frequency Groups, 16 channels (A: 1080MHz-1360MHz)
Antenna Interface Standard SMA
RF impedance 50Ω
Input voltage 2S-7S
Current consumption 150mA/12VDC
Receiving Sensitivity -95dBm
Video Output impedance 75Ω
Video format NTSC/PAL
Video Output Level CVBS 1.0~1.4Vp-p
Power cable DC3.5*1.35mm to DC5.5*2.1mm
Video cable 4-pin 2.5mm headphone jack to RCA adapter
Working Temp -10 to 60°C
Mounting hole M6
Dimension (L*W*H) 85mm*40mm*11mm
Weight 36g

For compatibility questions (VTX matching, wiring, or installation), contact support@rcdrone.top or visit https://rcdrone.top/.
