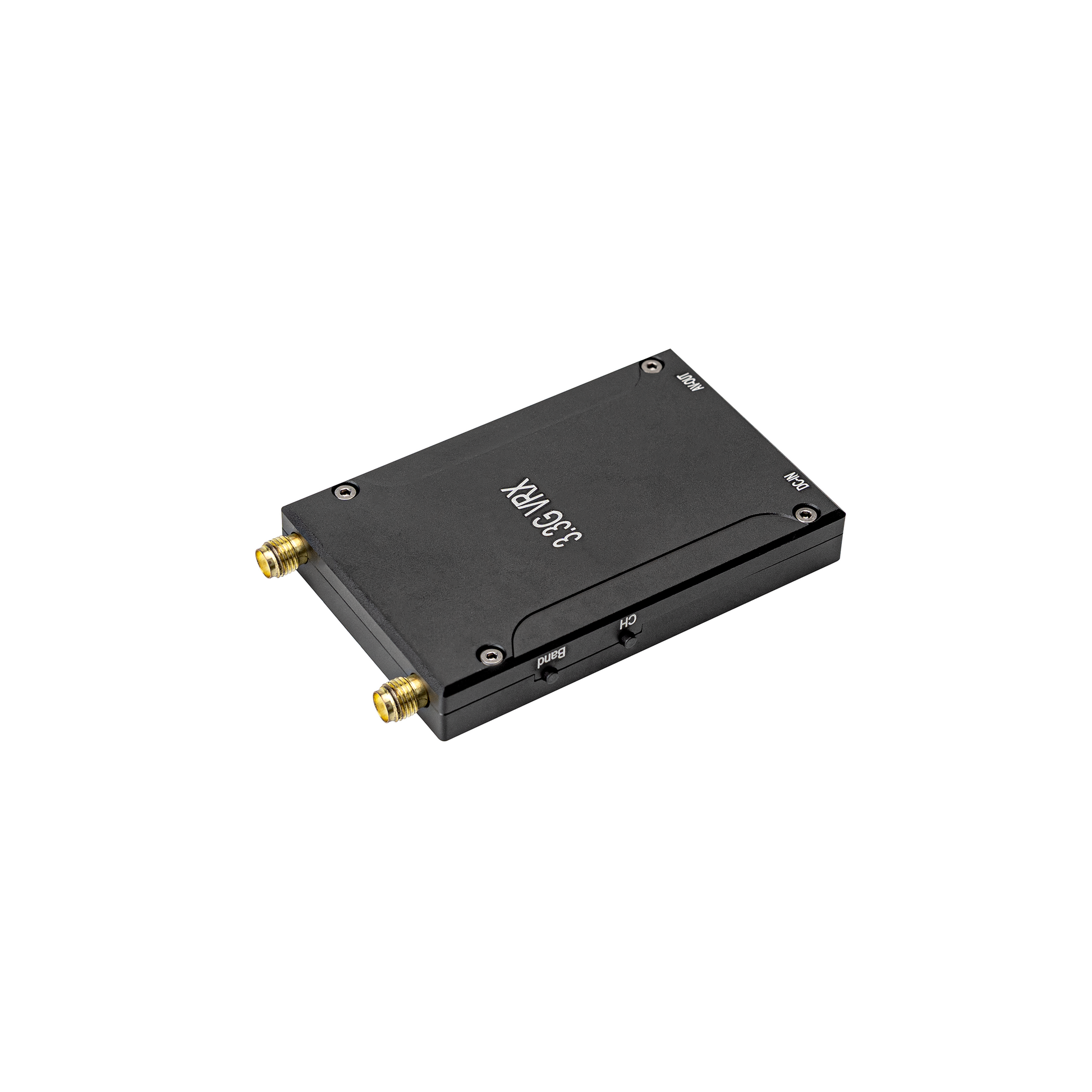

• OddityRC 3.3G VRX analog video receiver, top view with dual SMA antenna ports and side controls

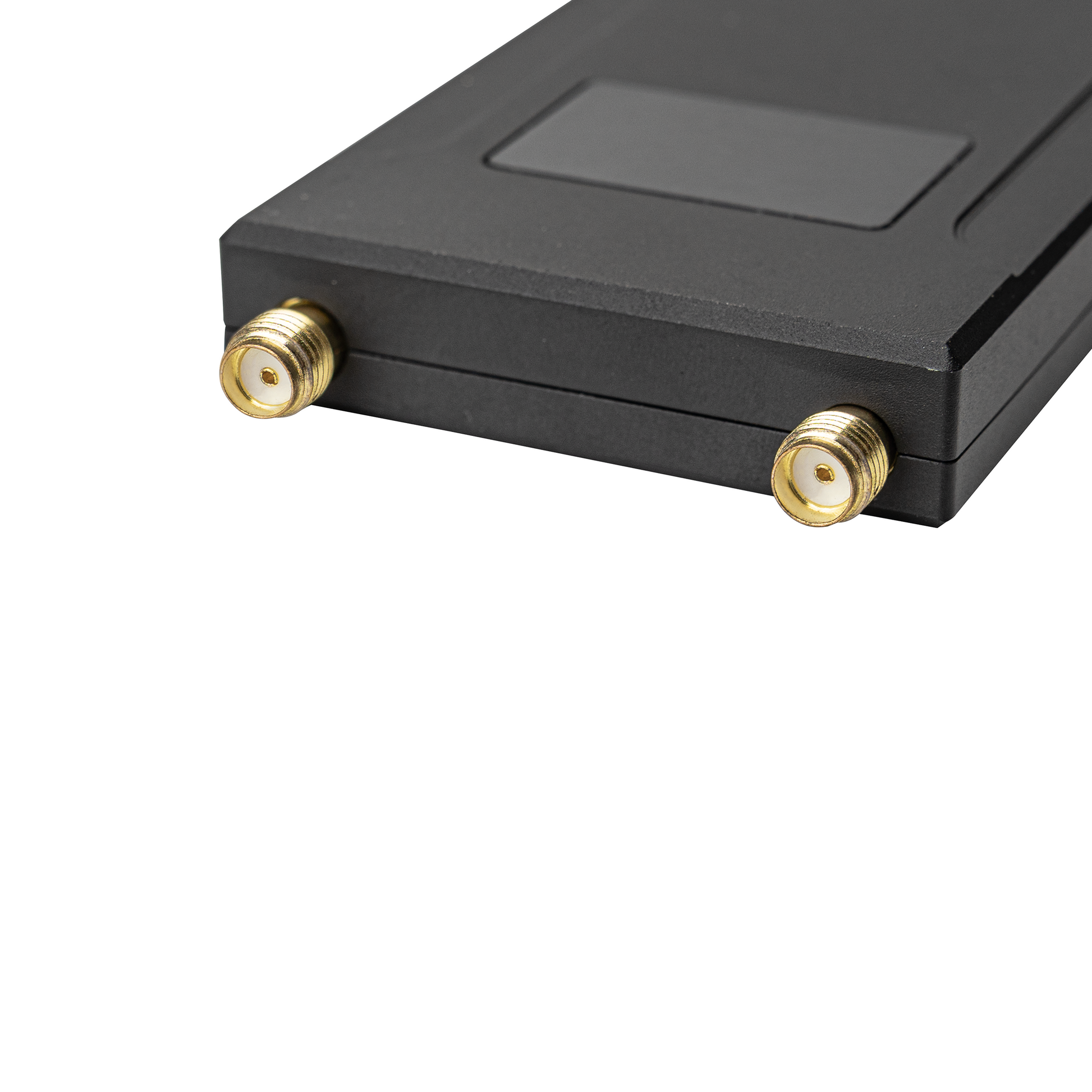

  • Close-up of dual SMA antenna connectors on 3.3G VRX receiver housing

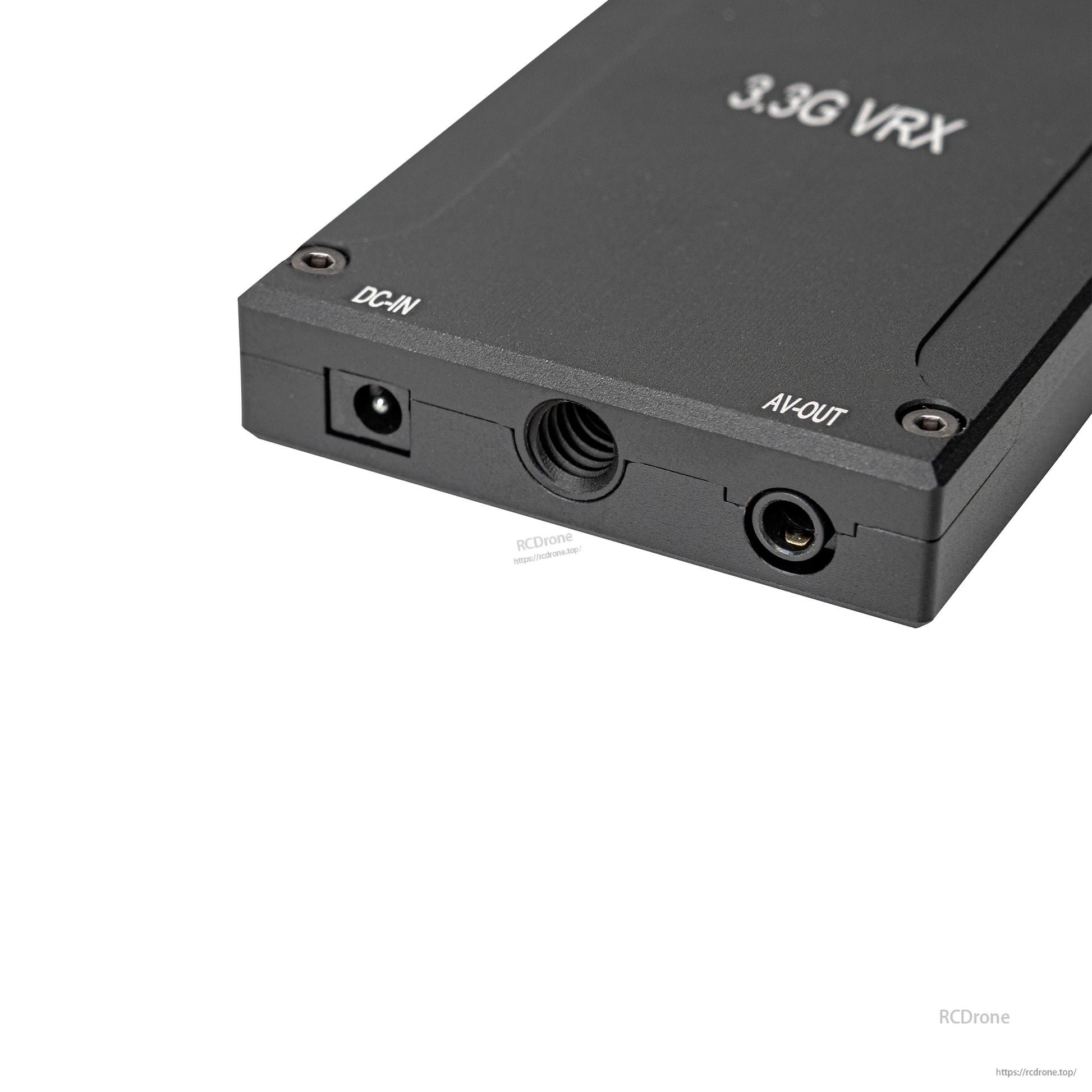

  • OddityRC 3.3G VRX side panel showing DC-IN power jack and AV-OUT port connections

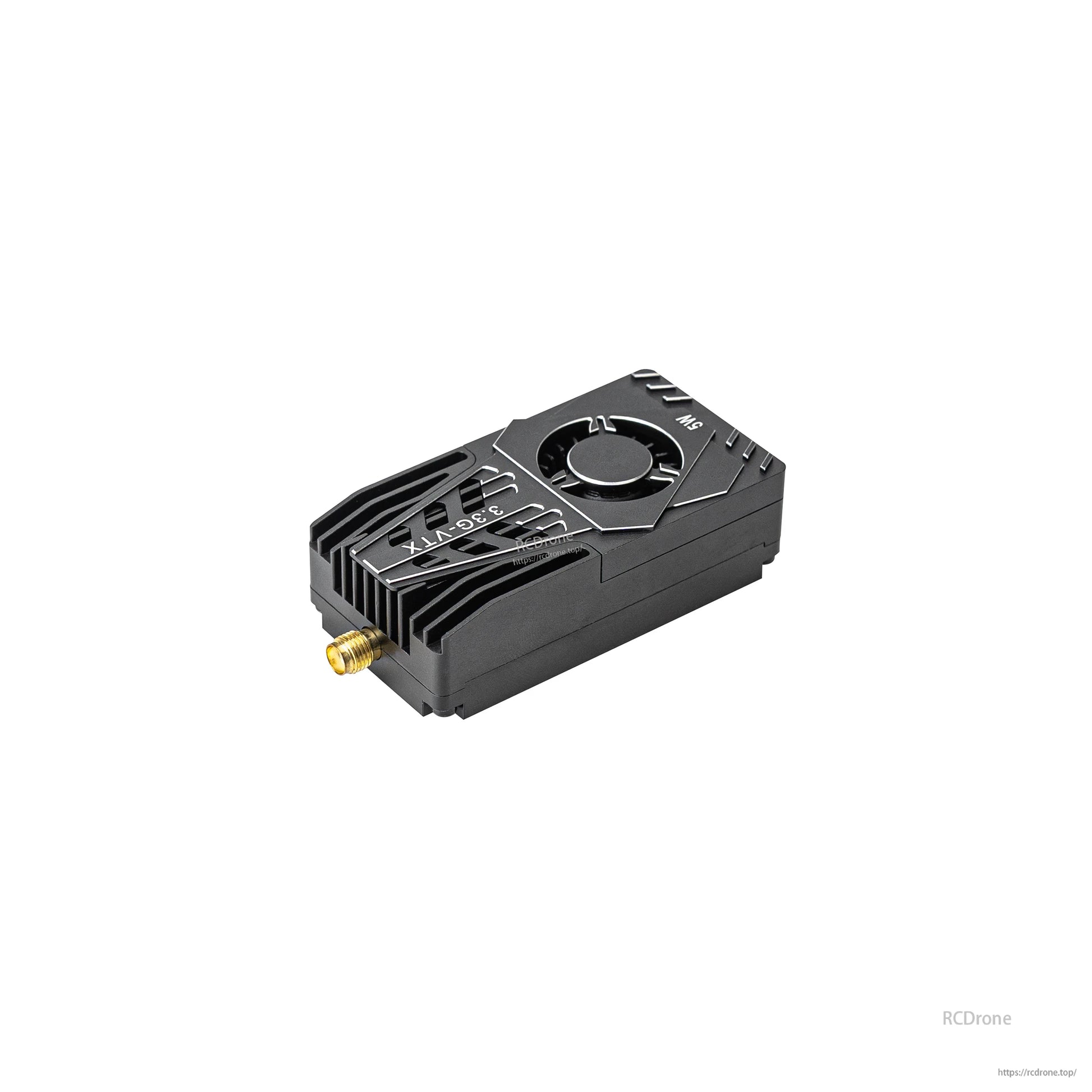

  • 3.3G VTX transmitter unit with heatsink-style case and top control dial, angled view

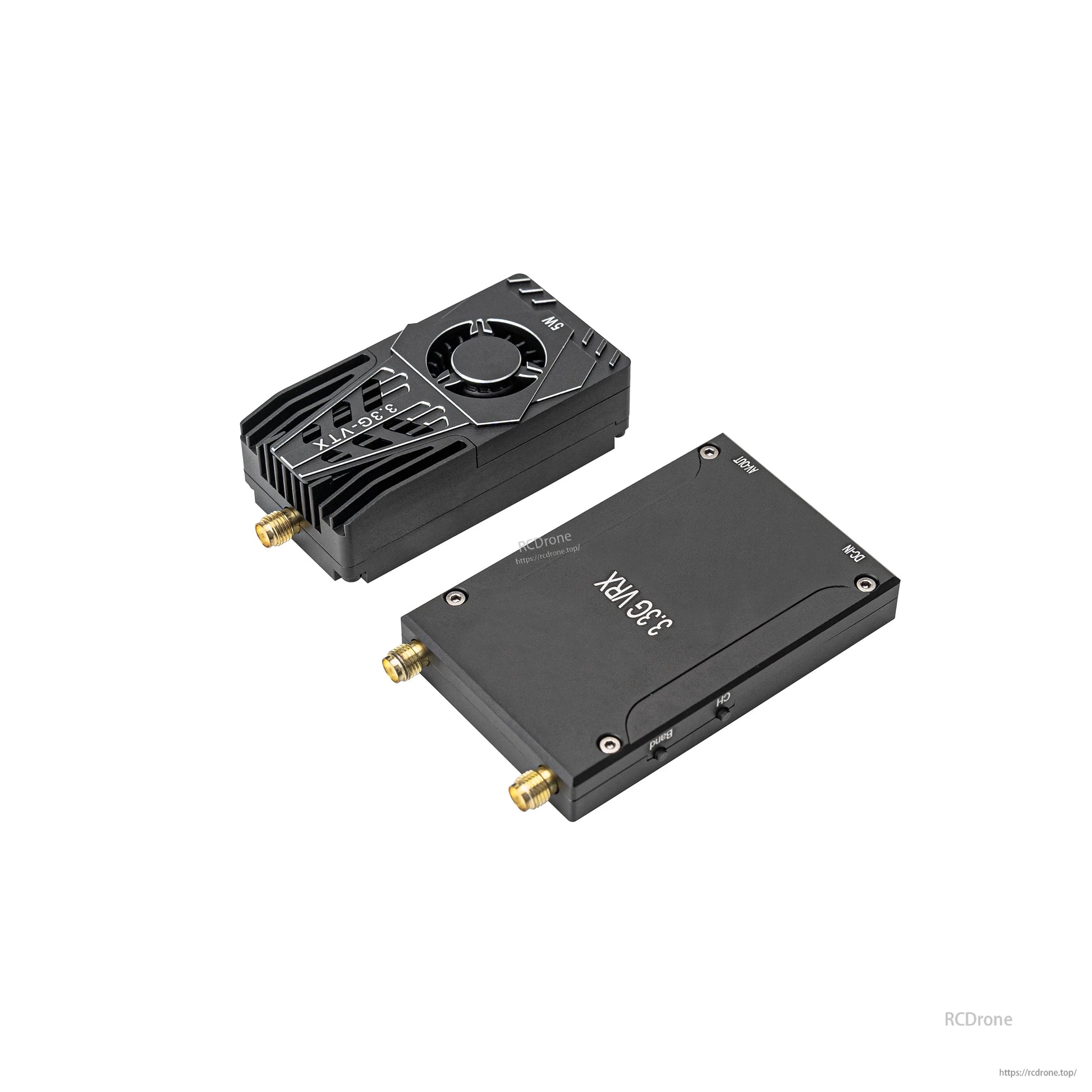

  • 3.3G VTX transmitter shown alongside 3.3G VRX receiver for size and design comparison

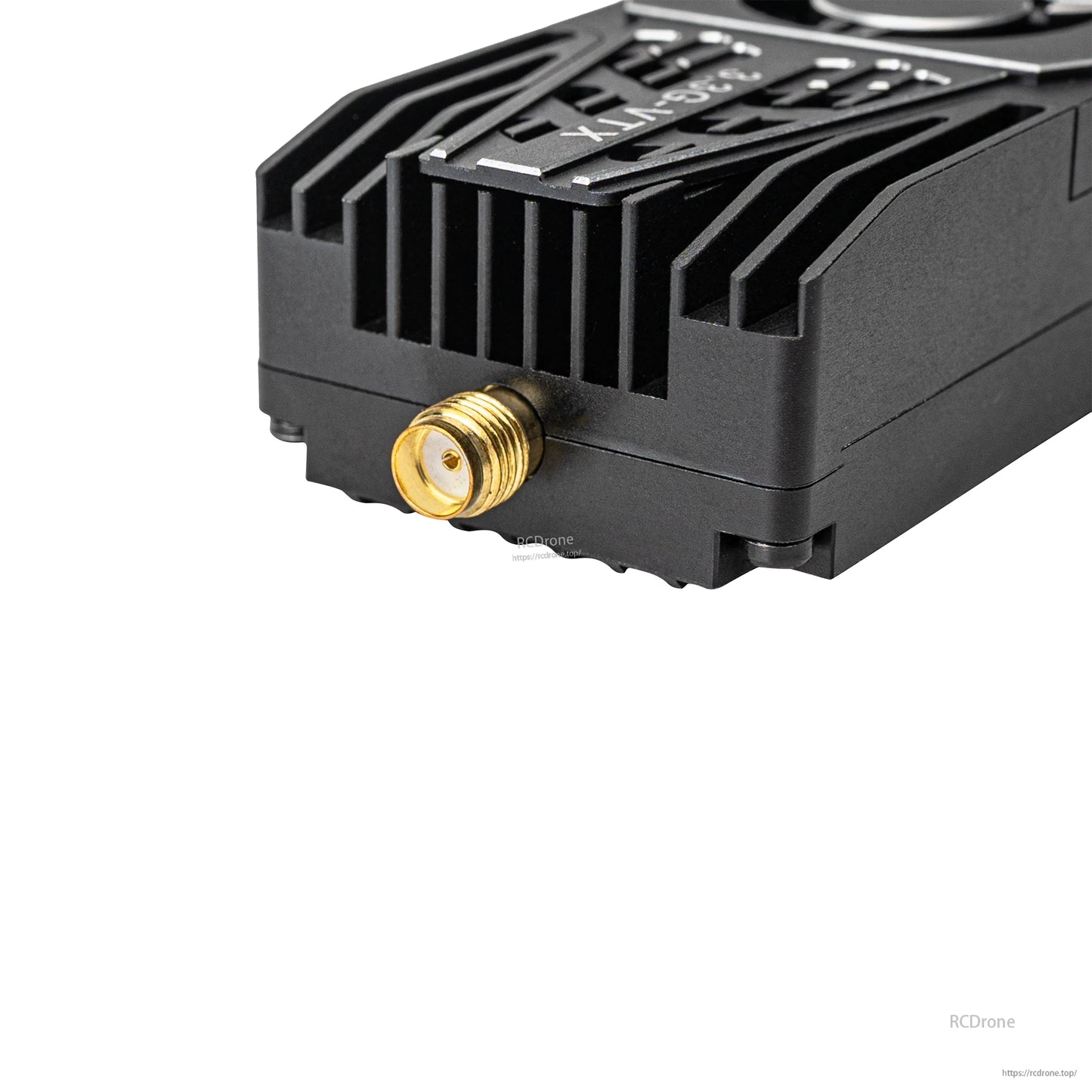

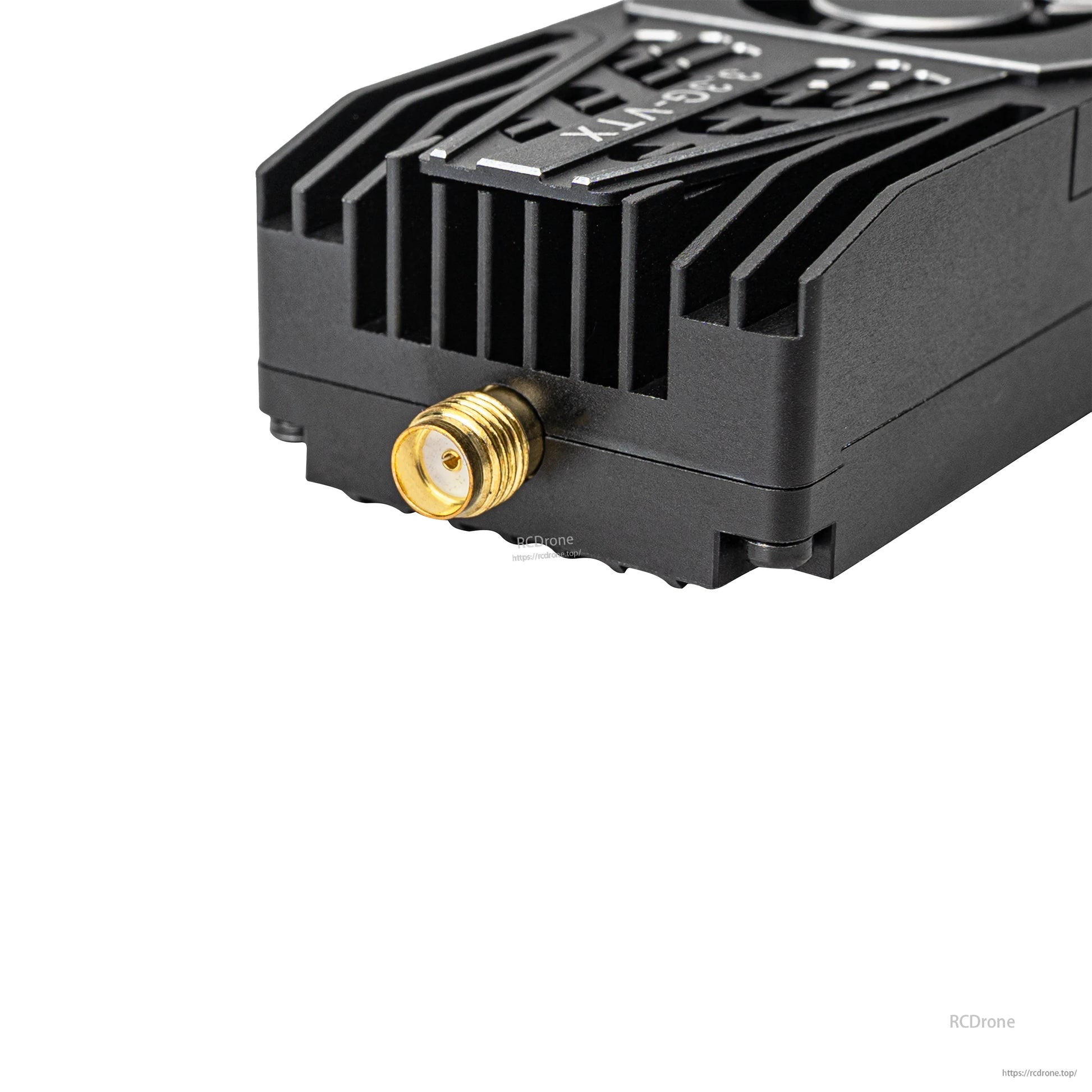

  • Close-up of SMA antenna connector on the 3.3G VTX transmitter heatsink enclosure

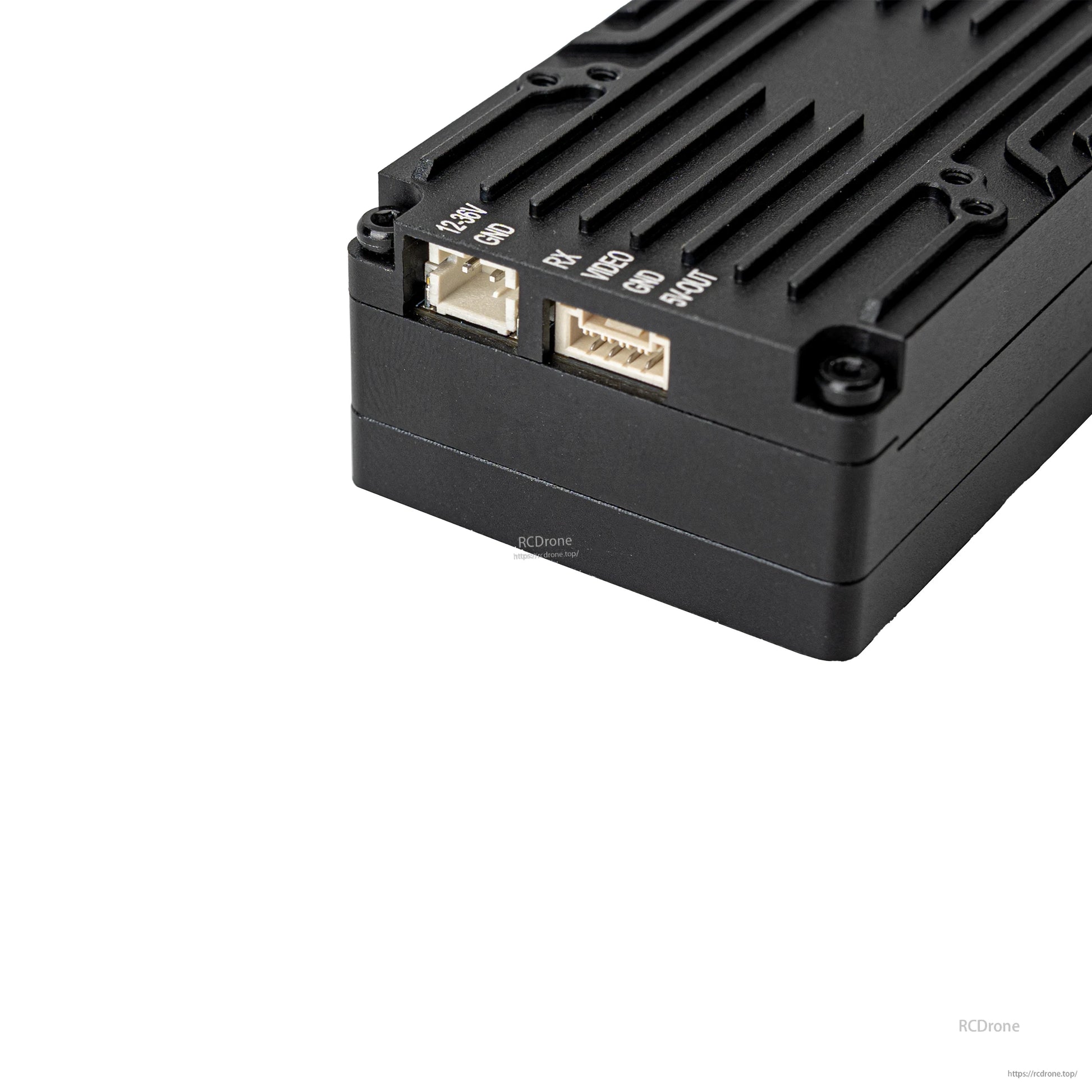

  • 3.3G VTX bottom view showing two small connector ports for wiring and control

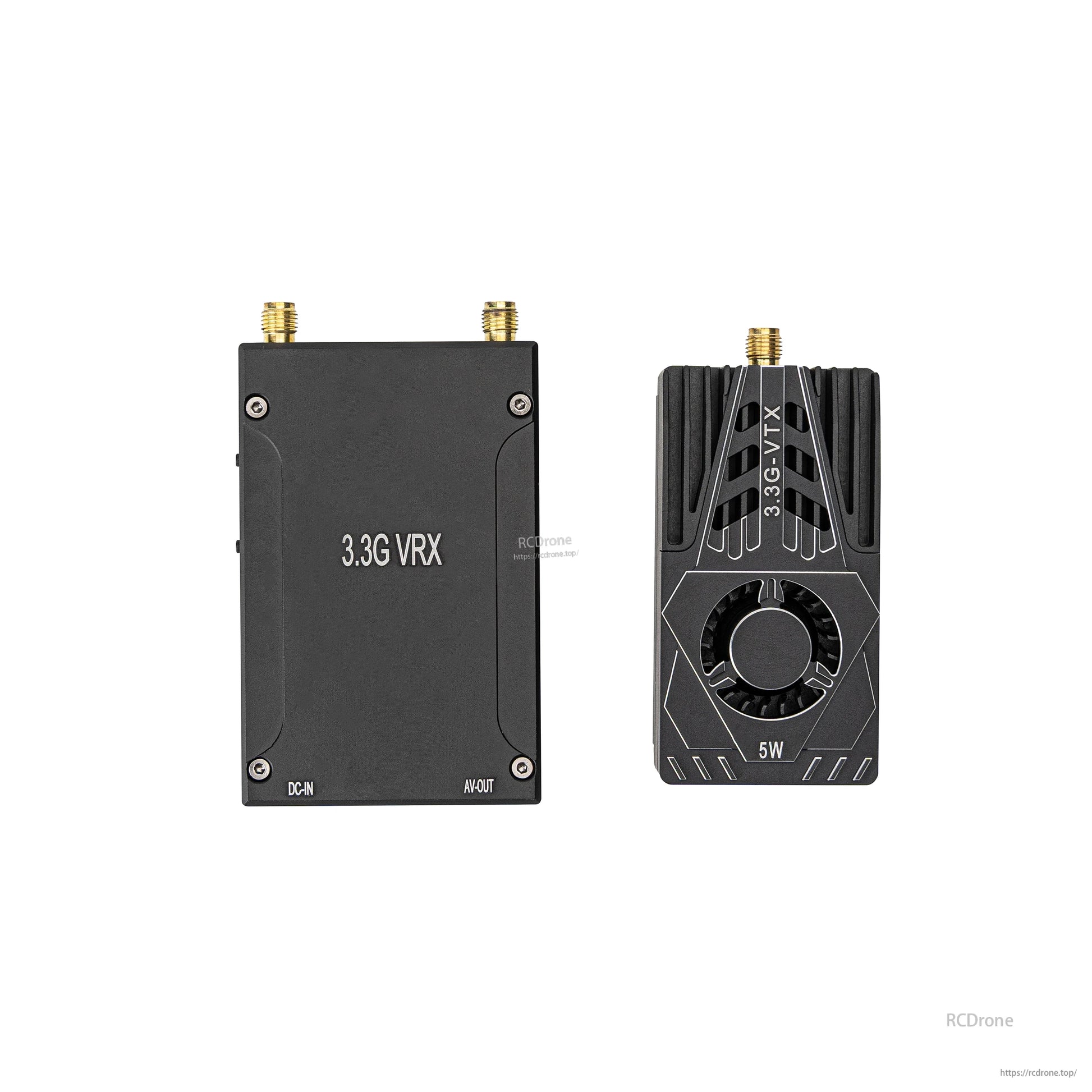

  • Front view of 3.3G VRX receiver and matching 3.3G VTX transmitter side by side

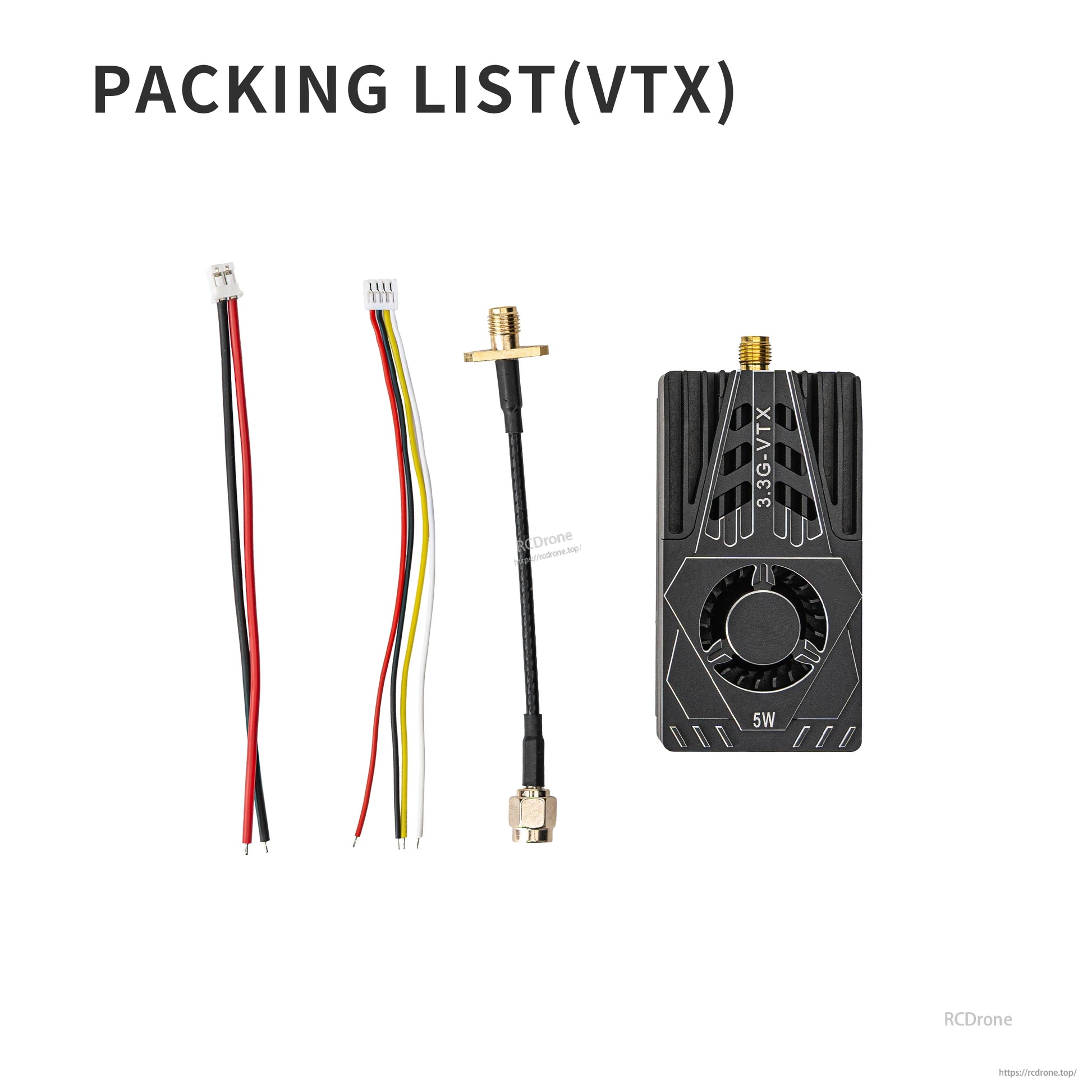

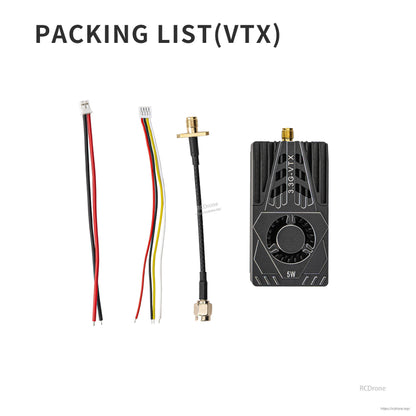

  • Packing list (VTX): wiring harnesses, SMA pigtail adapter cable, and 3.3G VTX 5W unit
  • OddityRC 3.3G VRX packing list: receiver unit with cables including AV lead and power cord
1 10

OddityRC 3.3G VRX 16-Channel Analog Video Receiver, SMA Antenna, CVBS NTSC/PAL, 2S-7S Input

OddityRC 3.3G VRX 16-Channel Analog Video Receiver, SMA Antenna, CVBS NTSC/PAL, 2S-7S Input

OddityRC

$101.59 USD
$101.59 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Type
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

OddityRC 3.3G VRX is a 3.3GHz analog video receiver (VRX) with A/B frequency groups and 16 channels, designed for CVBS video systems (NTSC/PAL) and output via RCA using the included adapter cable.

Key Features

  • 3.3G band with A/B frequency groups, 16 channels (A: 3060MHz-3200MHz, B: 3220MHz-3360MHz)
  • Standard SMA antenna interface, 50Ω RF impedance
  • CVBS video output (NTSC/PAL), 75Ω output impedance
  • Wide input voltage support: 2S-7S

Specifications

Number of channels 3.3G band; A,B Frequency Groups, 16 channels (A: 3060MHz-3200MHz, B: 3220MHz-3360MHz)
Antenna interface Standard SMA
RF impedance 50Ω
Input voltage 2S-7S
Current consumption 150mA/12VDC
Receiving sensitivity -95dBm
Video output impedance 75Ω
Video format NTSC/PAL
Video output level CVBS 1.0~1.4VP-P
Power cable DC3.5*1.35mm to DC5.5*2.1mm
Video cable 4-pin 2.5mm headphone jack to RCA adapter
Working temp -10 to 60°C
Mounting hole M6
Dimensions (L*W*H) 85mm*40mm*11mm
Weight 36g

What’s Included

  • OddityRC 3.3G VRX receiver
  • Power cable: DC3.5*1.35mm to DC5.5*2.1mm
  • Video cable: 4-pin 2.5mm headphone jack to RCA adapter

For product support or order assistance, contact https://rcdrone.top/ or email support@rcdrone.top.

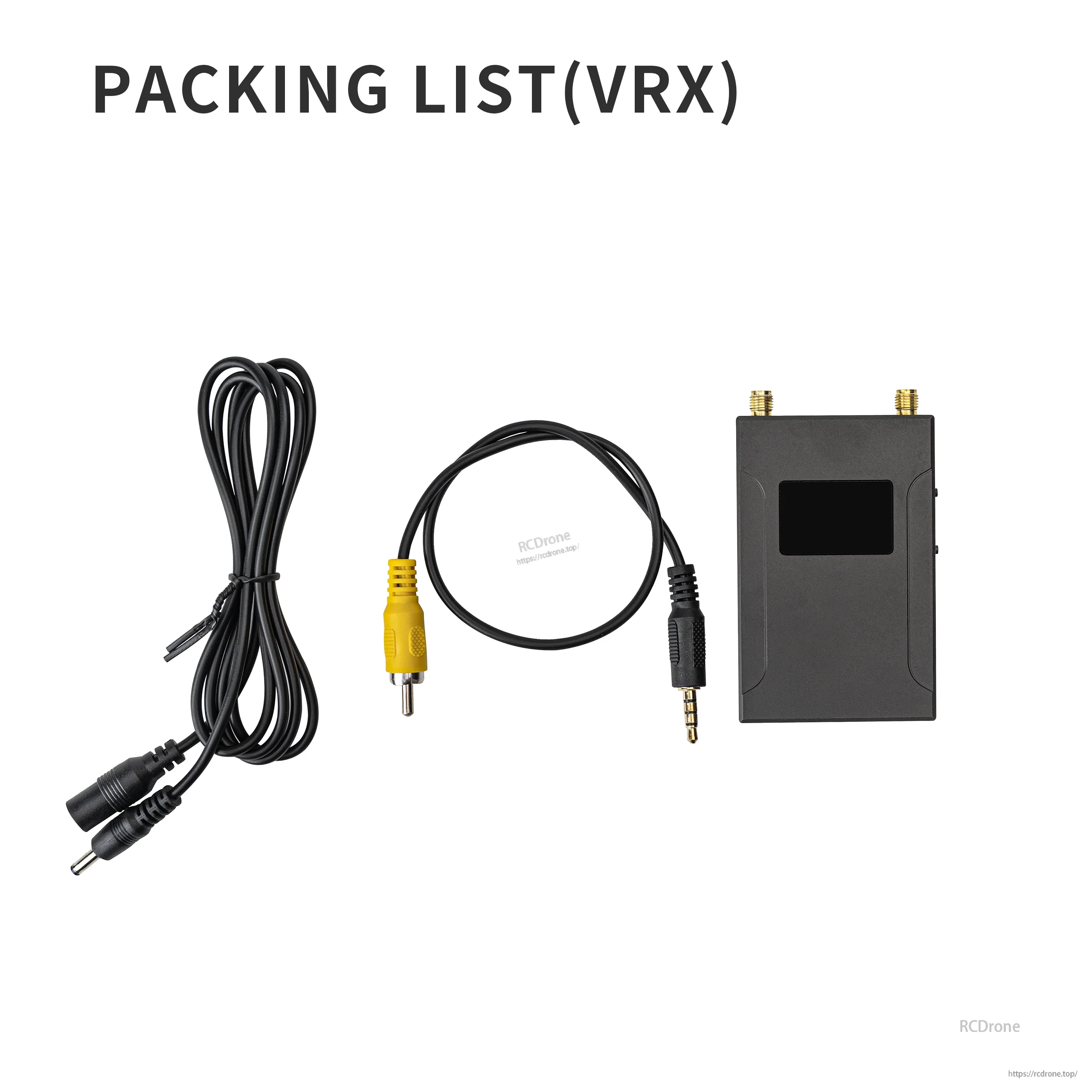

OddityRC 3.3G VRX packing list with receiver, power lead, and RCA video adapter cable

Details

3.3GHz analog VRX kit contents: receiver unit plus DC power cable and 4‑pin to RCA video lead

The box includes the OddityRC 3.3G VRX receiver along with the power lead and the RCA video adapter cable for CVBS output.
