OddityRC Stream 1806 2200KV Brushless Motor 12N14P 4-6S, Φ25.53x15.4mm, 18.4g

OddityRC

$18.99 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

KV 2200KV 6S

Quantity

View full details

Overview

The OddityRC Stream 1806 2200KV motor is a compact brushless motor designed for 3inch cinewhoop builds, super-light long-range aircraft, and toothpick frames.

Key Features

Disc design for more stable operation
Recommended for 3inch cinewhoop frames, super-light long-range aircraft, and toothpick frames

Specifications

Model	Stream 1806
Motor KV	2200KV
No. of Stator Arms	12N
No. of Rotor Poles	14P
Motor Electric Resistance	210mΩ
Max Continuous Current	15.5A
Maximum Power	372W
No. of Cells (LiPo)	14.8-25.2V (4-6S)
ESC	>25A
Recommended Prop (inch)	3-3.5inch cinewhoop props / 4-6inch toothpick props
Motor Dimension	Φ25.53mm x 15.4mm
Shaft Diameter	1.5mm
Mounting Hole	4*M2-∅12
Weight	18.4g

Load Test Data

Stream-1806 2200KV Motor Load Test Data

Voltage (V)	Propeller	Motor	Throttle (%)	Signal Value	Thrust (g)	Current (A)	Input (W)	Efficiency (g/W)
24	T76-3B	2200	10.00	1100	7	0.05	1.2	5.83
24	T76-3B	2200	15.00	1150	17	0.18	4.32	3.94
24	T76-3B	2200	20.00	1200	36	0.38	9.12	3.95
24	T76-3B	2200	25.00	1250	57	0.67	15.12	3.77
24	T76-3B	2200	30.00	1300	81	0.97	23.28	3.48
24	T76-3B	2200	35.00	1350	108	1.39	33.36	3.24
24	T76-3B	2200	40.00	1400	140	1.86	44.64	3.14
24	T76-3B	2200	45.00	1450	175	2.45	58.8	2.98
24	T76-3B	2200	50.00	1500	214	3.15	75.6	2.83
24	T76-3B	2200	55.00	1550	255	3.93	94.32	2.70
24	T76-3B	2200	60.00	1600	296	4.8	115.2	2.57
24	T76-3B	2200	65.00	1650	340	5.78	138.72	2.45
24	T76-3B	2200	70.00	1700	384	6.76	162.24	2.37
24	T76-3B	2200	75.00	1750	426	7.9	189.6	2.25
24	T76-3B	2200	80.00	1800	484	9.3	223.2	2.17
24	T76-3B	2200	85.00	1850	537	10.8	259.2	2.07
24	T76-3B	2200	90.00	1900	592	12.4	297.6	1.99
24	T76-3B	2200	95.00	1950	649	14.1	338.4	1.92
24	T76-3B	2200	100.00	2000	694	15.8	379.2	1.83

Applications

3inch cinewhoop frame builds
Super-light long-range aircraft
Toothpick frame builds

For product selection and installation support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

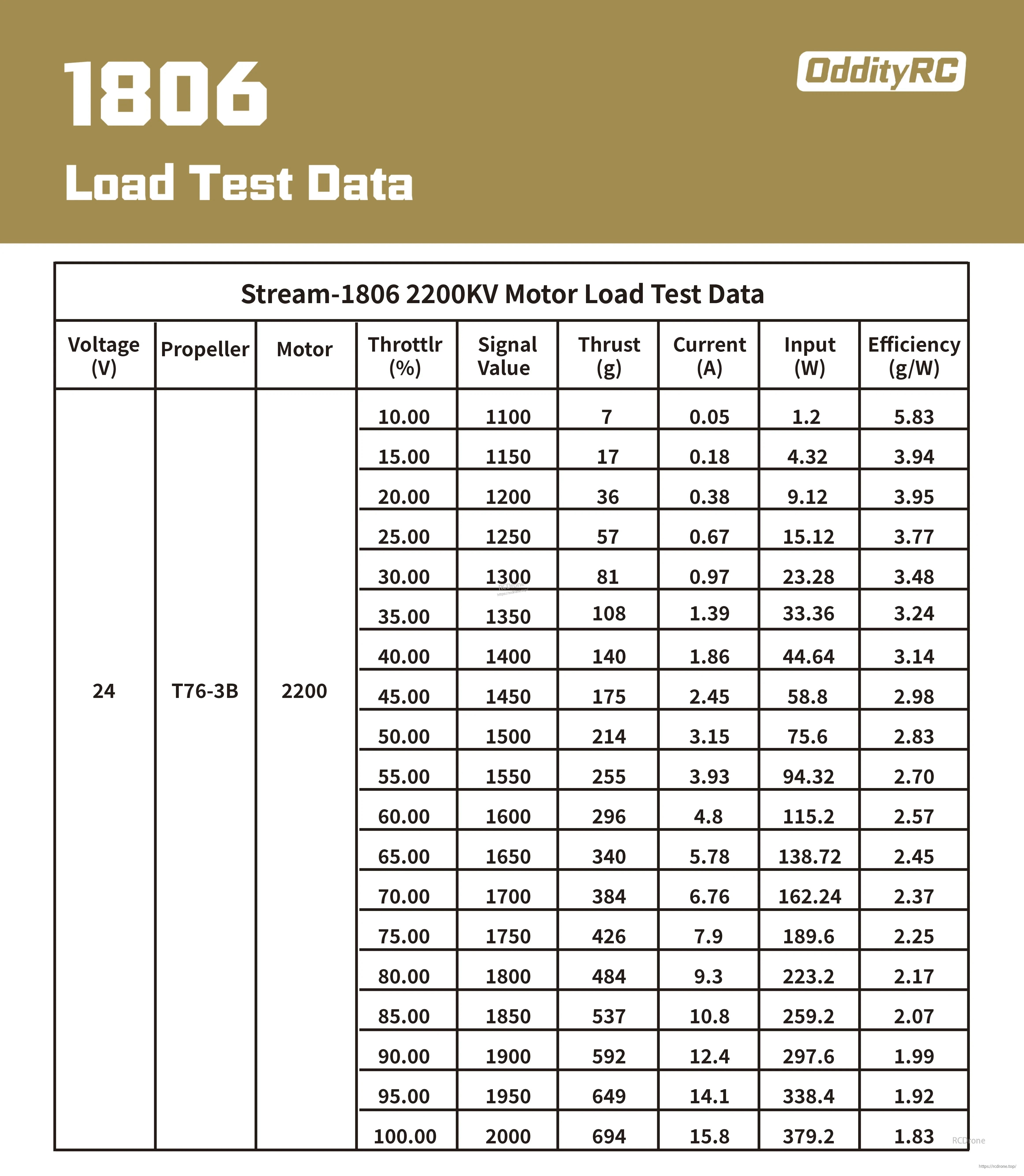

OddityRC Stream 1806 2200KV brushless motor load test data table at 24V with T76-3B prop

Load test data at 24V (T76-3B prop) details thrust, current draw, input power, and efficiency across throttle settings for the Stream 1806 2200KV motor.
