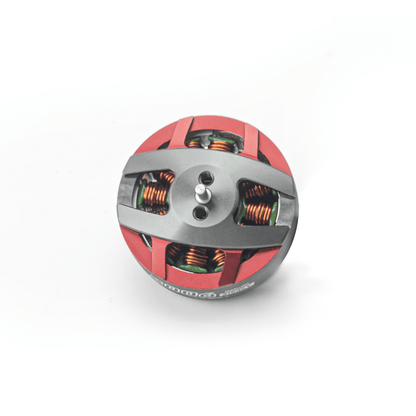

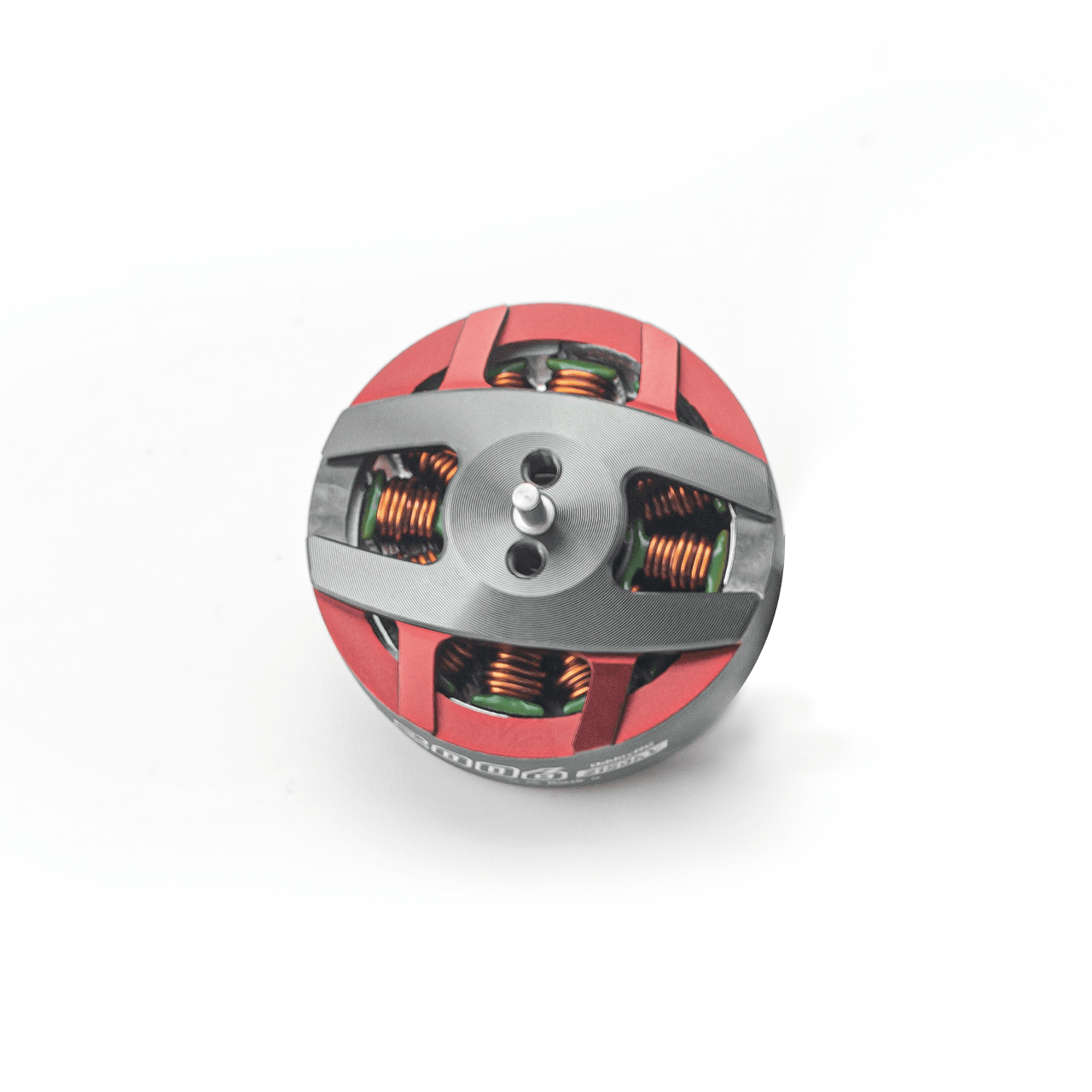

• OddityRC Spinnybois 2006 2150KV motor top view with red bell and exposed copper windings

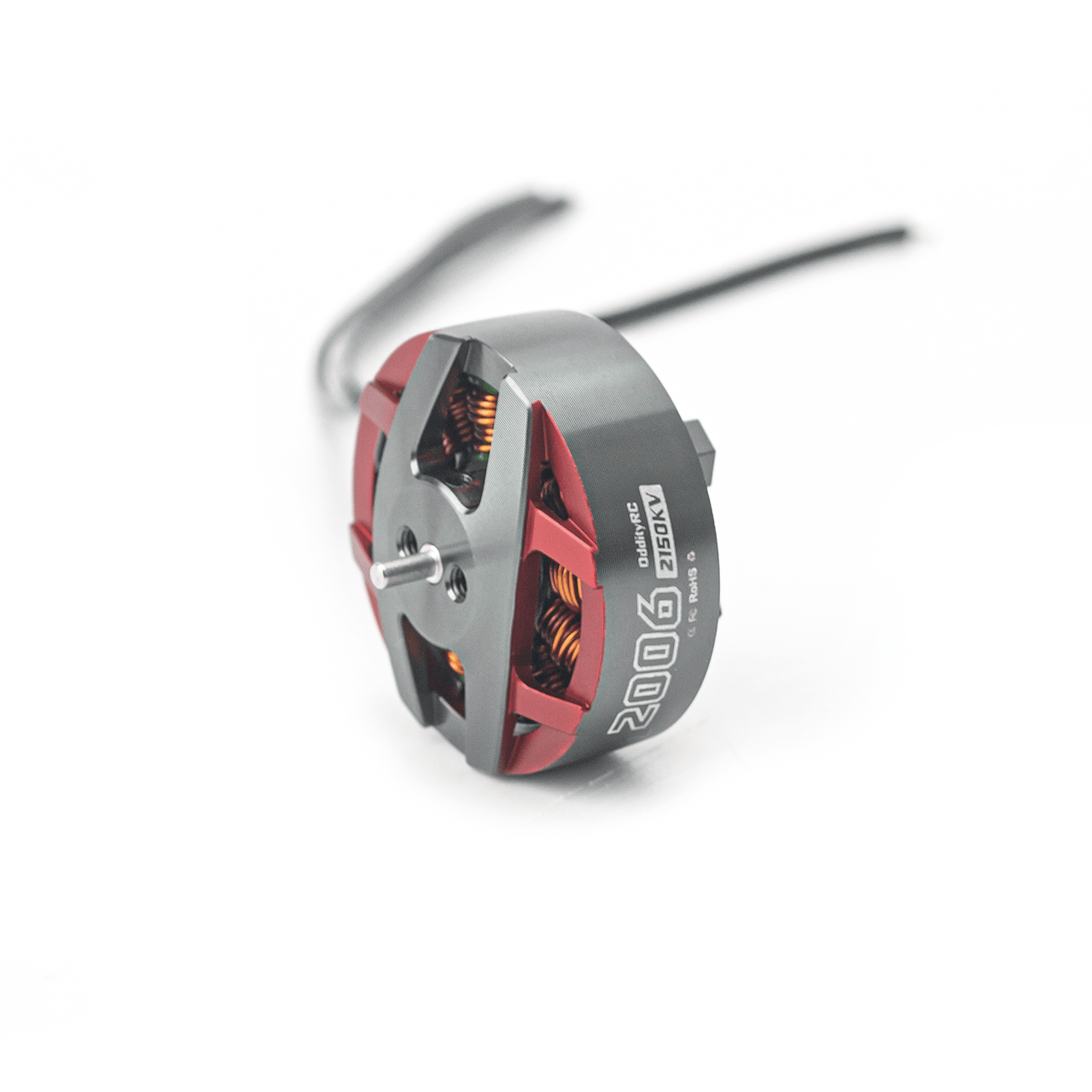

  • Angled side view of Spinnybois 2006 brushless motor with shaft, red frame, and wire lead

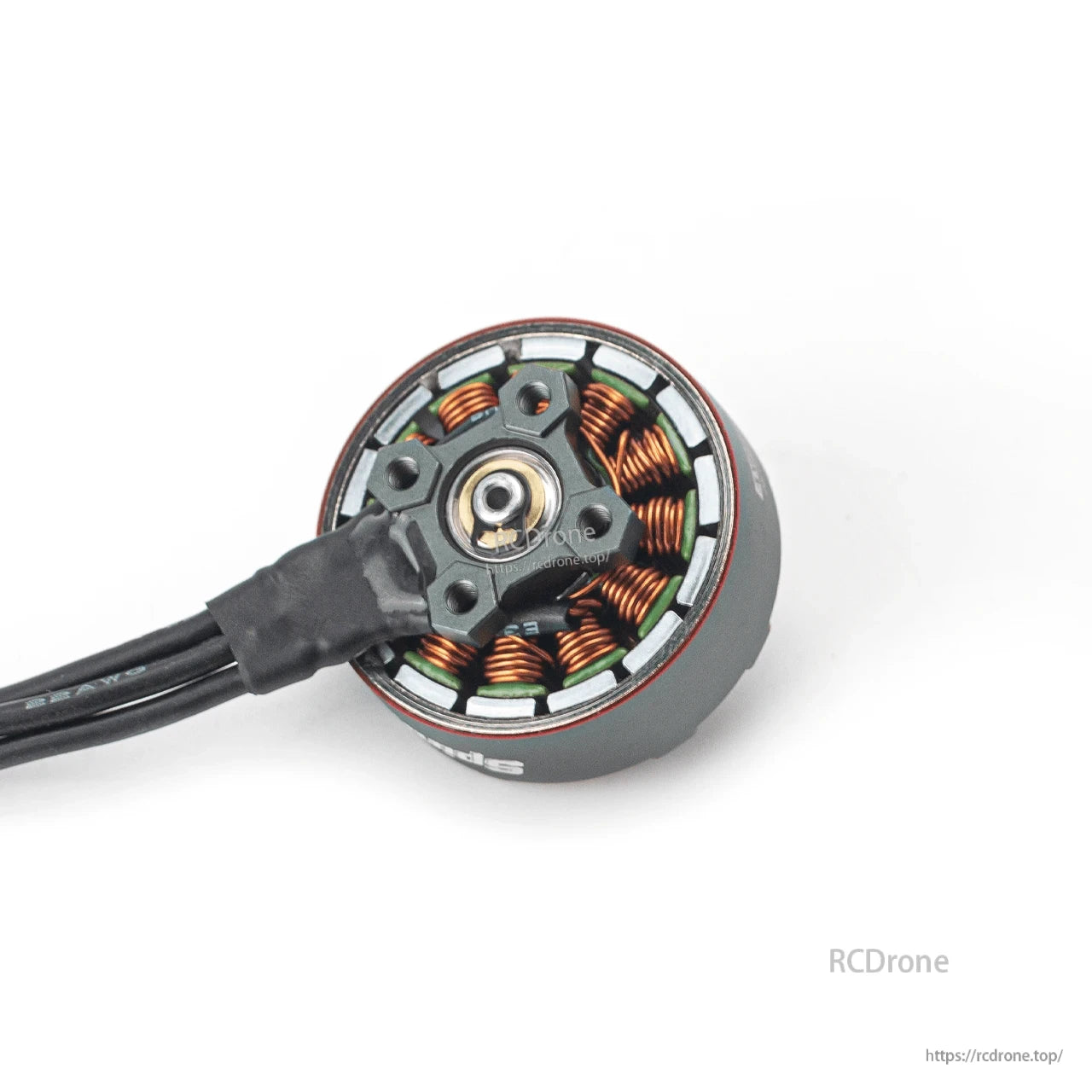

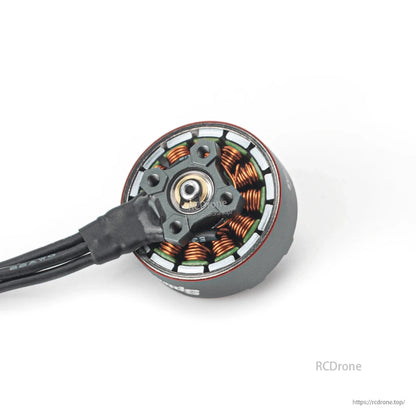

  • Bottom view showing mounting base and stator windings with attached motor wires

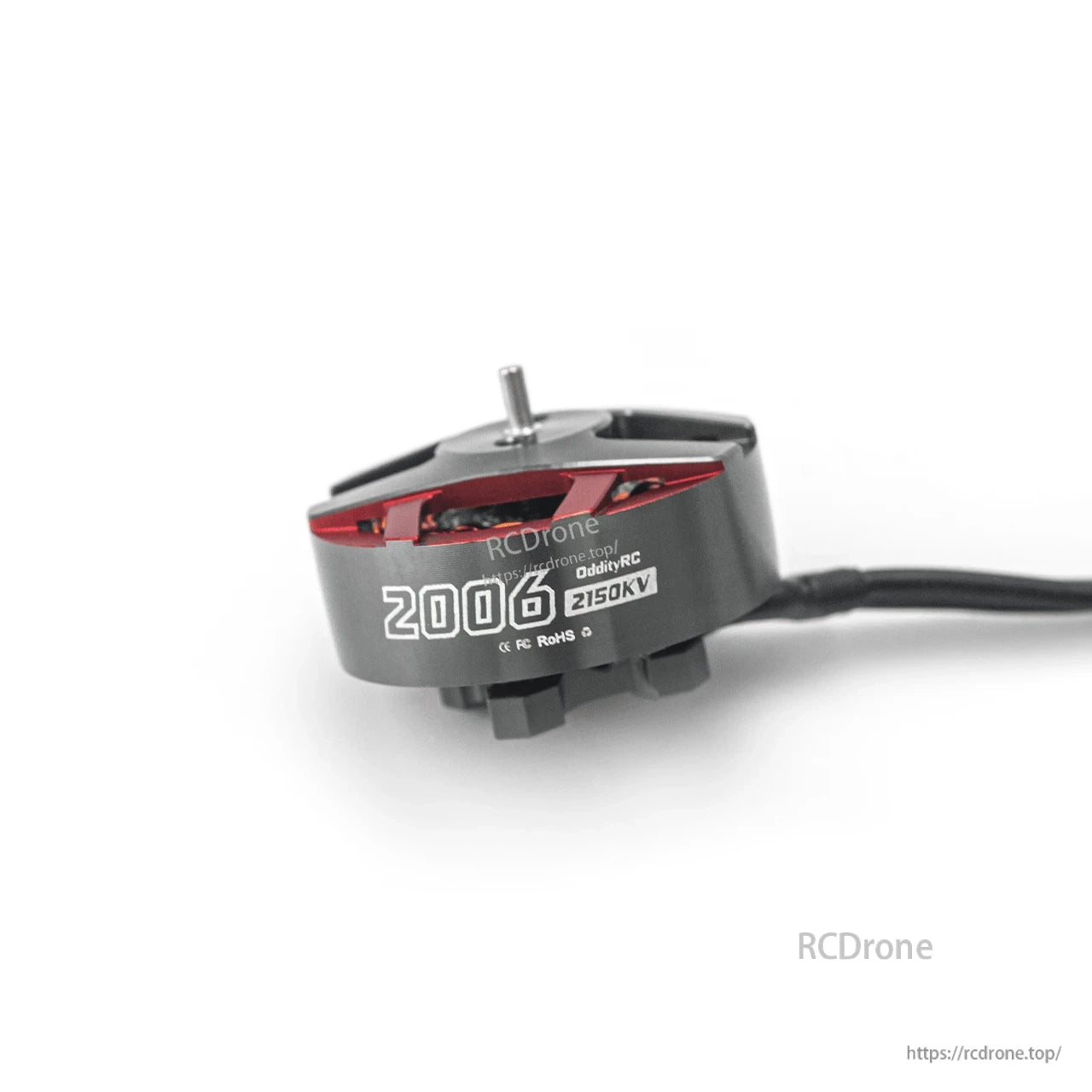

  • OddityRC Spinnybois 2006 2150KV motor side label close-up with 2006 and 2150KV markings

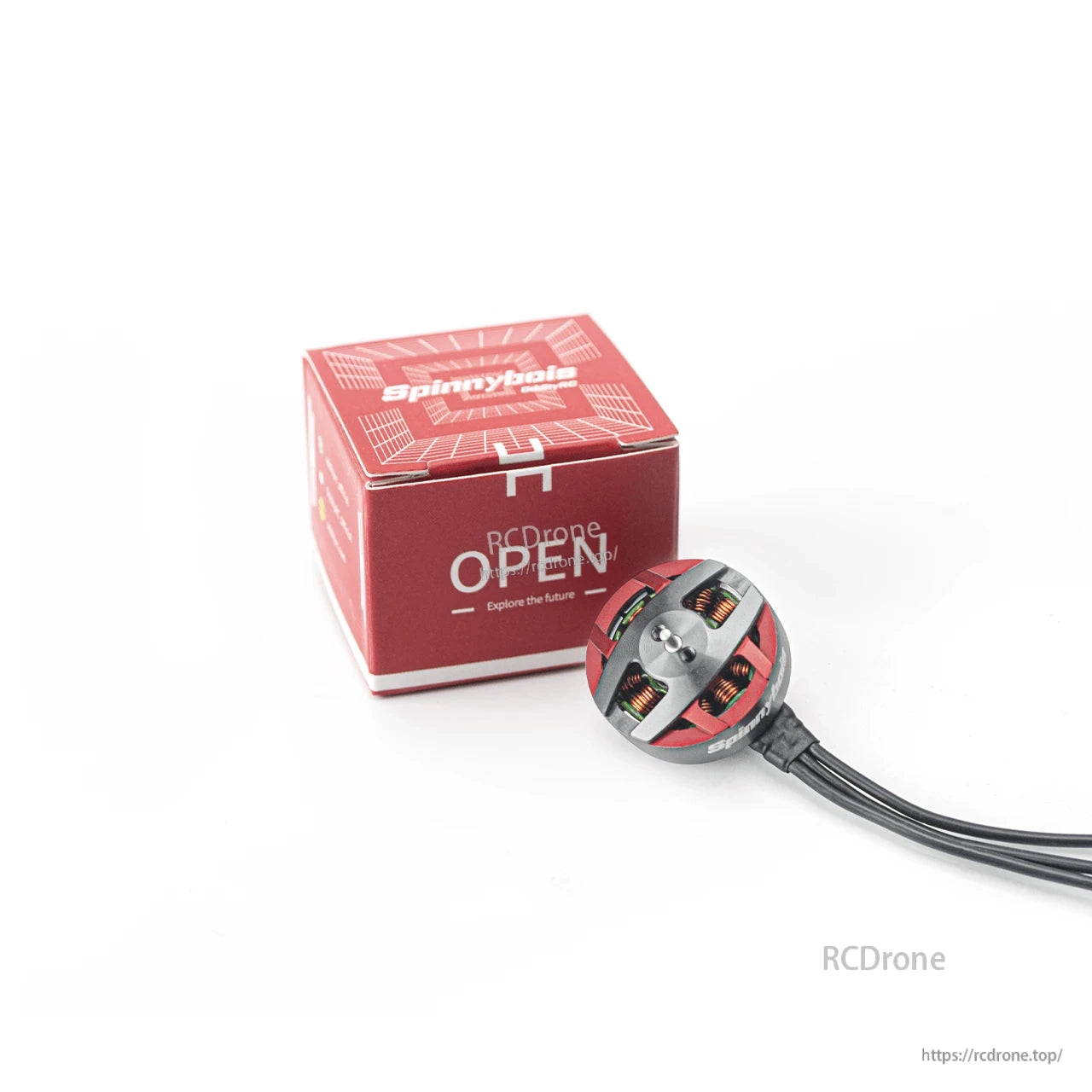

  • Spinnybois motor with retail box packaging, showing included motor and branded box together
1 5

OddityRC Spinnybois 2006 2150KV Motor (2150KV 6S) Brushless Motor, 22.1g, 30A ESC Spec

OddityRC Spinnybois 2006 2150KV Motor (2150KV 6S) Brushless Motor, 22.1g, 30A ESC Spec

OddityRC

$32.99 USD
$32.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
KV
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

OddityRC Spinnybois 2006 2150KV motor is a brushless motor option offered in the 2150KV 6S variant, designed for strong, linear throttle response. An optimized magnetic circuit design is stated to support motor efficiency and power, and the rotor design is stated to help dissipate heat efficiently.

Key Features

  • Powerful and linear throttle response
  • Optimized magnetic circuit design (for efficiency and power)
  • Excellent heat dissipation performance (rotor industrial design)
  • Durability-focused structure: aviation aluminum alloy case, SUS420 shaft, and anti-loosening structure
  • Materials/components called out: Aviation aluminum rotor case, SUS420 stainless shaft, NMB bearing, N55H arc magnet, 220°C high temperature resistance enameled wire, 0.2mm ultra thin silicon steel, aviation aluminum alloy base

Specifications

Model 2006-2150KV
Motor KV 2150KV
Rated voltage 25.2(6S)V
Internal resistance 83mΩ
Stator diameter 20mm
Stator height 6mm
No. of stator slots 12
No. of stator poles 14
Dynamic balance ≤10mg
No-load current 1A
Maximum current 21.81A
Maximum power 523.44W
Overall dimension 25.6mm*L19mm
Shaft diameter 1.5mm*L3.5mm
Lead wire size 22AWG*L100mm
Lead wire length (shown) 103mm
Recommended ESC 30A
Propeller (spec) GF D90 3P
Weight 22.1g

Component / Material Details (2006)

Shaft style SUS420
Iron core 0.2mm
Magnet Sintered NdFeB 55H
End cap Aviation Aluminum Alloy A2A12
Bearing 730ZZ
Magnet wire Class C, 220°C enameled wire

Load Performance (Test Sample Data)

Model Propeller Voltage (V) Throttle (%) Current (A) Thrust (g) Efficiency (g/W) Input (W) Speed (RPM)
P 2006 2150KV GF-D903P 24.0 30 3.73 256 2.86 89.52 21391
P 2006 2150KV GF-D903P 24.0 40 5.75 358 2.59 138.00 24975
P 2006 2150KV GF-D903P 24.0 50 7.84 473 2.32 188.16 28039
P 2006 2150KV GF-D903P 24.0 60 9.94 571 2.39 238.56 30870
P 2006 2150KV GF-D903P 24.0 70 12.67 651 2.14 304.08 33851
P 2006 2150KV GF-D903P 24.0 80 16.16 783 2.02 387.84 37781
P 2006 2150KV GF-D903P 24.0 90 20.44 972 1.98 490.56 41774
P 2006 2150KV GF-D903P 24.0 100 21.81 1020 1.95 523.44 41553

Remark: The above data represents the test samples only.

Options

  • KV: 2150KV 6S

For product selection help or order support, contact https://rcdrone.top/ or email support@rcdrone.top.

Details

OddityRC Spinnybois 2006 2150KV brushless motor hero graphic with red and gray open-frame design

OddityRC Spinnybois 2006 2150KV is a 6S brushless motor option built for strong, linear throttle control.

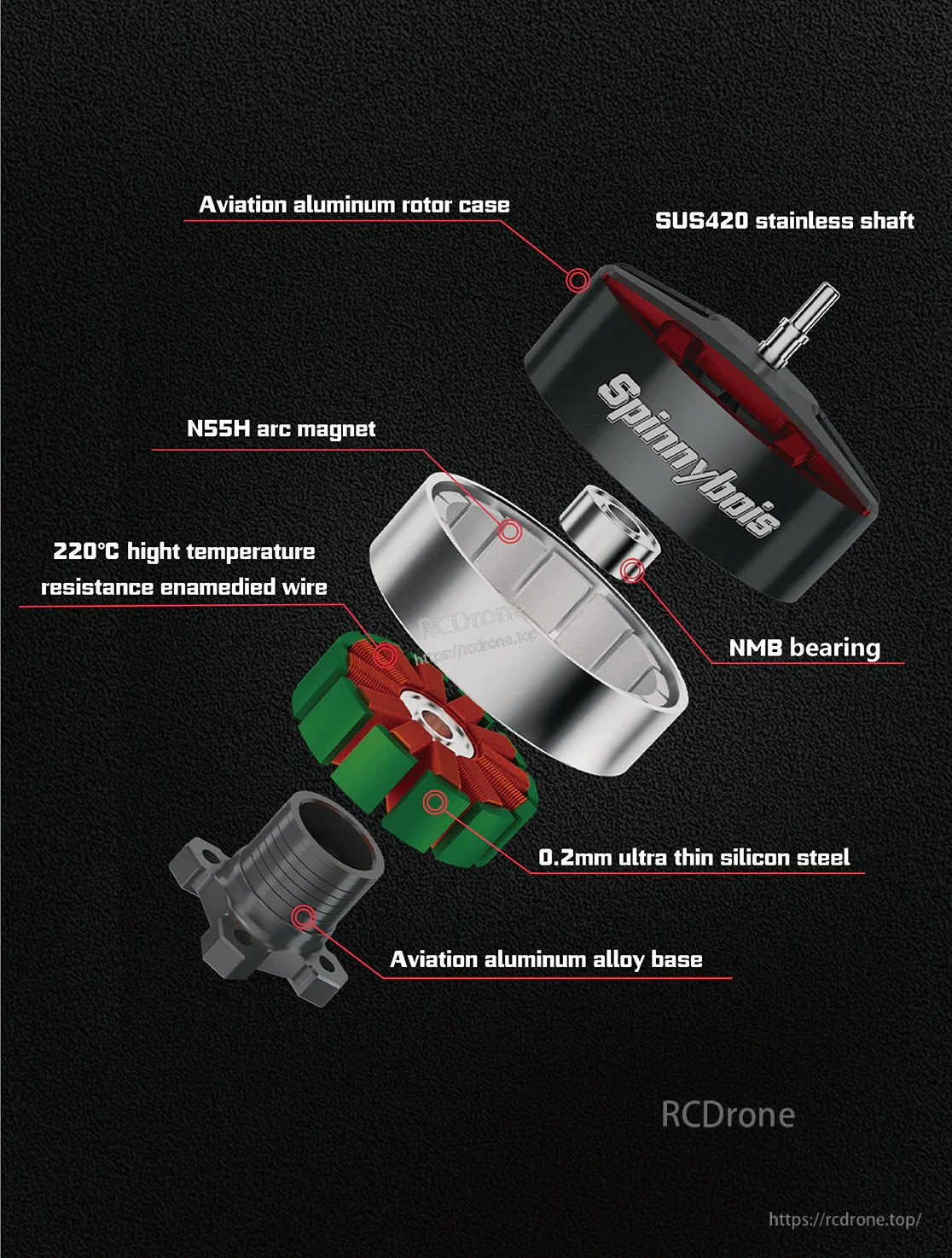

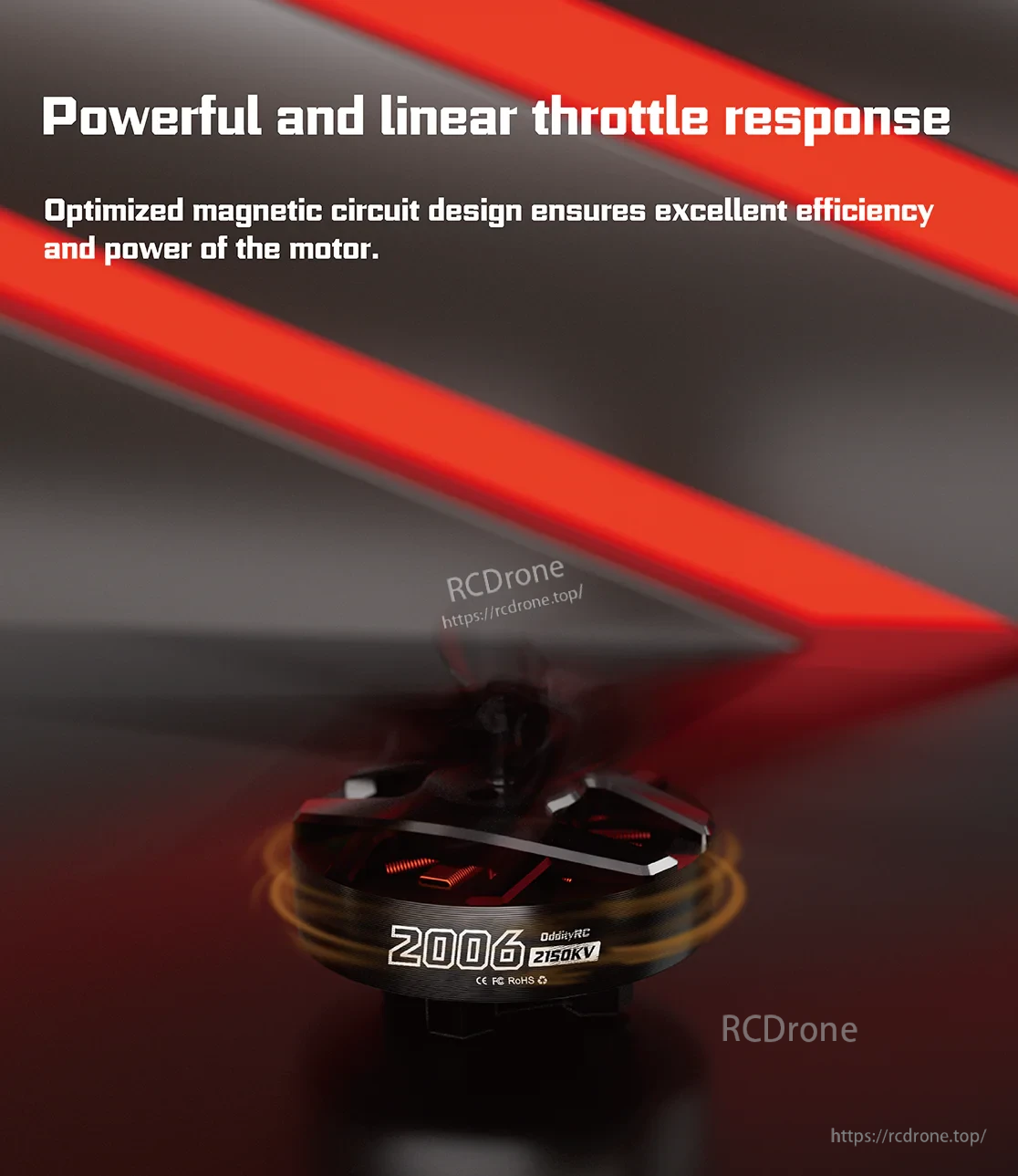

Spinnybois 2006 2150KV motor feature graphic highlighting powerful, linear throttle response and efficiencyExploded view of Spinnybois 2006 motor components: SUS420 shaft, NMB bearing, N55H magnets, aluminum case

Materials are selected for durability and efficiency, including an aviation aluminum rotor case, SUS420 shaft, and NMB bearings.

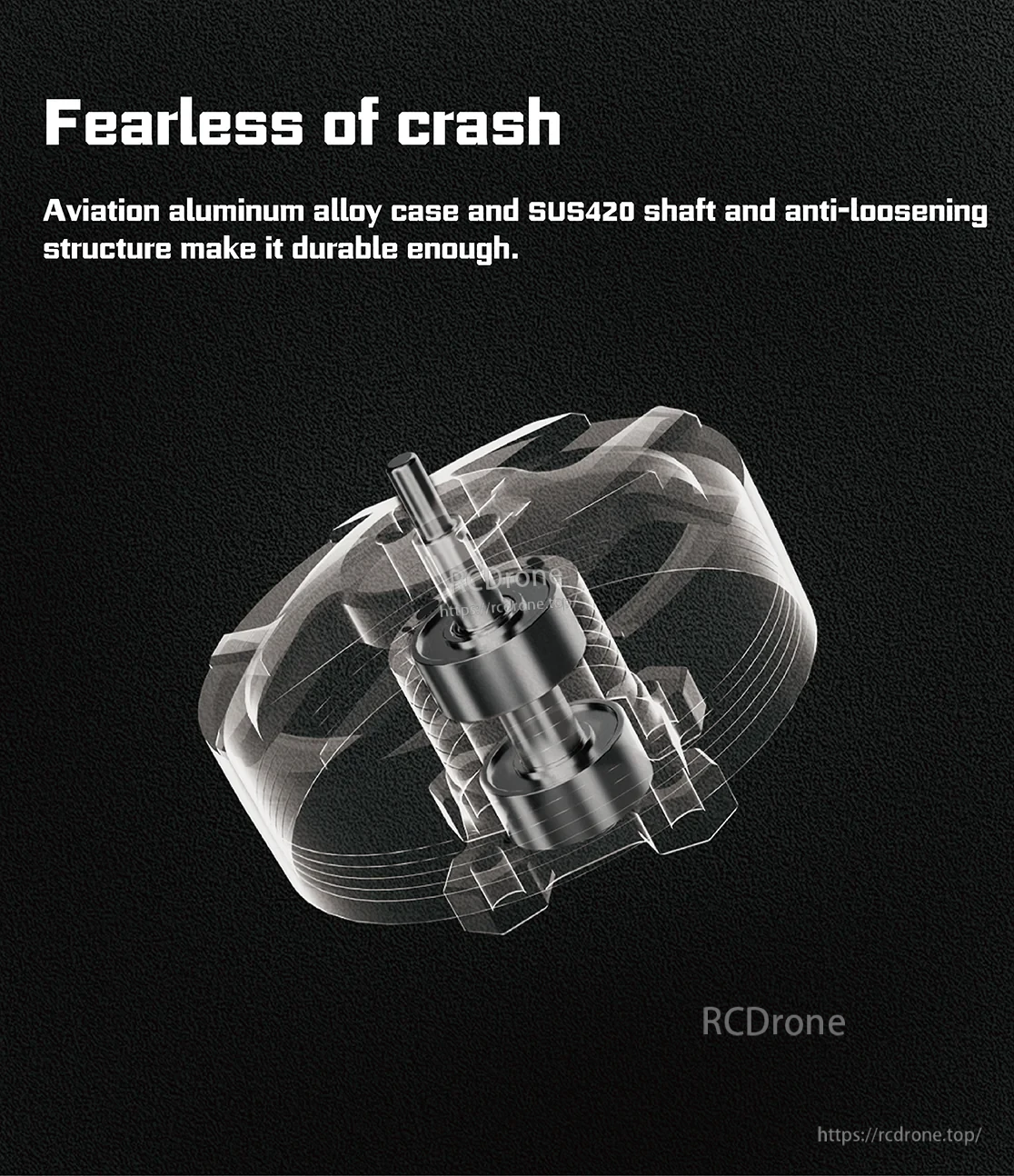

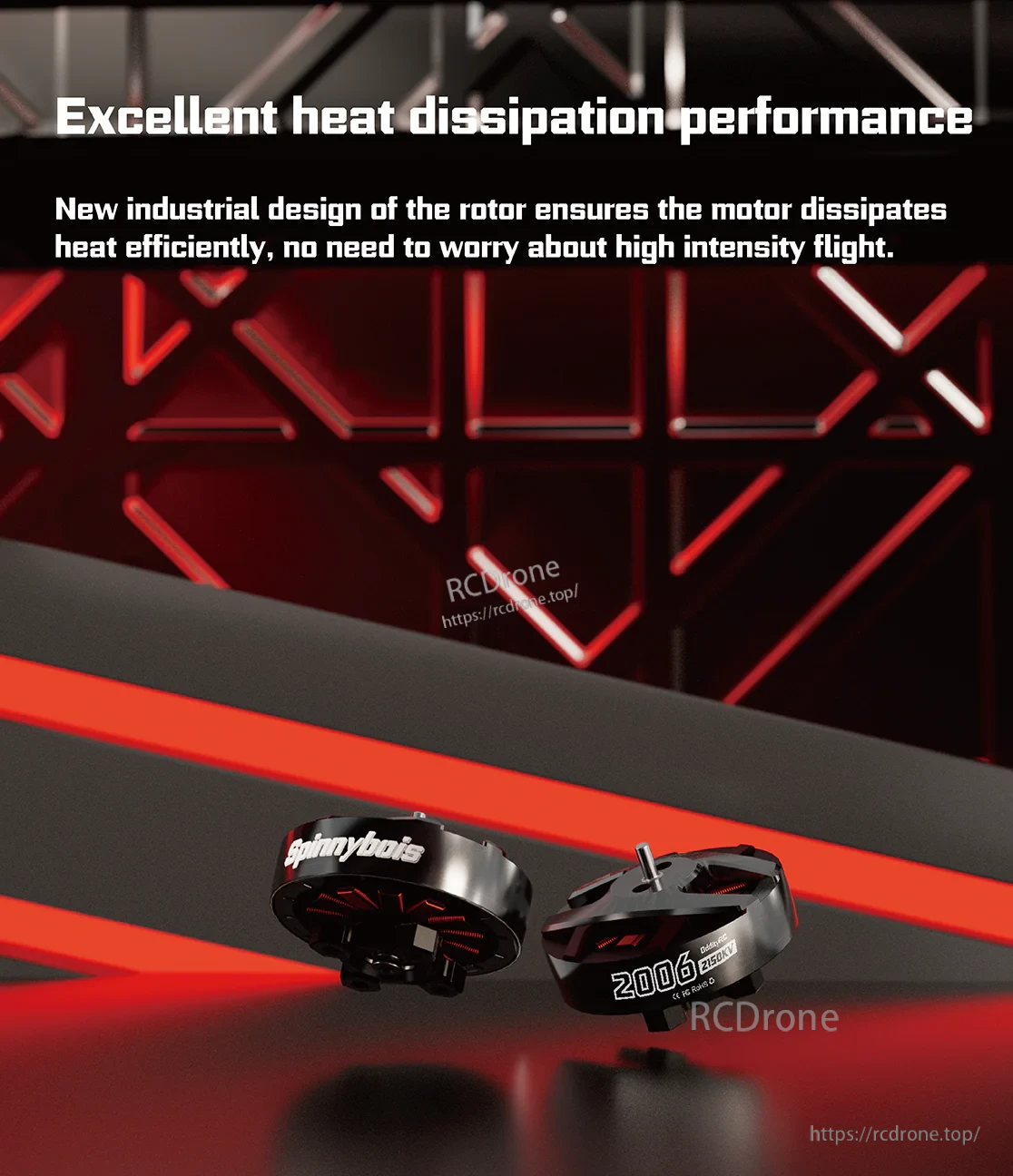

Heat dissipation feature graphic for the 2006 2150KV motor, highlighting rotor design for efficient coolingDurability cutaway graphic for the Spinnybois 2006 motor emphasizing anti-loosening structure and SUS420 shaft

A reinforced structure and anti-loosening design help the motor stay reliable during demanding flights.

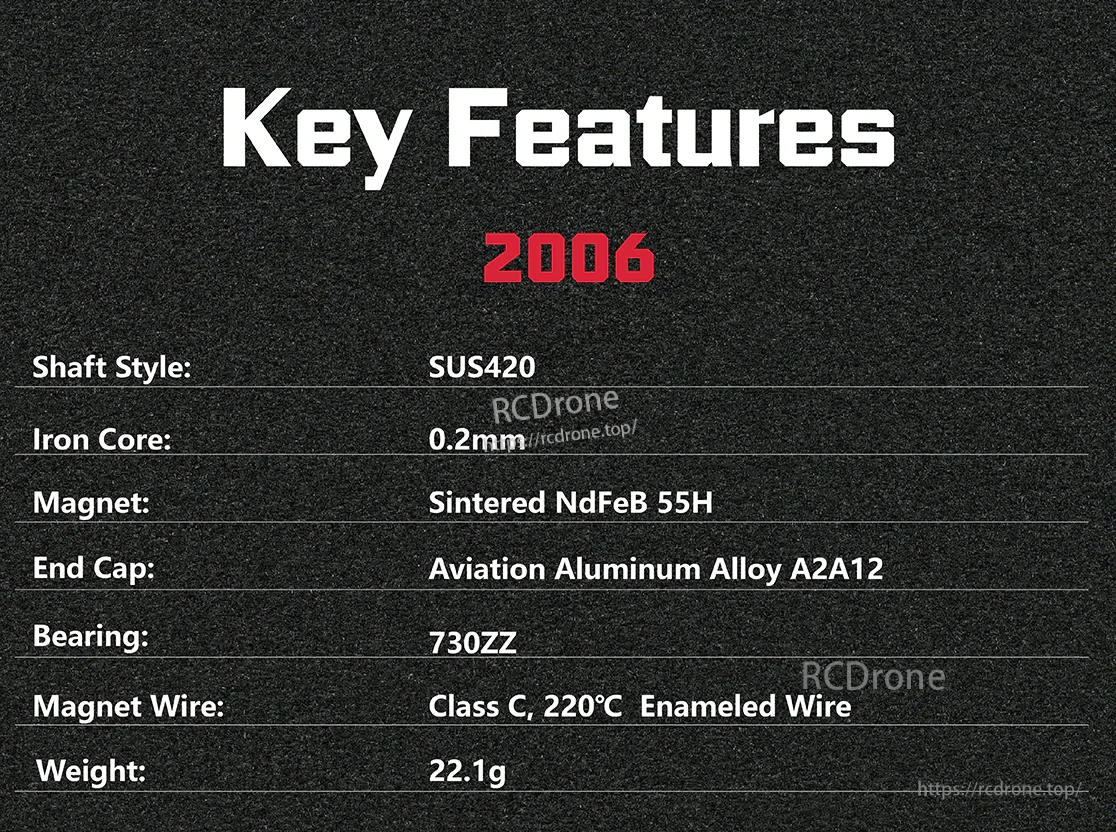

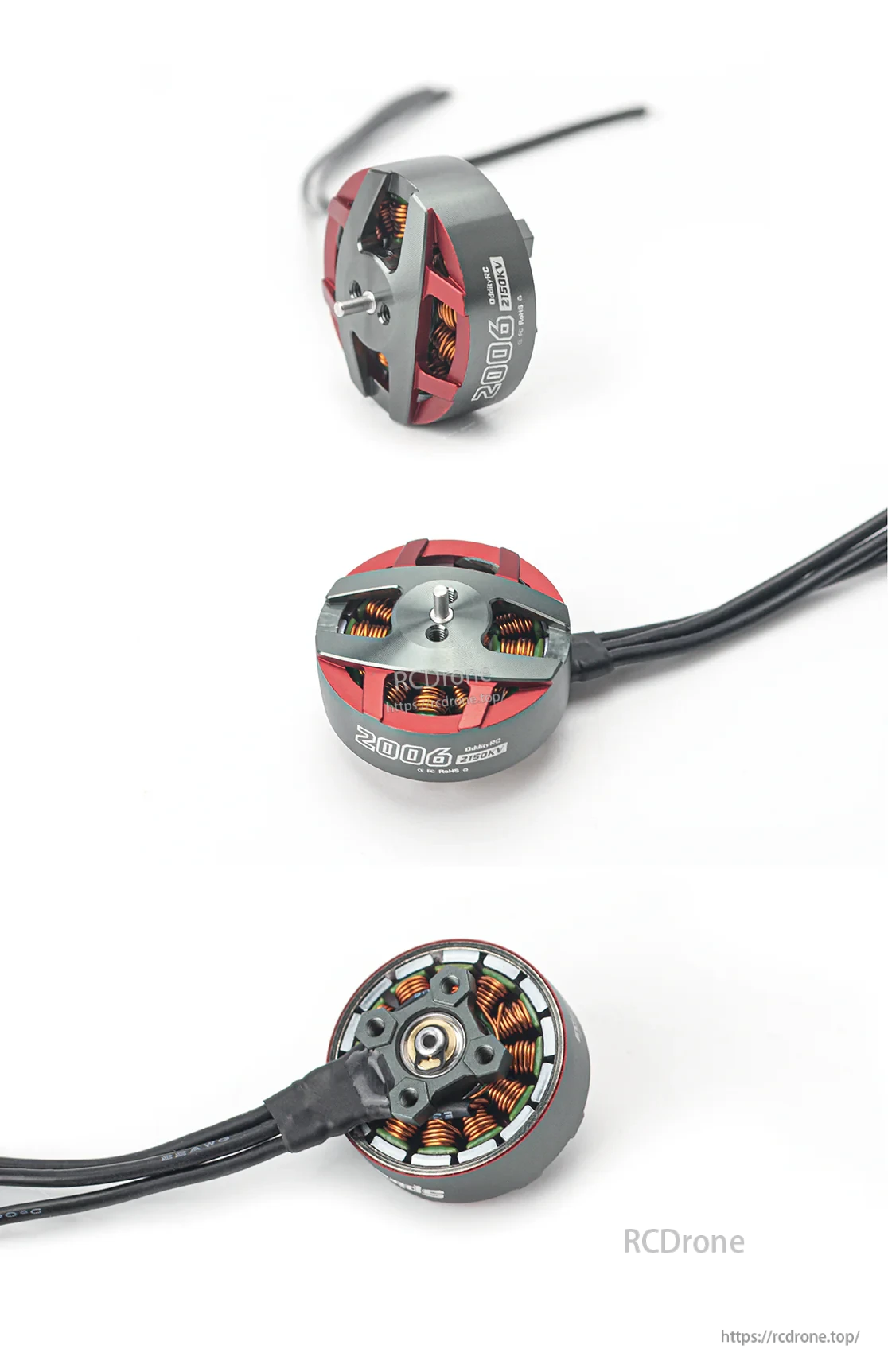

Key features table for 2006 motor listing SUS420 shaft, 0.2mm iron core, 55H magnet, 22.1g weightProduct photos of the OddityRC Spinnybois 2006 2150KV motor from multiple angles, including underside stator view

Multiple angles highlight the open-frame layout, winding detail, and mounting base for clean builds.

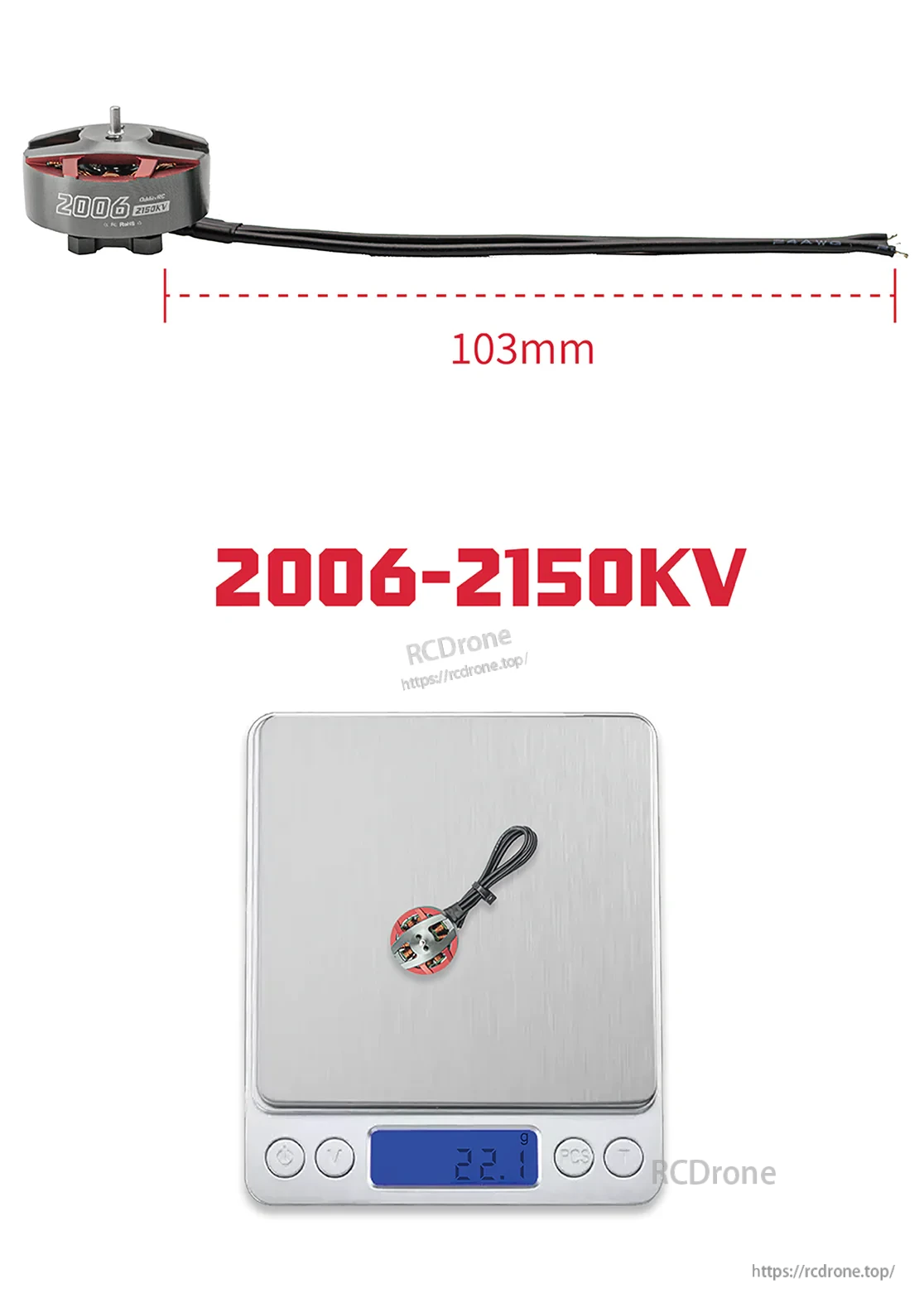

OddityRC 2006-2150KV motor wire length 103mm and weight reading 22.1g on digital scale

A 103mm lead wire length and 22.1g weight help with planning compact 6S drone builds.

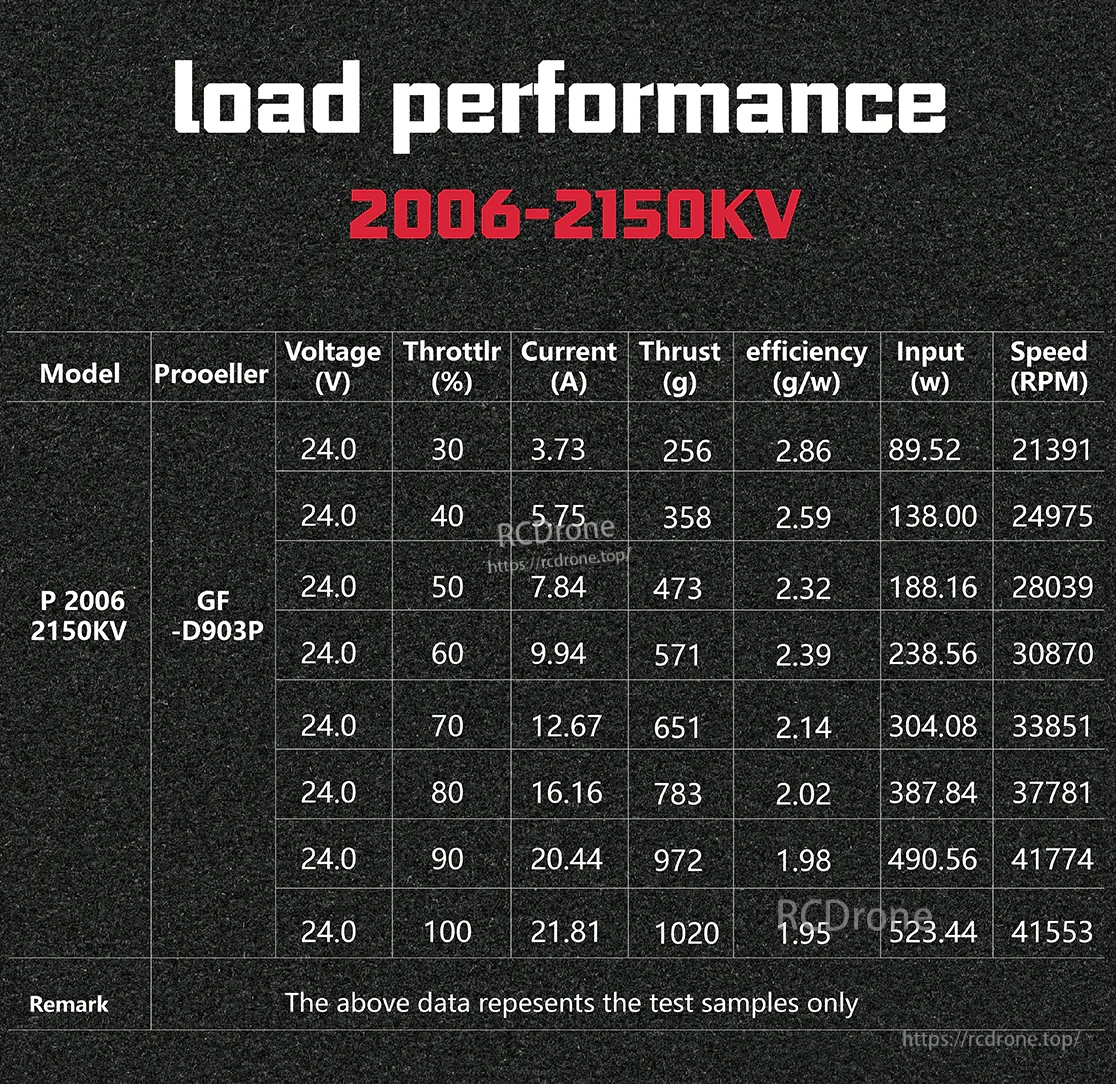

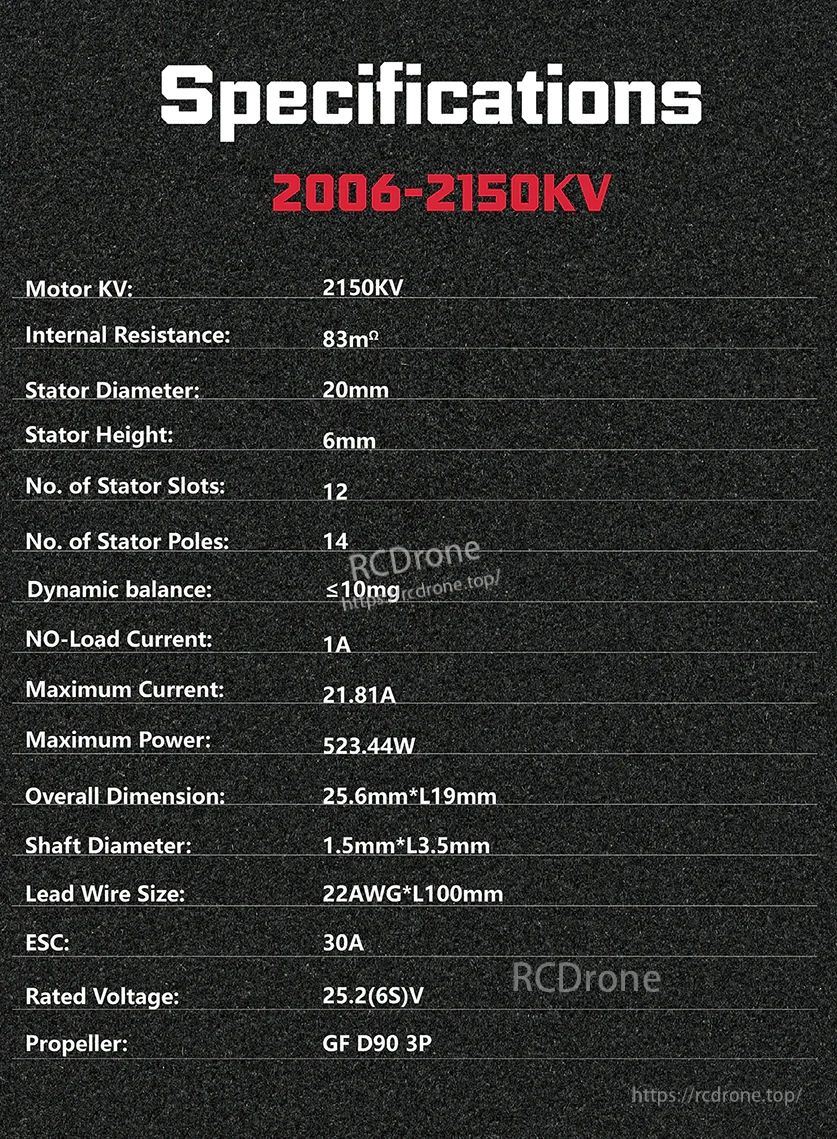

Specifications chart for 2006-2150KV motor with KV 2150, 25.2V 6S rating, max current 21.81A, 30A ESCLoad performance table for 2006-2150KV motor with GF D90 3-blade prop at 24V, showing thrust and efficiency data

Test-sample load data with a GF D90 3-blade prop at 24V provides a practical baseline for thrust, current, and efficiency.
