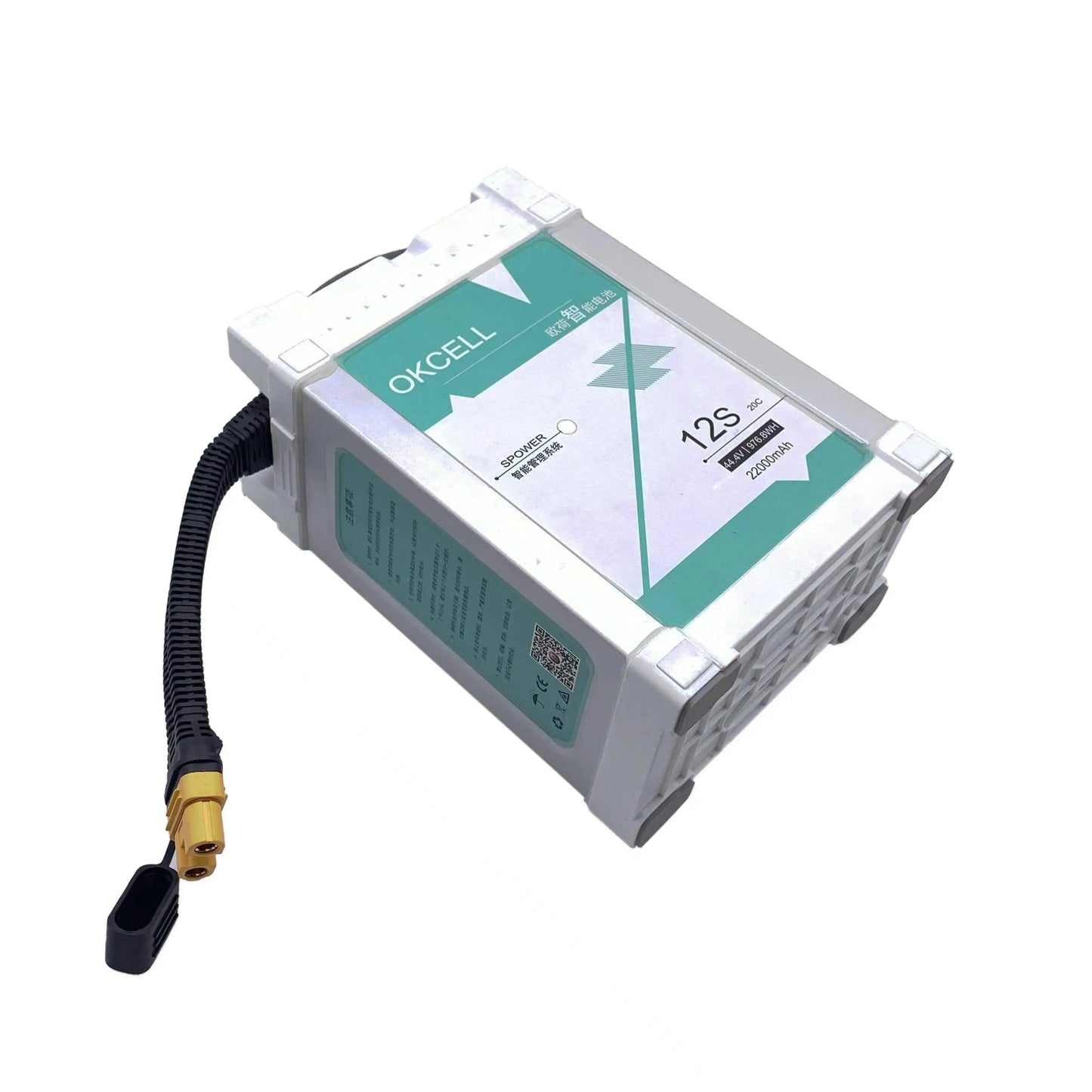

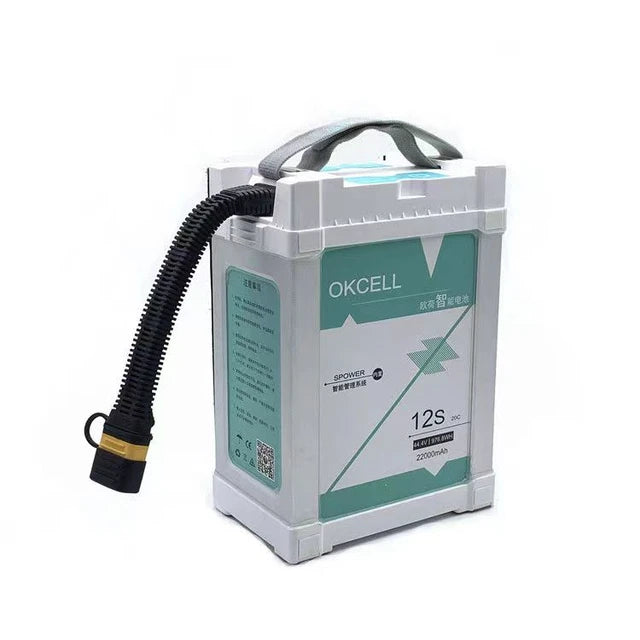

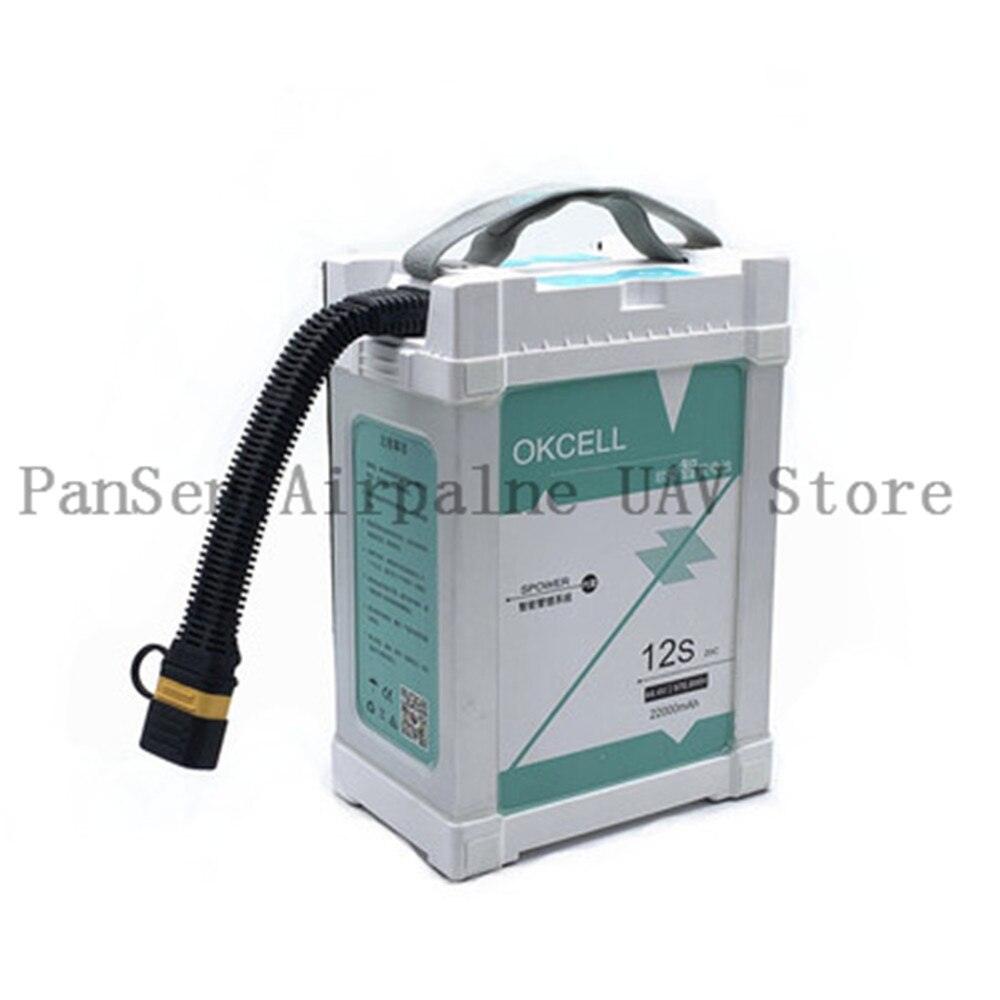

OKCELL 12S 44.4V 22000mAh 20C Smart Battery for Agriculture Drone

OKCELL 12S 22000mAh Drone Battery Overview

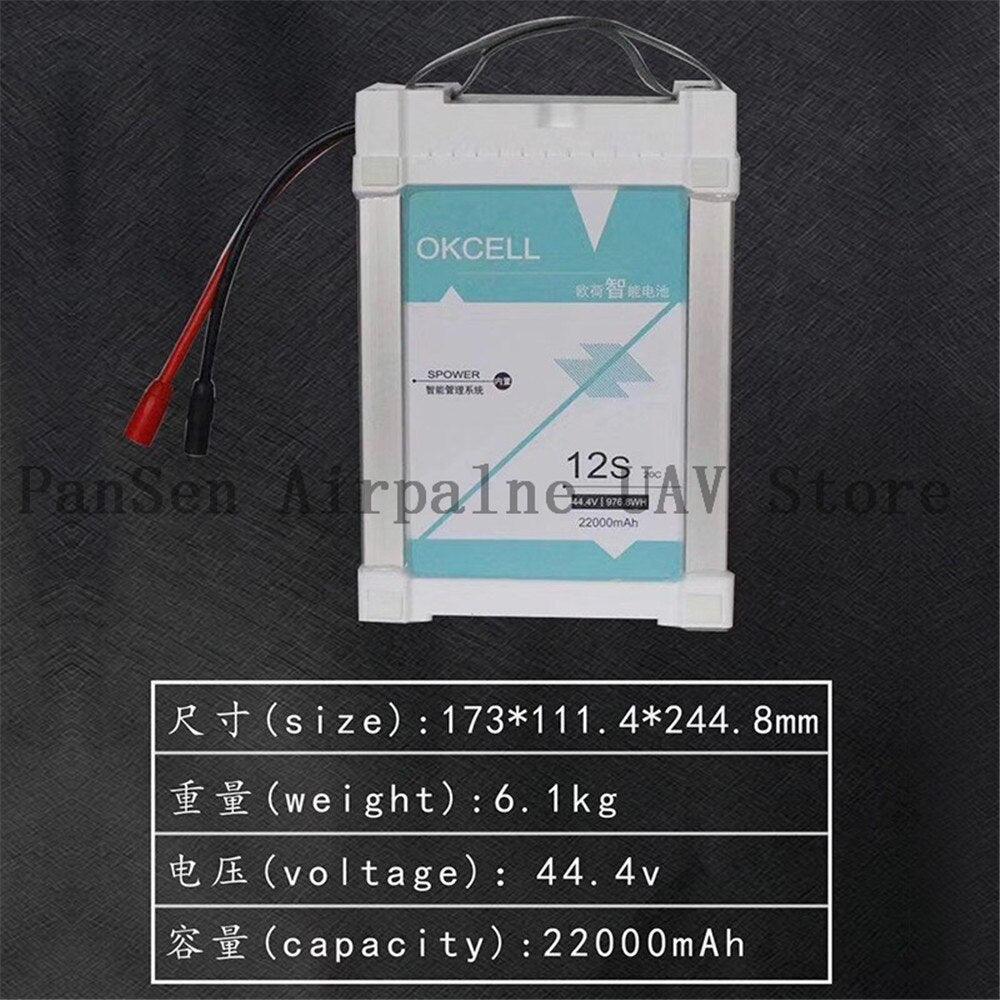

The OKCELL 44.4V 12S 22000mAh 20C Smart Battery is a high-capacity, 22000mAh power solution designed for agricultural drones, offering 44.4V nominal voltage and a 20C discharge rate to support long flight durations and high-power demands. With a 6.1kg lightweight design and dimensions of 173x110x243mm, this battery is optimized for extended agricultural missions such as crop spraying and mapping. It also features advanced intelligent functions like real-time monitoring, storage optimization, and data communication, ensuring safe and efficient drone operations.

Key Features:

• High Capacity & Voltage: With a 44.4V nominal voltage and 22000mAh capacity, the battery provides consistent power output, supporting long-duration flights in agriculture operations.
• Smart Power Indicators: Equipped with four high-brightness LED indicators, the battery automatically detects and displays its charging or discharging status, giving clear feedback on battery health and usage.
• Battery Life Reminder: After 300 charge cycles, the LED indicators turn red, alerting you to the battery’s lifecycle limit, allowing you to plan for replacements.
• Charging Intelligent Alarm: Monitors the charging process in real-time, issuing alarms for overvoltage, overcurrent, and overheating, ensuring a safe charging environment.
• Low Voltage Alarm: During discharging, if the voltage drops below the safe threshold (3.7V per cell), the battery will emit an audible alarm to prevent over-discharge, protecting the battery's lifespan.
• Intelligent Storage Function: When not in use for extended periods, the battery will automatically discharge to an optimal storage voltage, ensuring long-term safety and maintaining battery health.
• Automatic Sleep Mode: If the battery remains idle for 3 minutes after being switched on, it automatically shuts down to preserve battery life.
• Software Upgradeable: The battery’s software can be upgraded through a computer or mobile app, keeping it compatible with the latest drone technology and improving overall performance.
• Data Communication Function: The battery supports both USB serial port and WiFi communication, allowing real-time monitoring of battery status such as voltage, current, and usage history. The battery can also connect to flight control systems for further data analysis.
• Battery Logging: Logs critical data throughout the battery’s life, including cell voltage, current, temperature, cycle count, and any abnormal states. The logs can be accessed through a mobile app for easy monitoring and maintenance.

OKCELL 12S 22000mAh Drone Battery Specifications:

Application Fields:

• Agricultural Drones: Perfect for crop spraying, monitoring, and field mapping, delivering long flight times and stable power output.
• Industrial Drones: Suited for drones operating in inspection, surveying, and logistics, where reliable power is crucial for mission success.

Benefits:

• Extended Flight Times: With its high capacity, this battery supports longer missions, reducing the frequency of battery swaps and maximizing productivity.
• Smart Features for Safety: Intelligent alarms, storage functions, and sleep mode ensure the battery operates safely, prolonging its lifespan and maintaining optimal performance.
• Comprehensive Data Logging: The ability to log key battery data throughout its lifecycle provides drone operators with insights into battery health, enabling better maintenance and usage planning.

The OKCELL 44.4V 12S 22000mAh 20C Smart Battery is an ideal power solution for agricultural drone operators who require long-lasting, smart, and reliable performance in the field. Its advanced features, combined with a high-capacity design, ensure efficient and safe operation for demanding drone applications.
