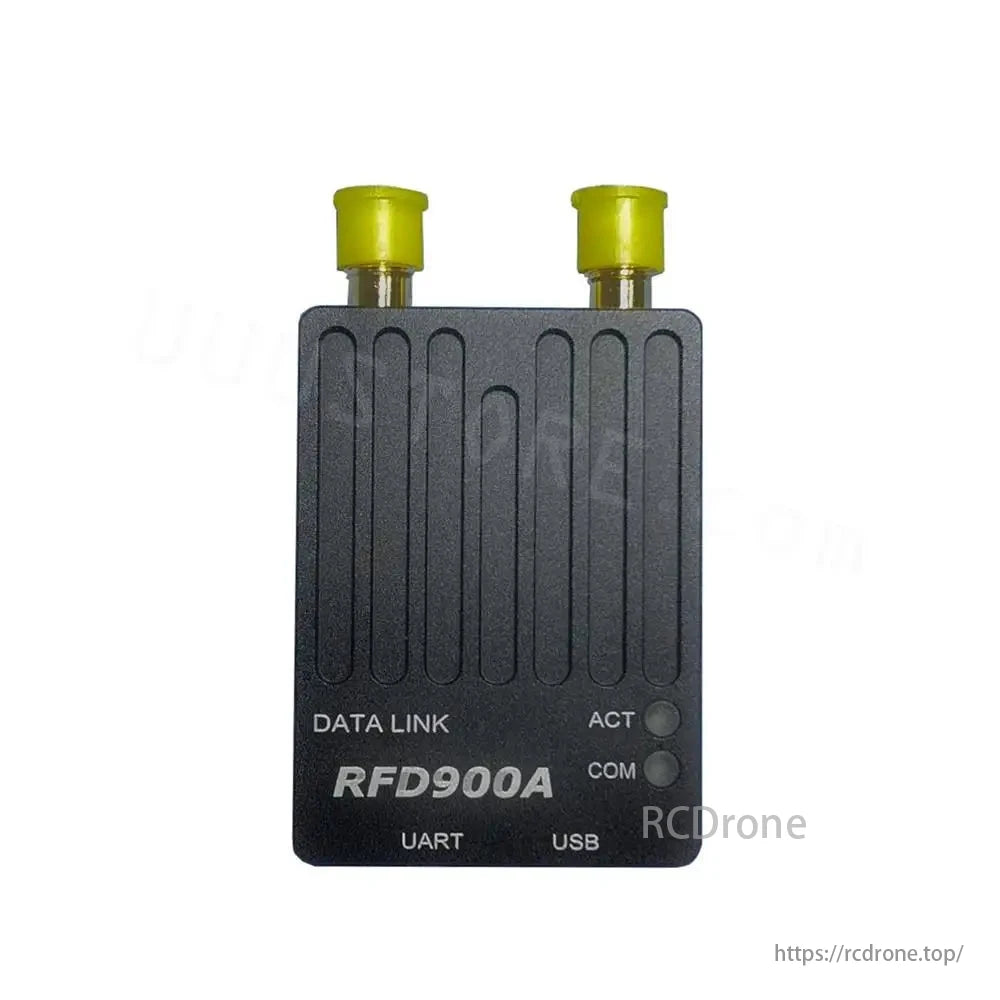

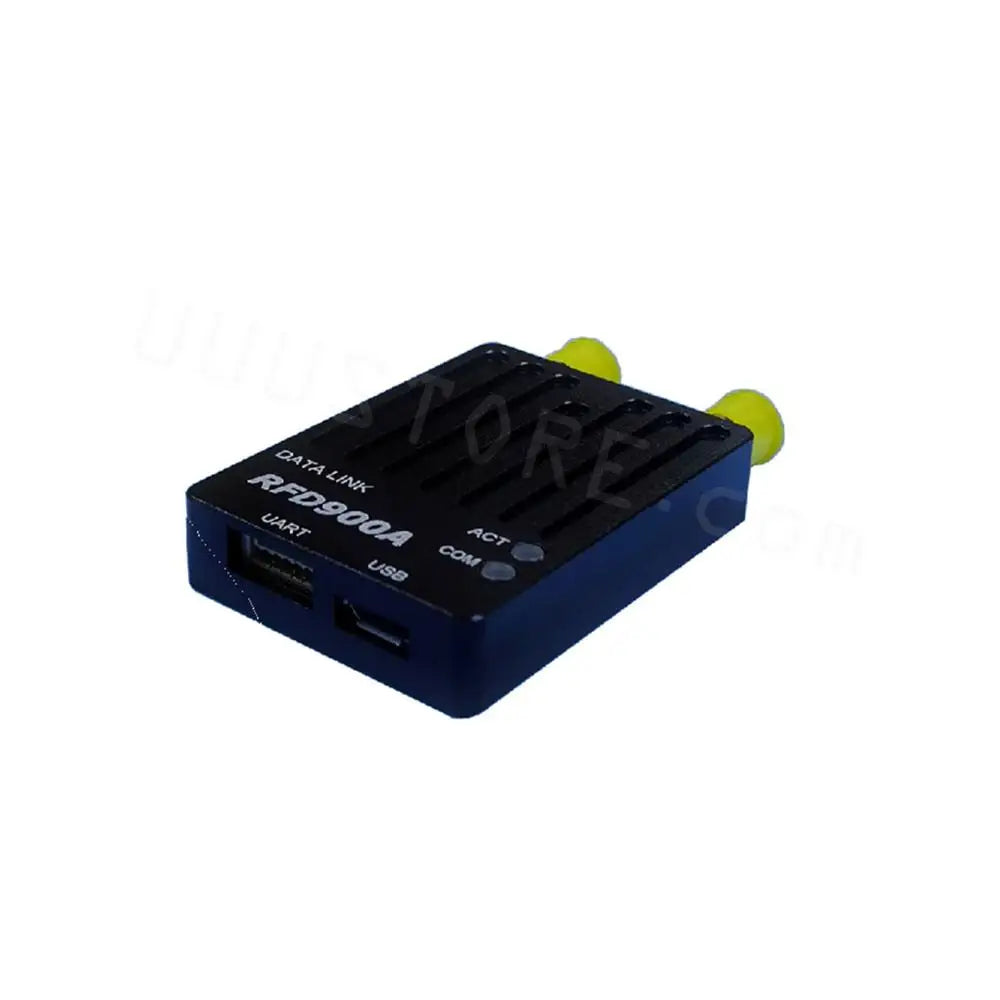

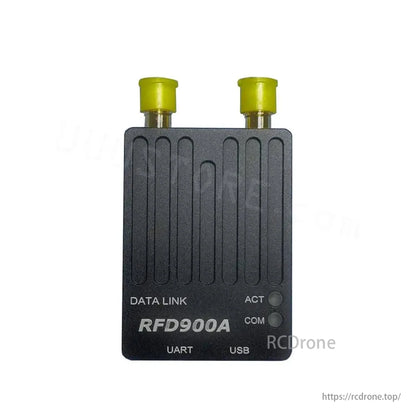

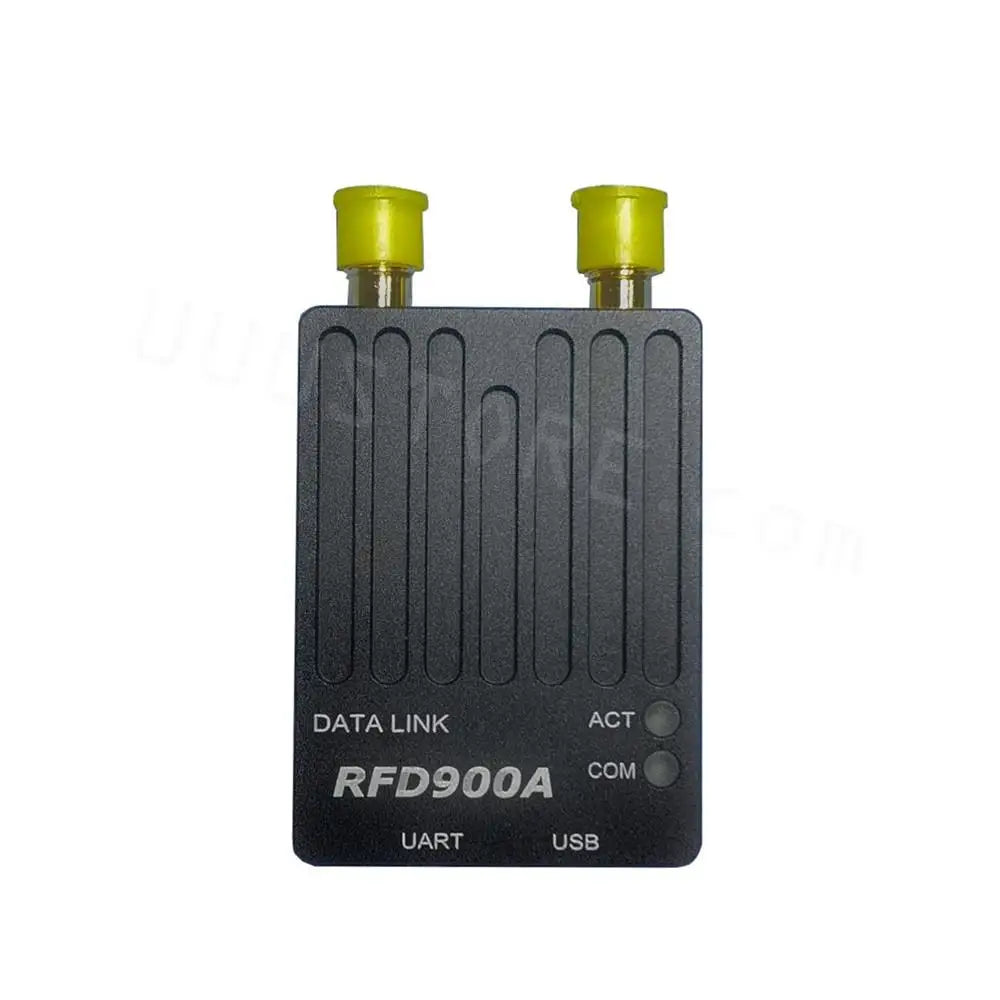

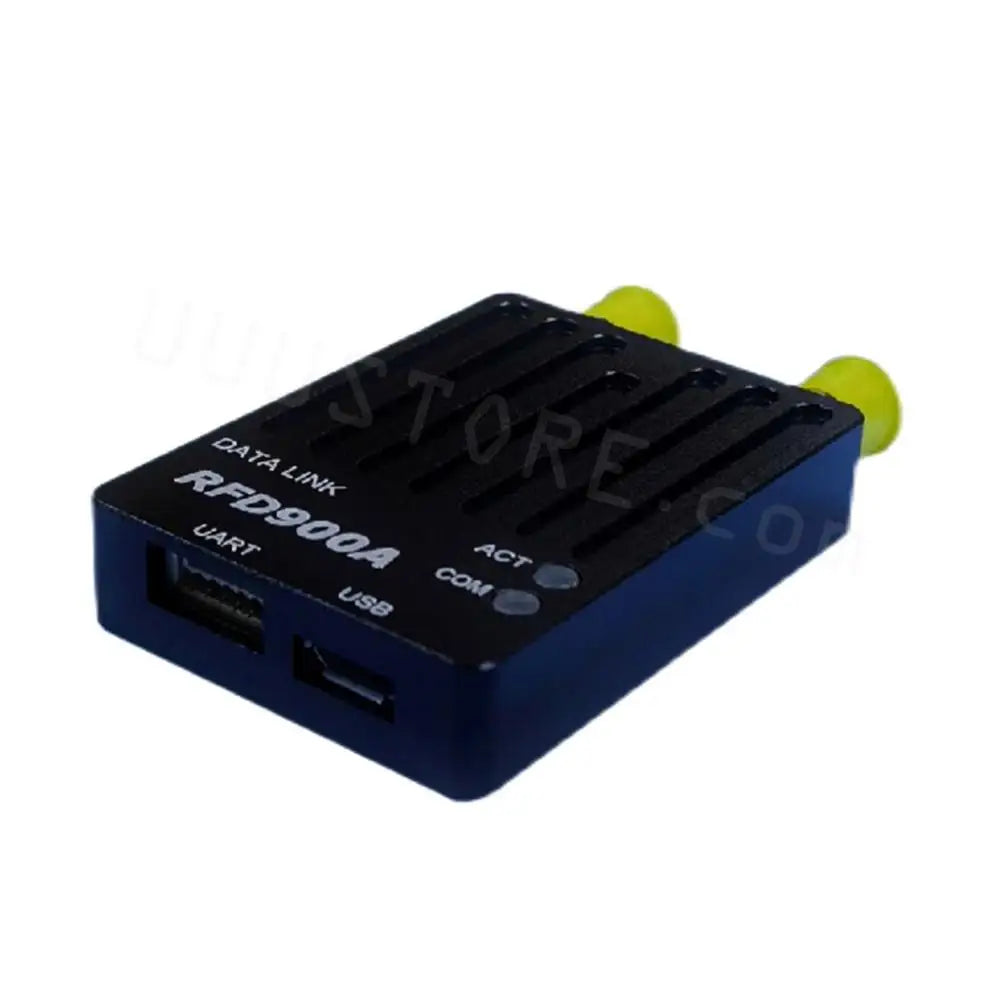

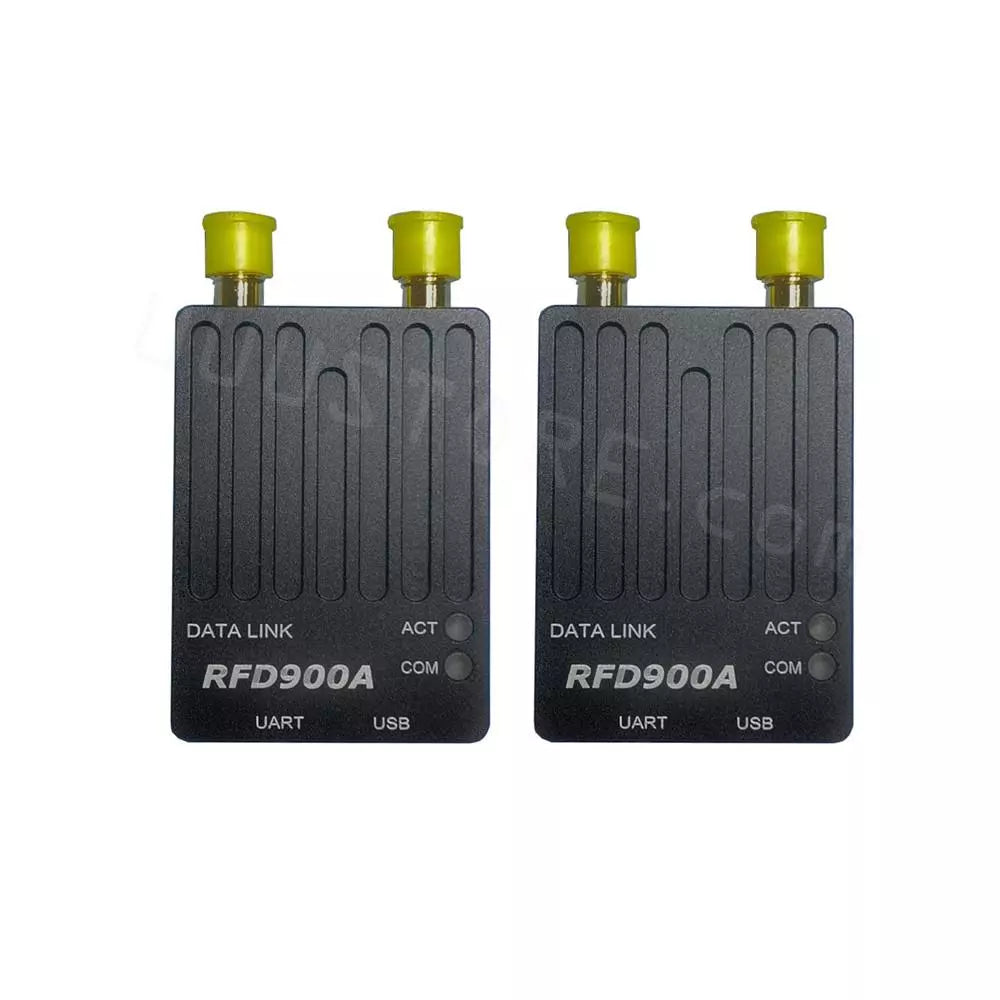

Over 40km RFD900A Telemetry Bundle - Ultra Long Range Telemetry Radio Modem for APM Pixhawk Flight Controller

Over 40km RFD900A Telemetry Bundle - Ultra Long Range Telemetry Radio Modem for APM Pixhawk Flight Controller

RCDrone

Regular price $166.08 USD
Regular price $199.29 USD Sale price $166.08 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

23 orders in last 30 days

Default Title

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

Over 40km RFD900A Telemetry Bundle SPECIFICATIONS

Brand Name:RCDrone

Origin: Mainland China

Material: Metal

RC Parts & Accs: Transmitters

Size: As show

For Vehicle Type: Airplanes

Upgrade Parts/Accessories: Frame

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Cutting

Technical parameters: Value 10

Model Number: RFD900X

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

Over 40km RFD900A Telemetry Bundle Ultra Long Range Telemetry Radio Modem for APM Pixhawk Flight Controller



Over 40km RFDesign RFD 900X Remote900X 915MHz Ultra Long Range Telemetry Radio Modem with Diversity FTDI & Antenna for APM PIX
Over 40km RFDesign RFD 900X Remote900X 915MHz Ultra Long Range Telemetry Radio Modem with Diversity FTDI & Antenna for APM PIX USD 279.8 / set /lot 1
Over 40km RFD 900 Plus 900MHz Ultra Long Range Radio Data Modem with Antenna for APM PIX Flight Controller
Over 40km RFD 900 Plus 900MHz Ultra Long Range Radio Data Modem with Antenna for APM PIX Flight Controller USD 279.8 / set /lot 1
Over 100KM Original DIGI XLR PRO Industrial 900 MHz Radio XL9-UA Long-Range modem for serial and Ethernet devices
Over 100KM Original DIGI XLR PRO Industrial 900 MHz Radio XL9-UA Long-Range modem for serial and Ethernet devices USD 1289 / set /lot 1
Hex Technology Pixhawk 2.1 Full Bundle Standard Carrier Board RFD900+ Telemetry Combo
Hex Technology Pixhawk 2.1 Full Bundle Standard Carrier Board RFD900+ Telemetry Combo USD 636.8 / piece /lot 1
Advanced autopilot system PIXHAWK2 Pixhawk 2.1 Standard & Here2 CAN GPS UAV/UAS/ROV Autopilot Flight Controller
Advanced autopilot system PIXHAWK2 Pixhawk 2.1 Standard & Here2 CAN GPS UAV/UAS/ROV Autopilot Flight Controller USD 136 / piece /lot 1
Holybro Pixhawk 4 Mini Autopilot Flight Controller PX4 flight control Pixhawk4 mini For RC FPV Drone
Holybro Pixhawk 4 Mini Autopilot Flight Controller PX4 flight control Pixhawk4 mini For RC FPV Drone USD 138.9 / set /lot 1

Product Description

FD900A New Features:

  • New Processor, ARM 32 bit core.
  • Air data rate: 500kbit/s.
  • AES Hardware accelerated encryption. *Fully working*
  • RC PPM Passthrough with telemetry at the same time.
  • Fully ESD protected + filtered - Every IO port is protected and filtered.
  • Original SiK point to point, multipoint firmware implemented.
  • Asynchronous multipoint firmware, *Beta release*

Features:

  • Long range >40km depending on antennas and GCS setup *80km demonstrated by Edge Research labs on a balloon !, 57km in India, on Dipoles.
  • 2 x RP-SMA RF connectors, diversity switched.
  • 1 Watt (+30dBm) transmit power.
  • Transmit low pass filter.
  • > 20dB Low noise amplifier, high IP3.
  • RX SAW filter.
  • All I/O ESD protected and filtered.
  • Re implemented SiK and Multipoint SiK firmware, field upgradeable, easy to configure.
  • Small, light weight.
  • Compatible with 3DR / Hope-RF radio modules.
  • License free use in Australia, Canada, USA, NZ

 Interfaces:

  • RF : 2 x RP-SMA connectors
  • Serial: Logic level TTL (+3.3v)
  • Power: +5v, ~800mA max peak (at maximum transmit power)
  • GPIO: 6 General purpose IO (Digital, ADC, PWM capable).

Specifications:

  • Frequency Range:  902 - 928 MHz (USA) / 915 - 928 MHz (Australia)
  • Output Power: 1W (+30dBm), controllable in 1dB steps ( +/- 1dB @=20dBm typical )
  • Air Data transfer rates: 4, 8, 16, 19, 24, 32, 48, 64, 96, 128, 192 and 250, 500 kbit/sec ( User selectable, 64k default )
  • UART data transfer rates: 9600, 19200, 38400, 57600, 115200, 400k, 921k baud  ( User selectable, 57600 default )
  • Output Power: 1W (+30dBm)
  • Receive Sensitivity: >121 dBm at low data rates, high data rates (TBA)
  • Size: 30 mm (wide) x 57 mm (long) x 12.8 mm (thick) - Including RF Shield, Heatsink and connector extremeties
  • Weight: 14.5g
  • Mounting: 3 x M2.5 screws, 3 x header pin solder points
  • Power Supply: +5 V nominal, (+3.5 V min, +5.5 V max), ~800 mA peak at maximum power
  • Temp. Range: -40 to +85 deg C, tested operational from -73 to +123 deg C.

Software / GCS Support:

The software solution is an open source development called "SiK".  It has been re implemented to suit the new processor architecture available on the 32bit ARM processor core.  A boot loader and interface is available for further development and field upgrade of the modem firmware via the serial port.

Most parameters are configurable via AT commands, Eg. baud rate (air/uart), frequency band, power levels.

Integrated support for configuring the RFD900 radios is supported by APM Planner.

The default settings are at 57600 baud, N, 8, 1, and 64k air data rate.

Software features include:

  • Frequency hopping spread spectrum (FHSS)
  • Transparent serial link
  • Point to Point, or Multipoint networking
  • Configuration by simple AT commands for local radio, RT commands for remote radio
  • User configurable serial data rates and air datarates
  • Error correction routines, Mavlink protocol framing (user selectable)
  • Mavlink radio status reporting (Local RSSI, Remote RSSI, Local Noise, Remote Noise)
  • Automatic antenna diversity switching on a packet basis in realtime
  • Automatic duty cycle throttling based on radio temperature to avoid overheating

Compliance :

The RFD900 is designed to be compliant with the following standards:

  • FCC Part 15.247 (Frequency hopping and digitally modulated intentional radiators)
  • AS/NZS 4268:2012 (Radio equipment and systems - short range devices)

The modem is designed for system integrators who will integrate the modem into their own projects and product prototypes.  The user is responsible for compliance with local regulations for radio transmitters.
