P900/P400-840 1W Transmitter Receiver Telemetry - 30KM Long Range Distance Data Link Microhard For UAV APM Pixhawk PIXHACK

P900/P400-840 1W Transmitter Receiver Telemetry - 30KM Long Range Distance Data Link Microhard For UAV APM Pixhawk PIXHACK

rcdrone

Regular price $488.90 USD
Regular price $586.68 USD Sale price $488.90 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

41 orders in last 30 days

Color

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

P900/P400-840 1W Transmitter Receiver Telemetry SPECIFICATIONS

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Radio Systems

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Cutting

Four-wheel Drive Attributes: Assemblage

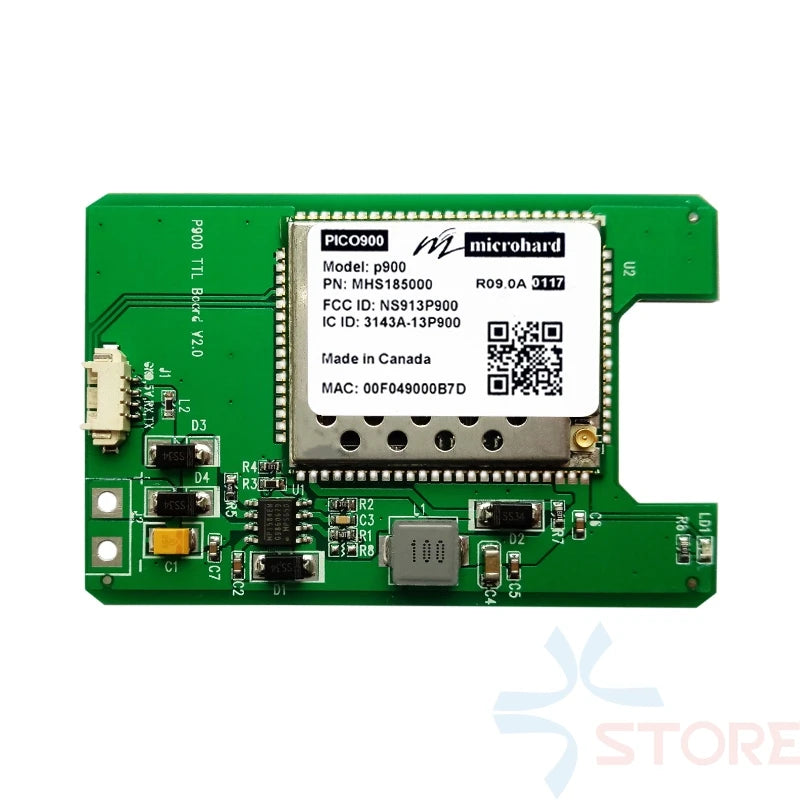

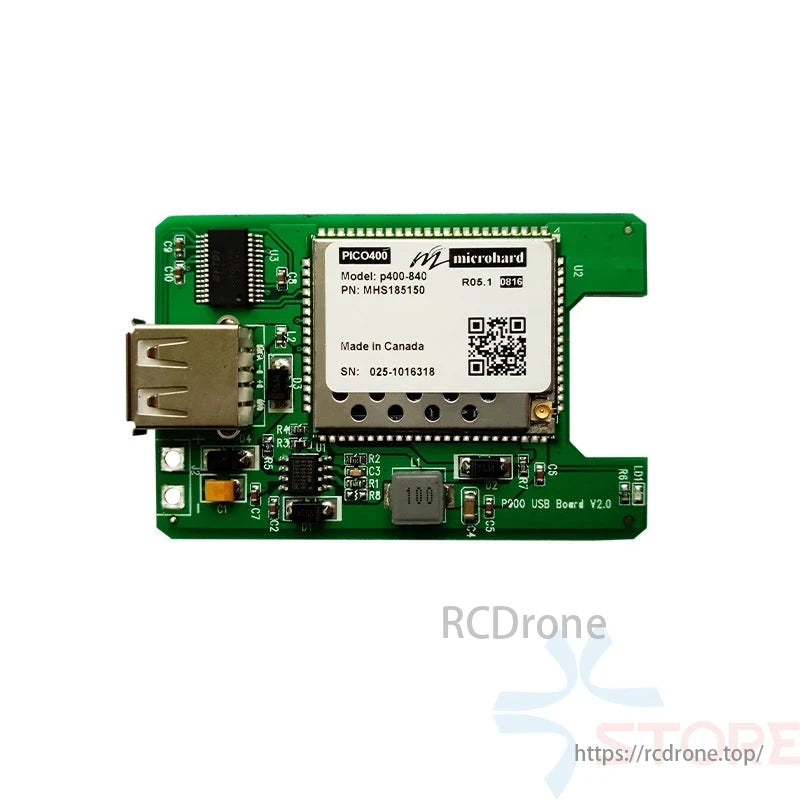

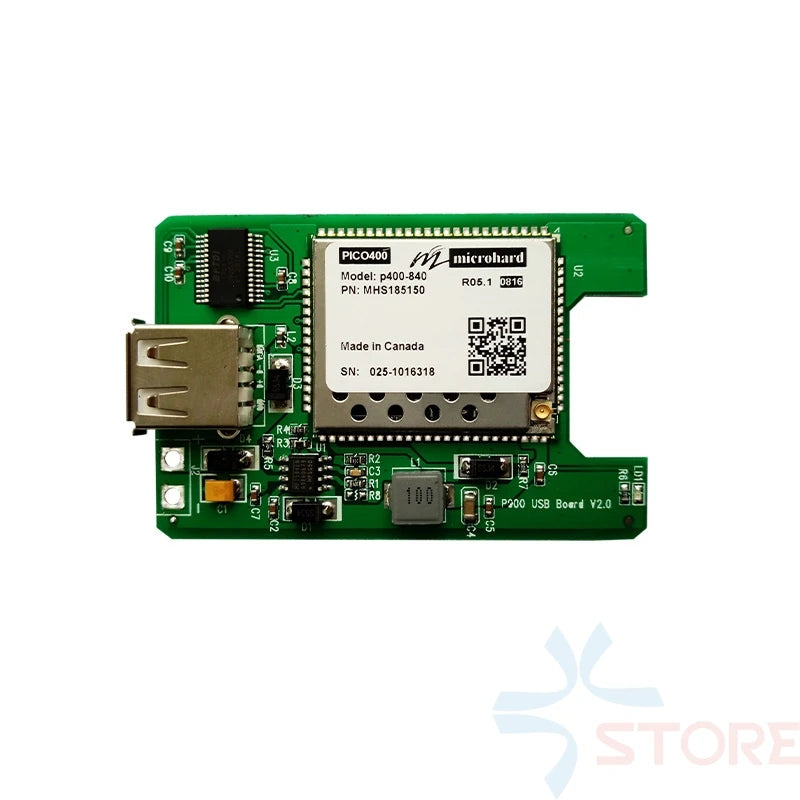

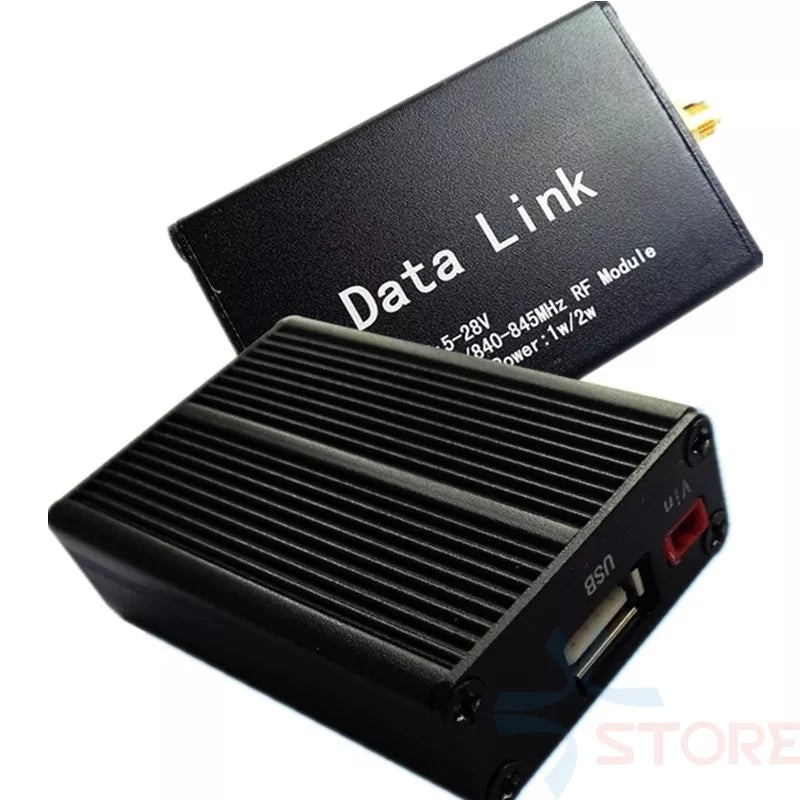

30KM Long Distance Data Link Microhard P900/P400-840 1W Transmitter Receiver Telemetry For UAV APM Pixhawk PIXHACK





The P900 features robust, high speed, low latency, secure data communications. The P900 has full serial and diagnostics data capabilities for legacy devices! The P900 offers excellent noise figure, superior interference rejection, agile frequency synthesis, digital modulation, and matched filter detection.

Features

  • Supports up to 276kbps
  • Very Low Cost
  • Point to Point, Point to Multipoint, Mesh
  • True Self Healing Mesh, Auto Routing, Store & Forward
  • Master, Remote, Repeater, Mesh
  • Industrial Temperature (-55C to +85C)
  • Adjustable Transmit Power 100mW-1W (20-30 dBm)
  • Small Size
  • Low power consumption in Sleep and Sniff modes
  • Quad Filter Stages provides Extreme Noise and Interference Rejection
  • Selectable Forward Error Correction (FEC), 32 bits of CRC, and 128-bit AES





Specifications


Frequency 902-928 MHz Power Consumption
(3.3V +/- 0.3V @1W)
Sleep < 1mA
Idle 3.5mA
Rx: 45mA to 98mA
Tx : 1000mA to 1400mA
Spreading Method Frequency Hopping
Forward Error Detection Hamming
BCH
Golay
Reed-Solomon

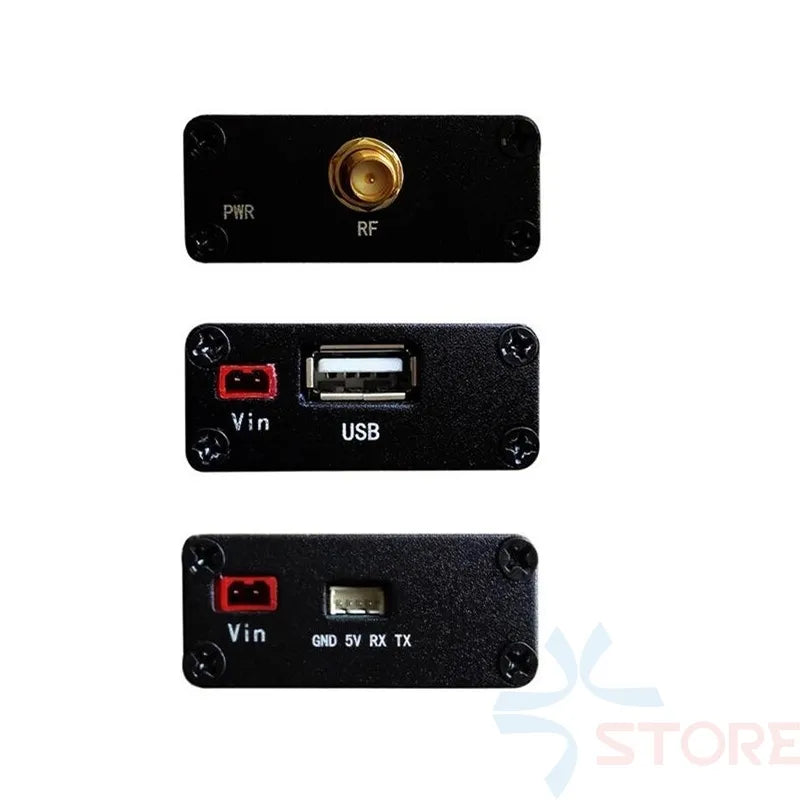

Connectors:
OEM
Antenna
Data
Enclosed
Antenna
Data


UFL
80 Pin SMT

RP-SMA Female Bulkhead
DB-9F
Error Detection 32 bits of CRC, ARQ
Encryption Optional (see -AES option)
Range 40 miles (60 km) Environmental -55˚C - +85˚C
Sensitivity
(@10-4)
-114 dBm @ 57.6 kbps
-112 dBm @ 115.2 kbps
-109 dBm @ 172.8 kbps
-107 dBm @ 230.4 kbps
Weight
OEM
Enclosed

Approx. 5 grams
Approx. 120 grams
Output Power 100mW - 1W (20-30dBm) Dimensions
OEM

Enclosed

Approx. 1.05” x 1.3” x .13”
(26.5mm x 33mm x 3.5mm)
Approx. 1.80” x 2.60” x 1.0”
(46mm x 66mm x 25mm)
Serial Interface 3.3V CMOS
RS232/485 (Selectable)
Serial Baud Rate Up to 230.4 kbps asynchronous Approvals FCC Part 15.247
IC RSS210
Link Rate 57.6 to 276 kbps Order Options
Operating Modes Mesh, Auto Routing, Store and Forward, Self Healing, Packet Routing Modes -AES 128-bit AES Encryption (requires permit for export outside of Canada and USA.)
Signals Interface RxD1, TxD1, RTS, CTS DCD, DSR, DTR, RxD2, TxD2, RSSI LEDs, Tx/Rx LEDs, Reset, Config, Wake-up, RSmode, 4 Digital Inputs/Outputs, 1 Analog Input, 1 Analog Output -ENC Enclosed Model
Blocking +/- 1 MHz > 55 dBc
+/- 2.5 MHz > 60 dBc
+/- 5 MHz > 65 dBc
> 930 MHz > 70 dBc
< 890 MHz > 70 dBc
Remote Diagnostics Battery Voltage, Temperature, RSSI, Packet Statistics
Core Voltage OEM: 3.3VDC Nominal (+/- 0.3V)
Enclosed: 9-30 VDC

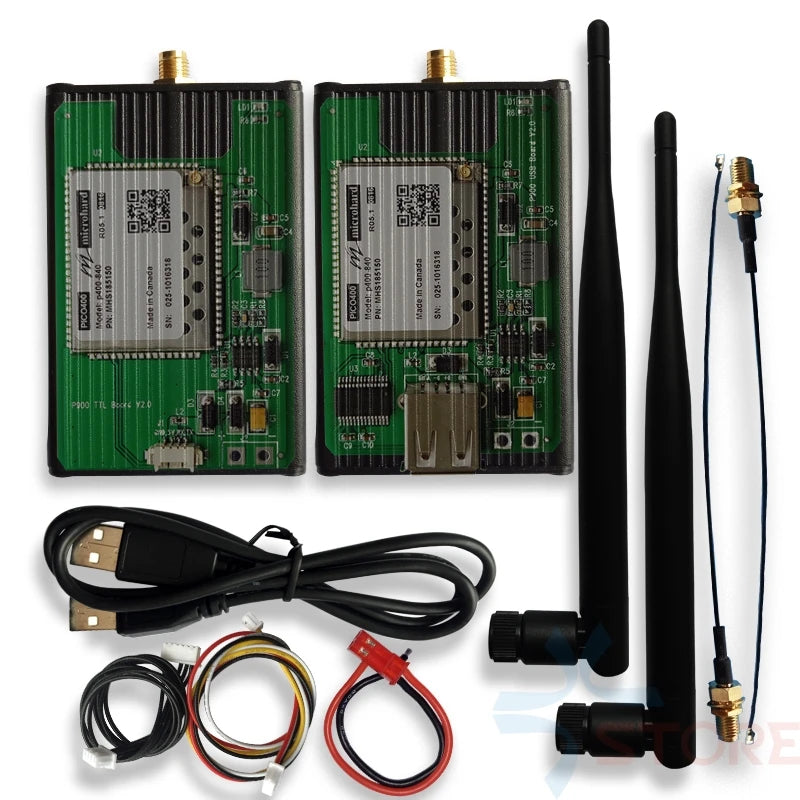

Package include:

Transmitter x1

Receiver x1
