The panda multifunctional board integrates multiple devices of the crossing machine into one.

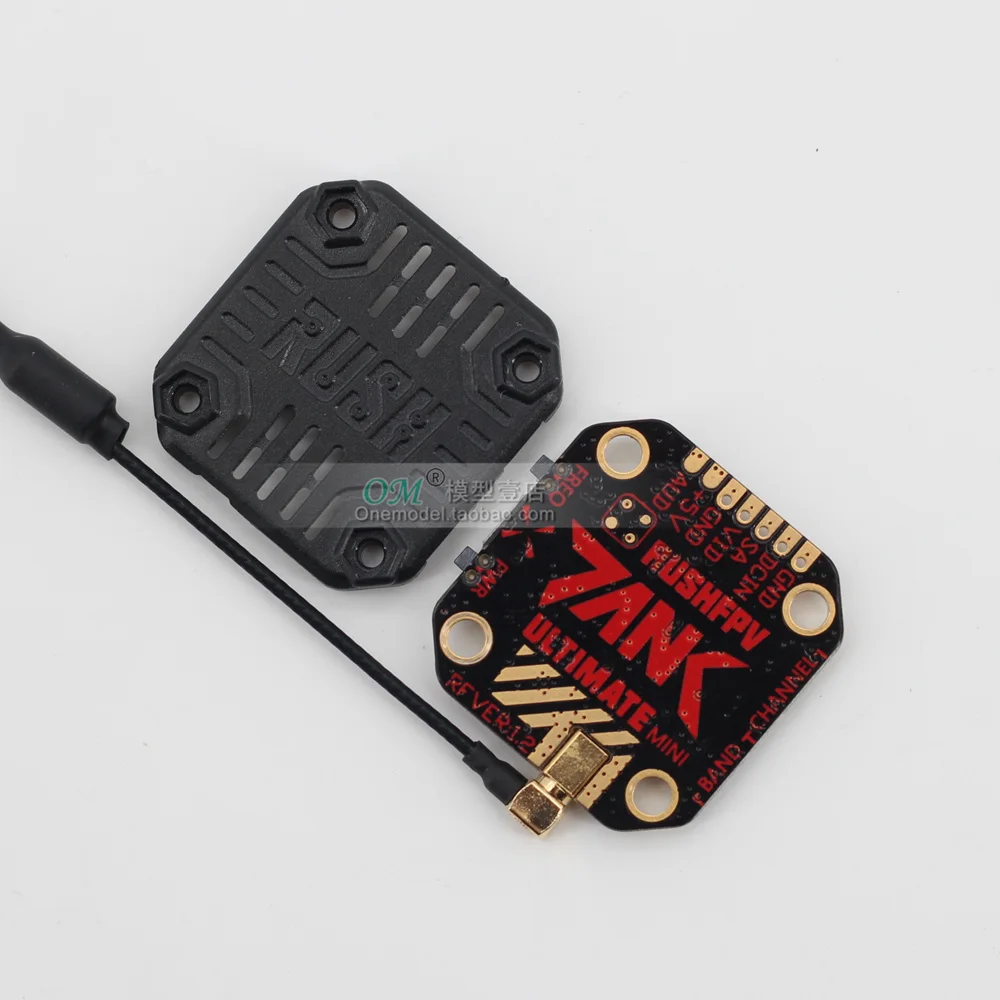

The board is equipped with 5.8G image transmission, high current distribution board, LED control circuit,

and BB ring multiple devices.

There are six levels of power adjustable in image transmission, maximum support 600MW output, stable

performance, long transmission distance.

Image Transmission also supports flight control OSD parameter adjustment.

With light strip control function, it is possible to set multiple LED modes through the on-board switch.

16 modes can be set.

The high-power PDB power distribution board supports up to four 50A currents at the same time, and can

be used with high-current ESCs safely.

The onboard ammeter supports the connection of current detection output and flight control.

A large decibel BB sound on board supports flight control control.

A variety of designs are integrated into one power distribution board, which makes installation more

convenient and installation reliability stronger.
