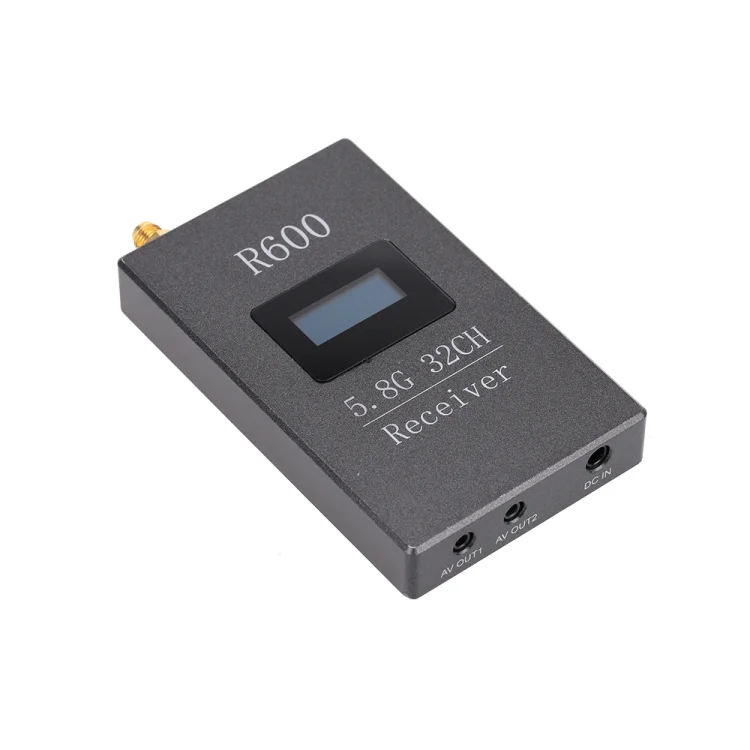

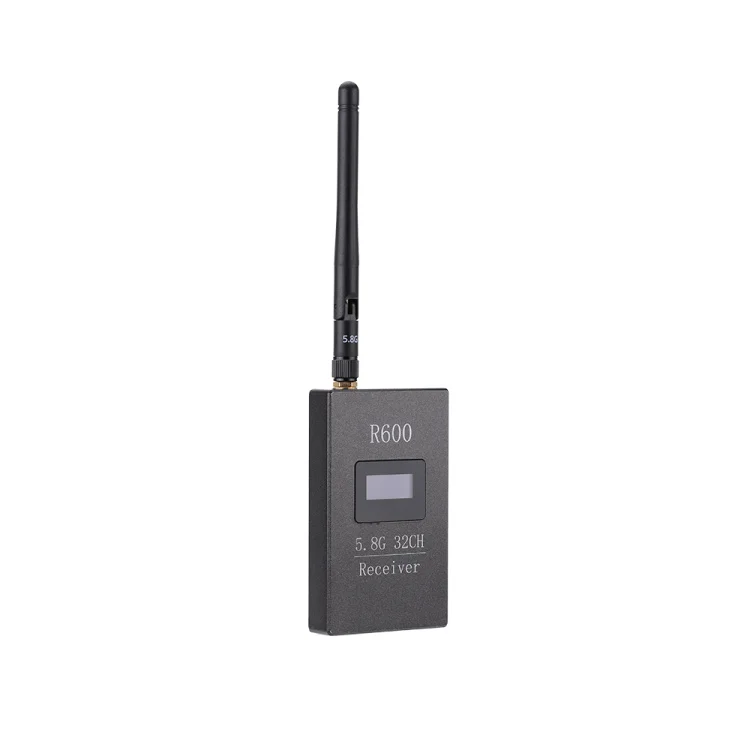

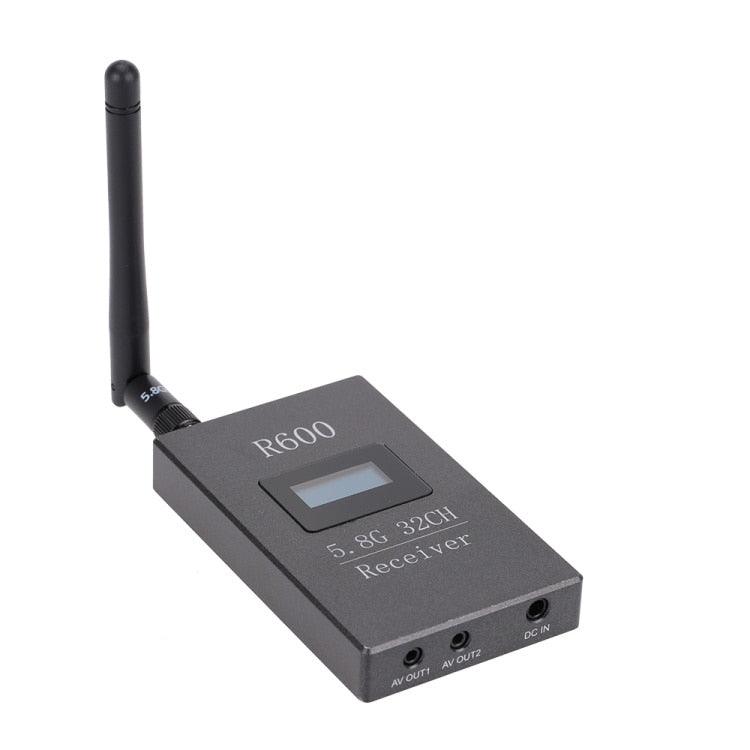

R600 Video Transmission Receiver - 5.8G 600mW 32CH AV Video High Sensitivity Image Transmission Receiver with OLED Display for FPV Drone Aerial Quad Photography

R600 5.8G 600mW 32CH AV Video High Sensitivity Image Transmission Receiver with OLED Display for FPV Aerial Photography Quadcopter

Description

100% New and quality,Fashion new style

Durable and portable, lightweight, easy to carry

Wide dynamic power supply 7-26V

5dB sensitivity gain more than normal receivers

32 channels, 4 frequency band wireless receiving

Auto search, can find the needed channel by one press

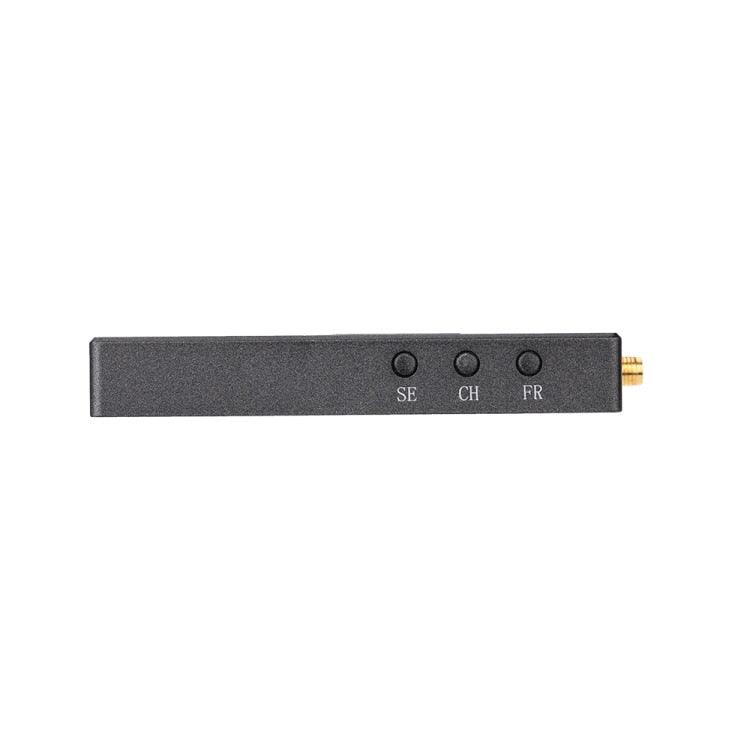

Two buttons for channel and band exchange individually

Newly LOED display, can show the current working state correctly

Two-way video and audio signal output(video: PAL, NTSC. Audio: 6.5MHZ)

Two number display, timely locate the current receiving frequency and band

When power on, storage memory shows channel and frequency of the last time

Specification:

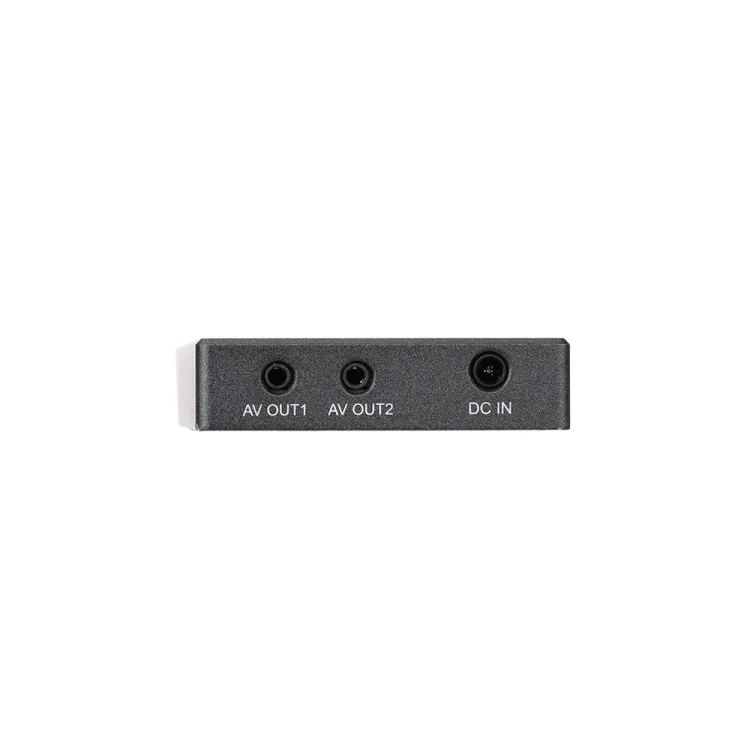

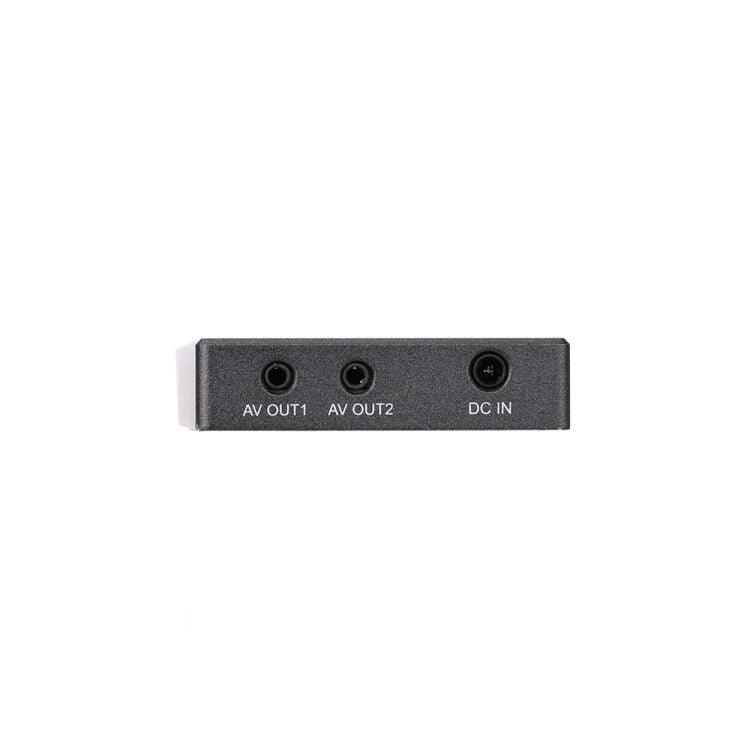

Video output: 2

Video format: NTSC/PAL

Power input:  7-26V

Working current: 130mA

Receiving sensitivity: -95dBm

Receiving frequency: ISM 5.8GHz 32CH

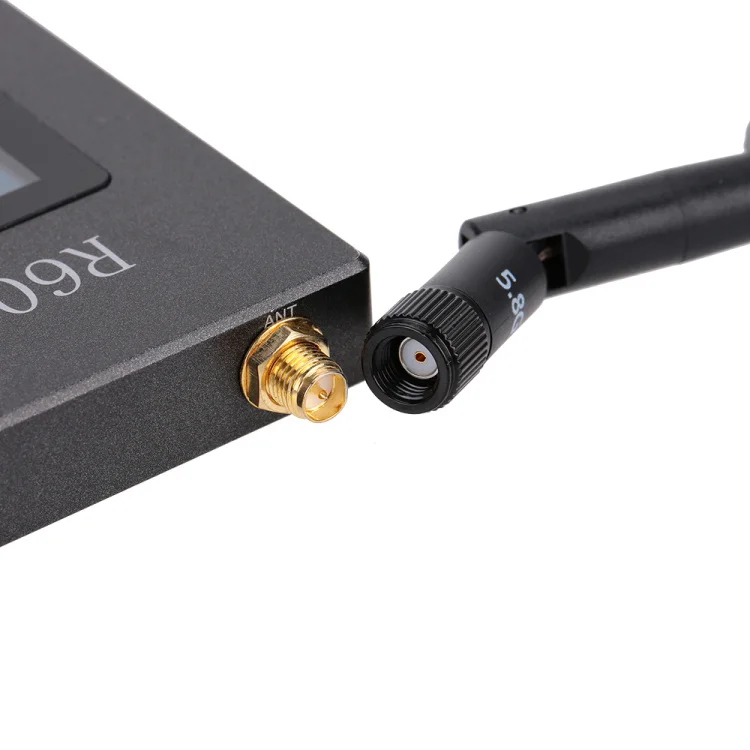

Antenna connection: RP-SMA-K

Video output voltage: 1.0Vp_p 75

Audio output voltage: 1.0Vp_p 10K

Dimension: 90 * 54 * 15mm (excluding antenna)

Weight: 78g

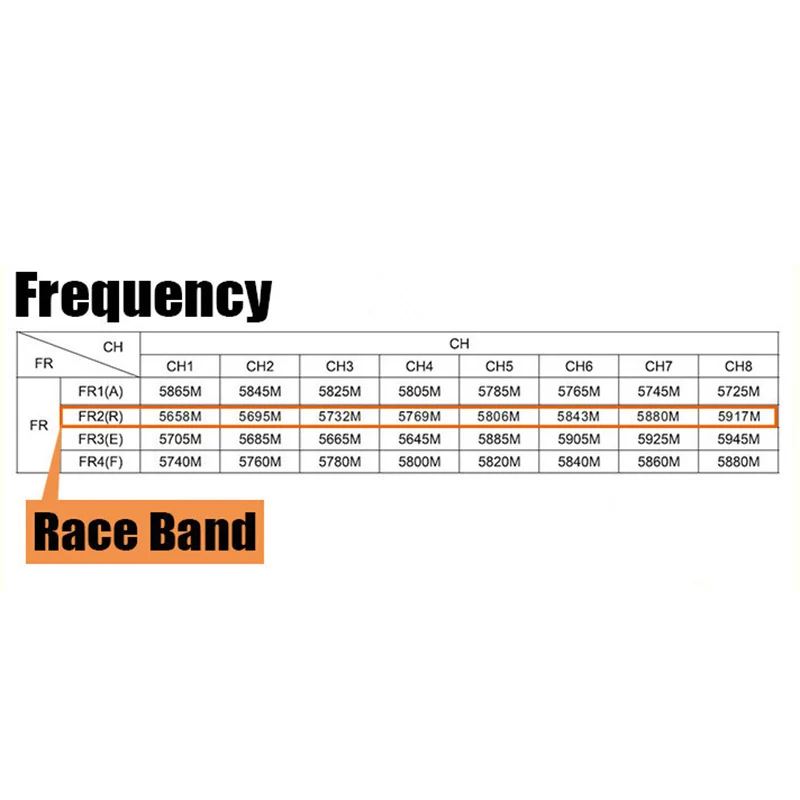

Frequency:

FR1(A): 5865MHz, 5845MHz, 5825MHz, 5805MHz, 5785MHz, 5765MHz, 5745MHz, 5725MHz

FR2(R): 5658MHz, 5695MHz, 5732MHz, 5769MHz, 5806MHz, 5843MHz, 5880MHz, 5917MHz

FR3(E): 5705MHz, 5685MHz ,5665MHz, 5645MHz, 5885MHz, 5905MHz, 5925MHz, 5945MHz

FR4(F): 5740MHz, 5760MHz, 5780MHz, 5800MHz, 5820MHz, 5840MHz, 5860MHz, 5880MHz

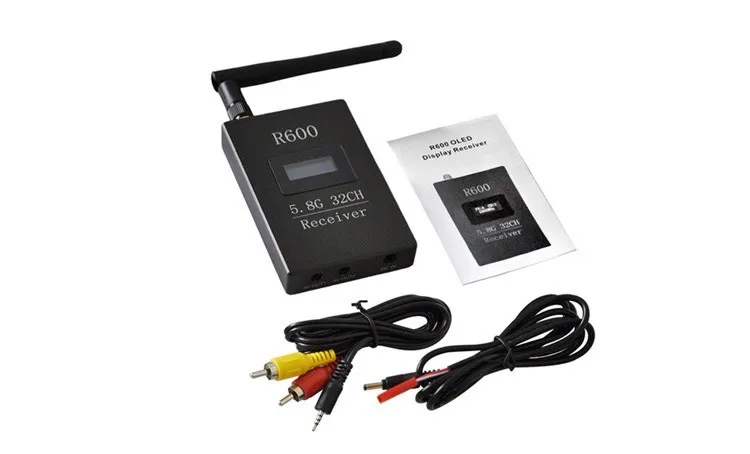

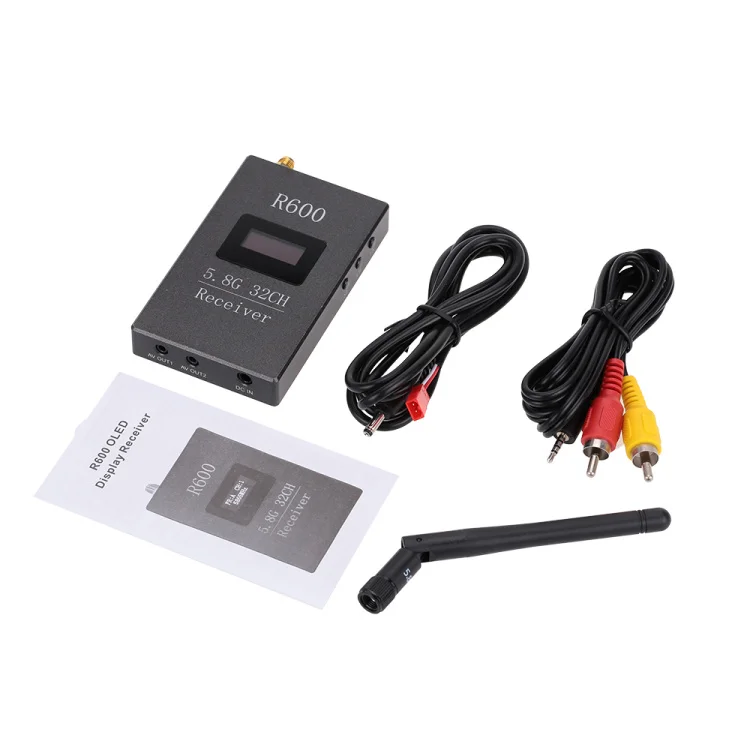

Package Included:

1 * Receiver

1 * Antenna

1 * Power Cable

1 * Cable

1 * English Mannual

'
