Note:

1. If you need Mode 1 Right Hand Throttle transmitter, just make a order tips to us, we will change the controller from Mode 2 to Mode 1.

2. Due to the shipment limit, the battery is not allowed to ship with the airplane, we will ship the battery in a separate parcel via another shipping way, the shipping time is about 10-20 days.

A560 3D Fixed Wing Airplane Features:

• READY TO FLY: The RTF version includes everything needed to get the airplane started, including 8 channels transmitter(built-in battery) and receiver(support engine voltage telemetry), 4CH flight controller, 2pcs 2S lipo and charger, brushless motor and 15A ESC. Only requires few minutes to assemble fuselage.

• One Key to Safe Mode: Any flight mode can be switched to the Vertical Mode easily, the plane will automatically keep the vertical attitude as safe mode. It can help pilot to save the aircraft when it's difficult to control, super friendly for fresh or beginner to get fun.

• Six Flight Modes: Stabilize/Gyro/Acrobat/Manual/Vertical(fixed wing & quadcopter) flight modes. One switch to easily change different flight mode, not only can meet the needs of people at different levels but aslo assist beginner to expert.

• 4KM of Control Distance: Use with Radiolink T8S transmitter and R8XM receiver, allowing multiplexer to compete at the same place synchronously with the flight distance up to 4 kilometers.

• Freestyle Flight: With Brushless motor, enabling the possibilities of different freestyles such as backward, rolling, loop, tumbling, super low flight.

• Dropping Resistance: The aircraft body is made by polypropylene, which ensures the lightness and the long flight time and is resistant to dropping.

• Small and Portable: The aircraft size is small and easy to carry. One switch to vertical flight mode can be fully enjoyed outdoor and even in a limited indoor space. The durable PP material ensures the plane lightweight and resistant from crash. The double layer and water splash carry bag make it easily to storage and protect the plane. Portable package to go with you everywhere.

A560 Specification:

• Model Type: A560

• Material: Polypropylene

• Frequency: 2.4GHz ISM band

• ESC: FLYCOLOR 15A brushless ESC

• Propeller: GEMFAN 8030 props

• Servo: 9G servo*1 &  4.3G servo *2

• Motor Specification: SZ-SPEED 2206F 1500KV brushless motor

• Flight Distance: 4KM ( with RADIOLINK R8XM receiver)

• Voltage Range: 7.4~11.1V (2S-3S lithium battery)

• Support Battery: 2S-3S

• Wing Dimension: 580mm

• Length: 560mm

• Package Dimension: 61*14.2*13.5cm

A560 RTF Specifications:

• Material: Polypropylene foam(PP)

• Wingspan: 580mm (22.83")

• Length: 560mm (22.05")

• Takeoff Weight: 206.5g (with battery)

• Battery: FULLYMAX 7.4V 500mAh

• Voltage Range: 7.4~11.1V (2S-3S lithium battery)

• Flying Time: 10 minutes of vertical flight or 20 minutes of level flight

• 6 Flight Modes: Stabilize/Gyro/Acrobat/Manual/Vertical(fixed wing & quadcopter)

• Control Distance: 1.24 miles

• Motor: SZ-SPEED 2206F 1450KV brushless motor

• ESC: FLYCOLOR 15A brushless ESC

• Radio: 8 channels transmitter T8S, built-in battery

• Receiver: 8 channels receiver R8XM, built-in telemetry of airplane voltage

• Flight Controller: RadioLink Byme-A, compatible with all transmitters that output SBUS/PPM signals

• Charger: RadioLink CM210 2S LiPo battery balance charger


T8S RTF Package List:

• 1 * A560 airplane body

• 1 * Byme-A flight controller(installed)

• 1 * T8S controller left hand

• 1 * R8XM receiver(installed)

• 1 * 600mAh LiPo batteries(Shipped separately due to shipping limit)

• 1 * CM210 balance charger

• 3 * Servos(installed)

• 1 * Brushless motor(installed)

• 1 * Brushless ESC(installed)

• 2 * Propellers

• 1 * Fiber tape

• 1 * Screwdriver

• 1 * Carrying bag

• 5 * Plastic buckles

• 10 * Rubber rings

• 1 * User instruction

• 1 * Assembly instruction

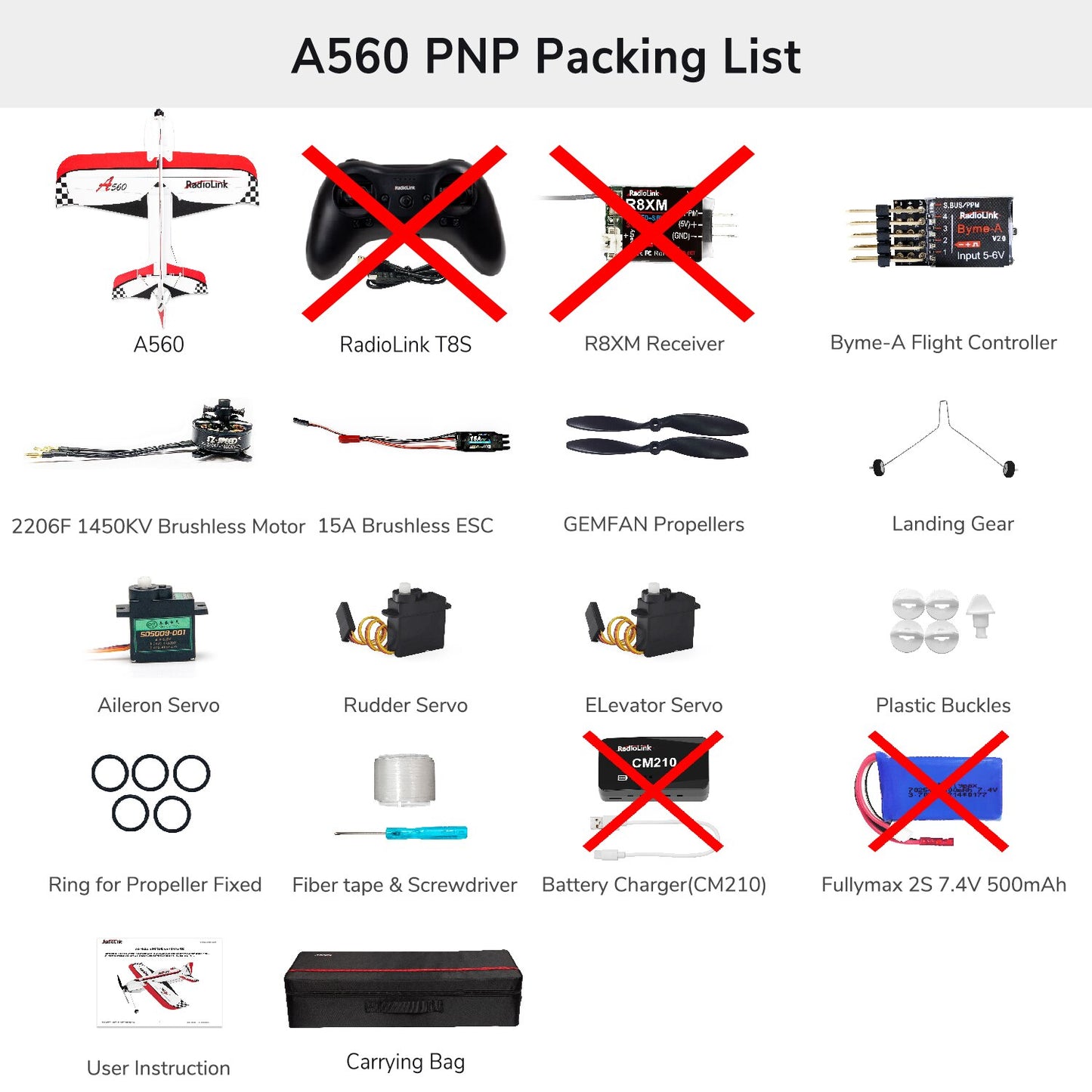

A560 PNP Package List:

• A560 Plane x 1

• Flight controller x 1

• Propeller x 1

• 8G Servo x 1

• 3G servo x 2

• Motor x 1

• ESC x 1

As60 8 RadioLink PID Airplane's Byme-A Stabilization PID 2.4Ghz Long Voltage Telemetry Ready to Fly Flight Modes System Self-Adaptive Remote Control Flying

6 FLIGHT MODES One switch to change different flight modes easily . Stabilize Mode (Beginner) Gyro Mode (Intermediate) Vertical Mode (Expert to Beginner) Radrlink 560 Radjolink

Assist Beginner to Expert Flight controller assists in Stabilize/Gyro/AcrobatNertical mode that helps beginner get started to enjoy flying easily .

Zehed Mini R8XM receiver support telemetry engine voltage as the same flying distance 'RE LOAD CLOSE TX: 3.0 V EXT: 10,3V 14d8rri MIX4 MX : INH IEA SYSTEM WXT 163o NV MX= Mix?

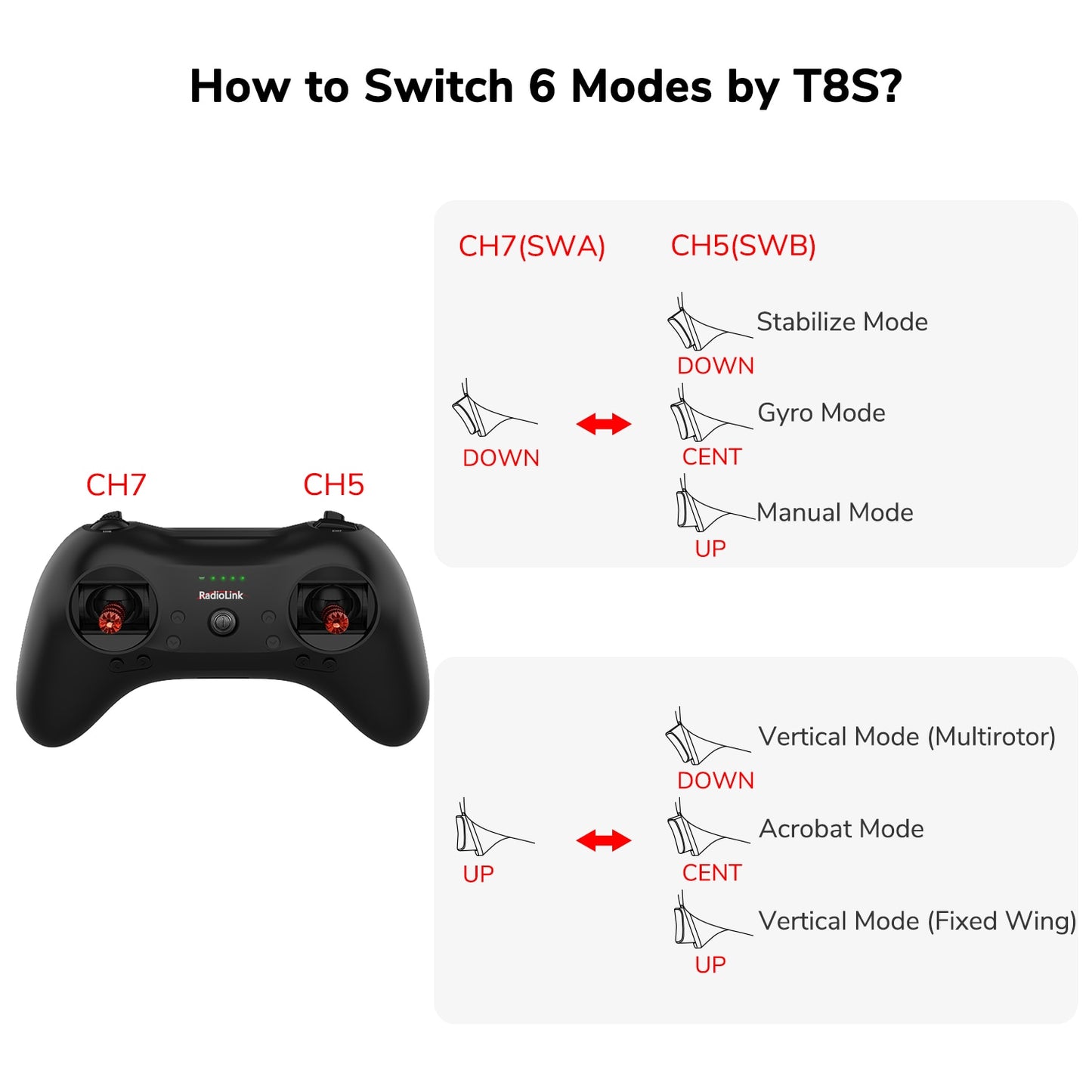

CHZ(SWA) CHS(SWB) Stabilize Mode DOWN Gyro Mode (down CENT CHZ CHS Manual Mode UP RadioLink Vertical Mode (Fixed Wing) DOWN Acrobat Mode (up CENT Vertical Mode)

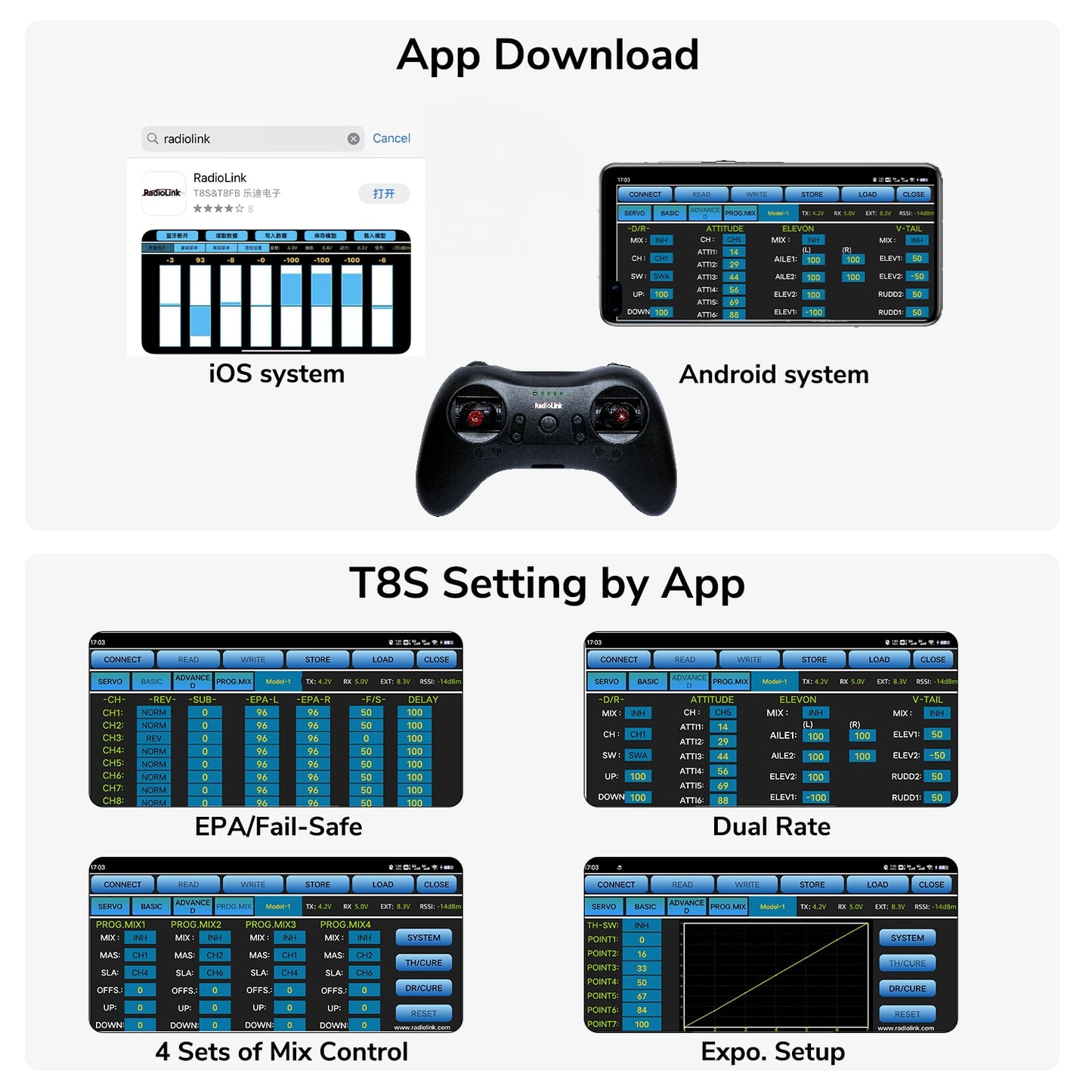

App Download radiolink Radiolink T8SGTSFB Firf JJF CONNECT READ IURITE StoRE LOAD CLOSE SERVO BASIC ADVANCE PROG MIX .

OLi Servos support quickly replaced 3 minutes to assemble and without hot-melt glue or welding 1 minute to disassemble Ratdi 0 EXs .

Battery Recommend 25-35 LiPo size recommend: 1.9*0.9*0.6 inch(L*W*H), 0.88-1.2 0z 1.9in 0.6in 0.9in .

RadioLink 2 2 Double Layer Design Water Splash-Proof Radiol inke Only few minutes to assemble & disassemble RadioLink Yunoipex"
