Note:

1. If you need Mode 1 Right Hand Throttle transmitter, just make a order tips to us, we will change the controller from Mode 2 to Mode 1.

2. Due to the shipment limit, the battery is not allowed to ship with the airplane, we will ship the battery in a separate parcel via another shipping way, the shipping time is about 10-20 days.

3. Orders of A560 RTF version from United State will be shipped out from our US warehouse(5-10 days shipping time) .

A560 3D Fixed Wing Airplane Features:

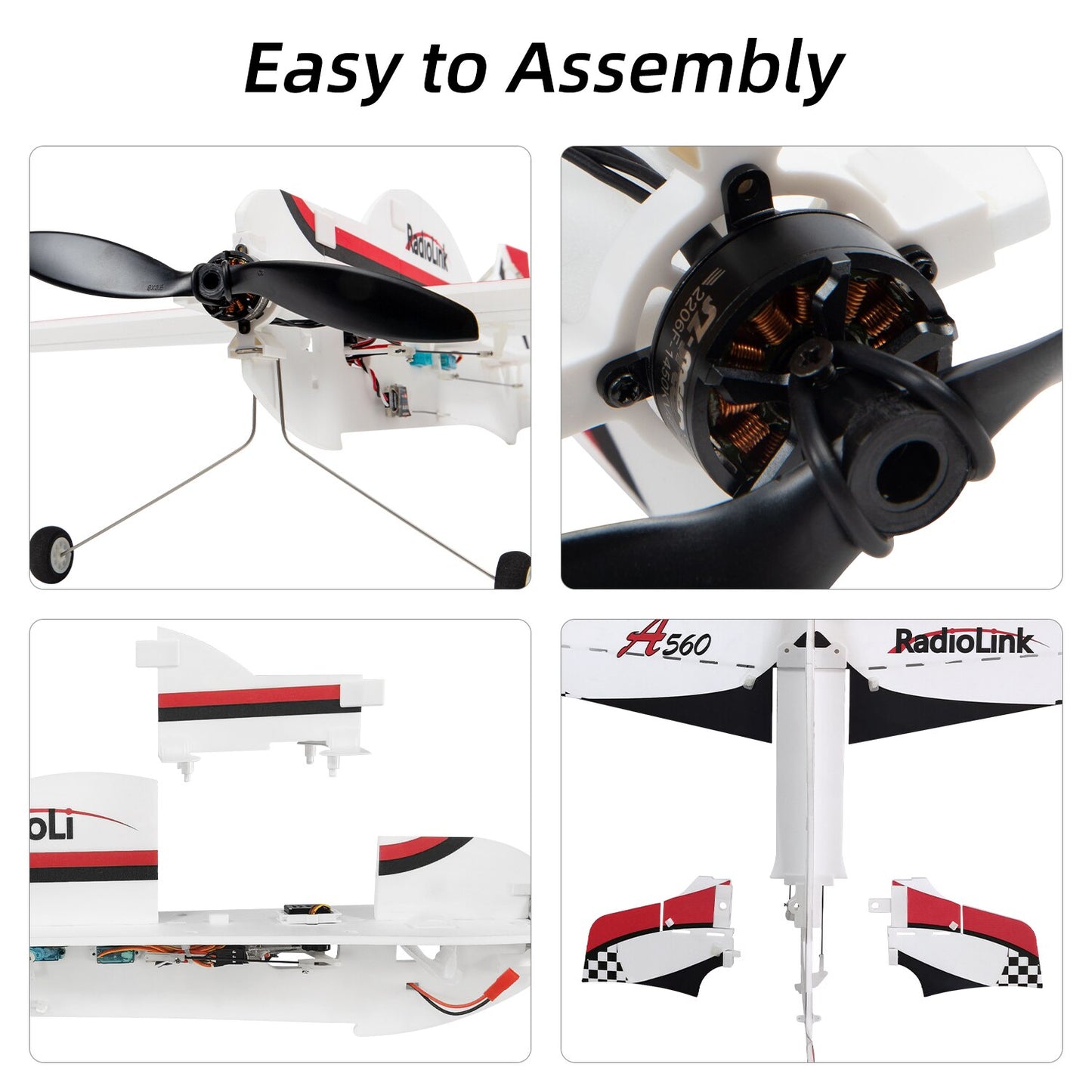

• READY TO FLY: The RTF version includes everything needed to get the rc airplane started, including 8 channels transmitter(built-in battery) and R8XM receiver (built-in telemetry of engine voltage ), 4 channels flight controller Byme-A, 2pcs 2S lipo and a balance charger, brushless motor and 15A ESC. Only requires few minutes to assemble fuselage.

• AIRPLANE VOLTAGE TELEMETRY: The receiver R8XM supports real-time telemetry model voltage to avoid the rc plane being out of control because of low voltage. The model voltage telemetry range is same as the control range, that is 4000 meters in the air. Telemetry of maximum 6S (25.2V) battery supported.

• 6 FLIGHT MODES: Stabilize/Gyro/Acrobat/Manual/Vertical(fixed wing & quadcopter) flight modes. One switch to easily change different flight mode, not only can meet the needs of people at different levels but aslo assist beginner to expert.

• 4KM of Control Distance: Remote controller T8S adopts the FHSS spread spectrum algorithm and 67 pseudo-random frequency hopping and has the excellent anti-interference performance to the multipath band and same frequency band, allowing multiplayer to compete at the same place synchronously with the flight distance up to 4000 meters.

• LONG Flying Time: The 2S LiPo battery allowing the rc plane to fly a long time about 20 minutes under level flight or minutes under vertical flight mode.

• Freestyle Flight: With Brushless motor, enabling the possibilities of different freestyles such as backward, rolling, loop, tumbling, super low flight.

• Dropping Resistance: The aircraft body is made by polypropylene, which ensures the lightness and the long flight time and is resistant to dropping.

• Endurable Body and Recycling Packing: The durable PP material ensures the plane lightweight and resistant from crash. The double layer and water splash carry bag make it easily to storage and protect the plane. Portable package to go with you everywhere.


A560 Specification:

• Model Type: A560

• Material: Polypropylene

• Compatible R/C: all R/C supported with SBUS/PPM signals

• Frequency: 2.4GHz ISM band

• ESC: FLYCOLOR 15A brushless ESC

• Propeller: GEMFAN 8038 props

• Servo: 9g Servo*1,  4.3g Servo*2

• Motor Specification: SZ-SPEED 2206F 1500KV brushless motor

• Flight Distance: 2KM

• Voltage Range: 7.4~11.1V (2S-3S lithium battery)

• Battery: 2S 600mah（Shipped separately due to shipping limit)

• Wing Dimension: 580mm

• Length: 560mm

• Weight: 139.5g (without battery)

• Package Dimension: 61*32*22cm

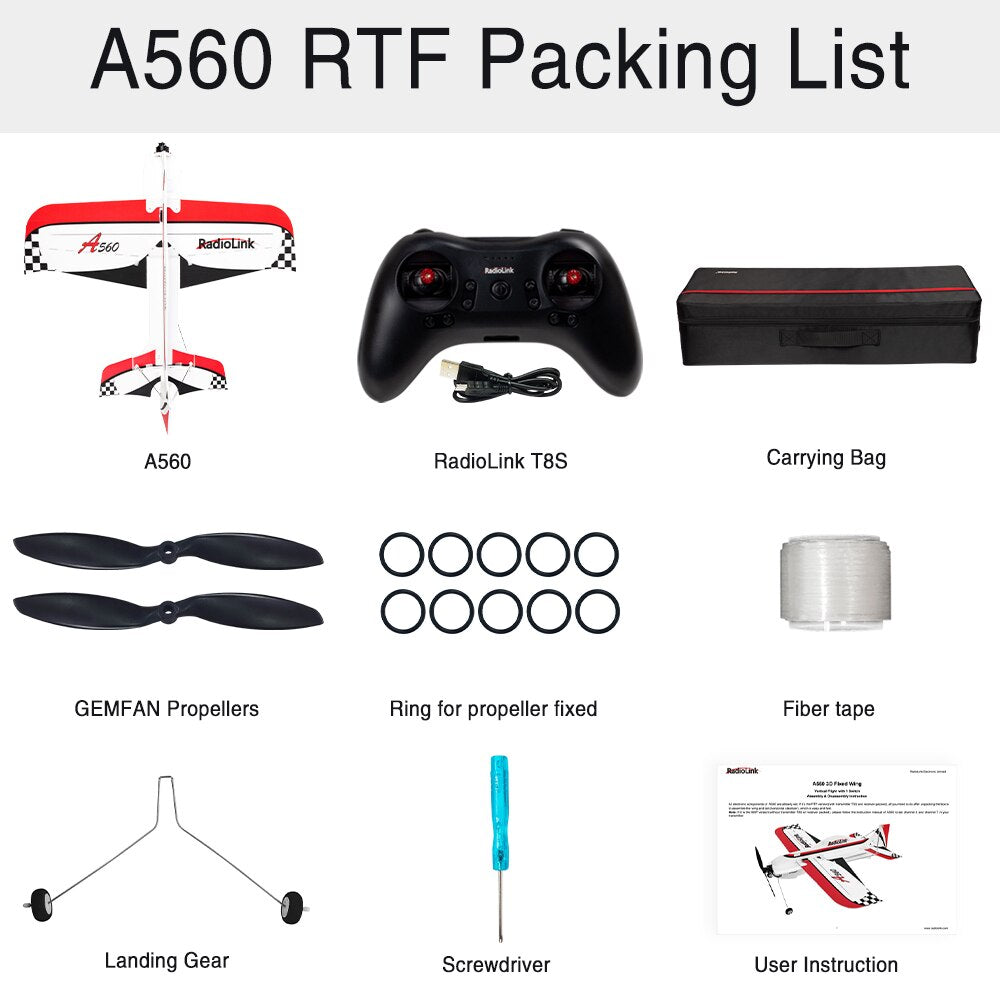

RTF Package List(refer to picture):

• A560 Plane x 1

• Flight controller x 1

• Propeller x 2

• 8G Servo x 1

• 3G servo x 2

• Motor x 1

• ESC x 1

• T8S Mode1 or Mode2 x1

• R8XM receiver x1

• 2S 600mah battery x1（Shipped separately due to shipping limit)

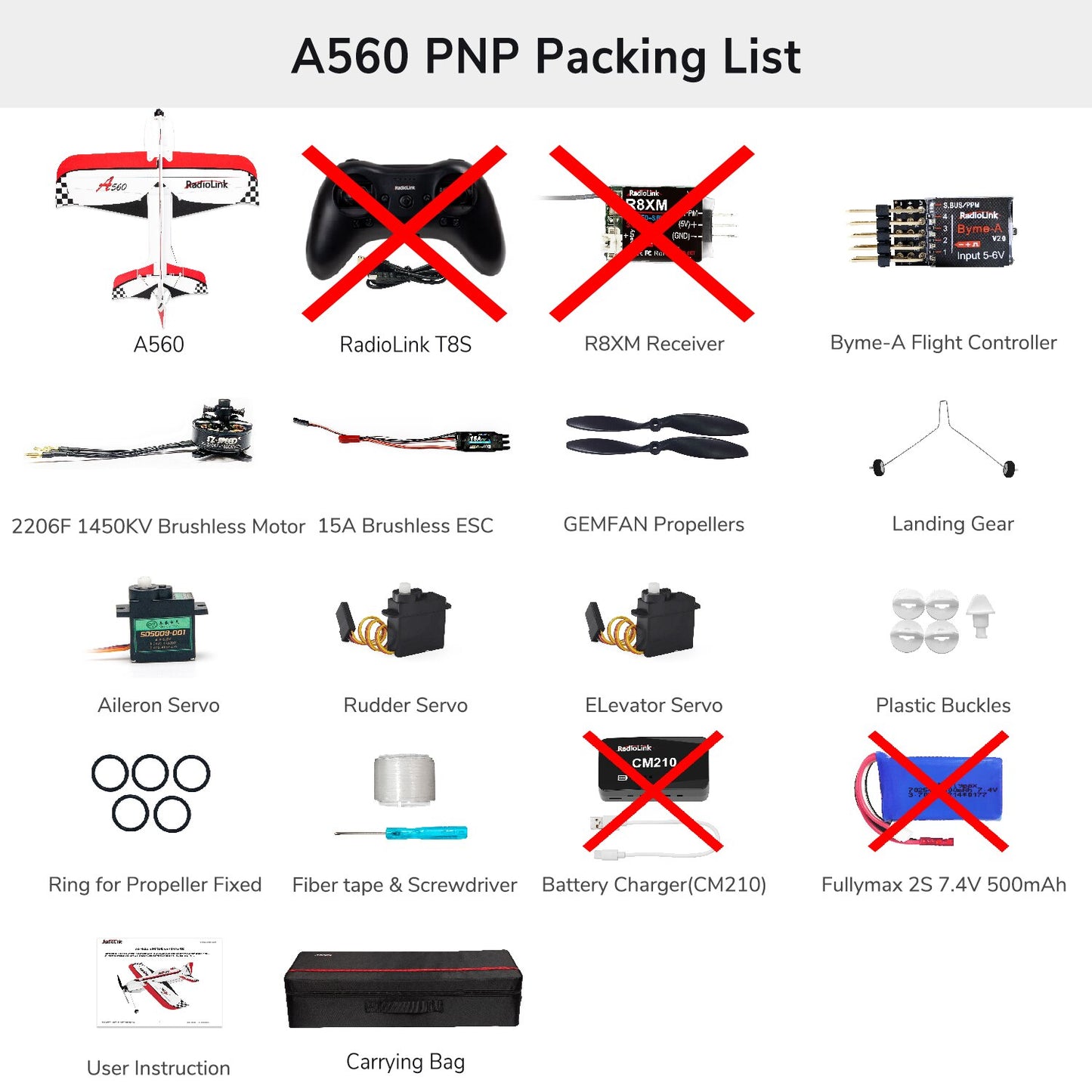

A560 PNP Package List:

• A560 Plane x 1

• Flight controller x 1

• Propeller x 1

• 8G Servo x 1

• 3G servo x 2

• Motor x 1

• ESC x 1

• NOT Included Battery

Q: Why the battery should be shipped separately?

A: Since the battery is classified as dangerous goods and is required to be transported through other special shipping ways, so it cannot be shipped with the plane together.

Q: Can I purchase the battery separately?

A: Yes, here's the purchase link of the 2S battey: https://www.aliexpress.com/item/1005002233531376.html

Recommend battery parameter:

L*W*H: 5*2.5*1.7cm

Due to the speciality of the battery, not all countries have shipping way support ship the battery, please kindly contact us and we will provide you the best solution, hope your understanding!

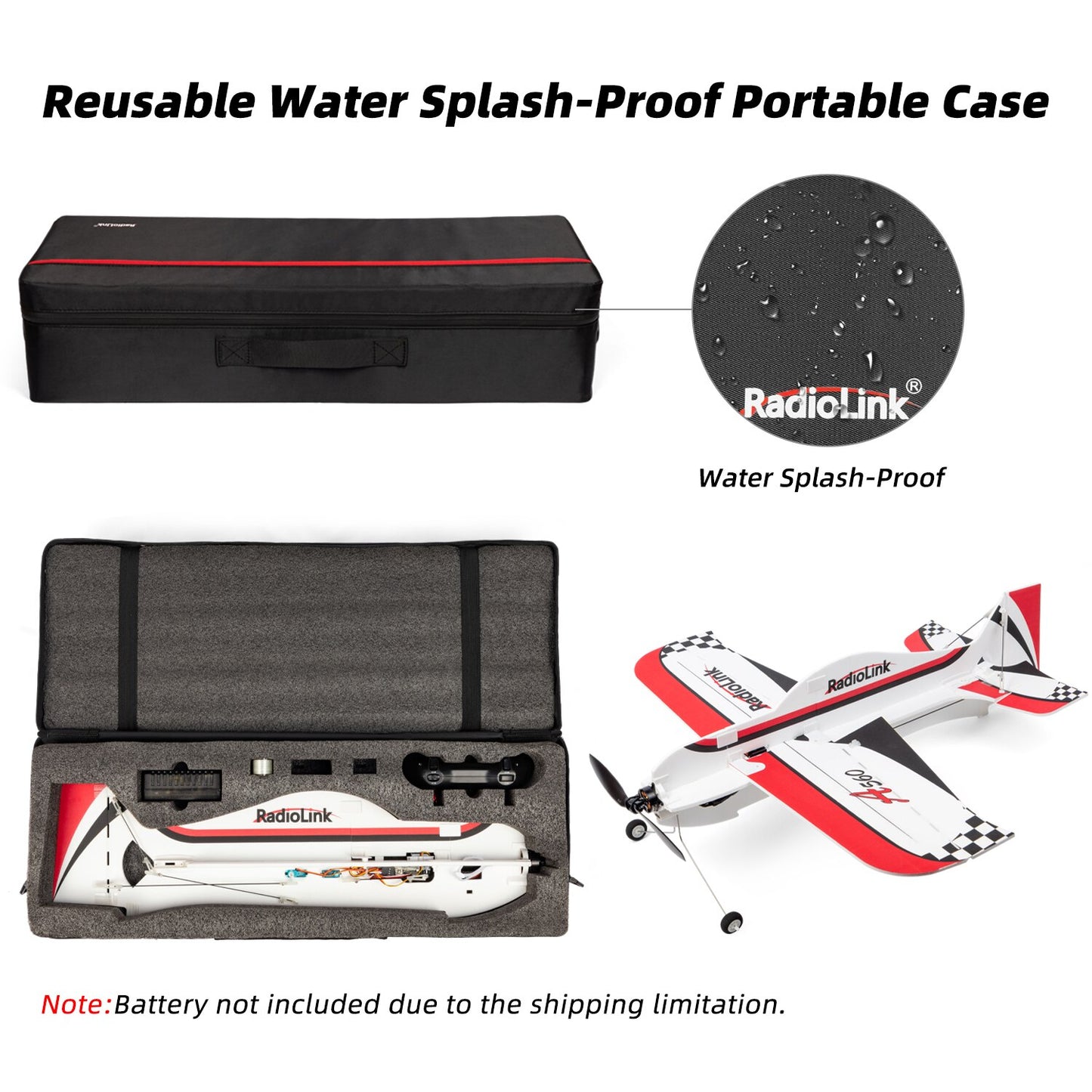

New Upgrade & Waterproof Packaging Bag

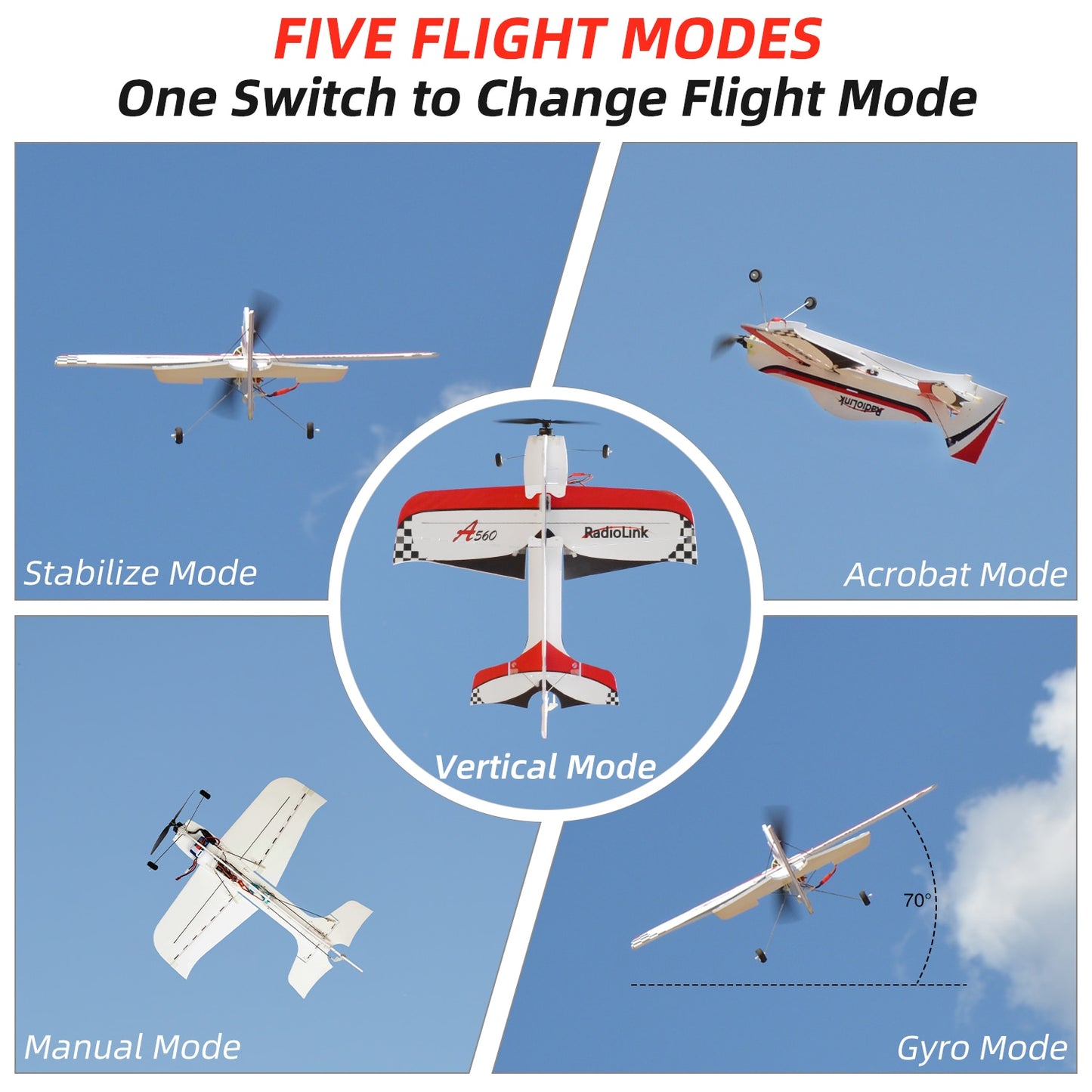

FIVE FLIGHT MODES One Switch to Change Flight Mode 560 RadioLink Stabilize Mode Acrobat Mode Vertical Mode 708 Manual Mode Gyro Mode qunoi

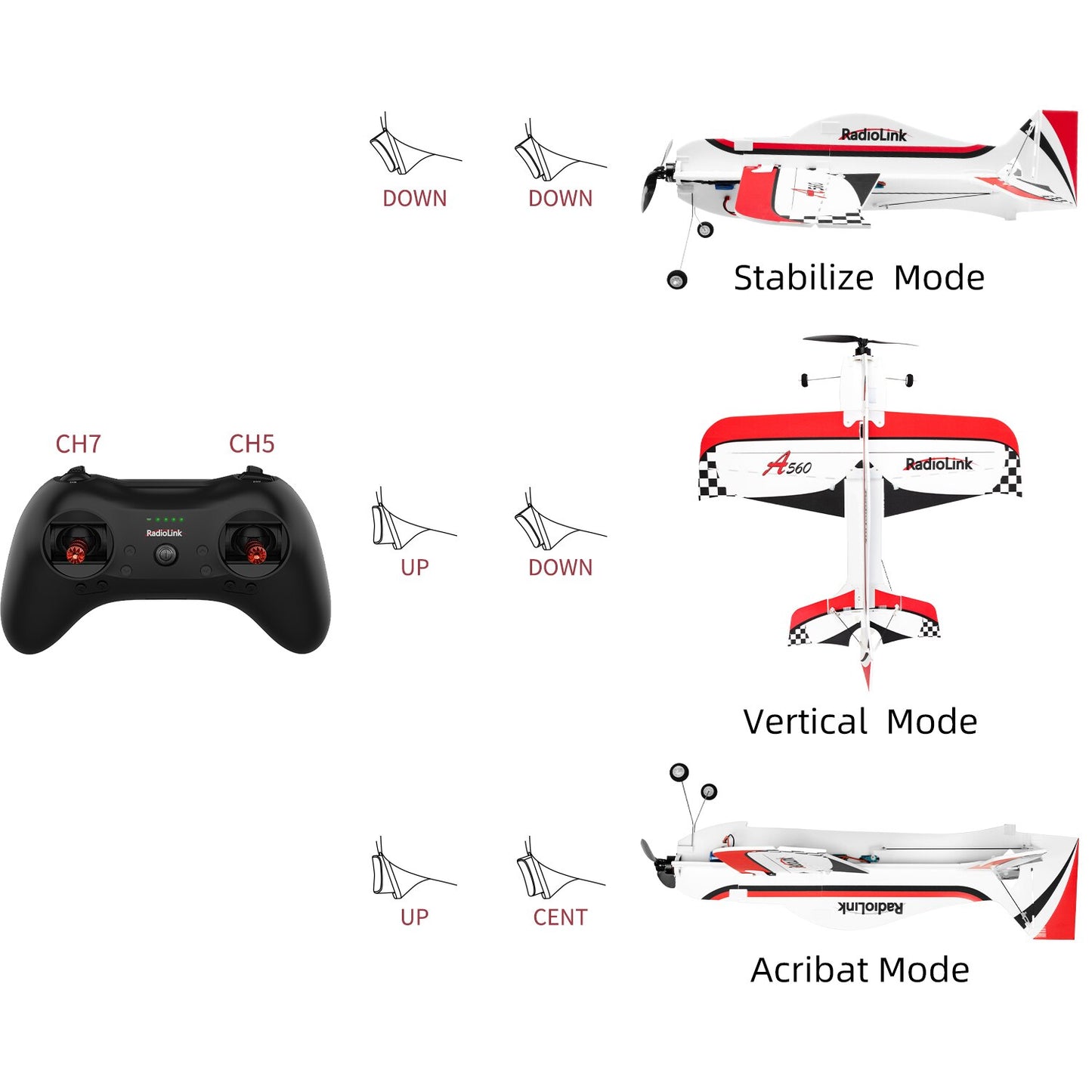

RadioLink DOWN DOWN Stabilize Mode CH7 CHS 560 RadioLink RadioLink Up DOWN Vertical Mode Xui7oiped UP CENT Acribat Mode

4-Channel Flight Controller Byme-A S. RadioLink 'BUS/PPM RadioLink byme-a V10 tn 6v In

Battery Recommend 25-35 LiPo size recommend: 1.9*0.9*0.6 inch(L*W*H), 0.88-1.2 0z 1.9in 0.6in 0.9in .
