Note:

According to the color name to select AT9S Pro mode:Mode 1 Right hand o rMode 2 Left hand

Radiolink AT9S Pro Version TX 10/12CH RC Transmitter Radio Controller Support TBS Crossfire CRSF Protocols for Racing Drone, Quadcopter, Fixed Wing, Helicopter, Car Vehicles and more (Mode 1/2)

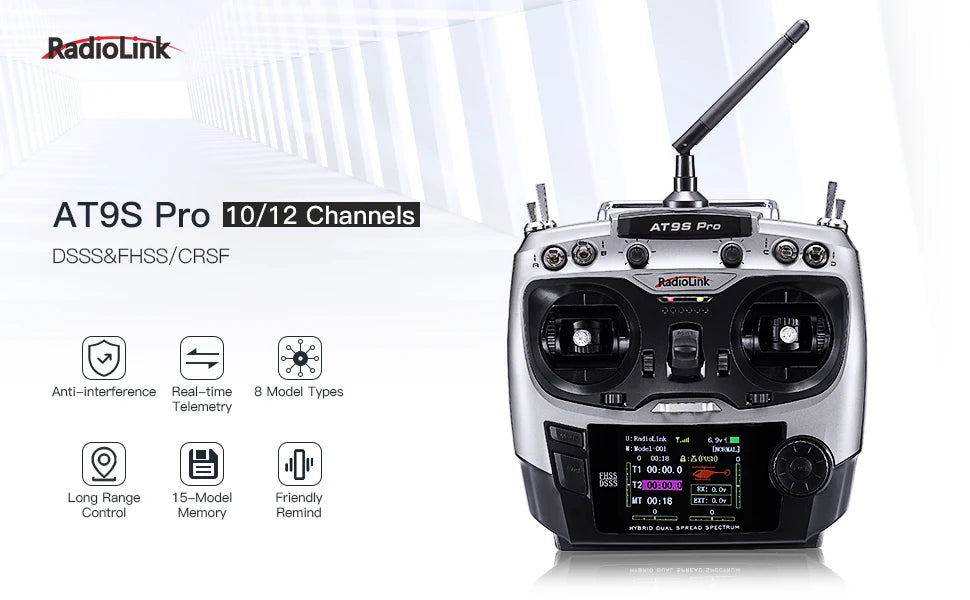

AT9S Pro Overview

DSSS* and FHSS* which reduce overall signal interference and allow the AT9S Pro to produce a highly constant and stable transmission signal present on all 10/12 channels.

Setting simplicity,Excellent Anti-interference, Real-time Telemetry, USB upgrade, Voltage Protection, 3ms fast response for 10/12 channels, outstanding range over 2.4 miles(4km) (actual control distance is according the local environment).

AT9S PRO Features:

Excellent Anti-interference: The rc transmitter with DSSS&FHSS working synchronously to keep the excellent anti-interference performance, only 3ms for 10/12 channels response.

CRSF Protocol Supported: On the basis of the RadioLink unique communication technology of DSSS and FHSS, CRSF protocol from Blacksheep is added. Compatible with TBS Crossfire 915 module.

Compatible with SBUS, PPM, PWM and CRSF: With DSSS&FHSS protocol, SBUS, PPM and PWM can operate simultaneously for seamless user control. With CRSF protocol.

Real-time Information: When PRM-03 module works with flight controller, model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch and distance are displayed on the LCD screen display.

Adapts to Most of Types of Aircraft: Easy to understand user software makes quick work of changing aircraft types,  Rotary Wing, Fixed Wing, Glider, Multicopter, Car, Boat, Robot.

USB Based Update: Transmitter is easily updated with the latest firmware by USB cable to connect PC.

Voltage Protection System: RadioLink's voltage protection software ensures vital components are protected from a reverse polarity connection.

Support for Universal Battery: JST 2Pin connector supports multiple type batteries: 8 pcs AA or 2s-4s LiPo battery (Not included batteries). A 3S 1800mAh liPo battery can work more than 12 hours.

AT9S ProTransmitter Specifications:

• Channels: 10CH/12CH

• Mode: Mode 1 or Mode 2

• Signal: SBUS/PWM/PPM/CRSF

• Frequency: 2.4GHz ISM bands (2400MHz to 2483.5MHz)

• Channel Bandswidth: 5.0 MHz

• Spread Spectrum: DSSS&FHSS/CRSF

• Modulation Mode:QPSK

• Adjacent Channel rejection: >38dbm

• Transmission Power:

  DSSS & FHSS <100mW(20dbm)

  CRSF: 10mW/25mW/100mW/500mW/1W/2W(Optional)

• Operating Current: DSSS&FHSS < 90mA@12V

• CRSF Depends on the transmission power select

• Operating Voltage: 7.4~18.0V

• 4096 Section Precision

• Screen: 2.8 inches 16 colorful screen, 240*320 pixels

• Channel: 12 channels , all 12 channels are customized

• Size: AT9S Pro 183*100*193mm

• Weight: 0.88kg

• Control Range:4 kilometers in the air (Maximum range is tested in an unobstructed area free of interference)

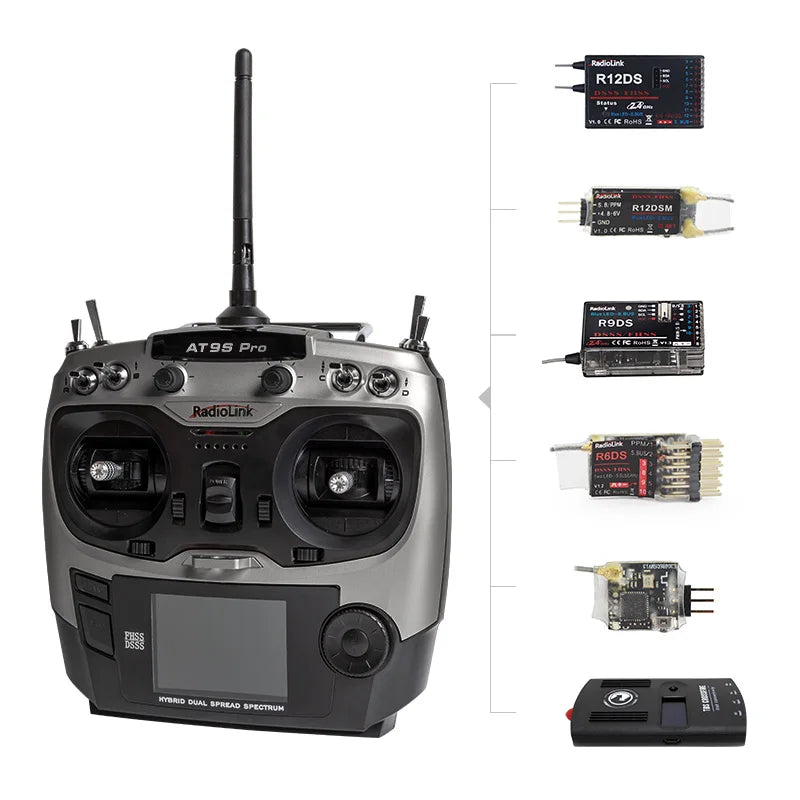

• Compatible receivers:

  12CH - R12DSM, R12DS,

  10CH- R9DS, R6DS,R6DSM

  CRSF Protocol: Receiver from BLACKSHEEP

R9DS Receiver Specifications

• Signal: SBUS,PWM

• Channel: PWM 9 channels, SBUS 10 channels

• Control Distance: 900 meters on ground, 3400 meters(2.11Miles) in the air(Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).

• Working Voltage: 4.8-10V

• Working Current: 38-45mA(input voltage: 5V)

• Size: 43*24*15mm

• Weight: 11g

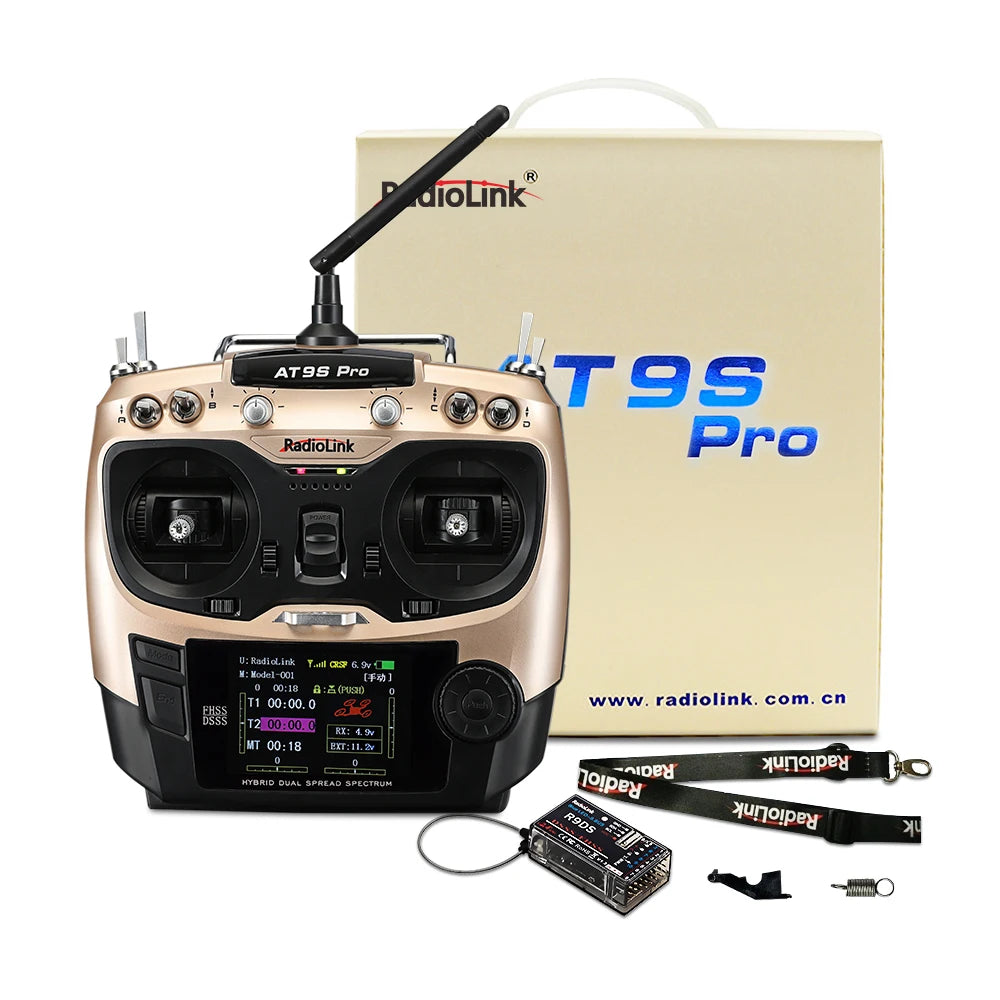

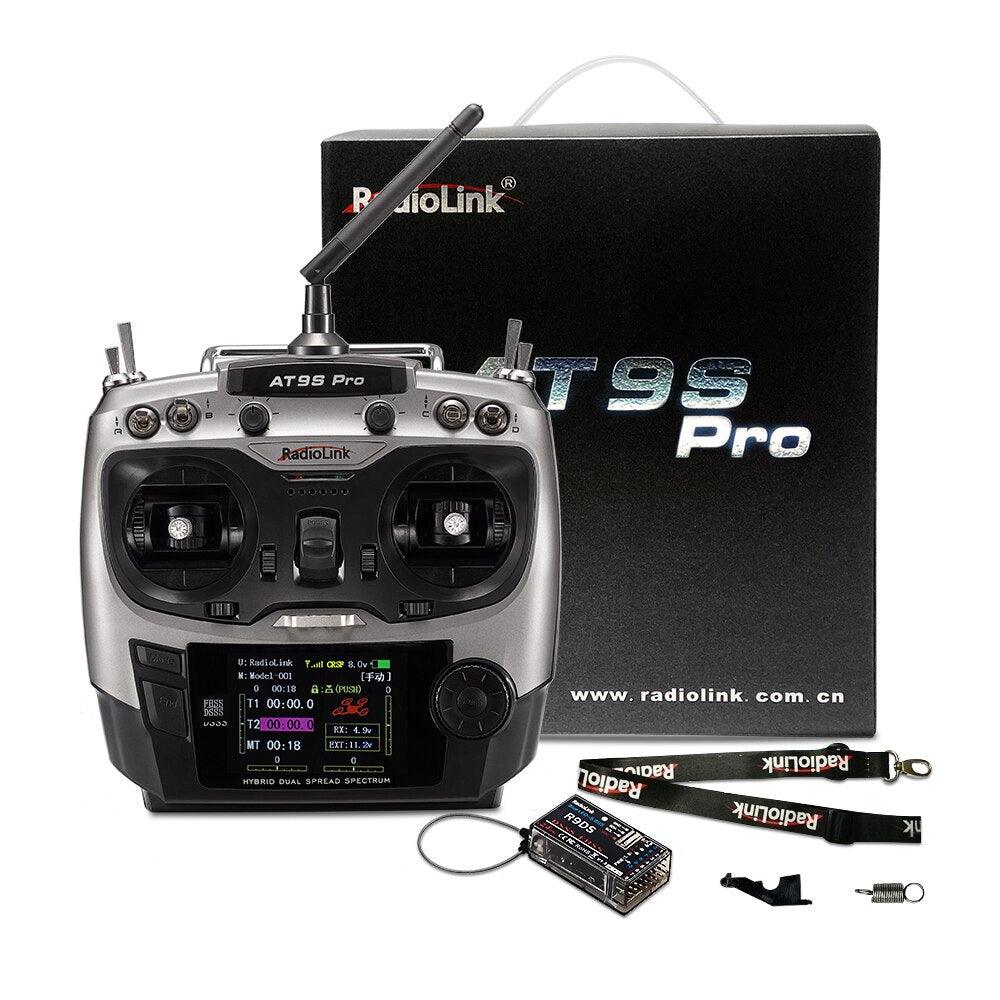

Package Included:

• AT9S Pro 1/2 Mode  x 1

• R9DS Receiver x 1

• Radiolink Lanyard x 1

• Mode 1/2 Changing Parts x 1

• Simple User Manual x 1

Note: If you need manual in detail, here's the official online manual:

http://radiolink.com/at9spro_manual

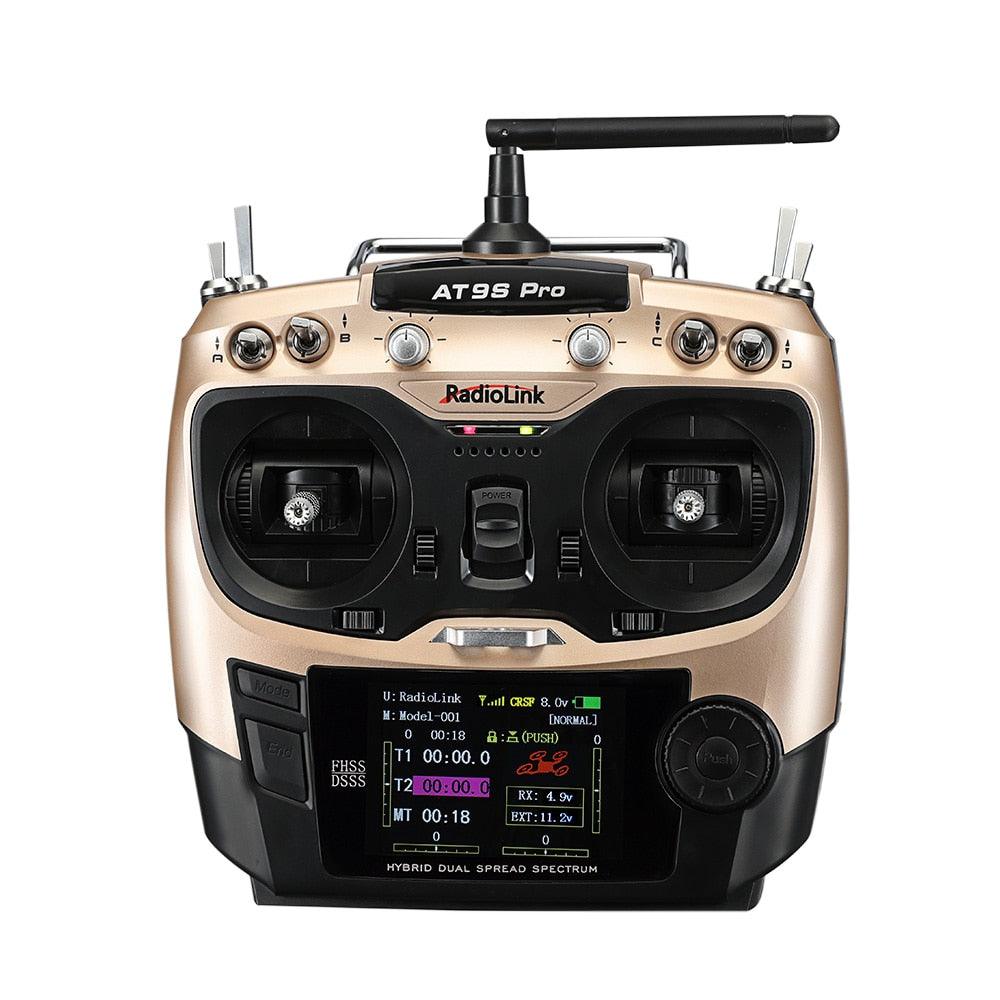

AT9S Pro Over View

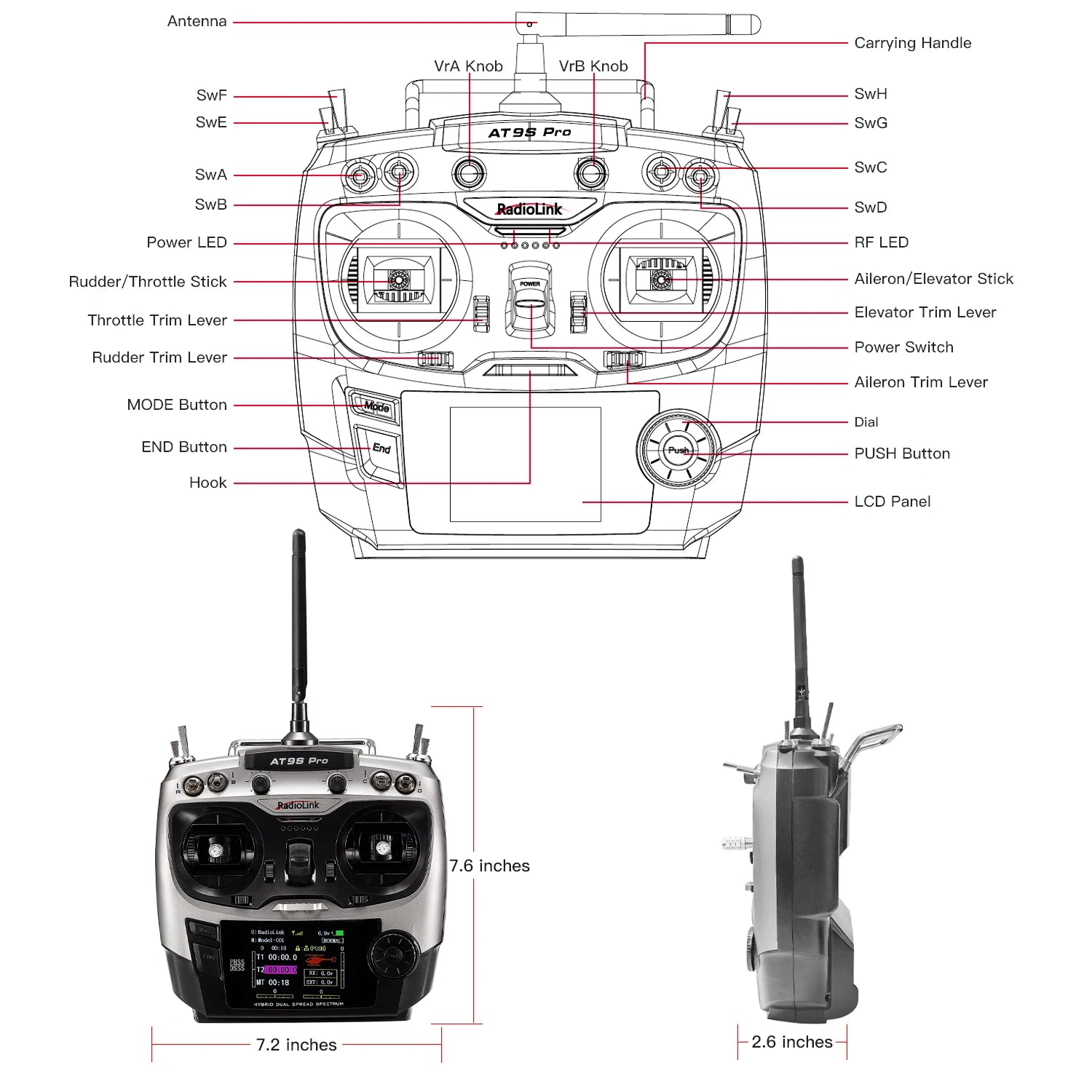

Button Introduction:

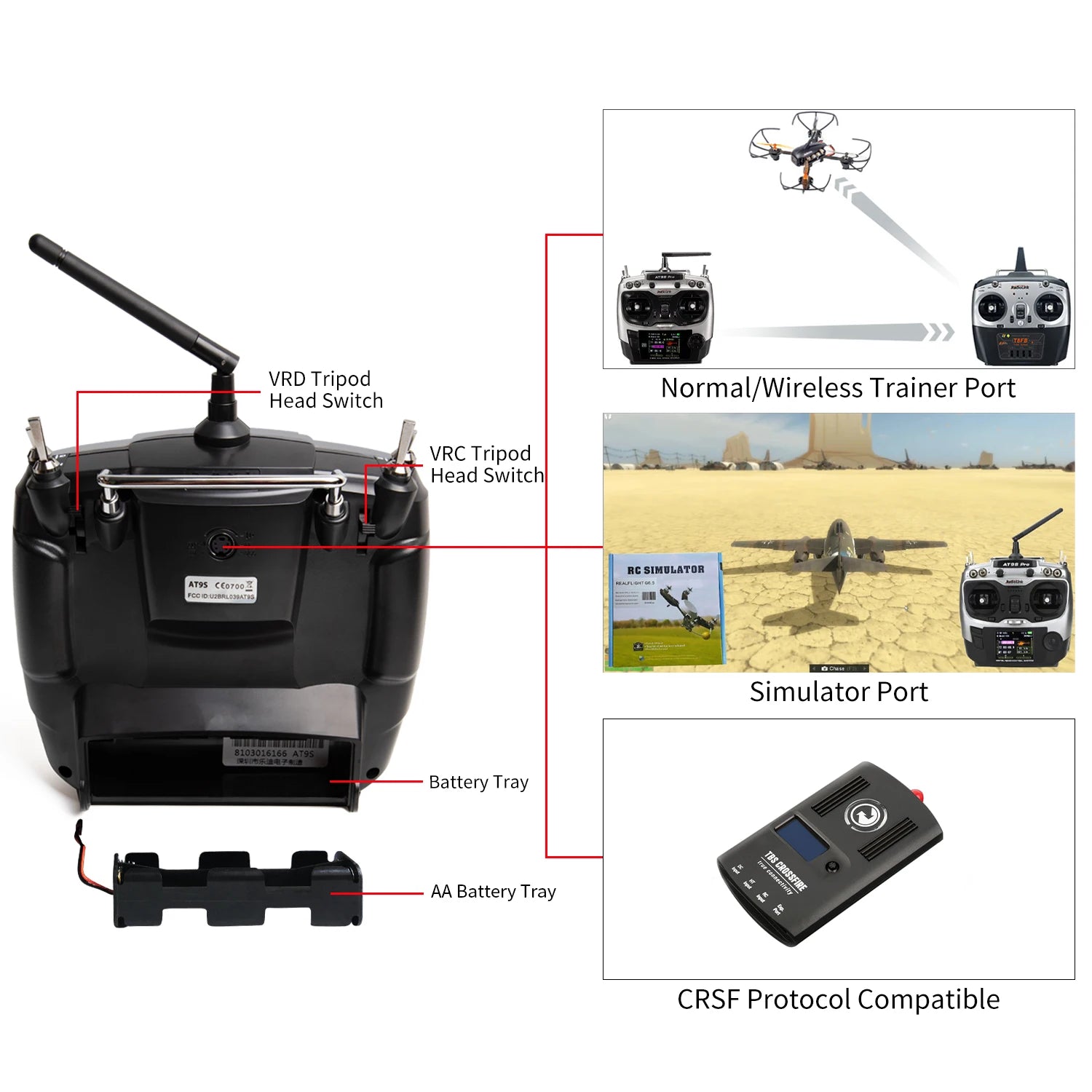

3 In 1 Multi-function Port:

Support wireless training & most of simulator & TBS crossfire protocol

Up to 4000 Meters Control Distance in the Air:

The actual distance is up to the environment

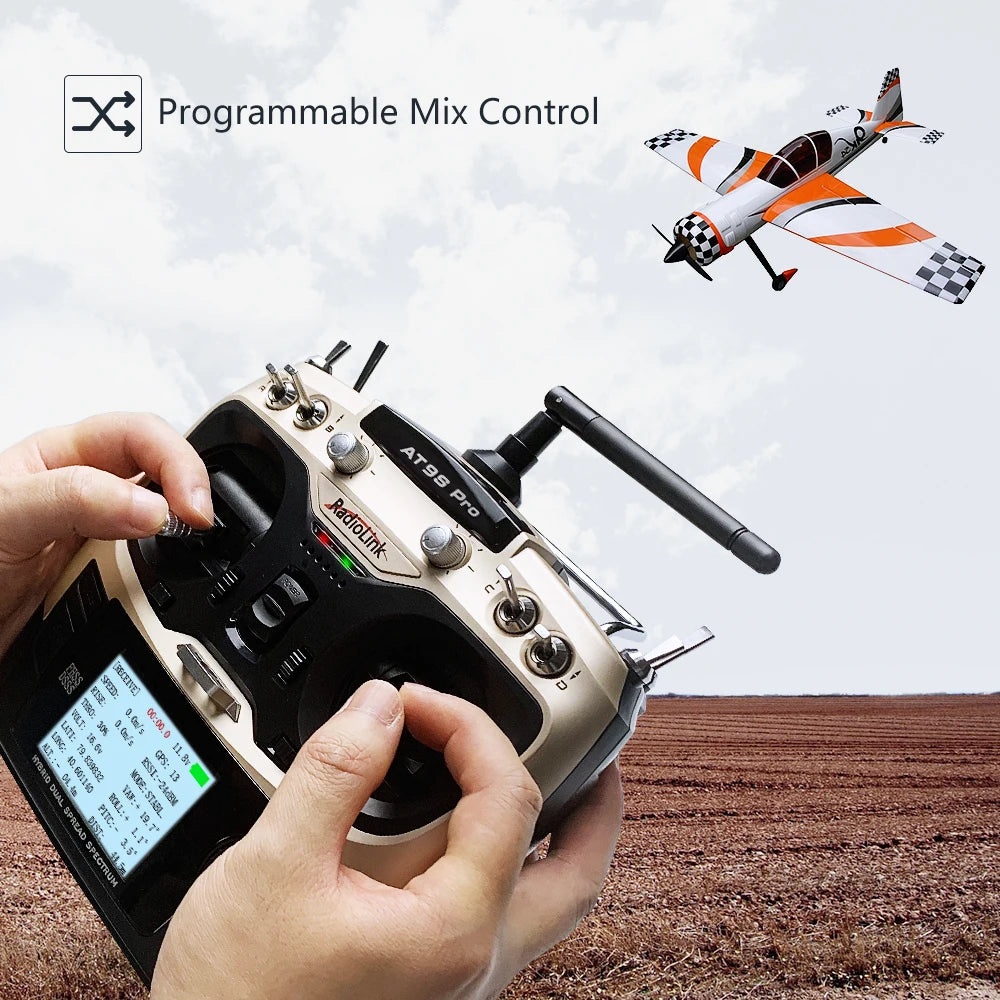

Programmable Mix Control:

All twelve channels can be programmed to any advanced setting.

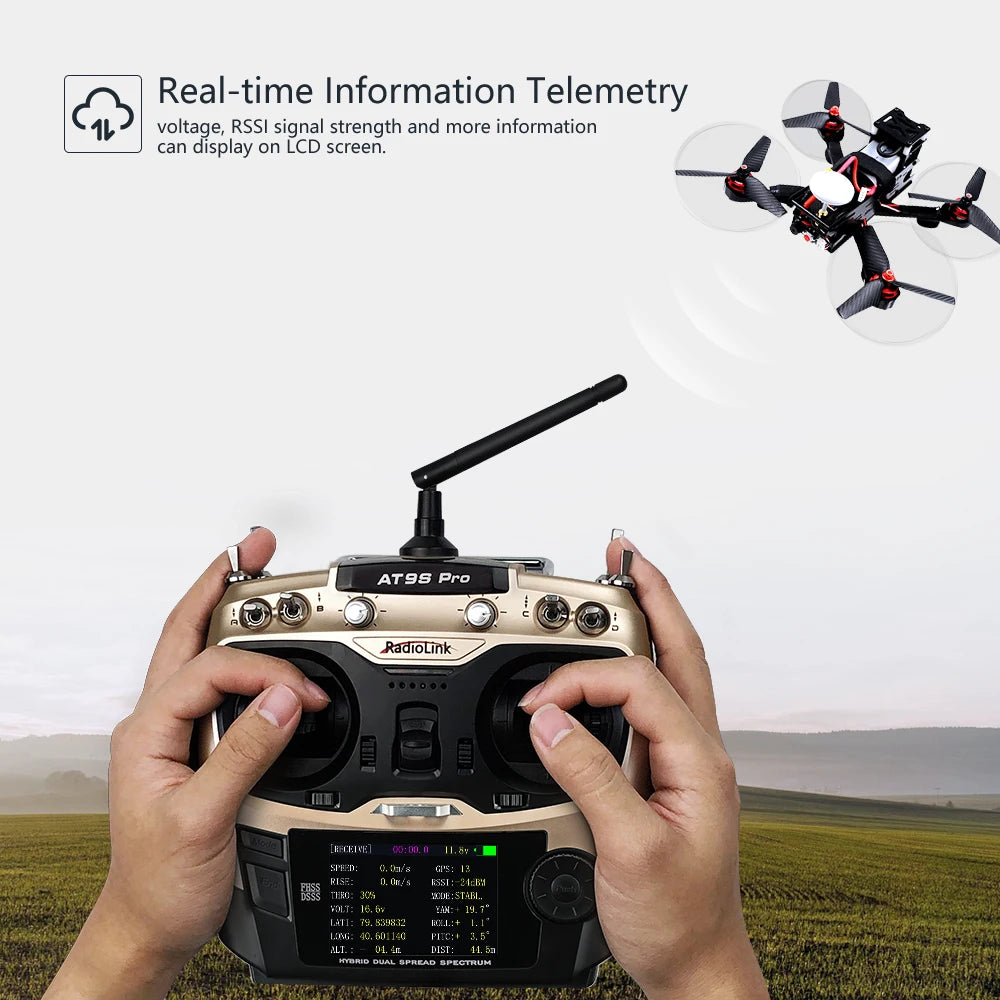

Real-time Information Telemetry:

Telemetry the battery voltage of aircraft, RSSI signal, transmitter and receiver voltage, ect.

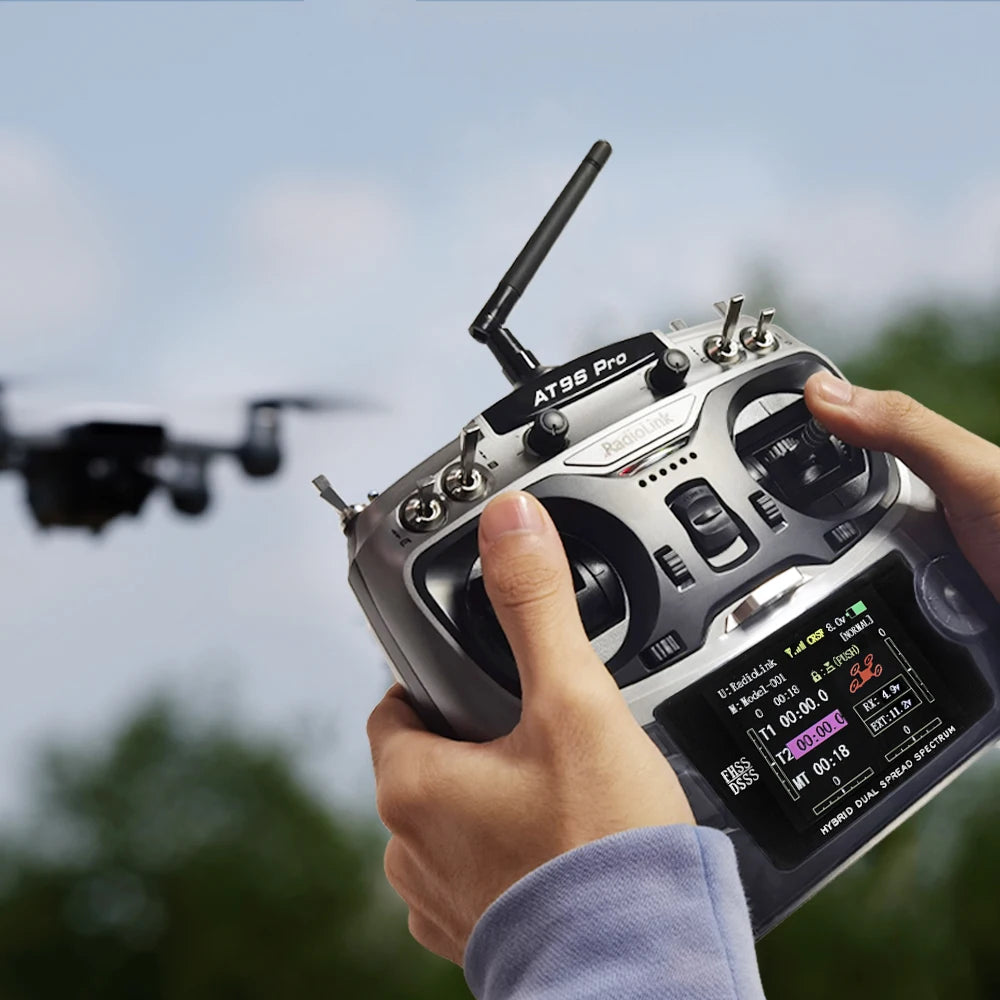

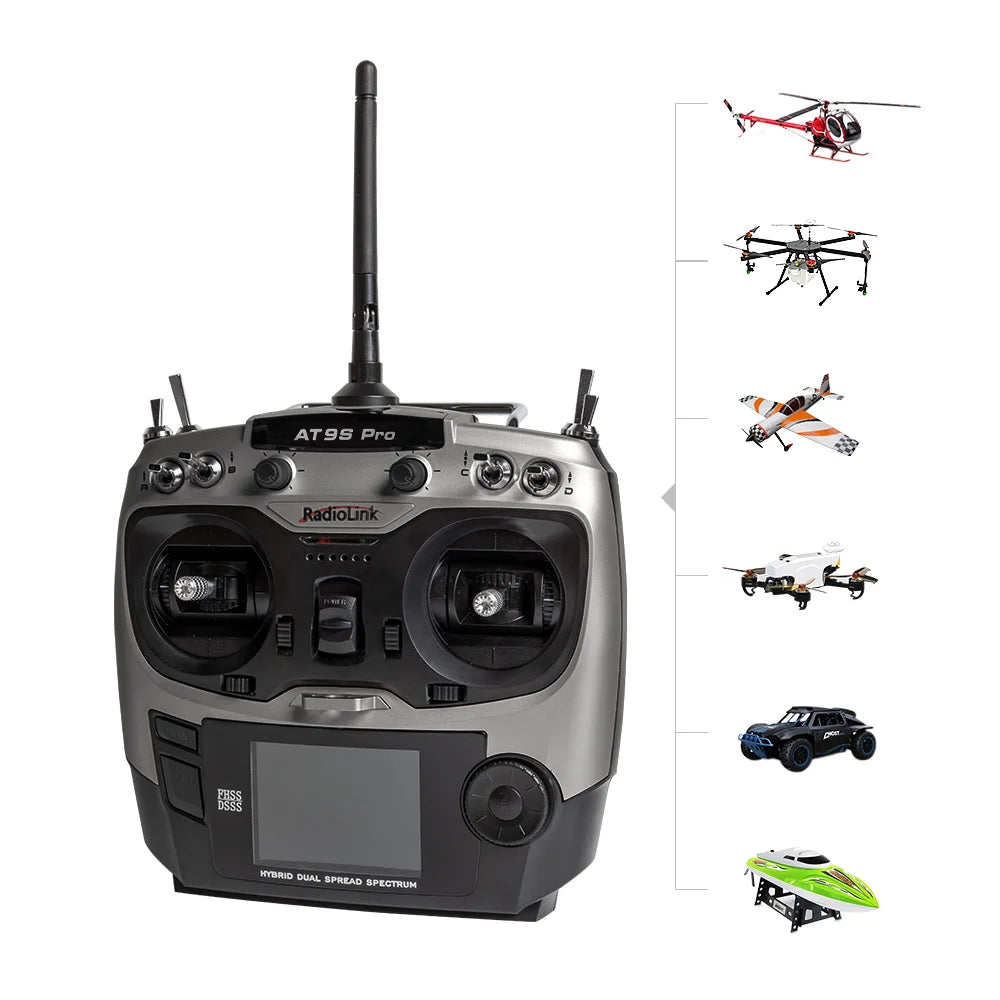

Suitable for Multiple Models:

Drone, Quadcopter, Fixed Wing, Helicopter, Car & Boat Vehicles and more.

Superb Ergonomics:

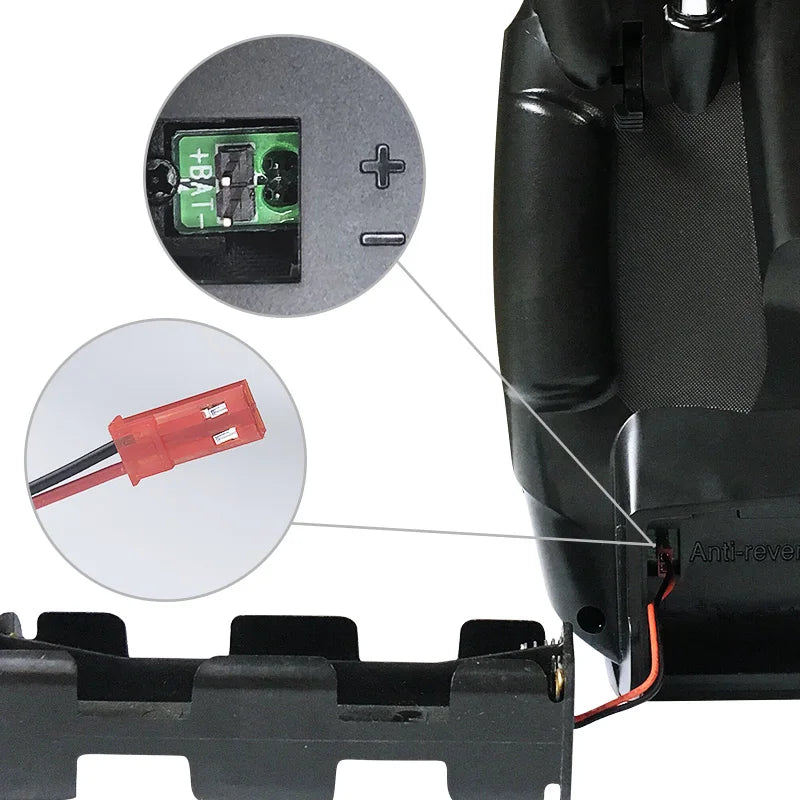

Anti-polarity Connect Protection:

It keep your transmitter safet even if you accidentally connect the wrong positive and negative poles.

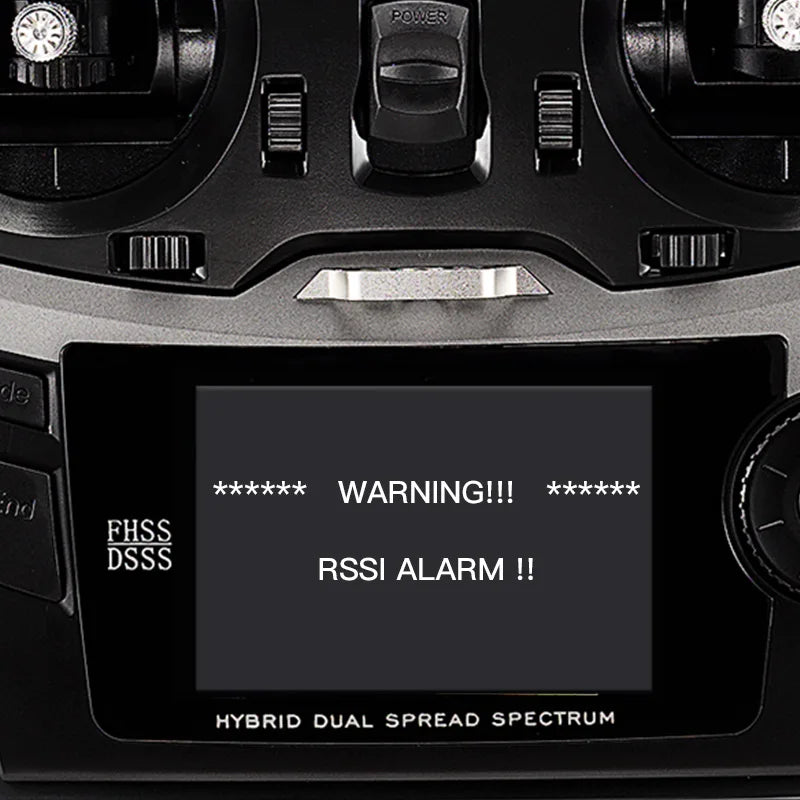

Friendly Warning Alarm:

Low RSSI, low voltage and throttle position alarm, with DD sounds, vibration and words remind you on outdoor readable LCD.

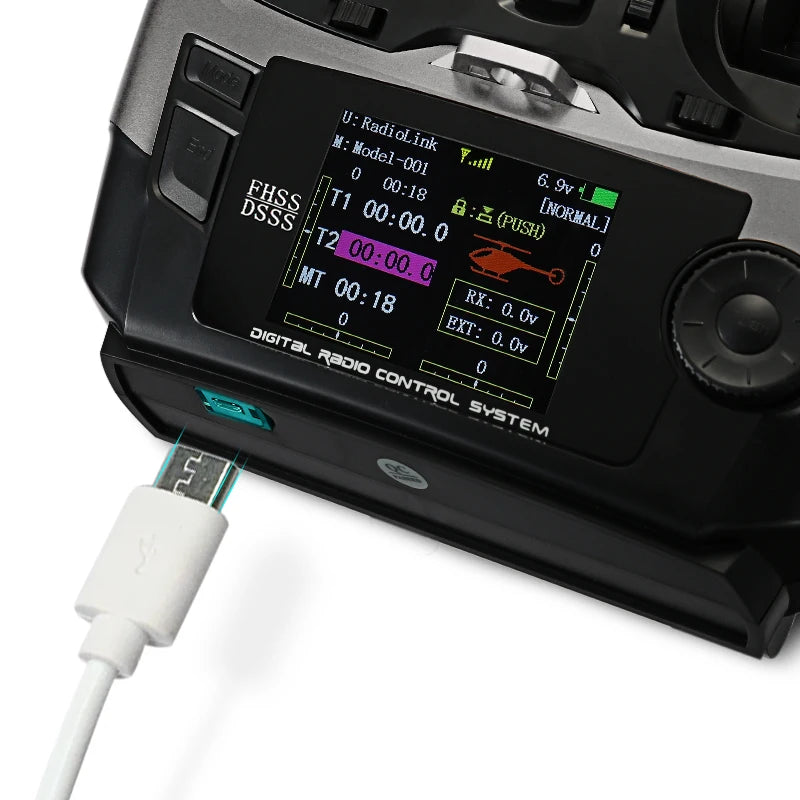

USB Upgrade:

Easy upgrade by USB cable.

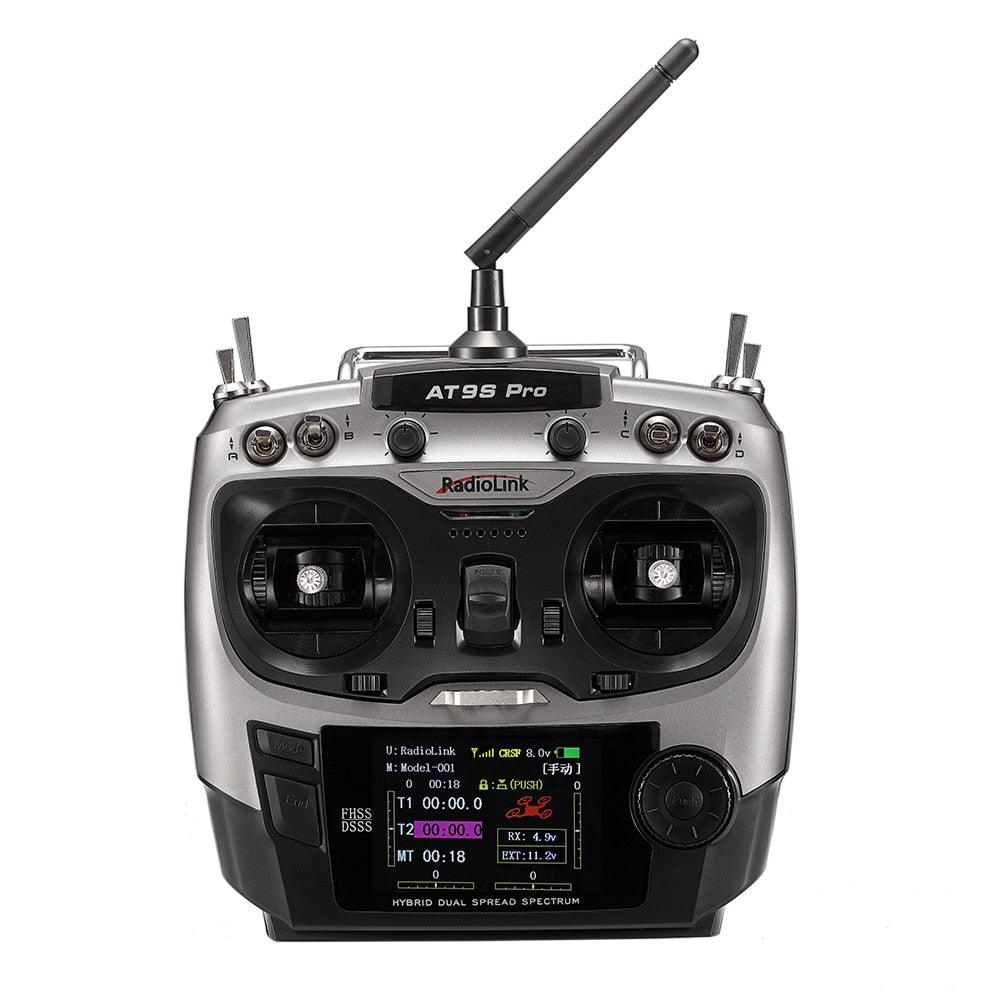

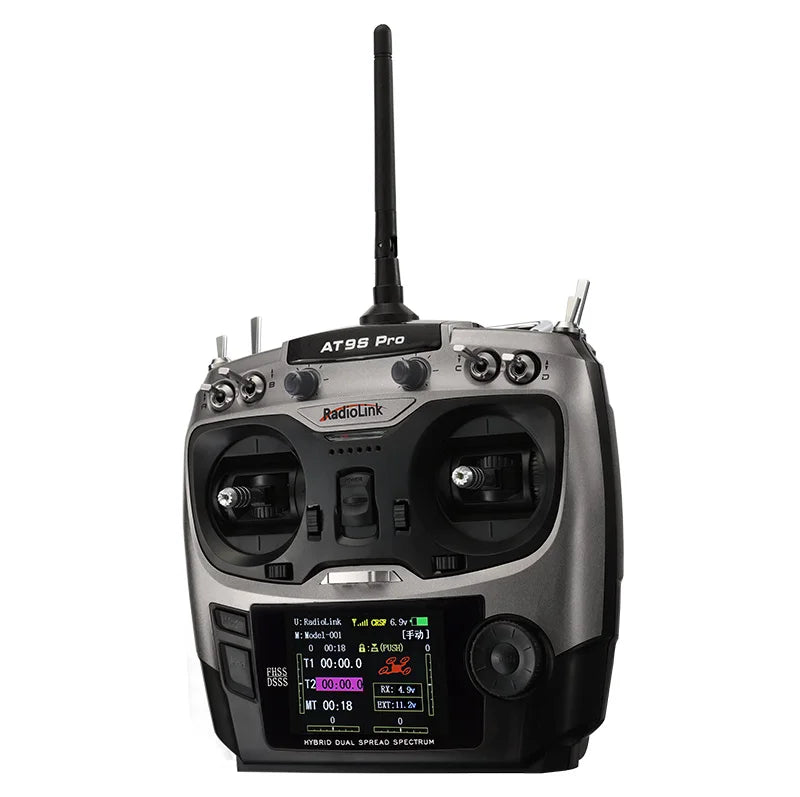

Product Color Show:
