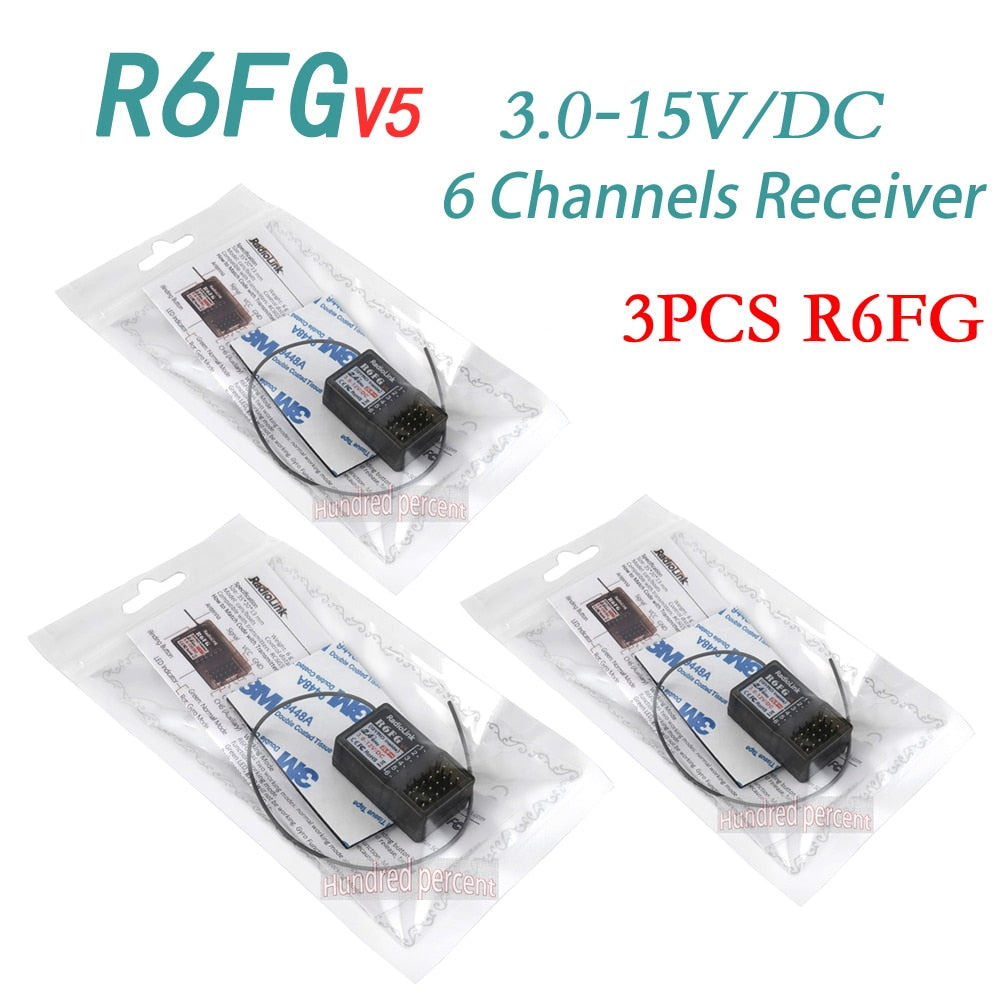

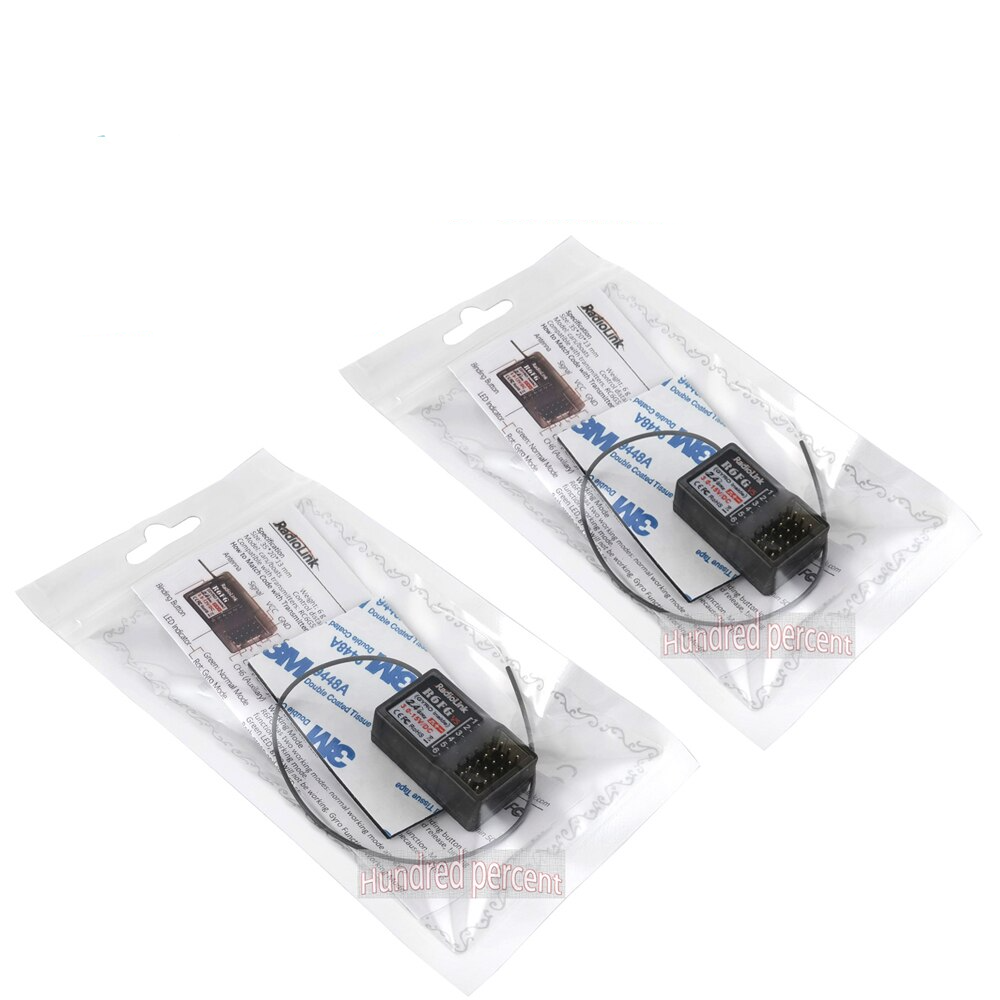

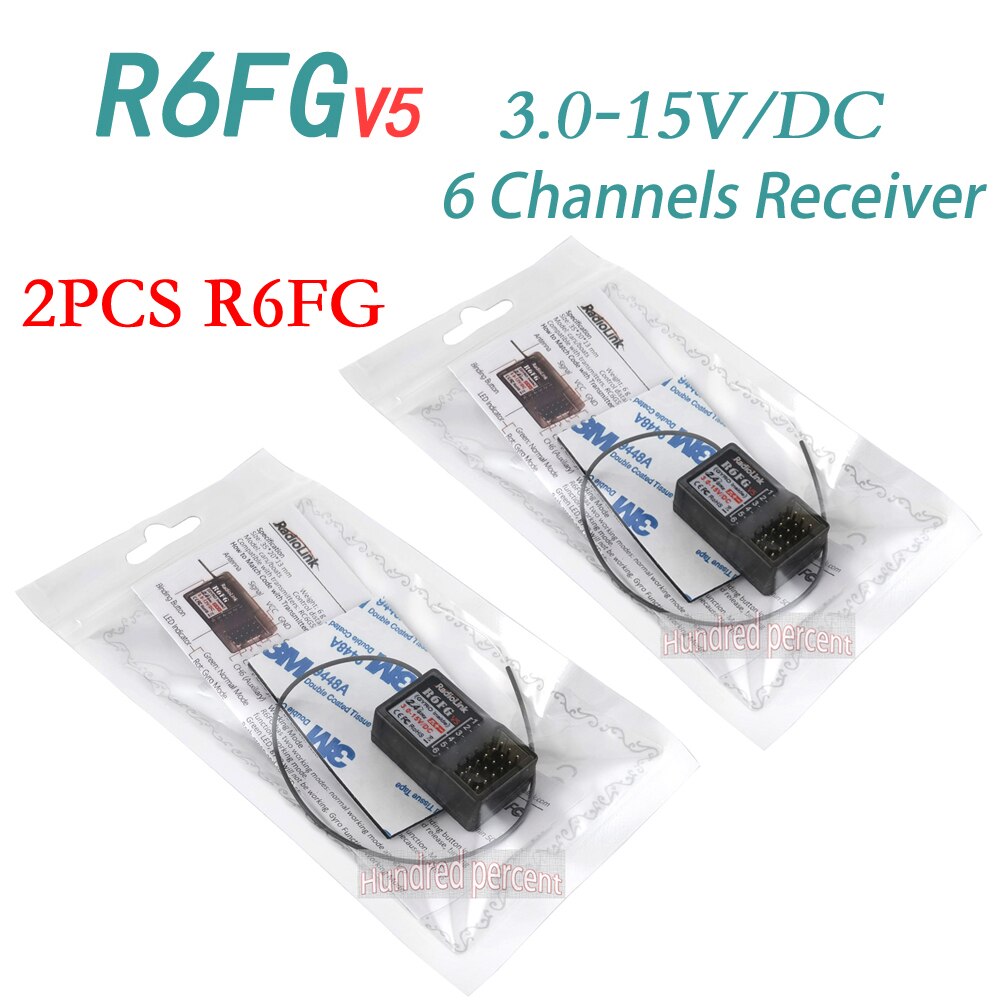

Radiolink RC Receiver R6FG  SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Size: 35*20*13mm

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y,14+y

RC Parts & Accs: Receivers

Quantity: 1 pcs

Plastic Type: ABS

Origin: Mainland China

Model Number: R6FG

Material: Plastic

For Vehicle Type: Cars

Brand Name: RadioLink

R6FG Features:

Attention: R6FG V5 default have not turn on the gyro function. Make sure the R6FG keep motionless when power on it, because the R6FG will do the self-test.

Working Mode：

1.Normal Working Mode-- Green LED, gyro will not working.

2.Gyro Function Working Mode-- Red LED on indicate.
3.Quick press the ID SET switch 3 times within 1 second, the LED change from green to red means gyro function has turn on.

R6FG Receiver Specifications:

• Channel: 6

• Model: Cars/boats

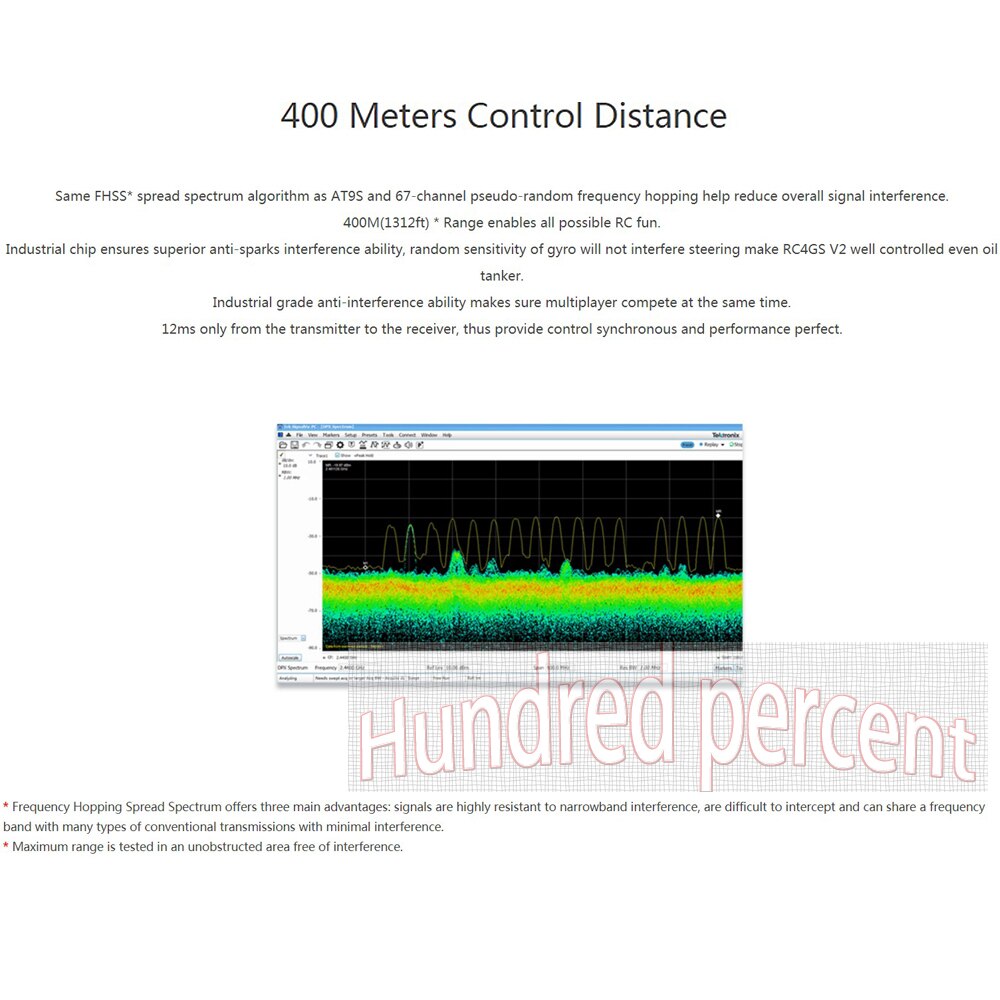

• Control Distance: more than 400m

• Spread Spectrum: FHSS

• Antenna Length: 200mm

• Work Current: 30mA

• Work Voltage: 3~15V DC

• RF Power: <10dbm

• Channel Resolution: 4096

• Size: 3*2*1.3cm

• Weight: 6g

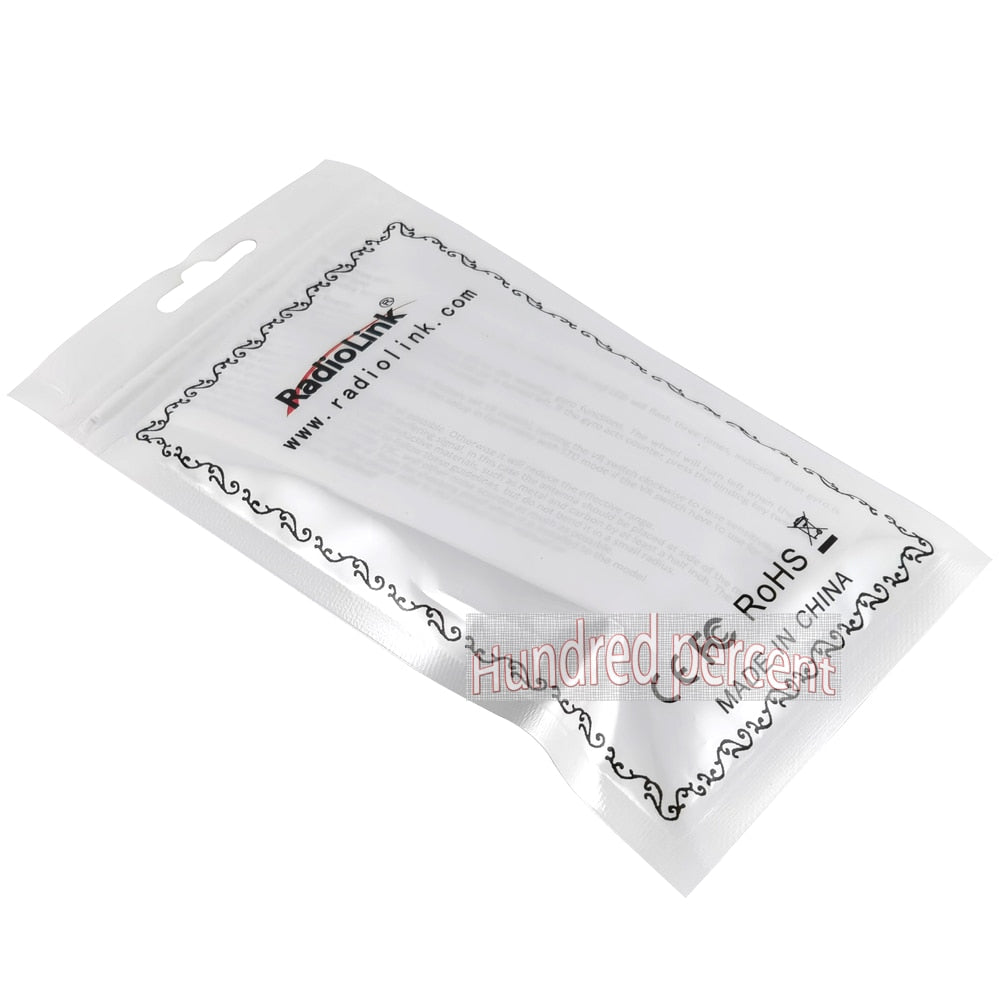

Package Include:

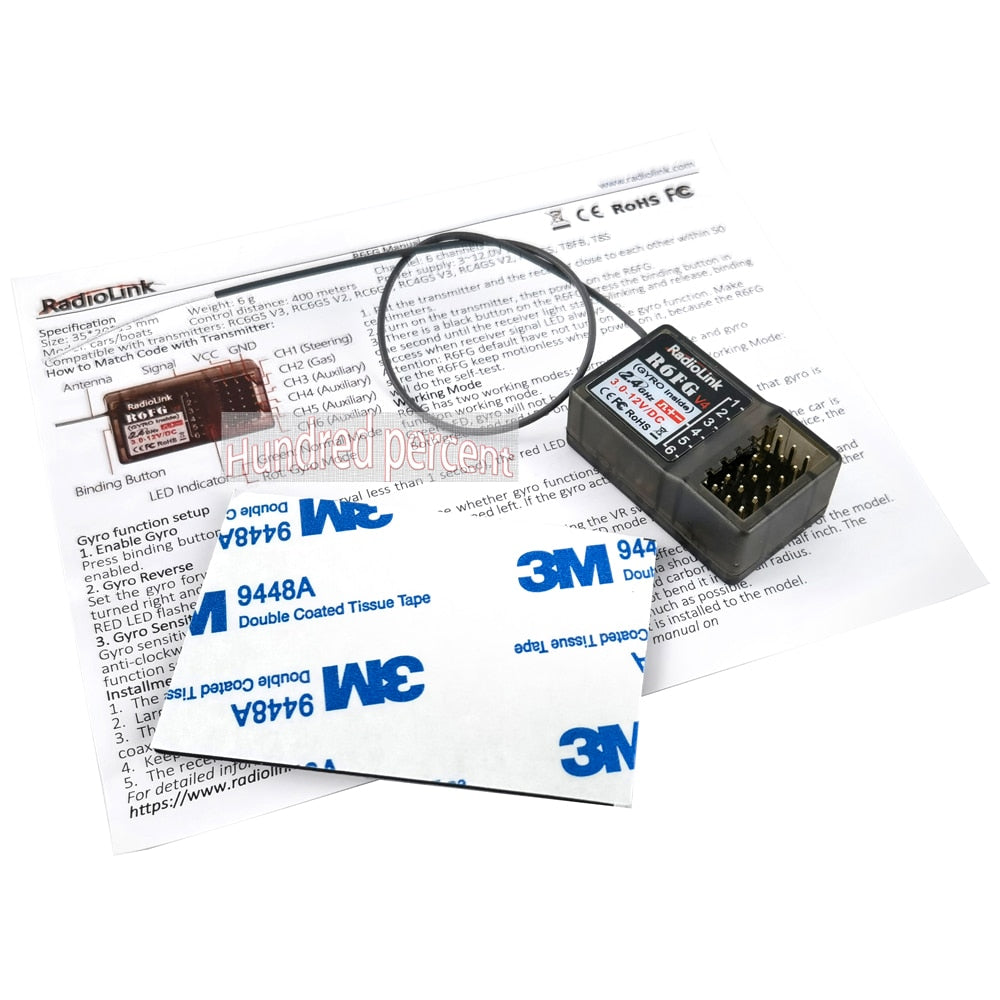

• R6FG Receiver x 1

fC Zce 733 Zv3 400 Vz, te Jneteth n Ae Ci7C cars 041 R6F G How rethe the king 0 Will ACE,thve JHundredhplercent) LED 65, aner BXF the lett . the inch: 944 3M" Doul anssi allenesi we 3N Rohs e c 78 .

The Radiolink RC Receiver R6FG operates on the 2.4 GHz ISM band (24.00 MHz to 2483.5 MHz), has a compact size of 35 x 20 x 13 mm (1.38 inches x 0.79 inches x 0.51 inches), and requires a power supply of 3V DC. It features a high-resolution channel with 4096 steps, consumes an operating current of 30mA, and provides a control range of up to 400 meters (approximately 1312 feet).
