Radiolink RC6GS V3 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y

Origin: Mainland China

Model Number: RC6GS V3

Material: Plastic

Brand Name: NoEnName_Null

RC6GS V3 7 channels RC car controller with excellent performance will enhance your driving experience

Setting simplicity, Fast Response for 7 Channels, 30 Models Memory Storage, telemetry of Maximum 8S Vehicle Battery Voltage, One Key to Active Dual Mix Programmable Control and Steering Deviations, Cruise Control, USB upgrade firmware, Timer Funtion, Throttle Lock, Voltage Protection, ABS and fail-safe protection, 10 Subsidiary ID, outstanding long range up to 600 meters and more features. (Actual control distance is according the local environment).

RC6GS V3 is an ideal partner for all types RC cars and boats in the market including single-engine and twin-engine models such as Crawlers, Tanks, Caterpillars, Basher, RC Short-Course Truck, RC Crawler, Drifting, Gasoline RC Car, Mini RC Car, RC Monster Truck, Off-Road RC Car and other types of RC cars or boats.

RC6GS V3 RC Radio Features:

1.【Excellent Anti-interference】: Real pseudo random algorithm FHSS communication technology makes RC6GS V3 control distance up to 1900 feet (600 meters), and over 20 units of RC6GS V3 can work simultaneously at one place without any interference.

2.【Up to 600M Ground Distance】: The control distance is up to 600 meters under the superior anti-interference ability.

3.【30 Models Memory Storage】: Up to 30 models memory can be saved and each model can be set up and named separately.

4.【Dual Programmable Mix Control】: Mix control can be programmed with any two channels and each mix control can be turned on by one switch. That's friendly for twin-engine vehicles, such as tanks, boats, 4 wheel steering car.

5.【Throttle & Steering Dual Rate】: Support one switch to active the servo deviations.

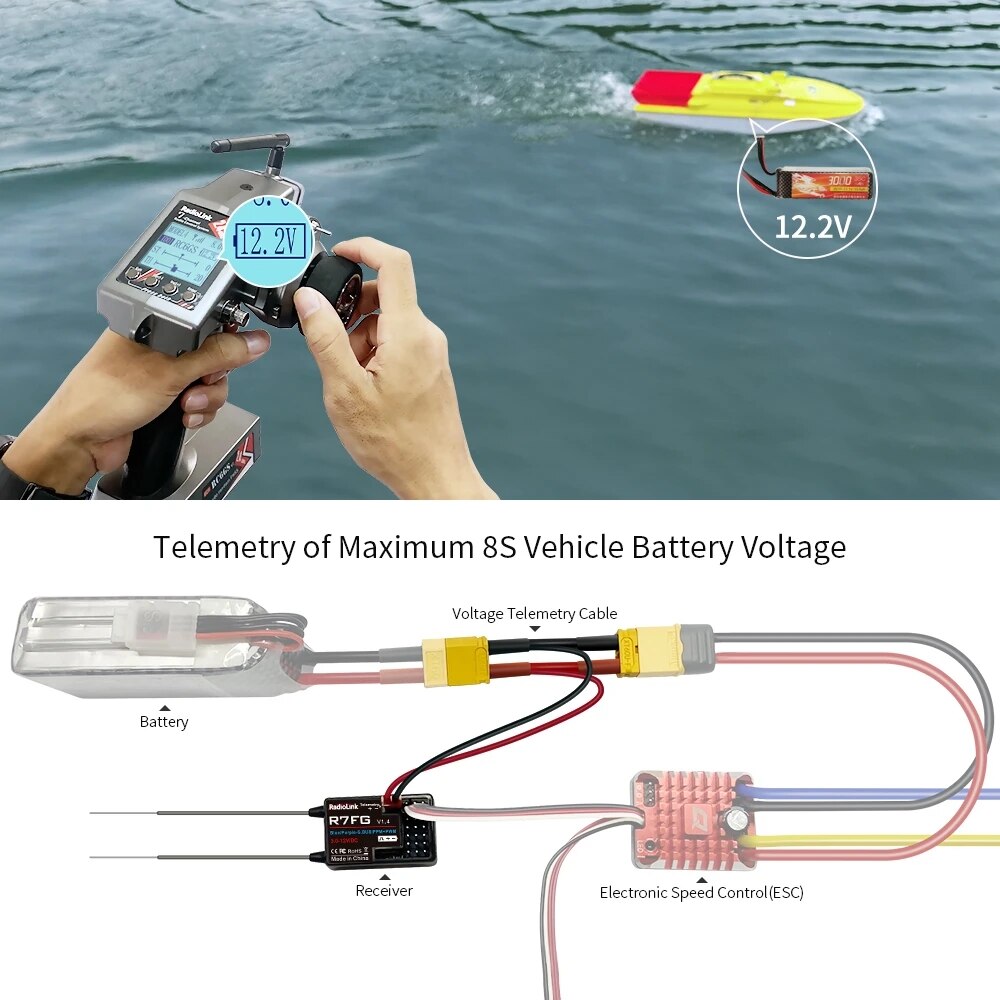

6.【Two-way Transmission Return】: Real-time signal strength, RX battery voltage and vehicle battery voltage(telemetry of maximum 8S) can be displayed on the radio screen.(Only support works with R7FG or R8F)

7.【Built in Gyro】: R7FG built-in gyro can keep the vehicle runs in a straight line, and Gyro sensitivity can be adjusted by transmitter, which fits for drifting and on-road cars.

8.【Timer Function】: The timer allows you to grasp the lap and complete track results in time to help you train yourself before the race.

9.【Customized Channels】: CH3-CH7 can be customized to VR, three-way switch and tact switch, the tact switch can be used for cruise control mode, a good idea for crawler, all channels' fail-safe values can be set to any value as you need.

10.【3 Advanced Entertainment Modes】: The DSC port support connect simulator, head tracking and TBS crossfire, will bring you more diverse experience.

11.【Reverse Polarity Protection】: Anti-polarity connect protection technology to keep your transmitter safety even if you Accidentally connect the wrong positive and negative poles. JST connector supports multiple batteries: liPo or 6*AA.(NOT INCLUDED)

RC6GS V3 Transmitter Specifications:

Channels: 7

Control Distance: Up to 600 meters

Applicable Model: RC Cars and Boats

Low Voltage Alert: Yes(Below 4.6V)

Operating Voltage: 4.8-15.0V DC

Operating Current: 80mAh-120mAh

Screen: 128*64 resolution, LCD back light

Spread Spectrum: FHSS

Antenna Length: 106mm

Frequency: 2.4GHz ISM band (2400MHz-2483.5MHz)

Battery compartments: 25*97*60mm (JST 2Pin connector)

Size: 22.4*17.5*11.6cm

Weight: 323g

Compatible Receivers: Radiolink R7FG/R6FG/R6F/R4FGM/R4F/R8EF/R8F

R7FG Receiver Specifications:

Channels: 7

Gyro inside: Yes

Control Distance: Over than 600 meters

Waterproof level: IPX4, water splash proof

Signal output: PPM/PWM/S-BUS, 2.4GHz

Receiver operating voltage: 3-12V

Modulation Mode: GFSK

Antenna Length: 200mm

RF Power: <10dbm

Channel resolution: 4096

Working Current: 30mA

Applicable model: rc car, boat

Size: 3.5*1.8*1.5cm

Weight: 6g

Anti- interference for RC Car and Boat 30 Dual Mix 30 Models Real-time Timer Control Memory Storage Telemetry Fucntion Receiver Cruise Control Firmware Fail Safe Built-in Gyro for Crawler Update Setting 'RC6GS'

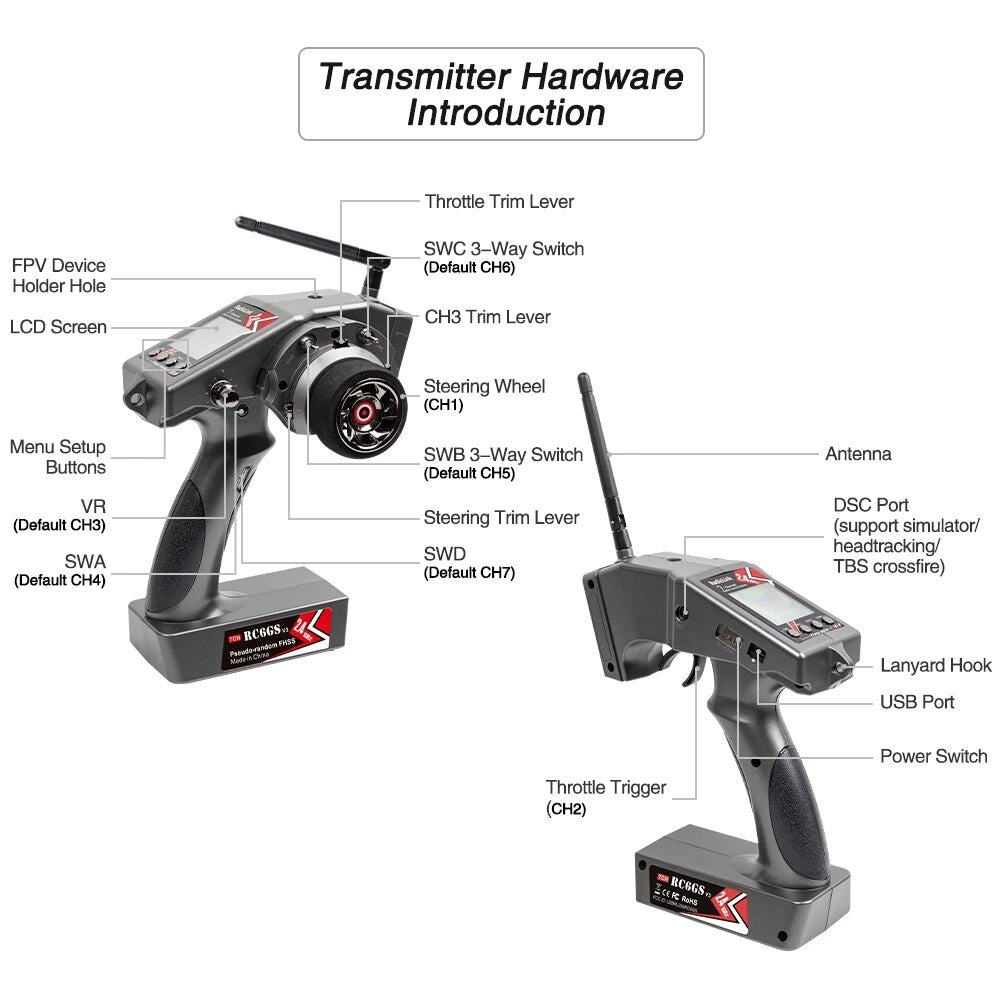

Three-way switch for FPV devices, default channel holder with hole, LCD screen, and three-position trim lever steering wheel.

RadioLink RC6GS V3 is a 2.4GHz remote control system that features a 7-channel transmitter and gyro receiver, R7FG. It comes with an upgrade remote controller for use with RC cars or boats. Key features include: 30 models memory storage; one switch to activate the EPA setup and another to activate the DIR setup; timer function for racing and training; low voltage and RSSI alarm for each model that can be set up independently; and support for head tracker simulator and crossfire 24.

Compatible with TBS Crossfire: simply connect the TBS crossfire module to the DSC port for a range of up to 600 meters (1968.5 feet). Also compatible with Radiolink RC6GS V3, V2, V6, V5, V7, V8, V9, V11, V12, V13, V14, V15, V16, V17, V18, V19, V20, V21, V22, V23, V25, V27, V28, V30, V31, V32, V34, and V2.

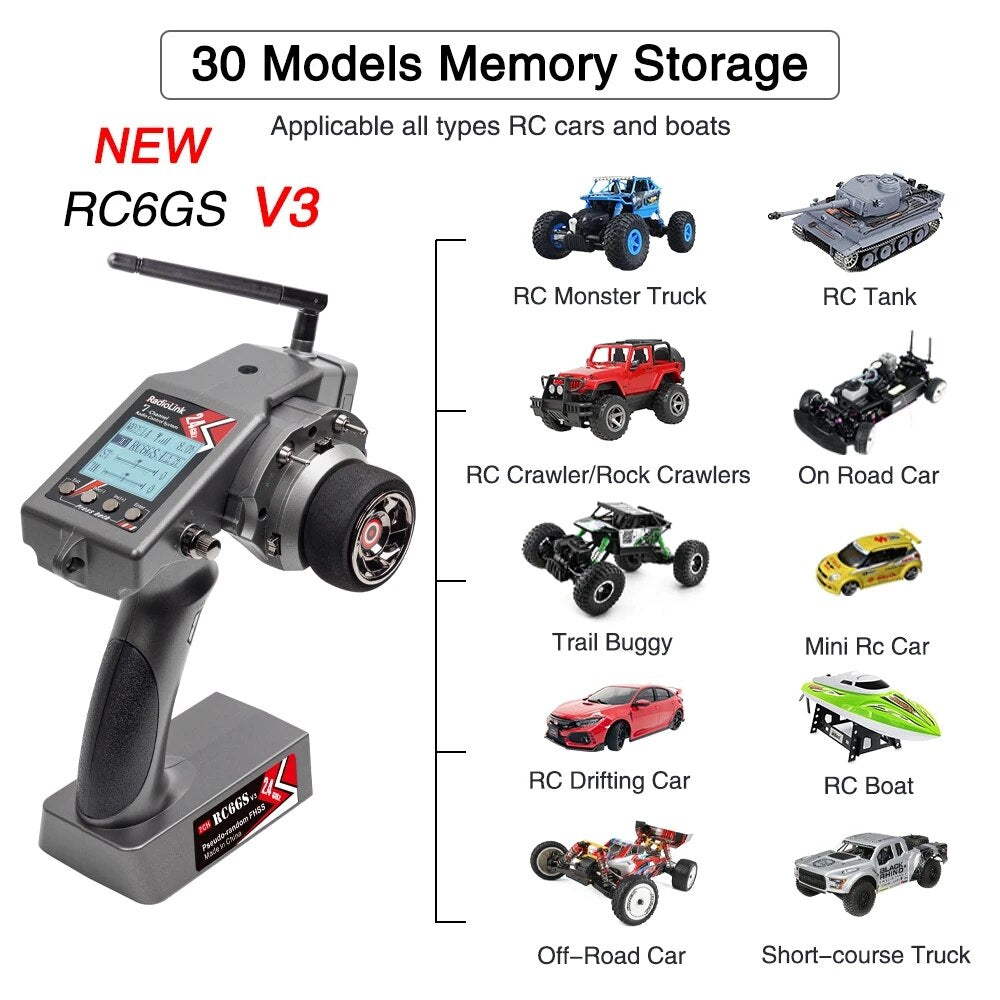

This product features 30 model memory storage and is applicable to all types of remote control cars and boats, including monster trucks, tanks, crawlers, on-road cars, trail buggies, mini drifting cars, RC boats, and short-course trucks.

Radiolink RC6GS V3, a 2.4GHz 7-channel radio transmitter and gyro receiver designed for remote control applications in cars and boats, features telemetry capabilities to monitor maximum 8S vehicle battery voltage.

This remote controller features a 7-channel radio control system that can be customized to accommodate up to 30 different model types. The models can be stored in three-way groups, and any two channels can be mixed and controlled simultaneously. Additionally, fail-safe values can be set for various driving styles, such as monster truck, drifting, hot wheel, Baja, off-road, or throttle/transfer case settings.

The Radiolink RC6GS V3 supports a one-key switch to enable the DSC port, which defaults to simulator mode. This feature allows for training and racing simulations. Additionally, it enables settings for different servo ranges, dual rate, and EPA, with the option to configure 3-axis or 2-axis FPV head tracking. After setup, users can view lap and track completion results.

3 Entertainment Modes with Simulator, DSC Port, FPV Head Tracking, JCA (6R TBS Crossfire compatible) - Perpetua RCGGS v1 Upgrade, Ecco Rohs LU

%6 RadioLink RZFG Tololnotrys Blue/Purnlo 3.0- -12V/DC BUS/PPM Mado Rohs PWM ahina 1 .

This product is made in China, featuring a ground (GND) connection, voltage supply (VCC), gyro sensor, and signal LED indicator. The receiver does not include a built-in gyro function. It has seven channels, including channel one for steering and channel two for throttle control.

Introducing the Radiolink RC6GS V3, a 2.4GHz 7-channel radio transmitter and gyro receiver for remote control cars or boats. This new upgrade features SBUS and PWM signals output, as well as telemetry support. The operating voltage is between 3.0V-12V, with a control distance of up to 400 meters.
