Overview

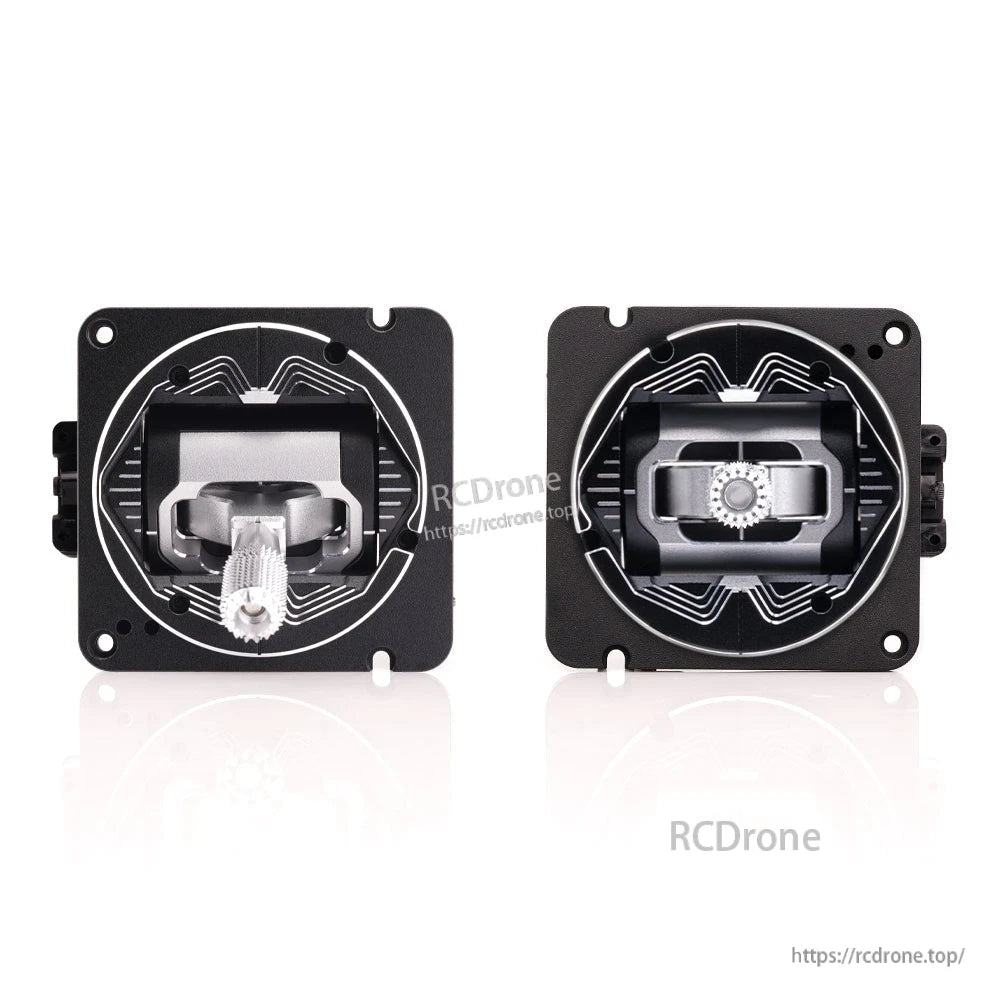

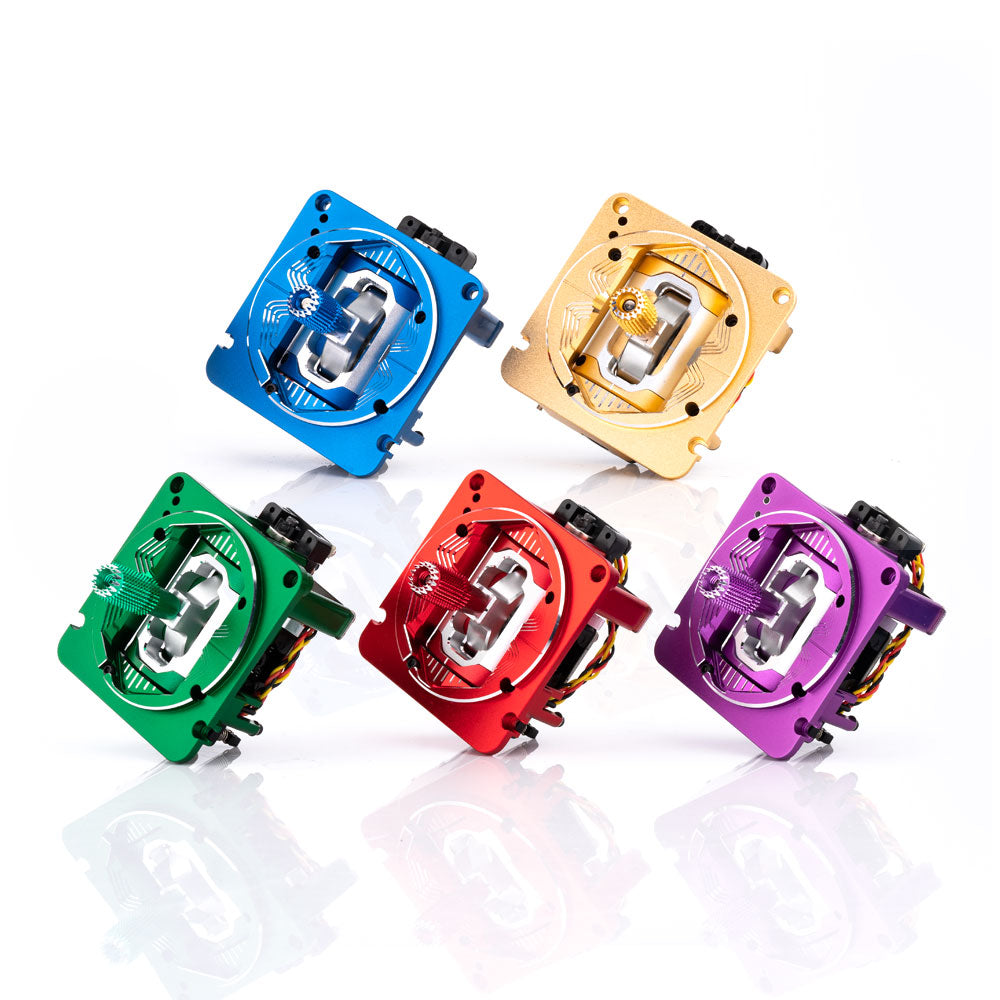

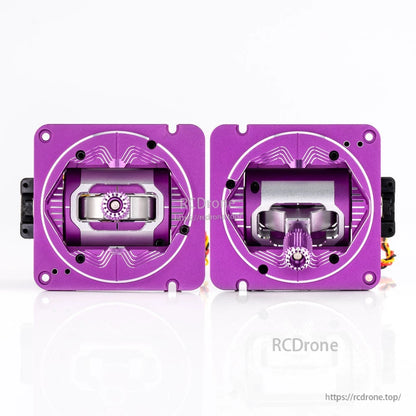

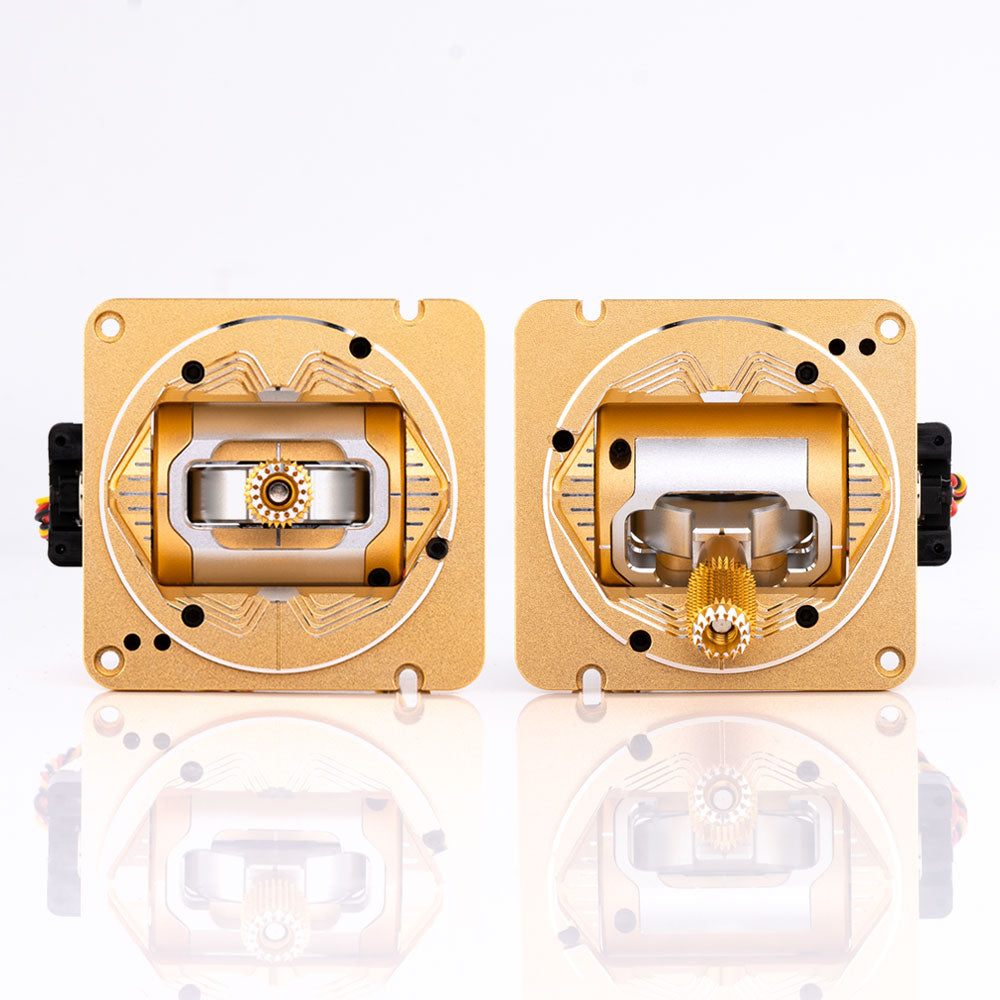

The AG01 CNC Hall gimbal set (new color edition) is designed for RadioMaster TX16S-series radios, bringing the same precision design as the standard black AG01 gimbals with additional color options. Color options: Purple, Gold, Blue, Red, and Green. All color AG01 gimbals ship with preinstalled Sticky360 gimbal stick ends.
Launch Video
Key Features

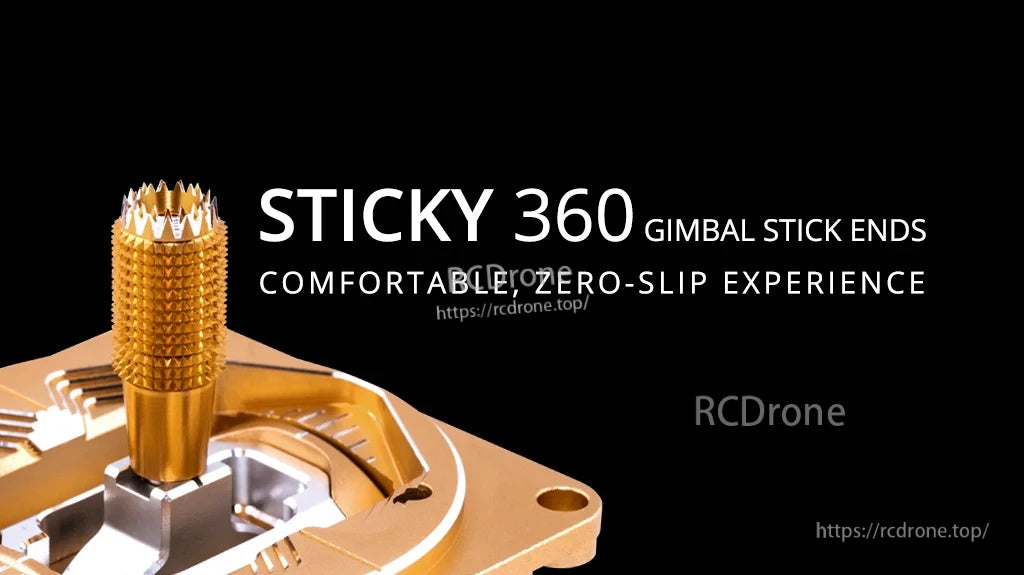

- Sticky360 gimbal stick ends: 360° non-slip geometry with dual-ring design increases comfort and contact; “comfortable, zero-slip experience.”

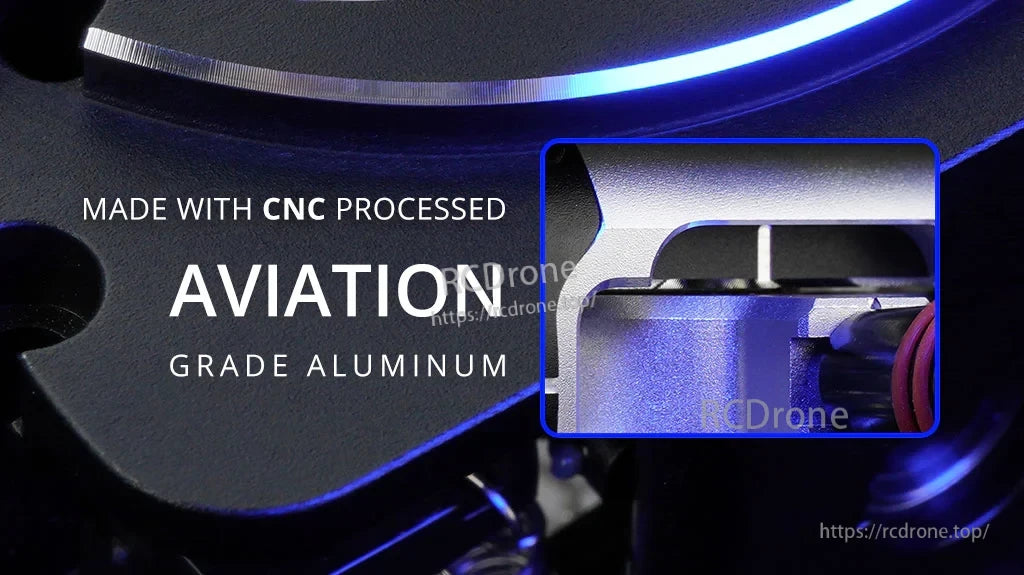

- Made with CNC processed aviation grade aluminum.

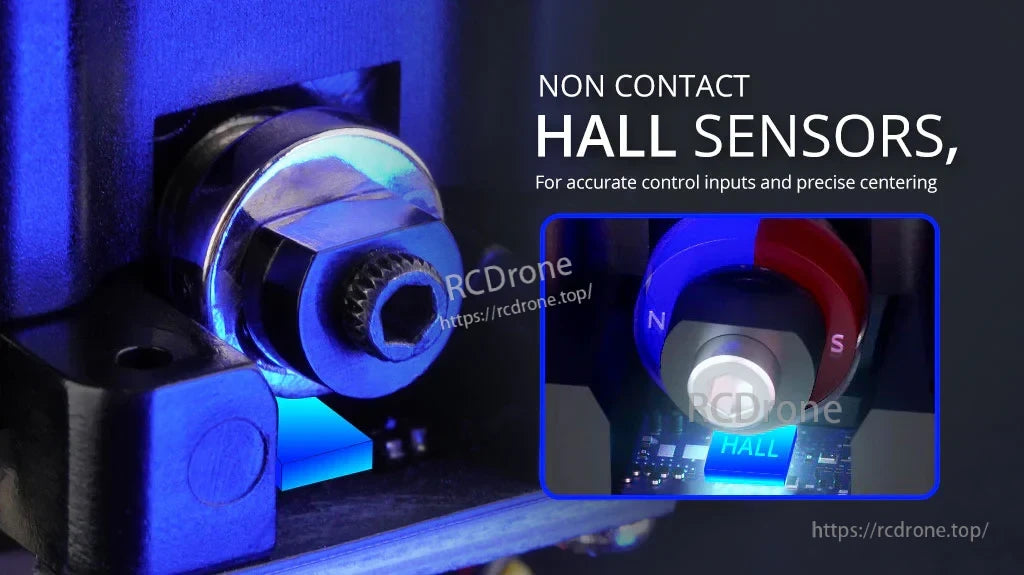

- Non-contact hall sensors for accurate control inputs and precise centering.

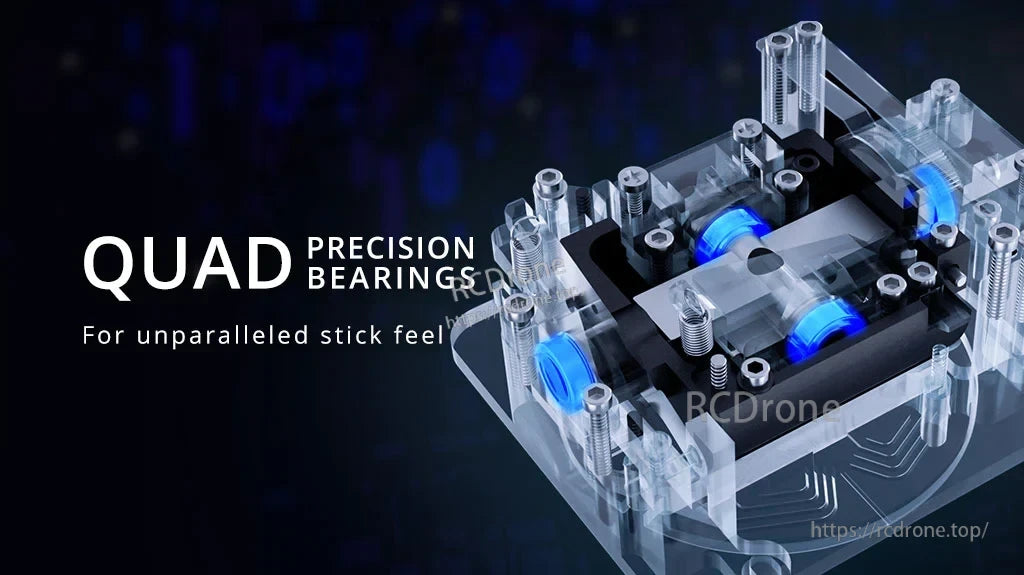

- Quad precision bearings for unparalleled stick feel.
- Improved package to better protect the AG01 gimbals.

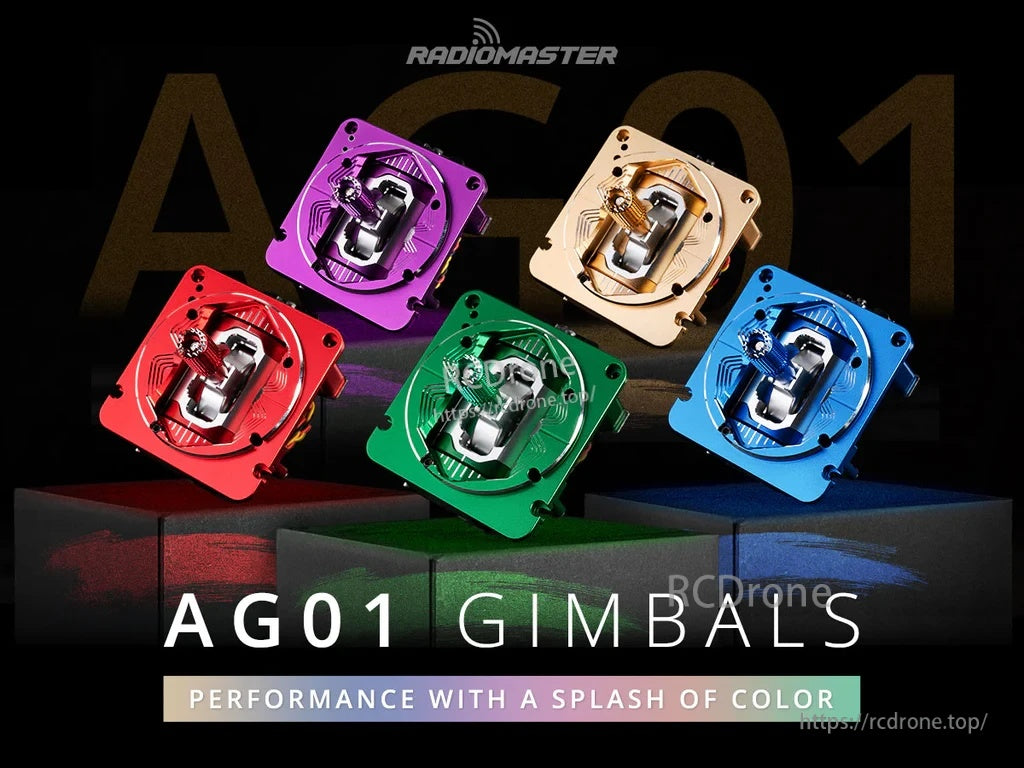

- Product/packaging text: “AG01 GIMBALS” and “PERFORMANCE WITH A SPLASH OF COLOR”; box label: “AG01 CNC metal gimbal”.
Specifications
| Item | AG01 CNC Hall Gimbal Sets |

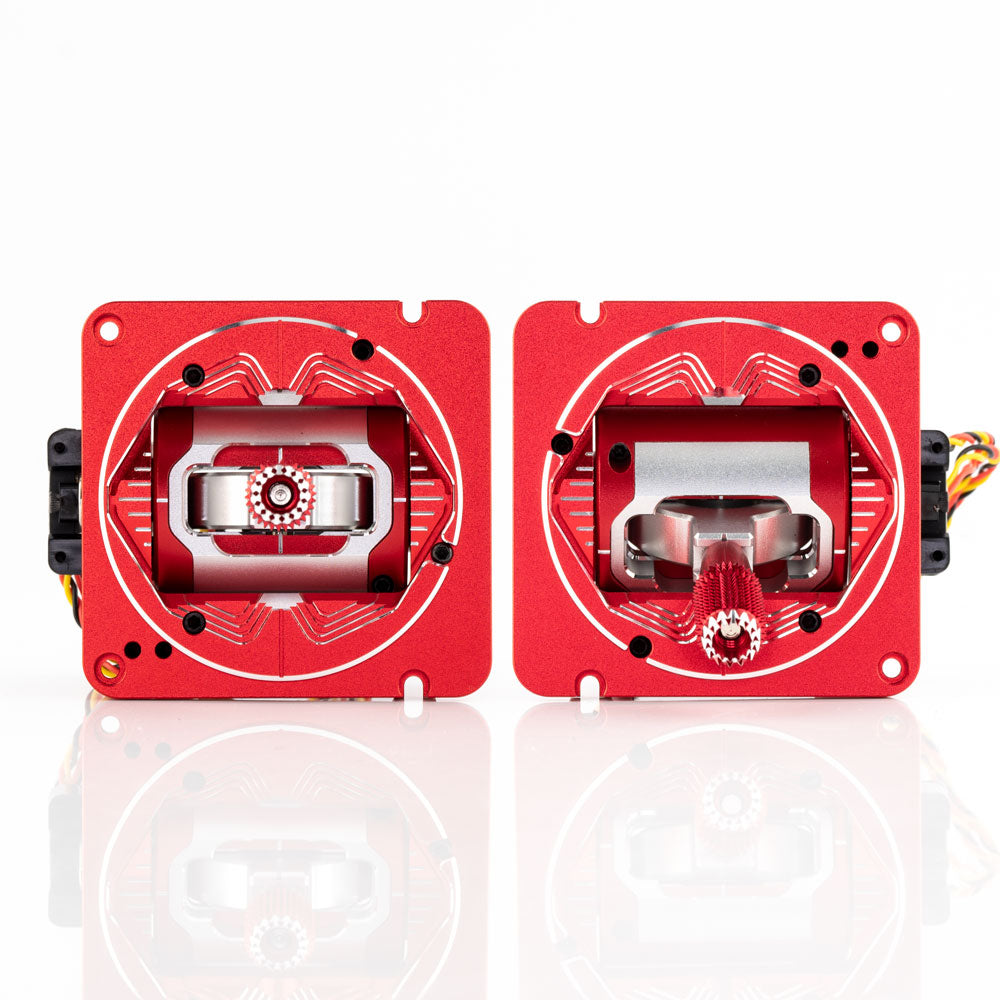

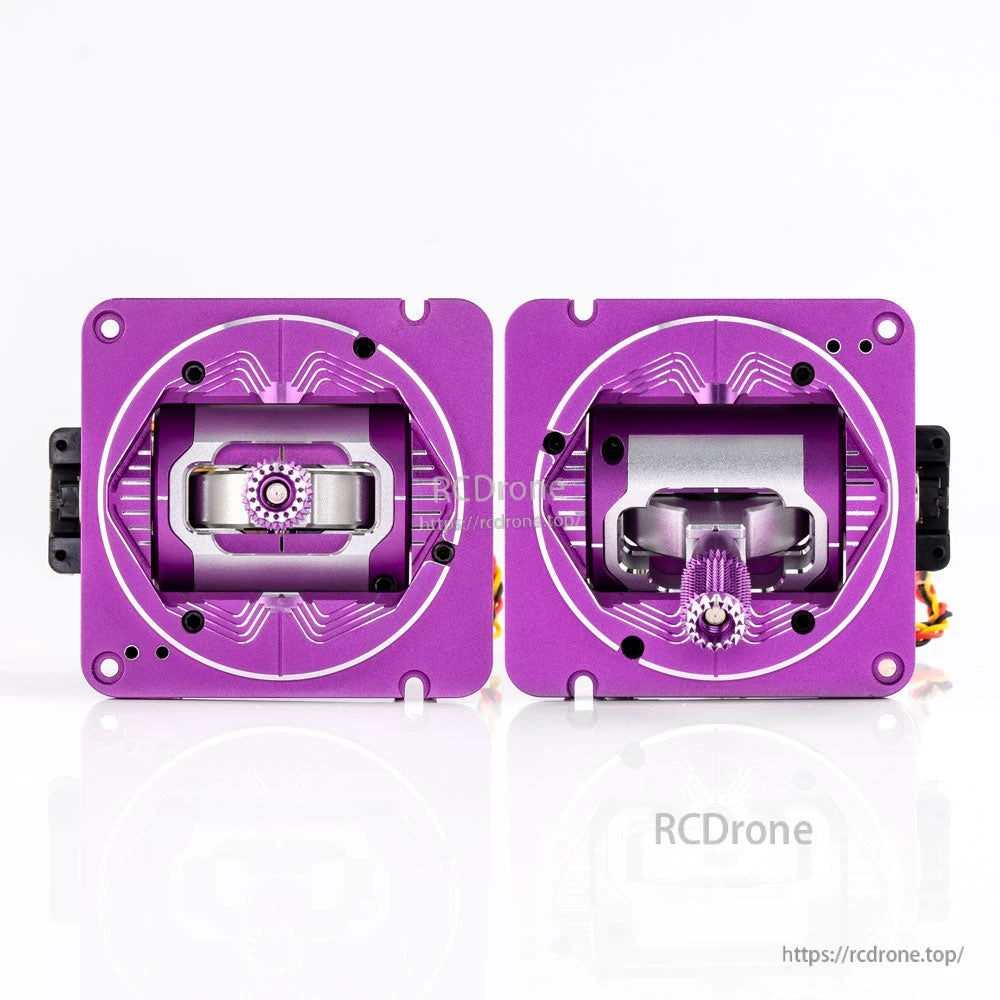

| Colors | Red, Blue, Gold, Green, Purple |
| Sensing type | Hall |
| Working voltage | DC 3.3V |
| Linearity | Real-time (No delay) |
| Adjustable travel range | 38°-54° |
| Adjustable mode | Yes |
| Adjustable tension | Yes |
| Quad bearing | Yes |
| Temperature range | -20°C to 85°C |
| Size (provided spec) | 60*53*56mm |
| Weight | 162g/set |

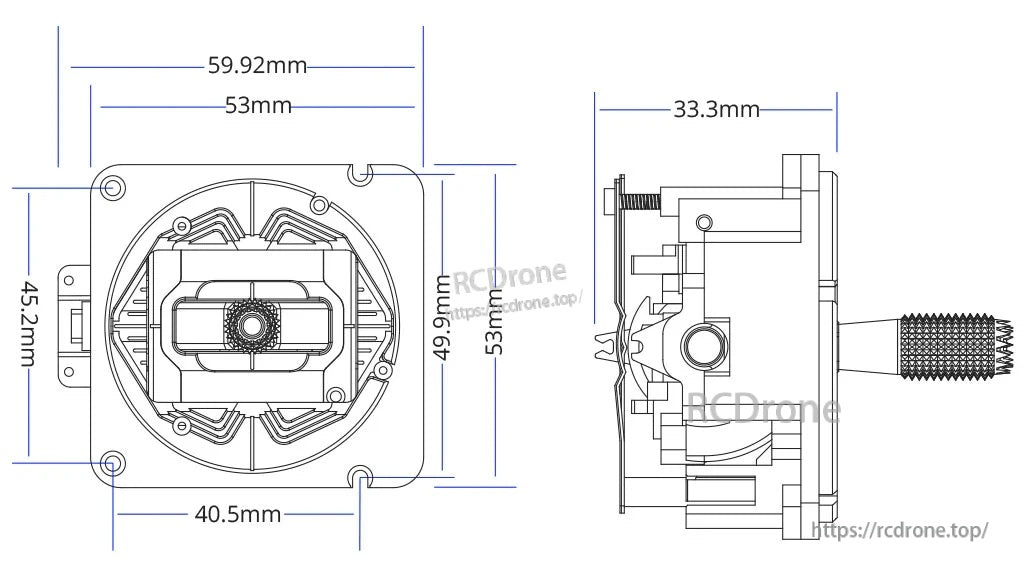

| Dimension drawing (visible values) | 59.92mm; 53mm; 45.2mm; 40.5mm; 49.9mm; 53mm; 33.3mm |
| PCB marking (visible) | “RadioMaster TX16S Hall V2.3” |
For installation or compatibility questions, contact support@rcdrone.top or visit https://rcdrone.top/.

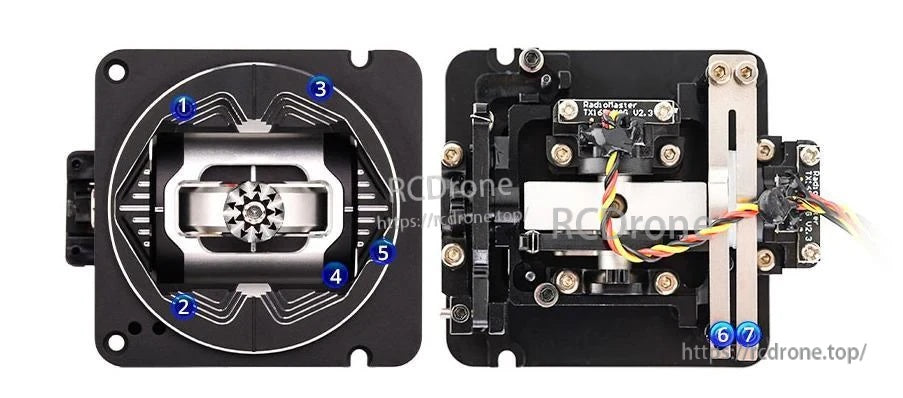

Exterior Adjustable
- ① Set the lower travel limit: Turn the screw clockwise to reduce the travel. Turn the screw counterclockwise to increase the travel. Travel range (38-54°)
- ② Set the upper travel limit: Turn the screw clockwise to reduce the travel. Turn the screw counterclockwise to increase the travel. Travel range (38-54°)
- ③ Up and down spring tension: Turn the screw clockwise to increase the up and down spring tension. Turn the screw counterclockwise to reduce the up and down spring tension.
- ④ Centering and Mode adjustment: When the screw is turned clockwise to its lowest point, this gimbal will not center in its up and down axis when the stick is released. When the screw is turned counter-clockwise to its highest point, this gimbal will center its up and down axis when the stick is released.
- ⑤ Left and right spring tension: Turn the screw clockwise to increase the left and spring tension. Turn the screw counterclockwise to reduce the left and right spring tension.
- Throttle tension adjustment: When there is no tension up and down, the ⑥ screw adjusts the tension tightness, and the ⑦ screw adjusts the scale tightness.
Associated Products
- TX16S Mark II Series Radio
- AG01 CNC Hall Gimbals (Black)
- Sticky360 Gimbal Sticks Ends
- TX16S Replacement HALL V4 Gimbal
What’s Included
- 1 * AG01 CNC Hall Gimbal (Throttle)
- 1 * AG01 CNC Hall Gimbal (Centering)
- 2 * TX16S Softer Tension Spring Set
- 2 * Hexagon socket screwdriver
- 1 * Manual
Details
Choose a splash of color without giving up the precision feel of the AG01 CNC Hall gimbals for TX16S-series radios.
Preinstalled Sticky360 stick ends add a secure, comfortable grip with 360° non-slip geometry.
CNC-machined aviation-grade aluminum delivers a rigid, premium build in every color option.
Non-contact Hall sensors help deliver smooth, accurate inputs and reliable centering.
Multiple adjustment points let you dial in travel limits, spring tension, and centering mode to match your flying style.
