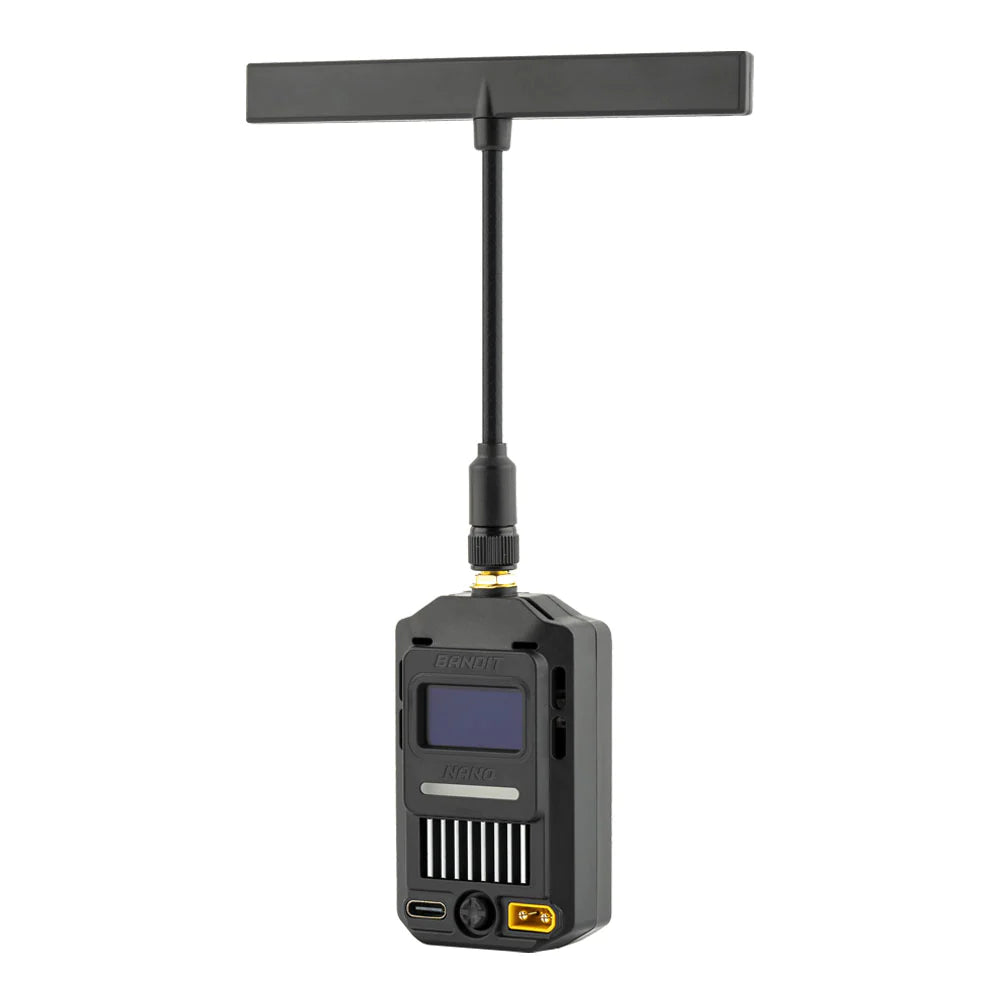

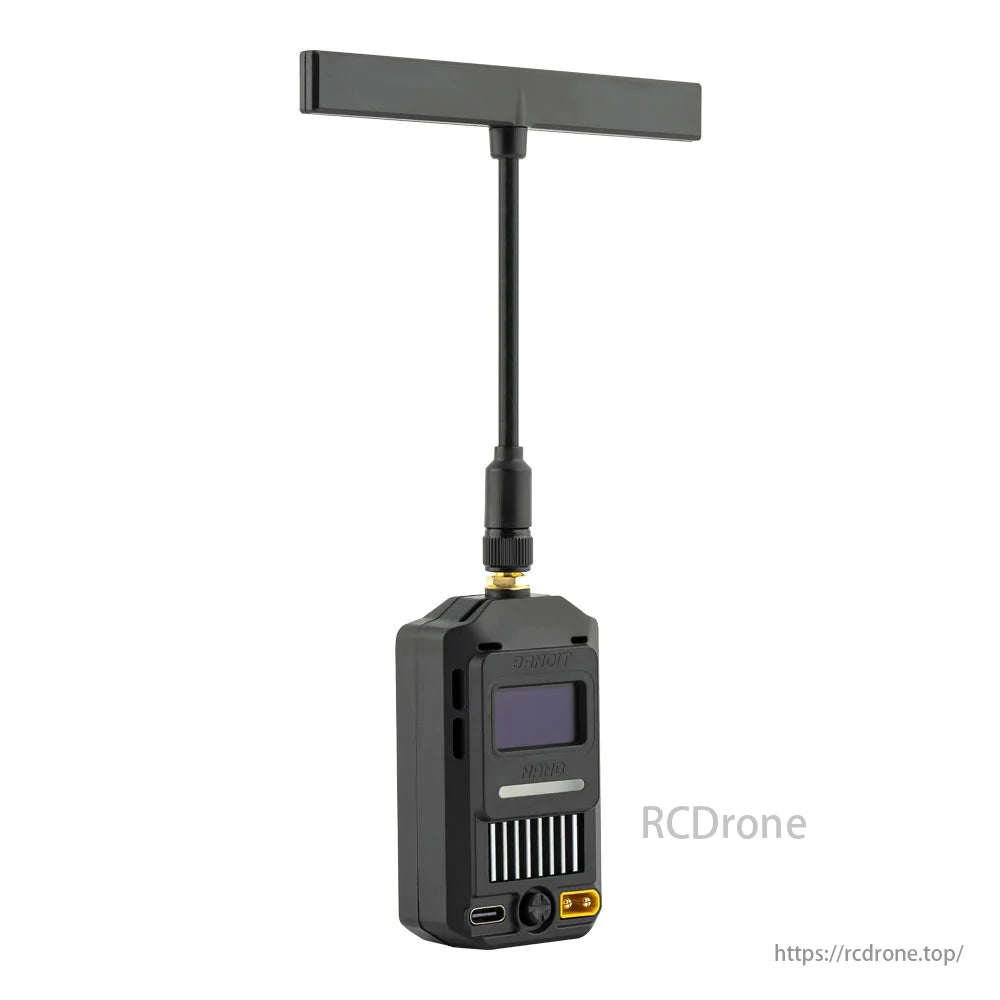

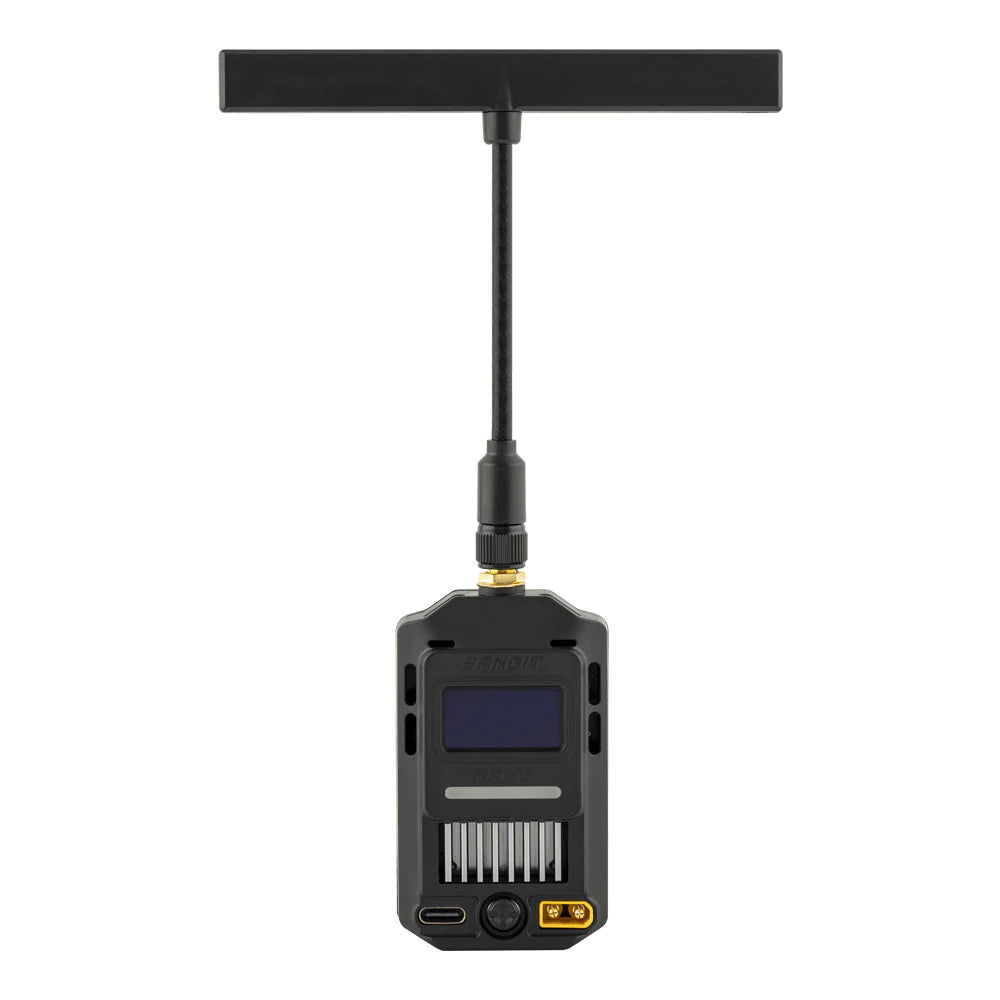

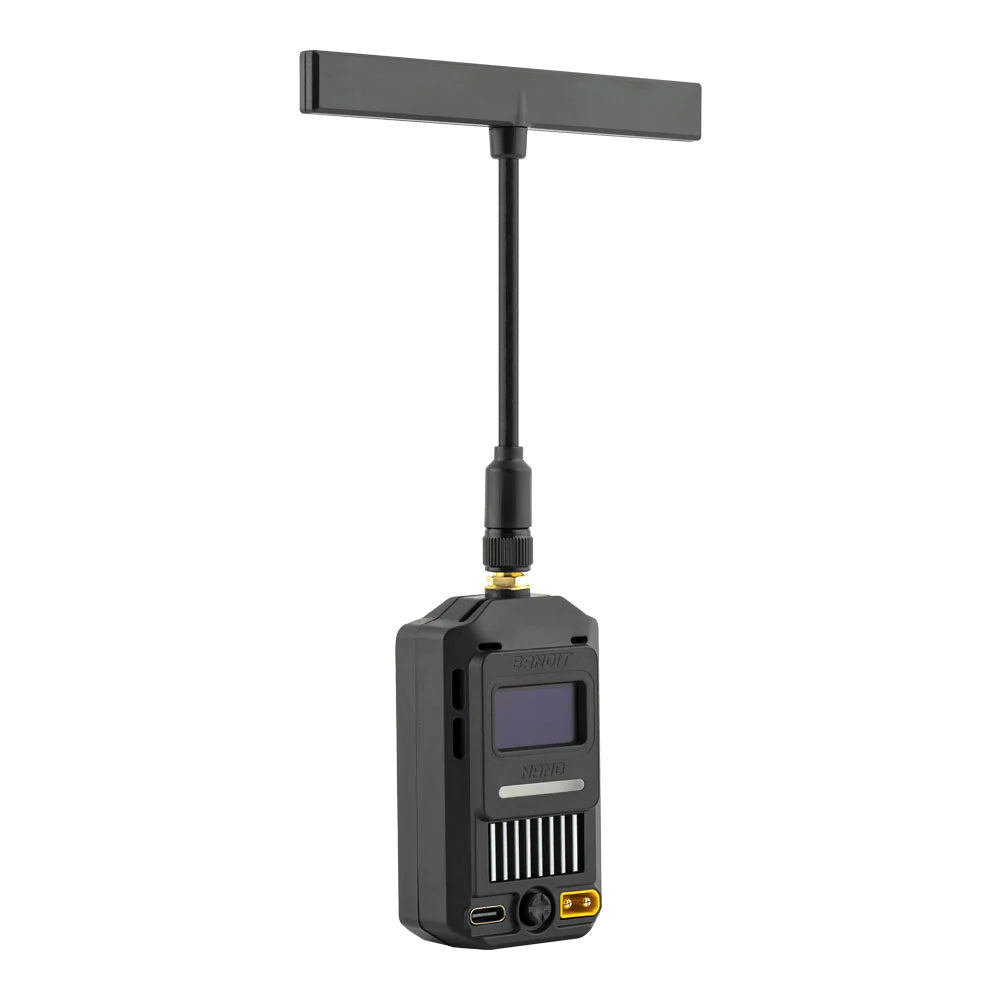

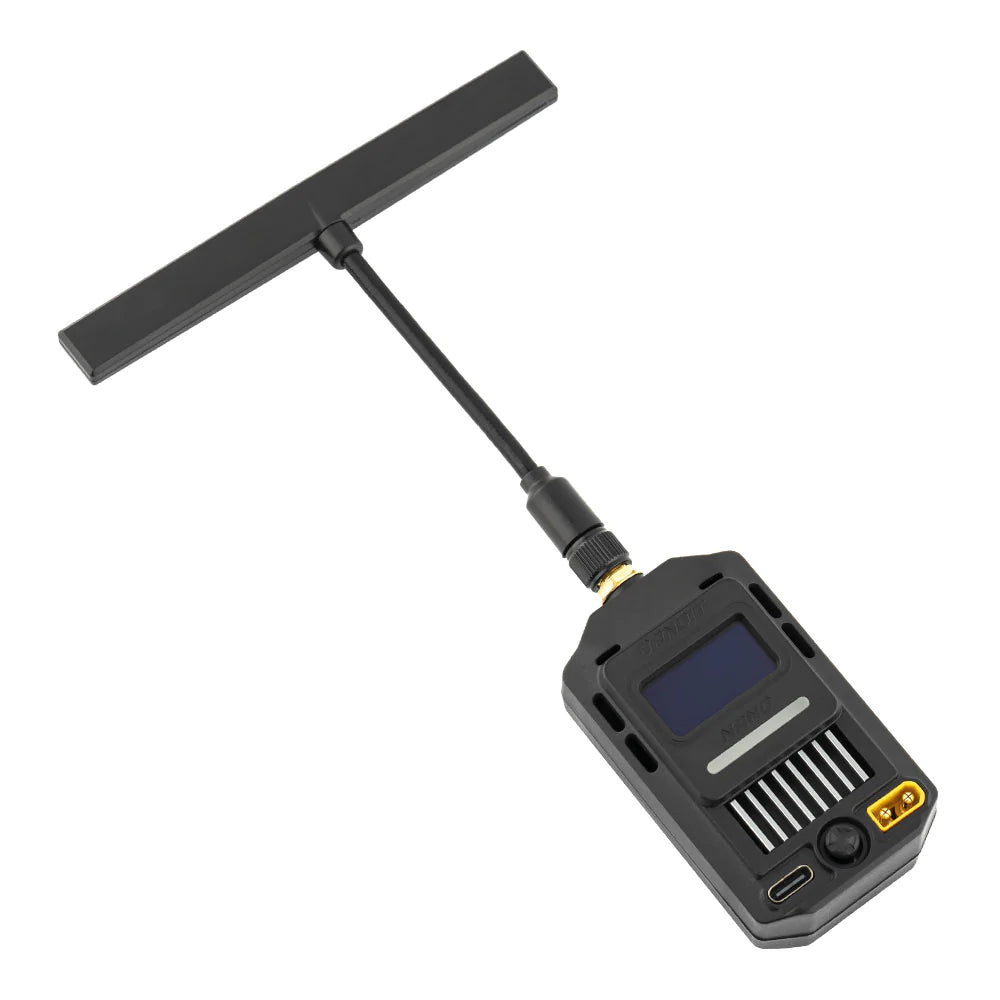

RadioMaster Bandit Nano ExpressLRS 915MHz RF Module

RadioMaster Bandit Nano ExpressLRS 915MHz RF Module

RadioMaster

Regular price $65.00 USD
Regular price Sale price $65.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

162 orders in last 30 days

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

After extensive research and collaboration with the ExpressLRS team, we are thrilled to unveil the all-new Bandit Nano ExpressLRS RF Module. This cutting-edge module represents the culmination of our efforts to deliver unparalleled performance and reliability for your long-range drone and UAV applications.

RadioMaster Bandit Nano ExpressLRS RF Module

Features

  • Up to 1 Watt power output
  • Packet rates up to 200Hz
  • Optimized circuitry for ultra-low power consumption
  • Built-in TCXO oscillator
  • Low noise, high comfort
  • High contrast OLED display
  • High efficiency cooling system
  • Wifi and Bluetooth support
  • Built-in ExpressLRS backpack
  • 5 Directional nav key
  • 915/868MHz T Antenna included
  • With the Nano connector, support Zorro, Pocket and MT12 Radio

Specifications

  • Item: Bandit Nano ExpressLRS RF Module
  • Regulatory Domain: FCC915
  • MCU: ESP32(main), ESP8285(aux, as ESP backpack)
  • RF Chip: SEMTECH SX1276
  • Refresh Rate Min/Max: 25Hz/200Hz
  • RF Output Power: 1000mW/30dBm
  • Nano standard 8 pin connector
  • Built-in OLED screen
  • XT30 Power Supply Voltage: DC 6V ~ 16.8V
  • Weight: 62.5grams (with T antenna)
  • Dimension: 68.5*41.0*27.0mm

Keep Your Cool!

With its innovative convection cooling system and built-in turbo fan, the Bandit Nano ExpressLRS module ensures optimal temperature control and operates with minimal noise. The Bandit Nano form factor is ready to go with our Zorro, Pocket, MT12 and other radios with a "Nano" Module bay.

RadioMaster Bandit Nano ExpressLRS RF ModuleRadioMaster Bandit Nano ExpressLRS RF Module

Intuitive Control at Your Fingertips

The Bandit Nano ExpressLRS features an OLED display, a five-directional navigation key, ensuring an unparalleled flying experience.

RadioMaster Bandit Nano ExpressLRS RF Module

Versatile Antenna Options for Diverse Applications

The Bandit Nano ExpressLRS comes equipped with a RadioMaster T Antenna for general-purpose flying. The RadioMaster Moxon antenna is available separately for long-range directional applications. This versatility empowers you to adapt your setup to suit any flying scenario, from everyday recreational flights to professional drone and UAV operations.

RadioMaster Bandit Nano ExpressLRS RF Module

But wait.. there's more!

The Bandit Nano has UART solder pads on the PCB and may also be repurposed as a receiver! That's right, you can use the Bandit Nano as a 1000mW Telemetry receiver for ultra long range flights.

RadioMaster Bandit Nano ExpressLRS RF Module

The Ideal Solution for Demanding Applications

Whether you're an experienced drone enthusiast or a professional UAV operator, the Bandit Nano ExpressLRS RF Module is the perfect choice for your demanding applications. Its unmatched performance, rugged construction, intuitive controls, and versatile antenna options make it an indispensable tool for those seeking the very best in long-range drone and UAV technology.

RadioMaster Bandit Nano ExpressLRS RF ModuleRadioMaster Bandit Nano ExpressLRS RF ModuleRadioMaster Bandit Nano ExpressLRS RF ModuleRadioMaster Bandit Nano ExpressLRS RF ModuleRadioMaster Bandit Nano ExpressLRS RF ModuleRadioMaster Bandit Nano ExpressLRS RF ModuleRadioMaster Bandit Nano ExpressLRS RF Module

Dimensions

RadioMaster Bandit Nano ExpressLRS RF Module

Bandit Series

  • Bandit ExpressLRS RF Module
  • Bandit Micro ExpressLRS RF Module
  • Bandit Nano ExpressLRS RF Module
  • Bandit BR1 Receiver
  • Bandit BR3 Receiver
  • Bandit MOXON Antenna
  • Bandit T Antenna
  • UFL 915Mhz T & Y Antenna for BR Series Receivers

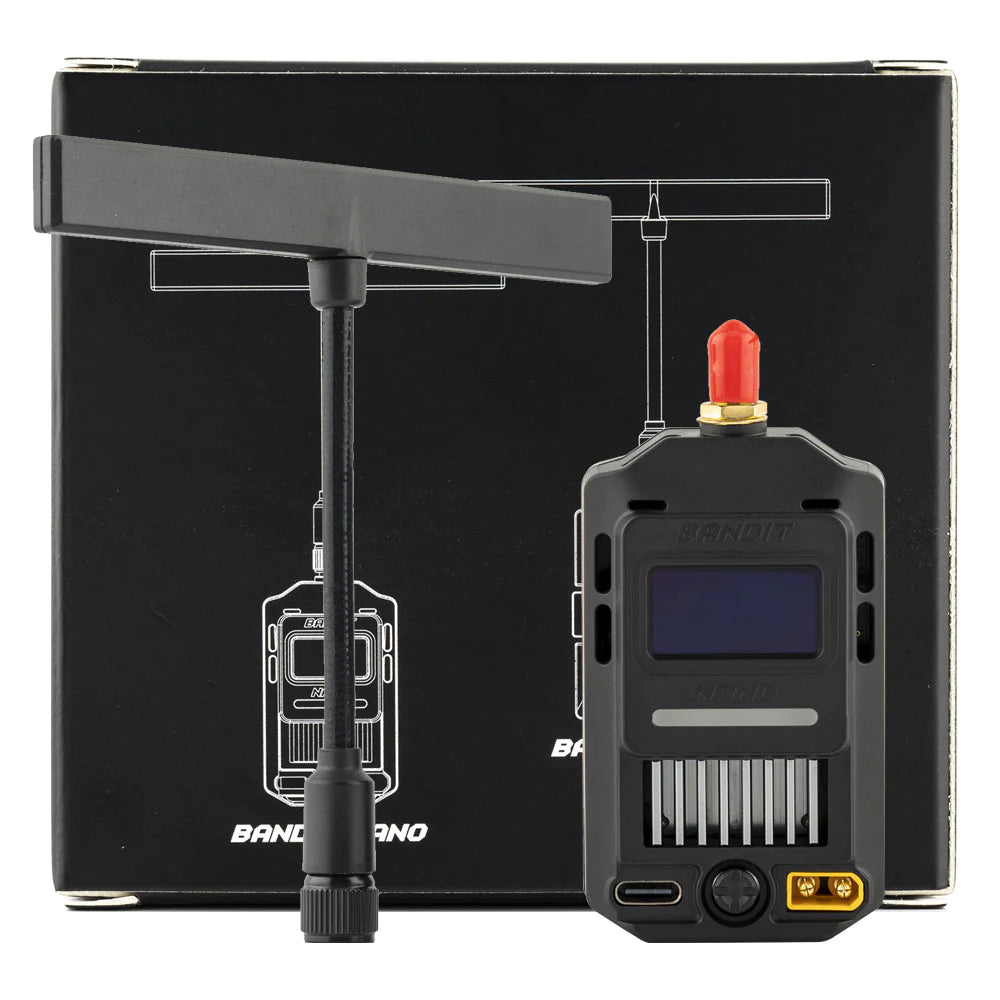

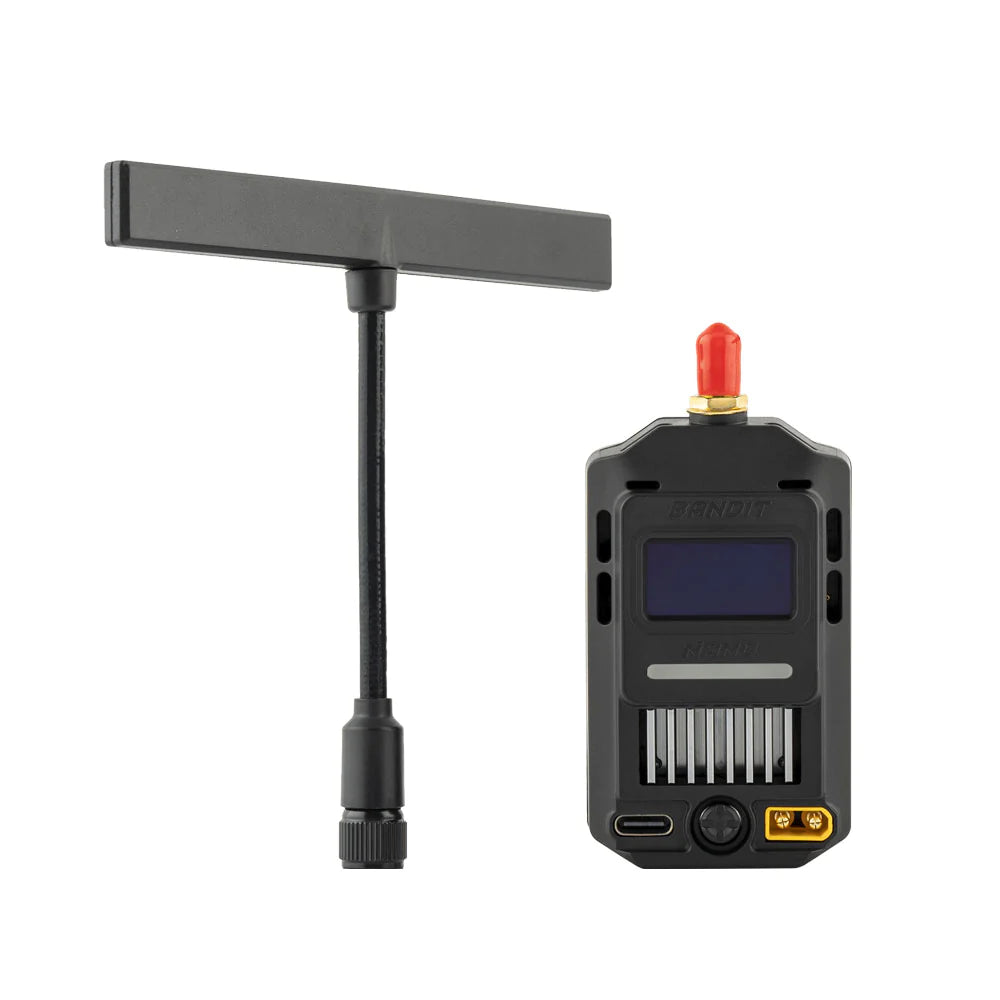

Package Includes

  • 1 * Bandit Nano ExpressLRS RF Module
  • 1 * 900Mhz T Antenna
  • 1 * Manual

RadioMaster Bandit Nano ExpressLRS RF Module
