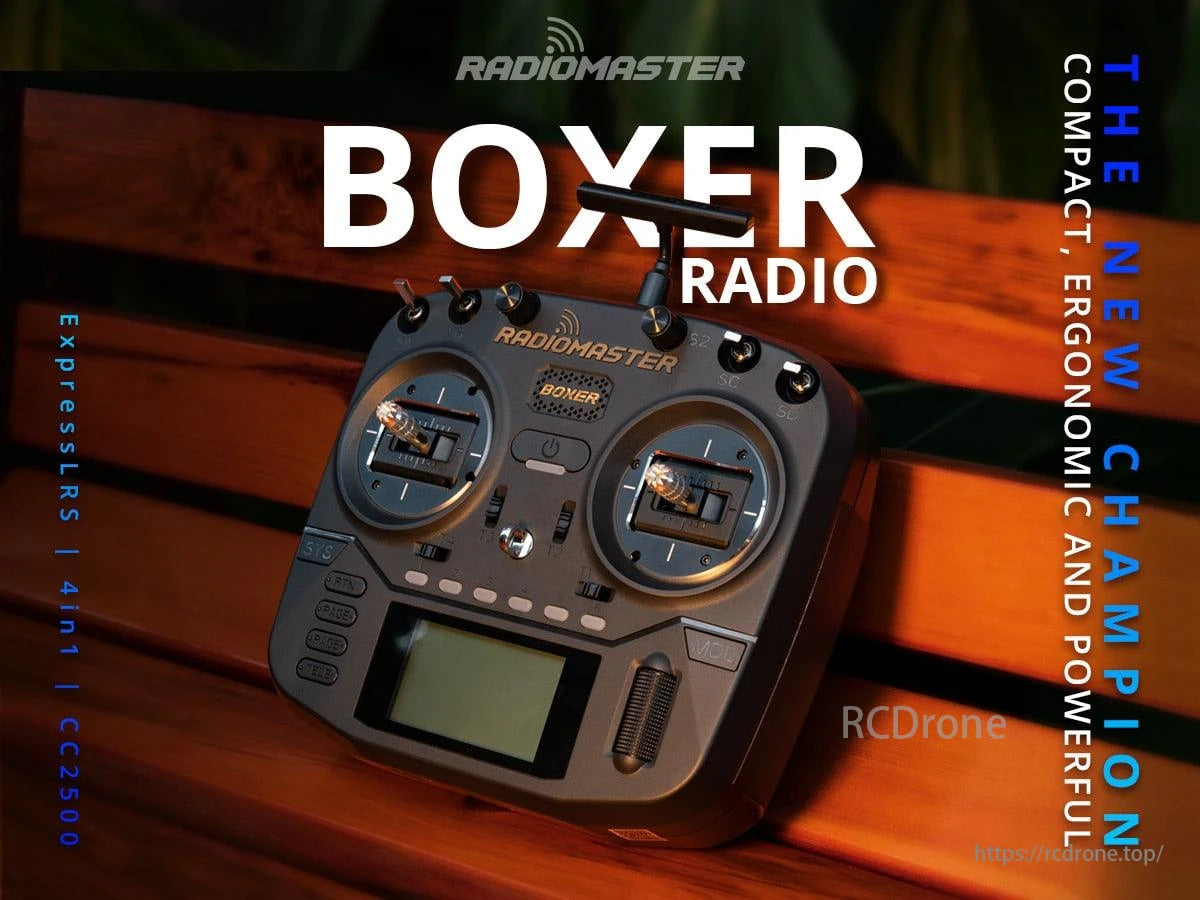

RadioMaster Boxer V4.0 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Origin: Mainland China

Model Number: RadioMaster Boxer

Material: Composite Material

For Vehicle Type: Airplanes

Certification: CE,FCC

Brand Name: abay

Mode 1 right throttle;Mode 2 Left throttle

Specifications:
Item: BOXER Radio
Size: 235*178*77mm
Weight: 532.5g
Frequency: 2.400GHz-2.480GHz
Internal RF Options: ELRS 2.4GHz
Supported protocols: Module dependent
Transmitting Power ExpressLRS: Max 30dBm (international) / Max 20dBm (EU LBT)
Cooling fan: Built in (ELRS version)
Voltage Range: 6.6-8.4V DC
Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module)
Channels: Max 16 channels (Receiver dependent)
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
Display: 128*64 Monochrome LCD display
Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
External module: JR / FrSKY / Crossfire compatible
Upgrade Method: USB / SD card & EdgeTX Companion PC software

Package
1 * BOXER Radio
1 * Signature Carry Case
1 * T Antenna
1 * USB-C Cable
1 * Gimbal Protector
1 * 1.5mm Allen Key
2 * M4*4 Screws
4 * Low Tension Springs
1 * Stickers
1 * Manual
1 * 18650 Battery tray (Batteries not included)

Notes:
CC2500 (standard) Version supports all CC2500 protocols
4in1 (standard) Version supports all MPM protocols
ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)
----
CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
4in1 LBT Version (Europe)  is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Bncenna Type-C Data Port S2 Dlal Tralner Port Headphone Jack SE Latching swltch SA 2 Posltlon Position RanioMASTER SB 3 Positlon RBOKER Speaker 280807130 Power Button Left Gimbal Right Gimbale Lanyard Loop Pos Buttons Buttons SYS Button MDL Button RTN Button PAGE> Button oPAG PAGE Button Scroll wheel TELE Button LCD Screen

RadioMaster Boxer V4.0 is available in two versions: ExpressLRS and JP4IN1/CC2500. The CC2500 version comes pre-installed with EdgeTX firmware, while the STM3ZVG6 compact design features a standardized Joystick layout with momentary latching, new low-profile itch-free grip, and full-sized transmitter functionality.
