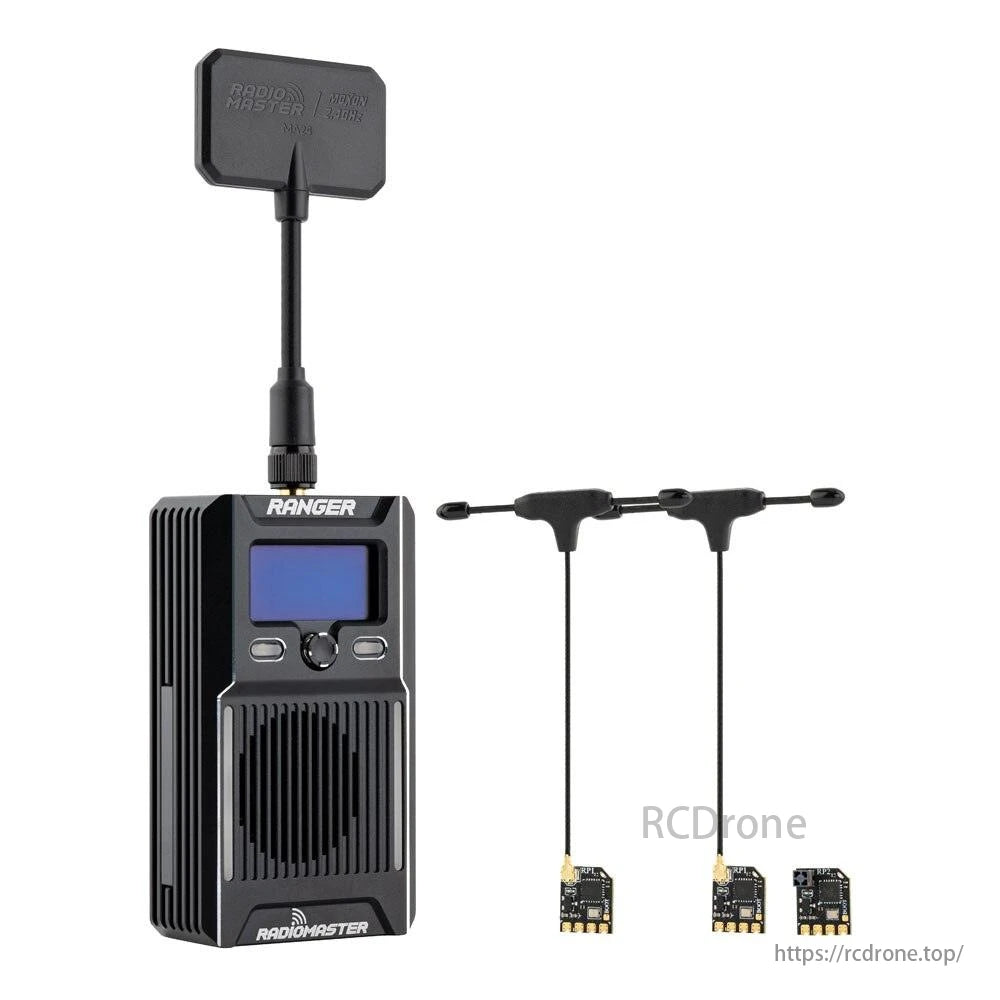

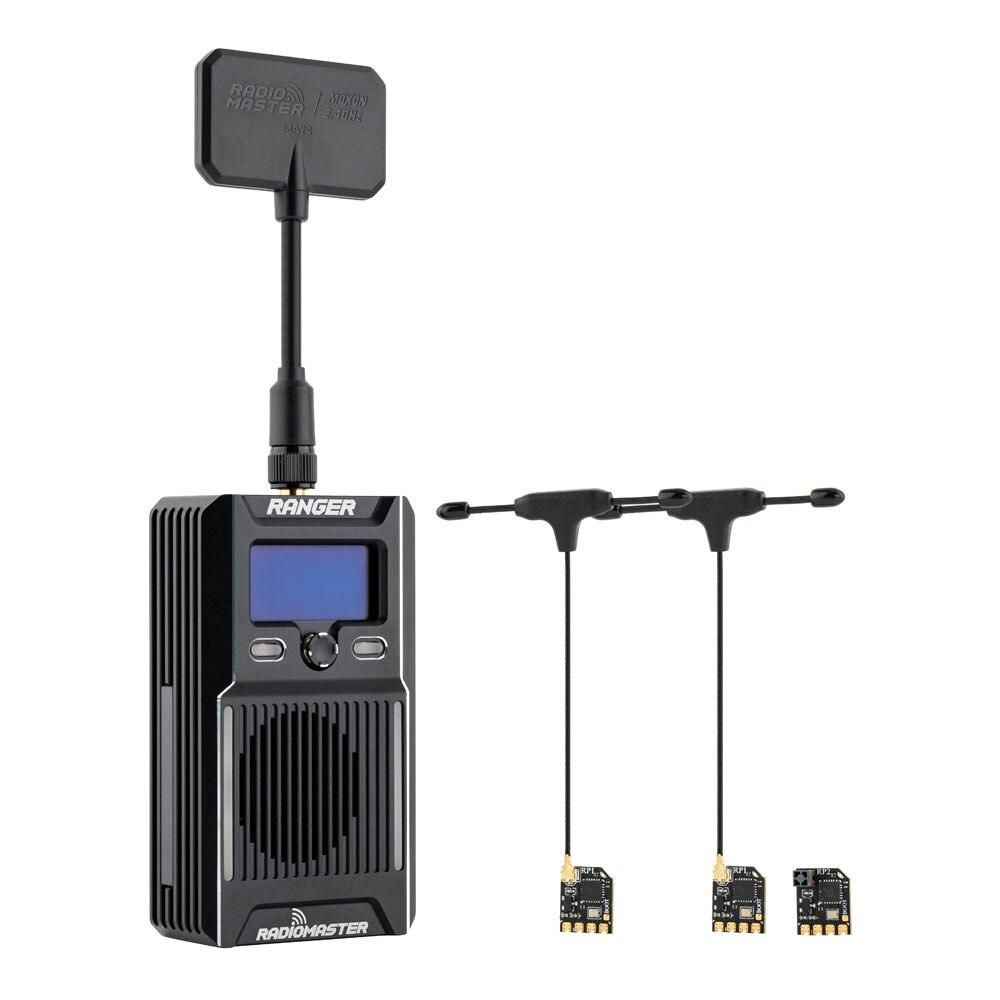

The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminum case that aids the high-efficiency cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.

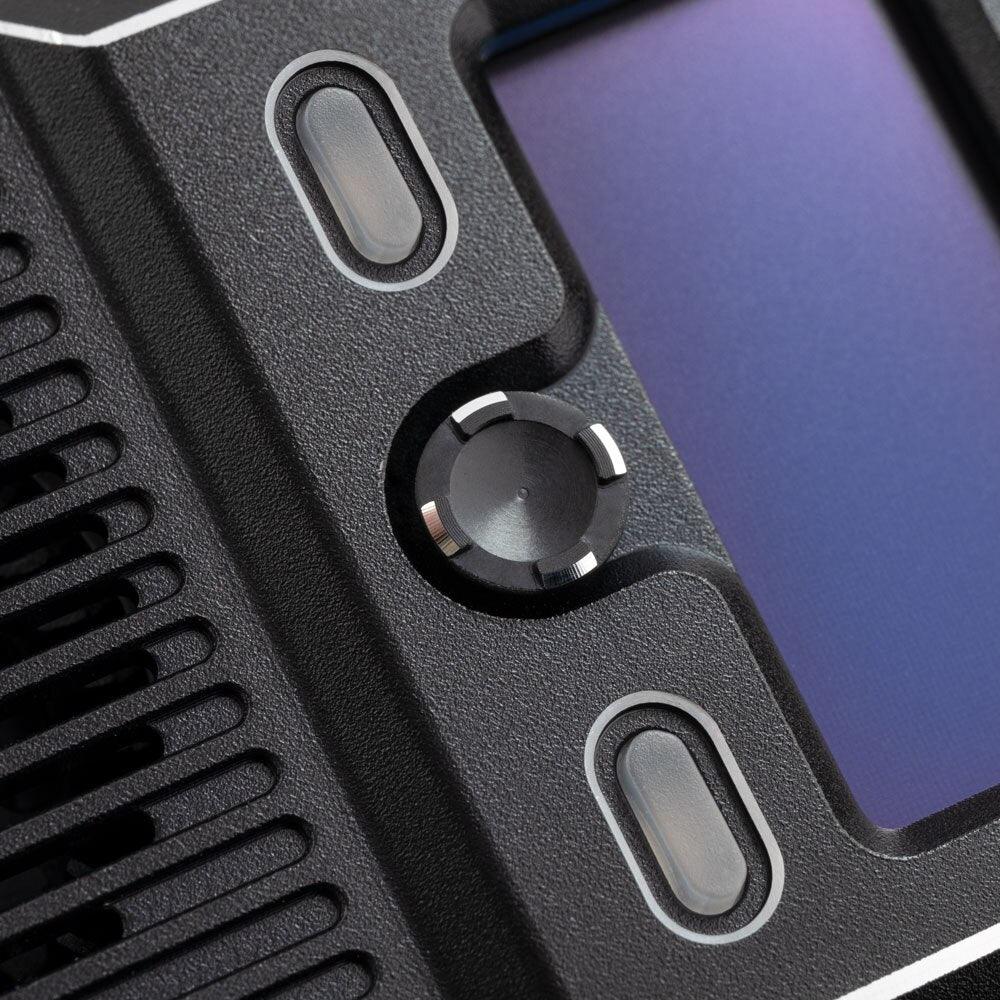

Featuring an OLED display, a directional menu key, and two assignable shortcut keys the Ranger can be adjusted on the fly and personalized to your needs.

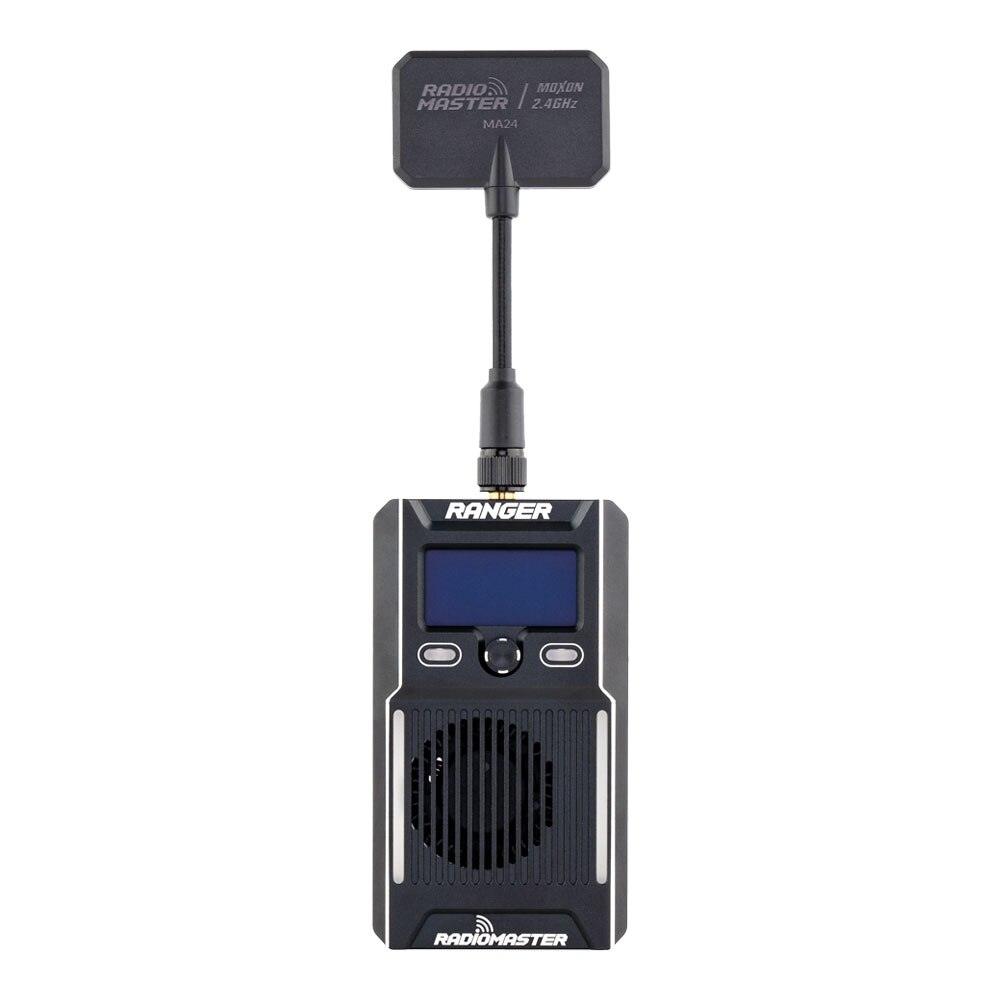

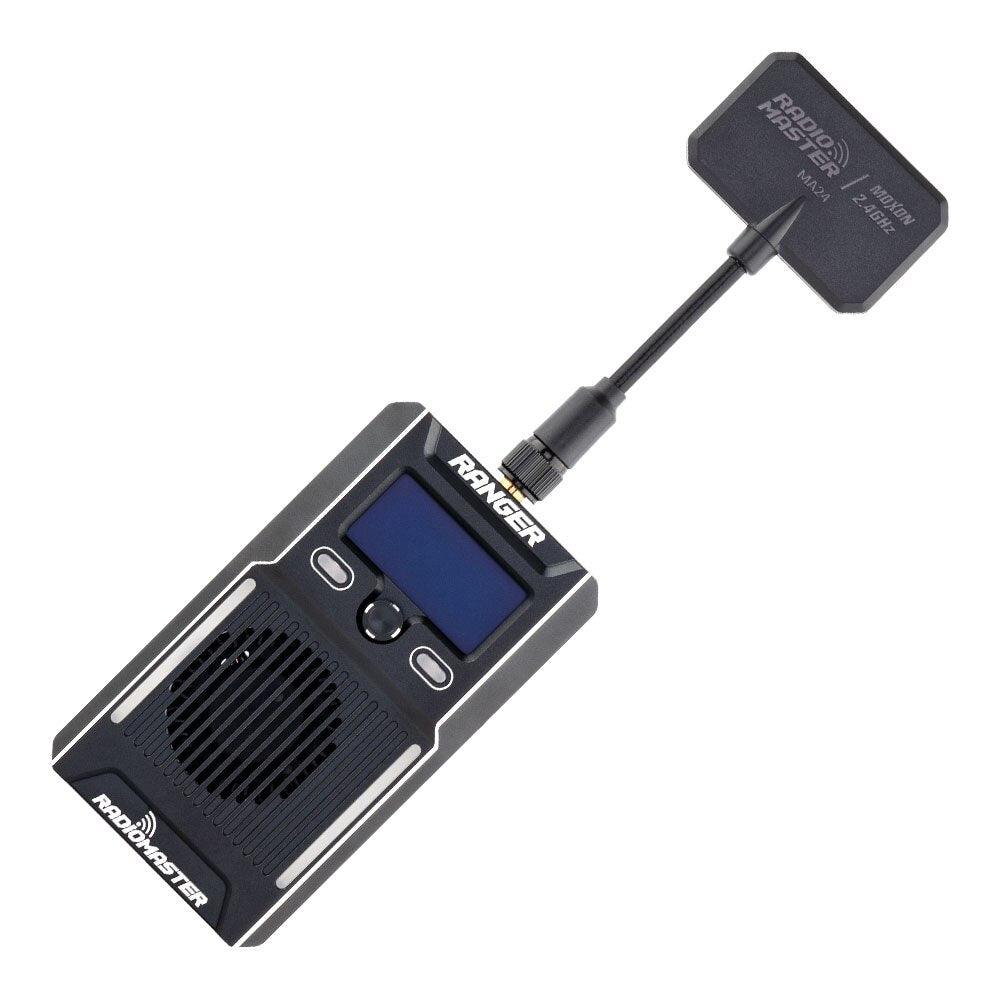

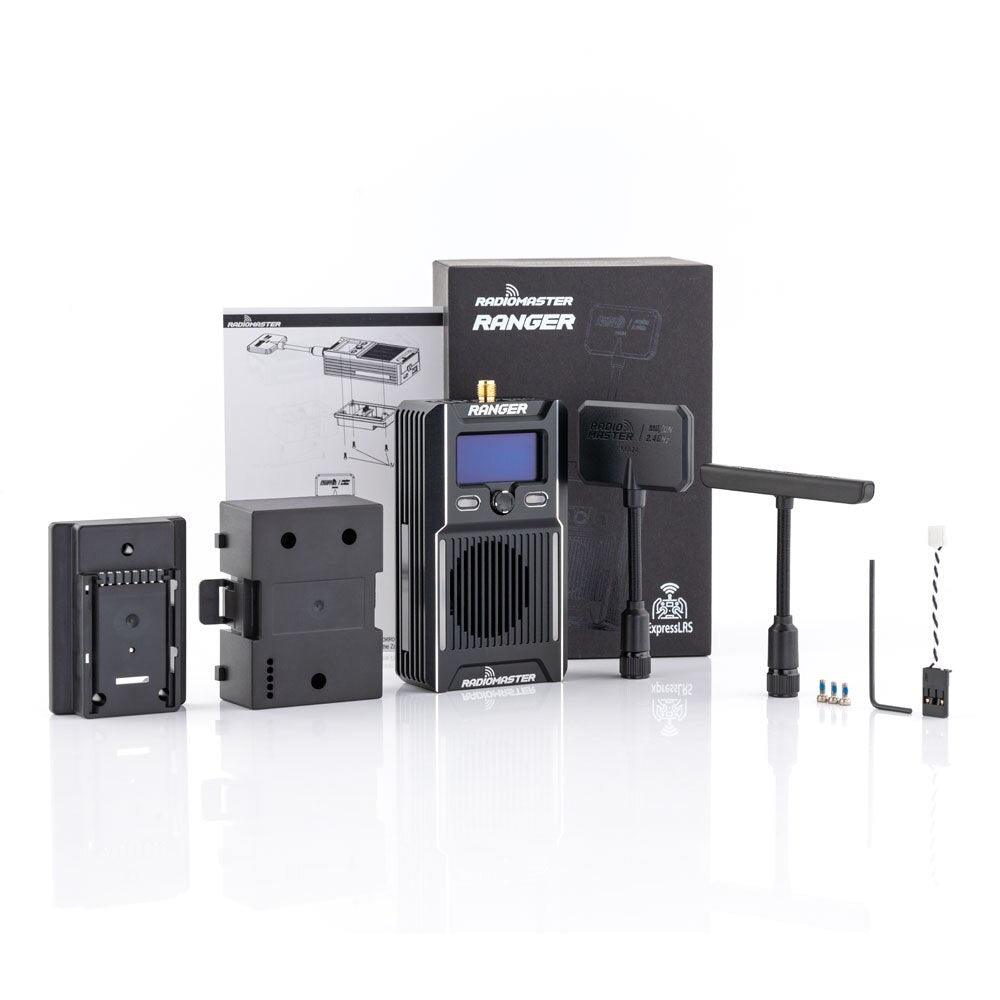

The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.

Features

  OLED Display
  Rugged CNC Case
  Built-in Accelerometer
  Packet rates up to F-1000Hz
  Up to 1 Watt Power output
  Wifi and Bluetooth support
  High-efficiency cooling system
  5 Direction Nav key and customizable shortcut buttons
  Micro and Nano adapters included
  Moxon and T-antenna included
  CRSF cable for compatible Futaba radios included

Specification

Item: Ranger 2.4GHz ELRS Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux, as espbackpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz to 2480 MHz
Maximum packet rate: 500Hz/F1000Hz (F1000 mode requires EdgeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)

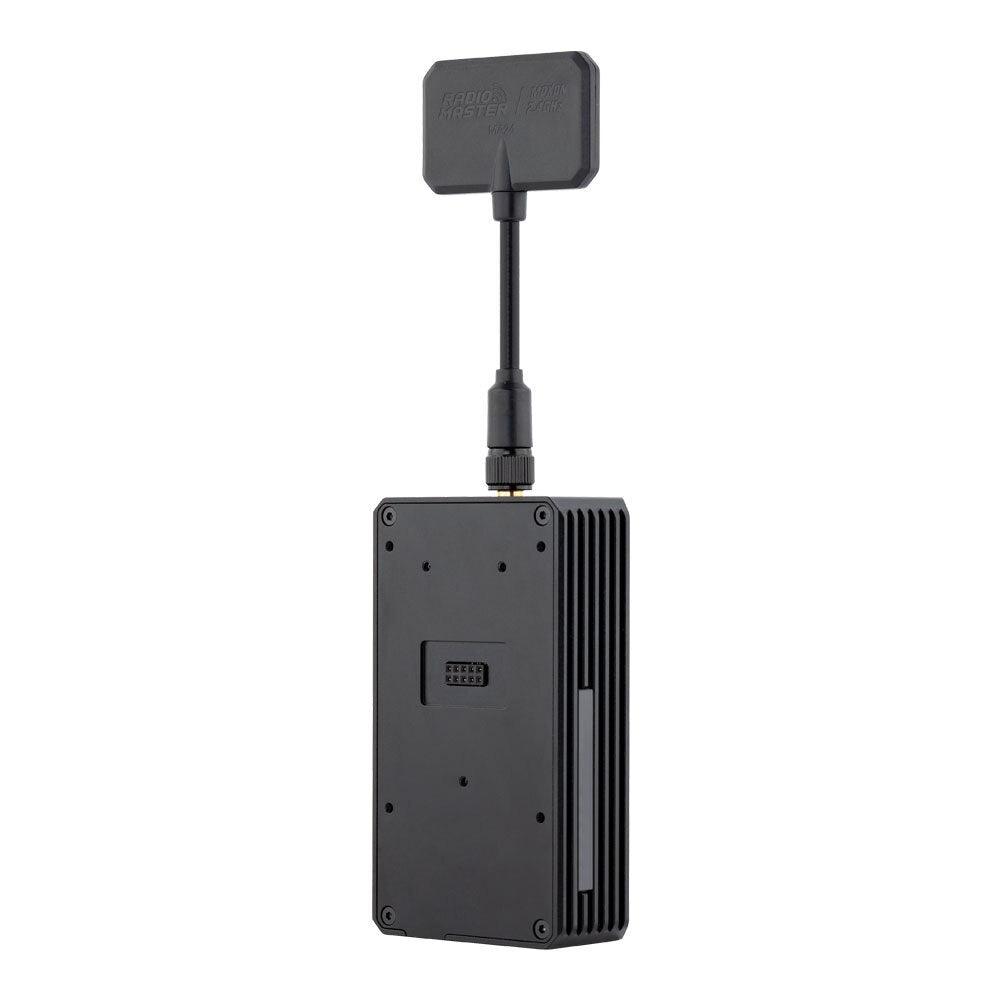

Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
Futaba CRSF socket cable: Included
OLED screen:  64x128px
Wifi Support: Yes
Bluetooth support: Yes
3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
Built-in RGB light strip

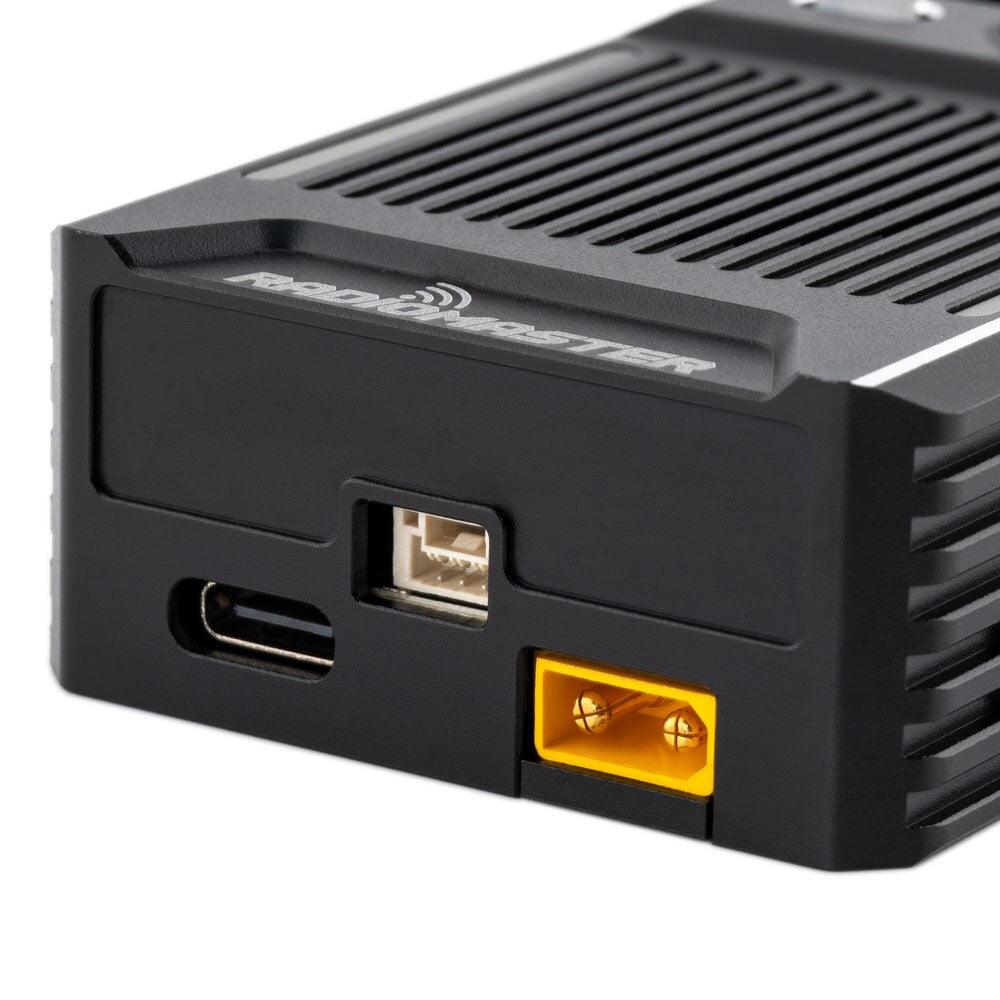

XT30 Power supply voltage: DC 6V - 16.8V
Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
Dimension: 95*51*25mm (without antenna)

RadioMaster Ranger 2.4GHz ELRS Module: Includes Futaba CRSF socket cable. Key Features: Regulatory Domain - ISM; OLED Screen Display: 64x128 pixels; RF Chip: SX1281IMLTRT; 3-Axis Accelerometer: Yes; RF Output Power: Up to 30 dBm (compliant with FCC regulations); Weight: Approximately 138g (with Moxon antenna included).
