Note:

Mode 1-Right-hand throttle

Mode 2-Left hand throttle

● CC2500 (standard) Version supports all CC2500 protocols

● ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)

● CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT

● ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

New to TX12 MKII
Updated rear case with comfortable grips
Improve S1 / S2 Grips
Improved USB-C QC 3.0 Charging
Updated main board design
Updated MCU to STM32F407
EdgeTX factory installed
SD Card included
Internal ExpressLRS RF Module

● Specs:
Size: 170*159*108mm
Weight: 363g
Frequency: 2.400GHZ-2.480GHZ
RF Chip option: ExpressLRS (ELRS)
Transmitting Power: 20dbm
Antenna Gain: 2db
Working Current: 320mA@8.4V
Voltage Range: 6.6-8.4v DC
Range: > 2km (depending on receiver)
Radio Firmware: EdgeTX (Transmitter) /  ExpressLRS (RF module)
Channels: Up to 16 (depending on receiver)
Display: 128*64 Monochrome LCD display
Gimbal: High precision hall gimbals
External module: JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
USB Charging: QC3 USB-C
SD Card: Included

Antenna Handel Trainer Pont TYPE-C USB Position Position 159mm 108mm Position Ran JaRfR Position SA Button SD Button VTannnam Leit Right Gimbal Pover Button 170mm SYS Button MDL Button Tnm Buttons RTN Button PAGE> Button Menu Wheel PAGEButton TELE Button LCD Screen

RADioMASTER TX12 MarkII THE MIGHTY MINI RADIO eoge OPEN TX TX (053 EpressLPS Hall Glmbals Reiet-NA5UERR Txiie TXI2-MKII

The main processor has been upgraded from an STM32Z F207 to an STM32F407, making it more powerful and efficient in the RadioMaster TX12 MK II ELRS/CC2500 EdgeTX multi-module compatible digital radio transmitter.

The ExpressLRS system features a BLE (Bluetooth Low Energy) Joystick Mode that enables wireless connectivity between your radio transmitter and compatible devices, such as PCs, tablets, or phones with Bluetooth functionality, for playing simulators and games. (Note: This feature is exclusive to the ExpressLRS version.)

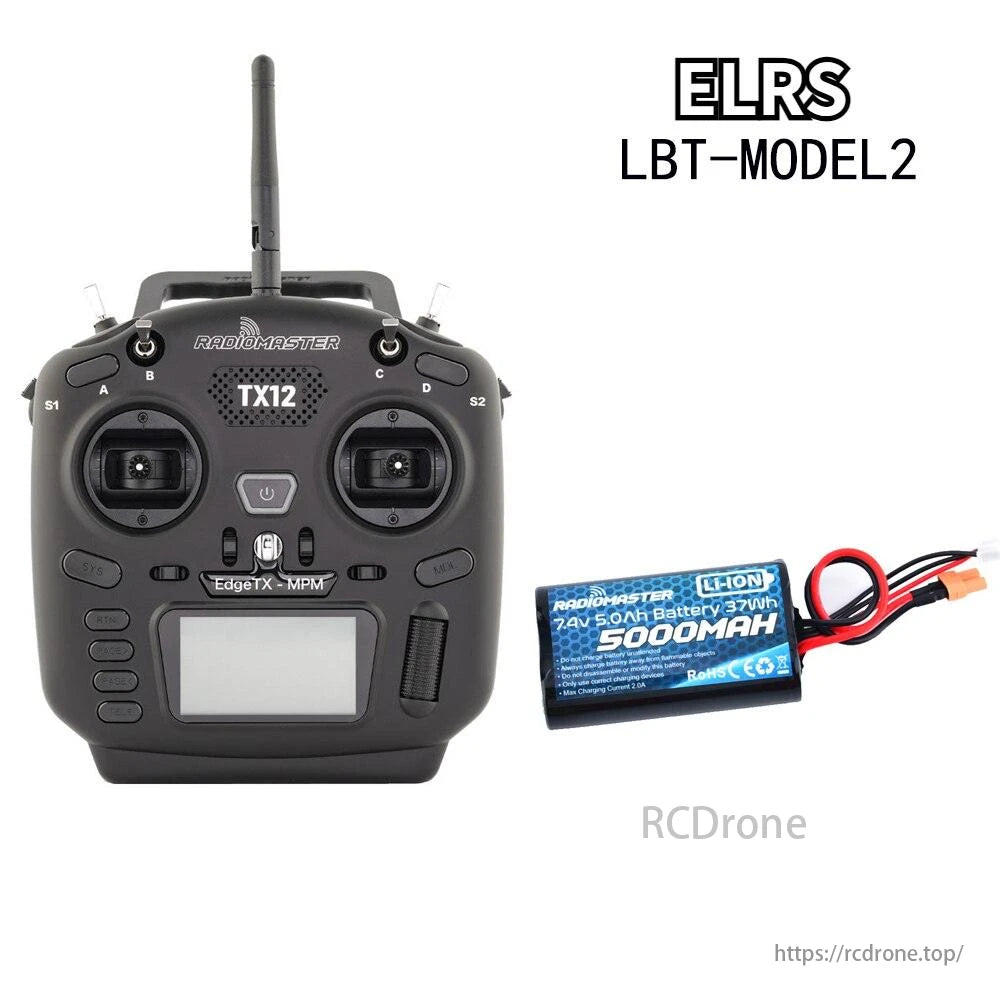

The mighty RadioMaster TX12 MK II ELRS/CC2500 now features internal ExpressLRS module support, along with improved USB-C charging capabilities that include QC3.0 support. Additionally, precision hall-effect gimbals are now standard, and the EdgeTX operating system is installed directly from the factory.
