RadioMaster TX12 MKII MK2 Mark 2 SPECIFICATIONS

name: hanma

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Radio Control

Tool Supplies: Assembled class

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Radio Control

Origin: Mainland China

Model Number: TX12 MK II

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: abay

Mode 2-Left hand throttle

New to TX12 MKII

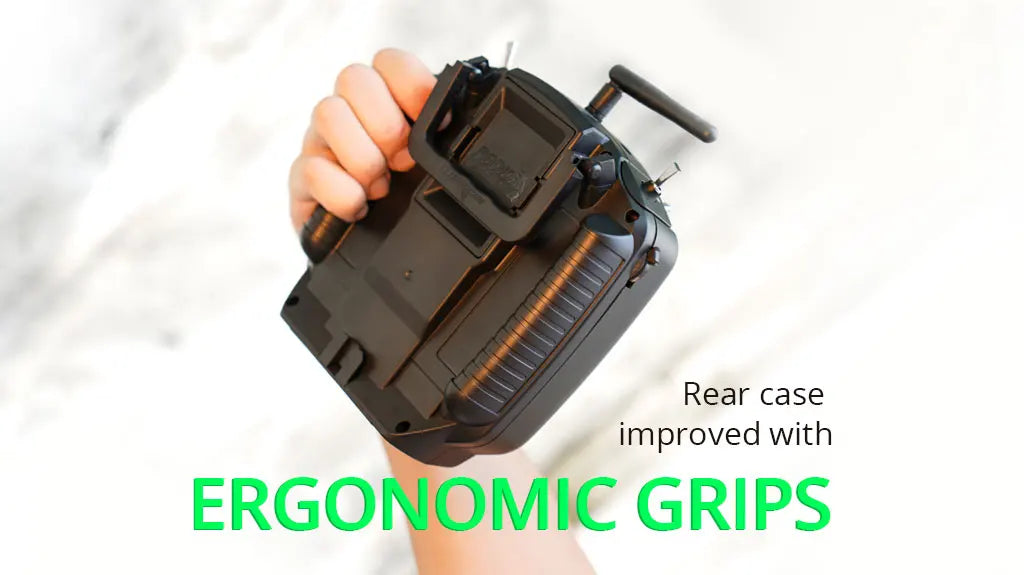

★ Updated rear case with comfortable grips

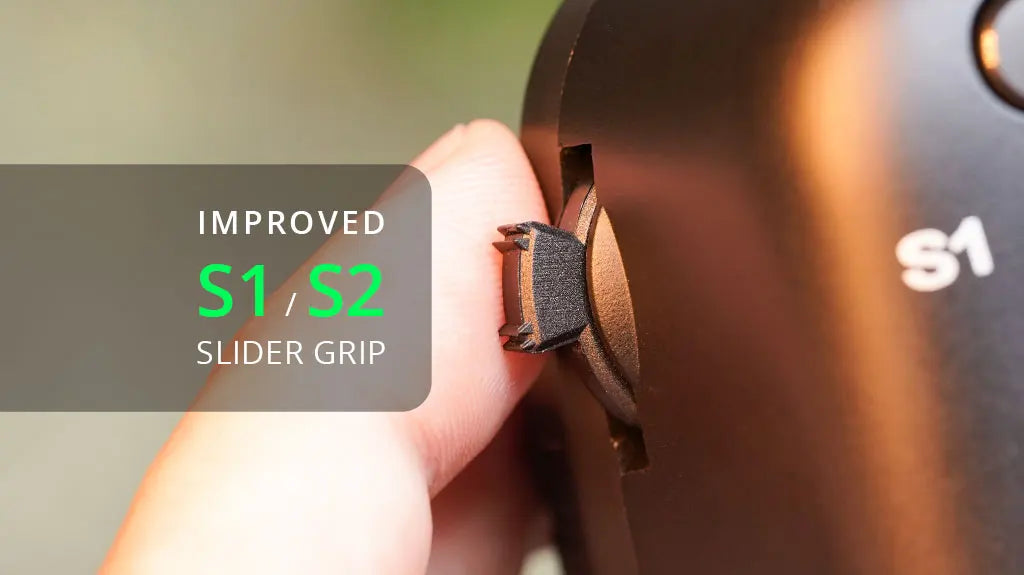

★ Improve S1 / S2 Grips
★ Improved USB-C QC 3.0 Charging
★ Updated main board design
★ Updated MCU to STM32F407

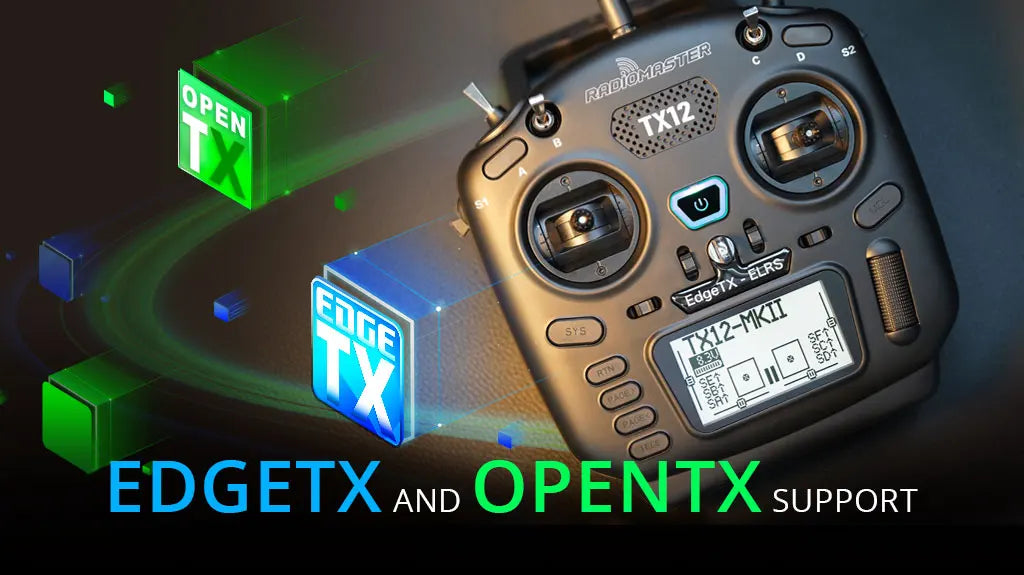

★ EdgeTX factory installed
★ SD Card included
★ Internal ExpressLRS RF Module

Specs:
Size: 170*159*108mm
Weight: 363g
Frequency: 2.400GHZ-2.480GHZ
RF Chip option: ExpressLRS (ELRS)
Transmitting Power: 20dbm
Antenna Gain: 2db
Working Current: 320mA@8.4V

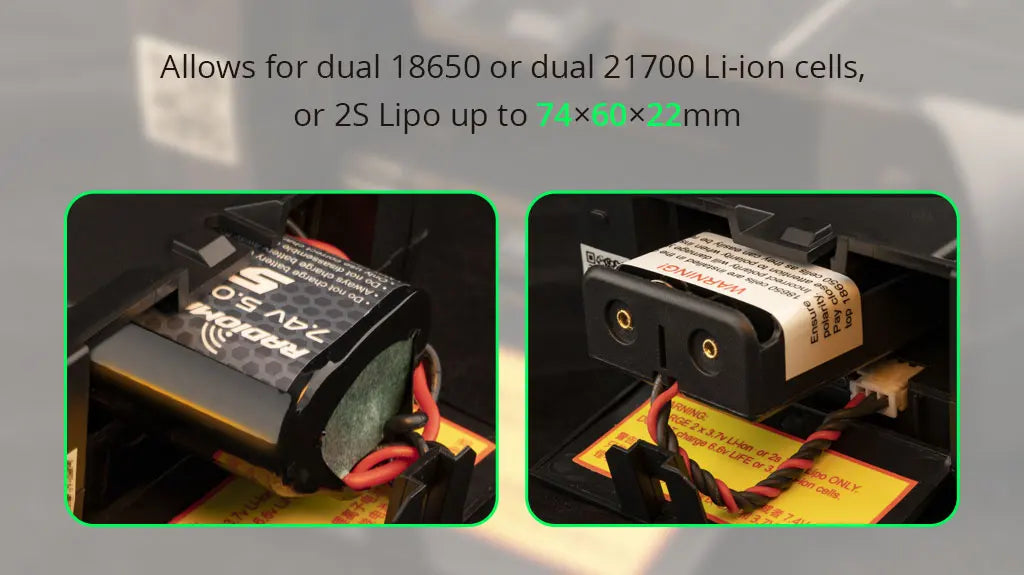

Voltage Range: 6.6-8.4v DC
Range: > 2km (depending on receiver)
Radio Firmware: EdgeTX (Transmitter) /  ExpressLRS (RF module)
Channels: Up to 16 (depending on receiver)
Display: 128*64 Monochrome LCD display

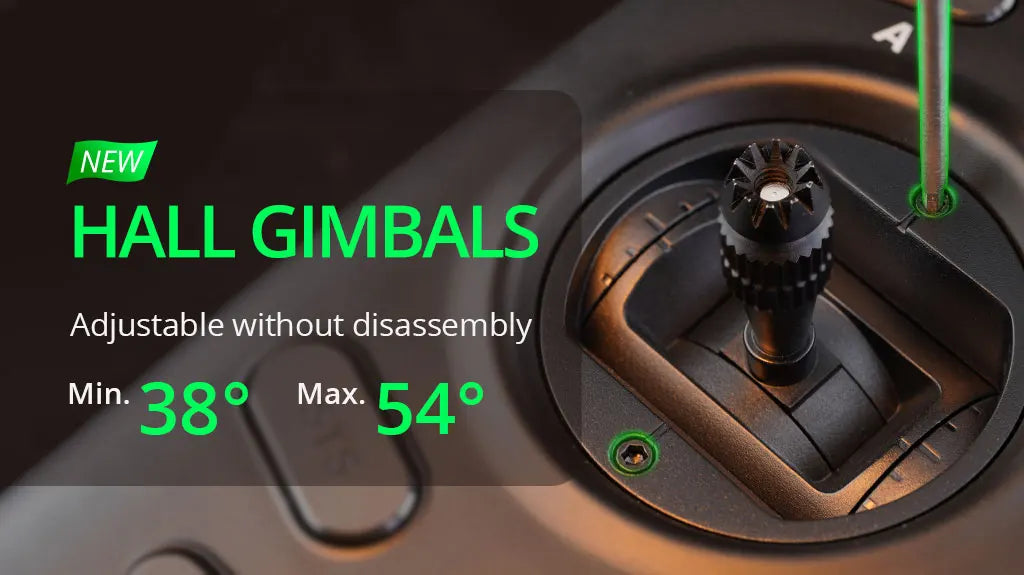

Gimbal: High precision hall gimbals
External module: JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software

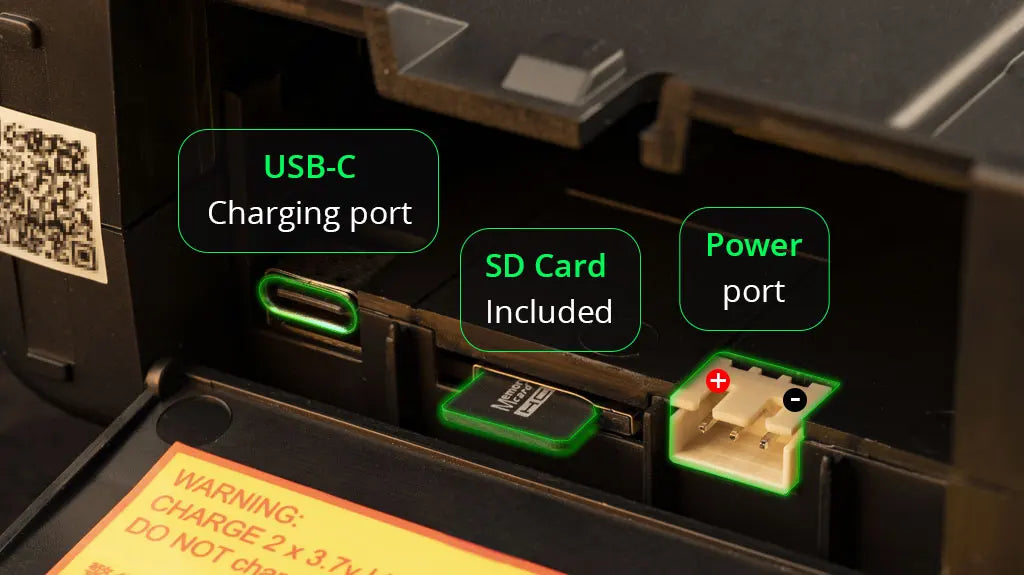

USB Charging: QC3 USB-C
SD Card: Included

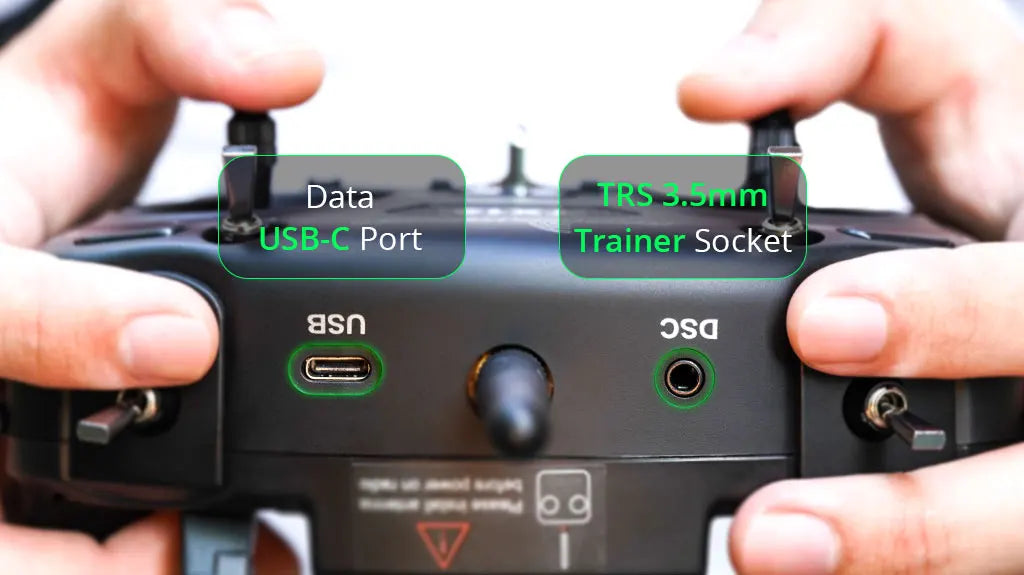

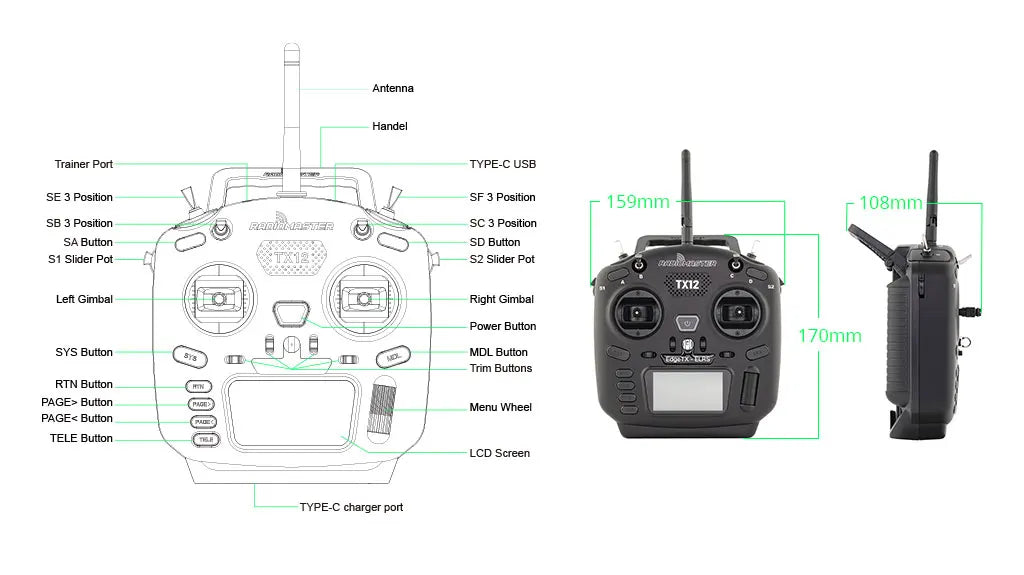

Antenna Handel Trainer Pont TYPE-C USB Position Position 159mm 108mm Position Ran JaRfR Position SA Button SD Button VTannnam Leit Right Gimbal Pover Button 170mm SYS Button MDL Button Tnm Buttons RTN Button PAGE> Button Menu Wheel PAGEButton TELE Button LCD Screen

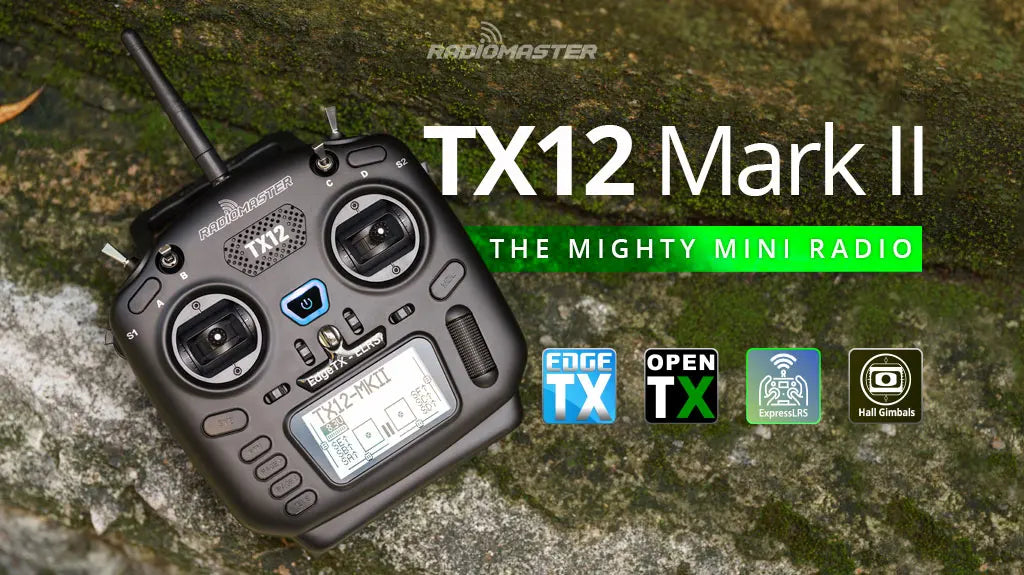

RADioMASTER TX12 MarkII THE MIGHTY MINI RADIO eoge OPEN TX TX (053 EpressLPS Hall Glmbals Reiet-NA5UERR Txiie TXI2-MKII

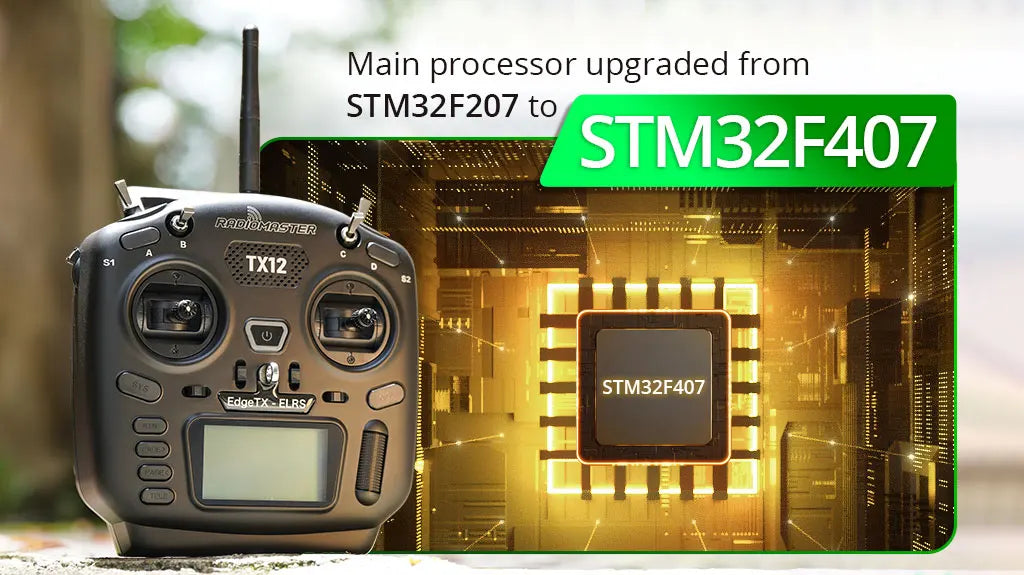

The main processor has been upgraded from an STM32Z F207 to an STM32F407, providing enhanced performance for the RadioMaster TX12 MKII (Mark 2) radio control transmitter.

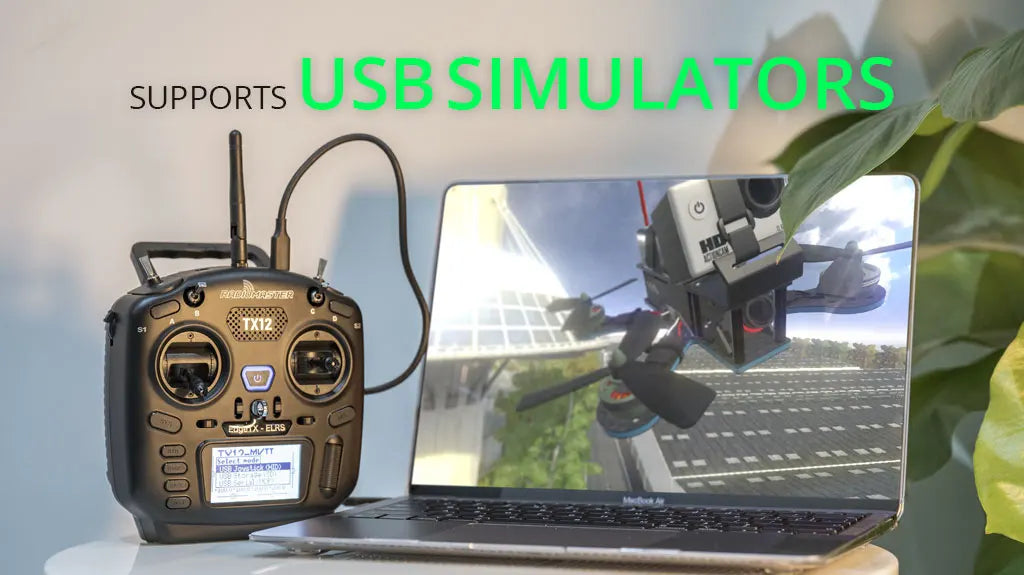

Bluetooth Joystick Mode allows for wireless connectivity to PCs, tablets, and smartphones with Bluetooth functionality, enabling users to play simulations and games using the ExpressLRS radio control system.

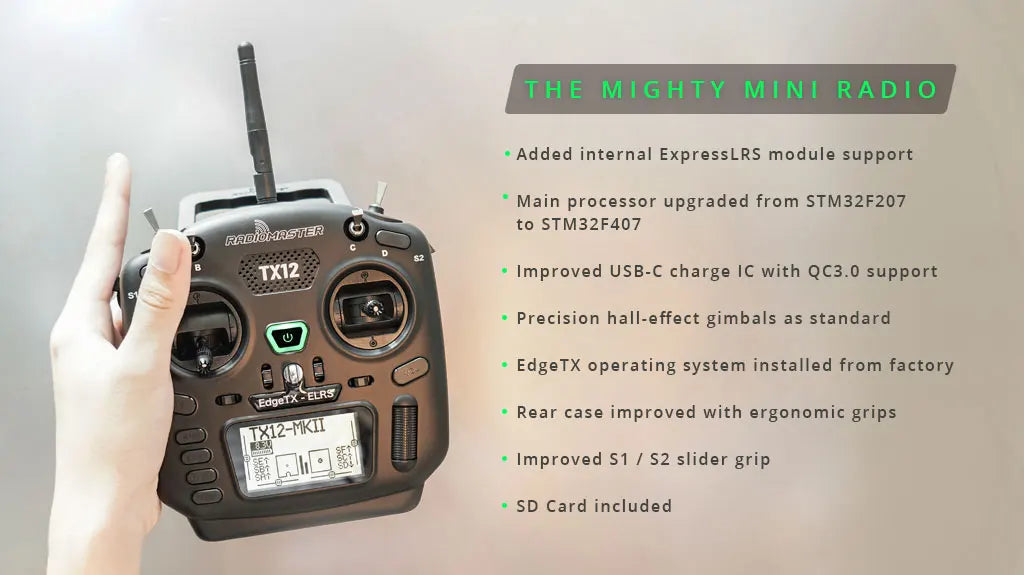

The Mighty MTi Radio features added internal ExpressLRS module support, improved USB-C charging with QC3.0 support, and precision Hall-effect gimbals as standard. It comes with the EdgeTX operating system pre-installed from the factory.
