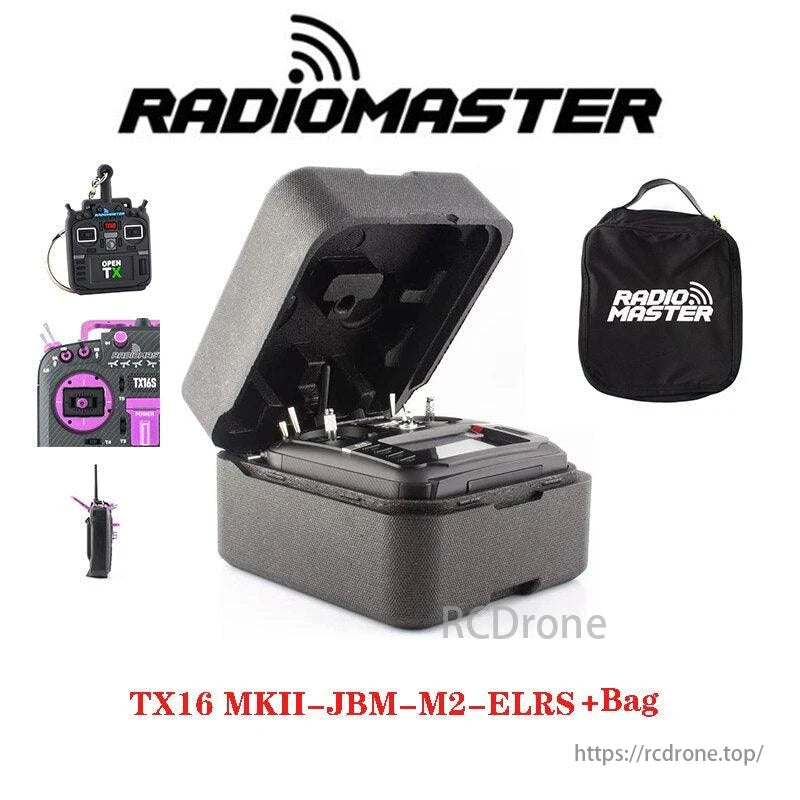

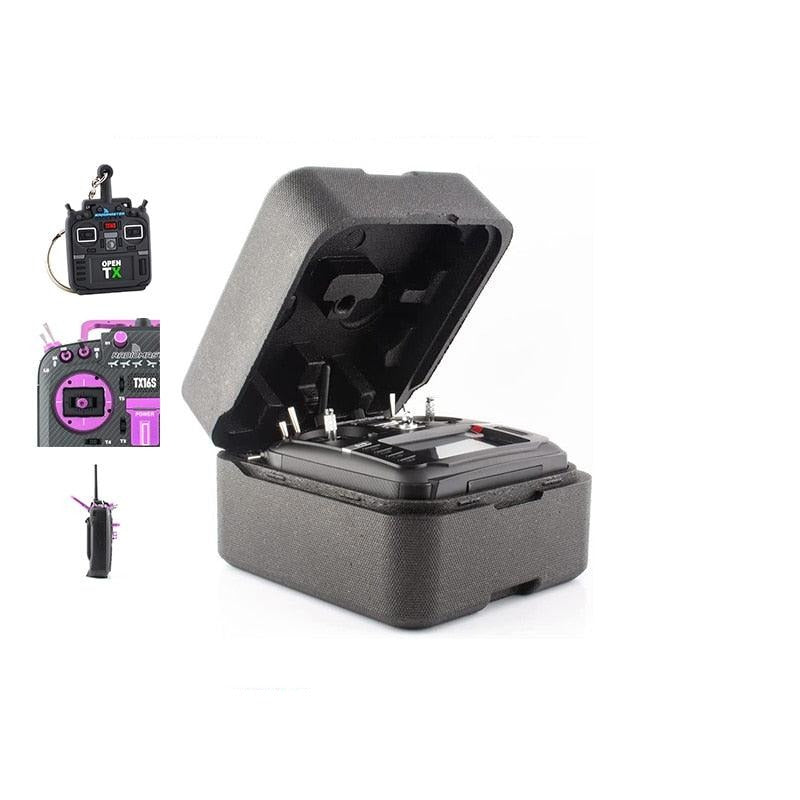

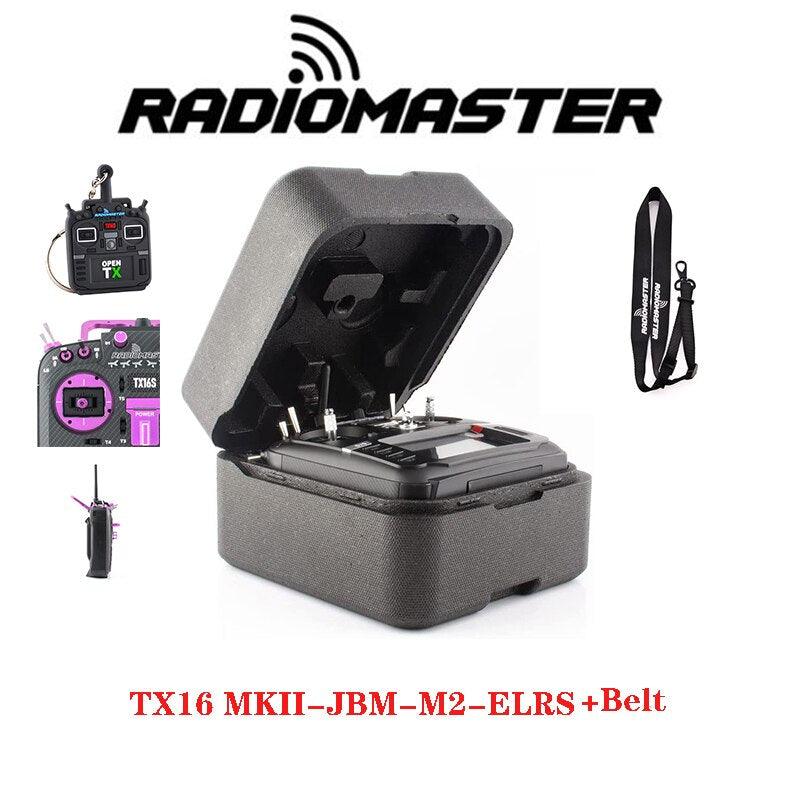

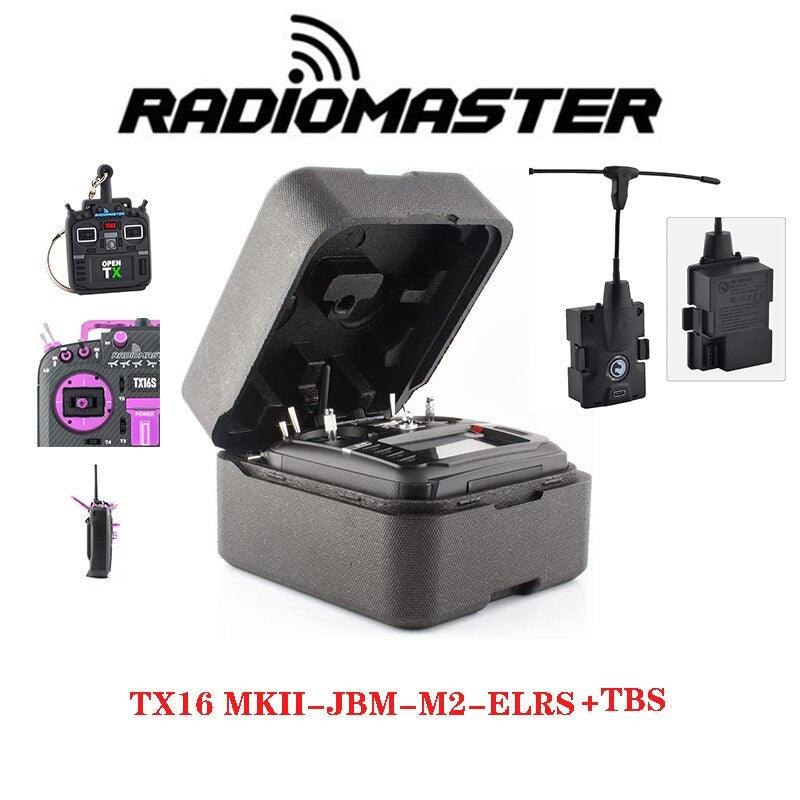

RadioMaster TX16S MKII MAX ELRS SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Recommend Age: 12+y
Origin: Mainland China
Material: Composite Material
Special JB edition in the Carbon and Purple JB color scheme with JB
sound pack pre-installed and V4.0 Hall Gimbals. Comes with internal
ExpressLRS module.
SPECS
Size: 287×129×184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module:
Option 1: Internal 4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401)
Option 2: Internal ELRS(Sx1280)
Transmitting power:
lnternal 4-in-1 multi-protocol module : Max 100mw(protocol dependent)
lnternal ELRS : Max 250mw(transmitting power is adjustable)
Antenna gain: 2db (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance:> 2km @ 22dbm
Radio firmware: EdgeTX
Module Firmware: Multiprotocol- Module (4IN1)-
OR-ExpressLRS(ELRS)
Channels:
Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT
full-colour touch display with a resolution of 480 * 272
Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT
full-colour touch display with a resolution of 480 * 272
Gimbal:
Option 1: v4.0 Hall sensor with Aluminium fascia,
Option 2: AG01 CNC Hall sensor
Module Bay: JR compatible module bay

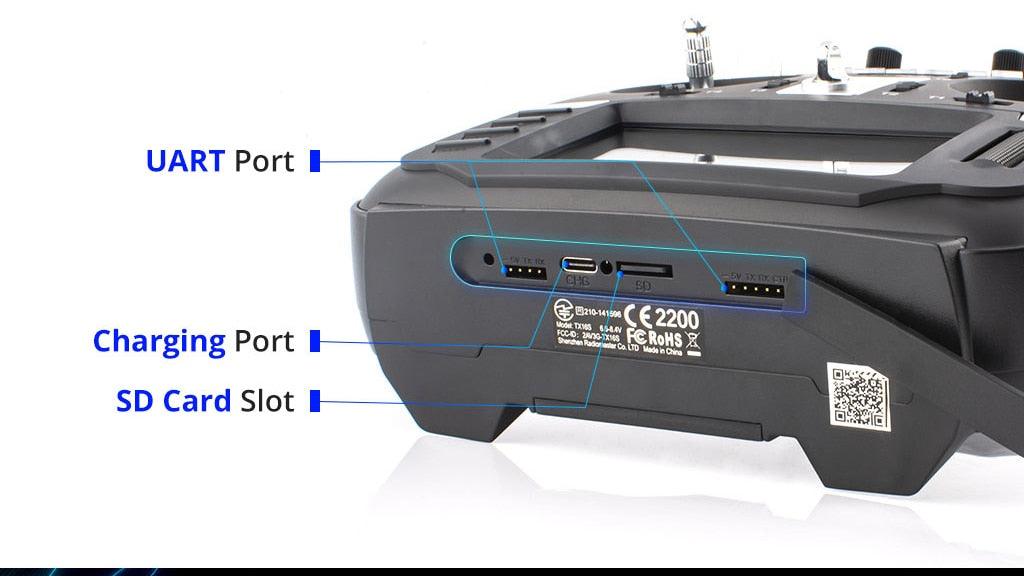

Upgrade method: Supports USB-C online / SD card offline upgrade
IMPROVEMENTS
-
Improved internal circuity and optimized power supply.
-
New charge circuitry with integrated reverse-polarity protection.
-
Optimized charge lC, better balancing and USB-C charge current management.
-
Rear mounted audio jack provides headphone output.
-
V4.0 Gimbal improved centring and temperature stability(Same circuitry as AG01).
-
Optional high/low rear grips included for improved ergonomics.
-
Improved S1/S2 knobs with clear centre-detents.
-
Improved LS/RS Sliders with smoother feel and better centre-detents.
-
Redesigned battery cover for improved battery access.
-
Retooled body shell with improved fit and finish.
-
Trainer socket changed to standard TRS 3.5mm socket.
-
Rear DIY Socket added for personalised mods.
-
Improved internal plastics for better longevity.
-
Available ELRS and 4in1 versions.

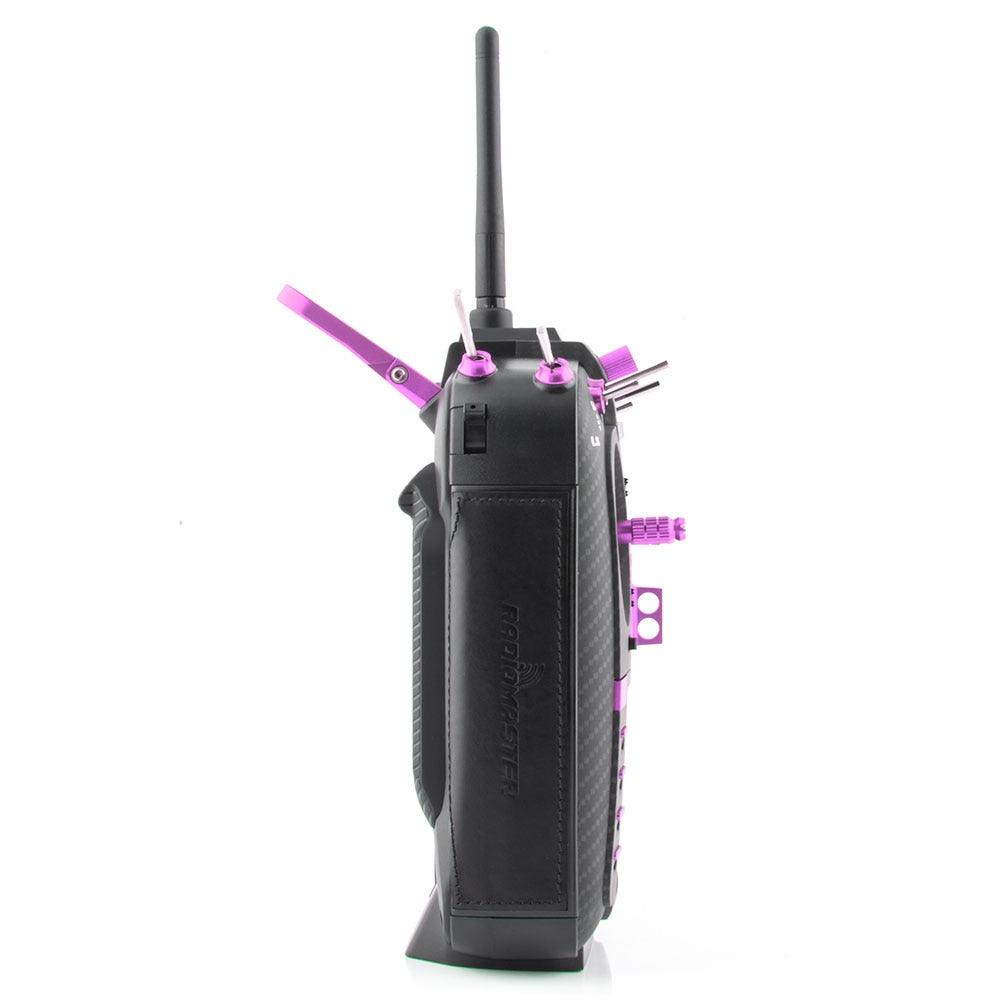

MAX units feature carbon look face plates and CNC finishing components and buttons.
