SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Tool Supplies: Assembly Category

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y,14+y

RC Parts & Accs: Connectors/Wiring

Quantity: 1 pcs

Origin: Mainland China

NAME: Hanma Store

Model Number: Zorro CC2500

Material: Metal

For Vehicle Type: Helicopters

Certification: CE

Brand Name: abay

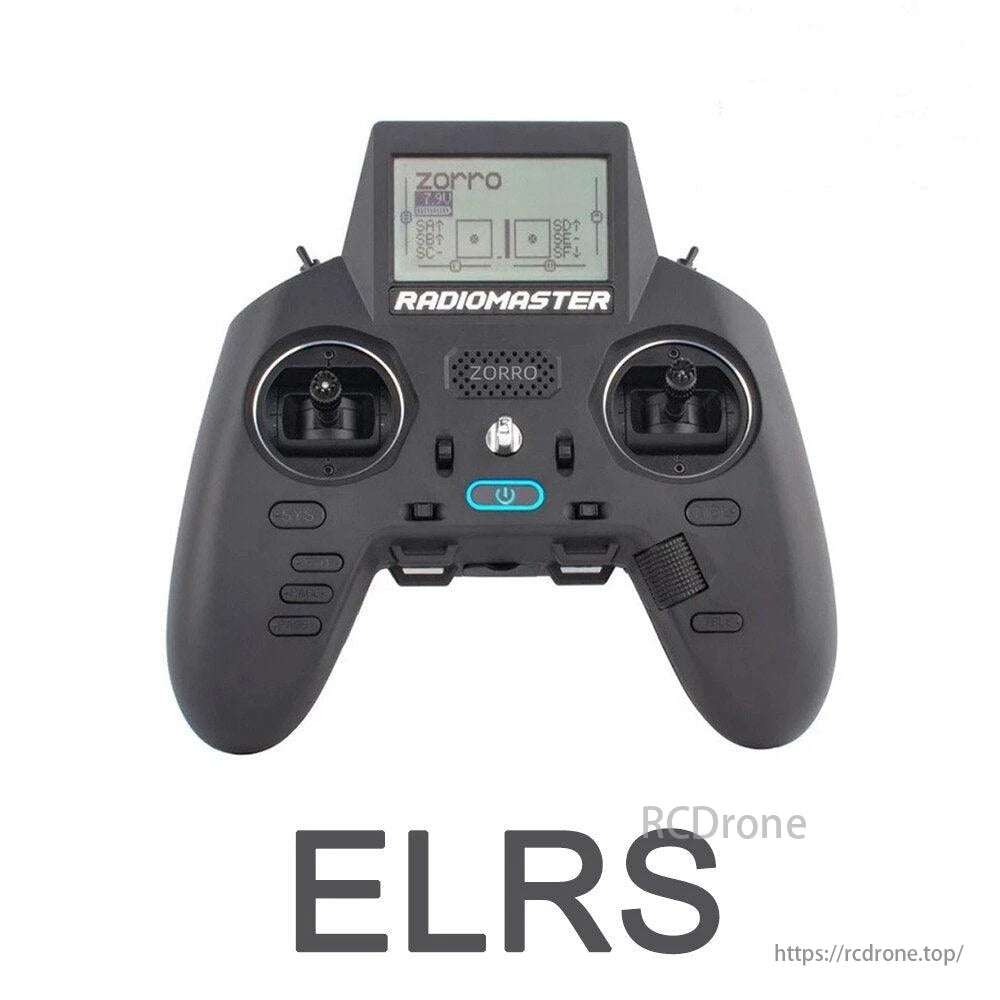

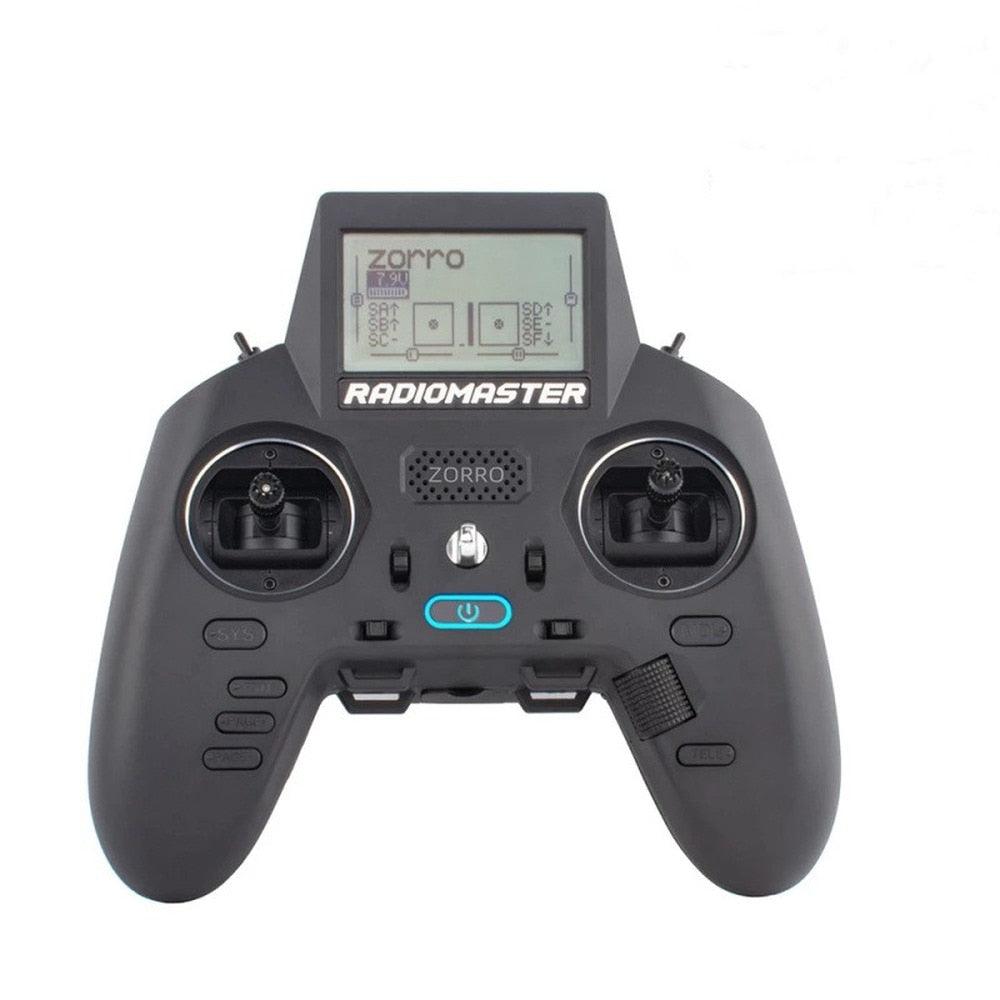

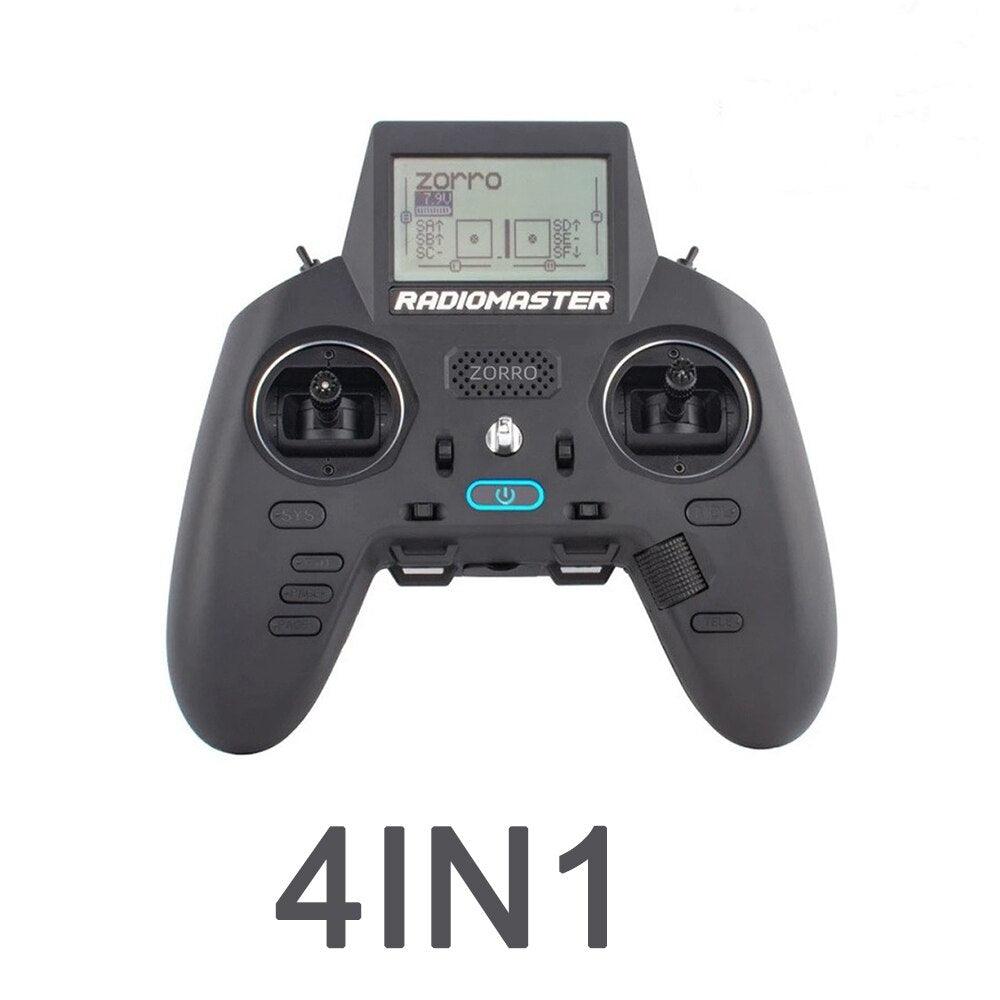

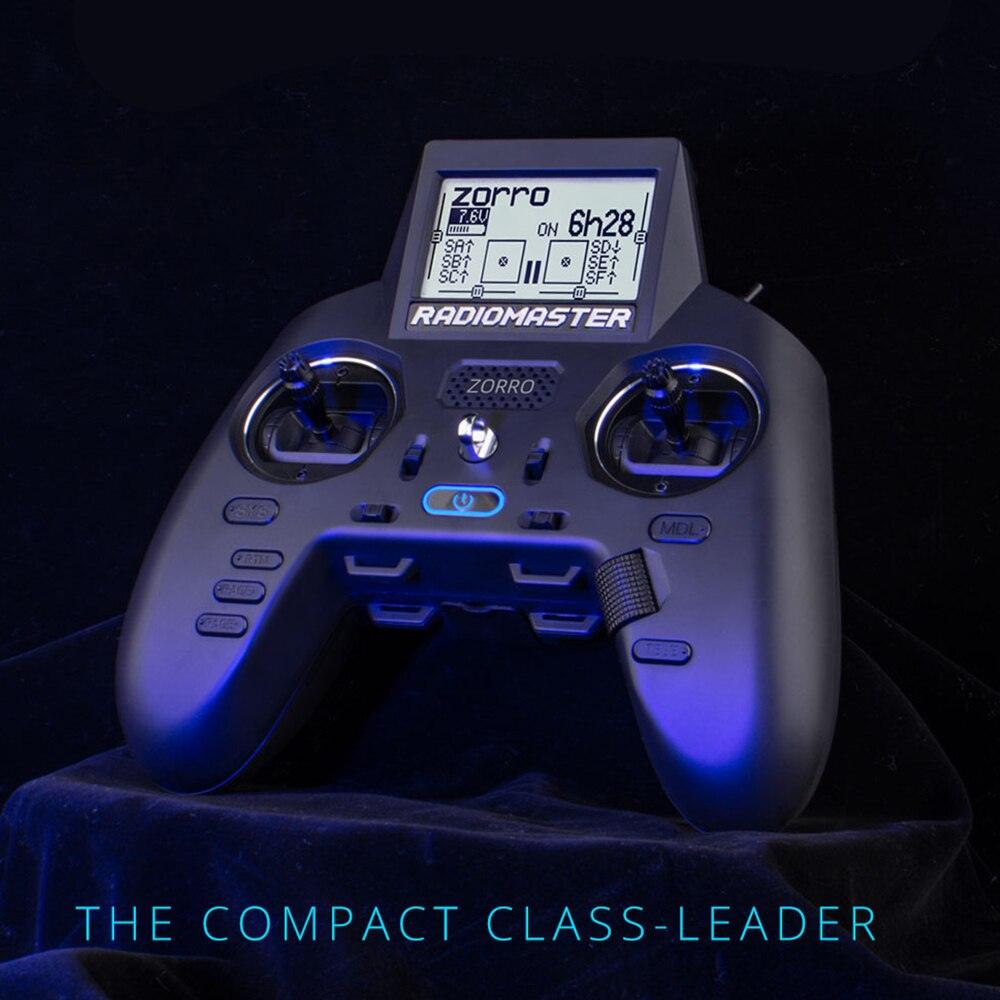

The new class leader in game control style radios is here! Meet the all new RadioMaster Zorro. Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

Feature:

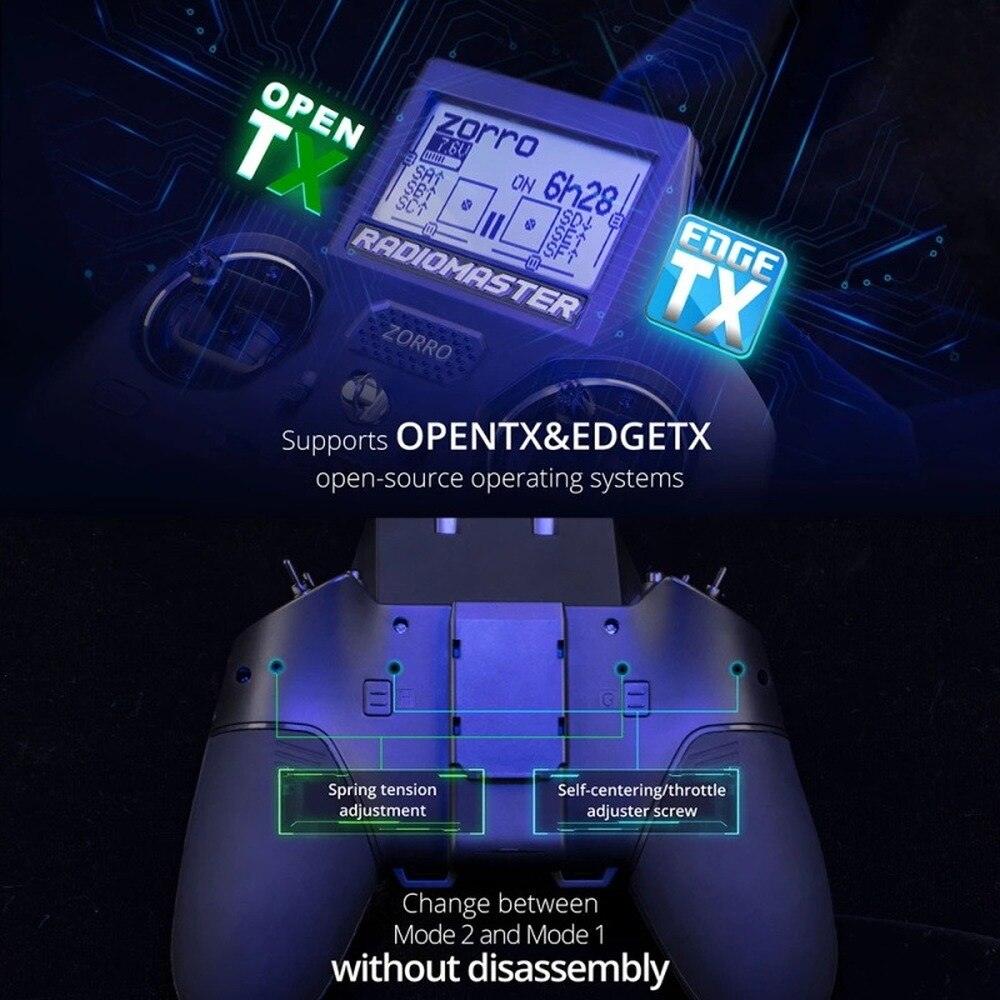

Supports OPENTX&EDGETX,open-source operating systems,Oversized LCD with adjustable brighrness for any environment.

Change between Mode 2 and Mode 1,Without Disassembly ;Adjuststable

HallGimbals--Turn clockwise to increase

travel(Max.54°);Counter-clockwise to decrease travel(Min.38°)

Improved metal roller offer precise control,Ergonomically

designed,handle comfortable and easy to grip,Replaceable/upgradable

non-slip Soft rubber/Leather grips

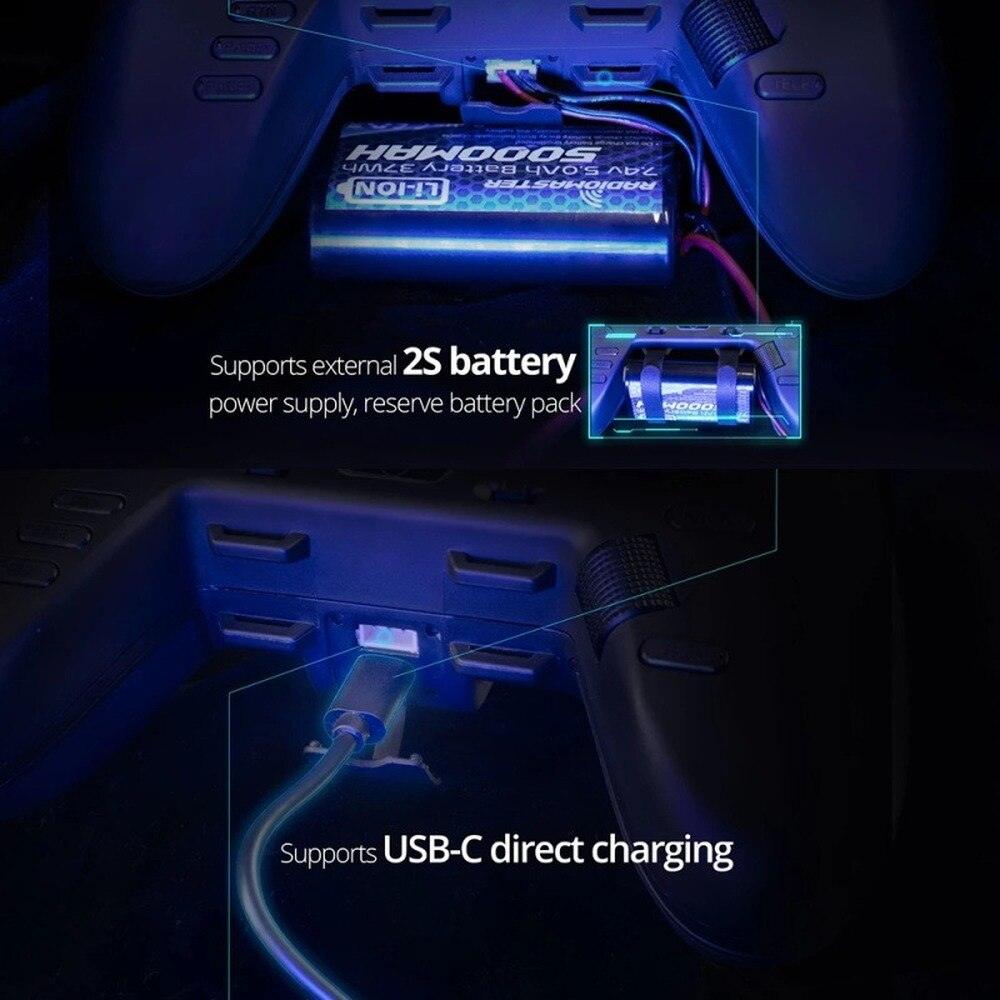

18350 battery compartments,supports USB-C direct charging,Supports

external 2S battery power supply,reserve battery pack,Foldable

antenna,Audio output,DSC port,SD card slot,USB port. DIY attachment

points,Aux buttons.

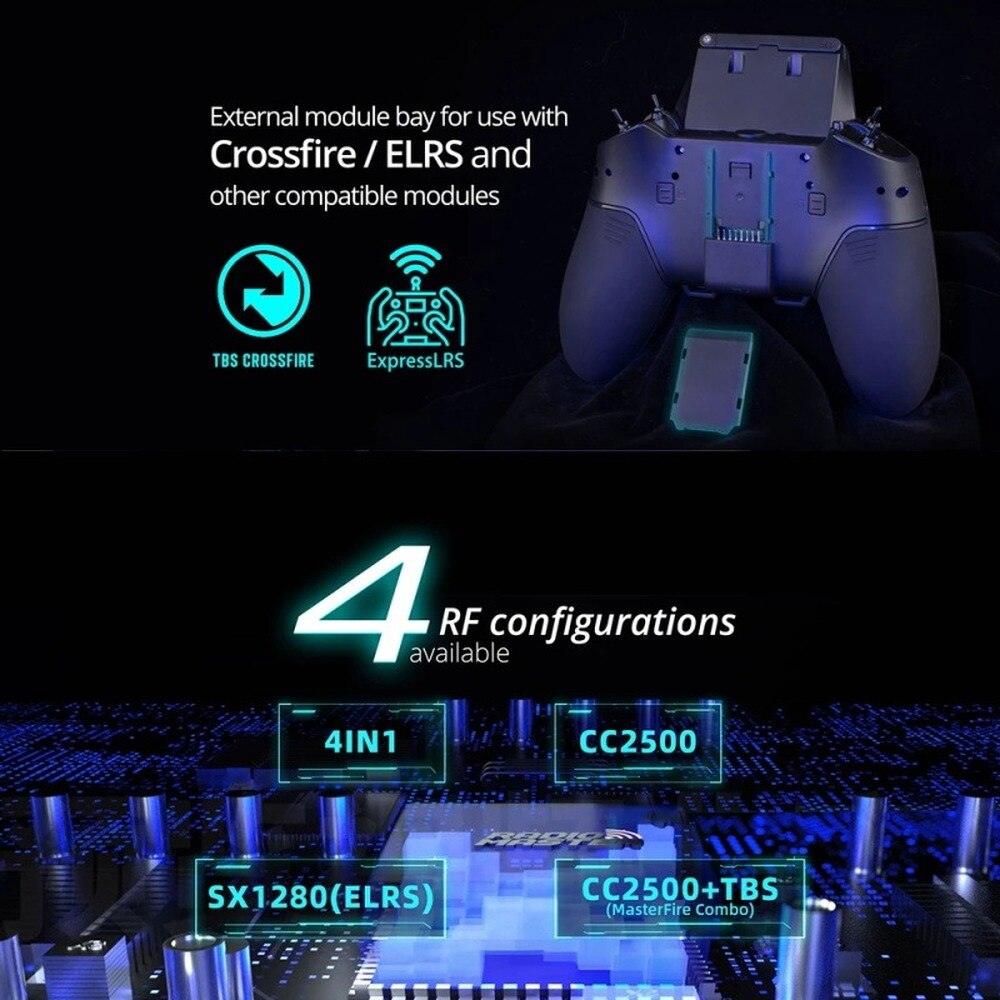

External Module bay for use with Crossfire/ELRS and other compatibale modules

Specs:

Physical dimensions:170*159*108mm

Weight:350 grams

Operating frequency:2.400GHz-2.480GHz Internal RF Options:ELRS

Supported protocols :ELRS

RF power: Up to 250mw ( CE & FCC Versions will be available) Antenna gain:Folding 2db

Operational current:160mA 8.4V

Operational voltage:6.6-8.4v

DC Control distance: Receiver and Power Output dependant Operating system:OpenTX / EdgeTX Compatible Control channels:Maximum 16 (Rx dependent) Display :128*64 Monochrome LCD Battery :2 x 18350 (Not included)

Charging :Built in USB-C Charging

Gimbal:Hall-effect

Module bay :Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)

Firmware Upgrade method:Via USB or SD card (SD Not included)

Left Hand Only

Adjustable HALL Gimbals Stick travel adjustment Turn clockwise to increase travel (Max. 542), counter-clockwise to decrease travel (Min. 389) HHSTER RRO MDL

Ergonomically designed handle comfortable and easyto grip Replaceablelupgradable non-slip soft rubber/leather grip

SPECS Physical dimensions: 170*159*108mm Weight: 350 grams Operating frequency: 2.40OGHz-248OGHz Internal RF options: CC2500 multi-protocol 4-in-1 multi- protocol ELRS 2.4GHz .
