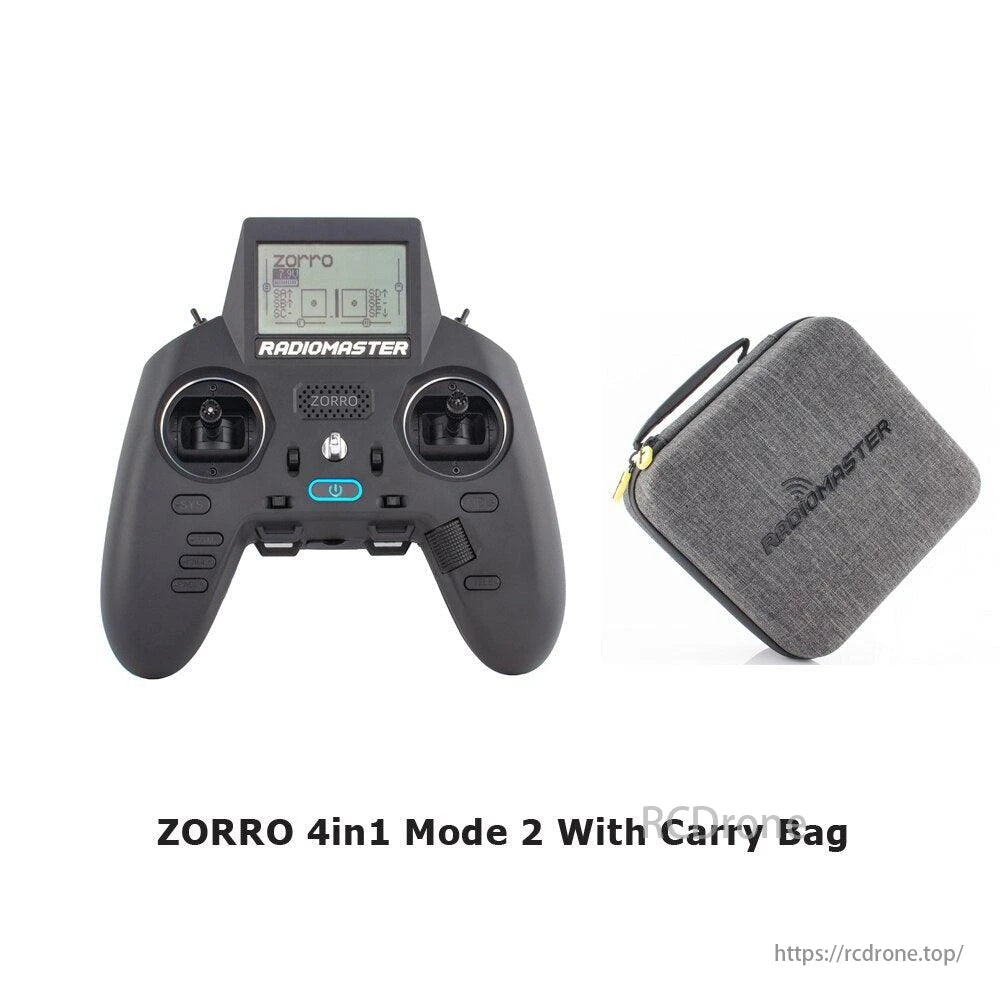

RadioMaster Zorro ELRS  SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Tool Supplies: Tools

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Transmitters

Origin: Mainland China

Name: Hanma Store

Material: Plastic

Four-wheel Drive Attributes: Assemblage

Certification: CE

Brand Name: RadioMaster

Brand Name: abay





1.RadioMaster Zorro ELRS 2.4 GHZ RC Controller CC2500 JP4IN1 RC Radio Transmitter With Battery Hall Gimbal Remote Control Helicopter



Features:

1.RadioMaster ZORRO: ZORRO is an open-sourced, ergonomic radio with powerful multi-protocol capability. Able to bind to most contemporary protocols on the market, this is one radio to rule them all! Supports OPENTX&EDGETX,open-source operating systems,Oversized LCD with adjustable brightness for any environment

2.RC Radio Transmitters Mode: Change between Mode 2 and Mode 1,Without Disassembly ;Adjustable Hall Gimbals--Turn clockwise to increase travel(Max.54°）Counter-clockwise to decrease travel(Min.38°）

3.RC Controller Design: Improved metal roller offer precise control,Ergonomically designed,handle comfortable and easy to grip,Replaceable/upgradable non-slip Soft rubber/Leather grips

4.Application: RadioMaster ZORRO remote control is applicable to all types of fixed-wing, glider, helicopter and multi-rotor aircraft. The model type can be selected according to the aircraft used, and various hybrid functions can be used

5.Charging Mode: 18350 battery compartments,supports USB-C direct charging,Supports external 2S battery power supply,reserve battery pack,Foldable antenna,Audio output,DSC port,SD card slot,USB port. DIY attachment points,Aux buttons.External Module bay for use with Crossfire/ELRS and other compatible modules

Note: ZORRO Radio Controller default Mode 2, Mode 1 or Mode 2 can be adjusted.Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.



Description:

The new class leader in game control style radios is here! Meet the all new RadioMaster Zorro. Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.



ZORO CC2500 multi-protocol: Support Corona, Hitec, Futaba S-FHSS, Frsky D16/D8, RadioLink, Graupner HoTT and other protocols

ZORRO 4IN1 multi-protocol: Built-in CC2500/NRF24L01/CYR6939/A7105 four-in-one chip, supporting Cyrf6936 Spektrum dsm2 dsmx WFLY 1st generation, etc., such as A7105 Flysky 1st generation Flysky 2nd generation WFLY 2nd generation, etc, NRF24L01, mainly for some toy airplanes, and 50 protocols such as Loli protocol.

ZORRO ELRS protocol: Supports ELRS protocol.



Specifications:

Brand: RadioMaster

Item: ZORRO

Model: CC2500/4-in-1/ELRS

Operating frequency: 2.400GHz-2.480GHz

Internal RF options：ELRS

Supported protocols: ELRS

RF power: Up to 250mw ( CE & FCC Versions will be available)

Antenna gain：Folding 2db

Operational current: 160mA 8.4V

Operational voltage: 6.6-8.4V

DC Control distance: Receiver and Power Output dependant

Operating system: OpenTX / EdgeTX

Compatible Control channels: Maximum 16 (Rx dependent)

Display: 128*64 Monochrome

LCD Battery: 2 x 18350 (Not included)

Charging: Built in USB-C Charging

Gimbal: Hall-effect

Module bay: Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)

Firmware Upgrade method: Via USB or SD card (SD Not included)

Physical dimensions: 170*159*108mm

Weight: 350 g



Specifications:

Capacity: 900mah

Voltage: 3.7V

Cell Type: 18350



Package Included:

2x RadioMaster 900mah 3.7V Li-ion 18350 cells



5.RadioMaster AG01 MINI CNC Hall Gimbal Upgrade for TX12 / Zorro Radio Transmitter Remote Controller



Features:

1.Material: Made with CNC processed aviation grade aluminum.Sticky360 Mini Gimbal Sticks as standard.

2.Accurate: Non contact hall sensors for accurate control inputs and precise centering.

3.RadioMaster Zorro Upgrade: Quad precision bearings for unparalleled stick feel.

4.Adjustable: Adjustable vertical travel angle (Min. 38°, Max. 54°).

5.Application: Custom designed for RadioMaster Zorro , TX12.



Description:

The long-awaited AG01 Mini is finally here! Custom designed for the RadioMaster Zorro and TX12, these gimbals allow for unparalleled precision and stick feel.From the aviation-grade aluminum construction, non-contact hall sensors, and pre-installed Sticky360 Mini Gimbal Sticks, be prepared to revolutionize your compact radio experience!



Specifications:

Brand: RadioMaster

Name: AG01 Mini CNC Hall Gimbal

Sensor type: Hall Sensor

Working voltage: DC 3.3V

Linearity: Real-time (No delay)

Adjustable vertical travel range: 38°—54°

Self-centering adjustment: Yes

Easy mode adjustment

Adjustable tension & ratchet: Yes

Quad bearing: Yes

Temperature range: -20°C-85°C

Size: 49*42*48mm

Weight: 42g(±0.3g)



Support 4 RF Configurations

Switchable in Mode 1 and Mode 2

Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.

Adjustable Hall Gimbals

External Module Bay

Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.

18350 Battery Compartments

Battery Charging

• Supports USB-C Directing Charging

• Supports External 2S Battery Power Supply

Oversized LCD & Foldable Antenna

 DIY Attachment Points

Ergonomically Designed

Ergonomically designed handle comfortable and easyto grip Replaceablelupgradablenon-slip soft rubberr leather grip
