RadioMaster ZORRO Transmitter - 2.4Ghz 16CH CC2500 / 4in1 / ELRS Hall Gimbal LCD Screen OpenTX Radio Transmitter Mode2 for RC FPV Drone

RadioMaster ZORRO Transmitter - 2.4Ghz 16CH CC2500 / 4in1 / ELRS Hall Gimbal LCD Screen OpenTX Radio Transmitter Mode2 for RC FPV Drone

RadioMaster

Regular price $158.25 USD
Regular price $221.55 USD Sale price $158.25 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

48 orders in last 90 days

Color
Ships From

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

RadioMaster ZORRO Transmitter SPECIFICATIONS

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Battery

Technical parameters: KV1100

Size: 20*15*6cm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

Recommend Age: 14+y

RC Parts & Accs: Radio Systems

Quantity: 1 pcs

Plastic Type: PC

Origin: Mainland China

Model Number: RadioMaster ZORRO

Material: Plastic

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

RadioMaster Zorro 2.4GHz 16CH Hall Sensor Gimbals CC2500/JP4IN1/ELRS Multi-protocol OpenTX/EdgeTX System Radio Transmitter with RC Receiver & TBS Nano Crossfires Module Combo Set for RC Drone


OVERVIEW:

Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.



Description:

Brand Name: RadioMaster

Item Name: Zorro Radio Transmitter

Weight: 350g

Size: 170*159*108 mm

Operating frequency: 2.400GHz-2.480GHz

Internal RF Options: CC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz

Supported protocols: Module dependent

RF power: CC2500 and 4-in-1: 20dBm max. / ELRS: 22dBm max.

Antenna gain: Folding 2db

Operational current: 160mA@8.4V

Operational voltage: 6.6-8.4v DC

Control distance: > 2km @ 20dbm

Operating system: OpenTX / EdgeTX Compatible

Control channels: Maximum 16 (Rx dependent)

Display: 128*64 Monochrome LCD

Battery: 2 x 18350 (Not included)

Charging: Built in USB-C Charging

Gimbal: Hall-effect

Module bay: Nano size (Compatible with TBS Nano Crossfires / Nano Tracer / IRC Ghost)

Firmware Upgrade method: Via USB or SD card (SD Not included)



Radio Firmware:

https://www.open-tx.org/

http://edgetx.org/



RF Firmware:

CC2500 & 4-in-1 Multi-module: https://www.multi-module.org/basics/supported-protocols

ELRS: https://github.com/ExpressLRS/ExpressLRS



Package Included:

1 x Zorro Radio Transmitter (Optional Version)

1 x EP2 ELRS RC Receiver (Only ELRS Starter Set)

2 x EP1 ELRS RC Receiver (Only ELRS Starter Set)

1 x TBS Nano Crossfires TX Module (Only CC2500+Nano Crossfires/4IN1+Nano Crossfires)

Zorro Radio Control Specs
  Versions Zorro Radio Control
CC2500
Zorro Radio Control  4in1 Zorro Radio Control ELRS  Zorro Radio Control
ELRS Starter Set

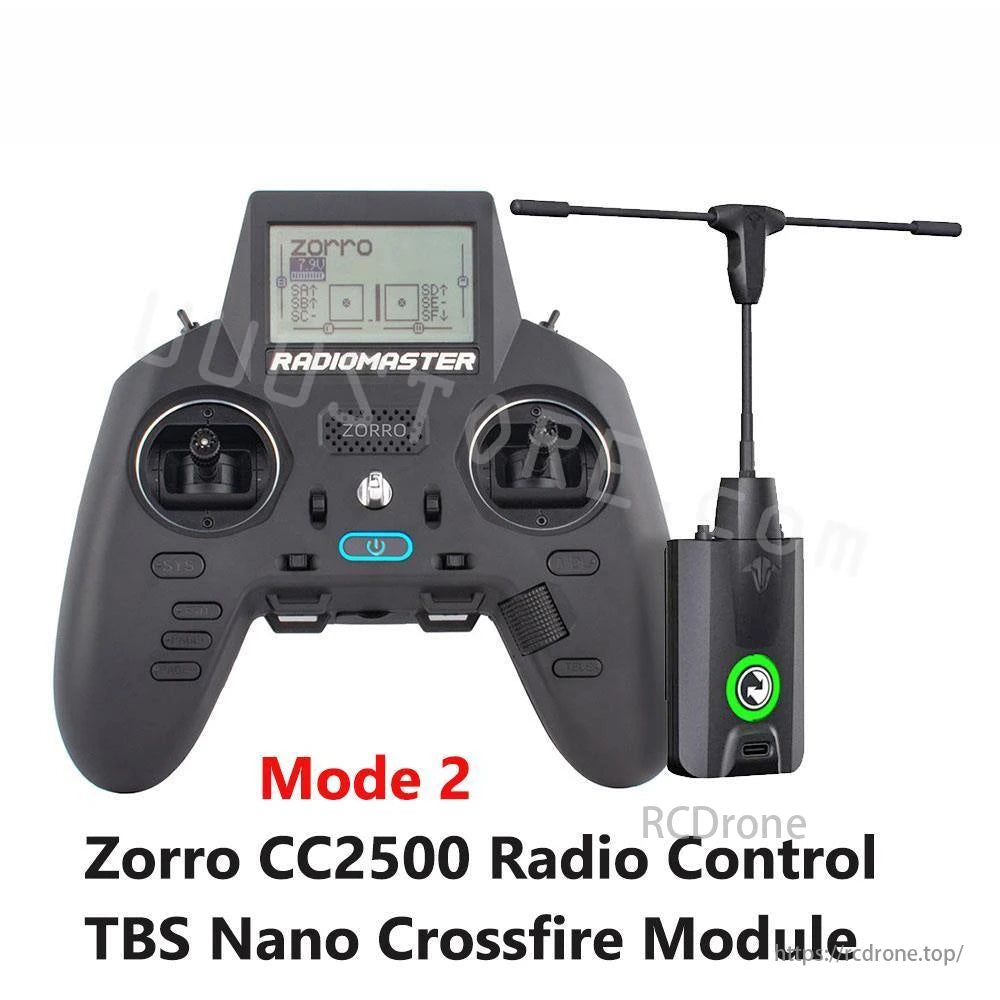

Zorro Radio Control CC2500 + TBS Nano Crossfires Combo
  Physical dimensions 170*159*108mm
  Weight 350 grams
  Operating frequency 2.400GHz-2.480GHz
  Internal RF Options CC2500 multi-protocol 4-in-1 multi-protocol ELRS CC2500 multi-protocol
  Supported protocols Module dependent Module dependent ELRS Module dependent
  RF power CC2500: 20dBm max. 4-in-1: 20dBm max.  Up to 150mw ( CE & FCC Versions will be available) CC2500: 20dBm max.
  Antenna gain Folding 2db
  Operational current 160mA@8.4V
  Operational voltage 6.6-8.4v DC
  Control distance > 2km @ 20dbm > 2km @ 20dbm Receiver and Power Output dependant > 2km @ 20dbm
  Operating system OpenTX / EdgeTX Compatible
  Control channels Maximum 16 (Rx dependent)
  Display  128*64 Monochrome LCD
  Battery 2 x 18350 (Not included)
  Charging Built in USB-C Charging
  Gimbal Hall-effect
  Module bay Nano size (Compatible with TBS Nano Crossfires / Nano Tracer / IRC Ghost)
  Firmware Upgrade
  method
Via USB or SD card (SD Not included)


RadioMaster ZORRO Transmitter, RadioMASTER ZORR0 Pei [orro 6h281 Inl

RadioMASTER ZORR0 Pei [orro 6h281 Inl " Io Supports OPENTX&EDGETX open-source operating systems RF configurations .
