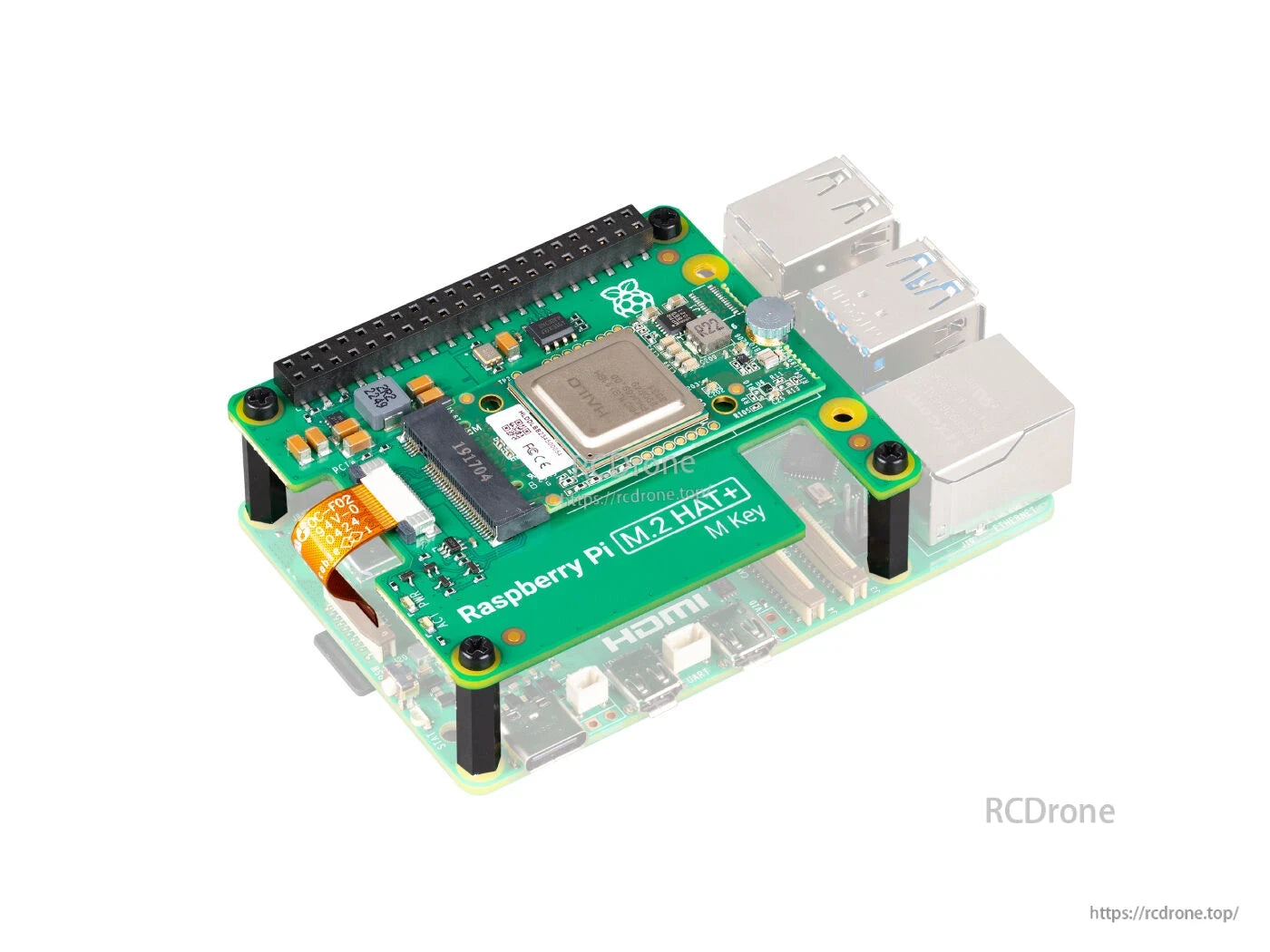

Raspberry Pi AI Kit – M.2 HAT+ with Hailo AI Acceleration (13 TOPS), for Raspberry Pi 5 and CM4 IoT Gateways

Overview

The Raspberry Pi AI Kit bundles the Raspberry Pi M.2 HAT+ with a Hailo AI acceleration module. This Raspberry Pi AI Kit is designed for Raspberry Pi 5, and it can also elevate Raspberry Pi CM4 edge IoT devices with M.2 slots, such as reComputer R1000 and reComputer R1100, by adding AI capabilities alongside SSD storage.

Key Features

• 13 Tera-Operations Per Second (TOPS): neural network inference accelerator capable of 13 TOPS
• Fully adapted camera: integrated into Raspberry Pi’s camera software stack
• Thermal management: thermal pad pre-fitted between module and HAT+ spreads heat across components to improve performance
• Reserved interface and fitting hardware: supplied with 16mm stacking header, spacers, and screws to enable fitting on Raspberry Pi 5 and CM4-powered IoT gateways/controllers

Specifications

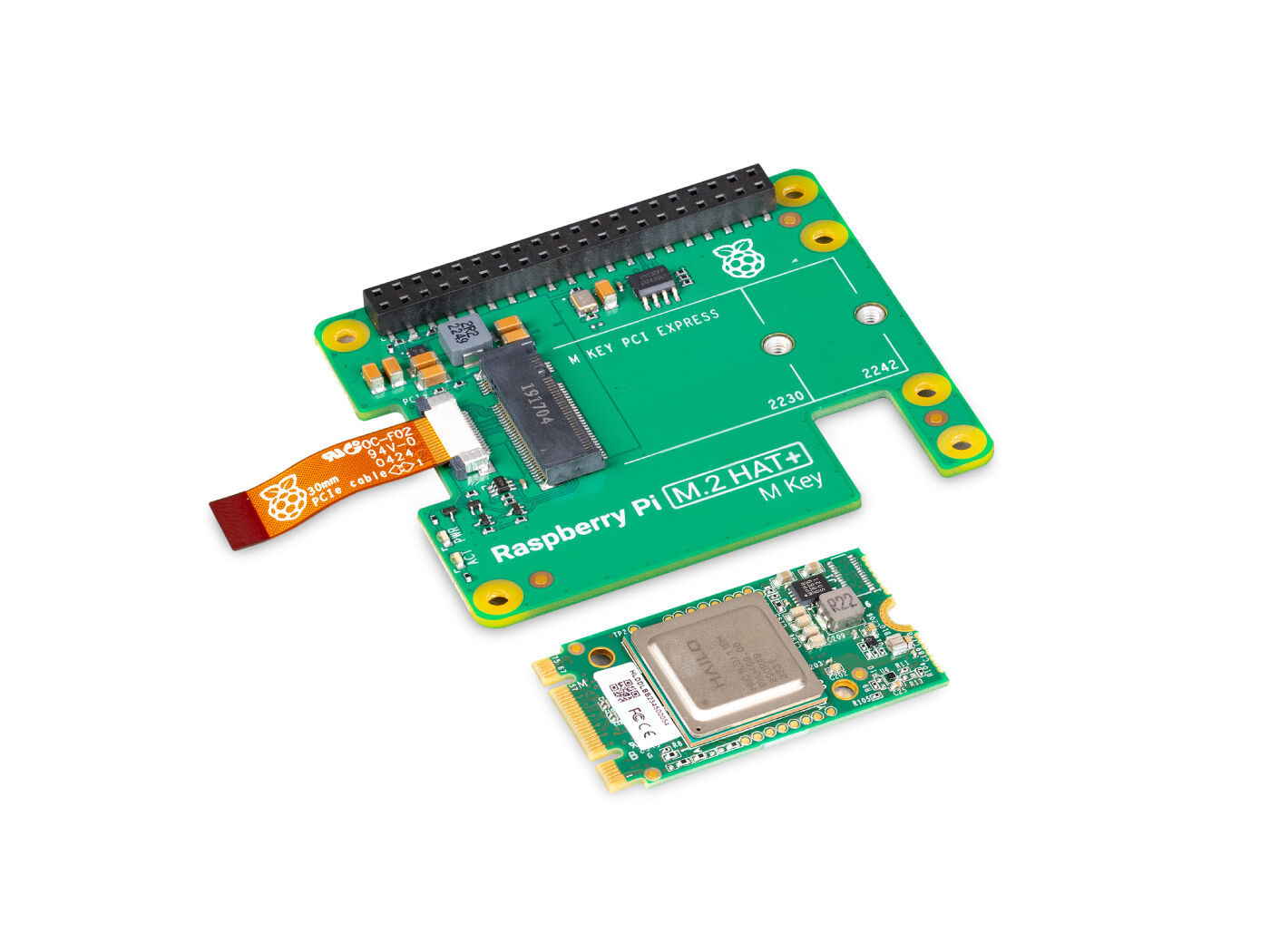

What’s Included

• Raspberry Pi M.2 HAT+ × 1
• Hailo AI Module × 1

Applications

• Tutorial of AI Kit with Raspberry Pi 5 about YOLOv8n object detection
• YOLOv8 Object Detection on reComputer R1000, the CM4 Powered Gateway & Controller with Hailo-8L
• YOLOv8 Pose Estimation on reComputer R1000, the CM4 Powered Gateway & Controller with Hailo-8L
• Pose-Based Light Control with Node-Red and Raspberry Pi with AI kit

Documents

• Raspberry Pi AI Kit
• Raspberry Pi M.2 HAT+
• Hailo AI Module

Details

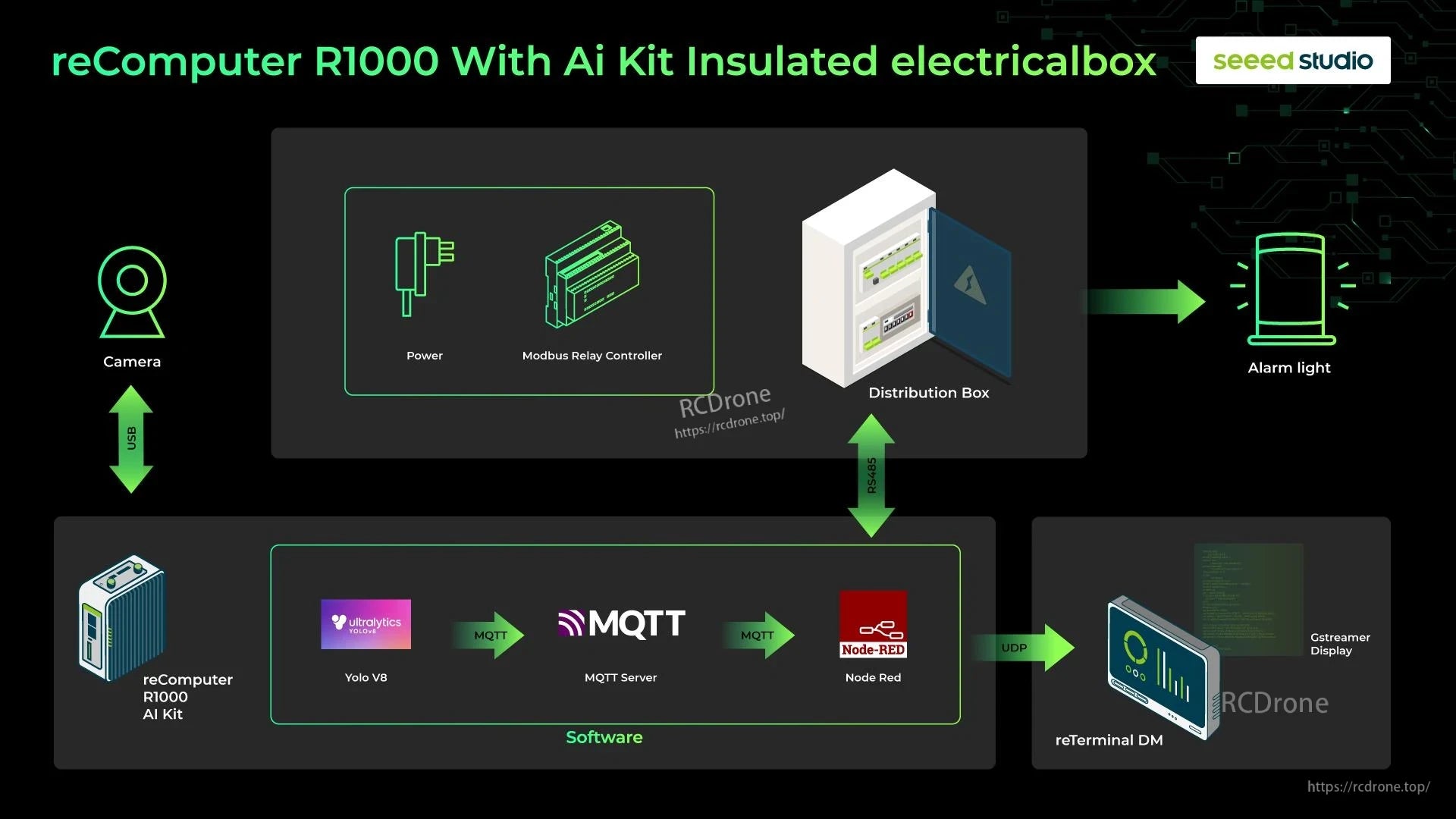

reComputer RIO With AI Kit features an insulated electrical box, Seeed Studio M Power, Modbus Relay Controller, Camera Alarm Light Distribution Box. It also includes G2 Ultralytics Yolota, MQTT, and UDP display capabilities. The kit comes with reTerminal DM PJ 6 software for Node Red compatibility.

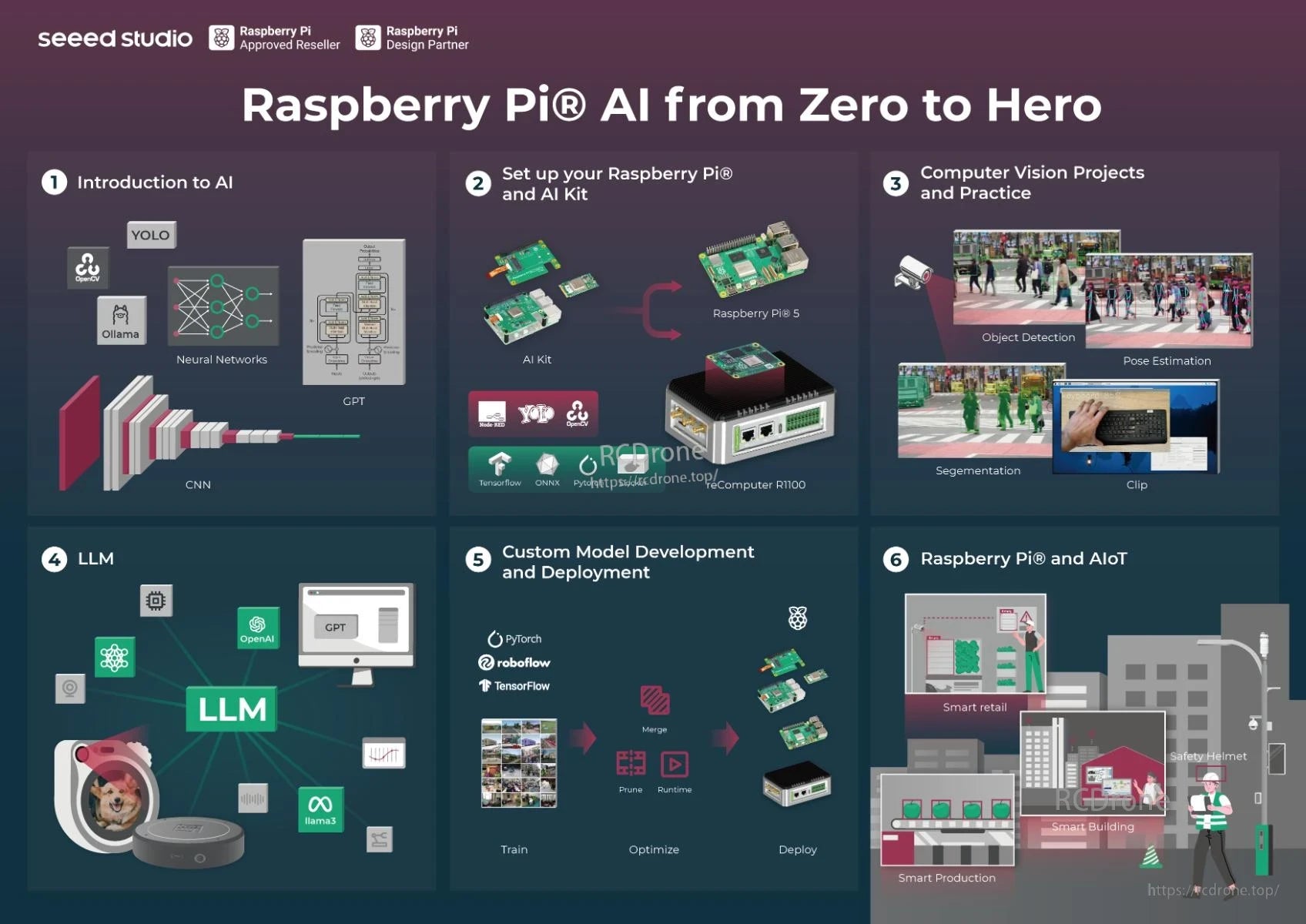

Explore Raspberry Pi AI: from setup and computer vision to LLMs and IoT. Use TensorFlow, PyTorch, YOLO. Real-world applications in retail, smart buildings, and manufacturing—ideal for beginners to advanced users.

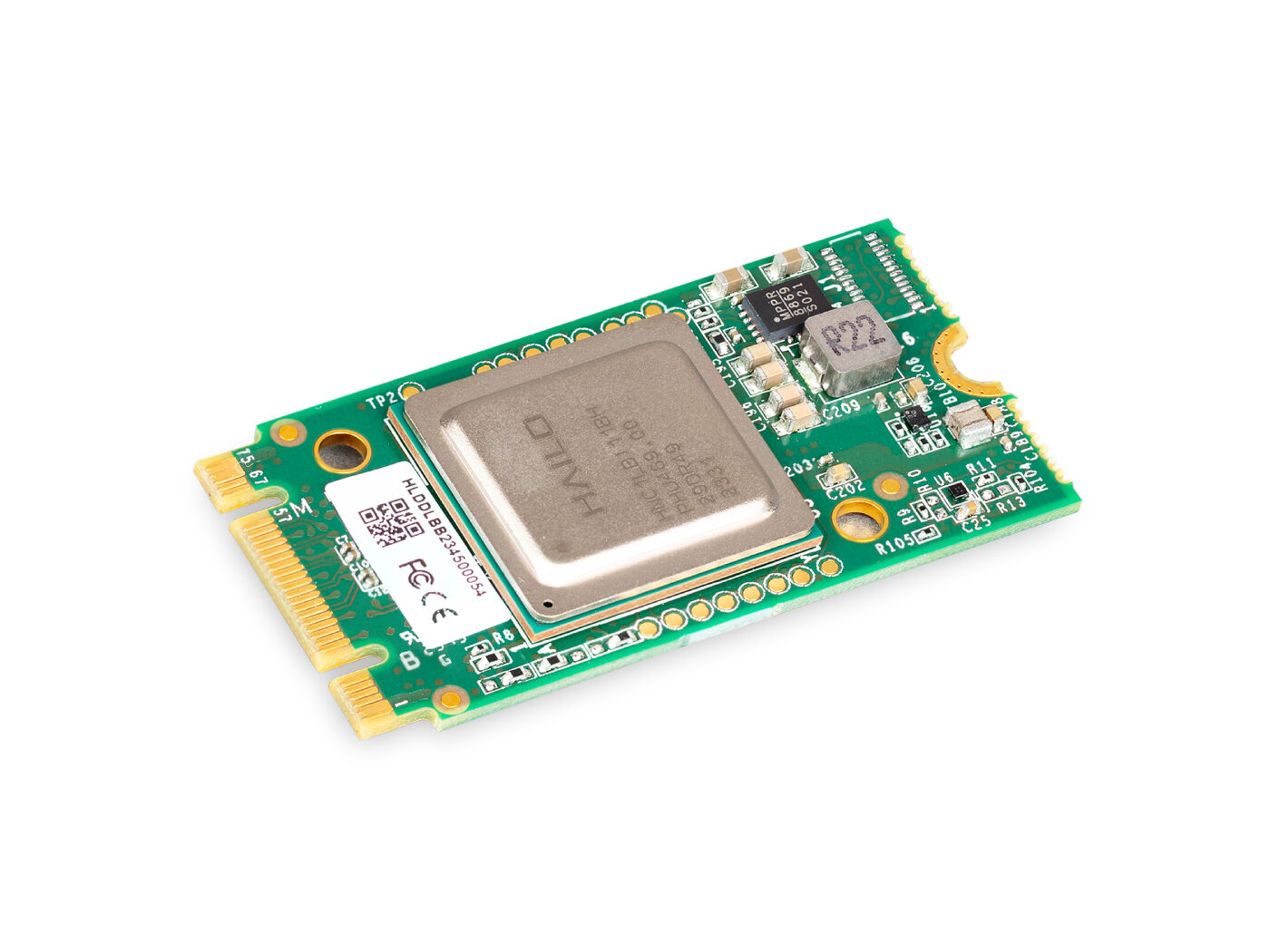

Hailo AI Module

M.2 HAT+
