Raspberry Pi Zero 2 W Single-Board Computer, Quad‑Core 1GHz Cortex‑A53, 512MB, 2.4GHz Wi‑Fi, Bluetooth 4.2 BLE

Overview

Raspberry Pi Zero 2 W is a single-board computer released in 2021. It delivers 40% more single-threaded performance and up to five times more multi-threaded performance versus the original single-core Raspberry Pi Zero. Built around the Raspberry Pi RP3A0 system-in-package (SiP), it integrates a Broadcom BCM2710A1 quad-core 64-bit Arm Cortex‑A53 CPU clocked at 1GHz and 512MB LPDDR2 SDRAM. Wireless connectivity includes 2.4GHz 802.11 b/g/n Wi‑Fi and Bluetooth 4.2 with Bluetooth Low Energy (BLE), with an onboard wireless module and antenna. The board retains the compact Zero footprint and modular compliance certification.

Key Features

• Quad‑core 64‑bit Arm Cortex‑A53 @ 1GHz (Broadcom BCM2710A1)
• RP3A0 SiP integrating CPU and 512MB LPDDR2 SDRAM
• 2.4GHz 802.11 b/g/n wireless LAN; Bluetooth 4.2 with BLE
• Onboard wireless module and antenna

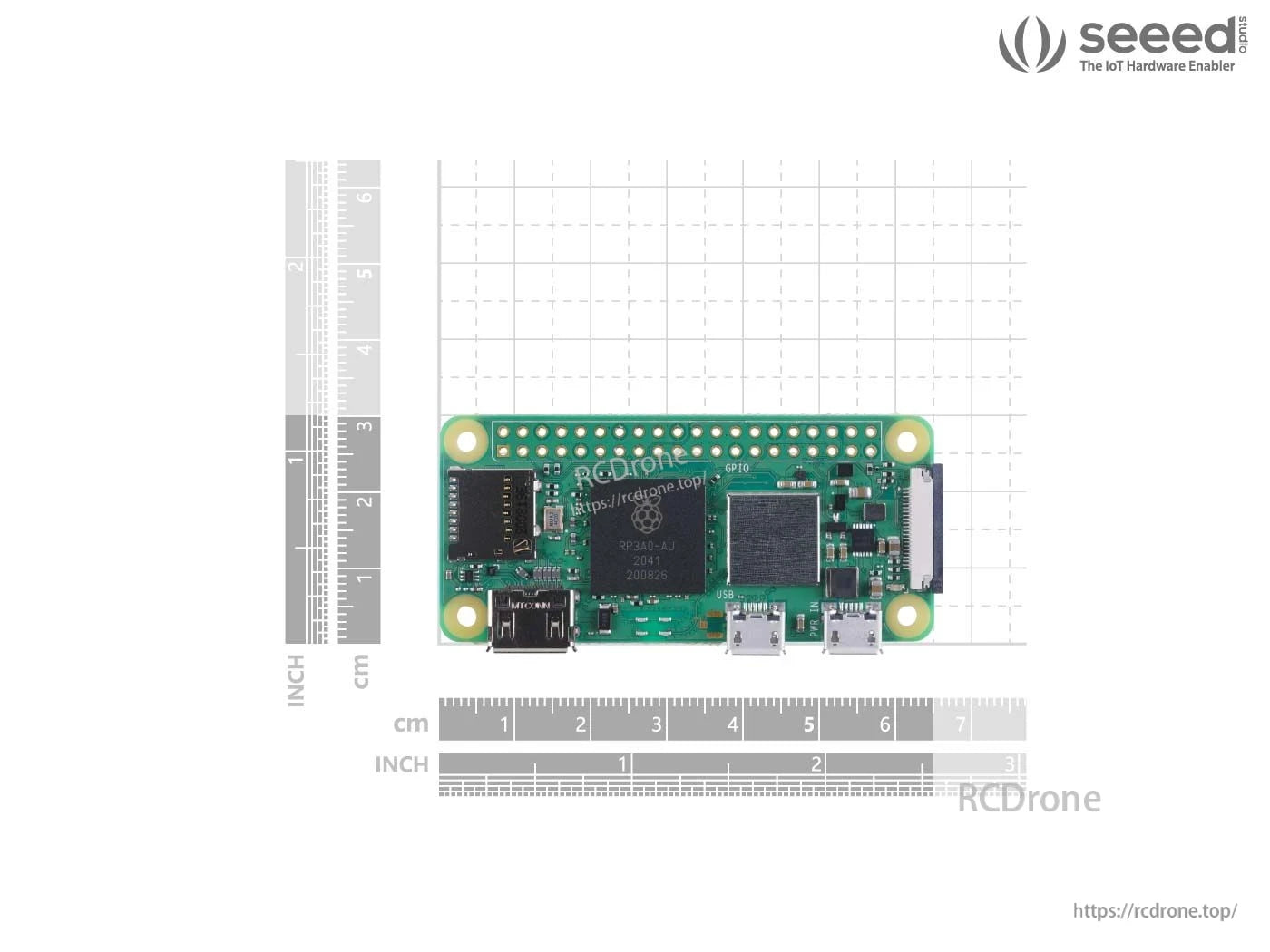

• Small 65mm × 30mm form factor; footprint‑compatible with earlier Raspberry Pi Zero boards
• Unpopulated, HAT‑compatible 40‑pin GPIO header
• Composite video and reset pins via solder test points
• Built‑in Wi‑Fi suitable for IoT and robotics projects

Specifications

Interfaces

• microSD card slot
• mini HDMI port
• USB On‑The‑Go (OTG) port
• micro‑USB power port
• HAT‑compatible 40‑pin GPIO header
• Composite video via solder test points
• CSI‑2 camera connector

Applications

• Intelligent Environmental Monitoring
• Security monitoring system
• IoT and robotics projects

Attention

• Any external power supply used with Raspberry Pi Zero 2 W shall comply with relevant regulations and standards applicable in the country of intended use.
• Operate in a well‑ventilated environment. If used inside a case, do not cover the case.
• Place on a stable, flat, non‑conductive surface; avoid contact with conductive items.
• Connecting incompatible devices may affect compliance, damage the unit, and invalidate the warranty.
• Peripherals (e.g., keyboards, monitors, mice) must comply with relevant standards and be marked accordingly.
• Cables and connectors for peripherals must have adequate insulation to meet safety requirements.

Safety Instructions

• Do not expose to water or moisture, or place on a conductive surface during operation.
• Do not expose to heat sources; designed for reliable operation at normal ambient temperatures.
• Handle carefully to avoid mechanical or electrical damage to the PCB and connectors.
• Whilst powered, avoid handling the PCB; if needed, hold by the edges to minimize ESD risk.

What’s Included

1 × Raspberry Pi Zero 2 W
