Overview

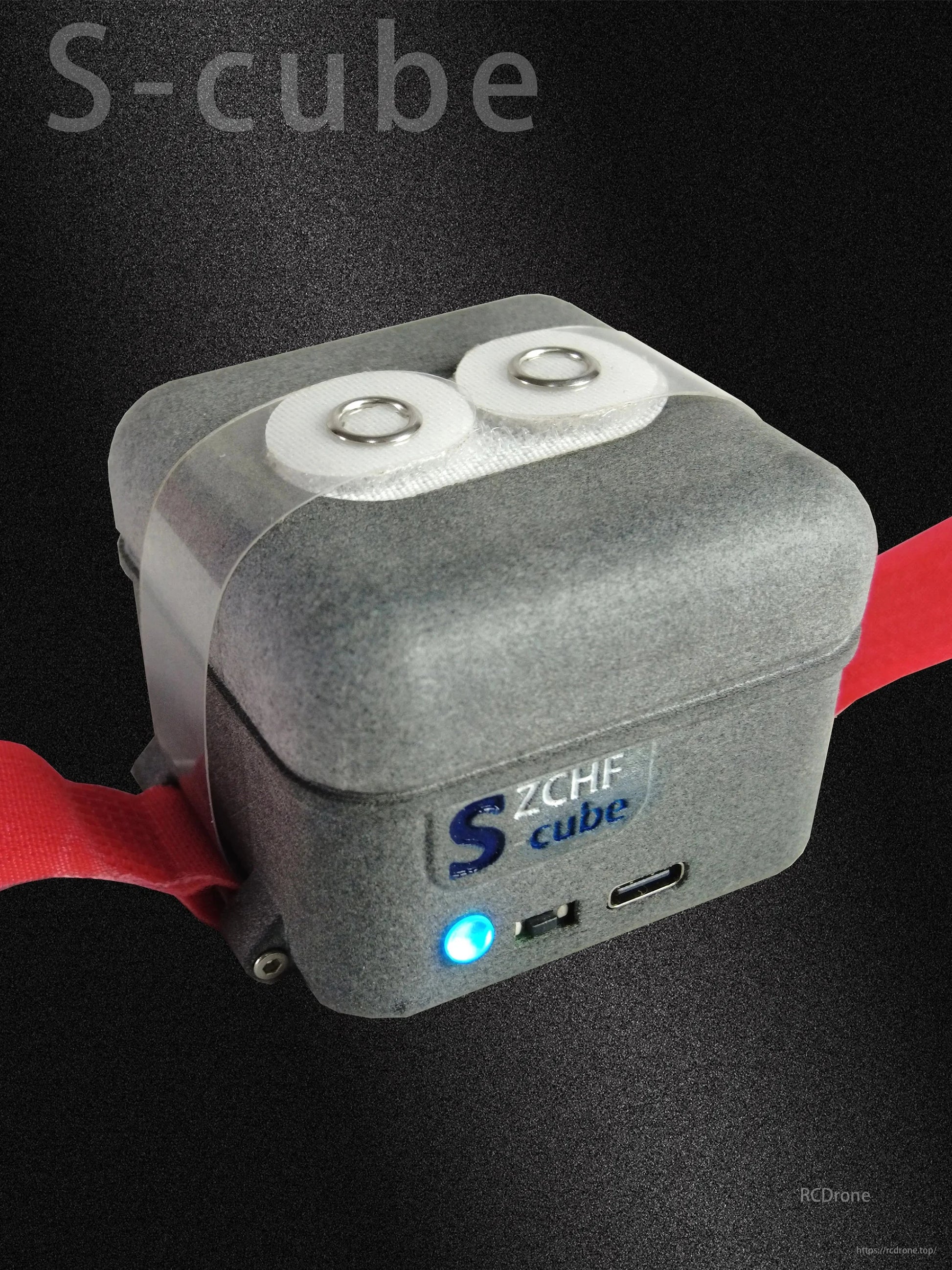

The S-Cube 2kg Drone Parachute System is an advanced safety device designed for micro, lightweight drones, and FPV aircraft. With a maximum supported weight of 2000g, a descent speed of less than 4m/s, a compact 79g design, and an IMU accuracy of ±0.01°, this parachute system provides real-time flight monitoring and automatic deployment in case of emergencies. Featuring a 4-hour internal battery life, customizable trigger conditions, and over 1,000 deployment cycles, it ensures maximum safety while minimizing flight time loss.
Key Features
- Intelligent Flight Safety – Detects freefall, tilt, and acceleration anomalies, automatically deploying the parachute to prevent crashes.
- High-Precision IMU System – ±0.01° posture accuracy, ±0.00006G acceleration precision, and ±5cm altitude precision.
- Adjustable Trigger Conditions – Customizable tilt (60°–90°), freefall acceleration (0.3G–0.6G), and response time (0.25s–2.5s).
- Extended Battery Life – 4-hour internal power, extendable via external power input for continuous operation.
- Minimal Impact on Flight Time – Weighing only 79g, flight endurance loss is <10% based on tests with DJI and Skydi drones.
- Fast and Easy Repacking – Over 1,000 deployments, reloads in 1 minute with zero cost for continued usage.
- Multi-Drone Compatibility – Supports DJI Mavic (2/3/mini/pro), Phantom (3/4), Skydi (2/X2), and various FPV, aerial photography, and glider UAVs.

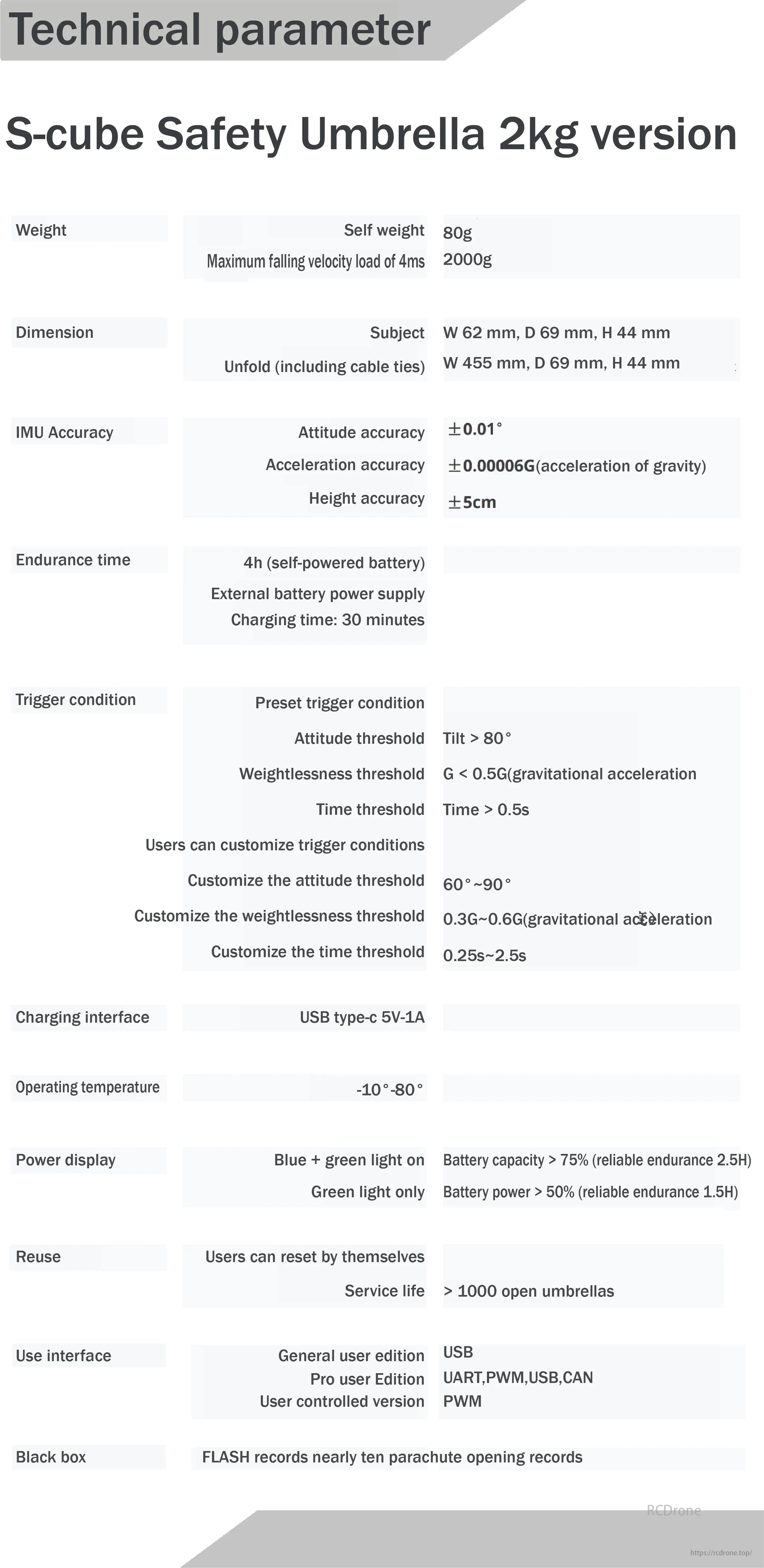

Technical Specifications
| Category | Specification |
|---|---|
| Weight | 80g (unit), max supported weight: 2000g |
| Descent Speed | <4m/s |
| Dimensions |
Main Unit: 62mm (L) × 69mm (W) × 44mm (H) Deployed (with parachute): 455mm (L) × 69mm (W) × 44mm (H) |
| IMU Accuracy |
Posture Accuracy: ±0.01° Acceleration Precision: ±0.00006G Altitude Precision: ±5cm |
| Battery Life | 4h (internal battery) +∞ 4h (with external power) |
| Charging Time | 30 min |
| Trigger Conditions |
Pre-set Conditions: - Tilt >80° - Freefall Acceleration <0.5G - Activation Delay <0.5s User-Defined Conditions: - Tilt: 60° – 90° - Freefall Acceleration: 0.3G – 0.6G - Time Delay: 0.25s – 2.5s |
| Charging Port | USB Type-C (5V–1A) |
| Operating Temperature | -10°C to 80°C |
| Battery Status Indicators |
Blue + Green LED: >75% battery (up to 2.5h reliable operation) Green LED only: >50% battery (up to 1.5h reliable operation) |
| Durability | Over 1,000 deployment cycles |
| User Interface |
Standard Version: USB Pro Version: UART, PWM, USB, CAN Non-Smart Version: PWM |
| Black Box Logging | FLASH storage of last 10 deployment events |
Installation & Compatibility
-

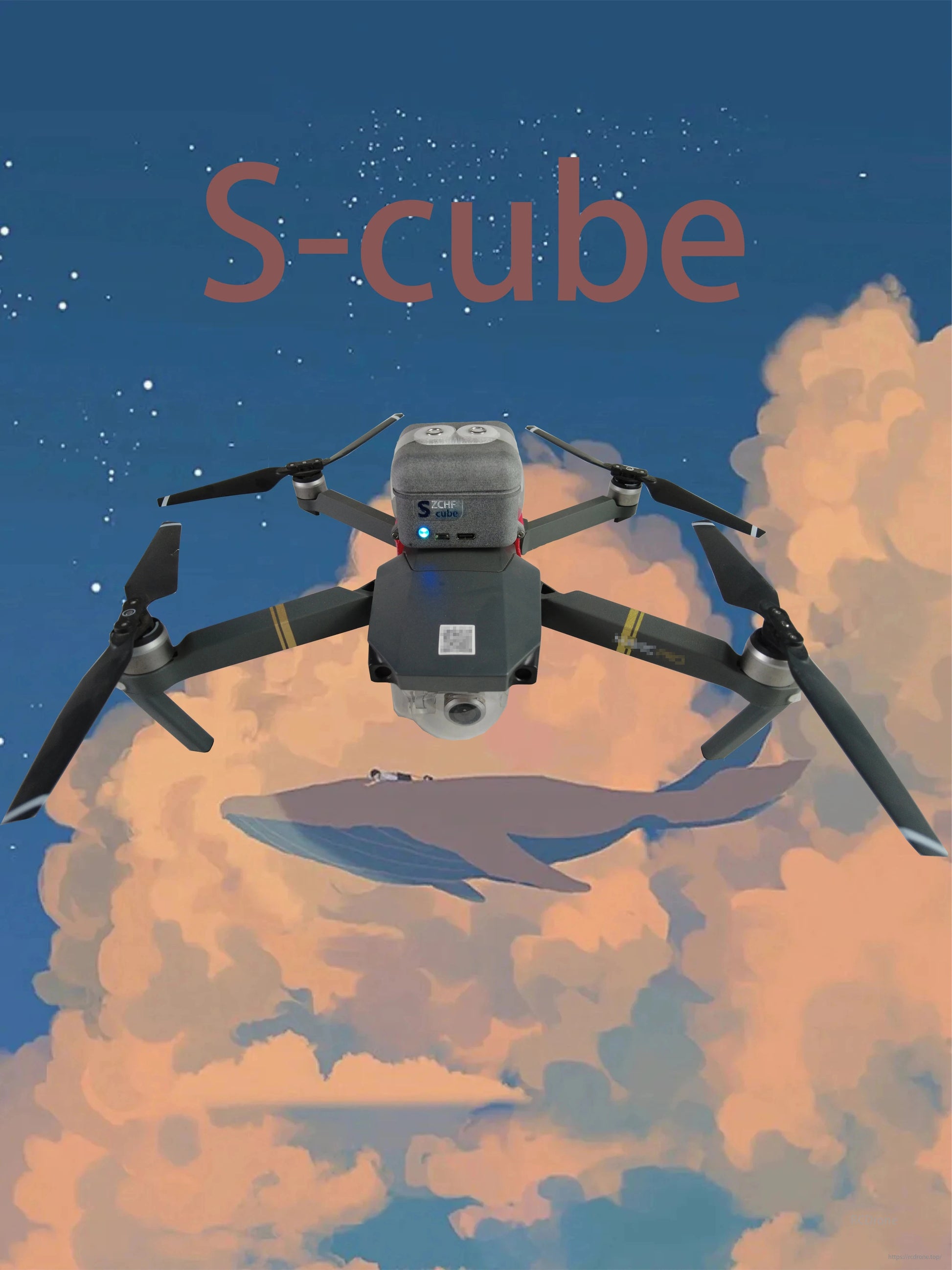

Supports drones under 2kg, including:
- DJI: Mavic (2/3/mini/pro), Phantom (3/4)
- SKYDI: 2/X2
- Various FPV, aerial photography, and glider UAVs

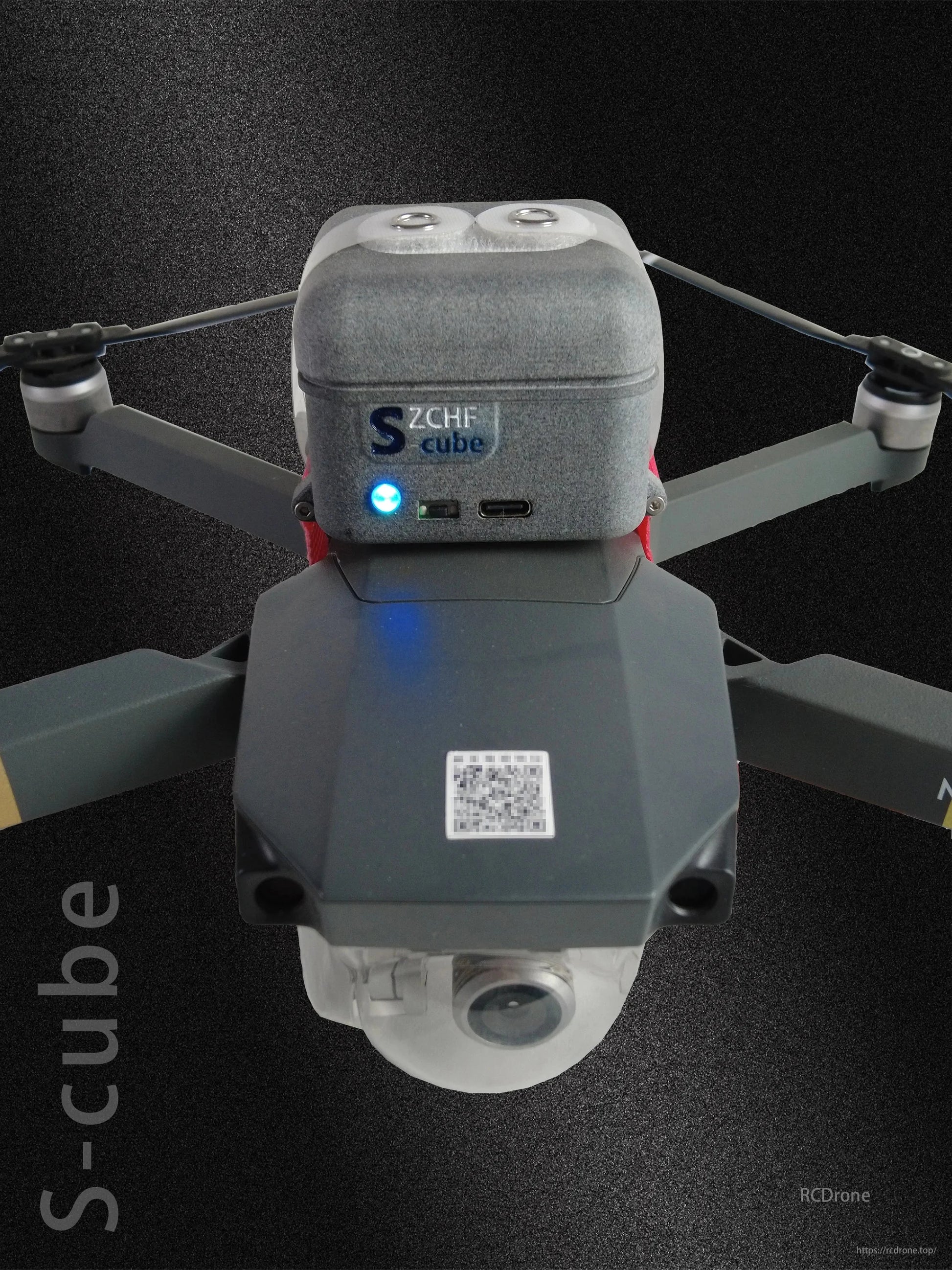

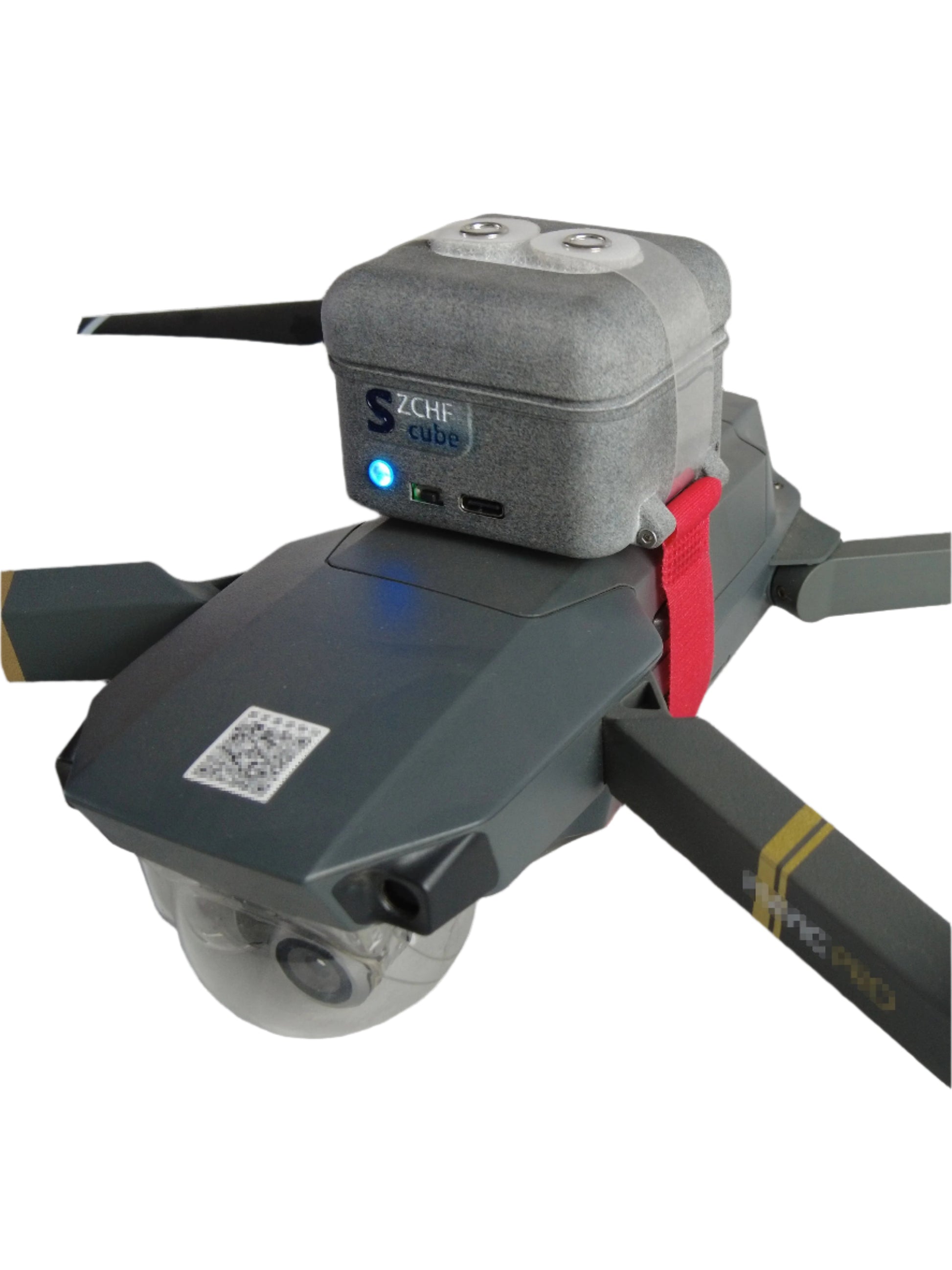

- Mounting Options: Can be installed in multiple configurations based on drone structure.
Performance & Safety Enhancements

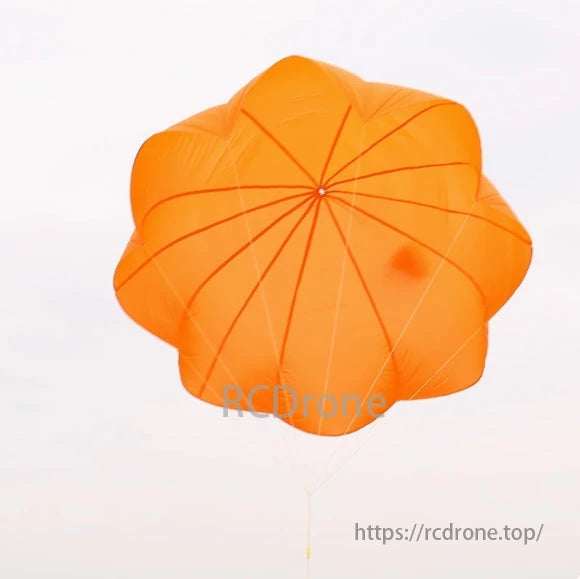

- Parachute Deployment Speed: Ensures a descent speed of <4m/s to minimize impact upon landing.
- Buzzer Alert System: Emits an audible alert to assist in locating the drone.
- Integrated Black Box: Logs flight data before deployment for incident analysis.
Why Choose S-Cube?
- AI-Powered Smart Monitoring & Auto-Activation – Prevents crashes due to flight anomalies.
- Compact & Lightweight – Weighing only 79g, ensuring minimal impact on flight performance.
- Easy Reset & Reuse – More than 1,000 uses with zero-cost repacking in just 1 minute.
- Tested & Proven – Less than 10% flight time loss across major drone models.
Enhance your drone’s safety with the S-Cube 2kg Drone Parachute System—a must-have for UAV operators prioritizing risk mitigation and reliability.
Details
The S-cube Safety Umbrella 2kg version has a weight of 80g and can withstand a maximum falling velocity load of 2000g. Its dimensions are Subject W 62 mm, D 69 mm; H 44 mm when folded (including cable ties), and Unfolded: W 455 mm; D 69 mm; H 44 mm. The IMU accuracy is Attitude accuracy 10.01, Acceleration accuracy 0.0006G, and Height accuracy 0.1Scm. The endurance time is 4h with self-powered battery, and external power supply charging takes 30 minutes. Trigger conditions include preset attitude threshold Tilt > 80, weightlessness threshold G < 0.5G, and time threshold Time 0.5s. Users can customize these trigger conditions.
UAV parachute landing device S-CUBE series protects flight safety, aids debugging, and enhances security. It intelligently monitors UAV status, automatically triggering the parachute for safe landings. Compact, reusable, and easy to install, it supports various drones under 2kg, ensuring long endurance with minimal time loss.
