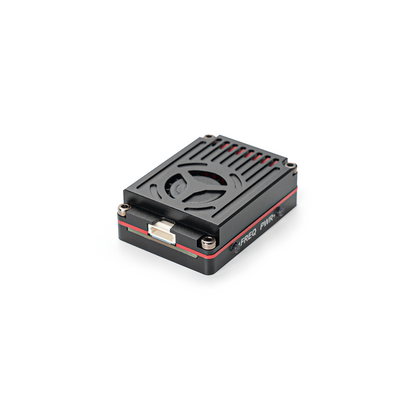

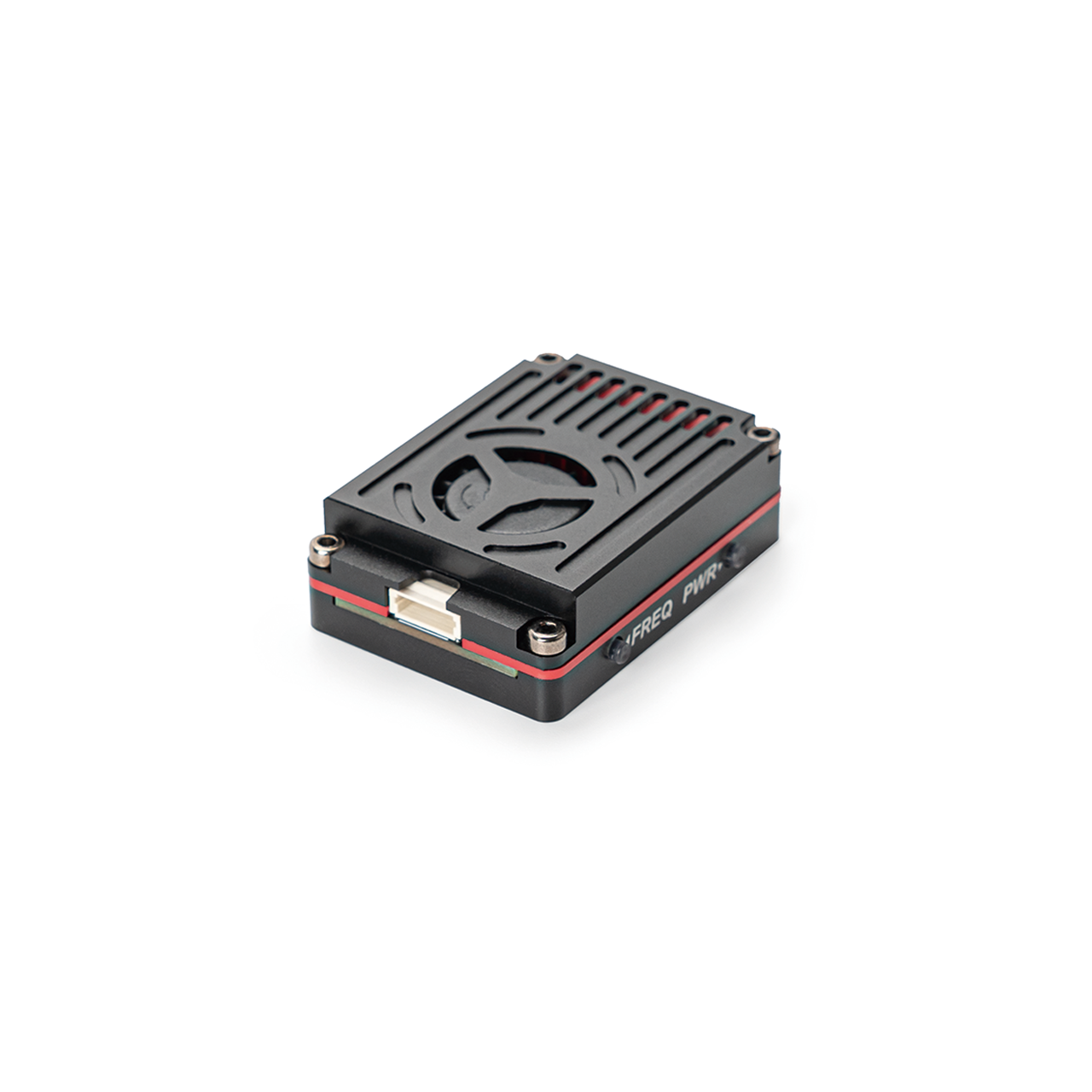

• OddityRC Red Giant 2.5W FPV VTX angled view showing vented heatsink case and side connector

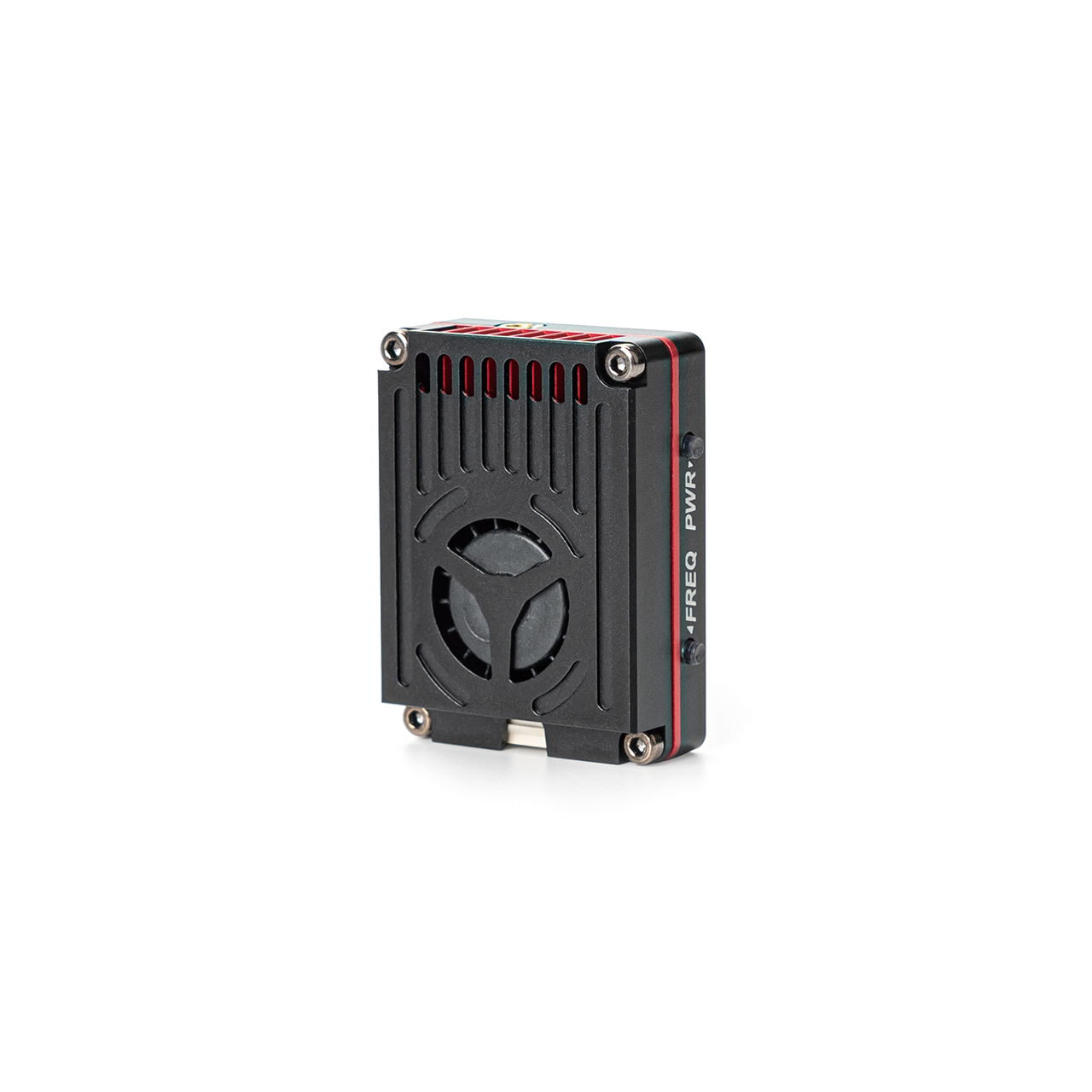

  • VTX side view showing cooling vents, four corner screws, and FREQ/PWR button side markings

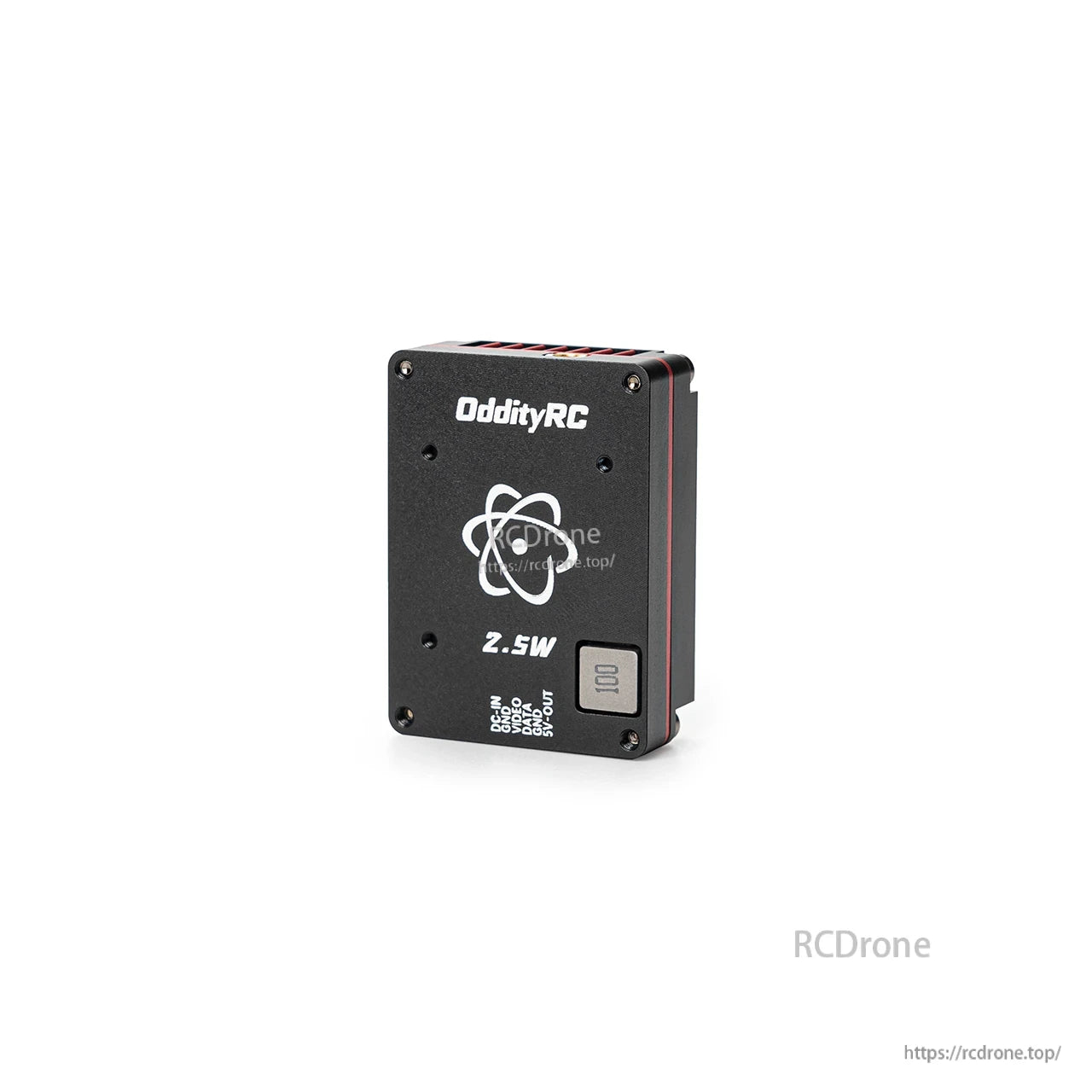

  • OddityRC Red Giant 2.5W FPV VTX rear label close-up with OddityRC logo, 2.5W text, and button

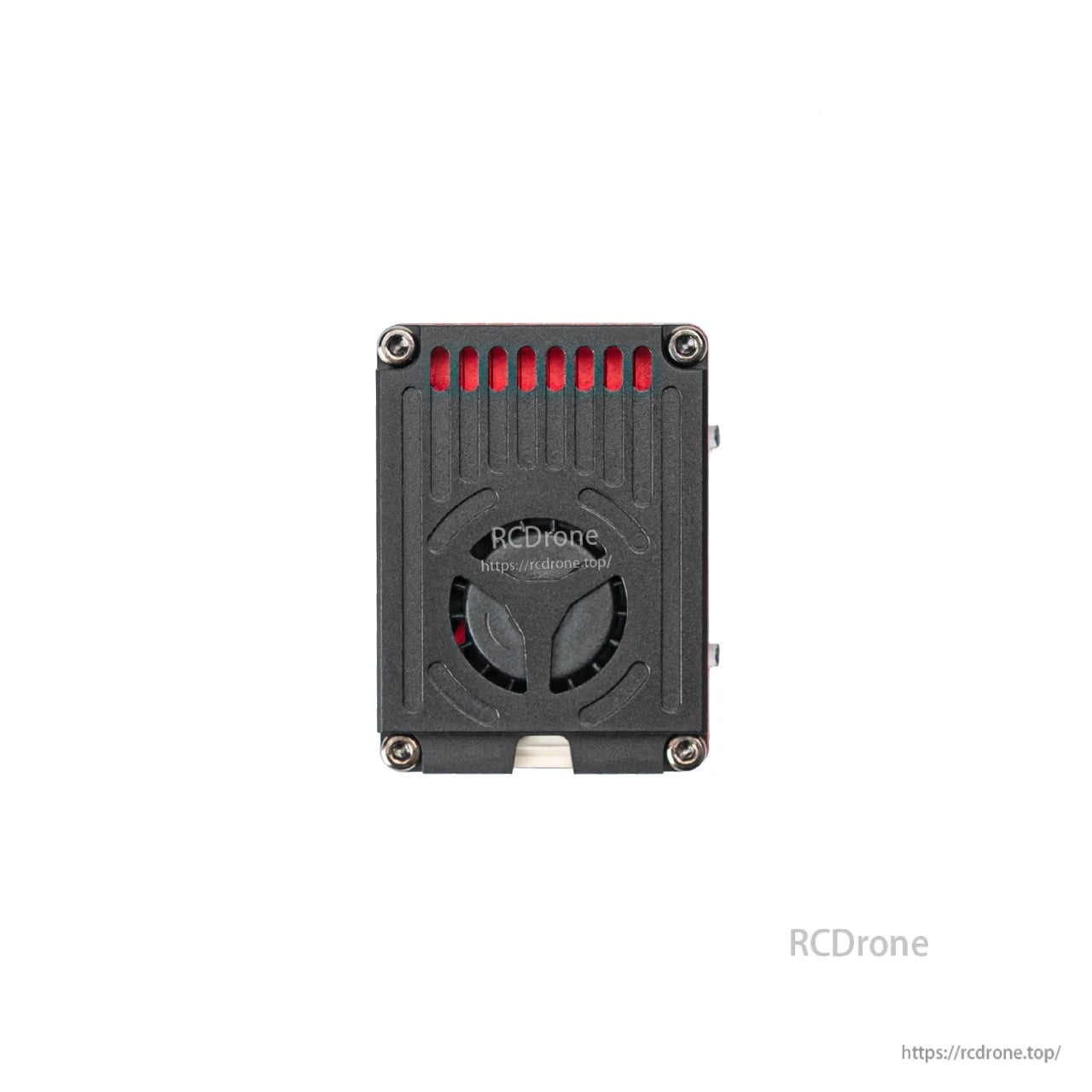

  • Front face close-up of vented cooling grille with red heatsink visible behind the slots

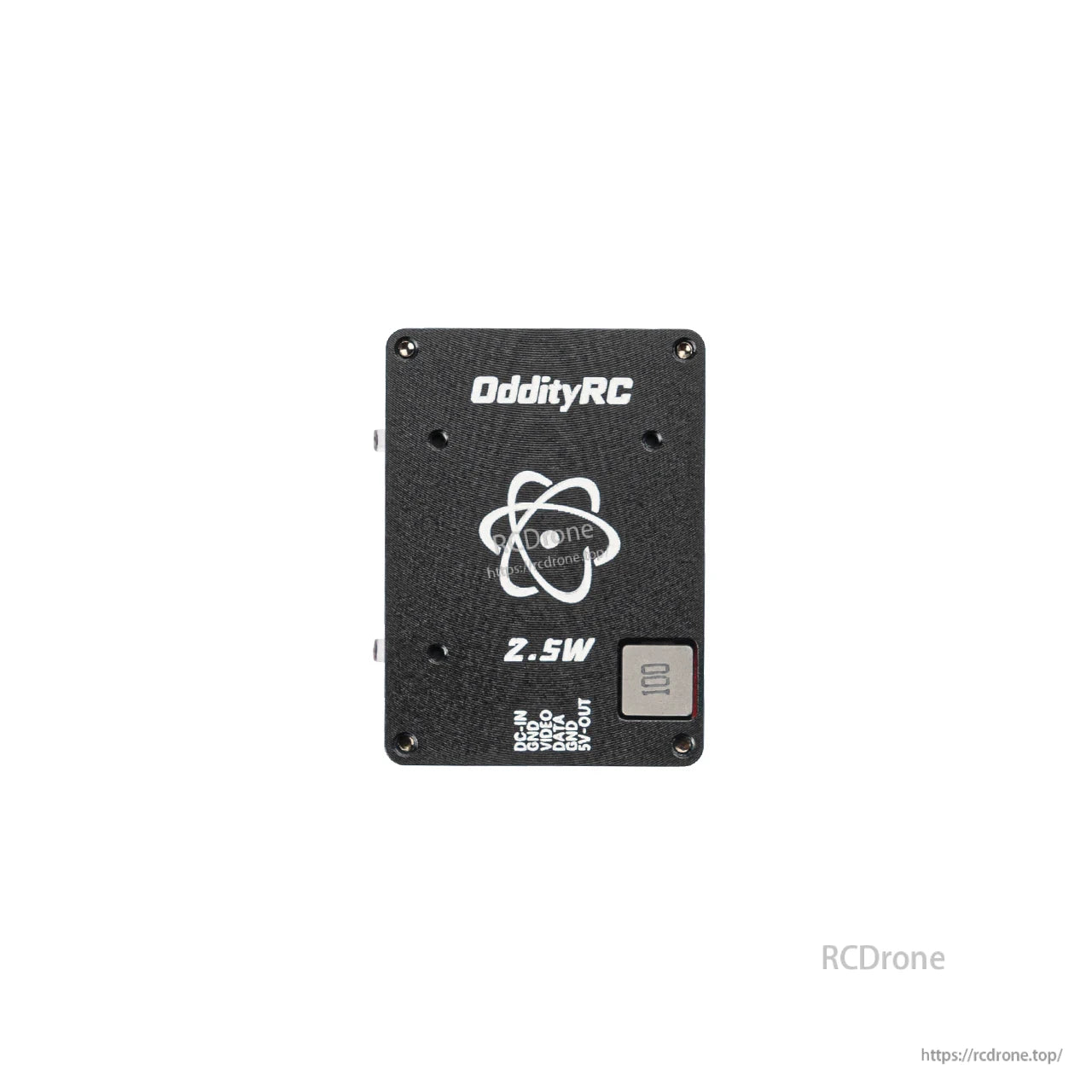

  • Back plate straight-on view with OddityRC branding, 2.5W marking, and square button detail
1 5

OddityRC Red Giant 2.5W FPV VTX 64CH MMCX, PIT/800/1600/2500mW, 2-8S 7-34V, 20*20mm

OddityRC Red Giant 2.5W FPV VTX 64CH MMCX, PIT/800/1600/2500mW, 2-8S 7-34V, 20*20mm

OddityRC

$73.59 USD
$73.59 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The OddityRC Red Giant 2.5W FPV VTX (video transmitter) is a high-power 5.8GHz analog VTX featuring an aluminum shell with a high-speed silent cooling fan, MMCX antenna interface, and TBS Smartaudio control via the DATA port. It supports PIT/800mW/1600mW/2500mW power levels and 64 channels.

Key Features

  • Automotive-grade components for reliability
  • Digital phase-locked loop (PLL) circuit with no temperature drift
  • High-speed silent cooling fan + aluminum shell for efficient heat dissipation
  • Compact design with high transmission power
  • POWER and FREQ buttons for control

Specifications

Power levels PIT / 800mW / 1600mW / 2500mW
Channels 64CH
Mounting pattern 20*20mm / Φ1.6mm
Dimensions 41*30*13mm
Weight 32g
Antenna interface MMCX
Cable SH1.0 6P
VTX telemetry /

Ports

  • DC-IN: 2-8S, 7-34V positive input (12V recommended)
  • GND: Ground
  • Video: Video signal input
  • DATA: TBS Smartaudio control
  • GND: Ground
  • 5V-OUT: 5V voltage output

Frequency Table (8 Bands x 8 Channels)

Band A 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725
Band B 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866
Band E 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945
Band F 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880
Band R 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917
Band L 5362, 5399, 5436, 5473, 5510, 5547, 5584, 5621
Band V 5975, 5955, 5935, 5915, 5875, 5835, 5715, 5675
Band C 5635, 5600, 5565, 5530, 5490, 5455, 5420, 5180

FC Setup

Enable the corresponding VTX (TBS Smartaudio) on a UART port in the flight controller configuration.

Attention

  • Read the instruction manual for proper wiring before installation.
  • Install the antenna before powering on, otherwise the VTX can be irreversibly damaged.
  • Ensure adequate airflow around the VTX during installation; otherwise the power will be reduced.

What’s Included

  • OddityRC Red Giant VTX unit
  • Antenna pigtail cable
  • SH1.0 6P wiring harness

Applications

  • FPV drones and other analog video transmission builds requiring 64CH and TBS Smartaudio control
  • Installations needing direct 2-8S (7-34V) DC input with onboard 5V output

For wiring and setup support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

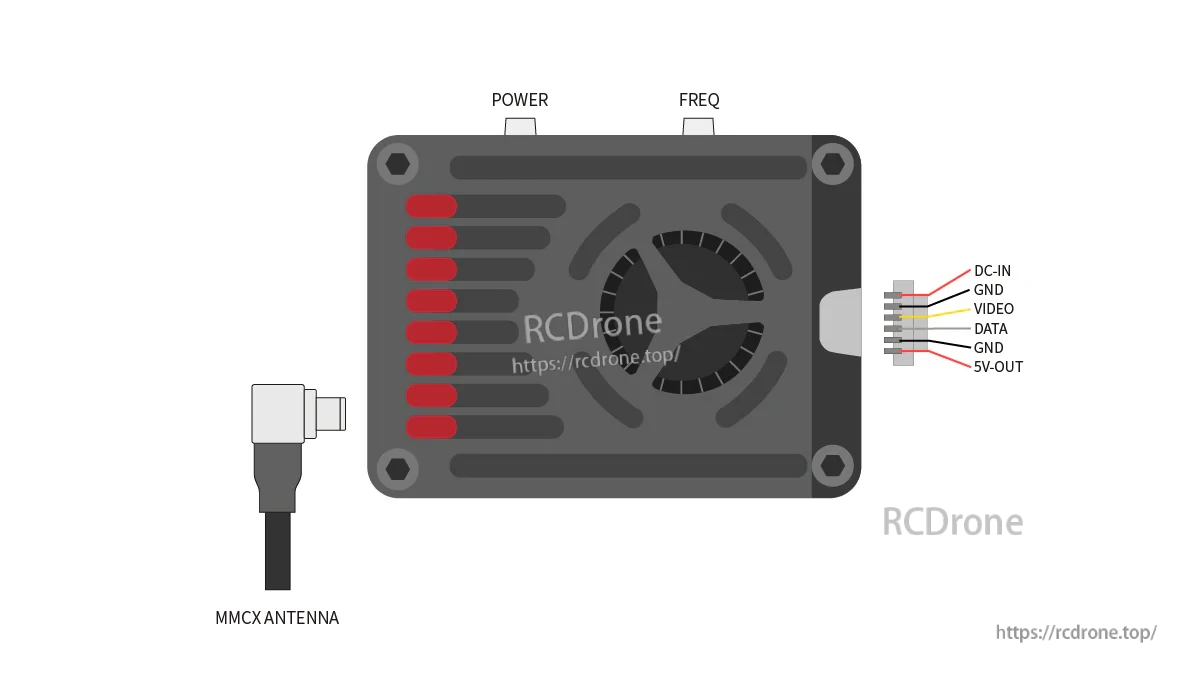

OddityRC Red Giant 2.5W FPV VTX top view with cooling fan, POWER/FREQ buttons, and MMCX antenna port

High-power 5.8GHz analog VTX with an aluminum shell and built-in silent fan for improved heat dissipation.

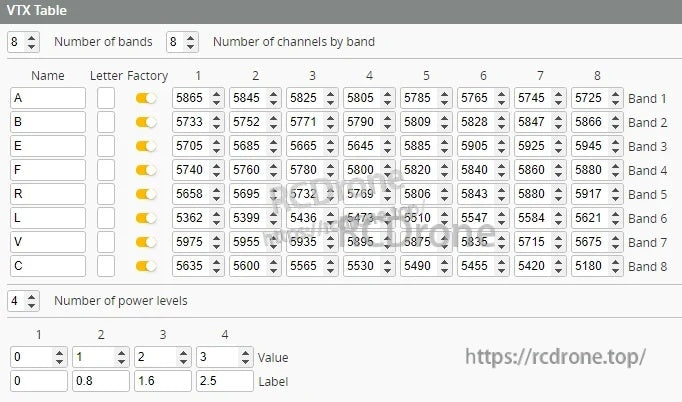

5.8GHz VTX frequency table with 8 bands and 8 channels (64CH) for selecting the correct channel

Use the band/channel table to match your goggles or ground station across the full 64-channel set.

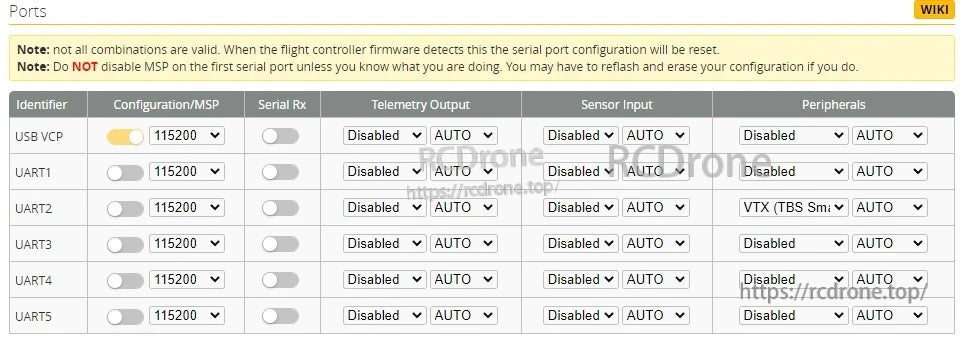

Betaflight Ports configuration screenshot enabling VTX (TBS SmartAudio) on a UART port

Enable TBS SmartAudio on an available UART in your flight controller to control channel and power from the OSD.

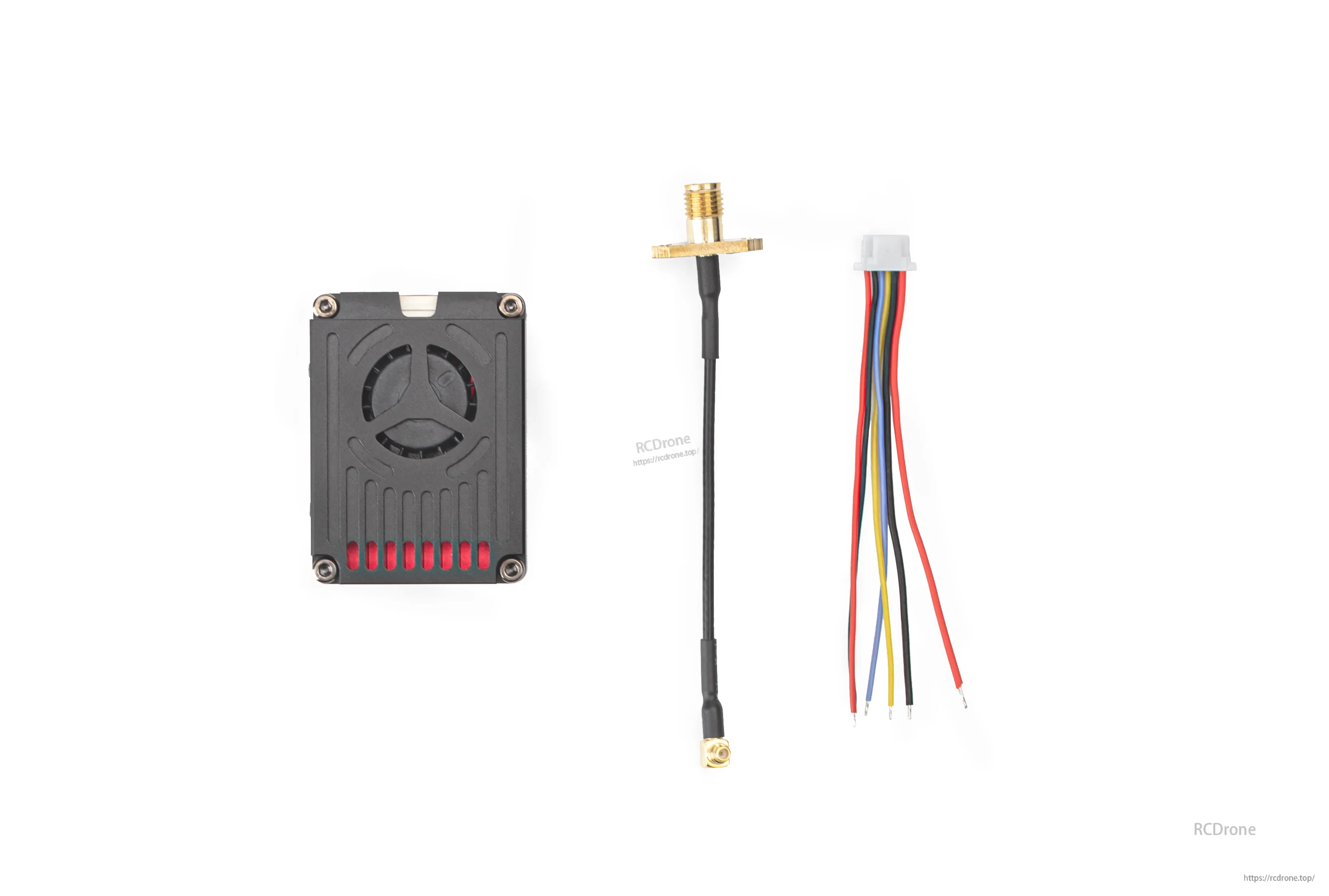

OddityRC Red Giant 2.5W FPV VTX package contents with MMCX antenna pigtail and SH1.0 6-pin wiring harness

Includes the VTX unit, an MMCX antenna pigtail, and an SH1.0 6-pin harness for straightforward wiring.
