Digital FPV AIR UNIT MIPI Camera Version
8 Channels, 8 Drones
The HDL FPV Transmission system and the FPV Air
Unit are equipped with eight frequency channels,
which allow up to eight drones to fly simultaneously.
Each operator has an exclusive channel. This helps
to reduce cross-interference and provide an
optimal racing experience.
Unit are equipped with eight frequency channels,
which allow up to eight drones to fly simultaneously.
Each operator has an exclusive channel. This helps
to reduce cross-interference and provide an
optimal racing experience.
Embedded Remote Controller Receiver
Users can wirelessly connect their DJI FPV Air Unit to the DJI FPV Remote Controller without having
to purchase additional receivers. This reduces flight preparation time significantly.
to purchase additional receivers. This reduces flight preparation time significantly.

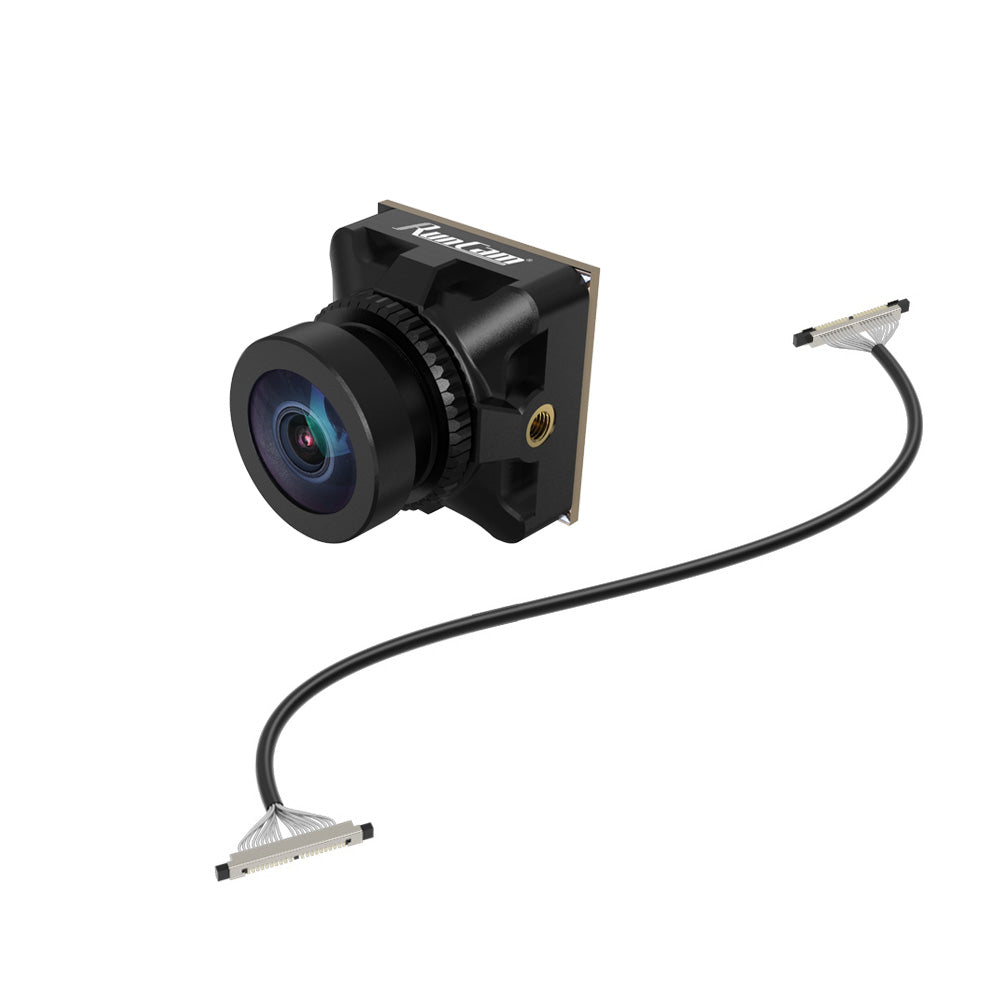

RUNCAM MIPI Camera
Micro size With 6G High Quality Lens Net Weight Only 6.5g.
At 1280 x 720 60fps
resolution,
resolution,
the delay is as low as 32ms, which is
suitable for freestyle flying.
suitable for freestyle flying.

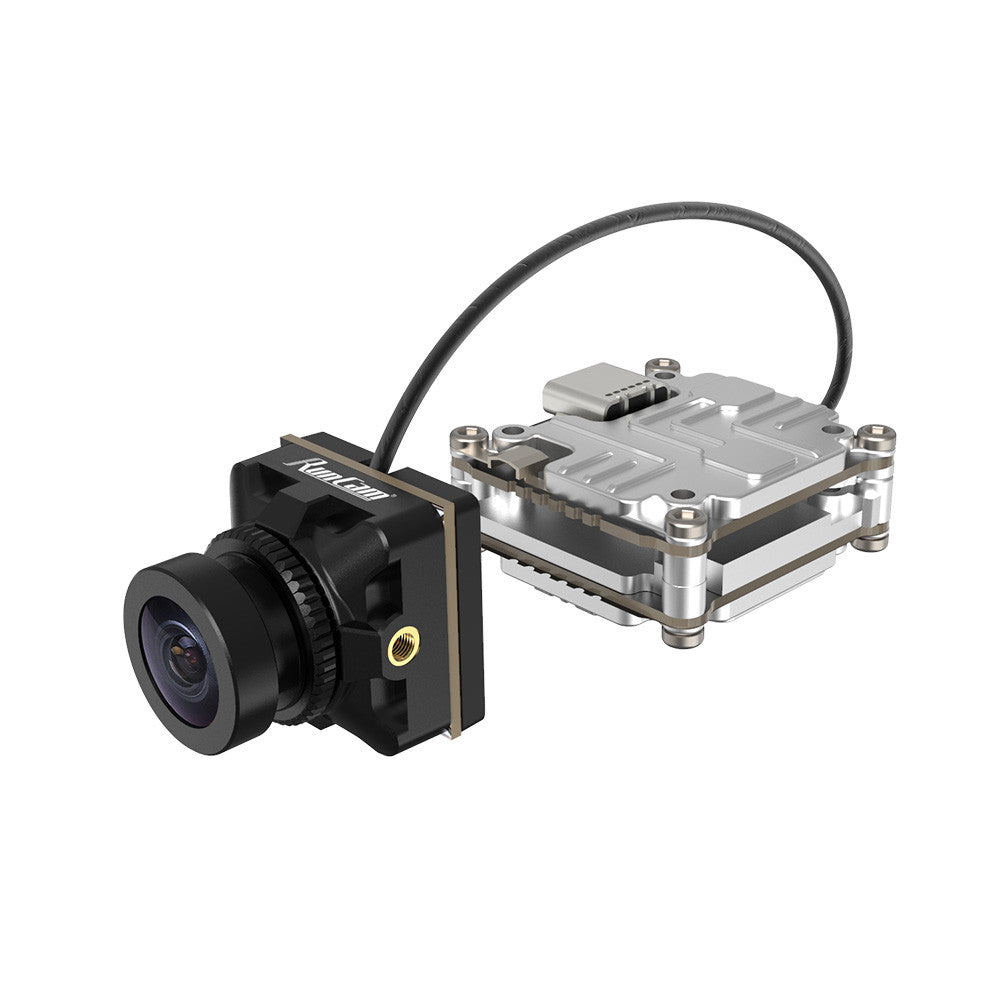

RunCam Link MIPI HD Kit Package

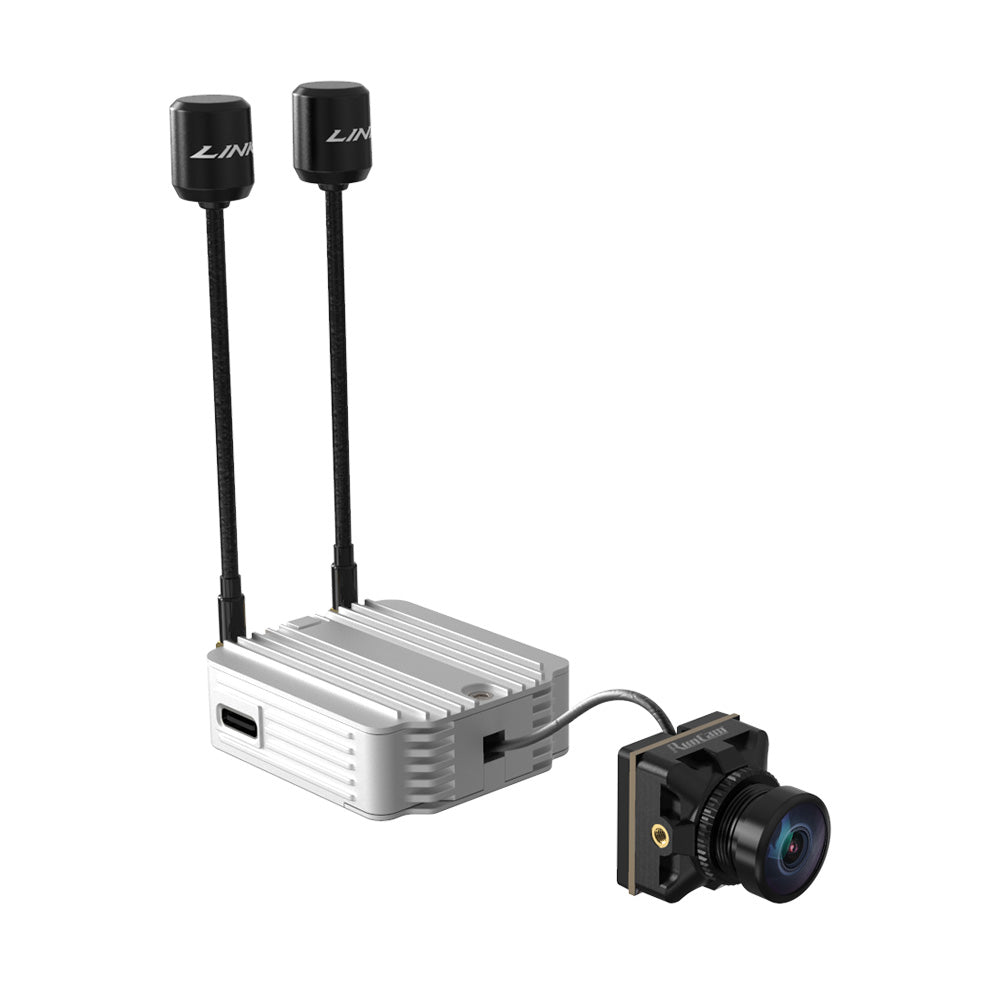

Air Unit MIPI HD Kit Package
Parameters
Model | RUNCAM LINK |
Frequency | 5.725-5.850 GHz |
Max. Distance | FCC/SRRC: <4 km & CE: <0.7 km |
Power | 7.4-26.4V & 4-9W |
Dimensions | 29×29×13 mm |
Net Weight | 19.5 g |
Model | RUNCAM MIPI |
Image Sensor | 1/2.9” |
Resolution | 1280*720@60fps |
LENS | FOV D:160° H:133° V:75° |
Shutter | Rolling Shutter |
Coaxial Cable | 120 mm |
Dimensions | L19mm*W19mm*H17mm |
Net Weight | 6.5g |
