SPECIFICATIONS
Weight: 0.2
Size: 0
Package: Yes
Origin: Mainland China
Model Number: Link Phoenix HD Kit Vista
Compatible Drone Model: DJI Goggles V2
Compatible Drone Brand: DJI
Brand Name: Jumpeak

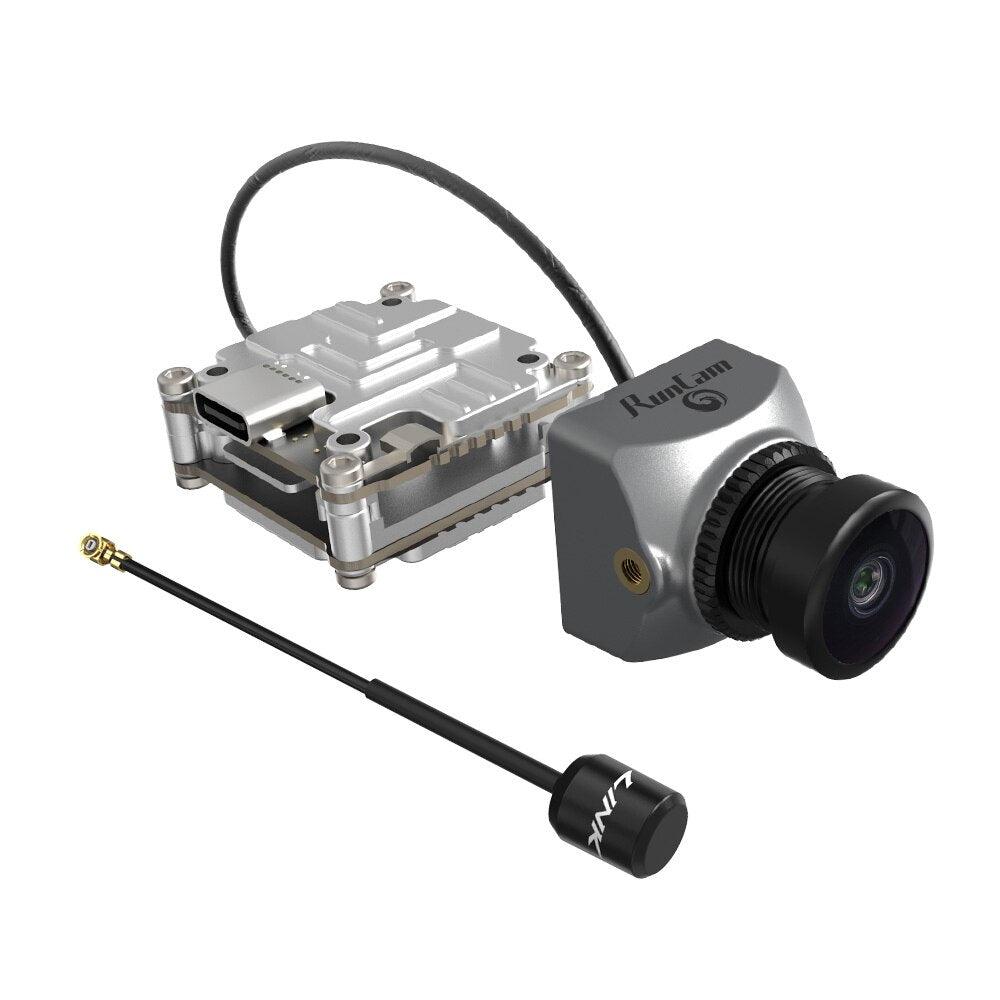

RUNCAM LINK PHOENIX HD KIT HD Digital Video Transmission System 1/2 Inch 4km 72Op/60fps Drones Max 50Mbps 32ms weight 19x19mm Camera 7ms 27
8 CRANNELS, DRONES Each operator has an exclusive channel This helps to reduce cross-interference and provide an optimal racing experience:
Equipped with an embedded remote controller, this kit enables wireless connectivity between the DJI Air Unit and DJI Remote Controller, eliminating the need for an additional receiver.

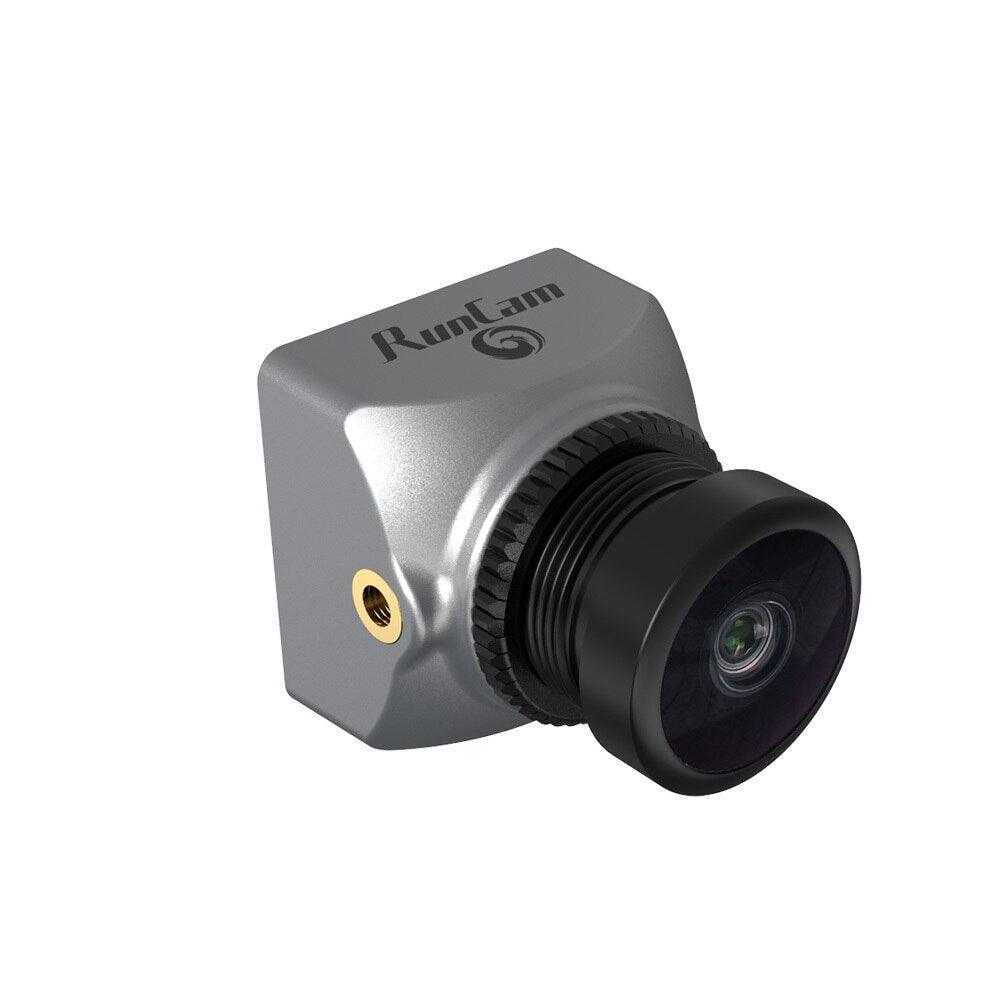

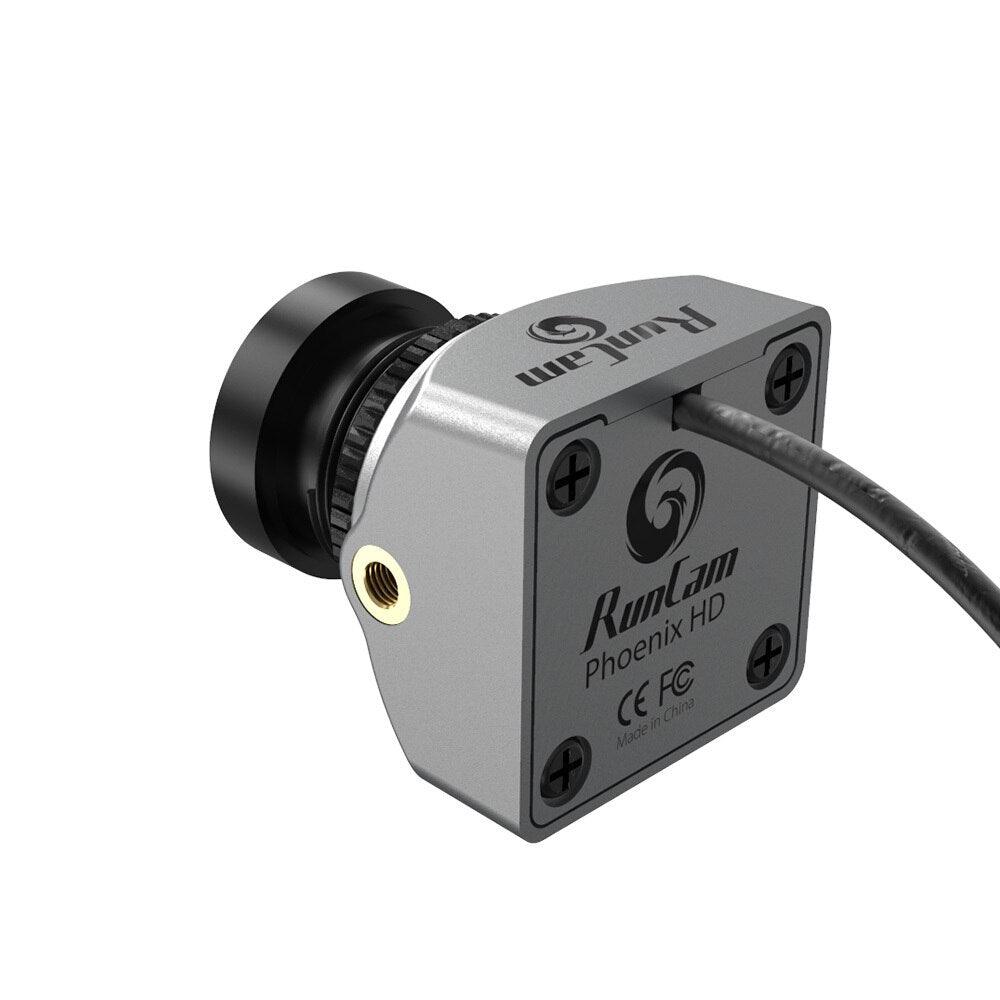

RUNCAM Phoenix HD Camera Use 1/2 inch, up to 10650 mV/Lux-sec ultra-high sensitivity sensor; excellent night vision effect: Ruul
Package includes 1x iPEX antenna, camera button connection, red foam wrap, waterproof label, and SMA antenna.
Parameters
Model |
RunCam Phoenix HD |
Image Sensor |
1/2” |
Resolution |
1280*720@60fps |
LENS |
FOV D:157° H:133° V:72° |
Shutter |
Rolling Shutter |
Coaxial Cable |
120 mm |
Dimensions |
L19mm*W19mm*H23.5mm |
Net Weight |
7.5g |
Model |
RunCam LINK Phoenix HD Kit |
Frequency |
5.725-5.850 GHz |
Max. Distance |
FCC/SRRC: <4 km & CE: <0.7 km |
Power |
7.4-26.4 V@ 4-9W |
Dimensions |
29×29×13 mm |
Net Weight |
19.5 g |
Recently, some customers complain that there are soldering traces on the right side of the pad. But please don't worry, this is the trace left by DJI's factory test, all VTX has traces, please don't worry, the product is brand new.
