Savox SC-1268SG HV 26KG 0.11s Digital High Voltage Coreless ServoTitanium Gear Digital Steering 1/8 1/10 RC parts

Savox SC-1268SG HV 26KG 0.11s Digital High Voltage Coreless ServoTitanium Gear Digital Steering 1/8 1/10 RC parts

SAVOX

Regular price $100.00 USD
Regular price $150.00 USD Sale price $100.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

44 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Savox SC-1268SG SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Assembled class

Technical parameters: Value 2

Size: 1/8 1/10

Remote Control Peripherals/Devices: Servos

Recommend Age: 12+y

RC Parts & Accs: Servos

Origin: Mainland China

Model Number: sc-1268

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Cars

Certification: CE

Brand Name: uuustore

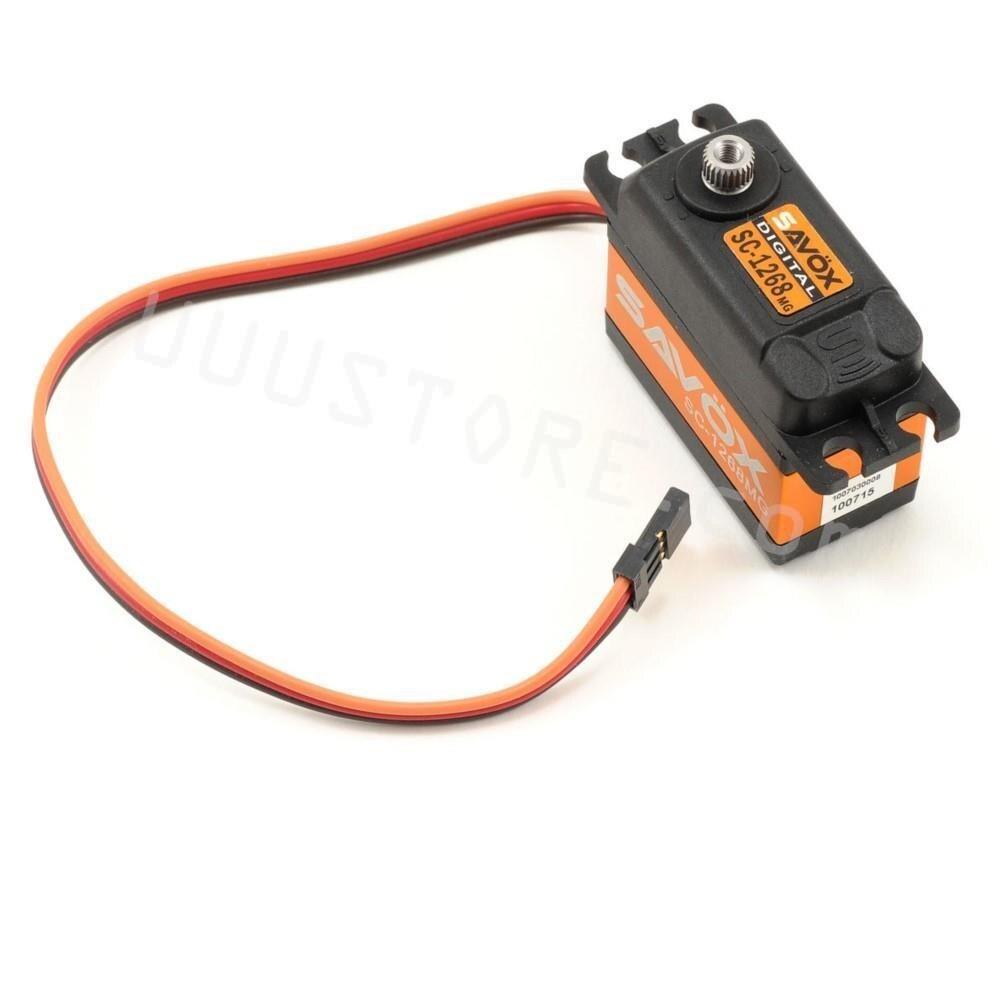

Savox - Servo - SC-1268SG - Digital - High Voltage - Coreless Motor

The SC-1268SG is a high torque servo that delivers when called upon due to it's strong output and durable gear train.

Features:

Super strong and precision made unique steel gears provide durability and survive heavy use.

Capable of HV operation.

Great torque from a standard size.

Ideal for 1/8 buggies, and other applications desiring high amounts of power.


Specifications:

Torque @6v - 15.0kg/208.3oz-in

Torque @7.4v - 25.0kg/347.2oz-in

Speed @6v - 0.13 sec/60 deg

Speed @7.4v - 0.11 sec/60 deg

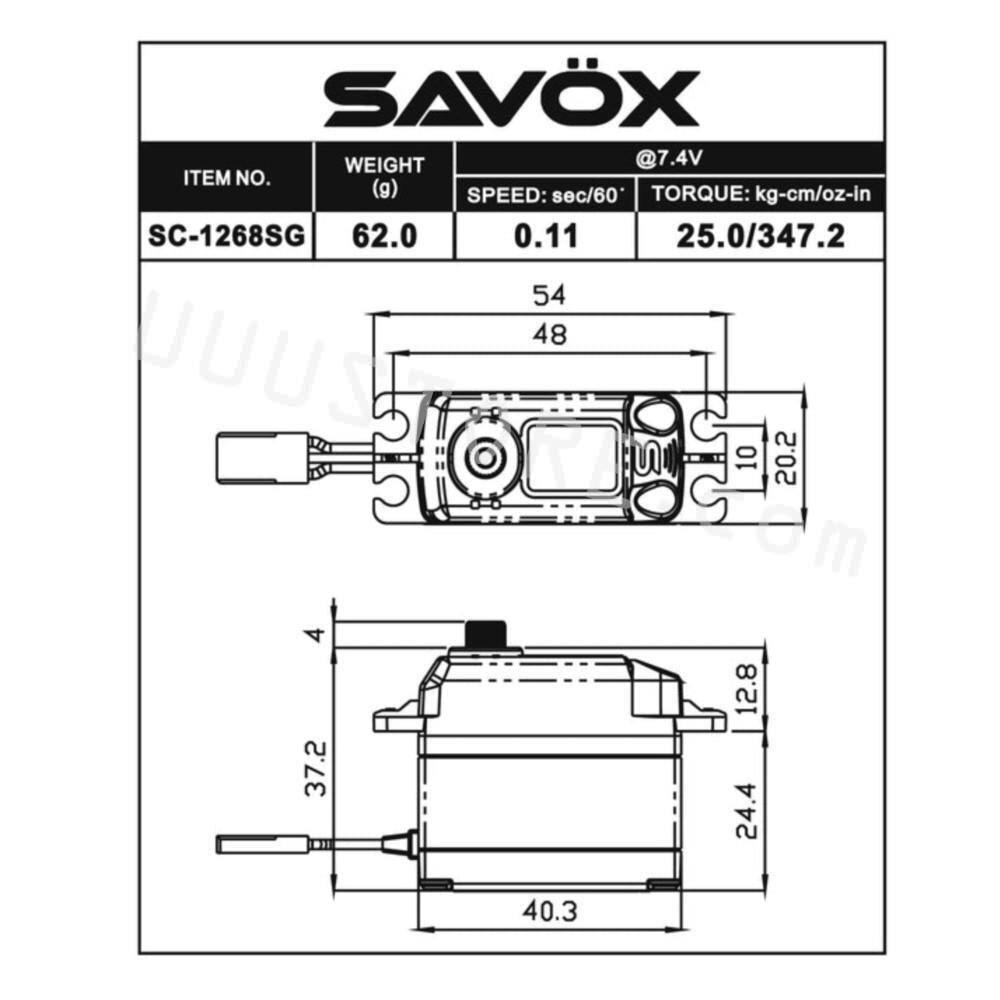

Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2

Weight: 62.0g

Operating Temperature: 14° - 122°F (-10° - 50°C)

Running Current (no load): 100mA @4.8V, 120mA @6.0V, 150mA @7.4V

Stall Current (at locked): 2500mA @4.8V, 3000mA @6.0V, 3500mA @7.4V

Idle Current: 5mA @4.8V, 5mA @6.0V, 5mA @7.4V

Wire Length: 200 ± 5mm

Output Gear Spline: 25 Tooth

Bearings: 2BB

Operating Travel: 100° (1000 → 2000 µ second)

Neutral Position: 1500 µ second

Pulse Width Range: 800 → 2200 µ second

Maximum Travel: Appx 130° (900 → 2100 µ second)

Refresh Rate: 333 Hz

Motor Type: Coreless

Isec/60* kg- kg-cm/oz- sec/60"

Gear Bearing Case (mm) (g) Isec/60* kg- kg-cm/oz- sec/60" cmloz in SC - Unique 40.3*20.2*37.2i 62.0 NJA NZA 0.13 15.0/208.3 0.11 25.0/347.2 2B8 Aluminum 1268SG steel Isec/64"

SAvOX HiGoLE SAvDX SC-126056 HV 26ks0c/6 TORQUE: kg-cmloz-in SC
