Savox SW-1210SG Servo SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Assembled class
Technical parameters: Value 2
Size: 1/8 1/10
Remote Control Peripherals/Devices: Servos
Recommend Age: 18+,12+y
RC Parts & Accs: Servos
Origin: Mainland China
Model Number: savox 1210 sg
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Cars
The SW1210SG is the premier waterproof digital servo in the Savox Lineup. This coreless servo boasts 277.7 oz-in of torque and a speed of .15 at 6.0V. It combines leading edge technology with super high 12-bit (4096) resolution and steel gears for one versatile and waterproof servo! This is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.
Features:
Combines leading edge technology with super high 12 bit (4096) resolution and steel gears.
Waterproof.
Coreless motor provides high speed, incredible efficiency, and low power consumption.
Extremely strong steel gears ensure long-life and durability.
The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
Our servos are totally green – from materials to production, these servos are environmentally friendly.
Ideal for RC cars, trucks, buggies, and boats.

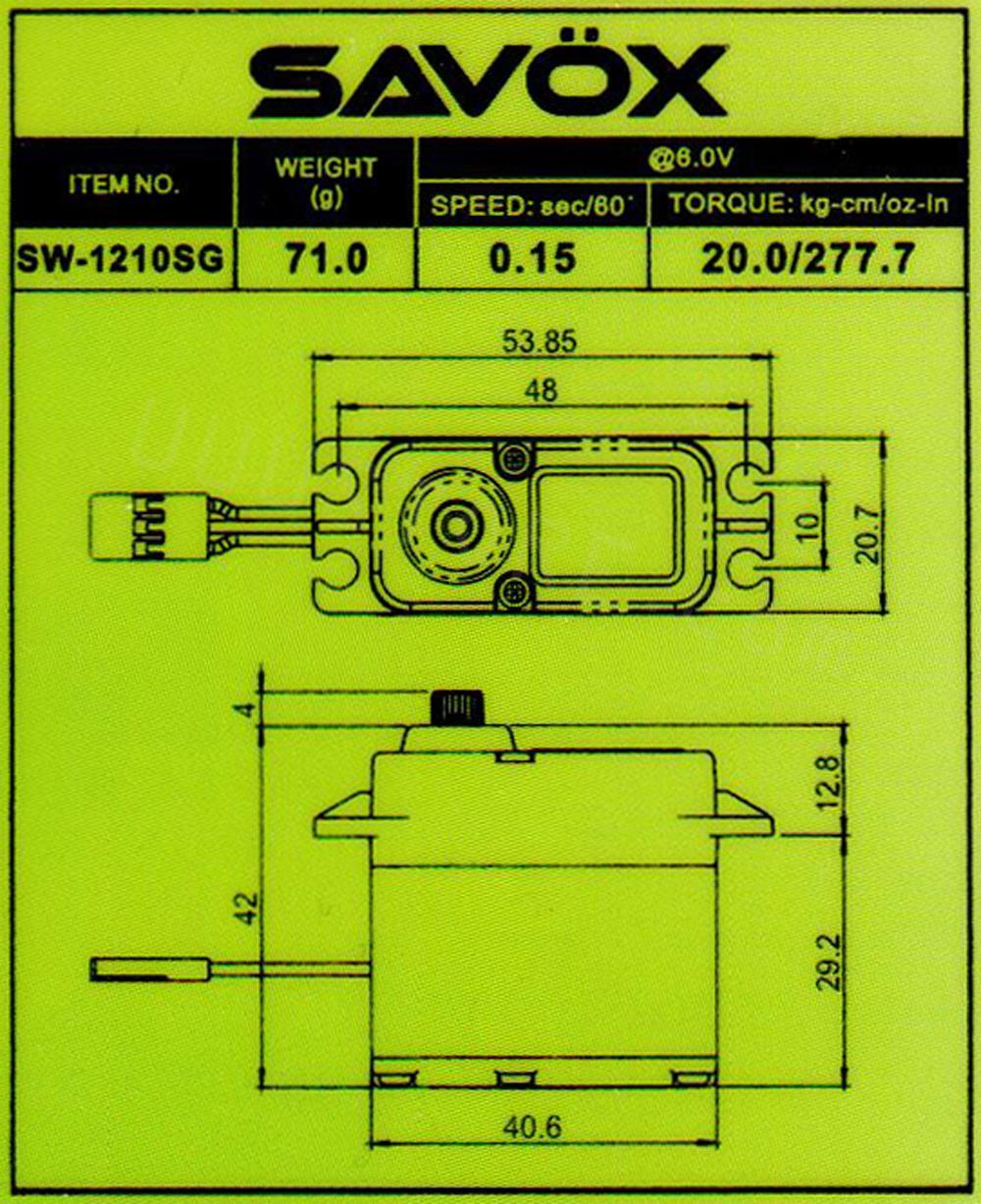

Dimensions(mm): 40.6x20.7x42.0
Weight(g): 71
Speed(@4.8V sec/60): .18
Torque(@4.8V oz-in): 222.2
Speed(@6.0V sec/60): .15
Torque(@6.0V oz-in): 277.7
Gear: Unique Steel
Bearing: 2BB
Case: Aluminum 25 Tooth Spline
Savox SW-1210SG Servo: Waterproof Coreless Steel Gear Digital Servo Specifications:
* Voltage Range: 4.8V to 6.0V
* Item Number: SW-1210SG
* Dimensions: 40.6mm (length) x 20.7mm (width) x 42.0mm (height)
* Weight: 71g
* Speed:
+ Rotation per minute (RPM): N/A
+ Torque: 0.15 kg-cm/oz
+ Speed: 20.0 sec/60
---------
Savox SW-1210SG Servo Review
Savox SW-1210SG Waterproof Coreless Steel Gear Digital Servo Review
The Savox SW-1210SG is a high-performance waterproof digital servo that offers impressive torque and speed capabilities. Designed for 1/10 and 1/8 scale RC vehicles, this servo is built to withstand various weather conditions, making it an excellent choice for off-road enthusiasts. Let's delve into the features, specifications, and advantages of the Savox SW-1210SG.
Features:
1. Leading-Edge Technology: The SW-1210SG combines advanced technology with a super high 12-bit (4096) resolution, ensuring precise and accurate servo control.
2. Waterproof Design: Built to withstand wet environments, this servo is capable of operating in rain, snow, or other challenging conditions without compromising performance.
3. Coreless Motor: The coreless motor offers high speed, exceptional efficiency, and low power consumption, making it an efficient choice for extended use.
4. Durable Steel Gears: Equipped with extremely strong steel gears, the SW-1210SG provides excellent durability and ensures a long service life, even under demanding conditions.
5. Aluminum Case: The servo's aluminum case not only enhances its aesthetic appeal but also aids in heat dissipation, resulting in cooler and smoother operation.
6. Environmentally Friendly: Savox servos are designed with an environmentally conscious approach, using eco-friendly materials and production methods.
7. Versatile Application: Ideal for a wide range of RC vehicles, including cars, trucks, buggies, and boats, the SW-1210SG offers versatility and compatibility across various platforms.
Advantages:
1. Exceptional Torque: With a torque rating of 277.7 oz-in at 6.0V, the SW-1210SG delivers impressive power, allowing for precise control and handling of large-scale vehicles.
2. High-Speed Performance: Operating at a speed of 0.15 seconds per 60 degrees at 6.0V, this servo offers quick response times, ensuring accurate and agile maneuverability.
3. Waterproof Reliability: The waterproof design enables the servo to withstand wet conditions, providing peace of mind and allowing RC enthusiasts to enjoy their vehicles in various environments.
4. Durable and Long-Lasting: The combination of steel gears and an aluminum case ensures durability and longevity, making the SW-1210SG a reliable servo that can withstand rigorous usage.
5. Versatile Compatibility: Suitable for a wide range of RC vehicles, this servo is a versatile choice for enthusiasts who own multiple types of vehicles and require a servo that can handle various applications.
In conclusion, the Savox SW-1210SG Waterproof Coreless Steel Gear Digital Servo offers outstanding performance, durability, and versatility. With its waterproof design, high torque, and rapid speed, it is an excellent choice for RC enthusiasts who want to upgrade their vehicles to handle any terrain or weather condition. Whether you're driving a buggy, monster truck, crawler, scale truggy, or any other compatible RC vehicle, the SW-1210SG delivers reliable and precise servo control, ensuring an enhanced driving experience.
