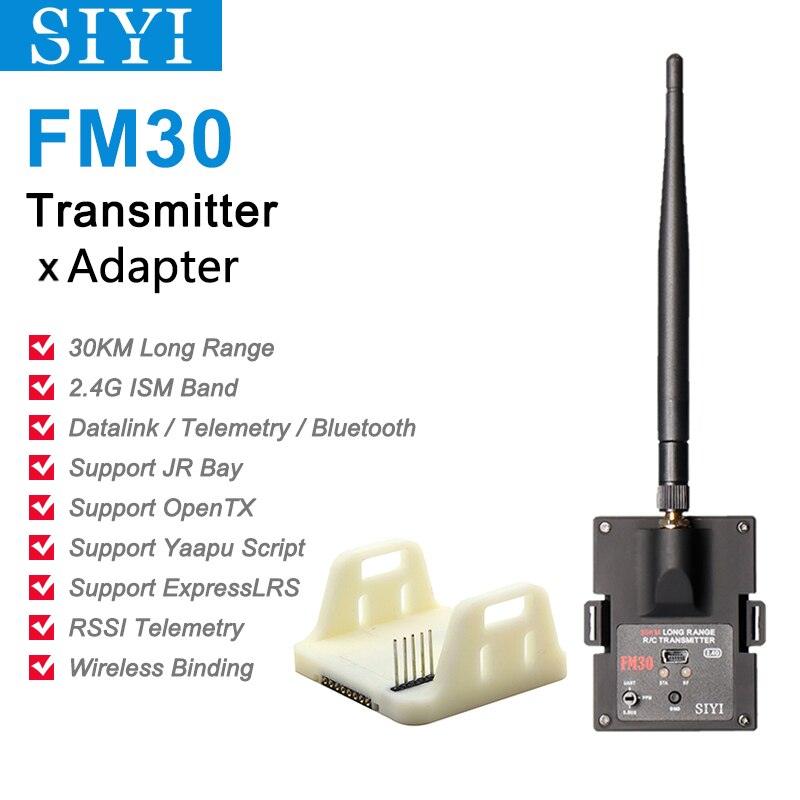

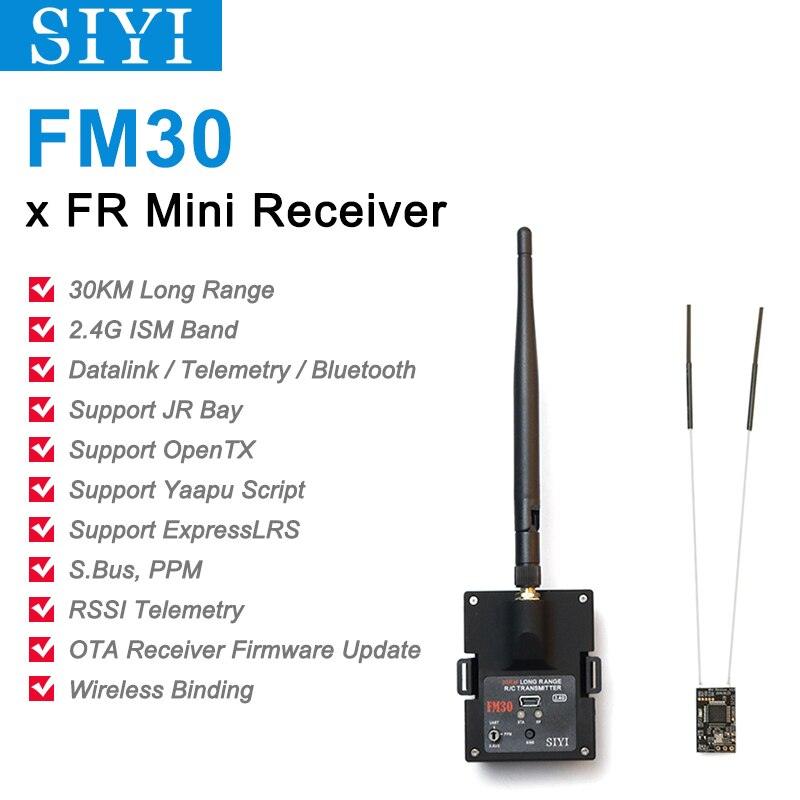

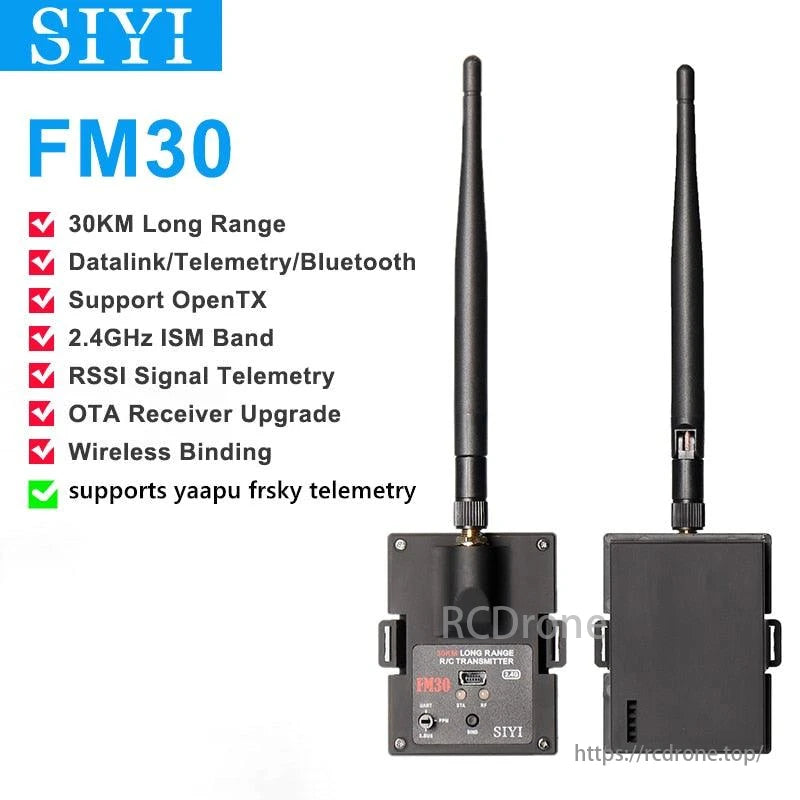

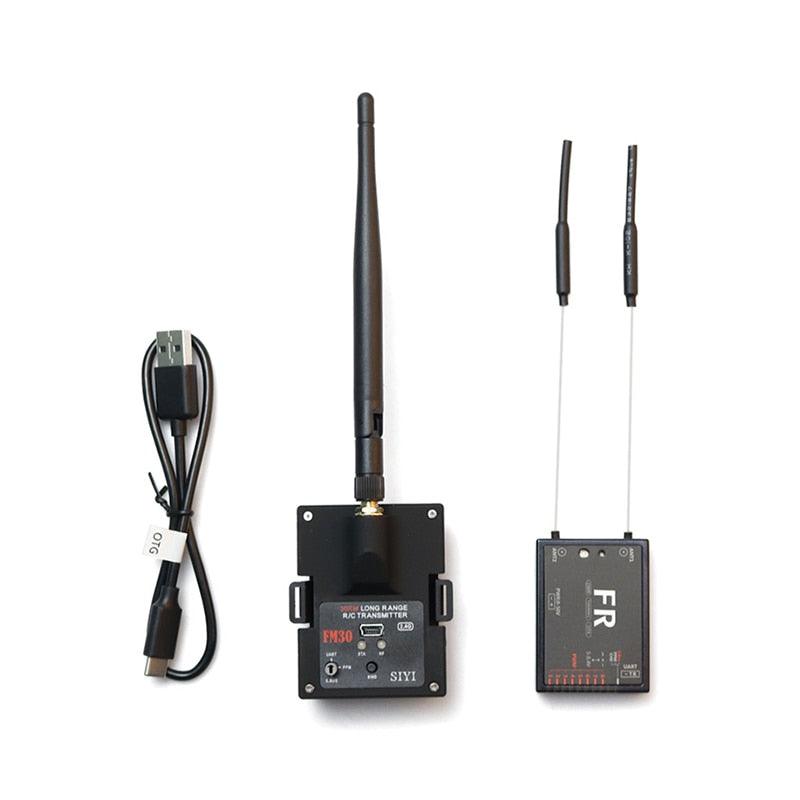

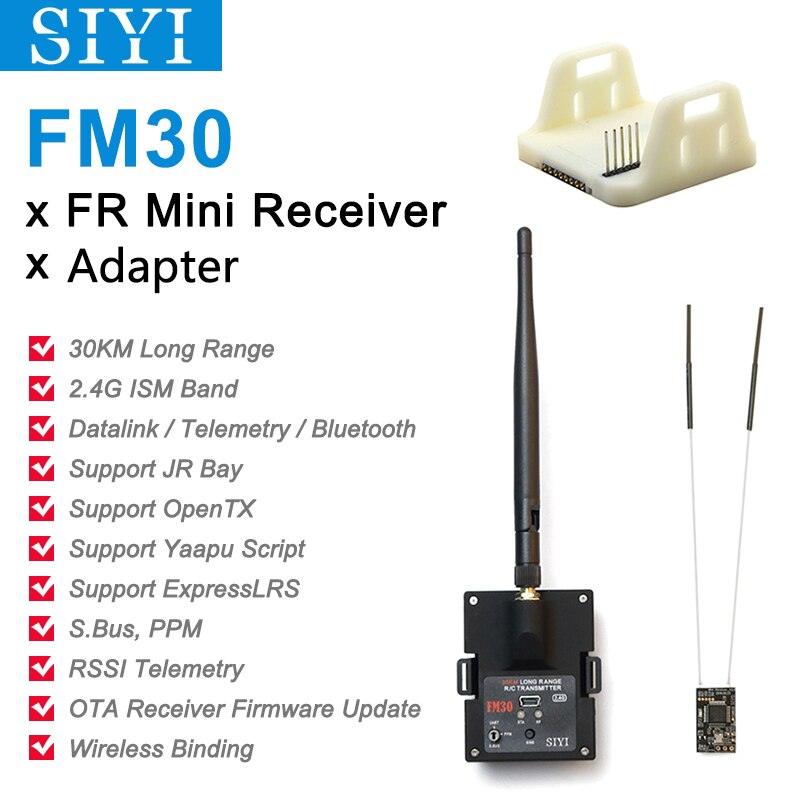

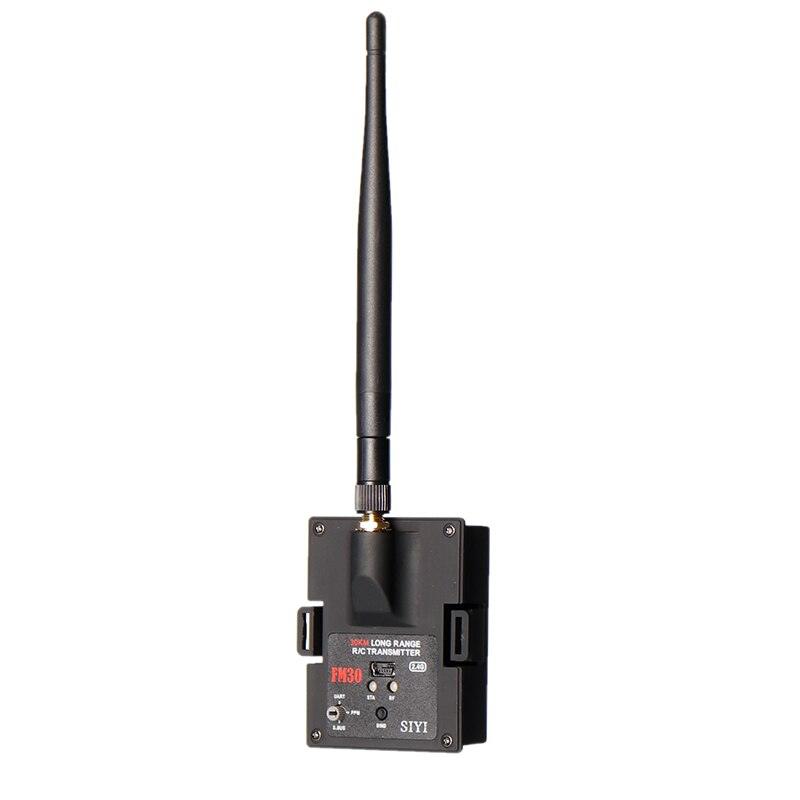

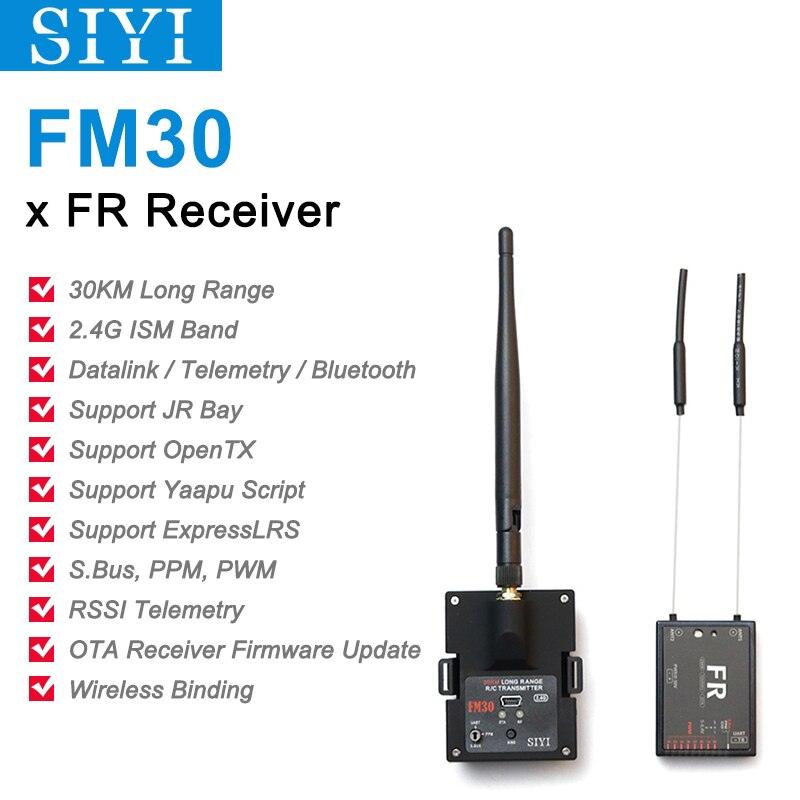

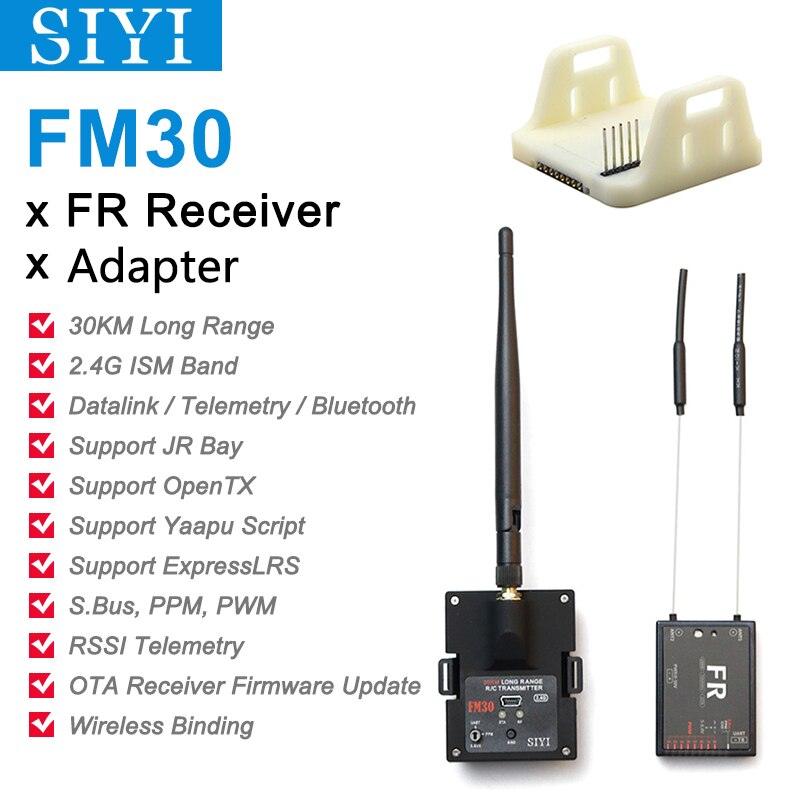

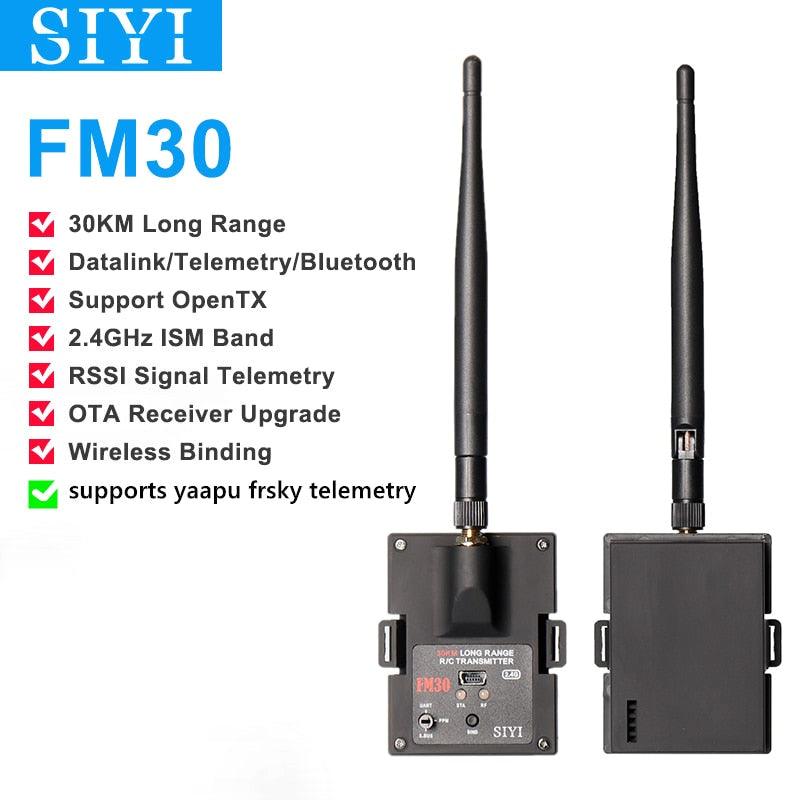

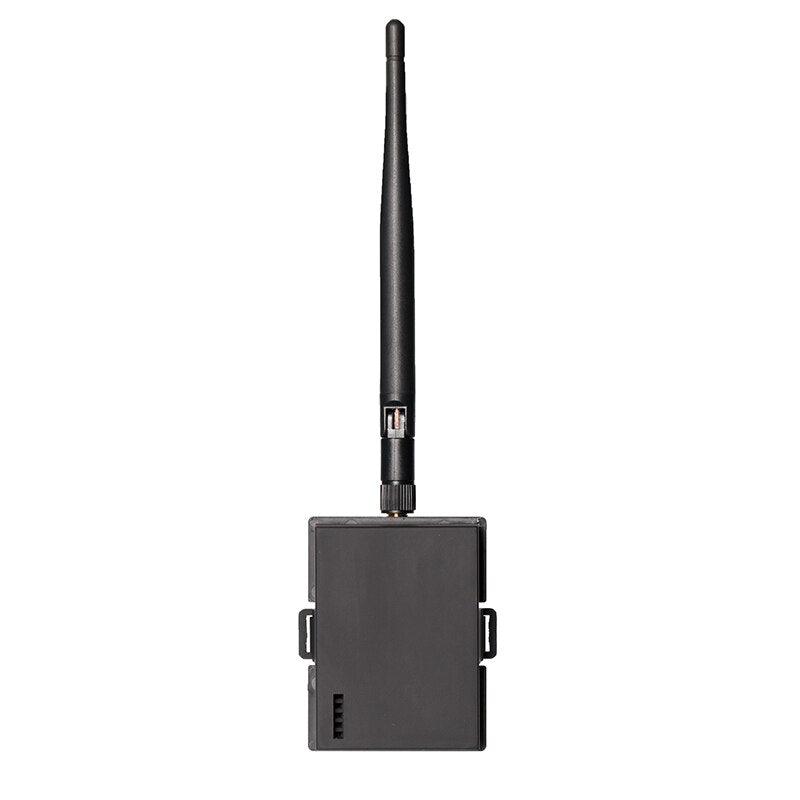

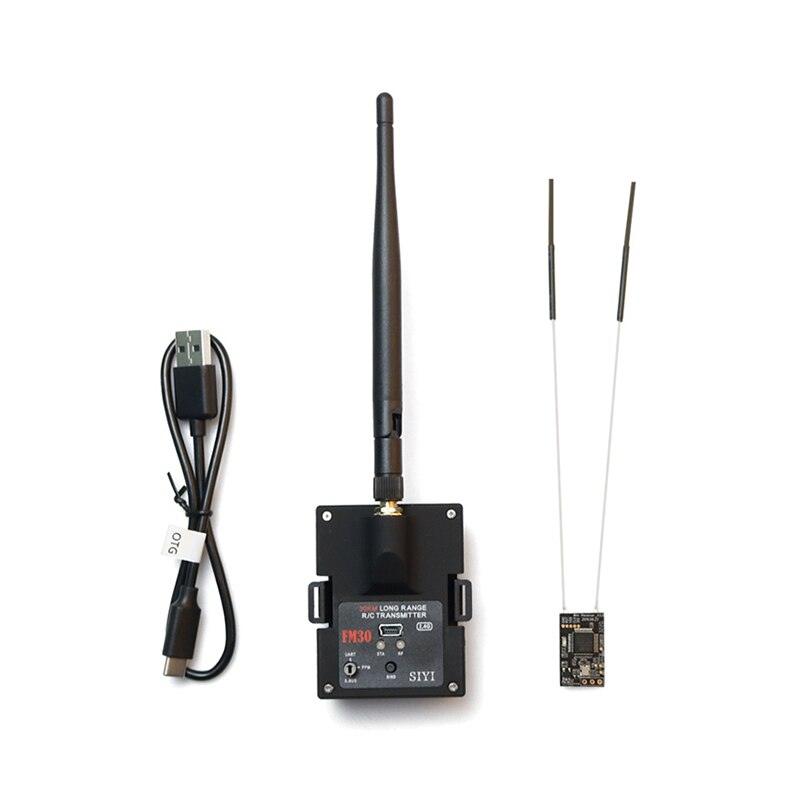

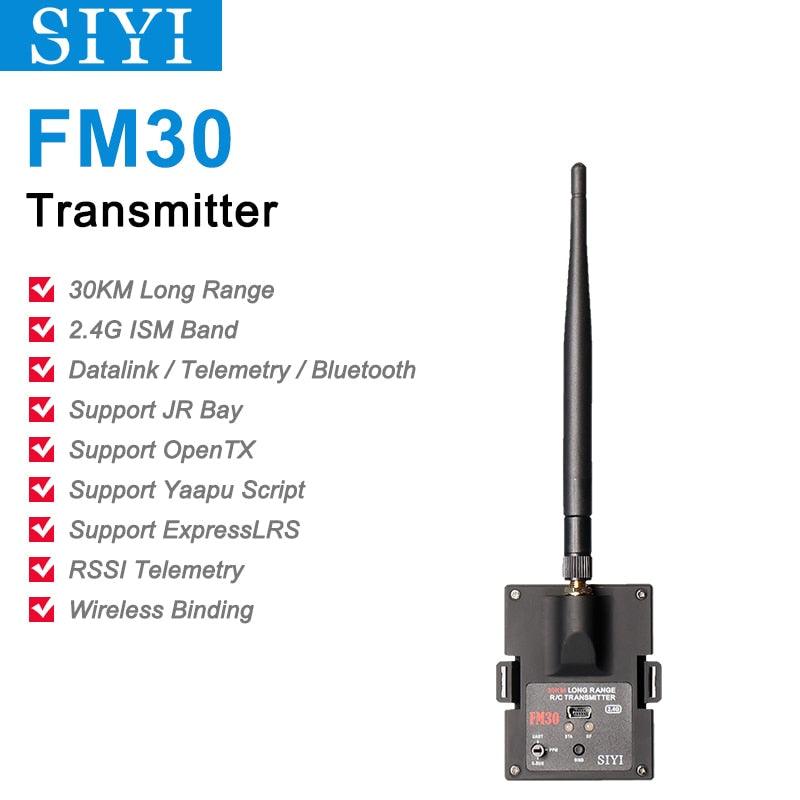

SIYI FM30 2.4G 30KM Radio Module SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Radio Module

Tool Supplies: Assembly Category

Size: 10*10*10

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Radio Module

Quantity: 1 pcs

Origin: Mainland China

Model Number: F30

Material: nylon

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: XDRC





Main Features





FM30 is based on SIYI Tech's industry-level radio frequency technology, accumulated for years. The built-in Bluetooth function
supports outdoor wireless FC settings and real-time flight status monitoring. The module is tiny and compatible with standard JR
slot. FM30 also supports multiple signal input and communication protocols, users will have an unprecedented experience of
manipulating their model craft, exploring range limits, and having fun.

Technical Specification
Model Name: FM30 Telemetry Bluetooth Radio Module
Frequency: 2400 ~ 2483 MHz
RF Power: 23 dBm
Transmission Distance: >30 km (unobstructed, free of interference)
Latency: 10 ms (protocol mode)
Signal Input: UART, S.Bus, PPM
Channels: 16 CH
Antenna Connector: SMA Female
Antenna Gain: 3 dBi
Power Input: 5~8.4 V
Power Consumption: 0.7 W
Item Weight: 36 g
Firmware Update: Supported
Product Dimension: 70*20*33 mm
Compatible Slot Size: 59*43*18.5 mm
Working Temperature: -10 ~ 55 °C

Features
30KM Long Range

Applied with lately developed technologies, such as super long distance, self-adaptive bandwidth, interference avoidance frequency
hopping, and two-way telemetry, equipped with industry-level RF hardware which is capable to counter high power electromagnetic
interference, FM30 radio module's maximum control distance can reach up to 30 kilometers and more, which can effectively guarantee
the low-altitude manipulating stability crossing among trees, through racing panels, in garage and other concrete buildings with
many obstacles, shelters, and heavy interference.

Bluetooth/Telemetry Configuration

FM30 comes with built-in Bluetooth function and supports Mavlink protocol, which makes it possible for users to monitor real-time
flight status and do configuration through the ground control software.
*FM30 supports popular GCS such as QGroundControl, Speedy Bee, Mission Planner, Fish Drone, etc.
Receiver OTA Wireless Upgrading, Wireless Binding
The way of upgrading receiver firmware wirelessly let users get rid of complex wire connection.
Through a combination of manipulation, receiver actively enters binding mode without disassembling your drone/aircraft.

RSSI Signal Telemetry
FM30 supports RSSI output in S.Bus mode, providing real-time status information as reference for long-range flight.

2.4 GHz ISM Frequency Band
FM30 uses 2.4 GHz band, which is legal to use in any countries. Under 2.4 GHz and working with Fast Hopping technology, FM30's
transmission speed is fast and stable.

Interface & Function
Antenna
Micro-USB Upgrading Port
Status Indicator
Protocol Mode Switch
RF Indicator
Binding Button

Coming Soon
USB Simulator
Wireless Master-slave
Multi-drone Control
RC Relay
