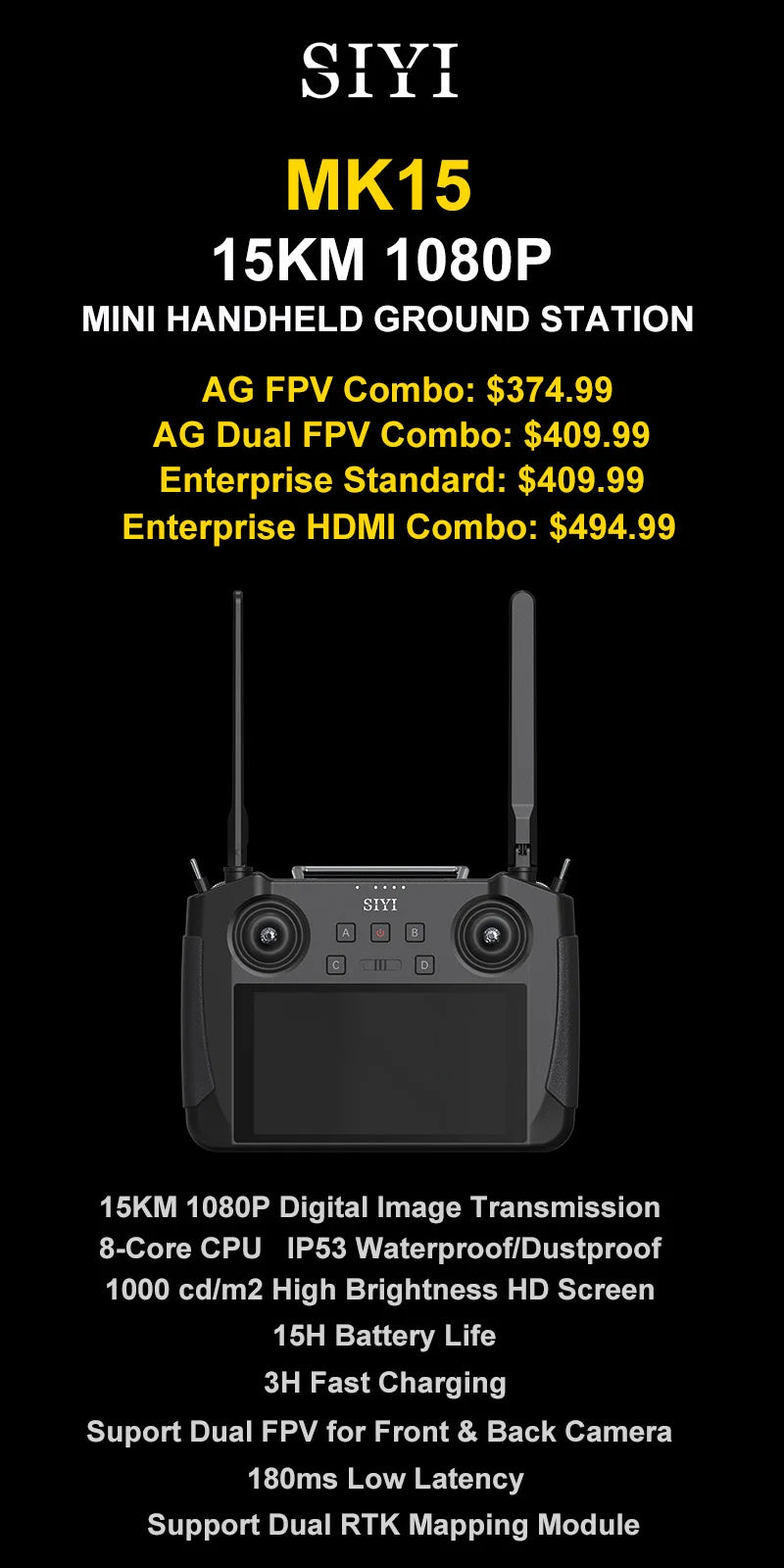

SIYI MK15 Transmitter - Mini Handheld Radio System Transmitter FPV Drone Remote Control 15KM 1080P 5.5-Inch HB Screen Android OS 2G RAM 16G ROM

15KM 1080P SIYI MK15 Mini Handheld Radio System Transmitter Remote Control 5.5-Inch HB Screen FPV Android OS 2G RAM 16G ROM

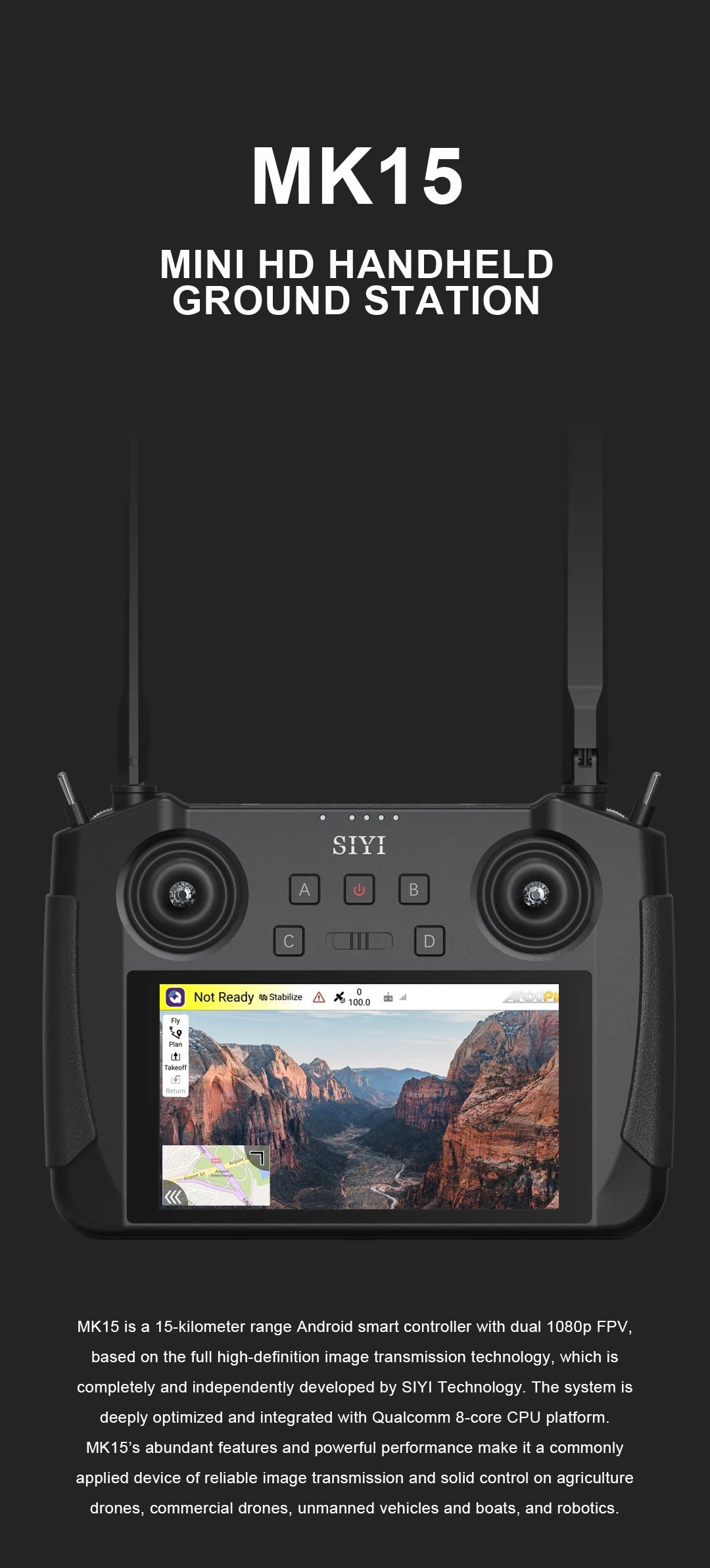

MK15 is a 15-kilometer range Android smart controller with dual 108Op FPV . the system is deeply optimized and integrated with Qualcomm 8-core CPU platform .

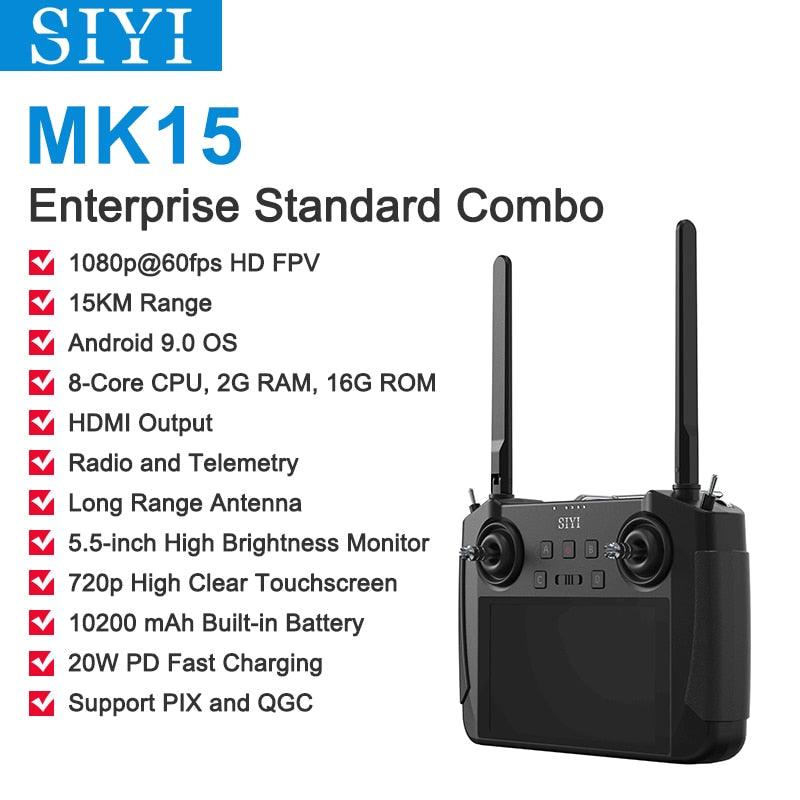

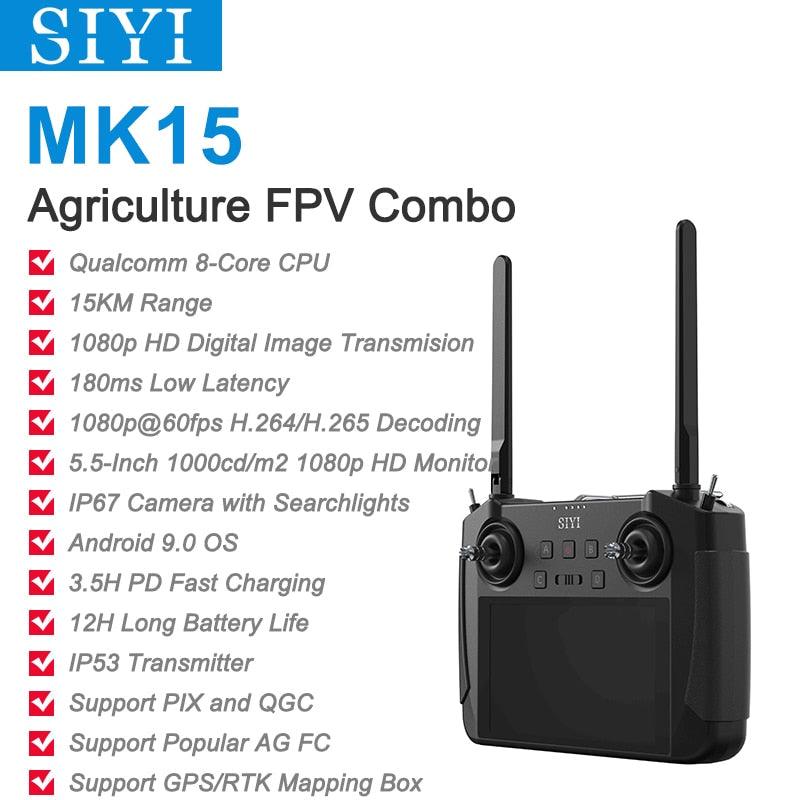

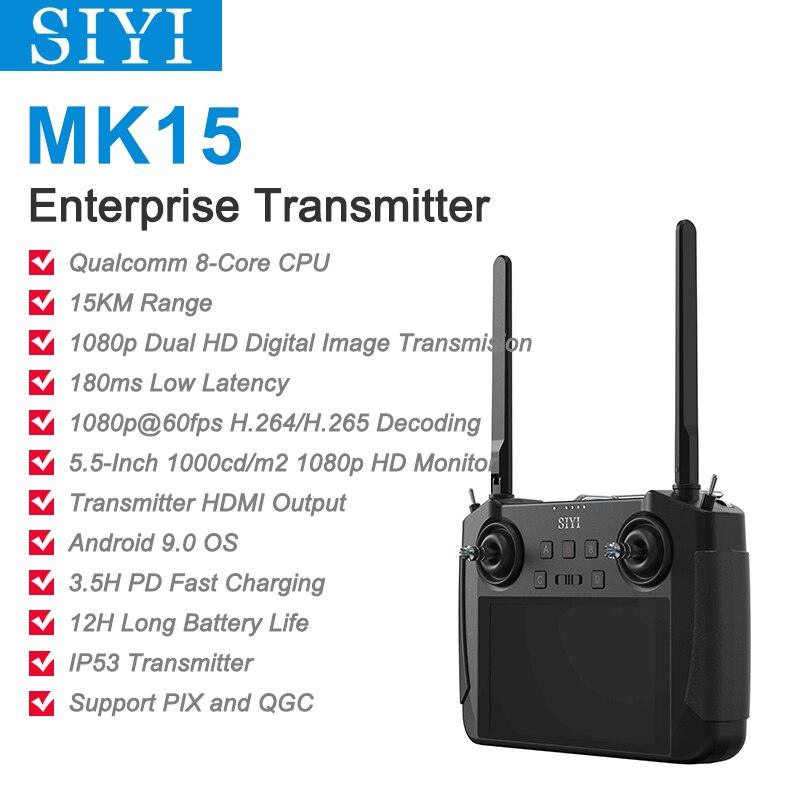

This transmitter features a Qualcomm Snapdragon processor, an IP53-rated design for durability, and an 8-core CPU for efficient performance. It supports HDMI output and has Android 9.0 operating system with hardware decoding capabilities. The device can transmit HD images at 1080P resolution and 60 frames per second. Additionally, it offers a range of features including H.264 and H.265 video encoding, 15km transmission distance, and a high-resolution 1080P display at 1000 cd/m² brightness.

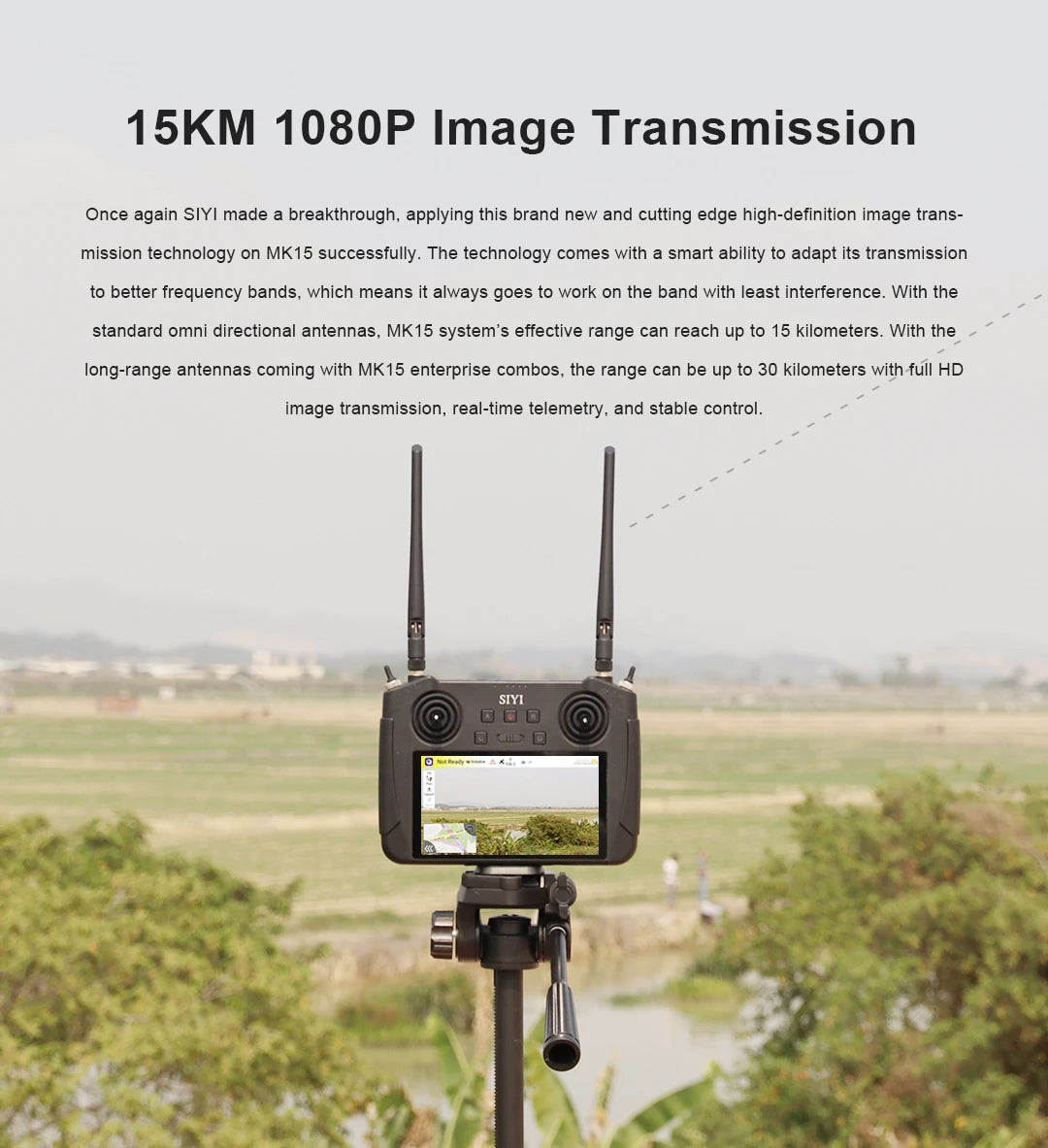

SIYI's MK15 system features innovative 15KM 1080P image transmission technology, which intelligently adapts its frequency band to ensure optimal signal quality. With standard omni-directional antennas, this system can achieve an impressive effective range of up to 15 kilometers.

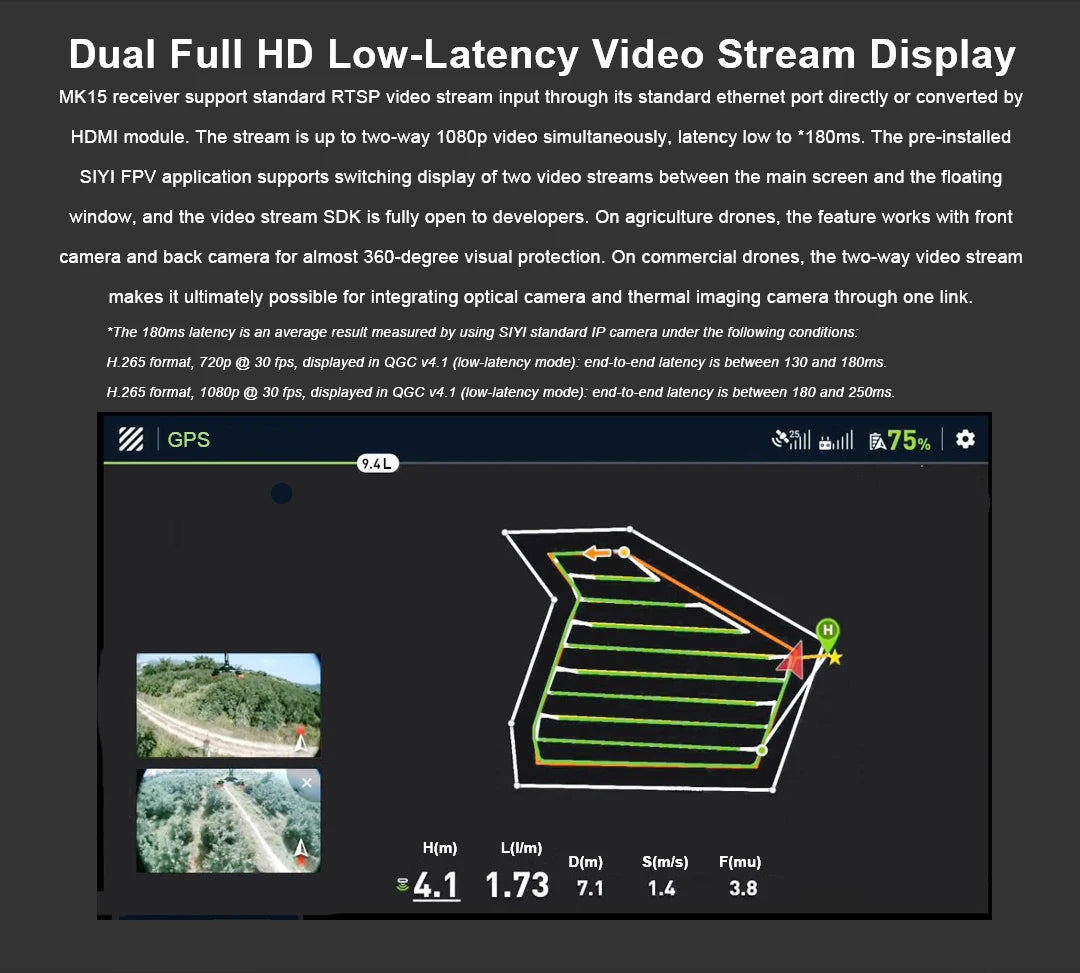

The MK15 receiver supports real-time video streaming with low latency, displaying Full HD (1080p) content simultaneously on its 5.5-inch HD screen. It can receive standard RTSP video streams directly through Ethernet or via HDMI module conversion, offering latency as low as *180ms for seamless two-way video transmission.

MK15 transmitter carries Qualcomm Snapdragon 8-core CPU, which can decode 108Op G0fps video stream by hardware in both H.264 and H.265 format . processor's powerful computational performance lowers image transmission and display latency to 180ms .

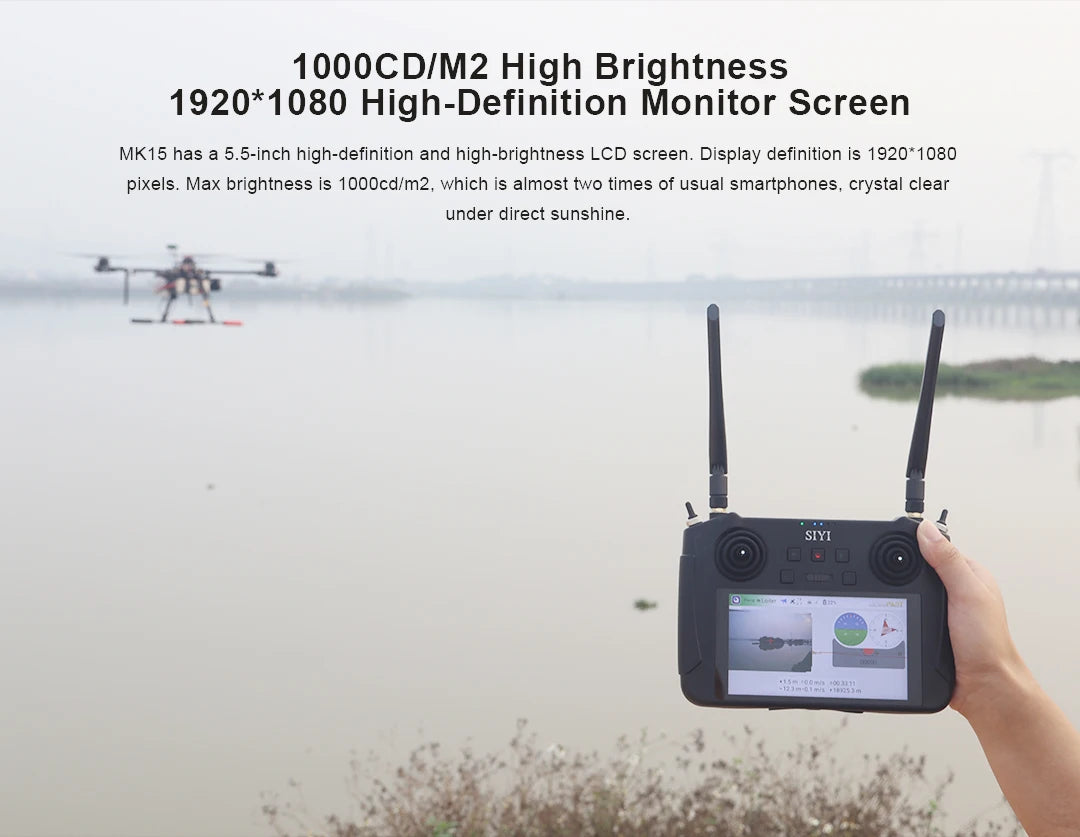

1OOOCDIM2 High Brightness 1920*1080 High-Definition Monitor Screen MK15 has a 5.5-inch high-definition and high-brightness LCD screen . Max brightness is 1OOOcd/m2, which is almost two times of usual smartphones .

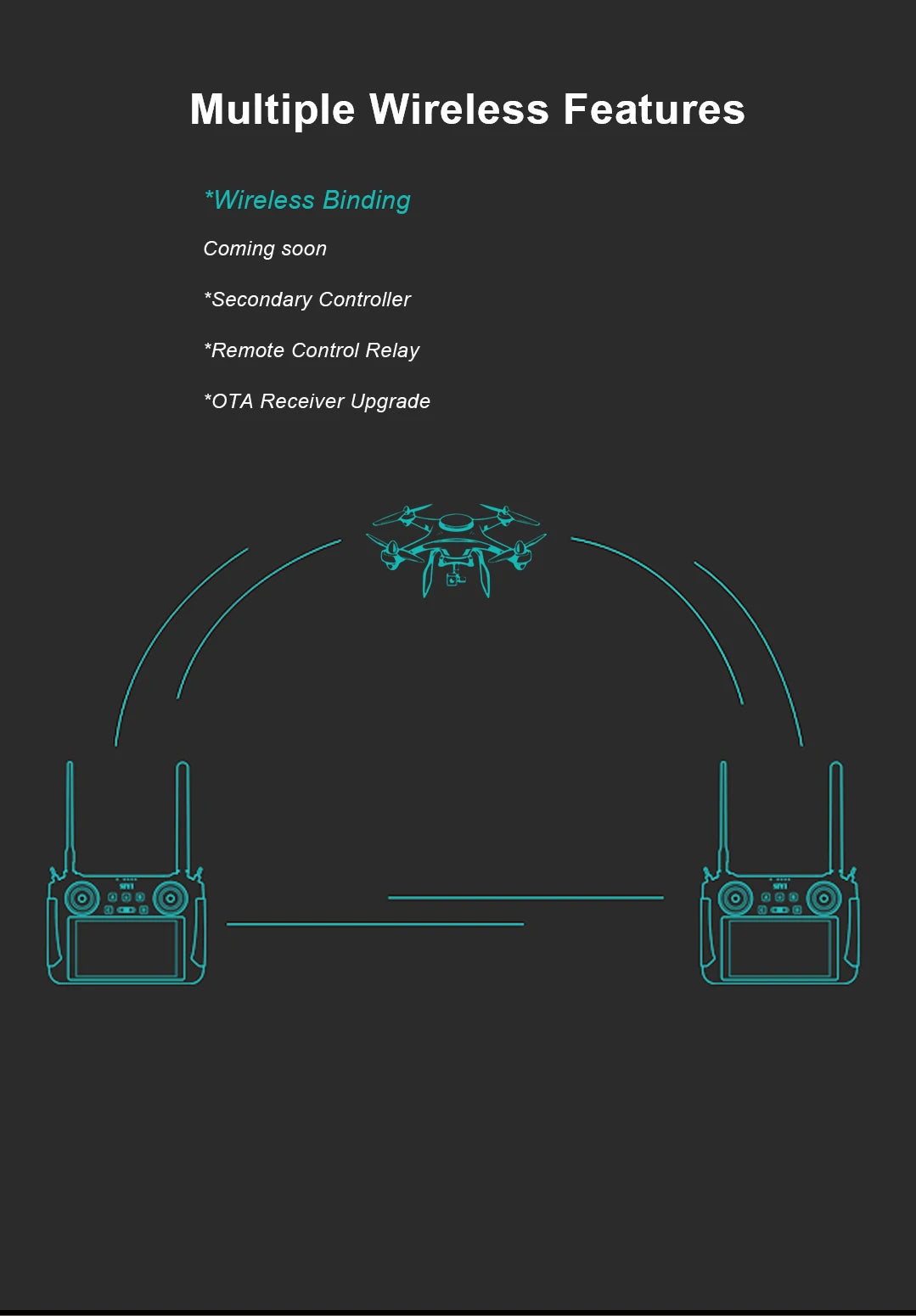

This product features multiple wireless capabilities, including wireless binding (coming soon), secondary controller functionality, remote control relay transmission, and over-the-air (OTA) receiver support.

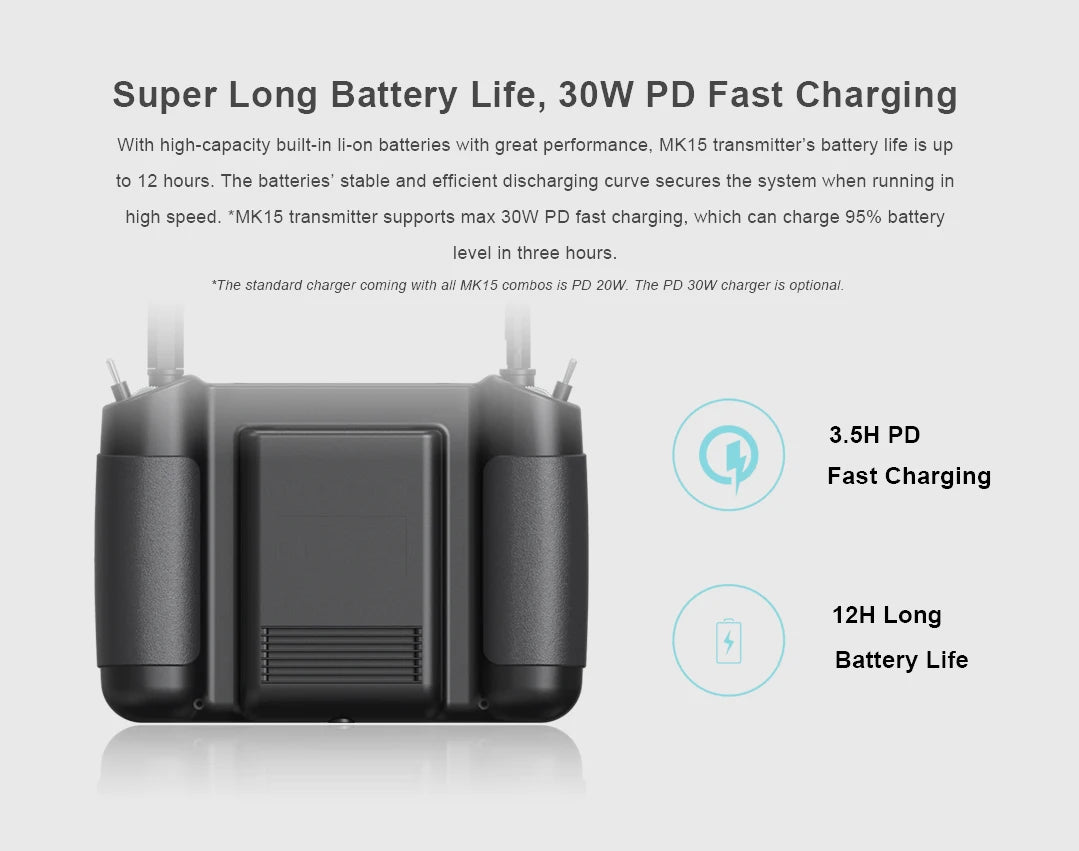

The MK15 transmitter features high-capacity built-in lithium-ion batteries that provide exceptional performance, with an impressive battery life of up to 12 hours. The batteries' stable and efficient discharge curve ensures reliable operation even during high-speed transmissions.

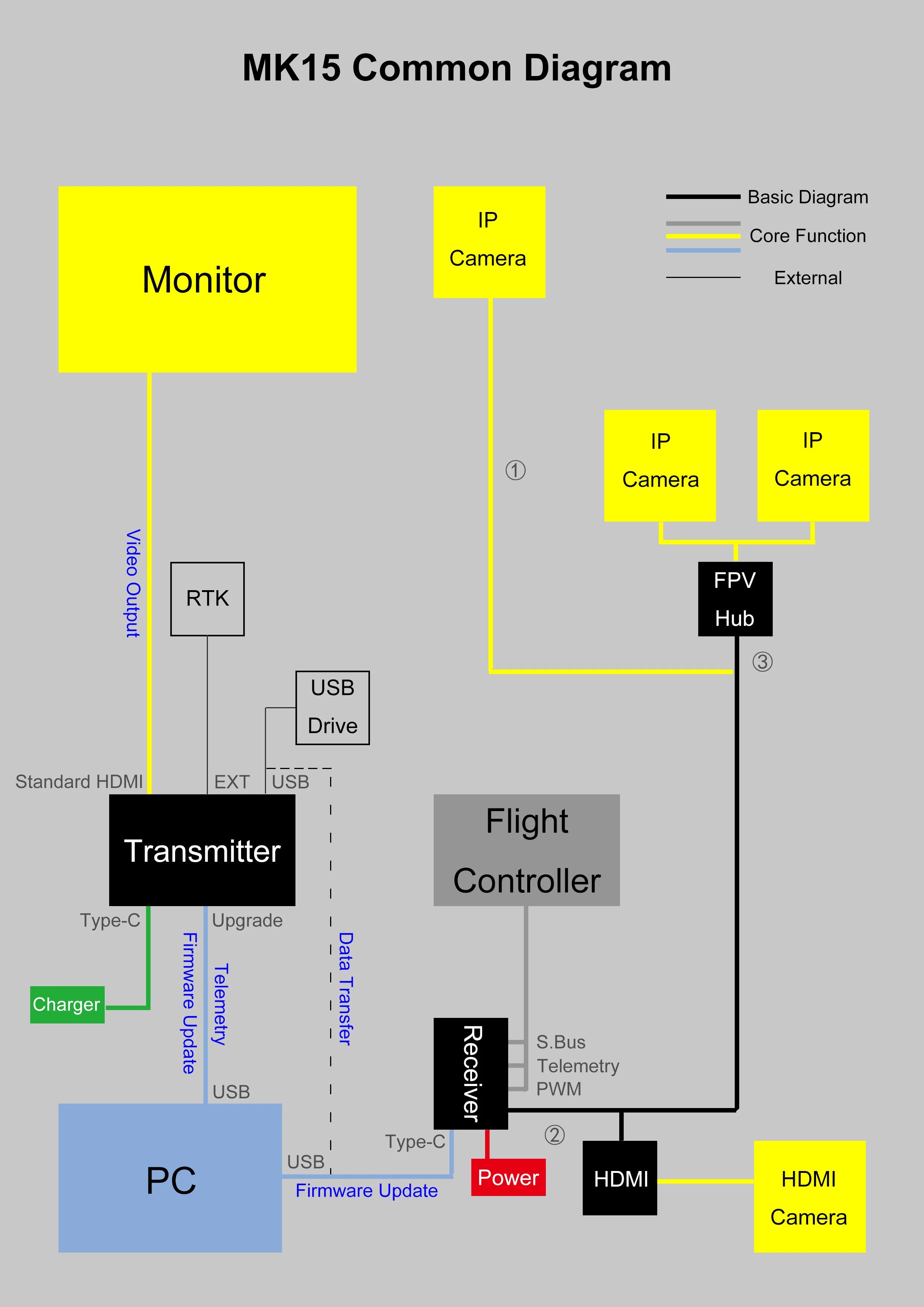

MK15 Common Diagram Basic Diagram IP Core Function Camera Monitor External IP IP Camera Camera 8 FPV RTK 2 Hub USB Drivve Standard HDMI EXT USB Flight Transmitter Controller Type-C Upgrade 8 .

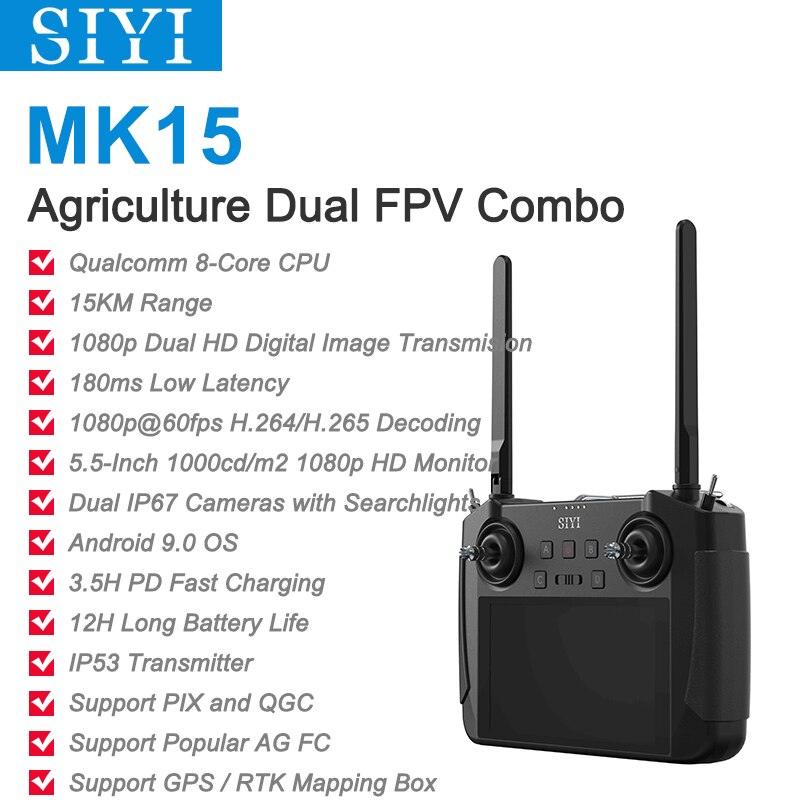

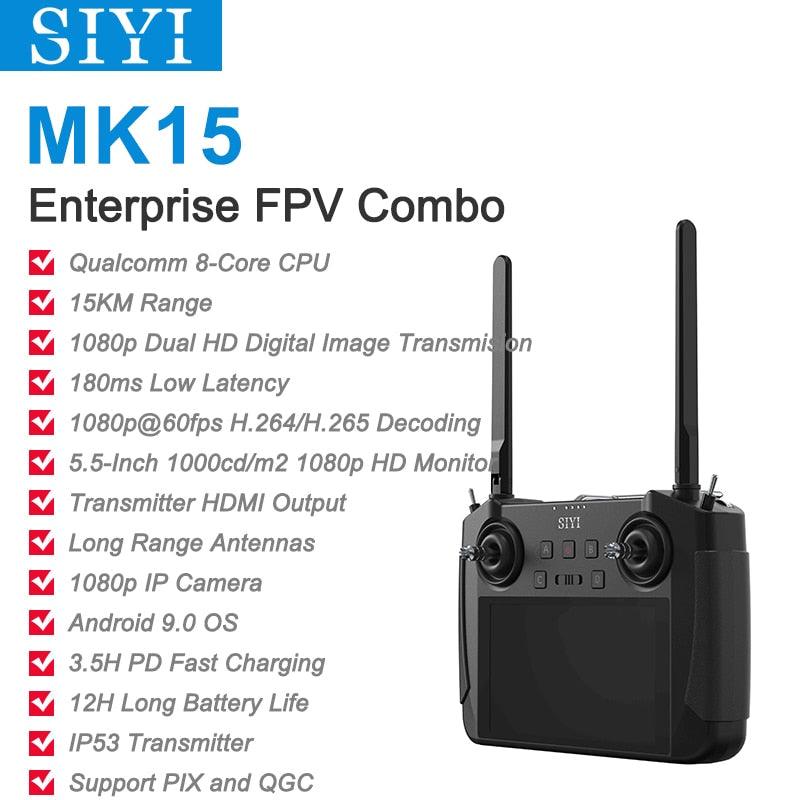

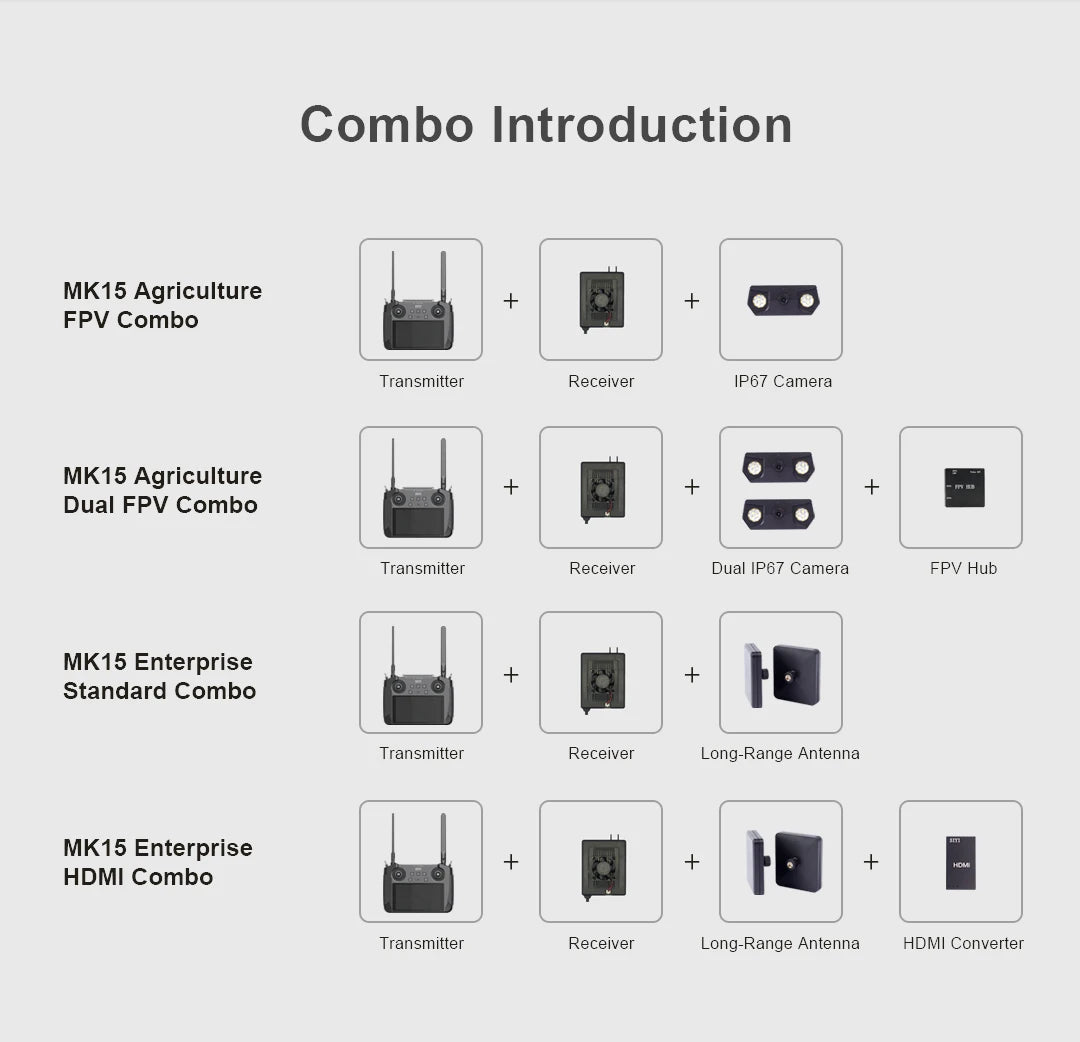

MK15 Agriculture Dual FPV Combo Transmitter Receiver Dual IP67 Camera MK1S Enterprise Enterprise HDMI combo transmitter receiver Long-Range Antenna HDMI Converter .

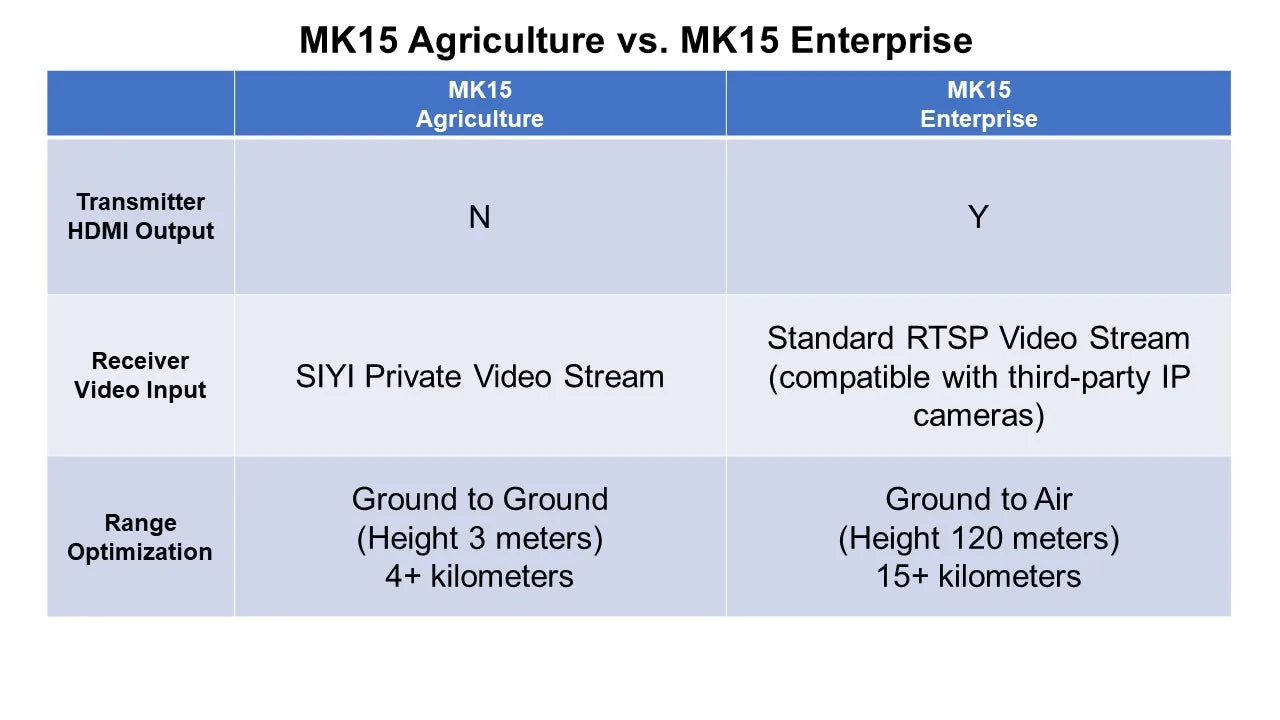

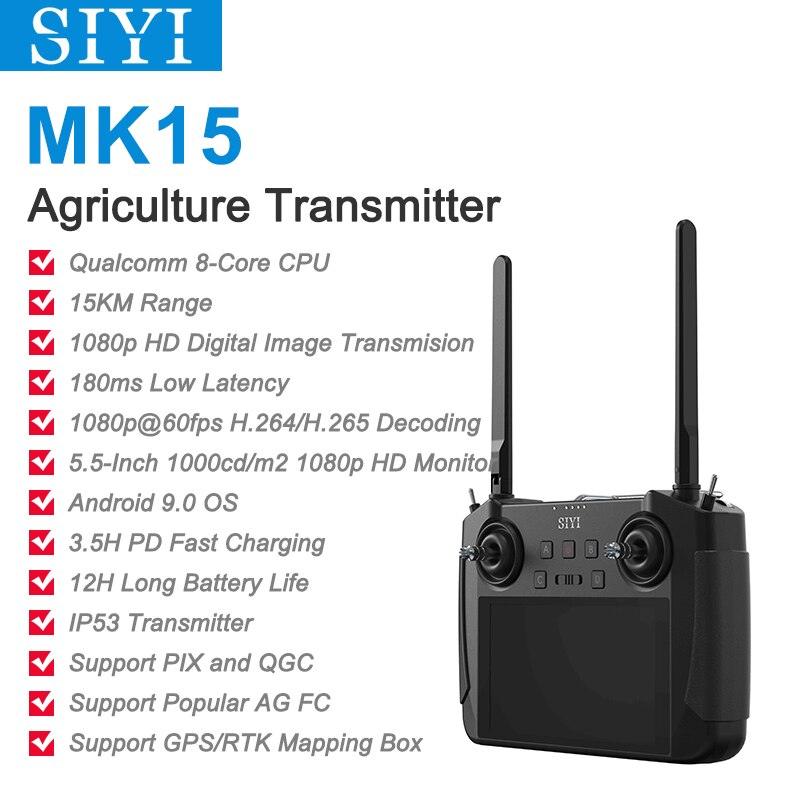

MK15 Agriculture Enterprise Transmitter HDMI Output Standard RTSP Video Stream Receiver Video Input . Ground to Ground Ground to Air Range (Height 3 meters)

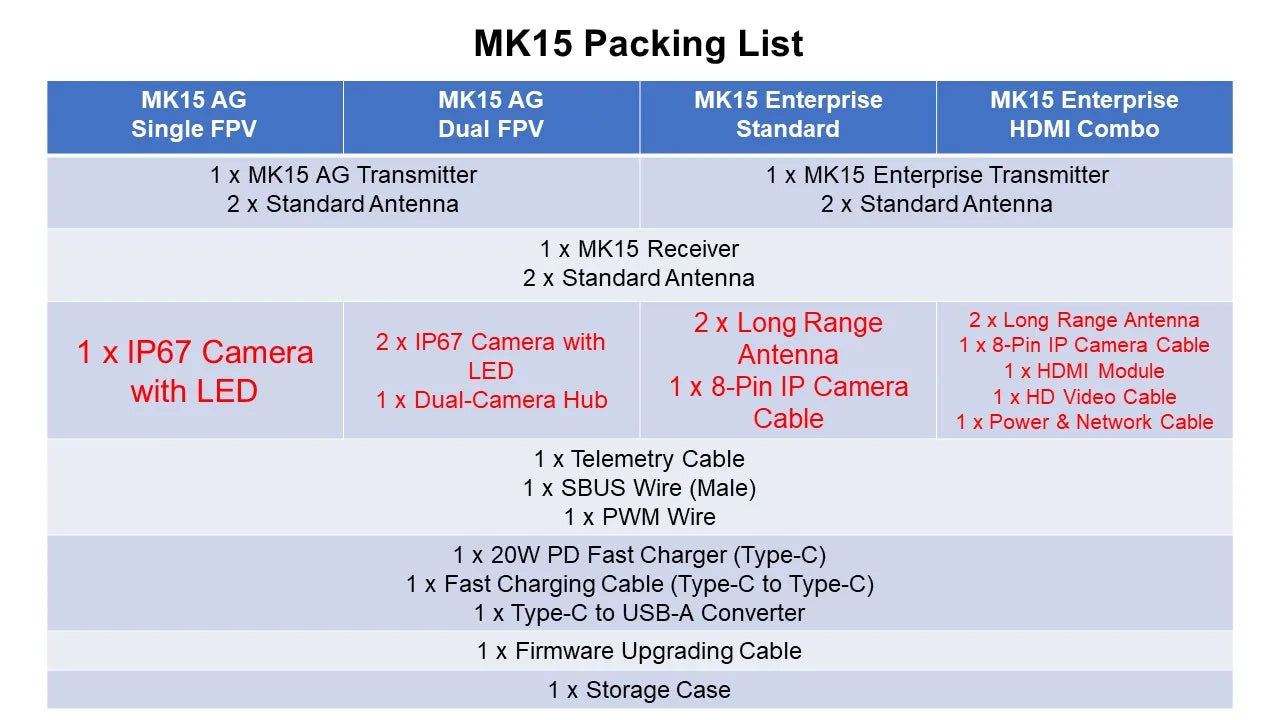

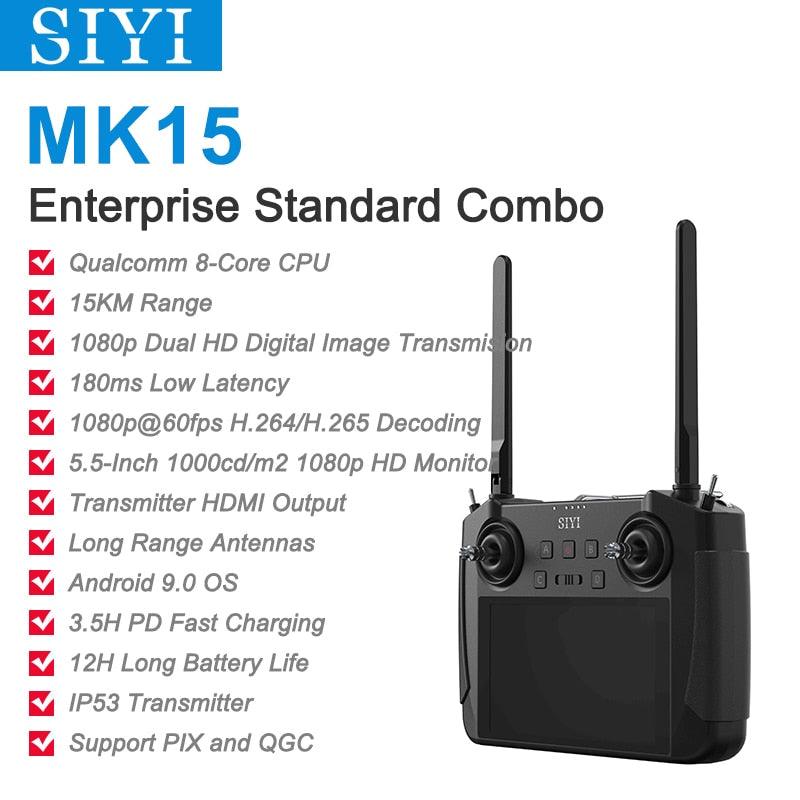

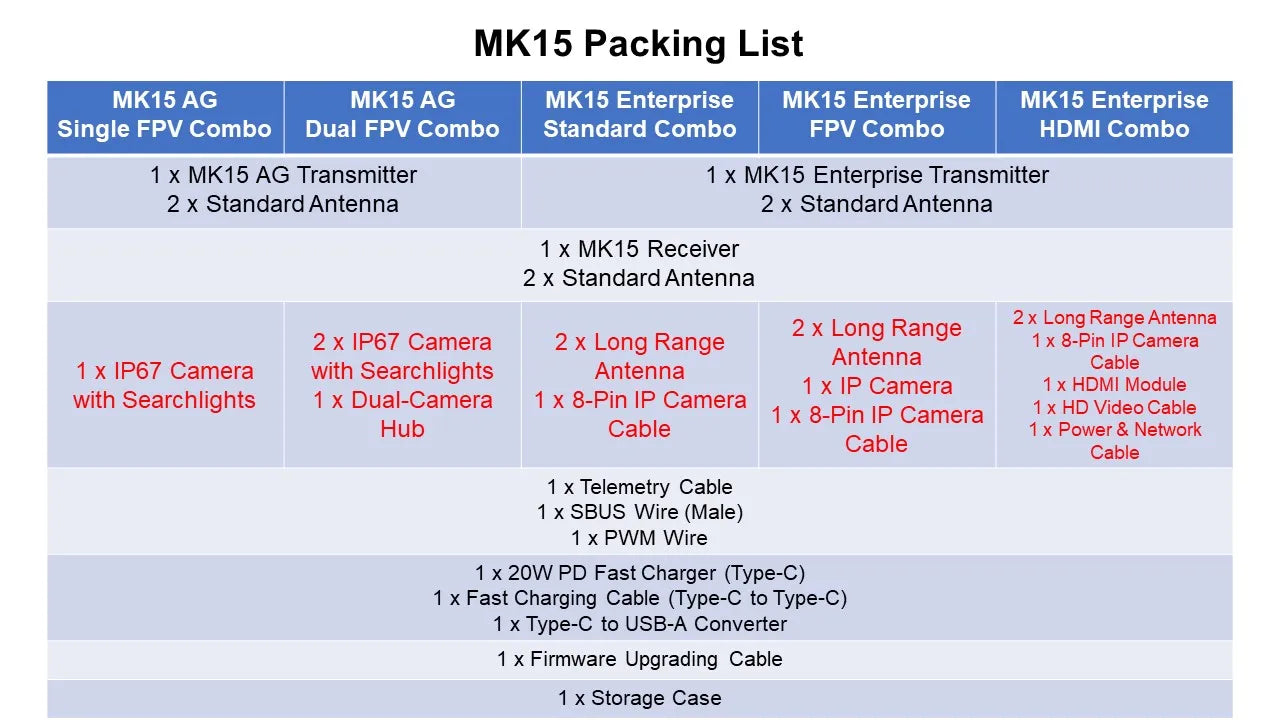

MK1S Packing List MK15 AG MK5 Enterprise MKT5 Enterprise Single FPV Combo Standard Combo HDMI Combo 1 x HDMI Module x IP67 Camera with Searchlights Antenna 2 x 8-Pin IP Camera x HD Video Cable x SBUS Wire (Male) x PWM Wire x 2OW PD Fast Charger (Type-C)

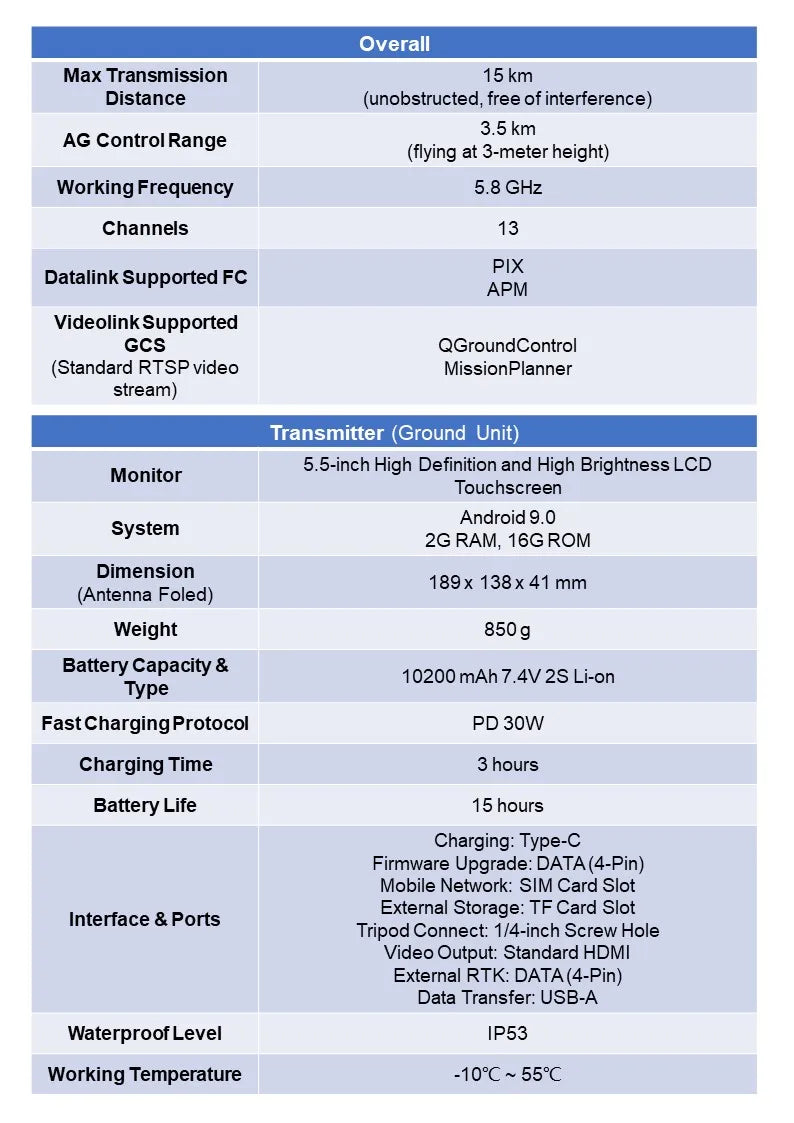

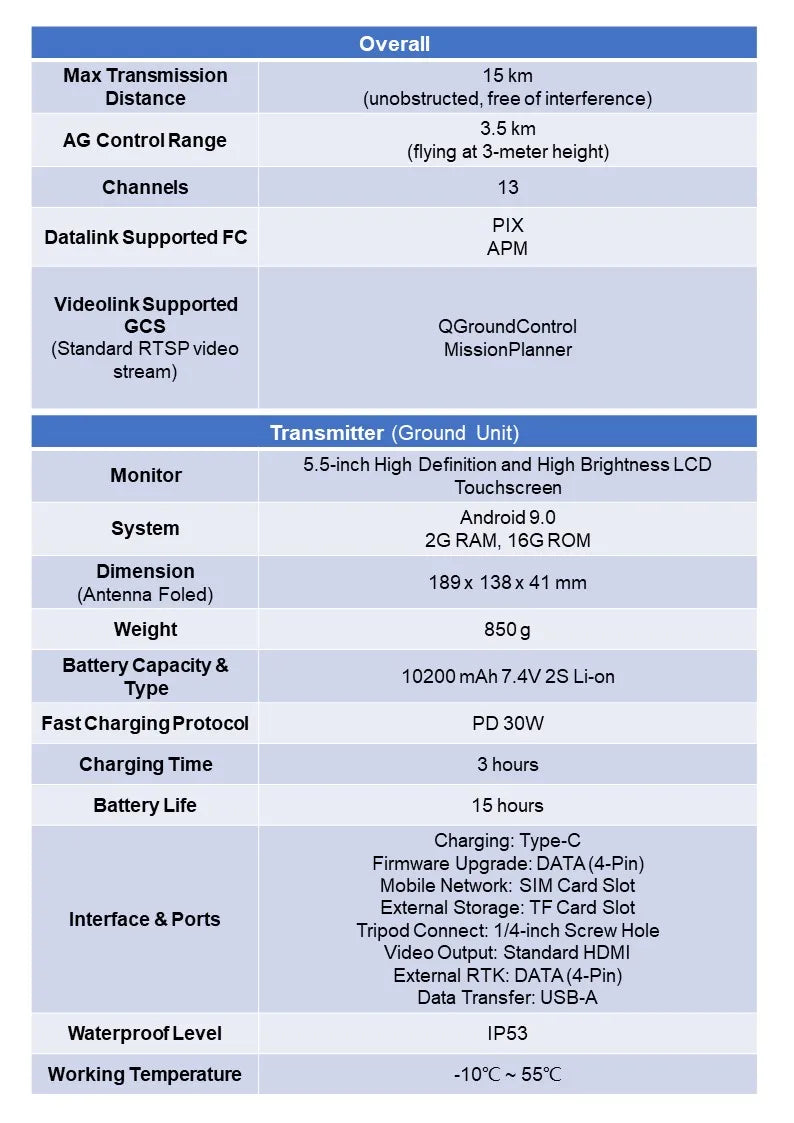

5.5-inch high definition and high brightness LCD monitor Touchscreen Android 9.0 System 2G RAM; 16GROM Dimension 189x 138x 41 mm (Antenna Foled) Weight 850g Battery Capacity & 10200 mAh 7.4V 2S Li-on Type Fast ChargingProtocol PD 30W Charging Time 3 hours Battery Life 15 hours Charging: Type-C Firmware Upgrade: DATA (4-Pin)

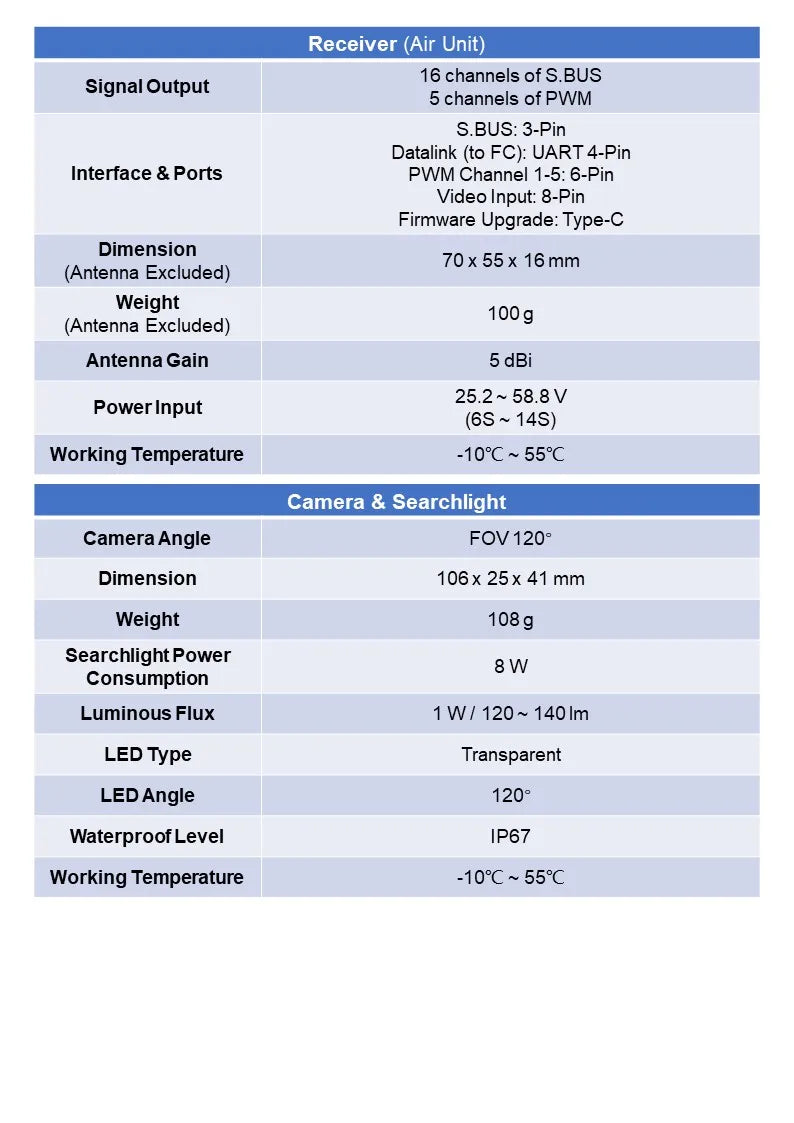

8-Pin Firmware Upgrade: Type-C Dimension 70x 55x 16mm (Antenna Excluded) Working Temperature -10PC 55'C Camera & Searchlight Camera Angle FOV 1209 Dimension 106x 25x 41 mm Weight 108 g Searchlight Power 8 W Consumption Luminous Flux 1W/ 120 140lm LED Type Transparent LEDAngle 1209 Waterproof Level IP67 Working temperature -10 PC 558C 1009 Working
