Skydroid H16 / H16 Pro 2.4GHz 16CH FHSS 20KM 1080P Digital Video Transmission and Data Transmission and Telemetry Transmitter with R16 Receiver and MIPI Camera for RC Drone

Specifications:

Brand Name: Skydroid

Item Name: H16 / H16 Pro Transmitter Set

Number of channels: 16 channels

Frequency: 2.400-2.483GHz

Working voltage: 4.2V

Working Current: 100mA

RF Power: 20DB@CE/23DB@FCC

Modulation: New FHSS

Weight: 1034g

Firmware: APP online

Dimension: 272*183*94mm

Duration: 6-20 hours

Battery Capacitor: 20000mA

Charge Port: Type-C

Application: Helicopter,Fixed wing,Quadcopter,car boat

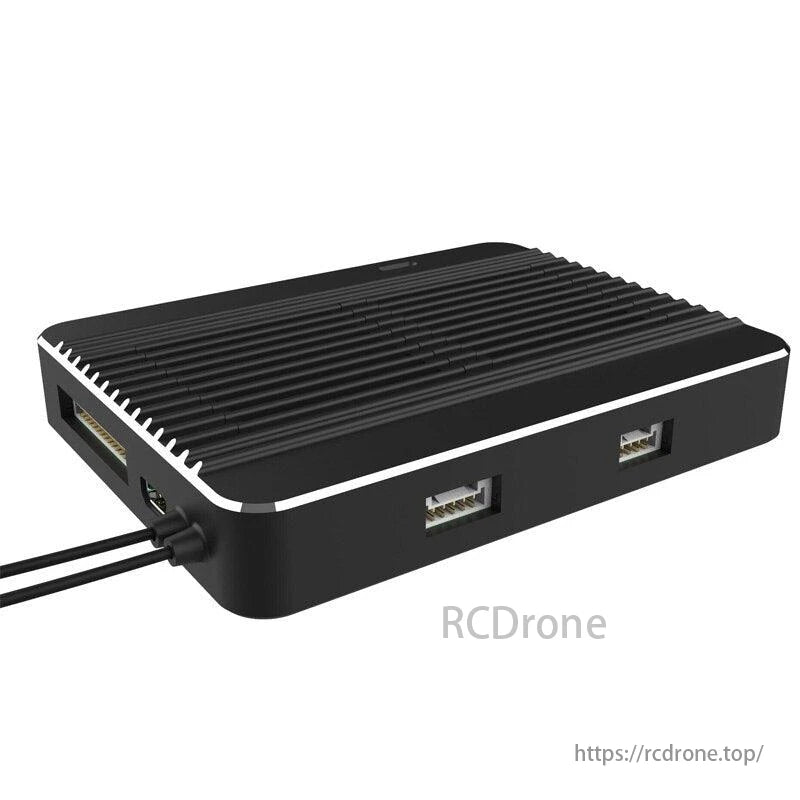

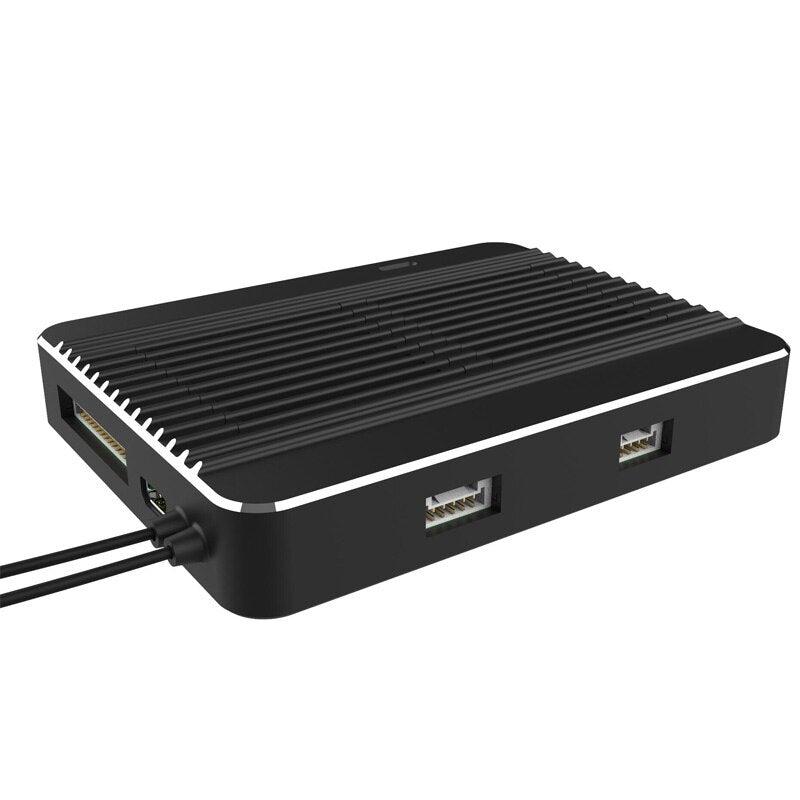

Receiver and Camera:

Designed for use with drones, robots, and industrial control equipment, this transmitter features an IP67 rating, ensuring a high level of water resistance, dust protection, and drop-resistance to provide a great user experience and exceptional durability.

Features 1080p Full HD video transmission, longer endurance, open SDK protocol, and a super-stable data link. It also boasts a high-brightness screen and supports super-long range transmission. Additionally, it has special Android system support for unmanned industry applications.

The Skydroid H16/H16 Pro digital video transmission system supports a wide range of interfaces, including HDMI, RJ45, sensor interface, and dual serial ports with pass-through transmission capabilities. This allows for seamless integration with multiple cameras, gimbals, airframes, and other video equipment. Additionally, the system provides developers with a comprehensive kit, Software Development Kit (SDK), and technical support to ensure a smooth development process. Furthermore, it supports popular flight controllers' ground stations and offers compatibility with QGroundControl (QGC) as well as wireless RTSP video streaming and sharing capabilities.

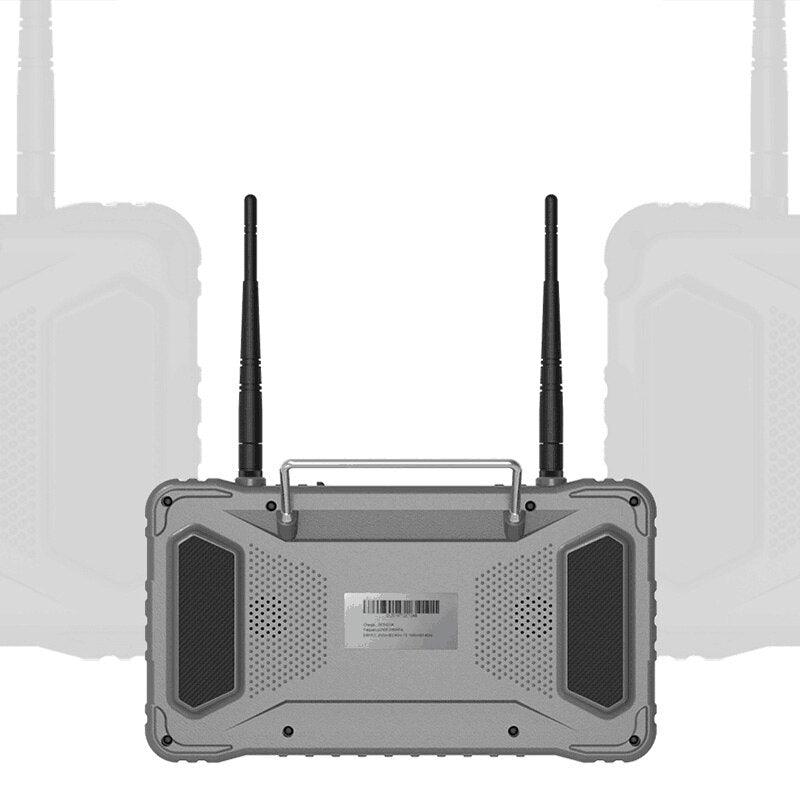

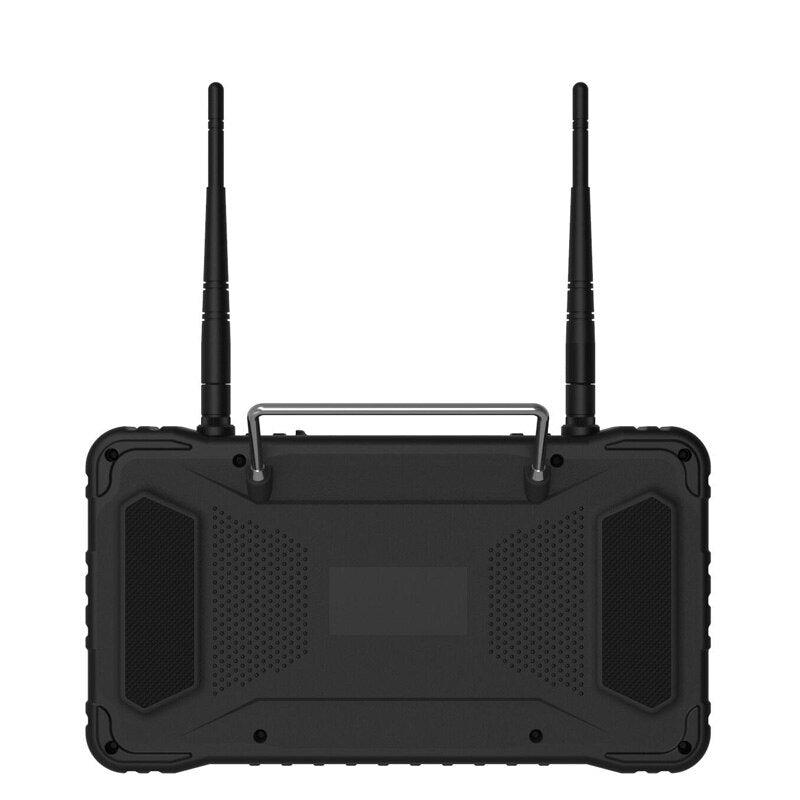

Enjoy extended transmission range with our dual-antenna design, which combines strong signals for reliable communication over long distances. With this feature, you can focus on capturing stunning vistas without worrying about signal loss or interference.

The H16's rugged design features a dust-free and waterproof fuselage, ensuring that its control switches and various peripheral interfaces remain stable and operational even when exposed to harsh environmental conditions such as splashing water.

The SkyDroid Ground Station has undergone significant optimizations based on QGroundControl (QGC). The aircraft features intelligent waypoint planning, automated execution, and autonomous follow-up capabilities.

The use of weather-resistant materials such as silica gel, frosted rubber, stainless steel, and aviation aluminum alloy gives the H16 an extreme operating feel. Additionally, the fuselage, control switches, and various peripheral interfaces are designed to be dust-free and waterproof.

Features a 7-inch high-brightness IPS display with a large screen ratio, providing a crystal-clear and highly legible real-time display of information.

The transmitter features a robust ground-end interface that supports Coach PPM input/output, as well as RJ45 network interfaces for long-distance connections to internal networks. Additionally, it includes a Type-C Android high-speed USB interface and OTG (On-The-Go) capabilities, allowing for connection to U-disks and network cards. The device also features an expandable TF card slot with PPM WAN support, 9V/3A output, and OTG functionality.

The gimbal joystick provides a convenient, two-dimensional control interface that makes flying as smooth and intuitive as swimming through water.

The Skydroid H16 Pro transmitter is equipped with an integrated high-performance lithium-ion battery that offers a high energy density. With this efficient power source, you can expect up to 10-15 hours of continuous use after a mere 2-hour charge.

This Skydroid H16/Pro transmitter supports transmission over distances of up to 20-30 kilometers and features HDMI, RJ45, and MIPI inputs. It has a type-C TF card slot and 8 SET buttons for internet connectivity.

Product Specifications: Skydroid H16/H16 Pro Telemetry Transmitter. Features include 16 channels, operating voltage of 4.2V, RF power output of 20dBm (CE) or 23dBm (FCC), frequency range of 2.400-2.484GHz using Frequency-Hopping Spread Spectrum (FHSS) technology with APP-based online updates. The transmitter weighs 1034g and measures 272mm x 183mm x 94mm in size. Endurance time is approximately 6-20 hours, depending on usage. Charging port is TYPE-C. Suitable for applications such as helicopters, fixed-wing aircraft, multi-copters, and unmanned vehicles.
