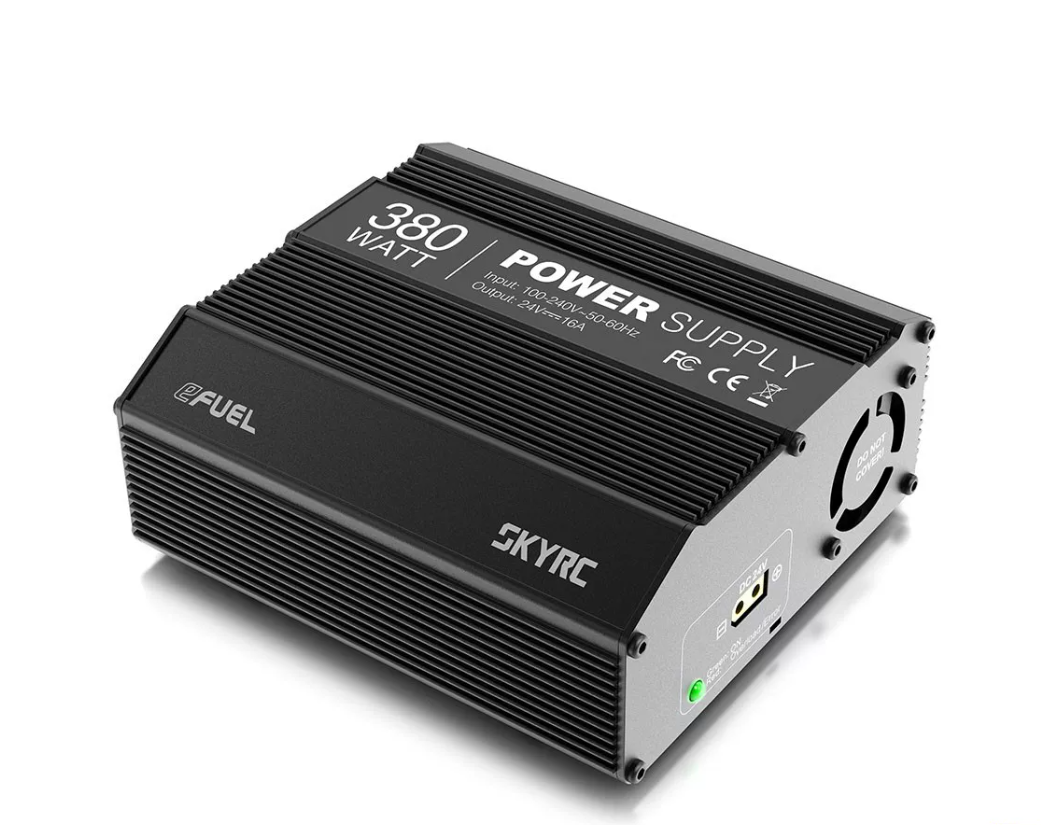

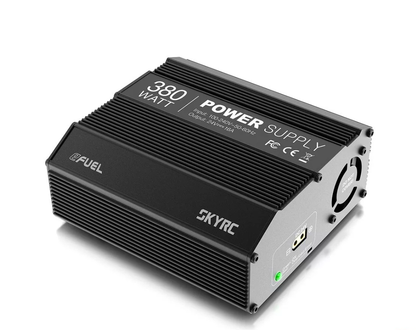

• SkyRC 380W 24V DC Power Supply, SkyRC 380W power supply unit with finned black aluminum case, labeled 24V 16A DC output

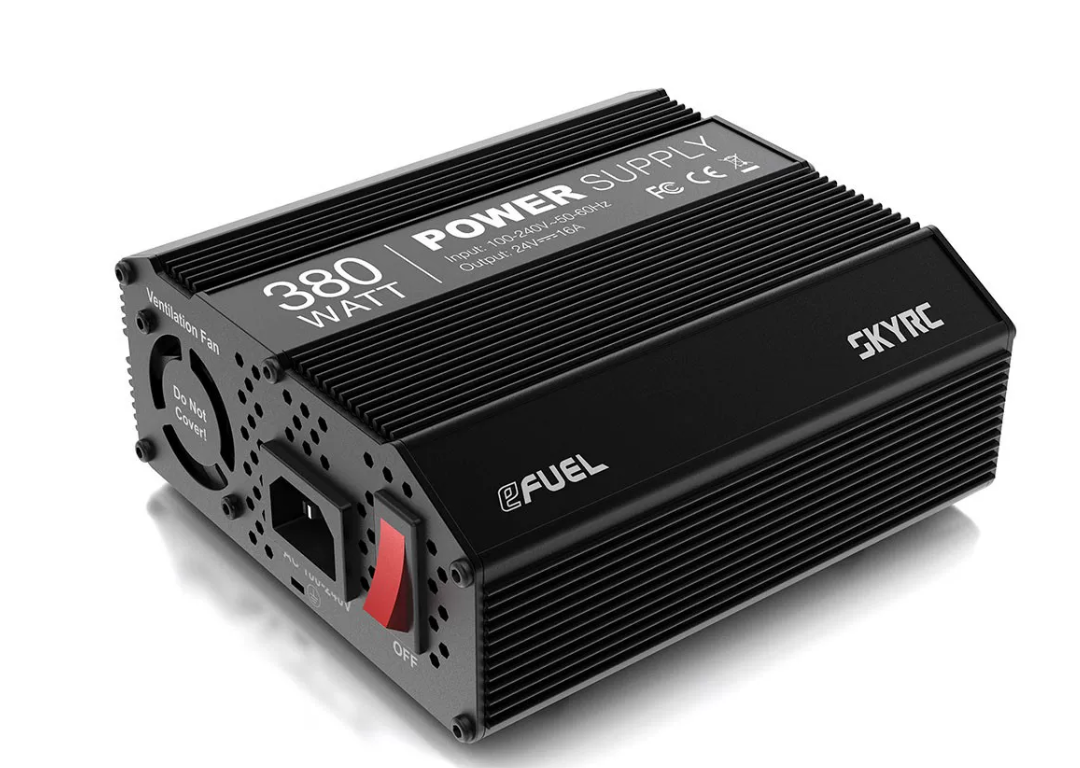

  • SkyRC 380W 24V DC Power Supply, SkyRC 380W DC power supply in finned black aluminum case with cooling fan, AC inlet, and DC output terminals

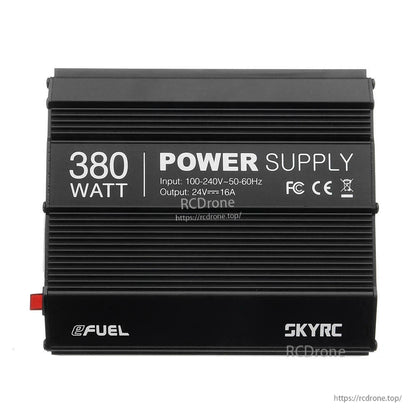

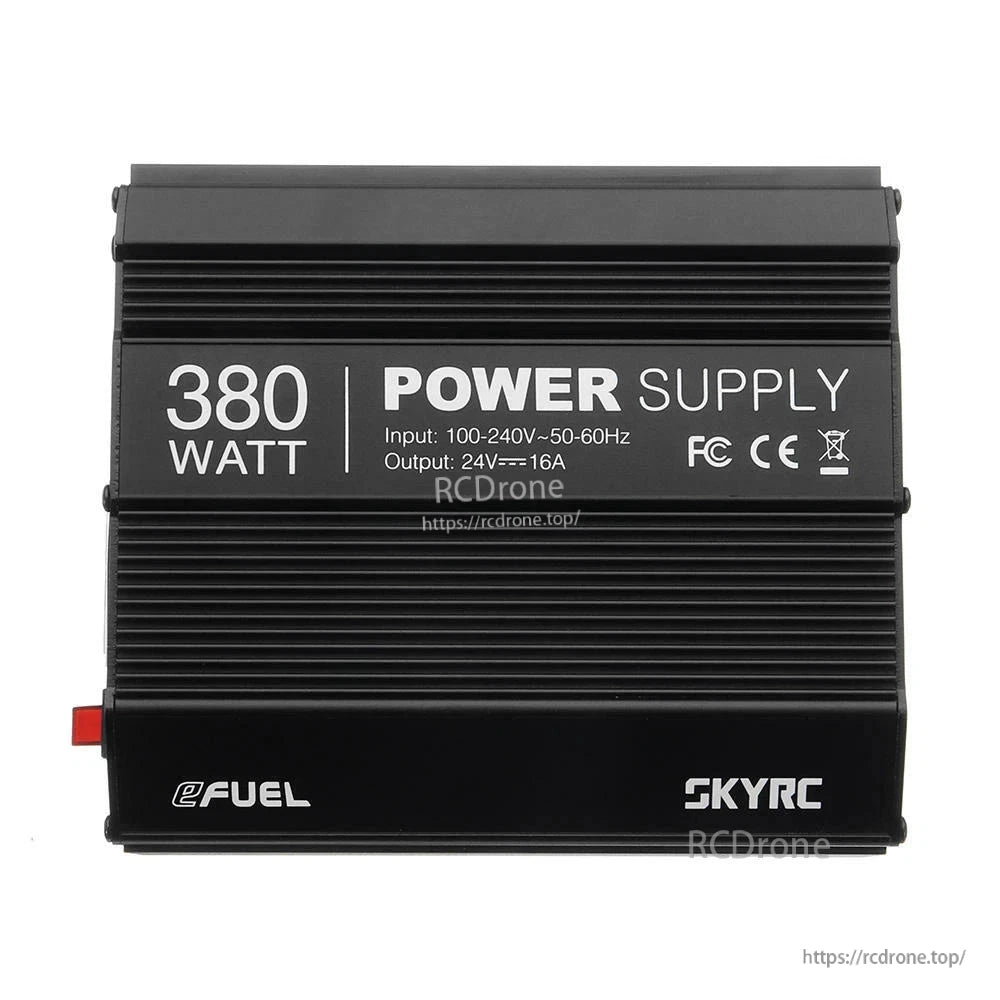

  • SkyRC 380W 24V DC power supply unit with ribbed black aluminum case and 380W label

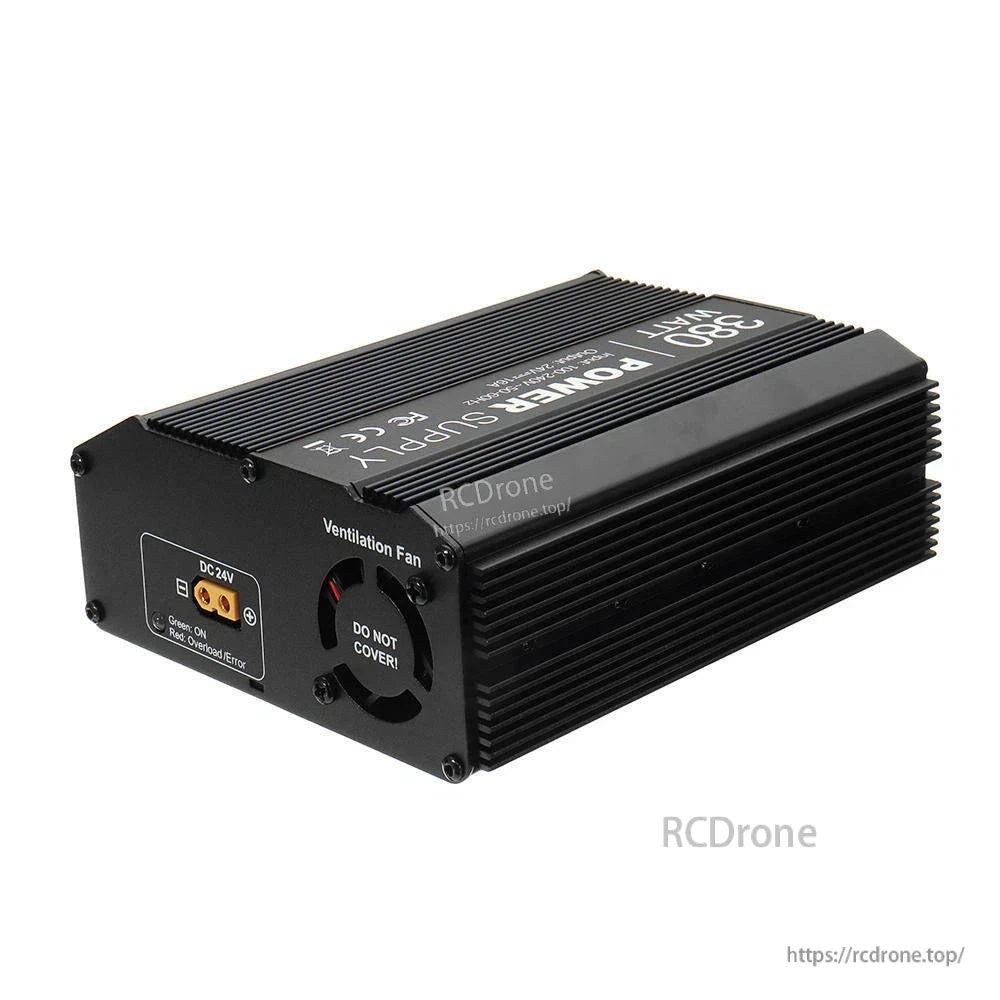

  • SkyRC 380W 24V DC power supply in black finned metal case with ventilation fan and DC 24V input label
1 4

SkyRC 380W 24V DC Power Supply 16A, 100-240V AC 50-60Hz Input, Active PFC, Fan Cooled

SkyRC 380W 24V DC Power Supply 16A, 100-240V AC 50-60Hz Input, Active PFC, Fan Cooled

SkyRC

$129.00 USD
$129.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

SkyRC Power Supply 380W is a regulated power supply that converts household AC power to 24V DC output, supplying up to 16A continuous current for compatible equipment such as compact/pocket RC battery chargers.

Key Features

  • 380W output power with 24V DC output (up to 16A continuous)
  • Active PFC (power factor >0.98 stated)
  • Overload/Error indication: Green = ON, Red = Overload/Error (may shut down output to protect circuitry)
  • Cooling fan; “DO NOT COVER!” fan warning label
  • Protections shown: short-circuit protection on output, over current protection, over temperature protection, over load protection, over voltage protection
  • Intelligent air cooling system: fan initiates automatically when operating temperature reaches 50 degree
  • Compliance markings shown: CE, FCC, RoHS

Specifications

Rated Power 380W
Input Voltage 100-240V AC
Input AC Frequency 50-60Hz
Output Voltage 24V DC ±0.5V
Output Current 16A
Output Voltage Ripple <300mV
Power Efficiency 88%
Power Factor >0.98
Current Overload Protection 17A ±1A
Over Temperature Protection <80°C
Cooling Method Cooling Fan
Operating Temperature 0-40°C
Operating Humidity 0-90%
Case Size 165 x 139 x 59.5mm
Weight 1.62kg

For product selection and compatibility questions, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

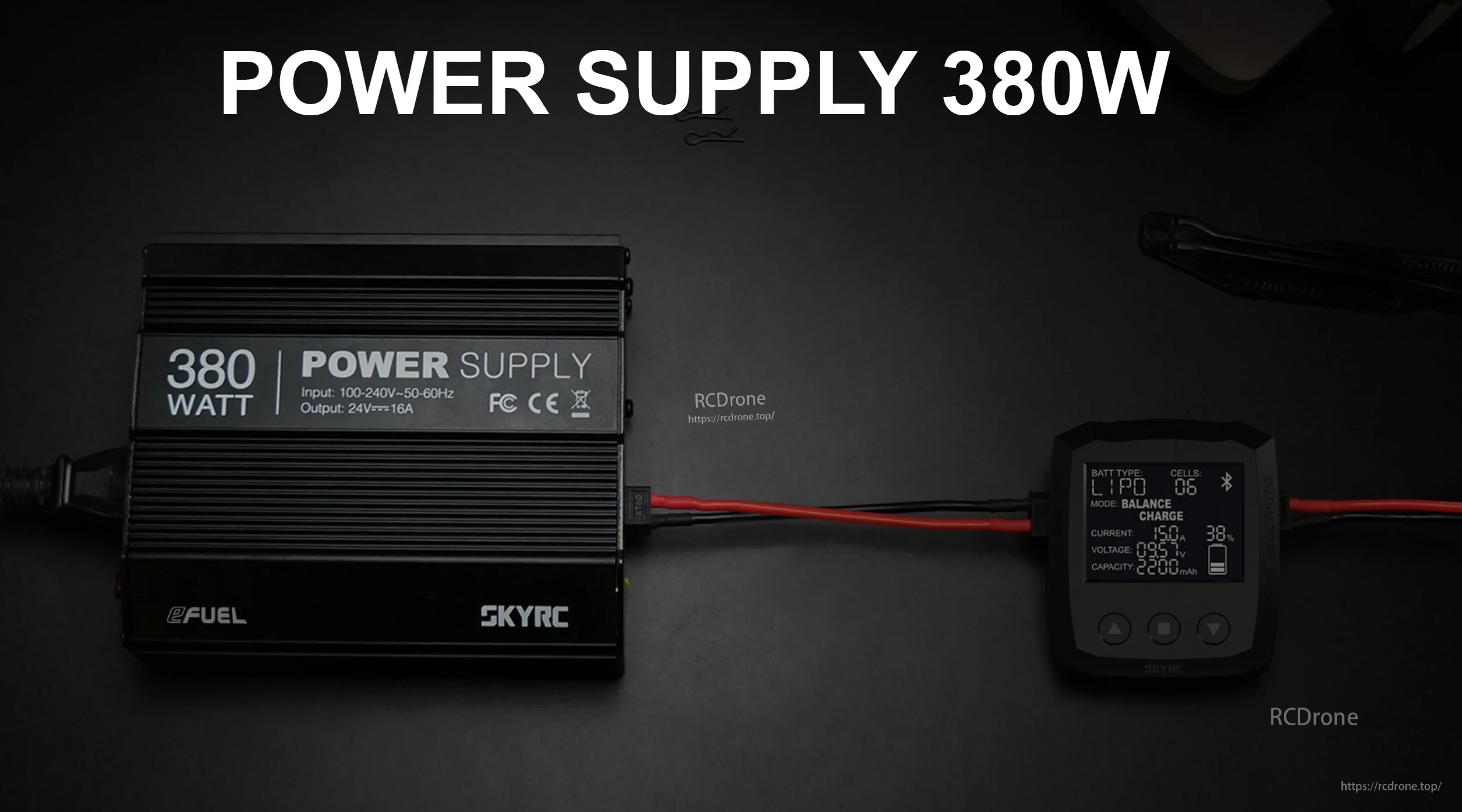

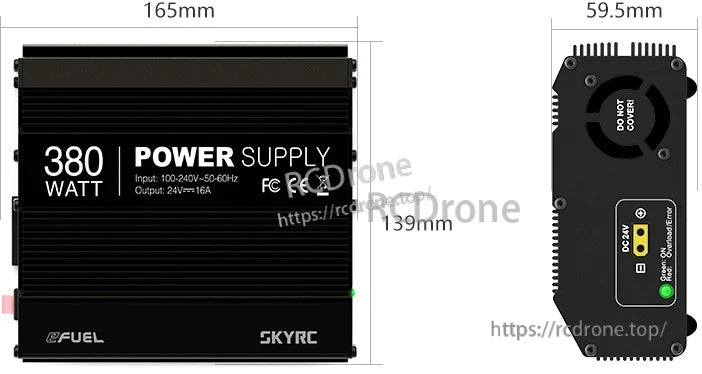

SkyRC 380W 24V DC Power Supply dimensions (165×139×59.5mm) with DC 24V output port and fan end viewSkyRC 380W 24V DC Power Supply connected to an RC charger, delivering regulated 24V output up to 16A

Convert 100–240V AC household power into stable 24V DC for compatible RC battery chargers.

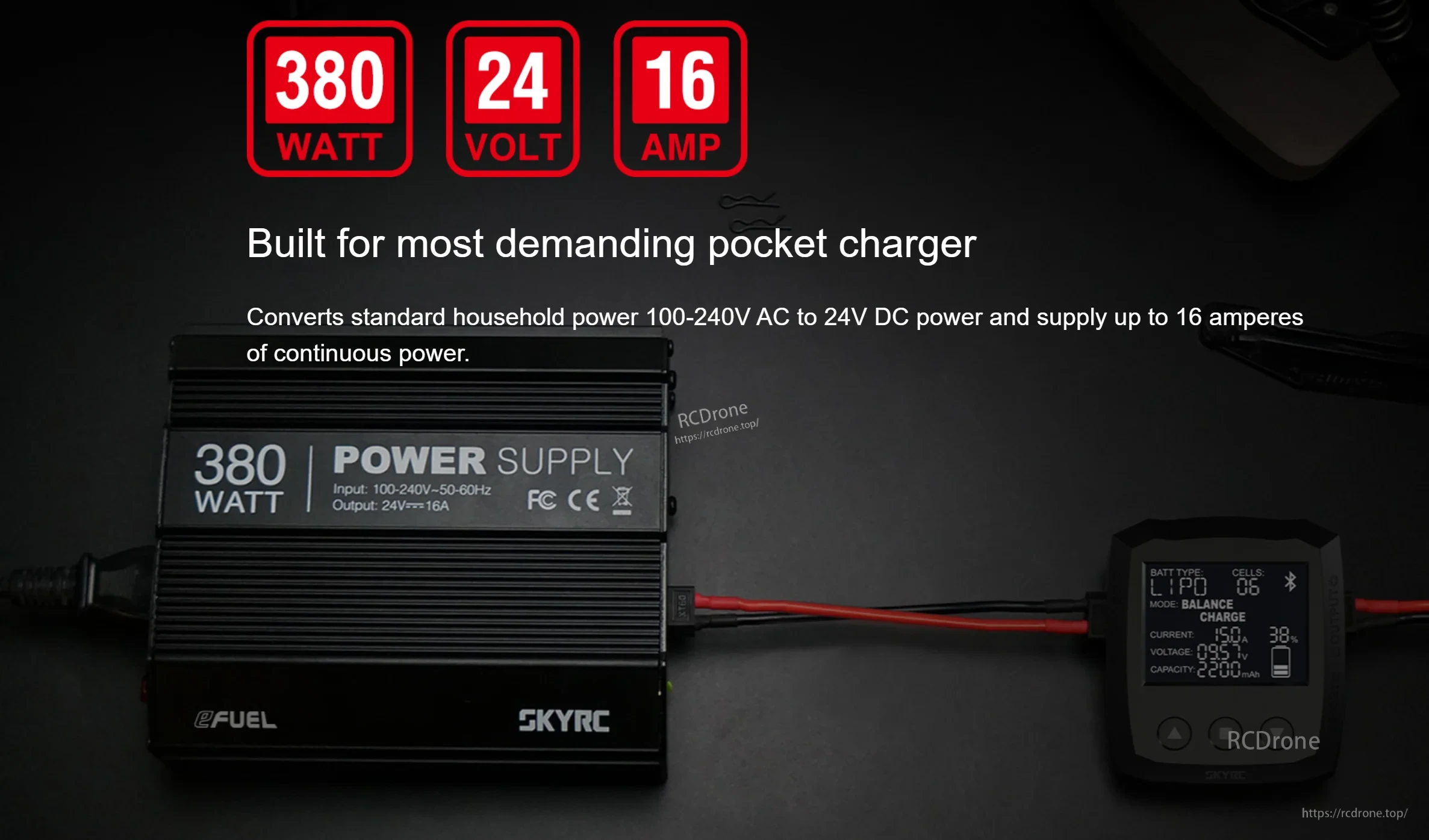

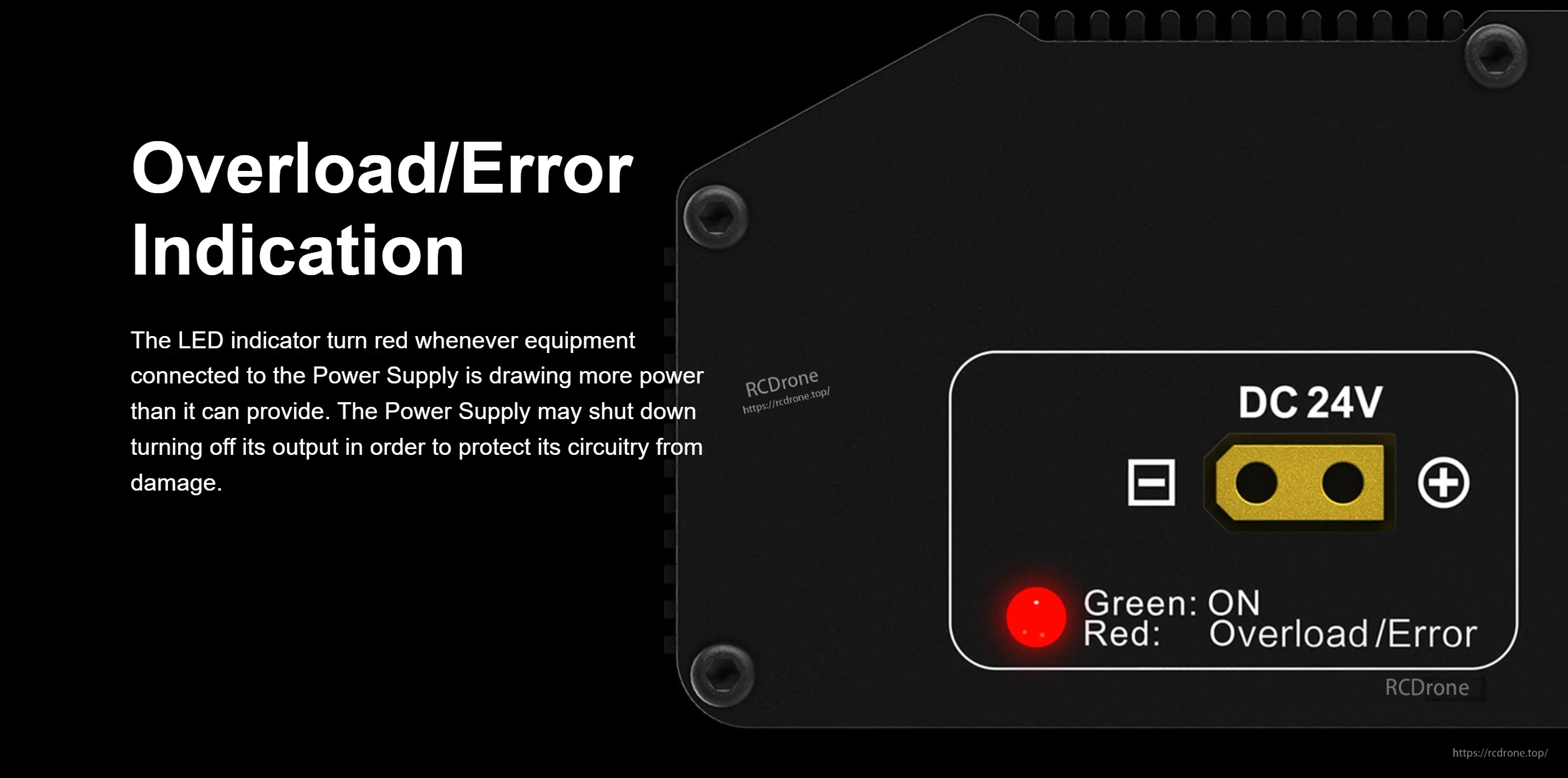

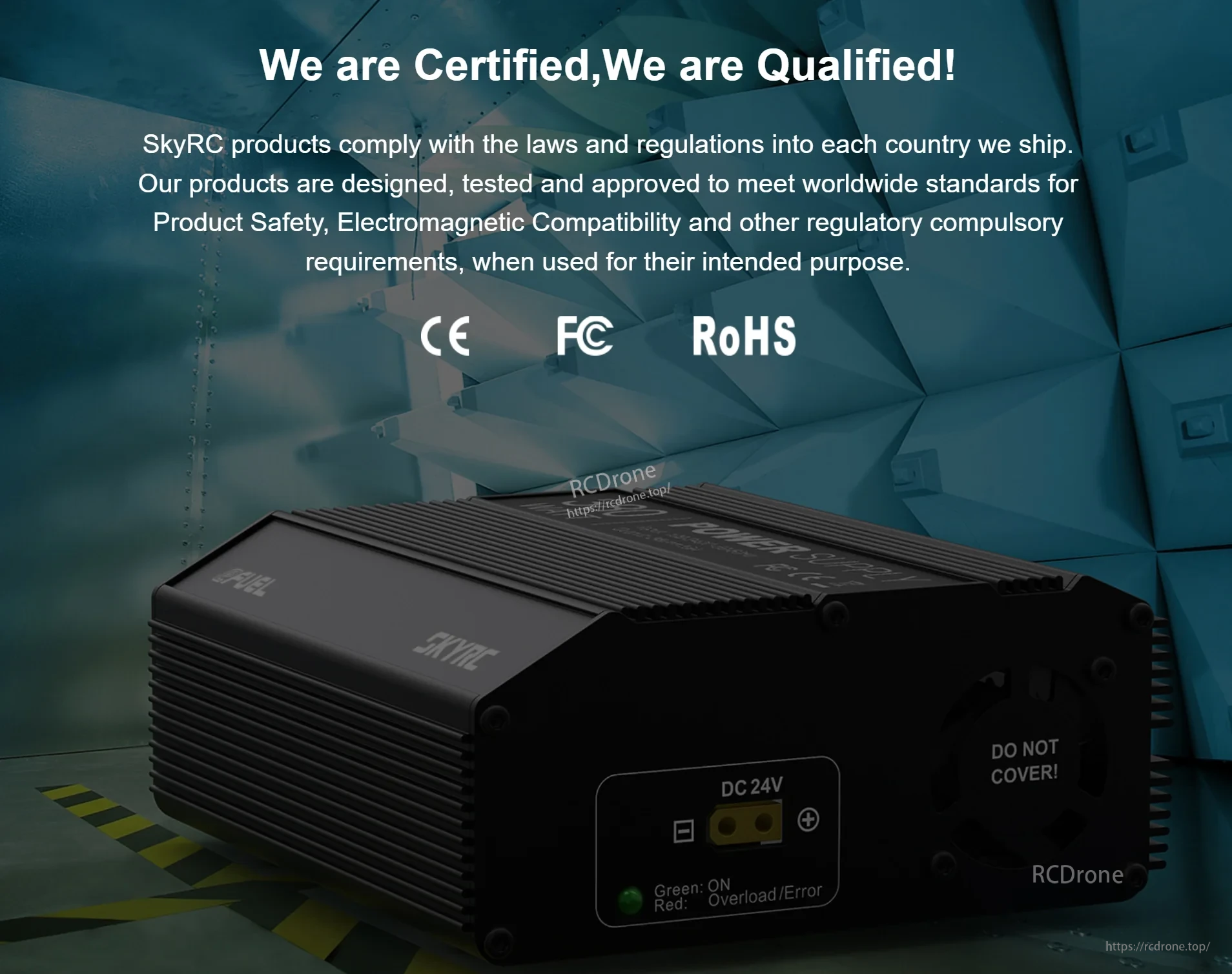

SkyRC power supply with CE, FCC and RoHS compliance markings and safety messaging on certification background380W power supply feature graphic highlighting 24V output and up to 16A continuous current for pocket chargersDC 24V output panel close-up with green ON and red Overload/Error LED indicator description

Status LEDs provide quick confirmation of power and overload/error conditions during use.

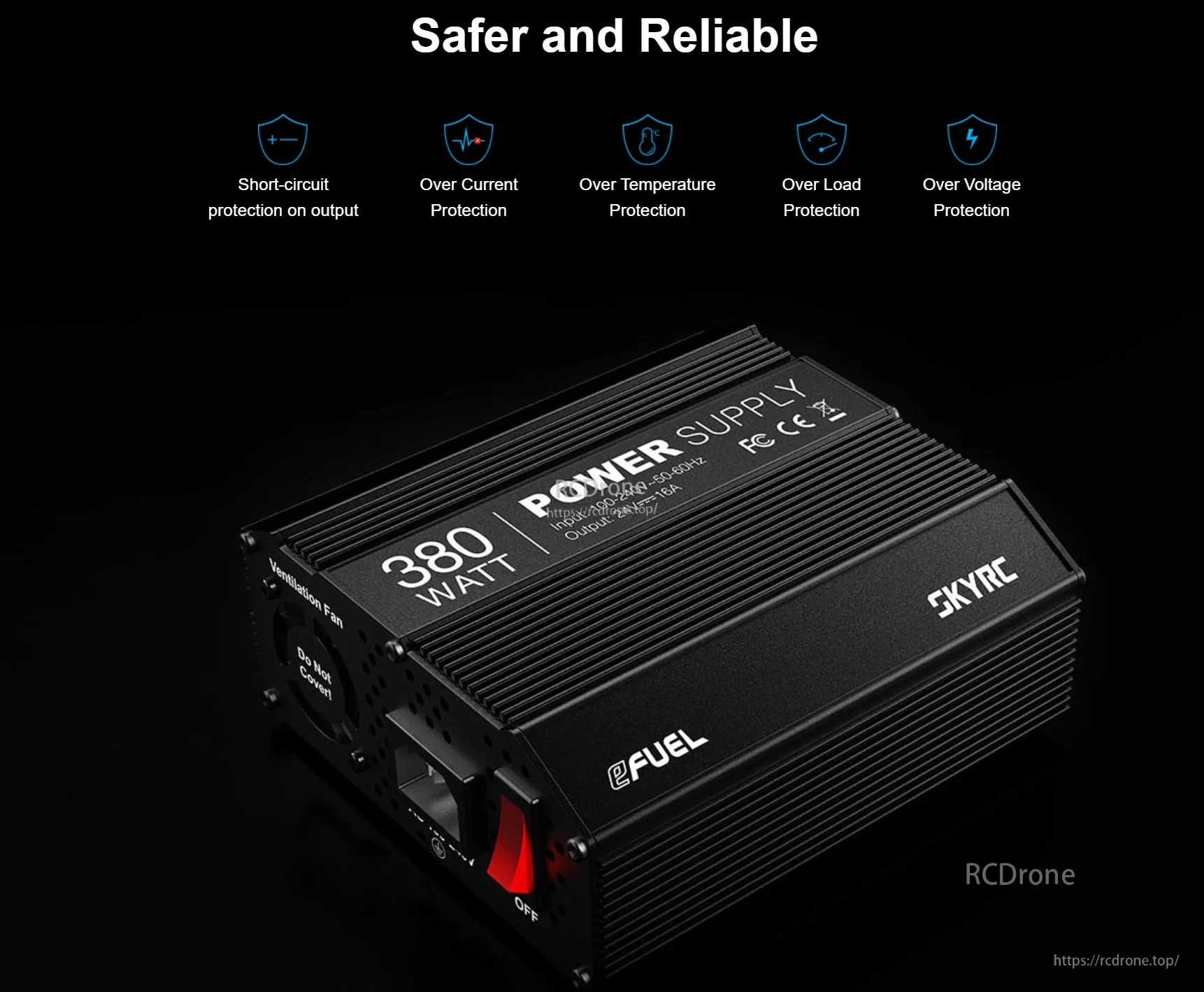

Angled view of SkyRC 380W power supply with icons for short-circuit, over-current, over-temp and over-voltage protection

Built-in protection features help safeguard the power supply and connected equipment.

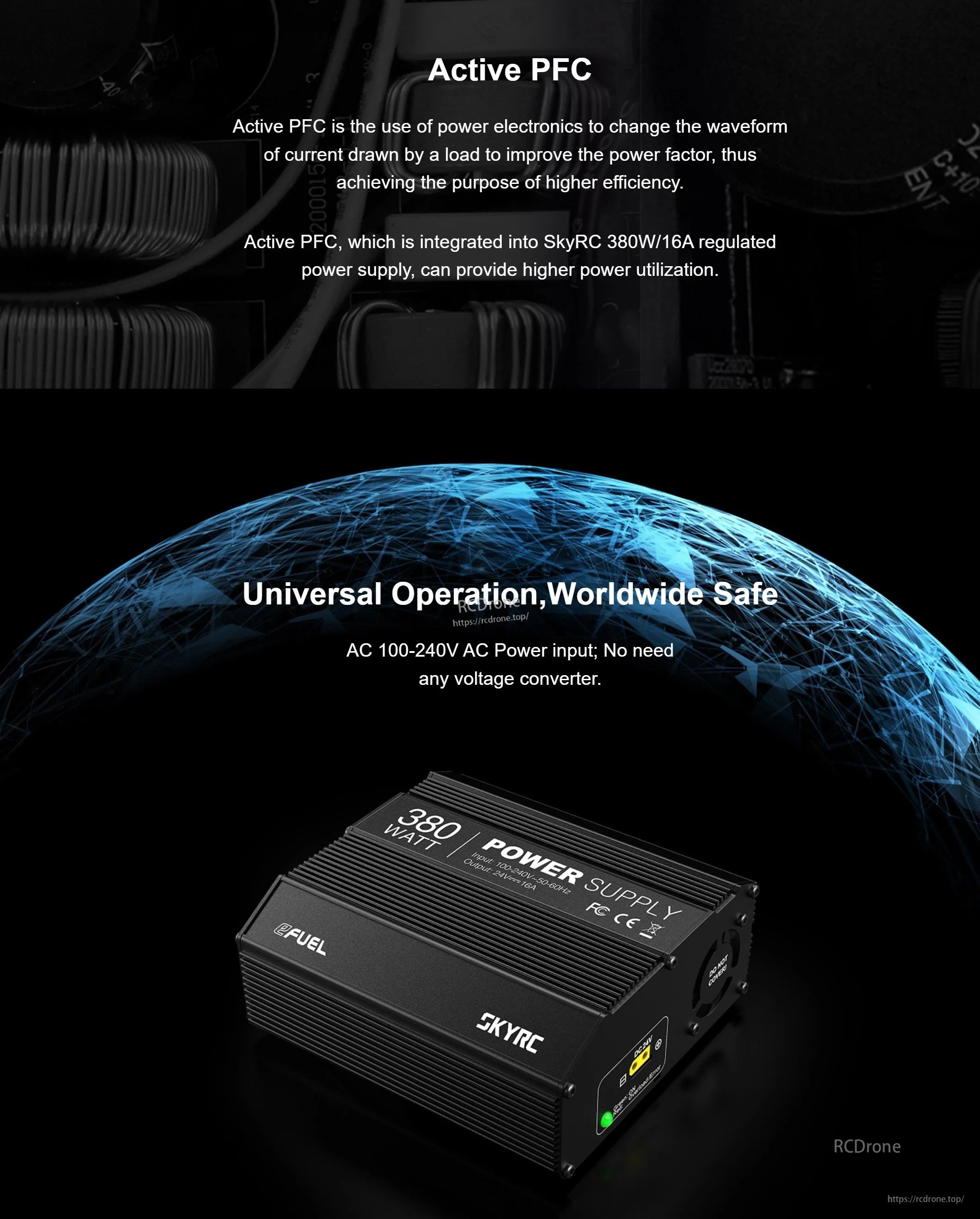

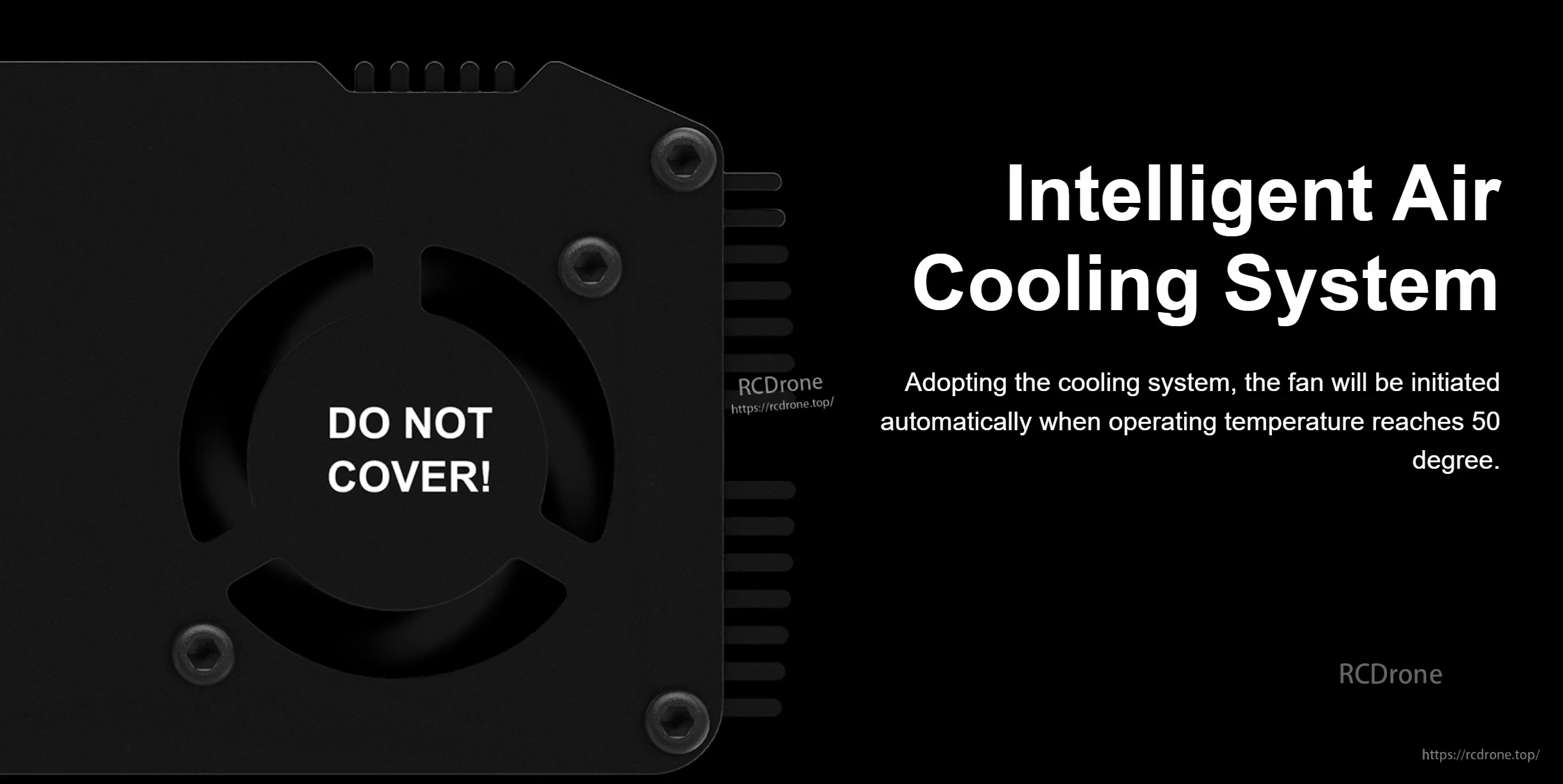

Active PFC and universal AC 100–240V input graphic with SkyRC 380W power supply on globe-themed backgroundCooling fan end panel with “DO NOT COVER!” warning and intelligent air cooling system text (fan starts at 50°C)

An intelligent fan engages automatically at higher temperatures—keep the fan intake clear for proper cooling.

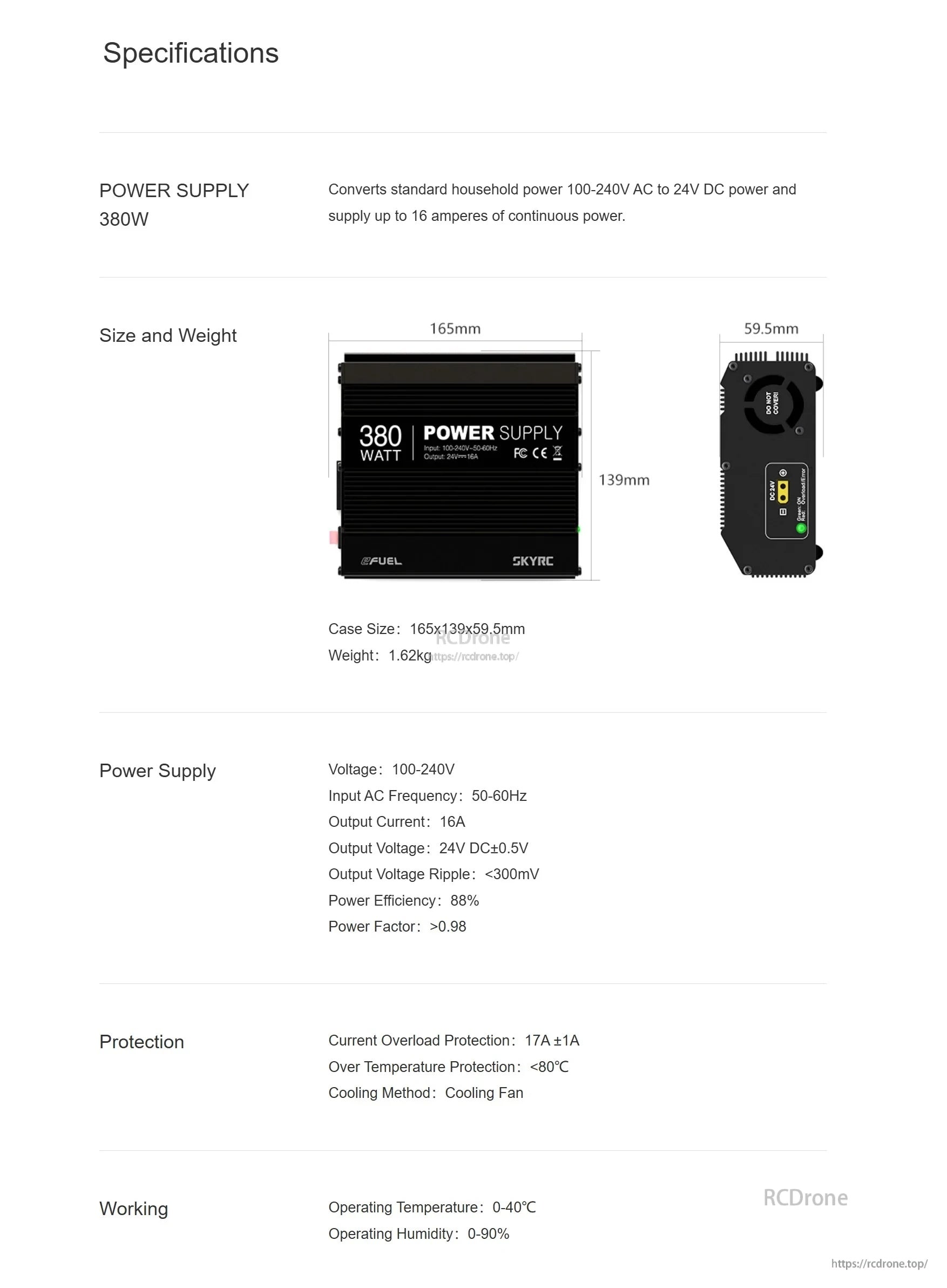

Quality testing graphic listing drop, tilt, vibration, aging, high-temperature and low-temperature testsSpecifications sheet for SkyRC 380W power supply with size/weight and electrical specs including 24V 16A output

Detailed specifications and measurements help confirm fit and compatibility for your charging setup.
