Overview
The SkyRC MC3000 is a universal battery charger & analyzer designed for cylindrical rechargeable batteries, with multi-chemistry support, per-slot control, and analysis functions such as battery IR (internal resistance) measurement. It supports Bluetooth(BLE) app control and PC control via MC3000 Monitor for viewing real-time data and graphs.
Key Features

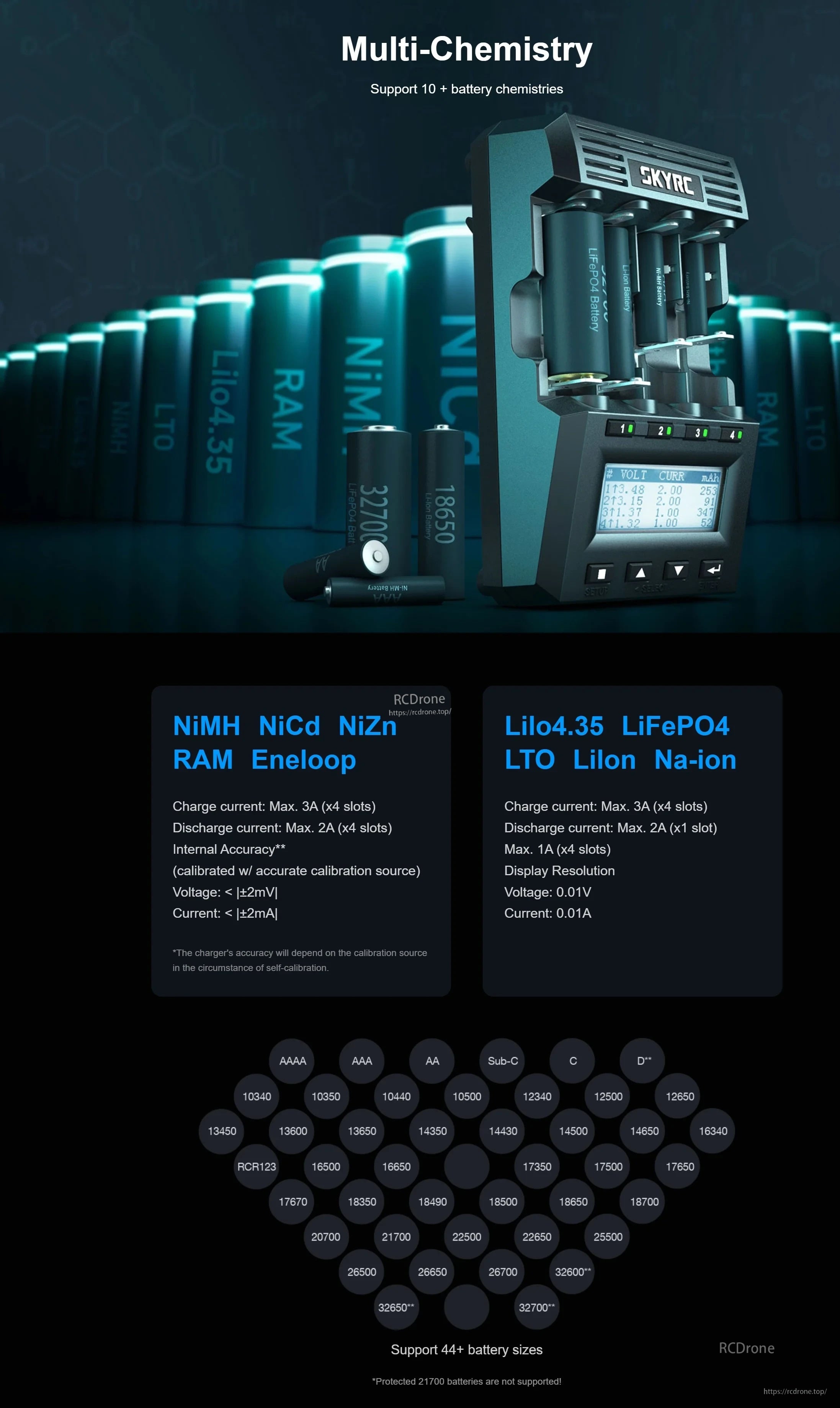

- Multi-chemistry support (10+): NiMH, NiCd, NiZn, Eneloop, Lithium-Ion, LiIo4.35, LiFePO4, RAM, LTO, Na-ion
- Charge current: Max. 3A (x4 slots); adjustable charge current range 0.05-3.00A
- Discharge current range 0.05-2.00A; discharge current: Max. 2A (x4 slots) for NiMH/NiCd/NiZn/RAM/Eneloop; for Li-chemistry batteries: Max. 2A (x1 slot) / Max. 1A (x4 slots)
- Battery IR measurement for recognizing battery health (measures internal resistance for each slot)
- 128x64 pixel display with 5 different views during operation (includes Total Overview (TOV))
- Rich user interface with 8 buttons, including 4 Slot Number Buttons (SNB)
- Easy programmability: Simple and Advanced UI modes; 30 user-defined operation profiles
- Operation modes: total 6 (includes “Break in” for NiMH/NiCd/Eneloop only; “Storage” for Li-chemistry only)
- Smart Control with App: Bluetooth(BLE) mobile app control
- PC Control: start charging control via MC3000 Monitor

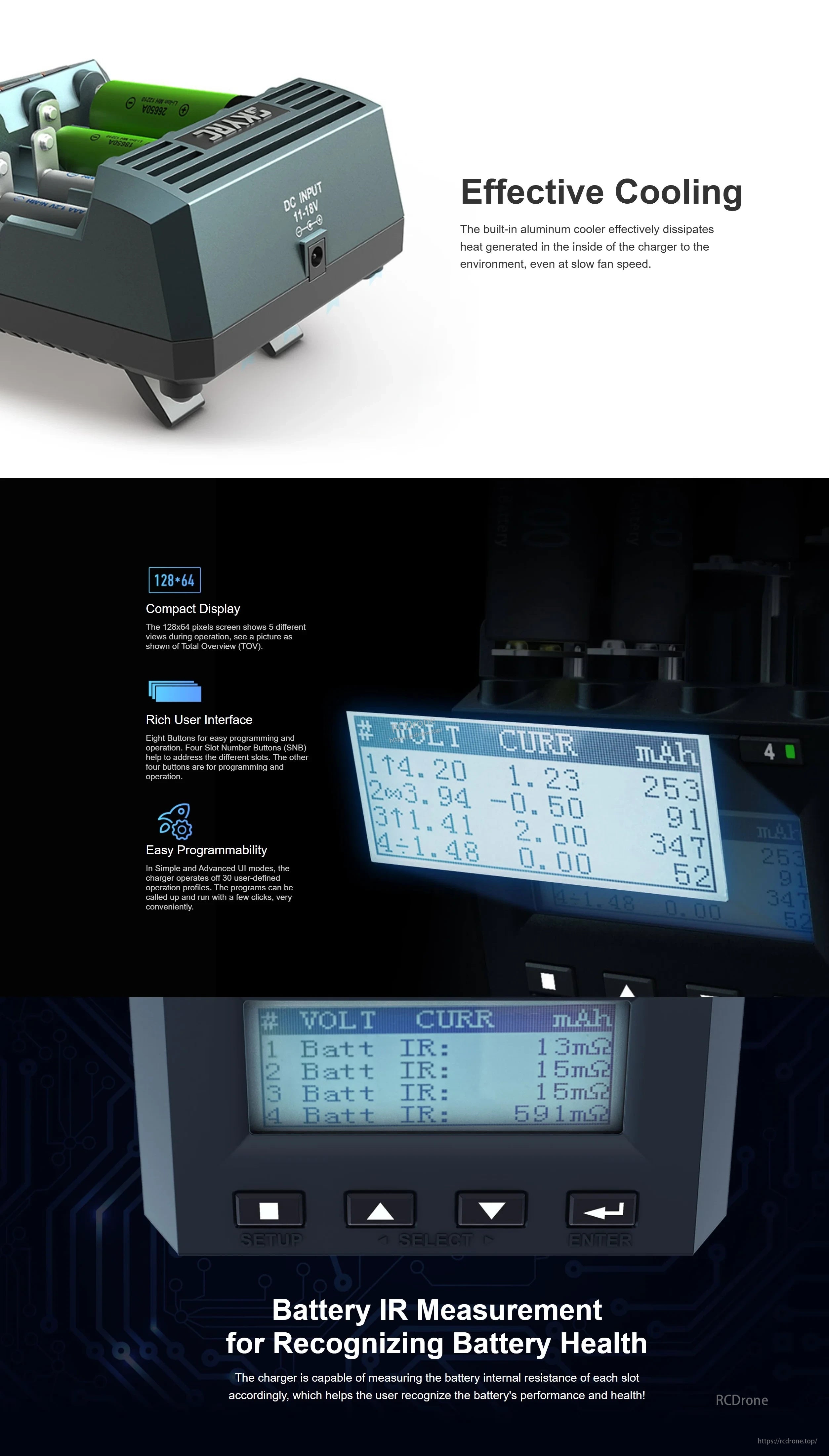

- Mechanical and thermal design: heavy duty spring slider; built-in aluminum cooler; secure stand with 10° tilt
- Material note: UL94 V0 rated flame-retardant PC+ABS
- Supports 44+ battery sizes; protected 21700 batteries are not supported
For compatibility questions (battery types/sizes, app/PC control) or after-sales support, contact support@rcdrone.top or https://rcdrone.top/.
Specifications
| Input Power | DC 11-18V/4A |
| Charge Current Range | 0.05-3.00A |
| Discharge Current Range | 0.05-2.00A |
| Max. Charge Power | 50W |
| Max. Discharge Power | 15W |
| Battery Chemistry Type | NiMH, NiCd, NiZn, Eneloop, Lithium-Ion, LiIo4.35, LiFePO4, RAM, LTO, Na-ion |
| Battery Capacity | 100-50000mAh |
| Operating Temperature | 0-40°C |
| USB Power Output | DC 5V/2.1A |
| Dimensions (L x W x H) | 200 x 124 x 69mm |
| Weight (Without DC Adaptor) | 600g |
| Display | 128 x 64 pixels |
| DC Input (device label) | DC INPUT 11-18V |
| Accuracy (with accurate calibration source) | Voltage: <= |±2mV|; Current: <= |±2mA| |
| Display Resolution | Voltage: 0.01V; Current: 0.01A |
| Battery Size Support | AAAA, AAA, AA, Sub-C, C, D; 10340, 10350, 10440, 10500, 12340, 12500, 12650, 13450, 13600, 13650, 14350, 14430, 14500, 14650, 16340, RCR123, 16500, 16650, 17350, 17500, 17650, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22500, 22650, 25500, 26500, 26650, 26700, 32600*, 32650*, 32700* (Protected 21700 batteries are not supported) |

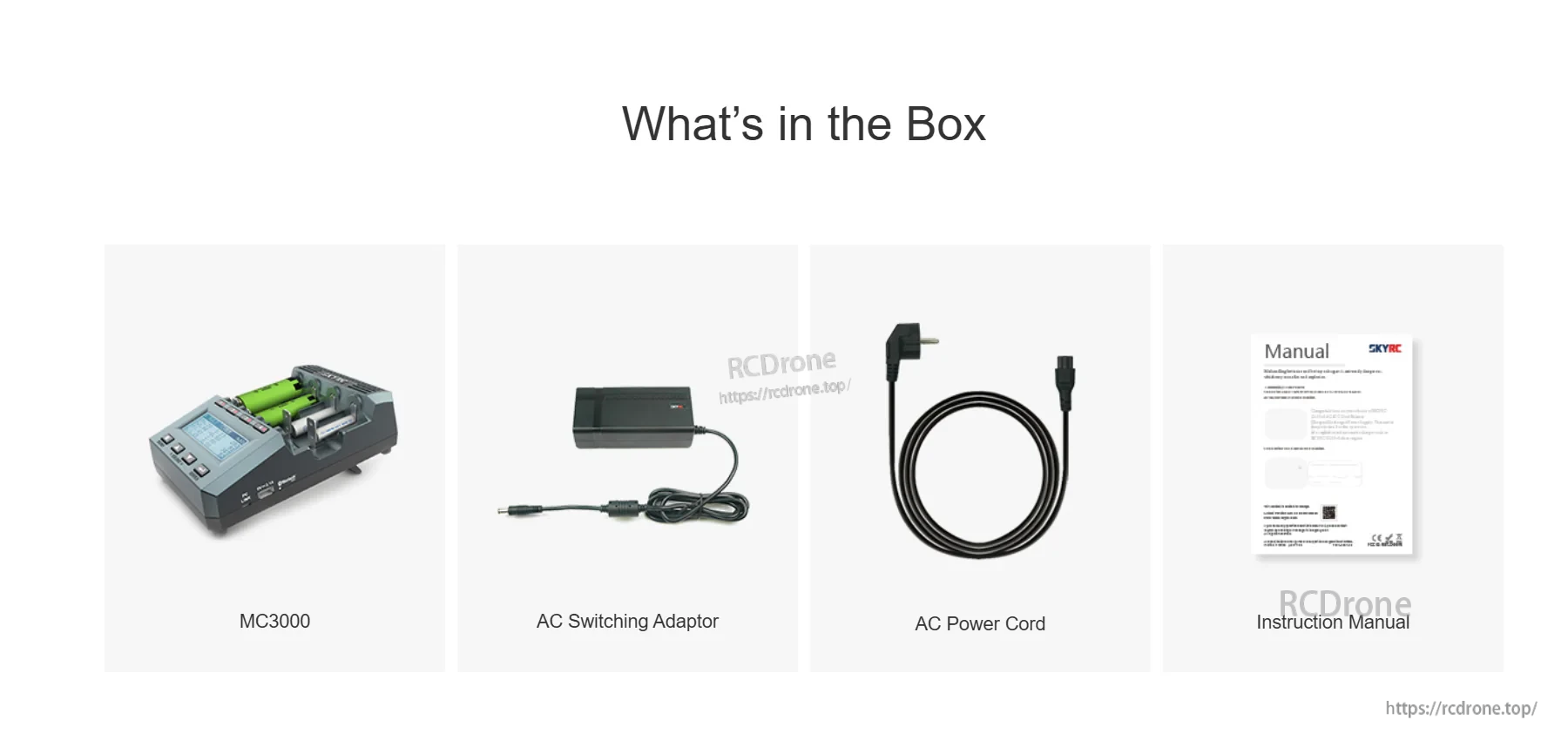

What’s Included
- MC3000
- AC Switching Adaptor
- AC Power Cord
- Instruction Manual
Details

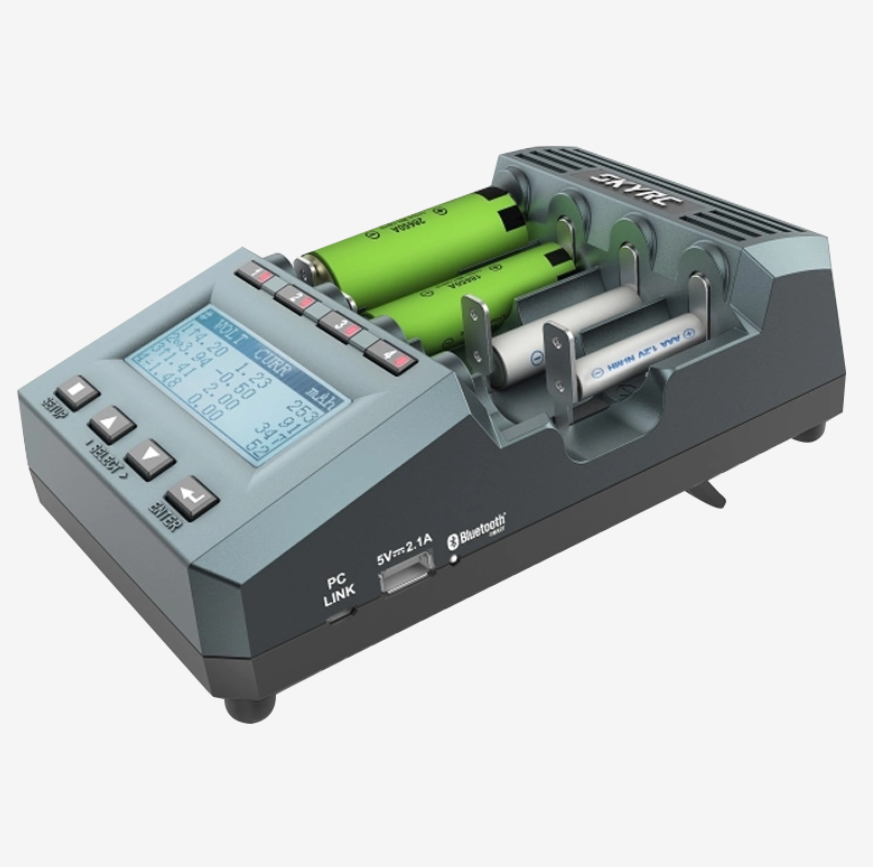

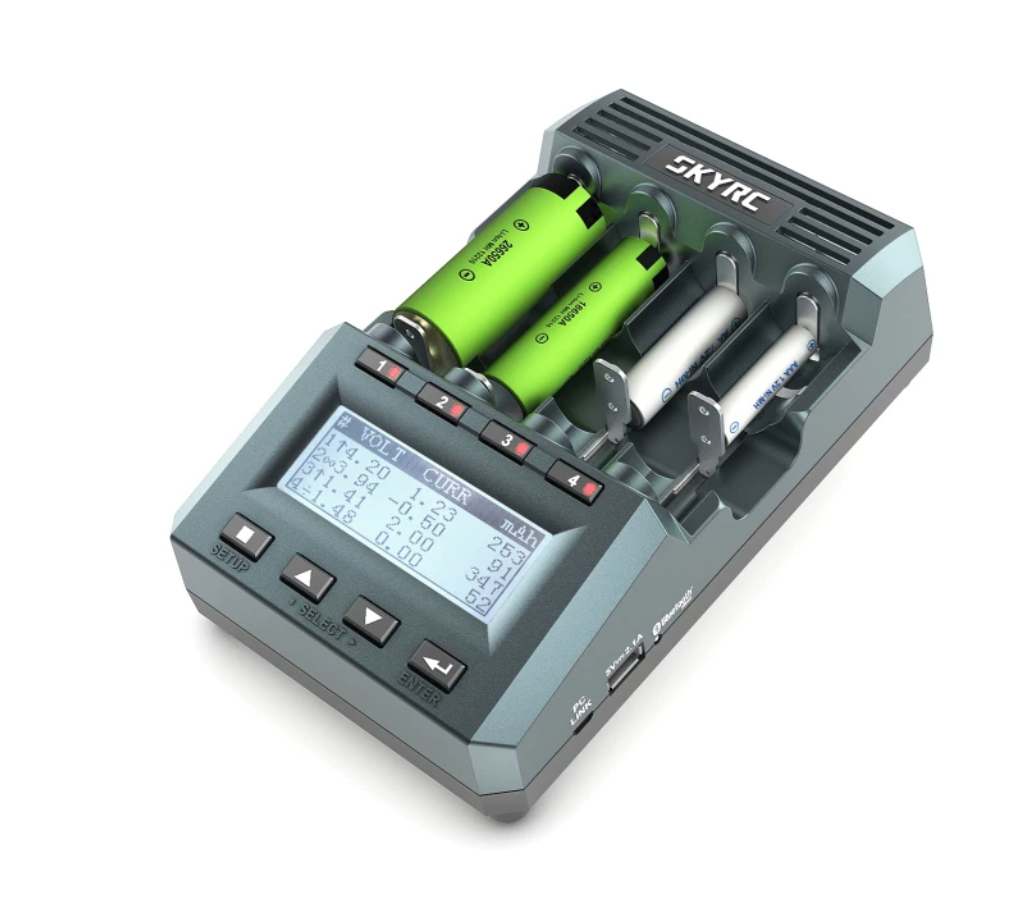

The SkyRC MC3000 charger uses four independent bays with an on-device LCD and optional smartphone app monitoring for cylindrical batteries.

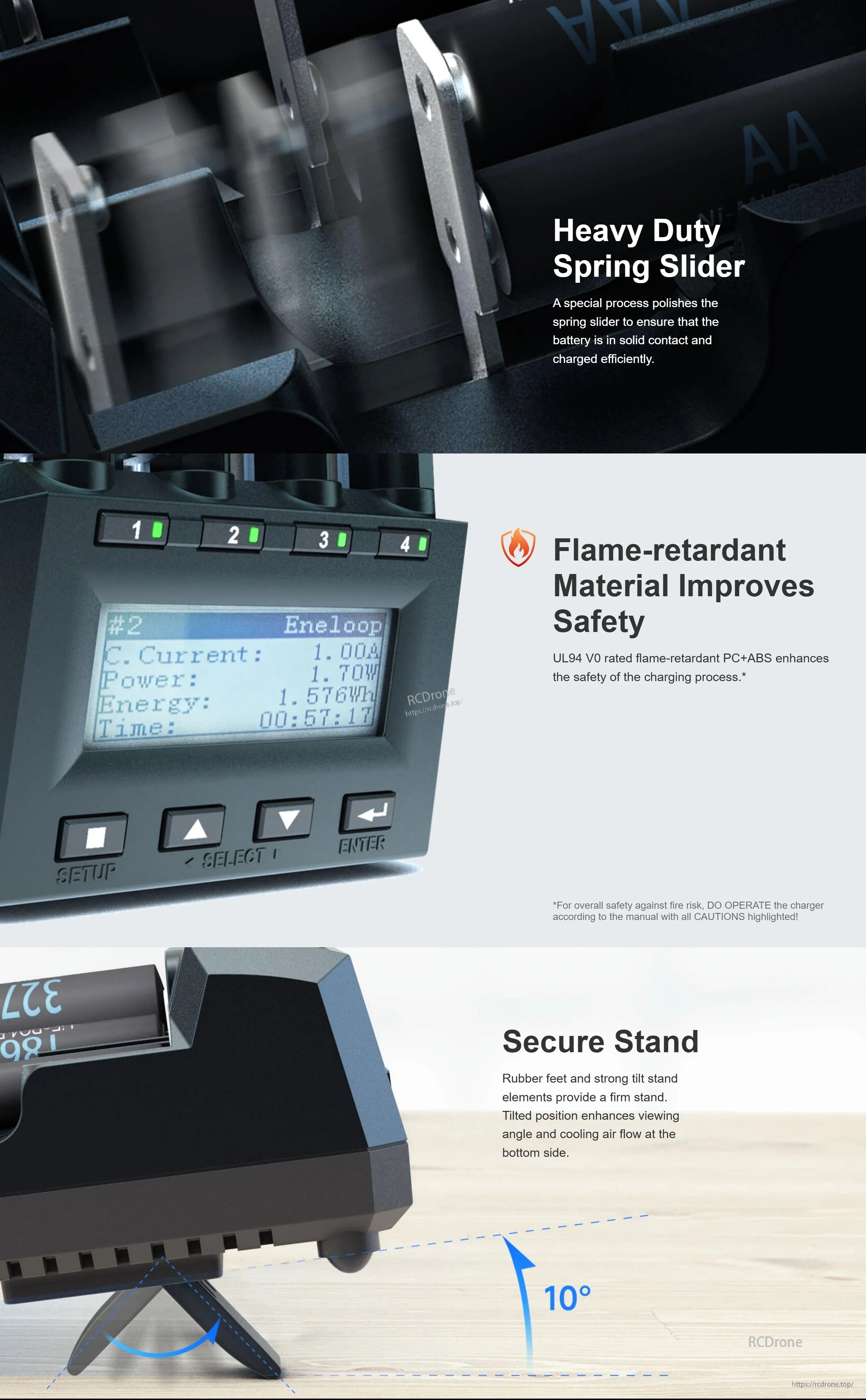

The SkyRC MC3000 uses spring-loaded battery sliders and a 10° tilt stand to keep cells secure while making the display easier to read.
The SkyRC MC3000 uses a 128×64 display for per-slot voltage/current readouts and supports battery internal resistance measurement for quick health checks.

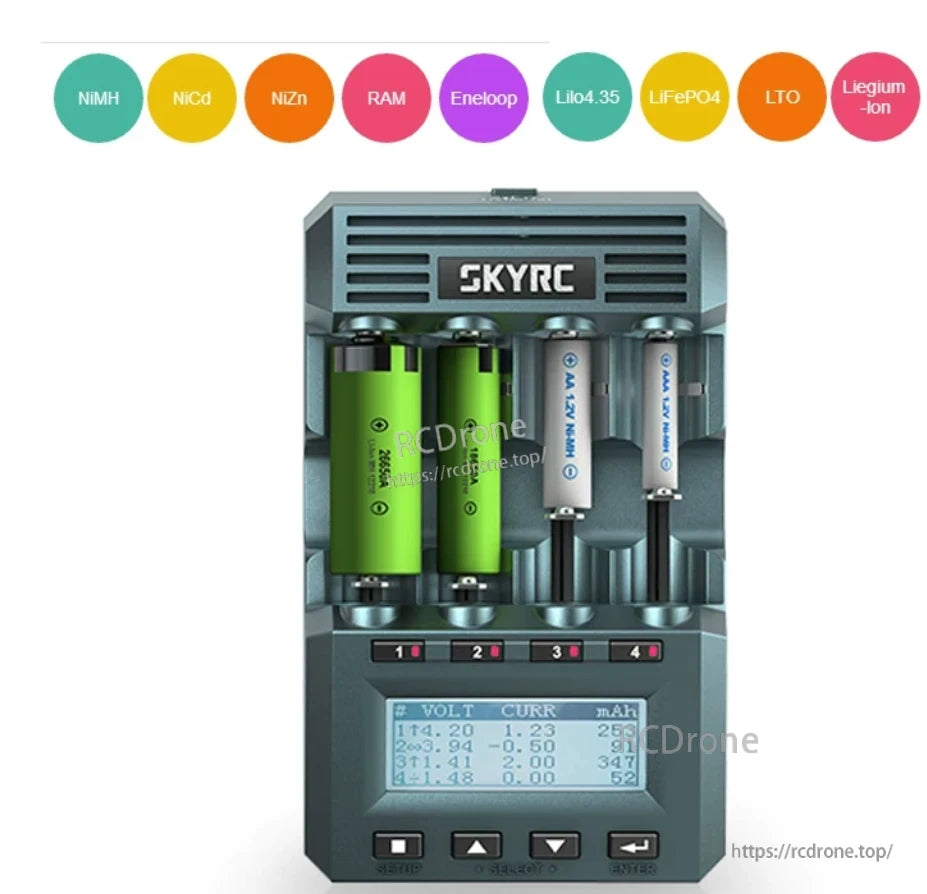

The SkyRC MC3000 features four independent charging bays and an LCD screen for monitoring voltage, current, and capacity per slot.

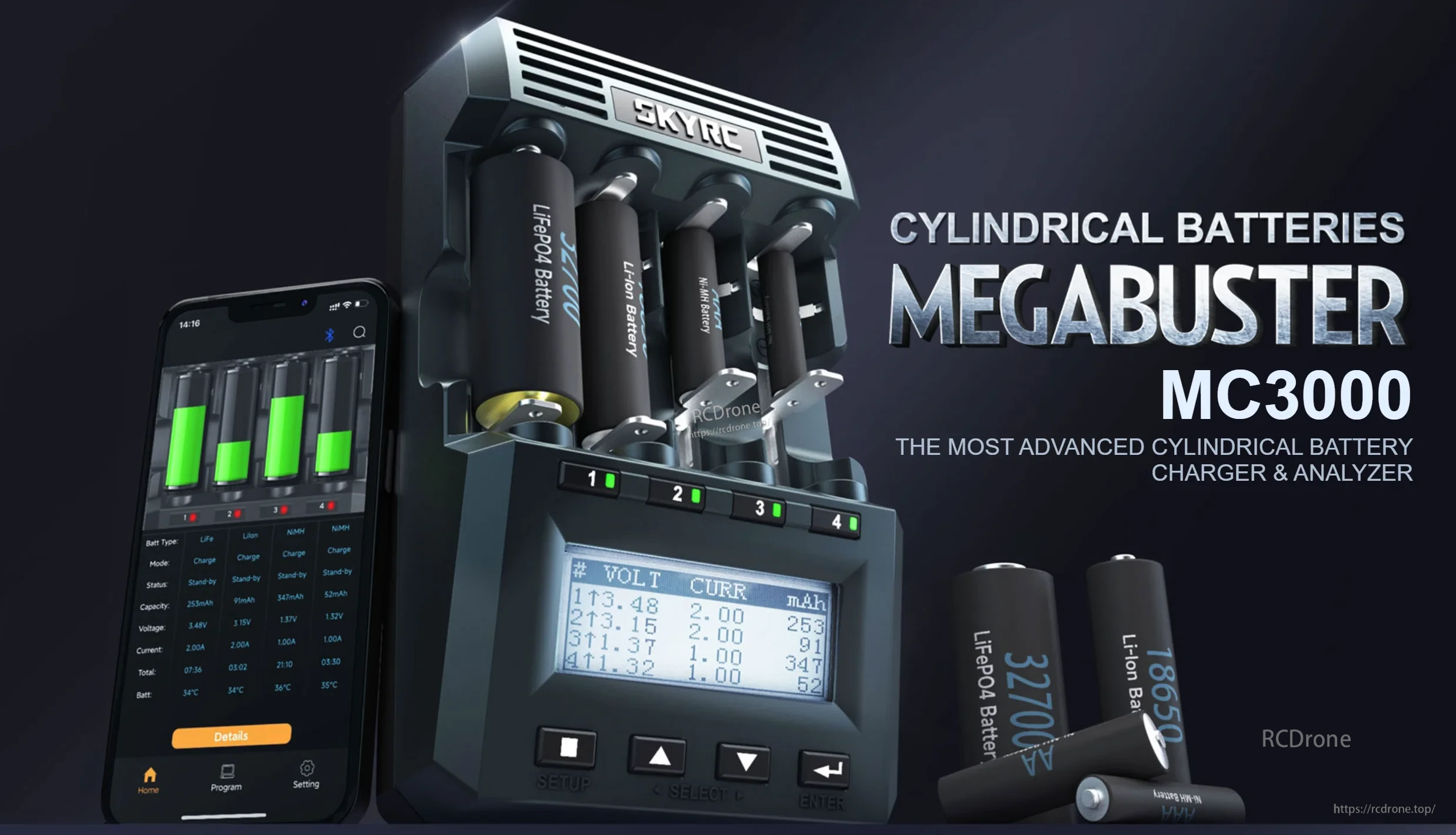

The SkyRC MC3000 charger uses a 4-slot design with an LCD readout and supports multiple chemistries including NiMH, NiCd, Li-ion, LiFePO4, and Na-ion.
SkyRC MC3000 supports Bluetooth app control and PC monitoring for adjusting charge settings and viewing real-time data.

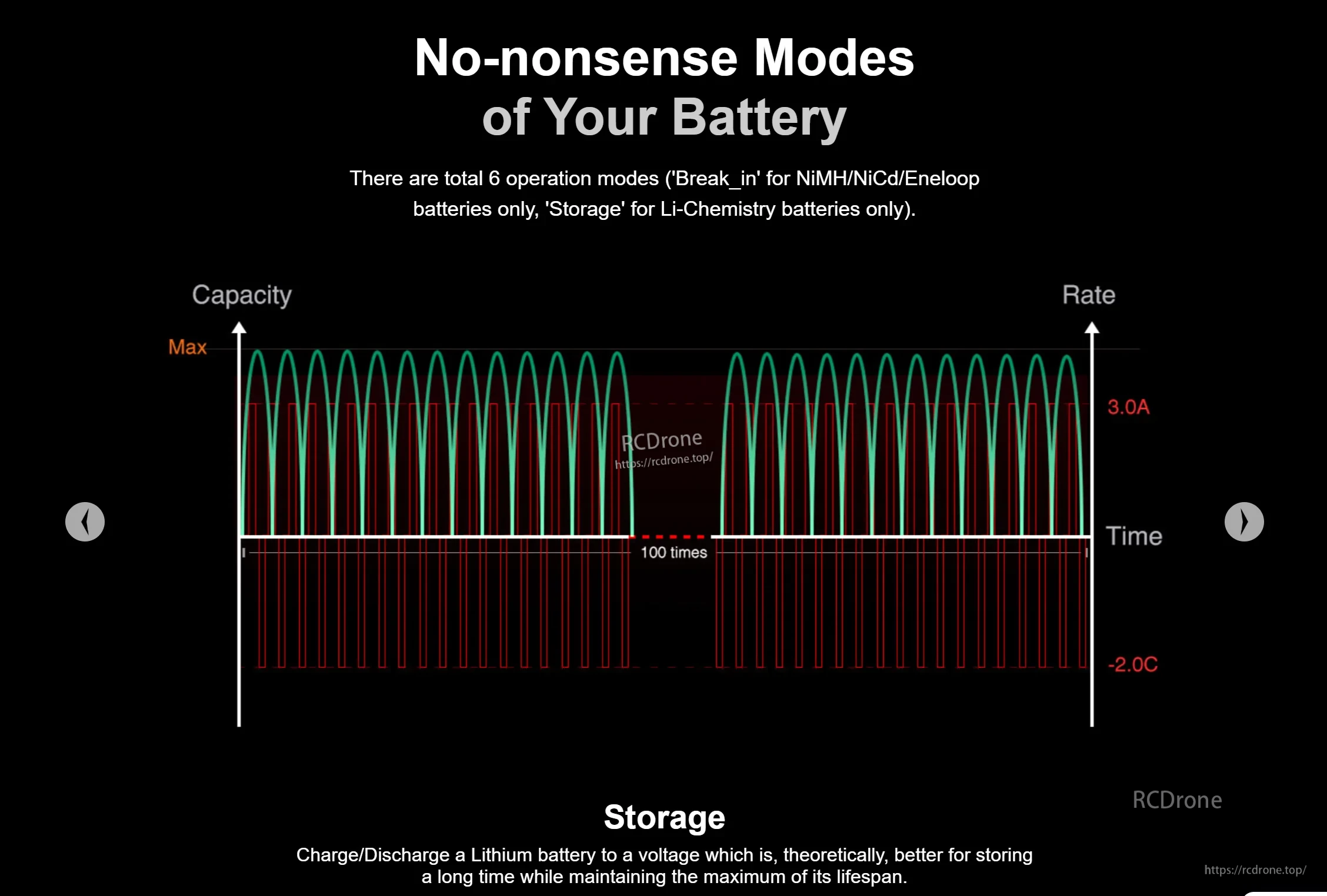

The MC3000 Storage mode is designed to charge or discharge lithium batteries to a storage-friendly voltage for long-term keeping.
The SkyRC MC3000 package includes the charger unit, an AC switching adapter, an AC power cord, and an instruction manual.
