SkyRC NC3000 Pro Battery Charger for AA/AAA NiMH/NiCd, PD/QC 30W, 4-Slot, Bluetooth, 6 Modes

Overview

SkyRC NC3000 Pro is a NiCd/NiMH AA/AAA battery charger with four independent slots, PD/QC 30W input support, and a 1.77-inch TN LCD for per-slot status and data display. It provides adjustable charge/discharge parameters, battery analysis and conditioning functions, and Bluetooth connectivity for use with the SkyCharger app.

Key Features

• 4 independent AA/AAA slots for simultaneous charging and management
• PD/QC input power support: PD, QC 30W
• Quick charge protocols: QC2.0, QC3.0, PD3.0
• Adjustable charge rate: 0.20-3.00A (up to 3000mA per slot)
• Adjustable discharge rate: 0.20-2.50A (up to 2500mA per slot)
• Max charge power: 22W
• Max discharge power: 15W
• Trickle charge rate: 10-300mA
• Target voltage setting: 1.47-1.80V
• Discharge cut-off voltage: 0.50-1.10V
• Supported capacity range: 100-5000mAh
• -Delta V setting: 1-20mV
• Multi SafeCircuit protection: input DC voltage low voltage alarm (activates below 4.7V +/- 0.3V) and high voltage alarm (activates above 22V +/- 0.3V); capacity protection against overcharge/overdischarge
• FlexiPulse internal resistance detection reduces charge current when high internal resistance is detected (helps reduce overheating)
• Built-in Bluetooth with SkyCharger app support; graphical interface with charging graph and recorded data (app download via official app stores)
• Localized UI languages: English, Dutch, Chinese, French, Spanish, Japanese
• LED indicators for slot status (example: blinking green = charging)
• Convenient setup: auto-start with last remembered settings (if power remains uninterrupted); copy one slot setting to other slots
• Precision aluminum scrolling wheel for menu control
• Twin thermal fan system with automatic fan speed adjustment based on power demand for heat dissipation
• ColorX UI details (as stated): 262,144 colors; 160 x 128; 1.77 inch TN LCD; 4 White LEDs; 250:1 contrast; ST7735S driver; 8080PI interface

Operating Modes

• Turbo (Fast Charge)
• Charge
• Discharge
• MaxBoost (fully charges, then discharges to a specified capacity based on settings)
• Break-in (battery formatting/activation via CDC: charge-discharge-charge sequence; may need to be repeated two to three times in some cases)
• Cycle (used for matching/grouping cells by similar measured capacity to optimize performance when multiple batteries are used together)

Battery Conditioning Notes

• For underperforming batteries: use Cycle mode 1-3 times.
• If capacity is still low, switch to Break-in mode.
• If capacity improves by over 10%, repeat Break-in mode 1-3 times.
• If there is no significant improvement and capacity remains under 60%, replacement may be required.

Specifications

FlexiPulse (Internal Resistance Detection) Charge-Rate Behavior

Applications

• Toys
• Remote
• Toothbrush
• Preschool learning pad
• Razor
• Wireless keyboard
• Wireless mouse
• Clock
• Calculator
• Digital scale
• Gamepad

For compatibility questions, setup help, or after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

SkyRC NC3000 Pro charges up to four AA/AAA cells in individual bays, with a color screen and front dial for easy control.

The SkyRC NC3000 Pro features four independent charging bays with an LCD status screen and a front control knob for easy setup.

The SkyRC NC3000 Pro charges up to four AA/AAA cells and includes Multi SafeCircuit protection with input voltage and capacity safeguards.

SkyRC NC3000 Pro provides four independent slots with a color screen for setting and monitoring AA/AAA charging and cycling modes.

The SkyRC NC3000 Pro charges up to four AA/AAA cells at once and supports PD/QC fast charging via USB-C for quicker turnaround.

The SkyRC NC3000 Pro is designed for charging AA/AAA batteries used in everyday devices like remotes, wireless keyboards, and gamepads.

SkyRC NC3000 Pro supports battery formatting to help optimize cells through controlled charge and discharge cycles.

The SkyRC NC3000 Pro pairs a four-slot charger with a color LCD display, front status LEDs, and Bluetooth app support for monitoring and settings.

The SkyRC NC3000 Pro uses a four-slot design with an on-device display and controls for managing rechargeable AA/AAA cells.

The SkyRC NC3000 Pro uses intuitive LED indicators and an on-screen menu to make battery charging status easy to read at a glance.

The SkyRC NC3000 Pro uses a clear LCD menu with multiple language options to make setting charge parameters more straightforward.

The NC3000 Pro uses a scroll wheel control to make navigating charger menus and settings quick and precise.

SkyRC NC3000 Pro provides six charge modes—Turbo, Charge, Discharge, MaxBoost, Break-in, and Cycle—with an LCD screen and app-based monitoring.

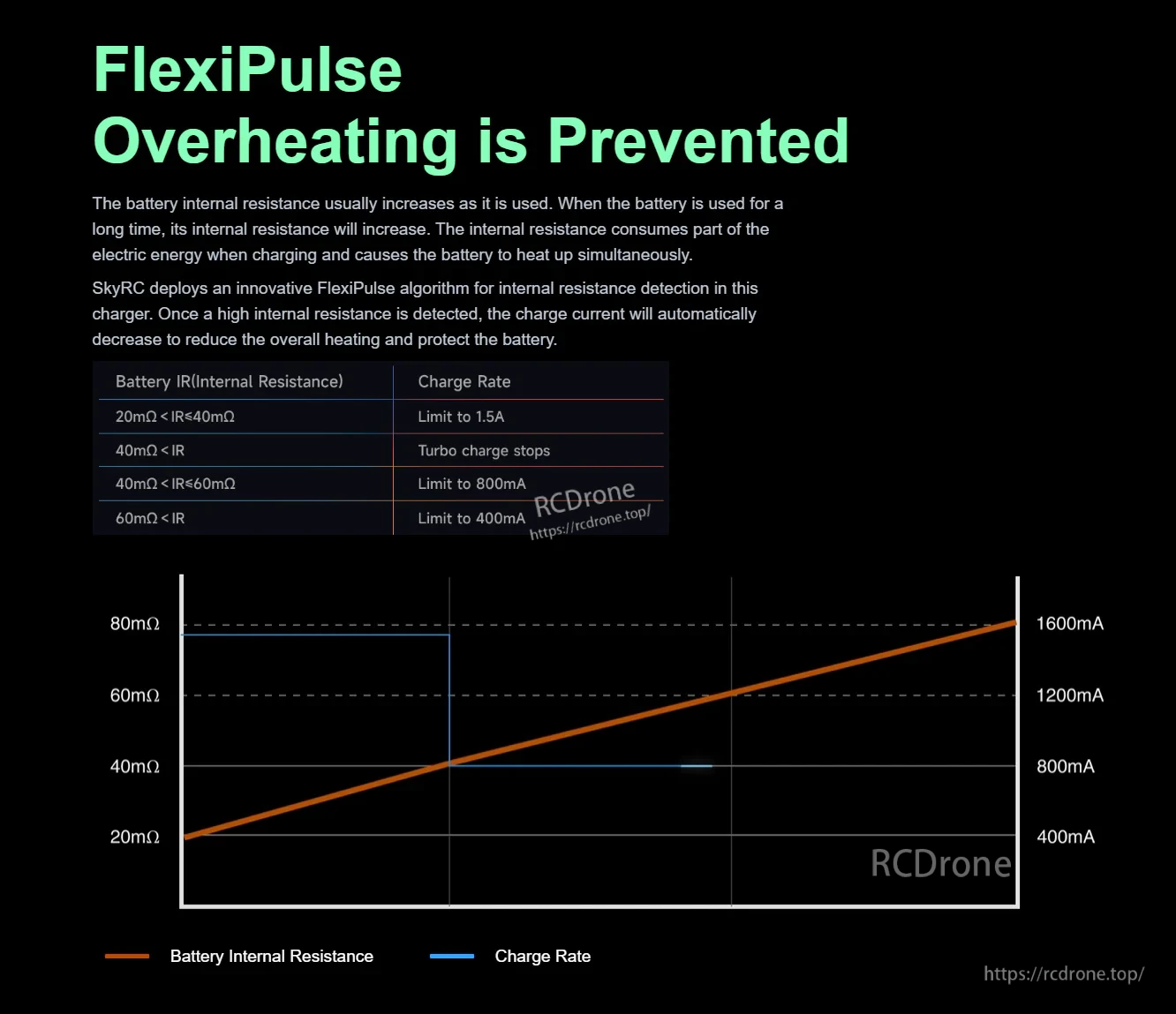

SkyRC FlexiPulse adjusts charge current based on measured battery internal resistance, reducing the rate as resistance rises to help limit heat buildup.
